32GB RAM 3600 DDR4 CL18

EXPERT DESCRIPTION

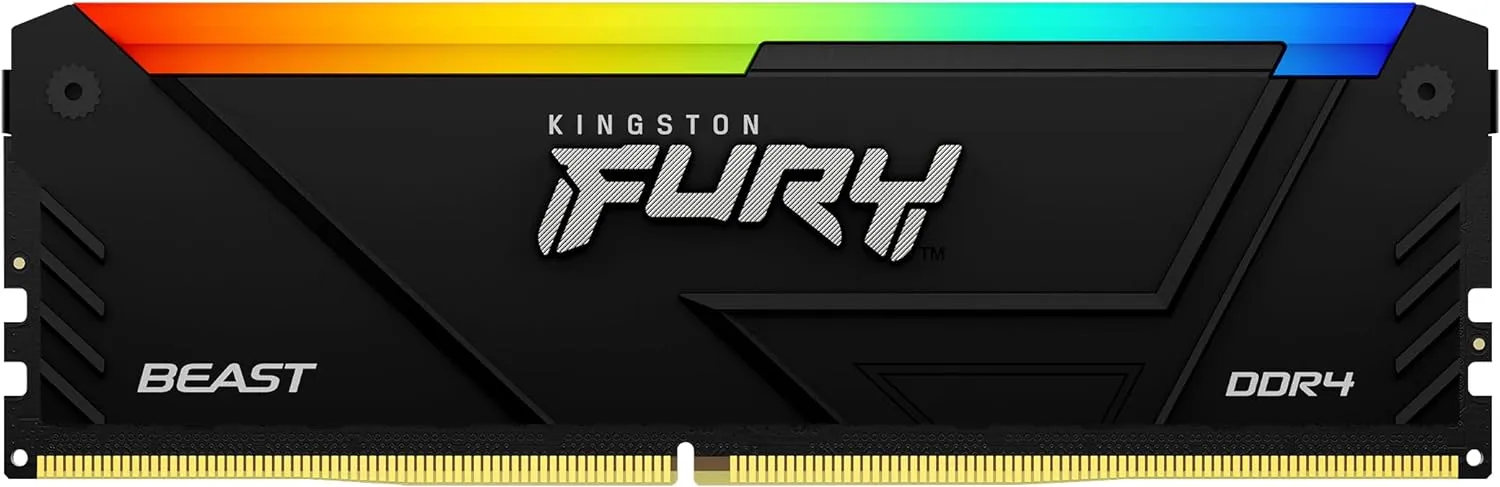

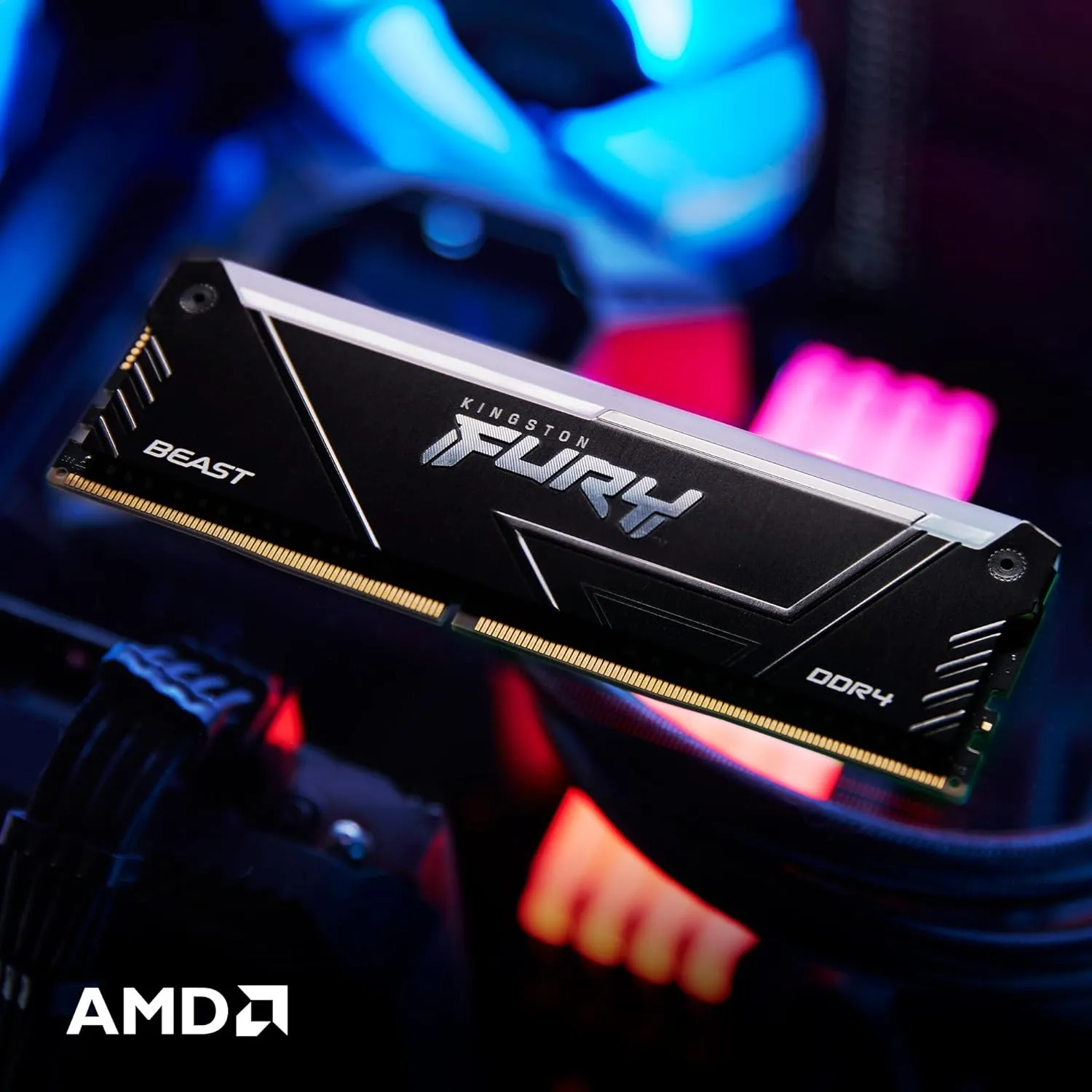

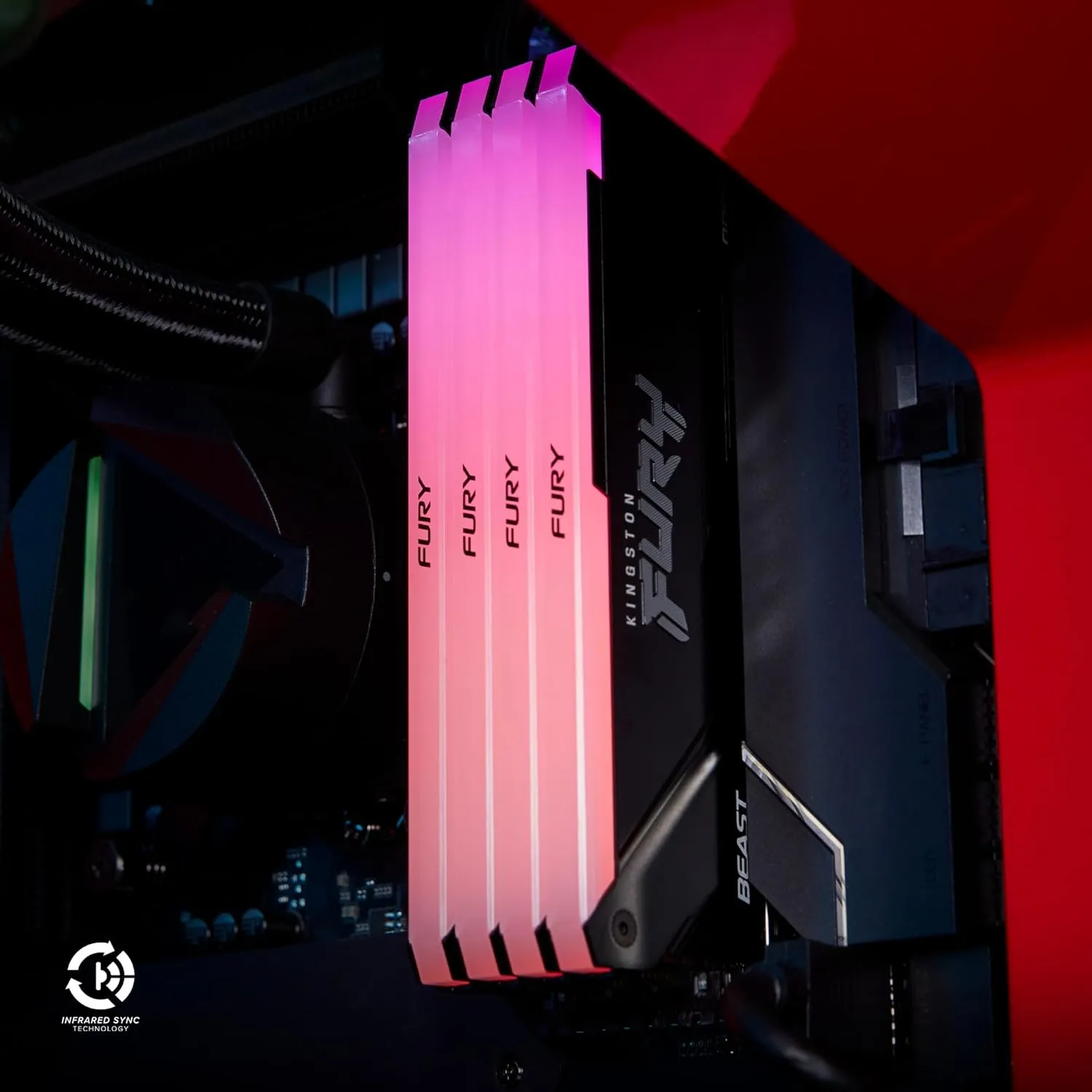

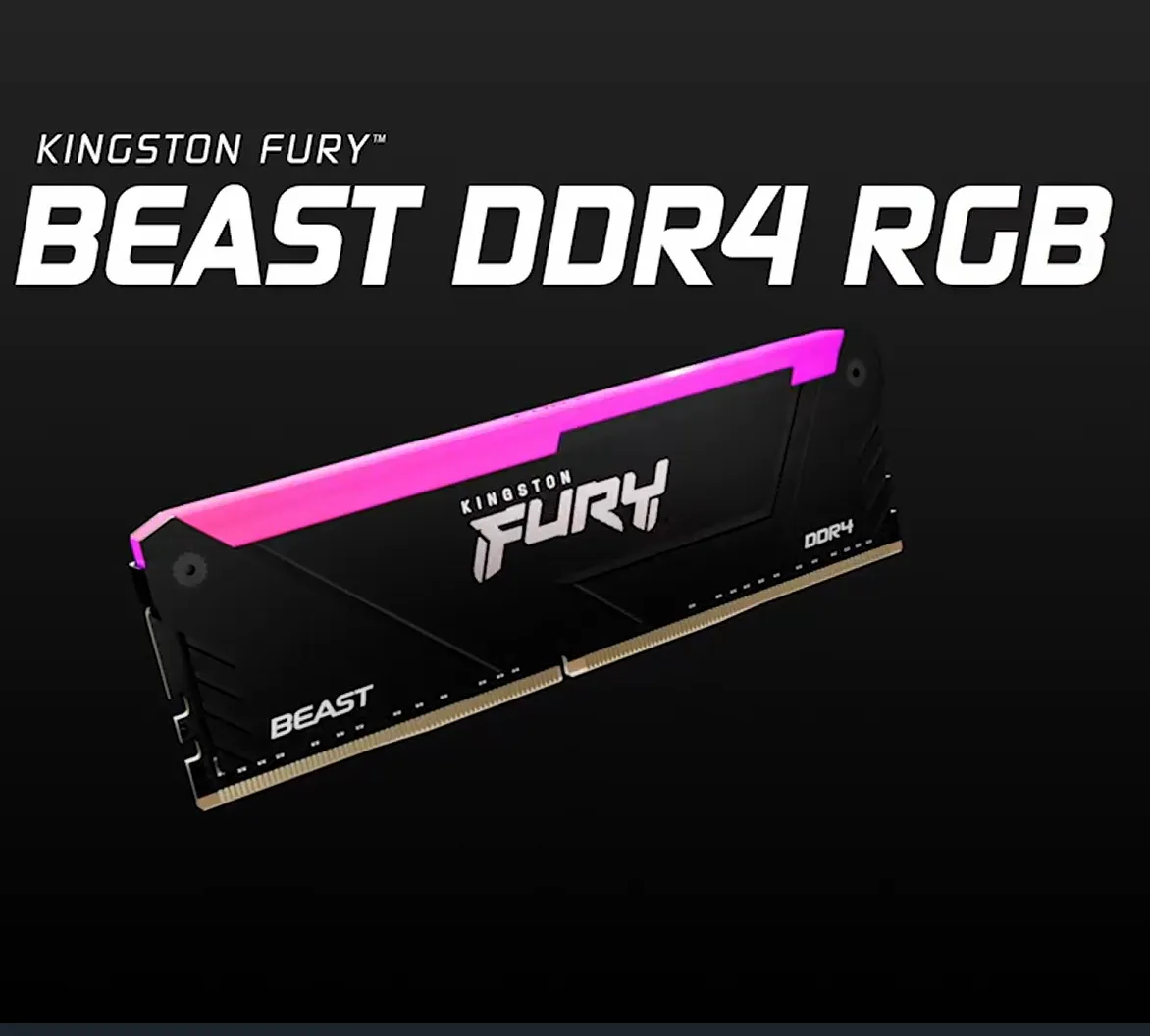

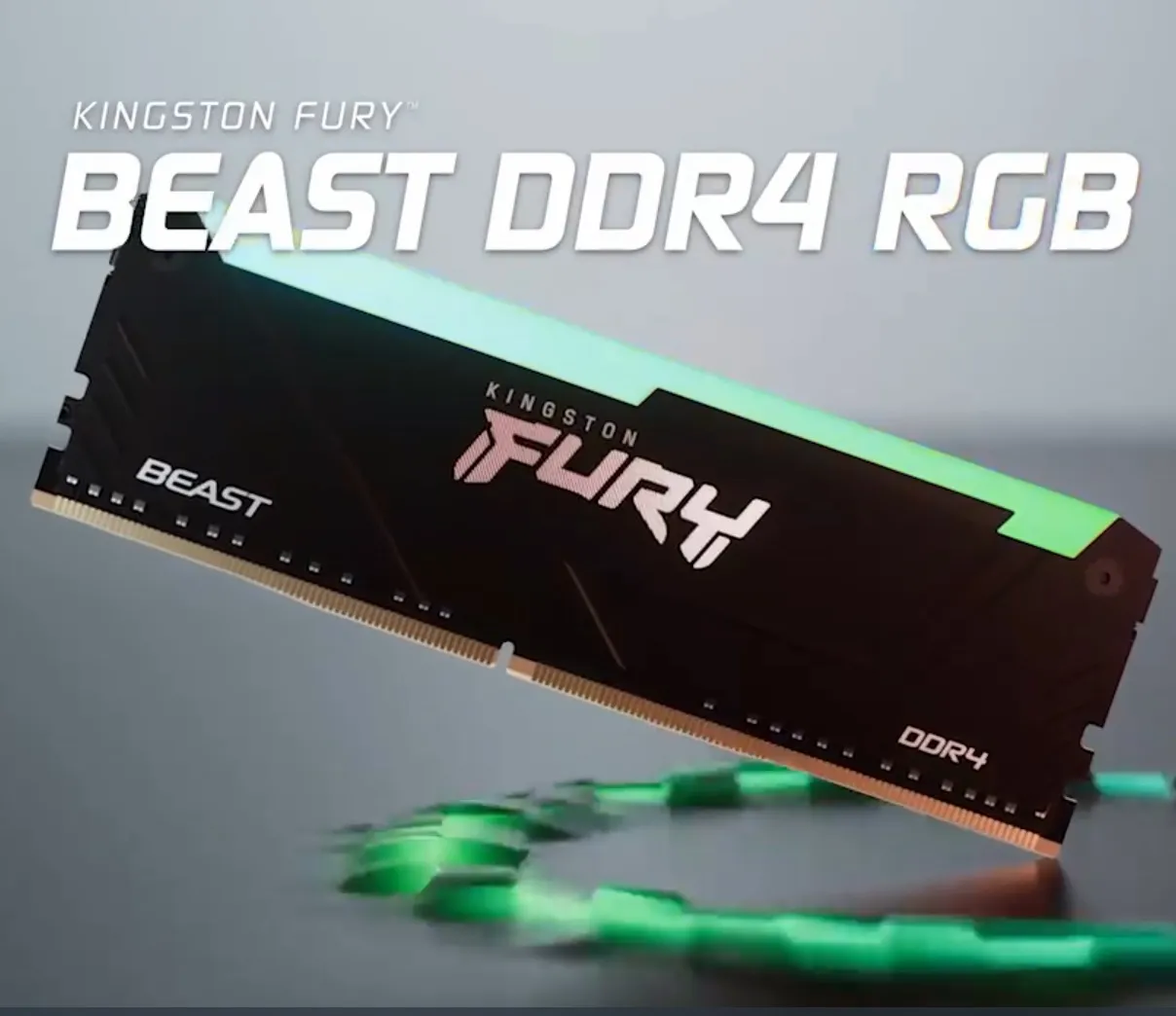

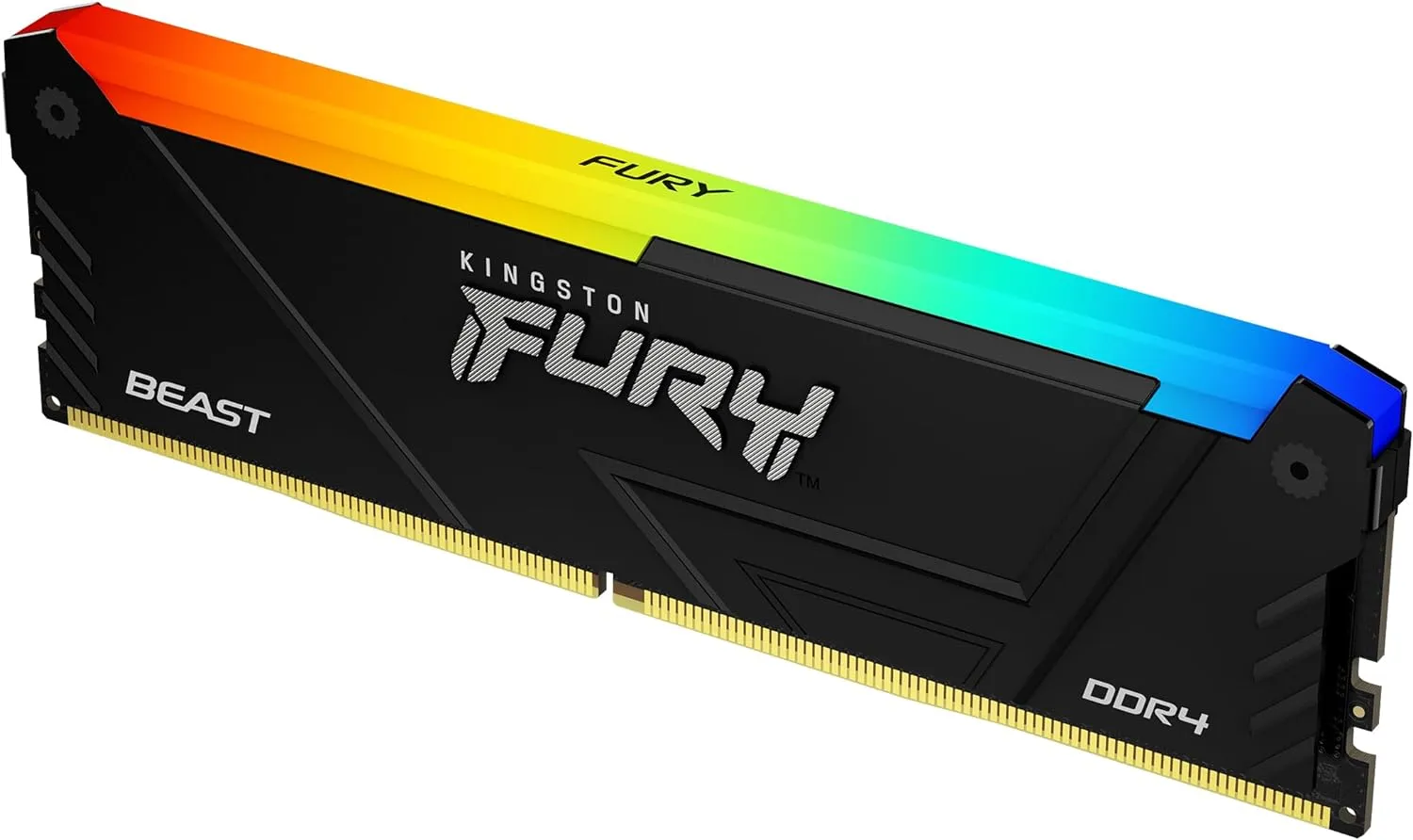

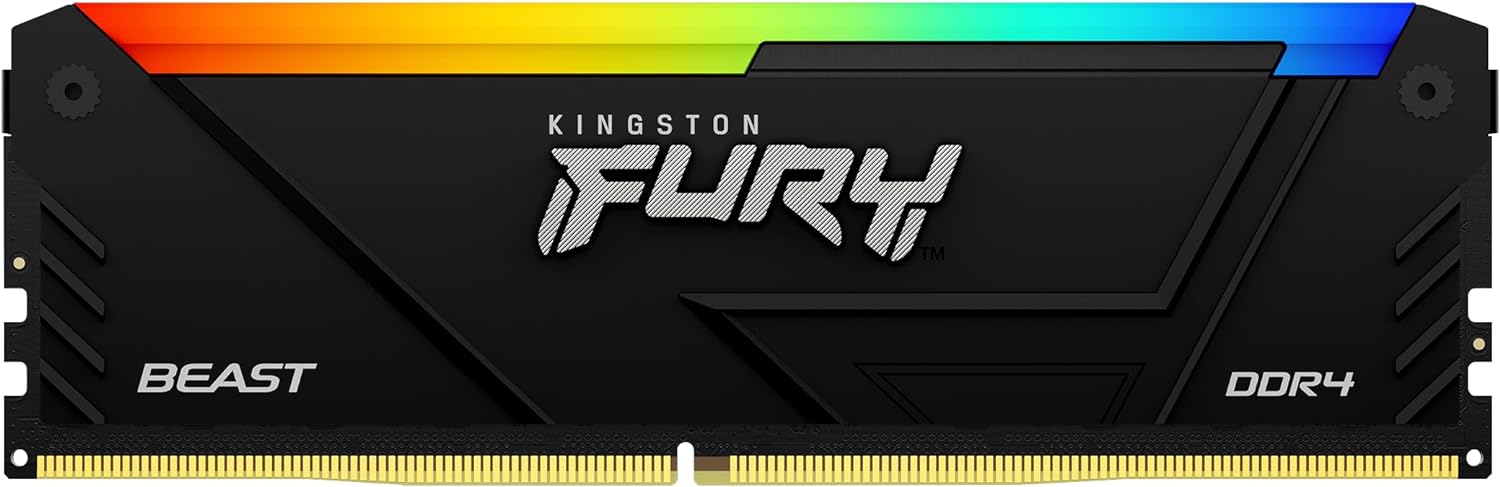

• Kingston FURY KF436C18BB2A/32 is a 4G x 64-bit (32GB) DDR4-3600 CL18 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components per module.

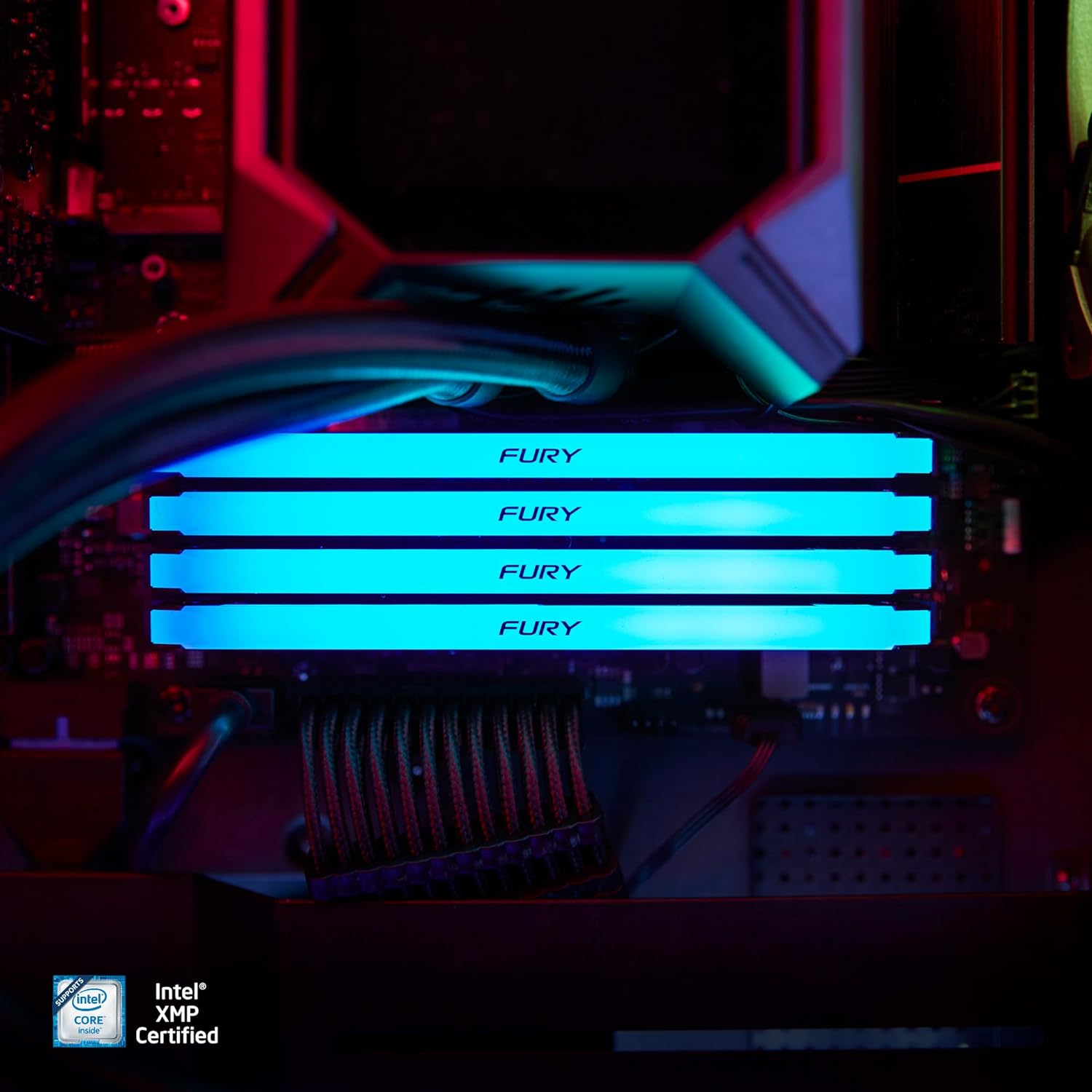

• Each module kit supports Intel® Extreme Memory Profiles (Intel® XMP) 2.0.
• Each module has been tested to run at DDR4-3600 at a low latency timing of 18-22-22 at 1.35V.
• The SPDs are programmed to JEDEC standard latency DDR4-2400 timing of 17-17-17 at 1.2V.
• Each 288-pin DIMM uses gold contact fingers.

EXPERT FEATURES

• Power Supply: VDD = 1.2V Typical
• VDDQ = 1.2V Typical
• VPP = 2.5V Typical
• VDDSPD = 2.2V to 3.6V
• On-Die termination (ODT)
• 16 internal banks; 4 groups of 4 banks each
• Bi-Directional Differential Data Strobe
• 8 bit pre-fetch
• Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
• Height 1.69” (43mm), w/heatsink

EXPERT SPECIFICATIONS

• CL(IDD) 17 cycles
• Row Cycle Time (tRCmin) 45.75ns(min.)
• Refresh to Active/Refresh | Command Time (tRFCmin) 350ns(min.)
• Row Active Time (tRASmin) 32ns(min.)
• UL Rating  94 V – 0
• Operating Temperature 0o C to +70o C
• Storage Temperature -40o C to +85o C

KF436C18BB2A/32

32GB RAM 3600 DDR4 CL18

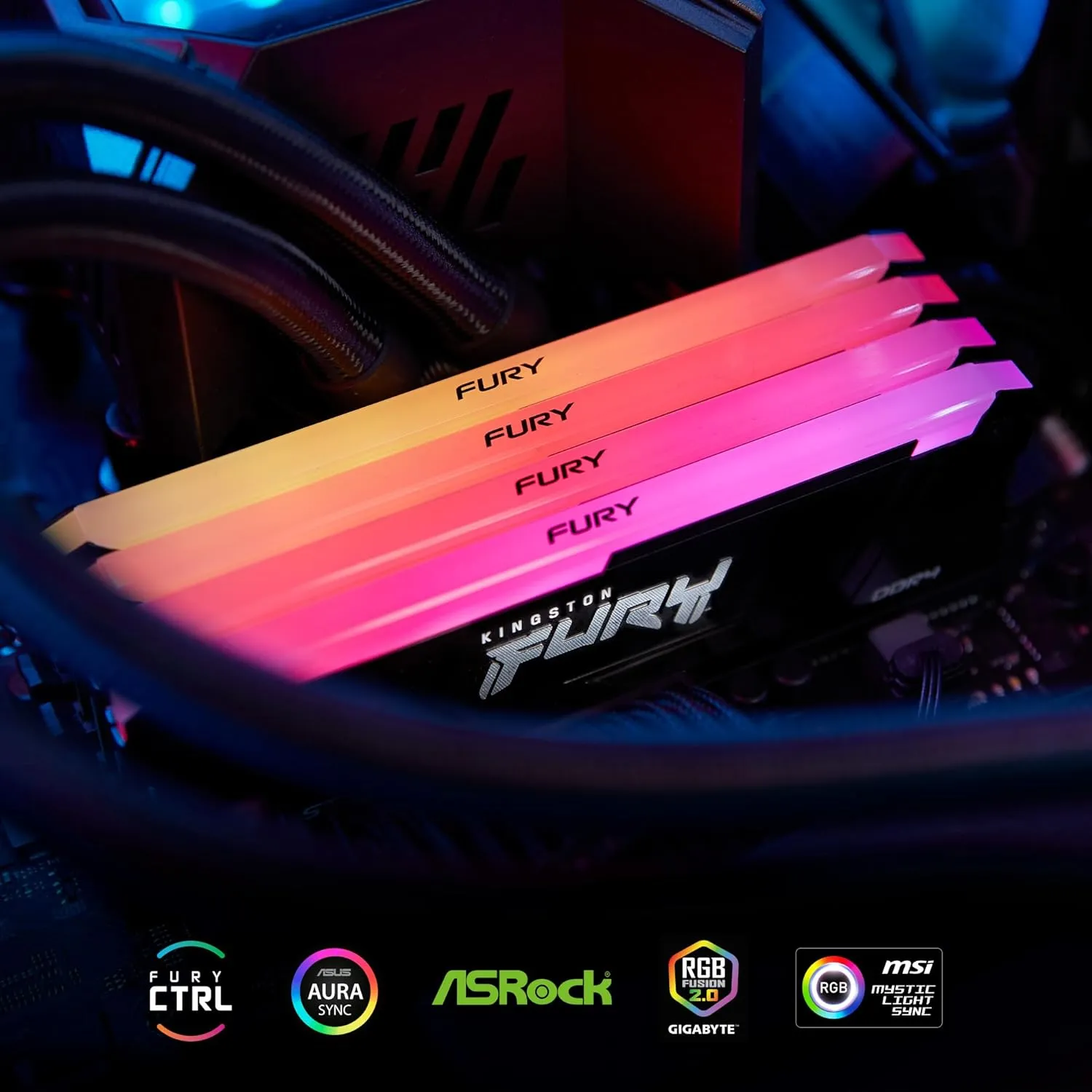

Kingston FURY Beast 32GB RAM 3600MT/s DDR4 CL18 Desktop Memory Single Module | Intel XMP | AMD Ryzen | Plug n Play | RGB Infrared Syncing | KF436C18BB2A/32
