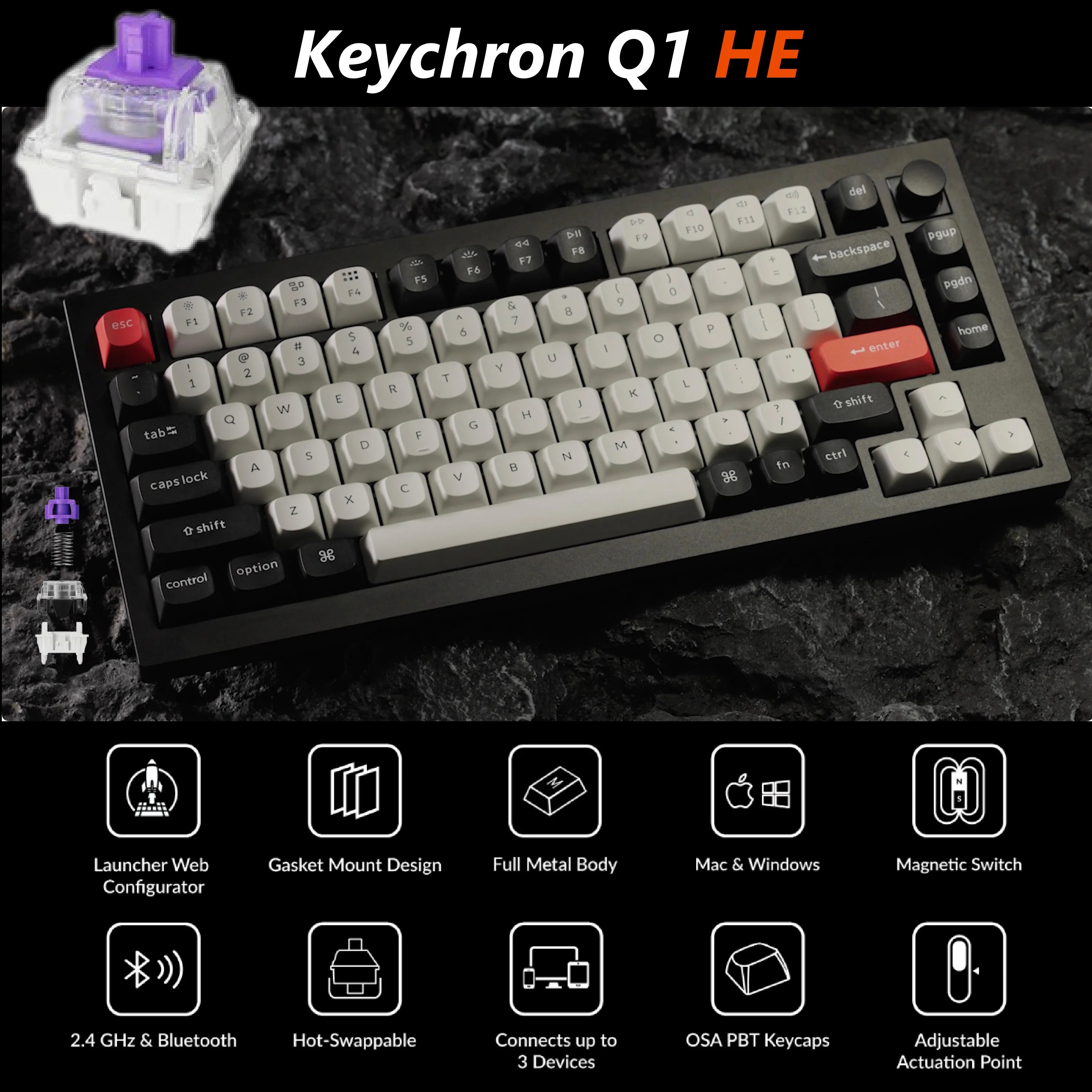

Keychron Q1 HE QMK Wireless Custom 75% Layout Metal RGB Keyboard with Hall Effect Gateron Double-rail Magnetic Nebula Switches ; 1000 Hz 2.4 GHz Mode or Bluetooth 5.1 for up to 3 Device Connectivity , 0.2 mm to 3.8 mm Adjustable Actuation Points ; Dynamic Rapid Trigger ; Four Actions Per Key ; OSA Profile PBT Keycaps ; Windows and macOS | CARBON BLACK Q1H-M1
$ 195.00 ---ONLY---
Keyboard Double-rail Magnetic Nebula Switches ~ CARBON BLACK Q1H-M1
Keychron Q1 HE Features
Overview
- World’s First: 75% layout wireless QMK custom keyboard.
- Switch Technology: Equipped with Hall Effect Gateron double-rail magnetic switches for faster feedback and dynamic triggering.
Connectivity
- 2.4 GHz Mode: Impressive 1000 Hz polling rate for lightning-fast performance.
- Bluetooth 5.1: Connect seamlessly to up to three devices for multitasking.
Customization Options
- Keycap and Switch Selection: Fully customizable keycaps and switches to suit your style.
- Gateron Magnetic Switches: Dual-rail structure ensures unparalleled stability and smoothness.
- Adjustable Actuation Points: Customize sensitivity from 0.2 mm to 3.8 mm for personalized gaming.
Advanced Features
- Dynamic Rapid Trigger: Activate keys based on travel distance for quick succession actions.
- Four Actions Per Key: Assign multiple actions to a single key based on how deep you press.
Programming and Software
- QMK Firmware: Open-source for endless customization possibilities.
- Keychron Launcher: Web app for remapping keys, adjusting actuation points, and creating macros.
Design and Build Quality
- Durable Aluminum Body: Crafted from 6063 aluminum, resistant to damage and environmentally friendly.
- Double-Gasket Design: Reduces acoustic resonance while maintaining typing sound quality.
Performance
- Powerful MCU: Engineered with a chip offering 256K flash and a 1000 Hz polling rate for competitive gaming.
- System Compatibility: Toggle between Windows and macOS layouts with customized keycaps.
Keycap Quality
- OSA Profile PBT Keycaps: Oil-resistant with an SA-like shape, enhancing typing feel and preventing fading.
Hot-Swappable Design
- Effortless Switch Replacement: Easily swap Hall Effect magnetic switches without soldering.
Lighting
- South-Facing RGB LEDs: Optimal backlighting designed to illuminate the keyboard effectively from the typist’s angle.
Stabilizers
- Screw-In PCB Stabilizers: Enhanced stability for larger keys, providing a smooth typing experience.
Elevate your gaming experience with the Keychron Q1 HE—where innovation meets customization for the ultimate performance.
The Fully Assembled version includes:
- The keyboard PCB, the case, and the aluminum plate.
- Keycaps (included Mac & Windows keycaps).
- Adjustable-actuation-point Gateron double-rail magnetic switches.
The Q1 HE is compatible exclusively with the Gateron Double-Rail Magnetic Switch. It does not support other magnetic switches such as the Gateron Magnetic Jade or Gateron KS-20 Magnetic switches.
Expert Specs
| Width | 145 mm |
|---|---|
| Length | 327.5 mm |
| Front Height | 22.6 mm (without keycaps) |
| Back Height | 35.8 mm (without keycaps) |
| Feet Height | 2.4 mm |
| Angle | 5.2° |
| Weight | 1735 g ± 10 g (Fully Assembled version) |
| Body Material | Aluminum |
| Plate Material | Aluminum |
| Polling Rate | 1000 Hz (Wired and 2.4 GHz) / 90Hz (Bluetooth) |
| N-Key Rollover (NKRO) | Yes for both wireless and wired modes |
| Rapid Trigger | Yes |
| Adjustable Actuation Points | 0.2 – 3.8 mm |
| Dynamic Keystrokes | 4-in-1 action keys |
| Sensitivity | 0.1 mm |
| Keycap | OSA Double-shot keycaps, not shine-through |
|---|---|
| MCU | ARM Cortex-M4 32-bit STM32F402RC (256KB Flash) |
| Backlight | South-facing RGB LED |
| Switch | Gateron double-rail magnetic switch |
| Hot-swappable Support | Yes, compatible with Gateron double-rail magnetic switch only. |
| Stabilizer | Screw-in PCB stabilizer |
| Cable | Type-C cable (1.8 m) + Type-A to Type-C adapter |
| Connectivity | 2.4 GHz / Bluetooth / Type-C wired |
| Bluetooth Version | 5.1 |
| Bluetooth Device Name | Keychron Q1 HE |
| Battery | 4000 mAh Rechargeable li-polymer battery |
| Operating Environment | -10 to 50℃ |
| Wireless Working Time (Backlit off) | Up to 100 hours |
