TL-SG3428X JetStream 24-Port Gigabit L2+ Managed Switch with 4× 10GE SFP+ Slots

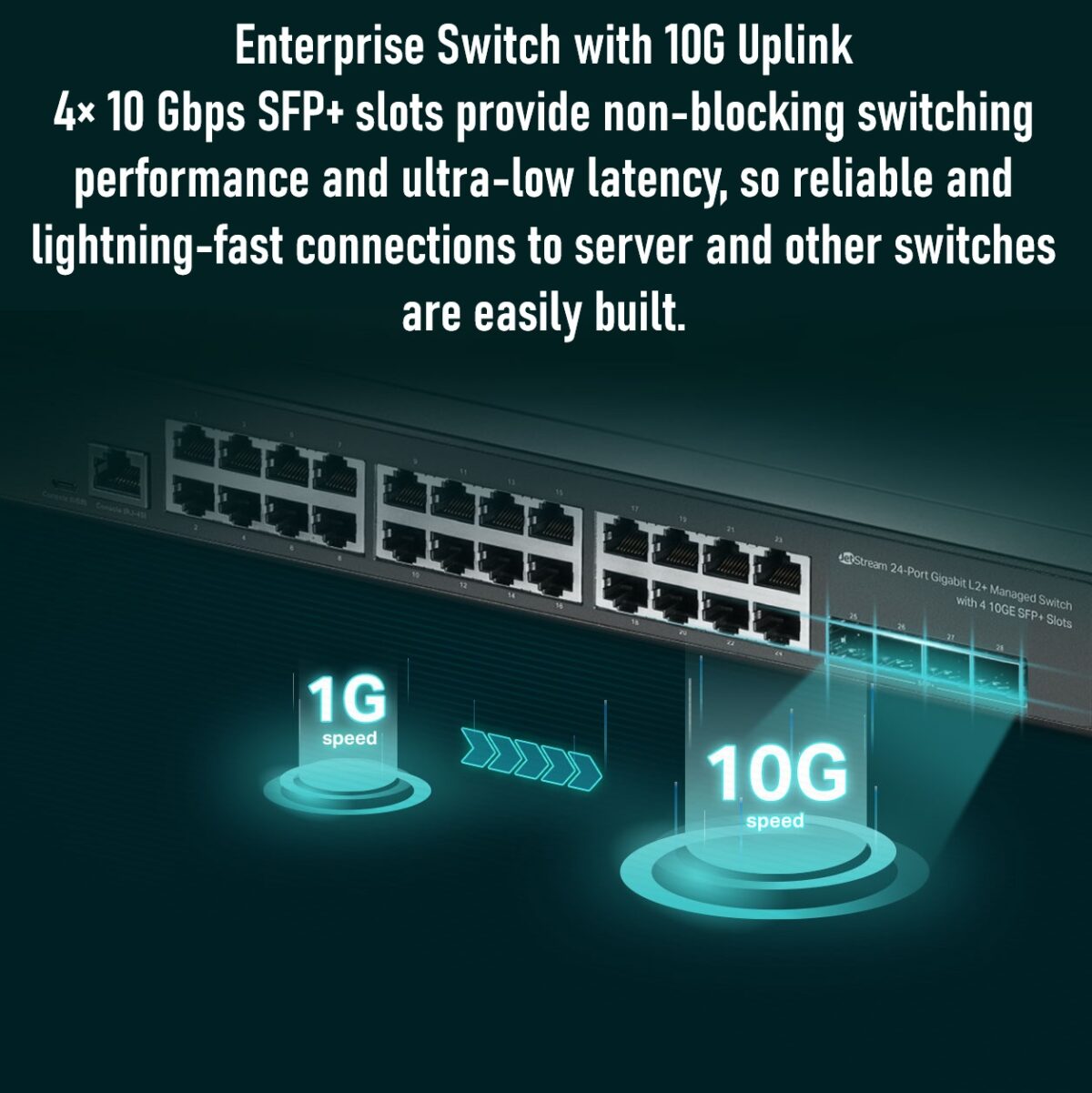

10G Warp-Speed Uplinks: Four 10 Gbps SFP+ slots unleash lightning-fast uplinks for high-bandwidth backbones, non-blocking switching, and ultra-low latency links to servers or core switches.
24× Gigabit Ports for Everyday Heroes: Stable, high-speed RJ45 connections ready for workstations, access points, IP cameras, and other mission-critical devices.
Omada SDN Integration: Supports Zero-Touch Provisioning*, Cloud Management, Multi-Site Control, and Intelligent Monitoring—because setup should be magic, not misery.
Advanced L2+/L3 Brainpower: Static Routing, IGMP Snooping, 802.1Q VLAN, MLD, QinQ, OAM, DLDP—your network playground gains serious engineering superpowers.
Enterprise-Grade Security Fortress: IP-MAC-Port Binding, ACLs (L2–L4), Port Security, DoS Defend, DHCP Snooping, Storm Control, 802.1X/RADIUS/TACACS+ authentication keep intruders crying at the gate.
Voice & Video Optimization: L2/L3/L4 QoS prioritizes conferencing, calling, and streaming traffic to keep conversations crisp and frames buttery smooth.
Silent Operation, Maximum Efficiency: Fanless metal chassis keeps noise at absolute zero—even while pushing 128 Gbps switching capacity.
ISP-Ready Features: sFlow, QinQ, L2PT, PPPoE ID Insertion, IGMP Authentication—designed for service providers and large-scale deployments.
Dual Management Powers: Control it your way—via Web GUI, CLI (Console/Telnet/SSH), SNMP, RMON, Omada app, or cloud-based controllers.
IPv6-Ready for the Future: Full IPv6 suite (ND, MLD, DHCPv6, IPv6 ACL, PMTU, IPv6 SNMP/SSH/SSL) ensures seamless next-gen compatibility.

Expert Specs

Category	Specifications
Interfaces	24× 10/100/1000 Mbps RJ45, 4× 10G SFP+, 1× RJ45 Console, 1× Micro-USB Console
Fan Quantity	Fanless
Power Supply	100–240 V AC ~ 50/60 Hz
Dimensions (W×D×H)	17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
Mounting	Rack Mountable
Max Power Consumption	23.6 W (110 V/60 Hz)
Max Heat Dissipation	80.353 BTU/h (110 V/60 Hz)
Switching Capacity	128 Gbps
Packet Forwarding Rate	95.23 Mpps
MAC Address Table	16K
Packet Buffer Memory	12 Mbit
Jumbo Frame	9 KB
QoS	8 Queues, 802.1p CoS/DSCP, SP/WRR/SP+WRR, Bandwidth Control, Mirror/Redirect/Rate Limit/QoS Remark
L3 Features	16 IPv4/IPv6 Interfaces, 48 Static Routes, Static ARP (128 entries), Proxy ARP, Gratuitous ARP, DHCP Server/Relay/Interface/VLAN/L2 Relay
L2/L2+ Features	Static & LACP Link Aggregation (8 groups, 8 ports each), STP/RSTP/MSTP with security, Loopback (Port/VLAN), 802.3x Flow Control, Mirroring (various modes)
L2 Multicast	IGMP v1/v2/v3 Snooping, Fast Leave, Querier, Authentication; MLD v1/v2 Snooping, MVR, Multicast Filtering (256 profiles)
Advanced Features	Automatic Device Discovery, Batch Config, Batch Firmware Upgrade, Monitoring, Event Warnings, Unified Config, Reboot Schedule
VLAN	Max 4K VLAN Groups, 802.1Q, MAC VLAN (7), Protocol VLAN (16), Private VLAN, GVRP, QinQ (Port/Selective), Voice VLAN
ACL	MAC/IP/IPv6 ACL, Time-Based ACL, Packet Content ACL, Policies (Mirror/Redirect/Rate Limit/QoS Remark), Apply to Port/VLAN
Security	IP-MAC-Port Binding (512), DHCP Snooping, ARP Inspection, IPv4/IPv6 Source Guard (100 each), DoS Defend, 64 MAC per port, Storm Control, 802.1X, AAA/TACACS+, Port Isolation, HTTPS/SSLv3/TLS1.2, SSHv1/v2
IPv6	Dual Stack, MLD Snooping, IPv6 ACL, IPv6 Interface, Static IPv6 Routing, ND, PMTU, ICMPv6, TCPv6/UDPv6, DHCPv6 Client, Ping6, Tracert6, IPv6 SNMP/SSH/SSL, HTTP/HTTPS, IPv6 TFTP
MIBs	MIB II, Interface MIB, Ethernet MIB, Bridge MIB, P/Q-Bridge MIB, RMON (1,2,3,9), Radius Accounting/Auth, Remote Ping/Traceroute, TP-Link Private MIB
Management	Web GUI, CLI (Console/Telnet), SNMP v1/v2c/v3, RMON, SDM Template, DHCP/BOOTP Client, LLDP/LLDP-MED, AutoInstall, Dual Image, CPU Monitoring, Cable Diagnostics, EEE, Password Recovery, SNTP, System Log
Omada App Support	Yes (Requires OC300/OC200/Cloud Controller/Software Controller)
Centralized Management	Omada Cloud, OC300, OC200, Software Controller
Cloud Access	Yes (with controller)
Zero-Touch Provisioning	Yes (Cloud Controller required)
Certifications	CE, FCC, RoHS
Package Contents	Switch, Power Cord, Quick Installation Guide, Rackmount Kit, Rubber Feet
System Requirements	Windows 98SE → Windows 11, macOS, NetWare, UNIX, Linux
Environment	Operating: 0–45°C / 10–90% RH; Storage: −40–70°C / 5–90% RH
