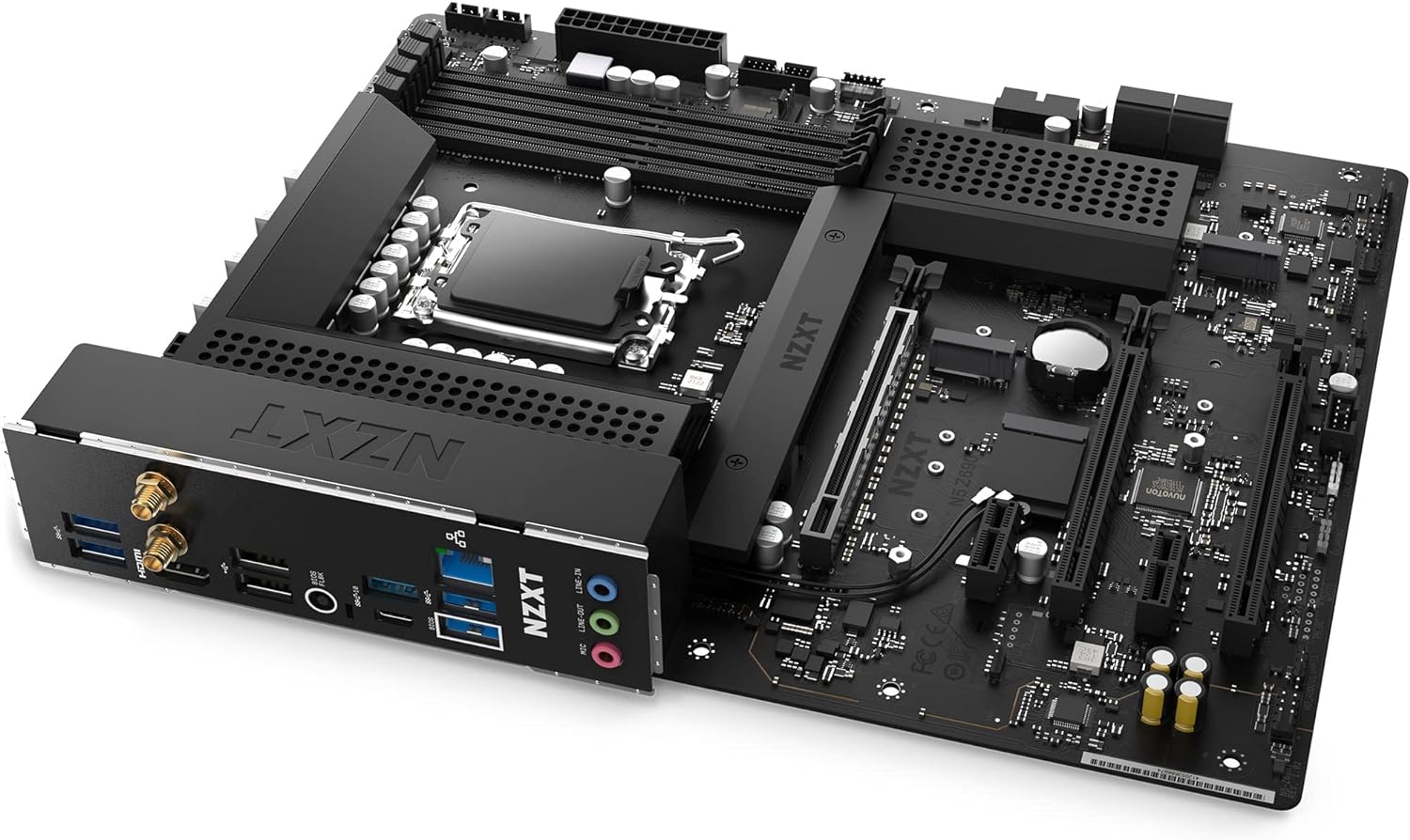

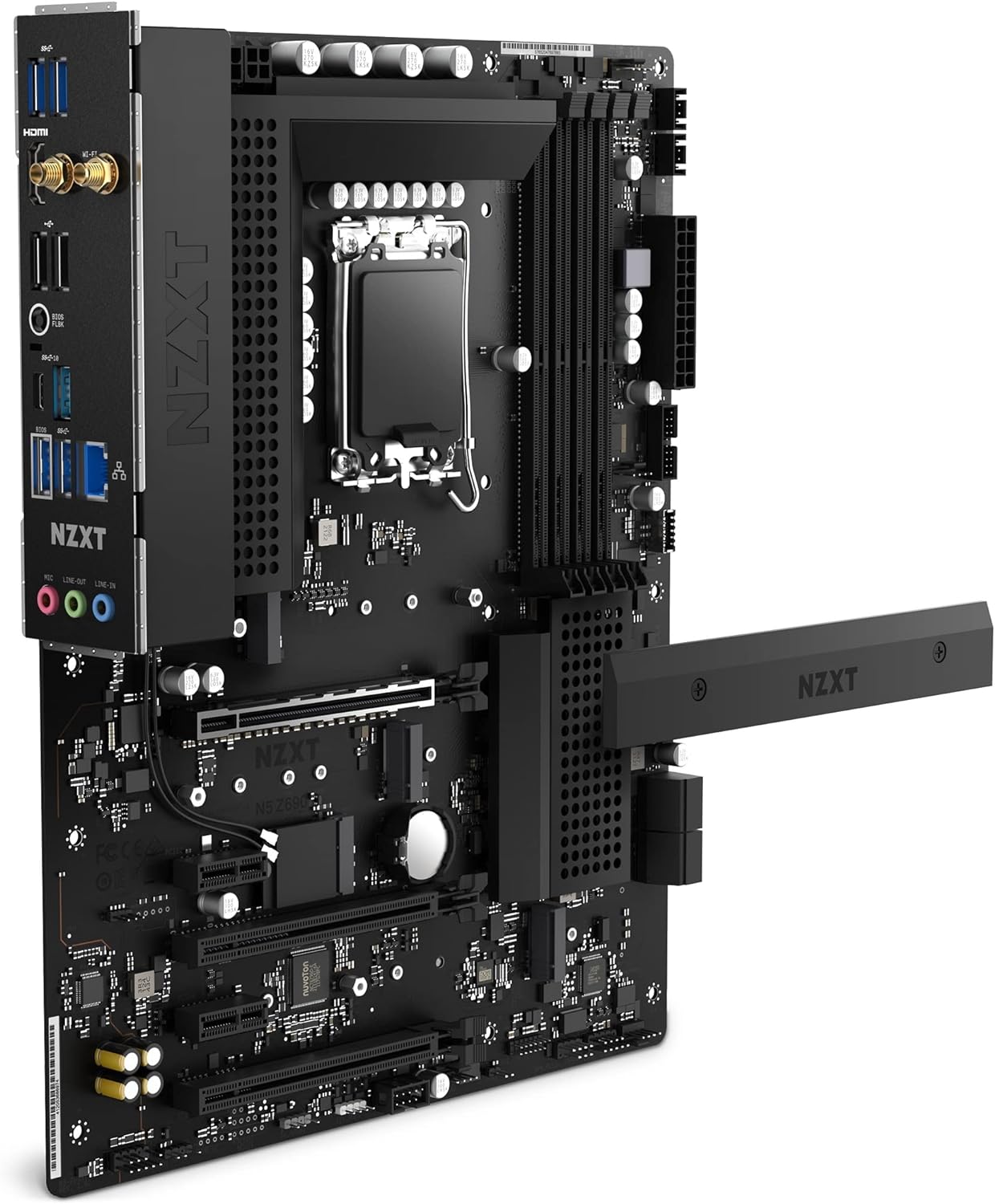

Intel Z690 Chipset ATX Gaming Motherboard NZXT N5 Z690 Motherboard - N5-Z69XT-B1 - Intel Z690 chipset (Supports 12th Gen CPUs) - ATX Gaming Motherboard - Integrated I/O Shield - WiFi 6E connectivity - Bluetooth V5.2 - Black

NZXT N5 Z690 Motherboard – N5-Z69XT-B1 – Intel Z690 chipset (Supports 12th ,13th, 14th Gen CPUs) – ATX Gaming Motherboard – Integrated I/O Shield – WiFi 6E connectivity – Bluetooth V5.2 – Black

$ 193.00 Original price was: $ 193.00.$ 184.00Current price is: $ 184.00. ---ONLY---
-5%
SKU: N5-Z69XT-B1 Categories: ,

Intel Z690 Chipset ATX Gaming Motherboard

Expert Features

GAMING MOTHERBOARD:

Designed around Intel’s Z690 chipset, the N5 Z690 lays the groundwork for a stunning gaming PC build. Build with the latest components, with support for any accessory.

MINIMALIST DESIGN:

  • The N5 has a clean PCB design with black or white color options. An integrated heat spreader is included for the top-most NVMe drive

BUILDING MADE EASIER:

  • The N5 Z690 includes Wi-Fi 6E connectivity, front panel USB-C and streamlines installation with an integrated rear I/O shield and optimally placed headers for an easier setup process.

NEXT GEN CHIPSET:

  • Take on computing challenges with the Intel Z690 Express Chipset.

SMART CONTROLS:

  • The N5 Z690 allows intuitive control of four RGB lighting channels and six fan channels through CAM, and supports lighting accessories from all manufacturers.

Expert Specs

Model
Brand NZXT
Series N5 Z690
Model N5-Z69XT-W1
Part Number N5-Z69XT-W1
Supported CPU
CPU Socket Type  LGA 1700
CPU Type  Supports Intel Core 12th ,13th, 14th Gen CPUs Gen (LGA 1700)
Supported CPU Technologies Intel® Hybrid Technology Supported
Turbo Boost Max 3.0 Technology Supported
Chipsets
Chipset  Intel Z690
Onboard Video
Onboard Video Chipset  Intel Iris Xe Graphics
Memory
Number of Memory Slots 4x288pin (DDR4)
Memory Standard DDR4 only (3200 / 2933 / 2800 / 2666 / 2400 / 2133 MHz)
Maximum Memory Supported 128GB
Channel Supported  Dual Channel
Expansion Slots
PCI Express 5.0 x16 3 x PCIe x16
Single – PCIe_1: Gen 5 x16 mode
Dual – PCIe_1: Gen 5 x16; PCIe_3: Gen 4 x4
Triple – PCIe_1: Gen 5 x16; PCIe_3: Gen 4 x4; PCIe_5: Gen 3 x1
PCI Express x1 2 x PCIe 3.0 x1
Storage Devices
SATA 6Gb/s  4 x SATA 6Gb/s
M.2 4 x M.2
M.2_1 Type 2242/2260/2280 (PCIe 4.0 x4 mode):1
M.2_2 Type 2242/2260/2280 (PCIe 4.0 x4 mode):1
M.2_3 Type 2242/2260/2280/22110 (PCIe 4.0 x4 & SATA mode):1
M.2_4 Type 2242/2260/2280 (PCIe 3.0 x 4 & SATA mode):1
Intel Optane Ready Yes
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset  Realtek ALC897
Audio Channels  8 Channels
Onboard LAN
Second LAN Chipset Realtek RTL8125BG 2.5G
Max LAN Speed 2.5Gbps
Wireless LAN Wi-Fi 6E
Bluetooth V5.2
Rear Panel Ports

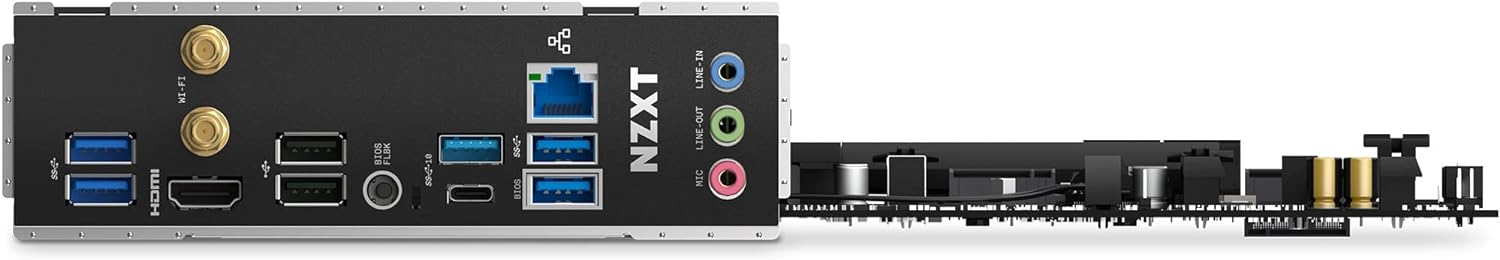

Back I/O Ports 1 x HDMI / 1 x LAN (RJ45) / 1 x USB 3.2 Gen 2 Type-A / 1 x USB 3.2 Gen 2 Type-C / 2 x Antenna Bracket / 2 x Audio Jacks / 2 x USB 2.0/1.1 / 4 x USB 3.1 Gen 1 Type-A
Physical Spec
Form Factor ATX
Power Pin 24 Pin

NZXT N5 Z690 Black Motherboard

Description

Intel Z690 Chipset ATX Gaming Motherboard

NZXT N5 Z690 Motherboard – N5-Z69XT-B1 – Intel Z690 chipset (Supports 12th Gen CPUs) – ATX Gaming Motherboard – Integrated I/O Shield – WiFi 6E connectivity – Bluetooth V5.2 – Black

Intel Z690 Chipset ATX Gaming Motherboard Intel Z690 Chipset ATX Gaming Motherboard Intel Z690 Chipset ATX Gaming Motherboard Intel Z690 Chipset ATX Gaming Motherboard Intel Z690 Chipset ATX Gaming Motherboard Intel Z690 Chipset ATX Gaming Motherboard
