SKU: 14700K-BOX

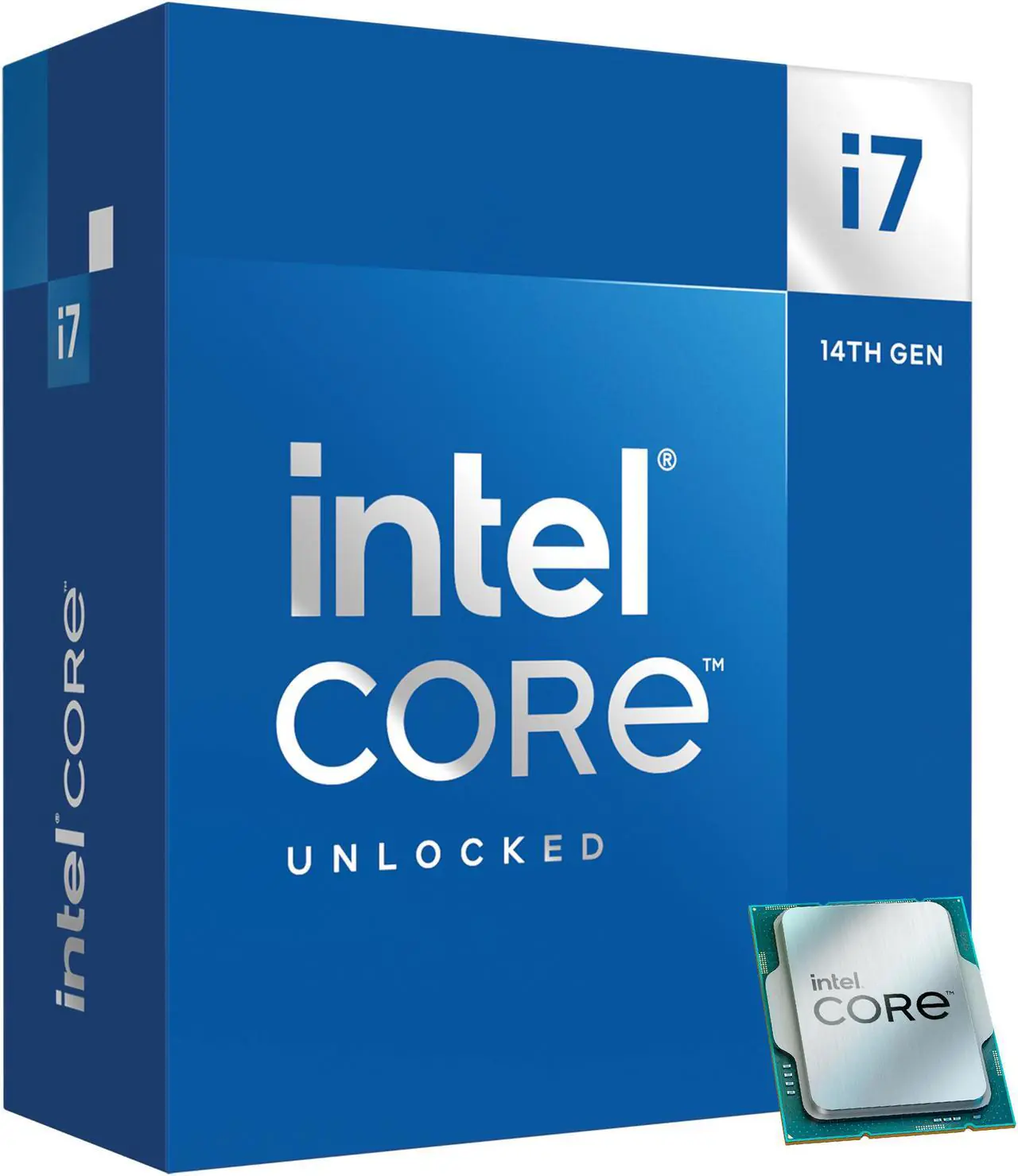

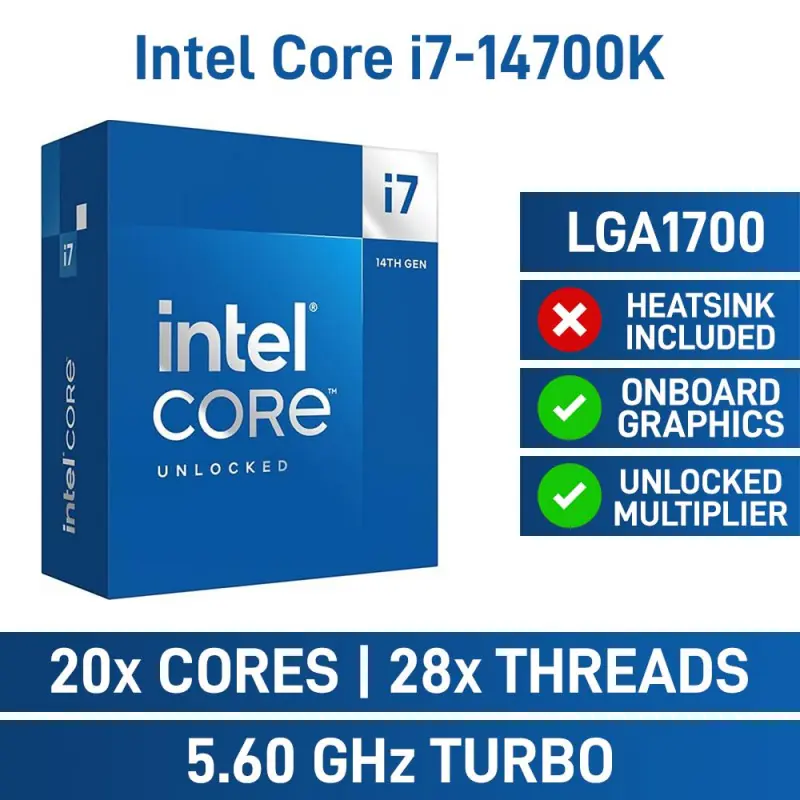

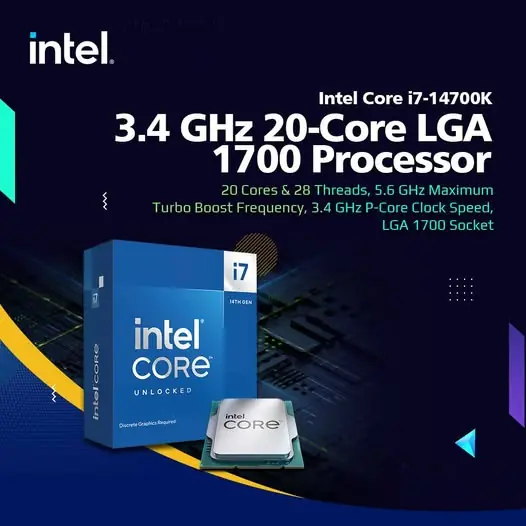

Intel Core i7-14700K 3.4 GHz 20-Core LGA 1700 14th Gen Processor, 20 Cores & 28 Threads, 30MB Cache Memory, 5.6GHz MaxTurbo Boost, Intel UHD Graphics 770, 2CH DDR5 / 192GB Max | BOXED | 1 YEAR WARRANTY

Name: Intel Core i7-14700K 3.4 GHz 20-Core LGA 1700 14th Gen Processor, 20 Cores & 28 Threads, 30MB Cache Memory, 5.6GHz MaxTurbo Boost, Intel UHD Graphics 770, 2CH DDR5 / 192GB Max | BOXED | 1 YEAR WARRANTY | Expert-Zone
SKU: 14700K-BOX
Price: 365.00 USD
Availability: InStock

$ 365.00 ---ONLY---

Add to compare

Description

Expert Features

Game Without Compromise. Play harder and work smarter with Intel Core 14th Gen processors
20 cores (8 P-cores + 12 E-cores) and 28 threads. Integrated Intel UHD Graphics 770 included
Up to 5.6 GHz with Turbo Boost Max Technology 3.0 gives you smooth game play, high frame rates, and rapid responsiveness
Compatible with Intel 600-series (with potential BIOS update) or 700-series chipset-based motherboards
DDR4 and DDR5 platform support cuts your load times and gives you the space to run the most demanding games

Expert Specs

Model
Brand	Intel
Processors Type	Desktop
Series	Core i7 14th Gen
Name	Core i7-14700K
Model	BX8071514700K

Details
CPU Socket Type	LGA 1700
Core Name	Raptor Lake
# of Cores	20-Core (8P+12E)
# of Threads	28-Threads
Operating Frequency	Performance-core Base Frequency: 3.4 GHz Efficient-core Base Frequency: 2.5 GHz
Max Turbo Frequency	Intel Turbo Boost Max Technology 3.0 Frequency: Up to 5.6 GHz P-core Max Turbo Frequency: Up to 5.5 GHz E-core Max Turbo Frequency: Up to 4.3 GHz
L2 Cache	28MB
L3 Cache	33MB
Manufacturing Tech	Intel 7
Instruction Set	64-Bit
Hyper-Threading Support	Yes
Memory Types	DDR4 3200 / DDR5 5600
Memory Channel	2
Max Memory Size	192 GB
ECC Memory	Supported
Max Memory Bandwidth	89.6 GB/s
Virtualization Technology Support	Yes
Integrated Graphics	Intel UHD Graphics 770
Graphics Base Frequency	300 MHz
Graphics Max Dynamic Frequency	1.6 GHz
Scalability	1S Only
PCI Express Revision	5.0 / 4.0
PCI Express Configurations	Up to 1×16+4, 2×8+4
Max Number of PCI Express Lanes	20
Thermal Design Power	125W
Max Turbo Power	253W
Cooling Device	Cooling device not included – Processor Only
Compatible Desktop Chipsets	Intel H610 / Intel H670 / Intel B660 / Intel Q670 / Intel W680 / Intel Z690 / Intel H770 / Intel B760 / Intel Z790 * BIOS update may be required when used with some old chipset motherboard
Operating System Supported	Linux / Windows 10 (22H2, 21H2) / Windows 11 (22H2, 21H2)
Advanced Technologies	Intel Gaussian & Neural Accelerator: 3.0 Intel Thread Director Intel Deep Learning Boost (Intel DL Boost) on CPU Intel Speed Shift Technology Intel Turbo Boost Max Technology 3.0 Intel Turbo Boost Technology: 2.0 Intel Hyper-Threading Technology Intel 64 Instruction Set: 64-bit Instruction Set Extensions: Intel SSE4.1, Intel SSE4.2, Intel AVX2 Idle States Enhanced Intel SpeedStep Technology Thermal Monitoring Technologies Intel Volume Management Device (VMD)
Security & Reliability	Intel Standard Manageability (ISM) Intel Control-Flow Enforcement Technology Intel AES New Instructions Secure Key Intel OS Guard Execute Disable Bit Intel Boot Guard Mode-based Execute Control (MBEC) Intel Virtualization Technology (VT-x) Intel Virtualization Technology for Directed I/O (VT-d) Intel VT-x with Extended Page Tables (EPT)
