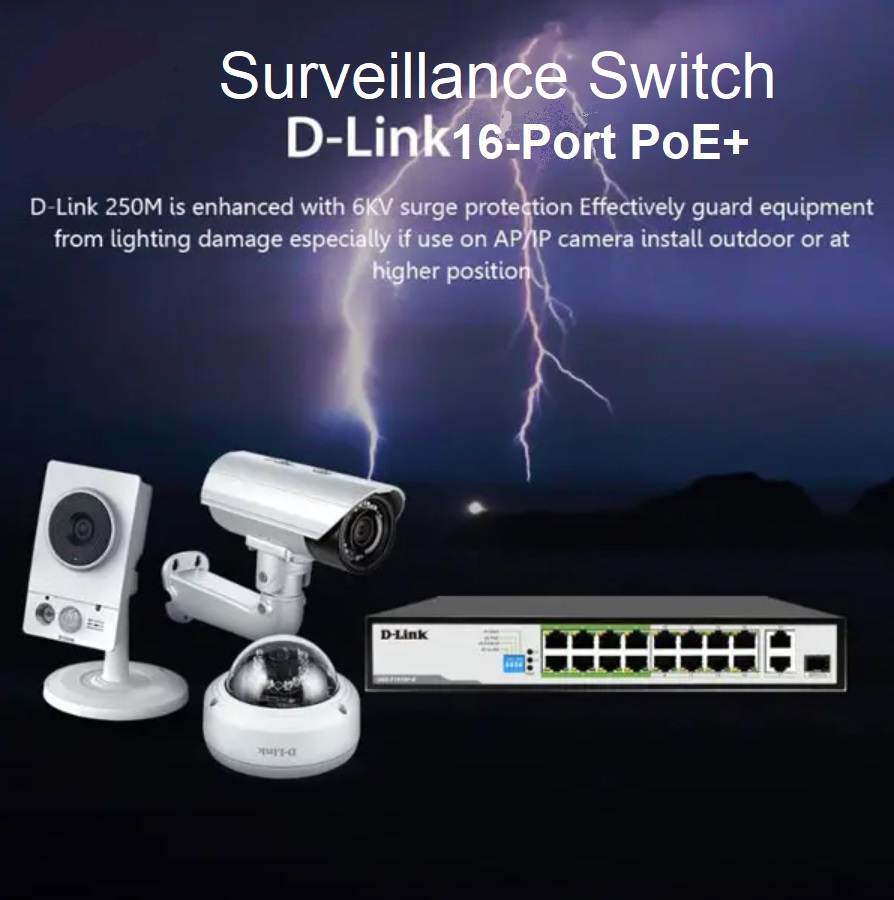

D-Link DES-F1016P-E 16-Port 10/100 Long Range PoE Surveillance Switch , Up To 150 Watts Available for PoE , Plug & Play , 250 Meters Transmission , 6KV Lightening protection
D Link 16 Port Long Range PoE Surveillance Switch
Expert Features
***The D-Link DES-F1016P-E is a 16 port 100Mbps with 16 10/100 Mbps PoE ports, 2 Gigabit Ports with 1 Combo (RJ45/SFP) uplink ports. This Switch enables users to easily connect and supply power to PoE-capable devices such as wireless Access Points (APs), IP cameras.
Superior connectivity
- 16 10/1 0OMbps Fast Ethernet ports
- 2 Gigabit Ports with 1 Combo (RJ45/SFP) uplink ports
- 150 watts available for PoE
- Flow control for protection against data loss
- Maximum distance of 250m
Standards
- IEEE 802.3 1 0BASE-T Ethernet (twist-pair copper)
- IEEE 802.3u 1 00BASE-TX Fast Ethernet (twisted pair copper)
- IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted pair copper)
- IEEE 802.3z 1000 BASE-X (fiber-optic)
- IEEE 802.3af Power over Ethernet
- IEEE 802.3at Power over Ethernet
Easy to Use
- Plug-and-play installation
- IEEE 802.3x Flow Control
- Auto MDI I MDIX crossover for all ports
Power Over Ethernet
- The DES-Fl016P-E supports both IEEE 802.3at and IEEE 802.3af PoE protocol.
- With a total PoE budget of 150 watts ,allowing users to attach an IEEE 802.3af-compliant device to the DES-Fl016P-E without requiring additional power.
- PoE is especially suitable for devices that are far from power outlets or when users want to minimize the clutter of extra cables as power is supplied via the Ethernet cables themselves
Expert Specs
| 100Base-TX Interface | Ethernet RJ-45 port |
|---|---|
| Auto MDI/MDIX | Yes |
| Switching Capacity | 7.2 Gbps |
| Max. Packet Forwarding Rate | 3.868Mpps |
| Dimension | (LxWxH): 285 x 180 x 44mm |
| Weight | 2.1kg |
| Operation Temperature | O to 40 °C (32 to 104 °F) |
| Operation Humidity | 10% to 90% non-condensing |
| Maximum Power Consumption | 100-240VAC, 50-60Hz |
| FAN | Fanless |
| 802.3x Flow Control | Yes |
Description
DES-F1016P-E
D Link 16 Port Long Range PoE Surveillance Switch
D-Link DES-F1016P-E 16-Port 10/100 Long Range PoE Surveillance Switch , Up To 150 Watts Available for PoE , Plug & Play , 250 Meters Transmission , 6KV Lightening protection
