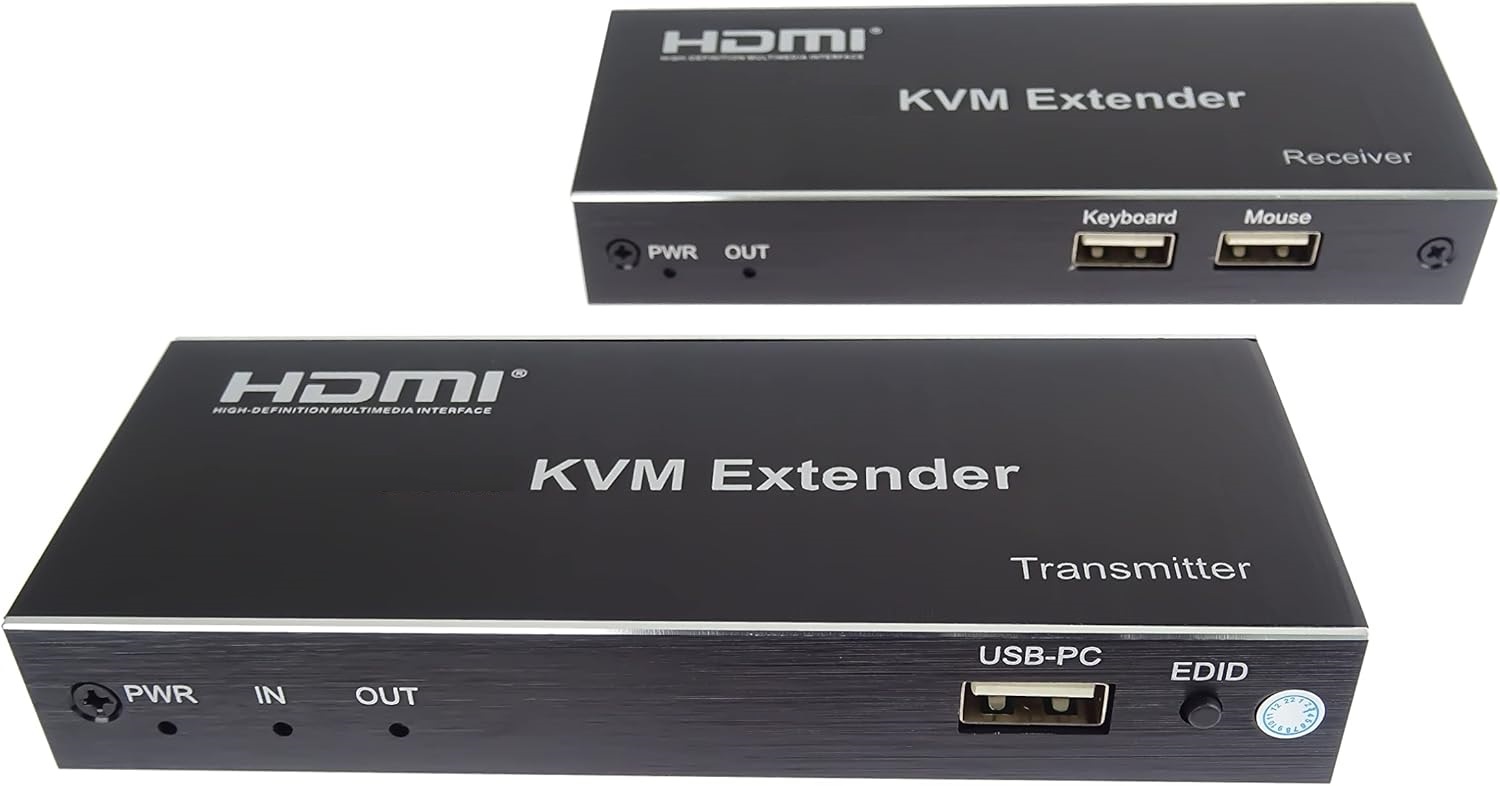

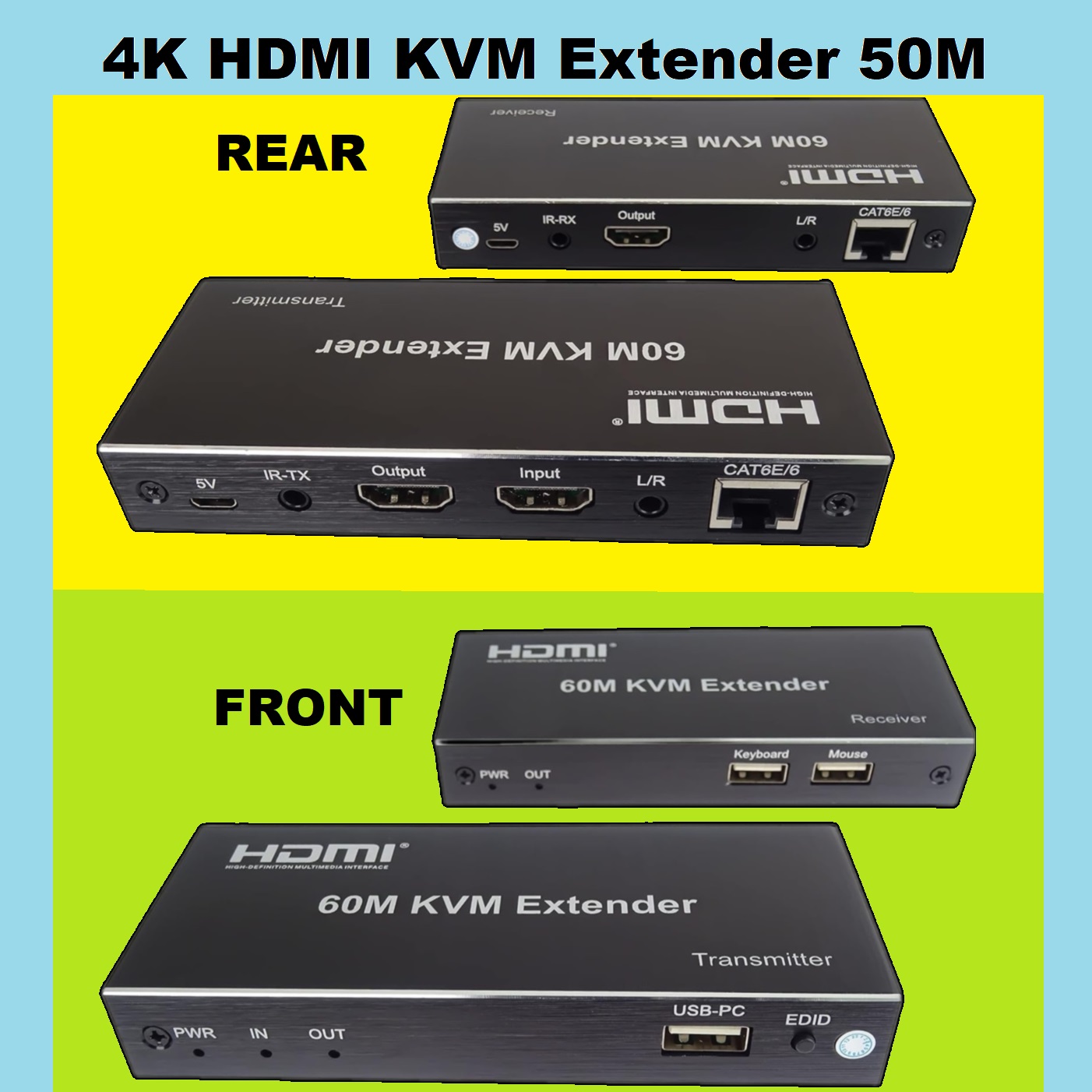

HDMI KVM Extender Kit Audio Output USB

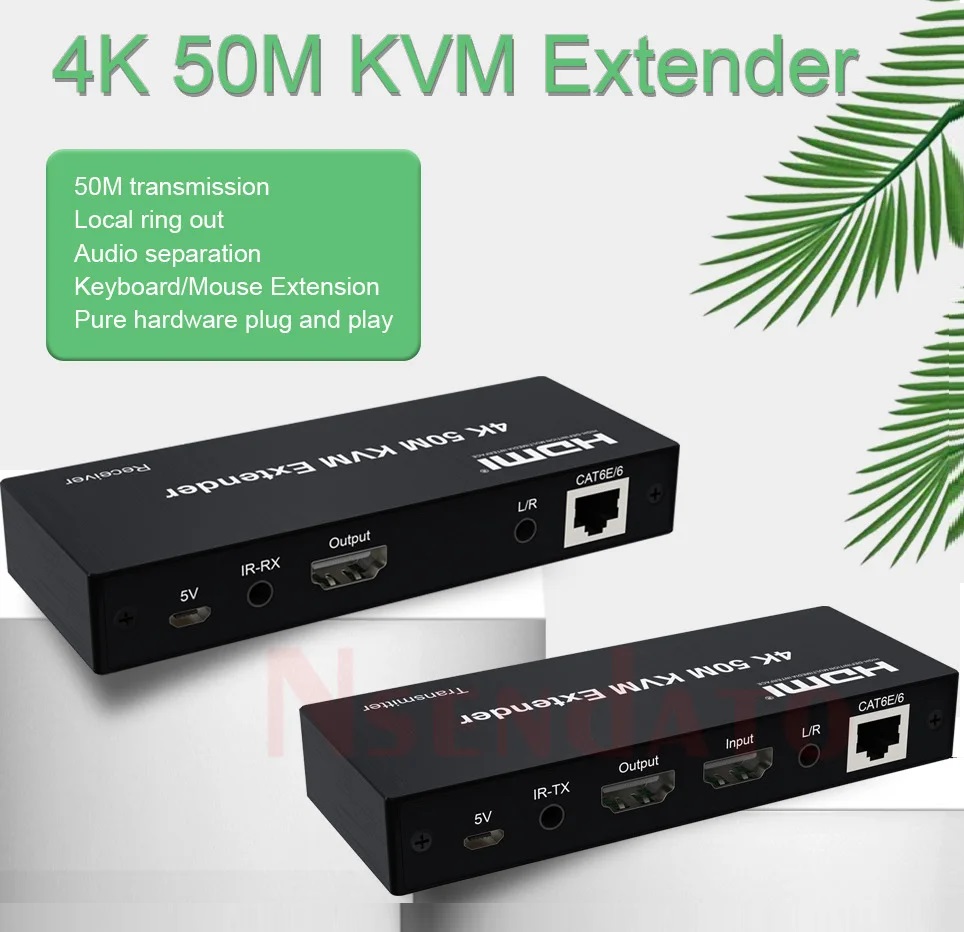

Expert Features:

• Support 4K/30Hz
• Support local loop-out

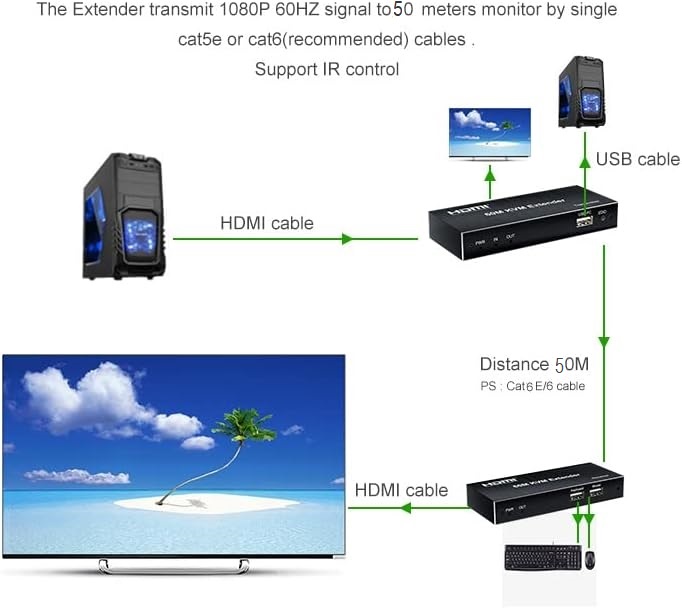

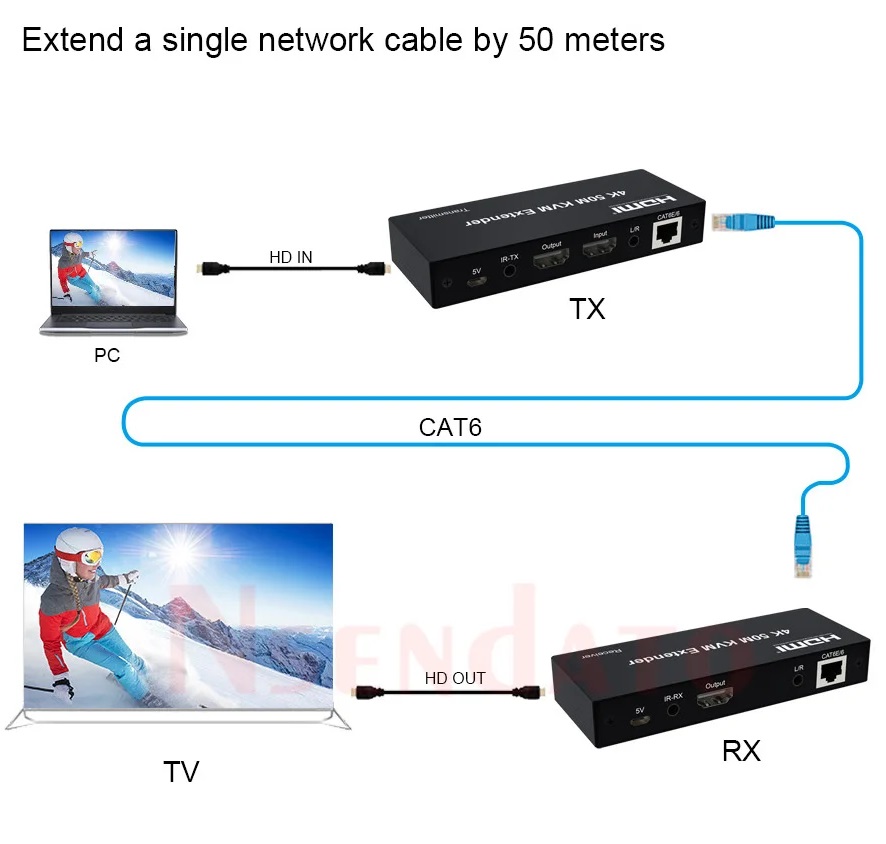

• Support 50m long distance transmission
• Low power consumption, low temperature and high safety

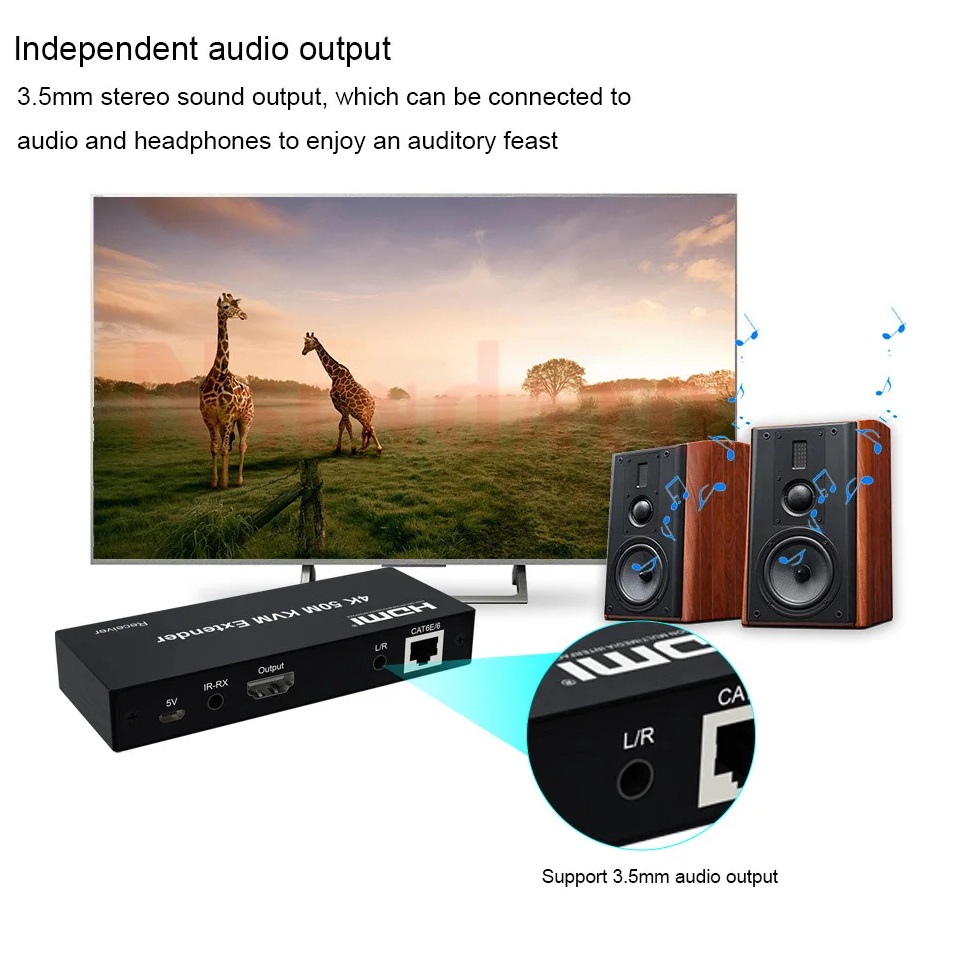

• Both the TX and RX support 3.5MM left and right audio output
• Support IR control
• Support mouse and keyboard extension

Expert Specification:

• length of CAT-6/CAT-6E cable between Rx and TX:Up to 50 meters
• HDMI Input:4K/1080P/1080i/720P
• HDMI Output:4K/1080P/1080i/720P
• Max bandwidth:340MHz
• Max baud rate:3×3.4Gbps
• Input video signal:0.5~1.5Volts p-p
• Output DDC signal:5Volts p-p (TTL)
• Input HDMI cable distance:≤10m AWG26 HDMI standard cable
• Output HDMI cable distance:≤10m AWG26 HDMI standard cable
• TX Max working current:550mA
• RX Max working current:450mA
• Power adapter format:Input:AC(50HZ,60HZ) 100V-240V;Output:DC5V/1A

Package:

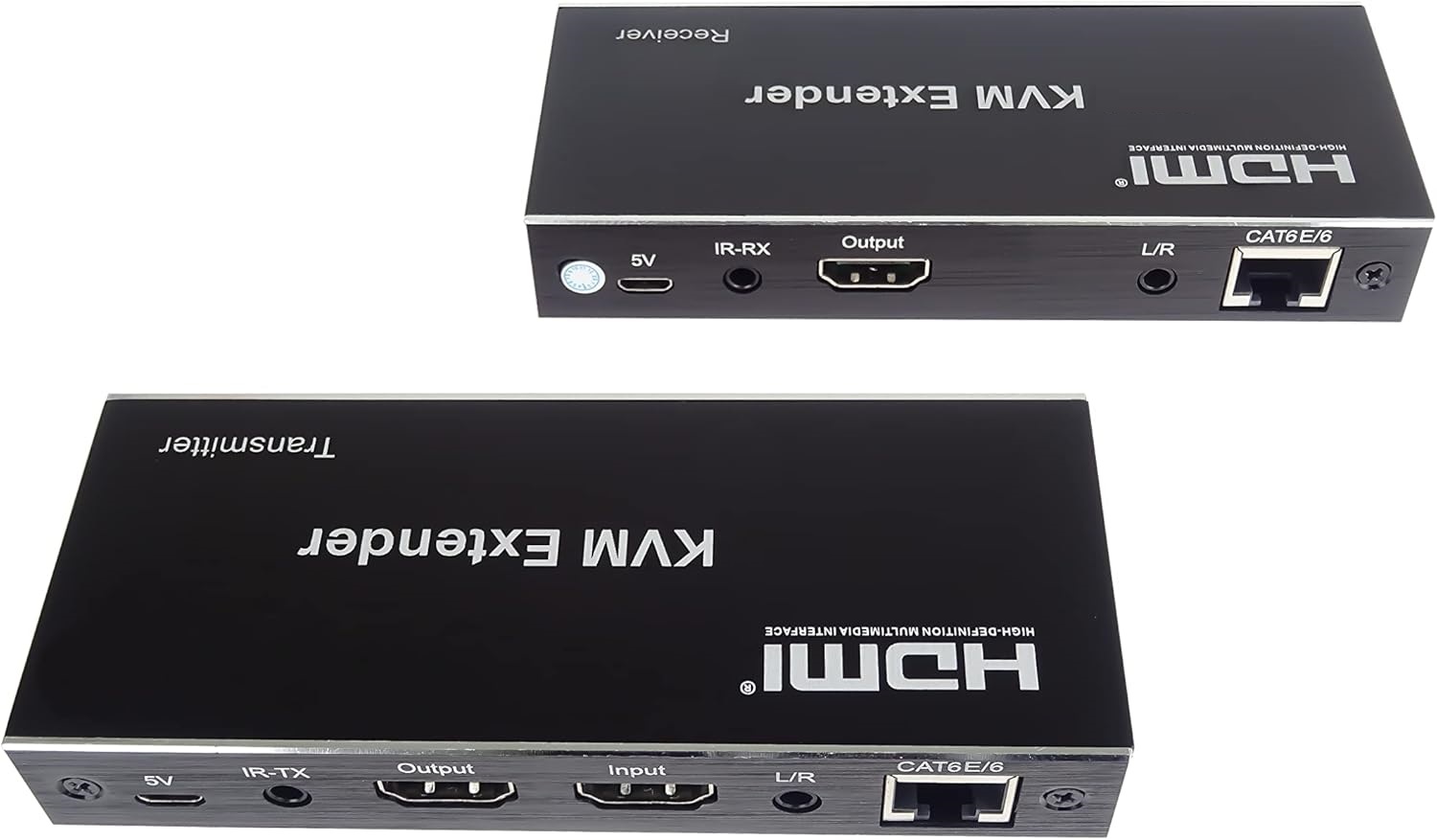

• TX Extender
• RX Extender
• IR cable
• Power adapter
• User Manual
