SKU: GIG-Z890-EAGLE-WIFI7

GIGABYTE Z890 EAGLE WIFI7 Motherboard Supports Intel® Core™ Ultra processors : 14+1+2 VRM, DDR5 9200 MT/s, PCIe 5.0, Wi-Fi 7, USB4 Type-C, 4x M.2 Slots, EZ-Latch, AI Optimization, Ultra Durable Design

Name: GIGABYTE Z890 EAGLE WIFI7 Motherboard Supports Intel® Core™ Ultra processors : 14+1+2 VRM, DDR5 9200 MT/s, PCIe 5.0, Wi-Fi 7, USB4 Type-C, 4x M.2 Slots, EZ-Latch, AI Optimization, Ultra Durable Design | Expert-Zone
SKU: GIG-Z890-EAGLE-WIFI7
Price: 237.00 USD
Availability: OutOfStock

$ 237.00 ---ONLY---

OUT OF STOCK

Add to compare

Description

🧠Expert Features

CPU Compatibility: Supports Intel® Core™ Ultra processors (Series 2)
Power Design: Digital Twin 14+1+2 Phases VRM with 60A DrMOS
Memory Performance: D5 Bionic Corsa Technology for Infinite Memory Performance
AI Optimization: AI PerfDrive for customized BIOS presets
Memory Support: 4x DDR5 DIMM slots supporting up to 9200 MT/s (OC) with XMP
Storage Options: 4x M.2 Slots (1x PCIe 5.0 x4, 3x PCIe 4.0 x4)
Networking: 2.5GbE LAN and Wi-Fi 7 with WIFI EZ-Plug design
Connectivity: USB4 Type-C with DP-Alt Mode, DisplayPort
Expansion Slots: 1x PCIe 5.0 x16 with PCIe UD Slot X, 2x PCIe 4.0 x4 slots
Thermal Solutions: VRM Thermal Armor Advanced & M.2 Thermal Guard
DIY-Friendly Features: EZ-Latch Plus for PCIe and M.2 slots, EZ-Latch Click for M.2 heatsinks
User Interface: Multi-Theme BIOS, AIO Fan Control, Q-Flash Auto Scan
Monitoring Tools: New Power Monitor in HWinfo for real-time CPU power phase monitoring
Audio: High-End Audio Capacitors with Audio Noise Guard
Durability: Ultra Durable design with reinforced PCIe slots and solid pin power connectors

GIG-Z890-EAGLE-WIFI7 GIGABYTE Z890 EAGLE WIFI 7 MOTHERBOARD AM5 Gigabyte Z890 Eagle WiFi7 ATX Motherboard With Intel Ultra CPU Support, DDR5 9200MT/s, PCIe 5.0, 4x M.2, USB4 Type-C, Wi-Fi 7, EZ-Latch, Smart Fan 6 & AI BIOS GIGABYTE Z890 EAGLE WIFI7 Motherboard Supports Intel® Core™ Ultra processors : 14+1+2 VRM, DDR5 9200 MT/s, PCIe 5.0, Wi-Fi 7, USB4 Type-C, 4x M.2 Slots, EZ-Latch, AI Optimization, Ultra Durable Design

📊 Expert Specs

Category	Specification
CPU Support	Intel® Core™ Ultra processors (Series 2)
Chipset	Intel® Z890 Express
Memory	4x DDR5 DIMM slots, up to 256 GB, supports up to 9200 MT/s (OC), Dual Channel, XMP support

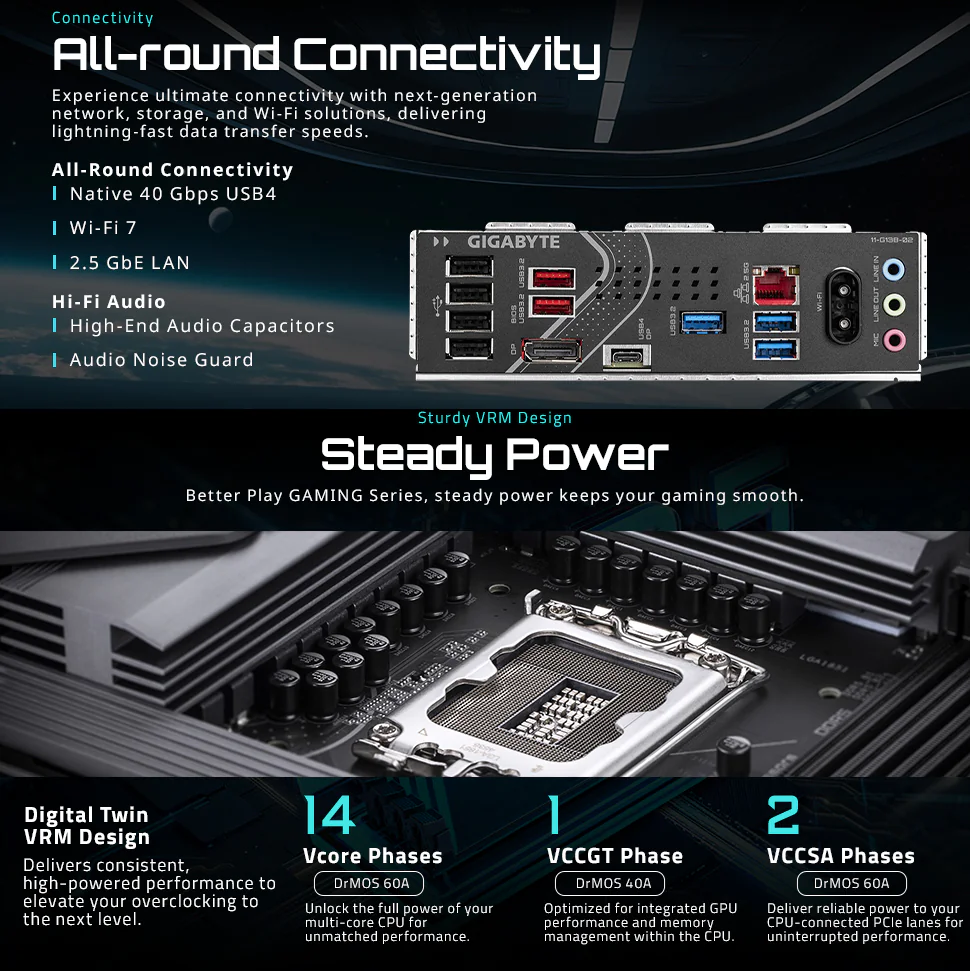

VRM Design	Digital Twin 14+1+2 Phases VRM, 60A DrMOS, 2x Copper PCB
Expansion Slots	1x PCIe 5.0 x16 (with PCIe UD Slot X), 2x PCIe 4.0 x4 slots
Storage	4x M.2 Slots (1x PCIe 5.0 x4, 3x PCIe 4.0 x4), 4x SATA 6Gb/s connectors
Networking	2.5GbE LAN, Wi-Fi 7 (802.11be), Bluetooth 5.4

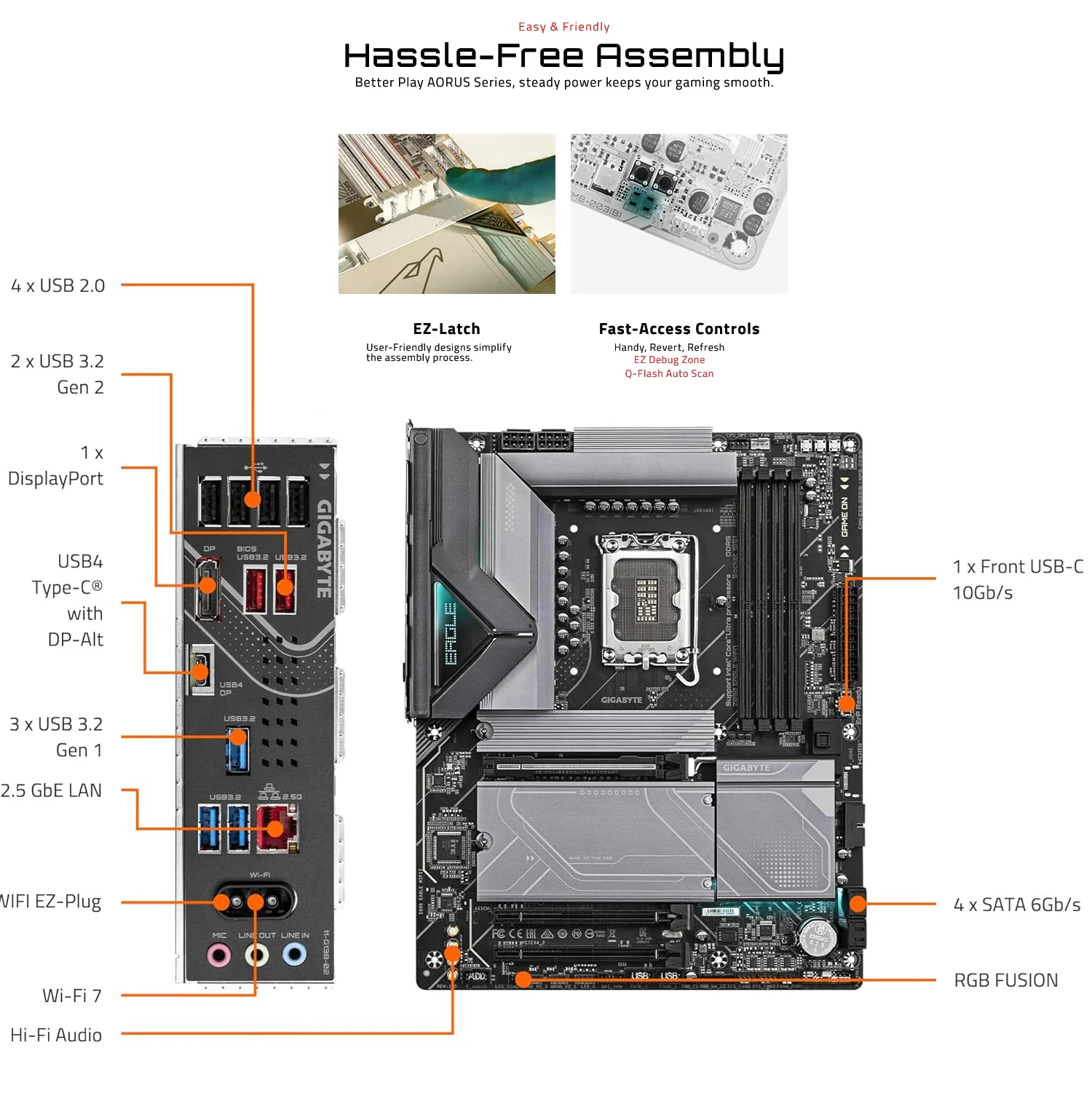

USB Ports	Rear: 1x USB4 Type-C, 2x USB 3.2 Gen 2 Type-A, 3x USB 3.2 Gen 1, 4x USB 2.0; Internal: 1x USB 3.2 Gen 2 Type-C header, 1x USB 3.2 Gen 1 header, 2x USB 2.0 headers
Audio	Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel support, High-End Audio Capacitors, Audio Noise Guard
Form Factor	ATX (30.5cm x 24.4cm)
DIY Features	EZ-Latch Plus for PCIe and M.2 slots, EZ-Latch Click for M.2 heatsinks, WIFI EZ-Plug, Q-Flash Plus button, EZ-Debug Zone with Multi-key, Power Button, Debug LEDs
Thermal Solutions	VRM Thermal Armor Advanced, M.2 Thermal Guard, Smart Fan 6 with multiple temperature sensors and hybrid fan headers
Software	GIGABYTE Control Center, RGB Fusion, AI PerfDrive, AORUS AI Snatch (Auto-Overclocking Software), HWiNFO integration for real-time monitoring
BIOS	AMI UEFI BIOS, 256 Mbit flash, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0, Q-Flash, Q-Flash Plus, Smart Backup
Power Connectors	1x 24-pin ATX main power connector, 2x 8-pin ATX 12V power connectors
RGB Support	1x RGB LED header, 3x ARGB LED headers
Operating System	Support for Windows 11 64-bit
