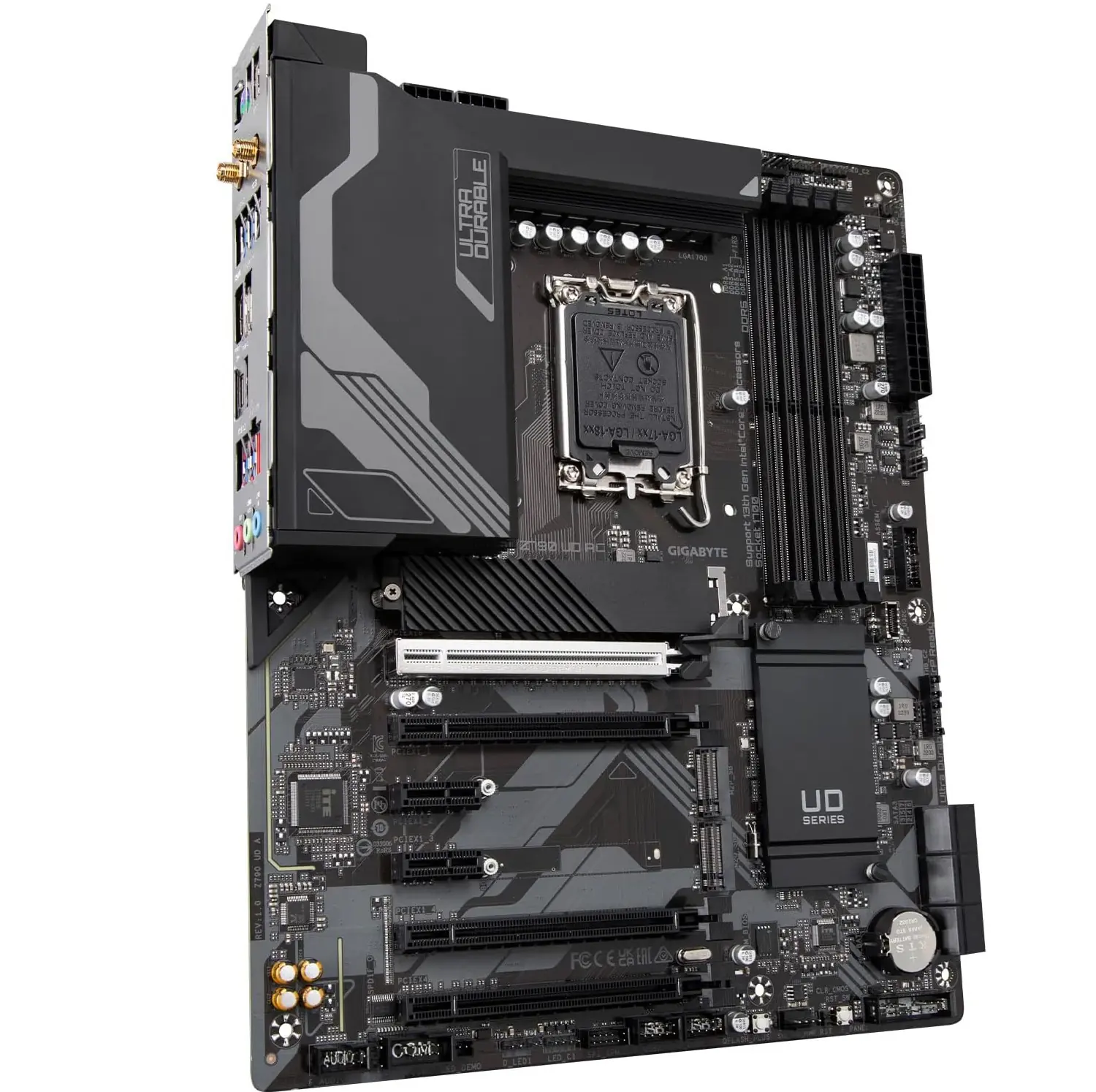

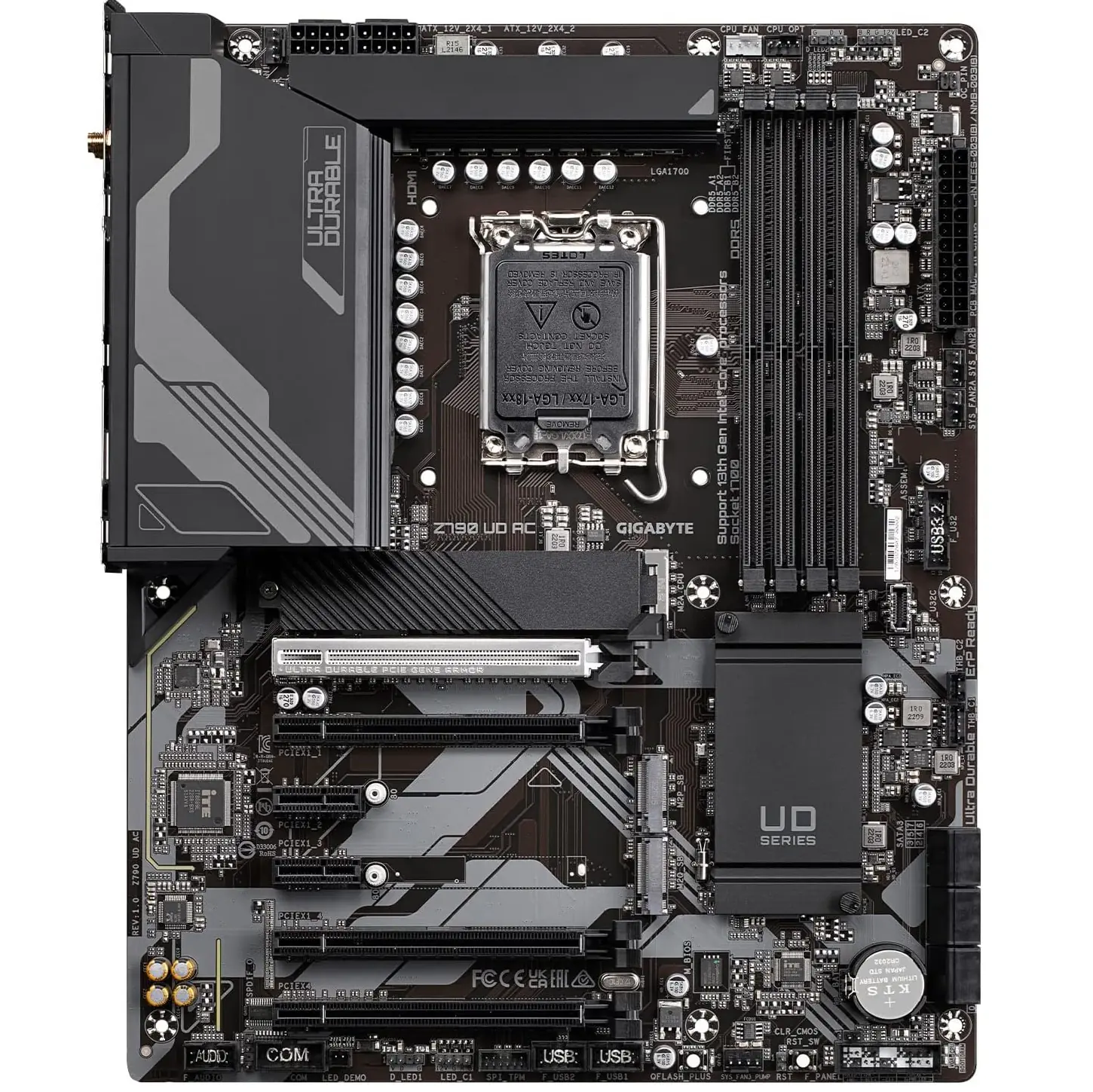

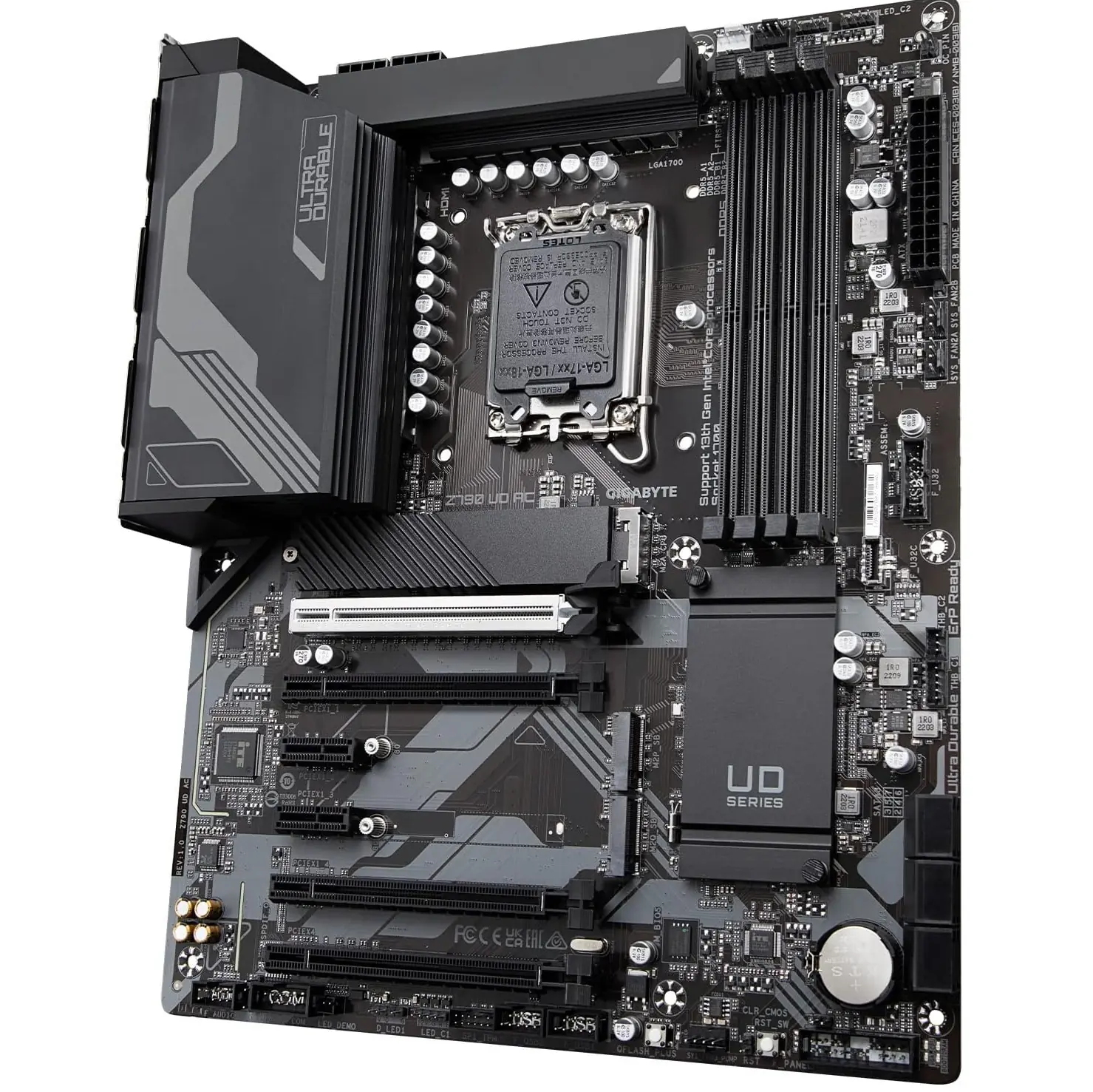

GIGABYTE Z790 UD AC LGA 1700 Intel Z790 ATX Motherboard with DDR5, Supports Intel® Core™ 14th/ 13th /12th Processors , Triple M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, Intel Wi-Fi, 2.5GbE LAN, PCIe EZ-Latch, Multi-Key

Name: GIGABYTE Z790 UD AC DDR5 Motherboard for 14th 13th 12th Gen
SKU: GIGABYTE-Z790-UD-AC
Price: 200.00 USD
Availability: OutOfStock

$ 200.00 ---ONLY---

Out stock

Out of stock

SKU: GIGABYTE-Z790-UD-AC Categories: COMPUTER PARTS, Motherboards

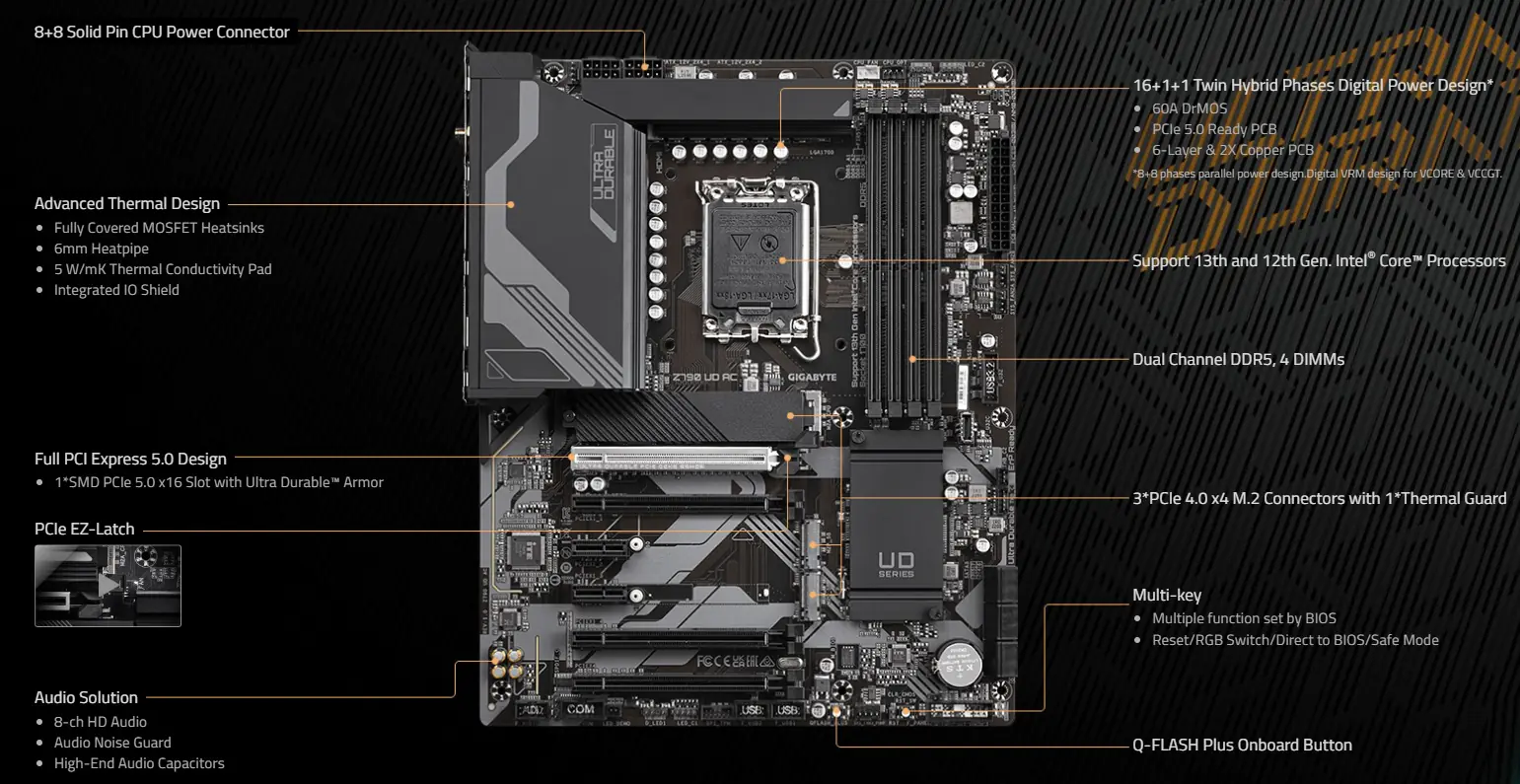

Expert Features

Supports Intel^® Core™ 14th/ 13th /12th processors
Unparalleled Performance：Twin 16+1+１ Phases Digital VRM Solution*
Dual Channel DDR5：4*SMD DIMMs with XMP 3.0 Memory Module Support
Next Generation Storage：3*PCIe 4.0 x4 M.2 Connectors
Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
EZ-Latch：PCIe 5.0 x16 Slot with Quick Release & Screwless Design
Fast Networks：2.5GbE LAN & Wi-Fi 802.11ac
Extended Connectivity：DP, HDMI, Front USB-C^® 5Gb/s, Rear USB-C^® 20Gb/s
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus： Update BIOS Without Installing the CPU, Memory, and Graphics Card

Expert Specs

Model
Brand	GIGABYTE
Model	Z790 UD AC

Supported CPU
CPU Socket Type	LGA 1700
CPU Type	Supports 13th / 12th Gen Intel Core, Pentium Gold, Celeron Processors

Chipsets
Chipset	Intel Z790

Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory Supported	192GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 5.0 x16	1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PCI Express 4.0 x16	1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
PCI Express 3.0 x16	2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_4)
PCI Express x1	2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)

Storage Devices
SATA 6Gb/s	6 x SATA 6Gb/s
M.2	CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB)
SATA RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Additional RAID Controller	RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

Onboard Audio
Audio Chipset	Realtek Audio CODEC High Definition Audio
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	Realtek 2.5GbE LAN chip
Max LAN Speed	2.5Gbps
Wireless LAN	Intel Wi-Fi AC 9560 WIFI a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band Support for 11ac 160MHz wireless standard and up to 1.73 Gbps data rate *Actual data rate may vary depending on environment and equipment.
Bluetooth	Bluetooth 5.1

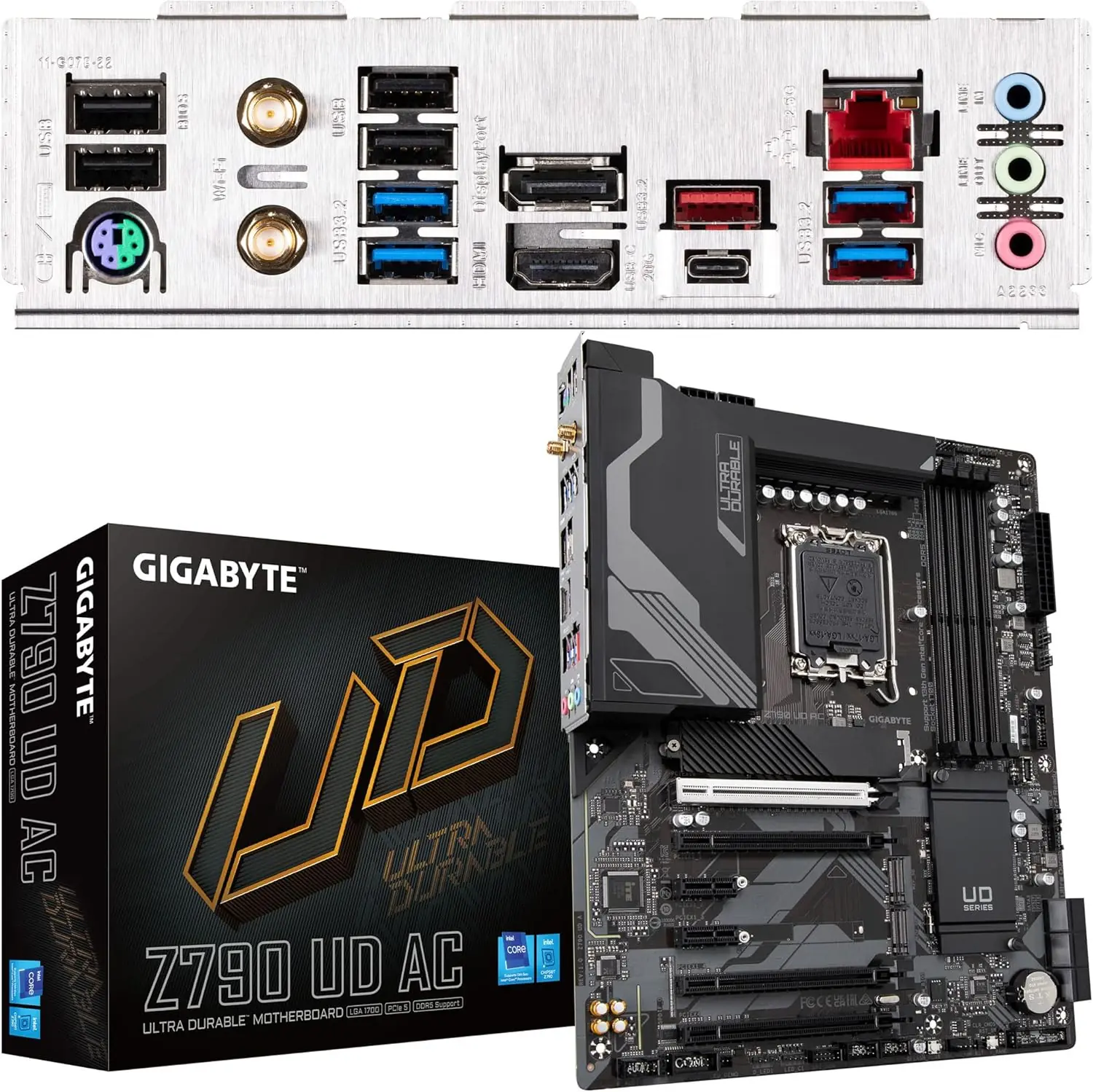

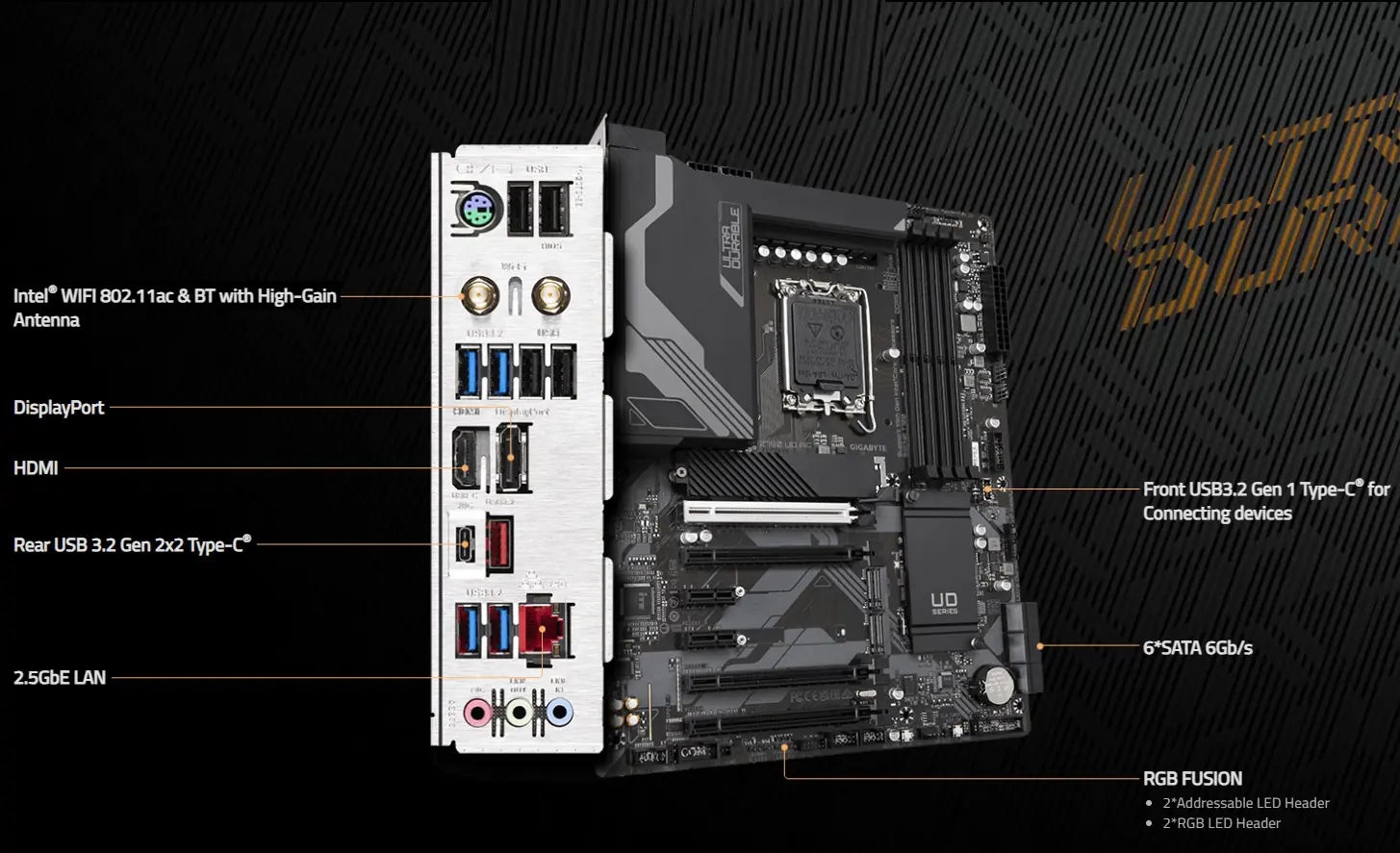

Rear Panel Ports
Back I/O Ports	1 x USB Type-C port, with USB 3.2 Gen 2×2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (1T1R) 1 x HDMI 2.0 port 1 x DisplayPort 1 x RJ-45 port 3 x audio jacks

Internal I/O Connectors
Onboard USB	1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers
Other Connectors	1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x serial port header 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper

Software Feature
Windows 11	Supported

Physical Spec
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0″ x 9.6″
Power Pin	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors

Features
Features	H/W Monitoring – Voltage detection – Temperature detection – Fan speed detection – Water cooling flow rate detection – Fan fail warning – Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. BIOS – 1 x 256 Mbit flash – Use of licensed AMI UEFI BIOS – PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features – Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. – Support for Q-Flash – Support for Q-Flash Plus – Support for Smart Backup

Description

GIGABYTE-Z790-UD-AC

GIGABYTE Z790 UD AC DDR5 Motherboard

GIGABYTE Z790 UD AC LGA 1700 Intel Z790 ATX Motherboard with DDR5, Supports Intel® Core™ 14th/ 13th /12th Processors , Triple M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, Intel Wi-Fi, 2.5GbE LAN, PCIe EZ-Latch, Multi-Key
