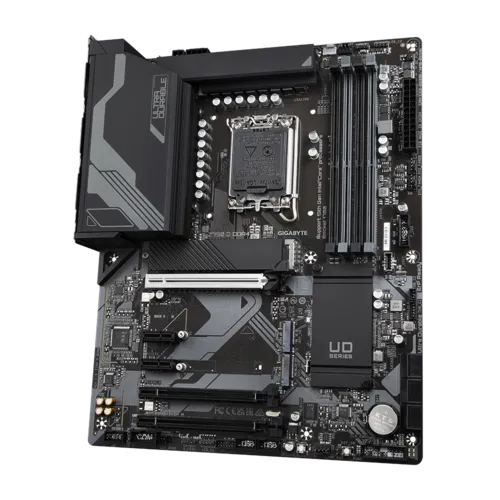

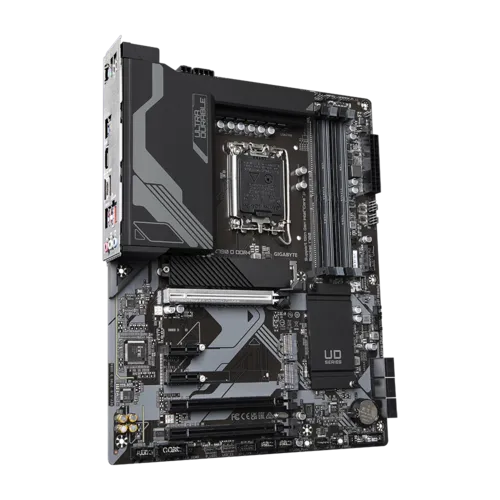

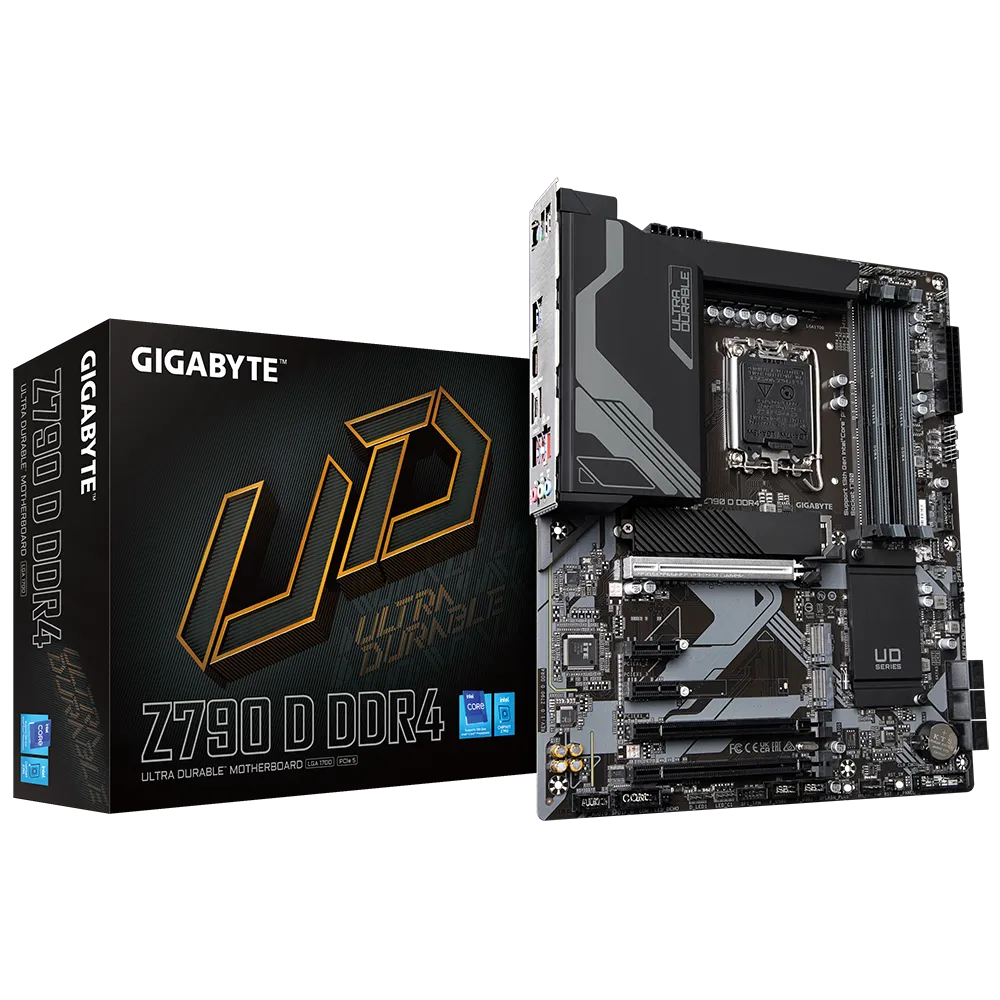

GIGABYTE Z790 D DDR4 MOTHERBOARD

$ 212.00 ---ONLY---

GIG-Z790-D

  • Intel® Socket LGA 1700:Support 13th and 12th Gen Series Processors
  • Unparalleled Performance:Twin 16*+1+1 Phases Digital VRM Solution
  • Dual Channel DDR4:4*SMD DIMMs with XMP 3.0 Memory Module Support
  • Next Generation Storage:3*PCIe 4.0 x4 M.2 Connectors
  • Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
  • EZ-Latch:PCIe 5.0 x16 Slot with Quick Release & Screwless Design
  • Fast Networks:2.5GbE LAN
  • Extended Connectivity:HDMI, Front USB-C® 5Gb/s, Rear USB-C® 20Gb/s
  • Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP



  • CPU
    1. LGA1700 socket: Support for the 13th and 12th Generation Intel®Core™, Pentium® Gold and Celeron® Processors
    2. L3 cache varies with CPU
    3. (Please refer “CPU Support List” for more information.)
  • Chipset
    1. Intel®Z790 Express Chipset
  • Memory
    1. Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
    2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    3. Dual channel memory architecture
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules
    7. (Please refer “Memory Support List” for more information.)
  • Onboard Graphics
    1. Integrated Graphics Processor-Intel®HD Graphics support:
    2. 1 x HDMI port, supporting a maximum resolution of 4096×[email protected] Hz
      * Support for HDMI 2.0 version and HDCP 2.3.
    3. 1 x DisplayPort, supporting a maximum resolution of 4096×[email protected] Hz
      * Support for DisplayPort 1.2 version and HDCP 2.3
    4. (Graphics specifications may vary depending on CPU support.)
  • Audio
    1. Realtek®Audio CODEC
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
    4. Support for S/PDIF Out
  • LAN
    1. Realtek®5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
