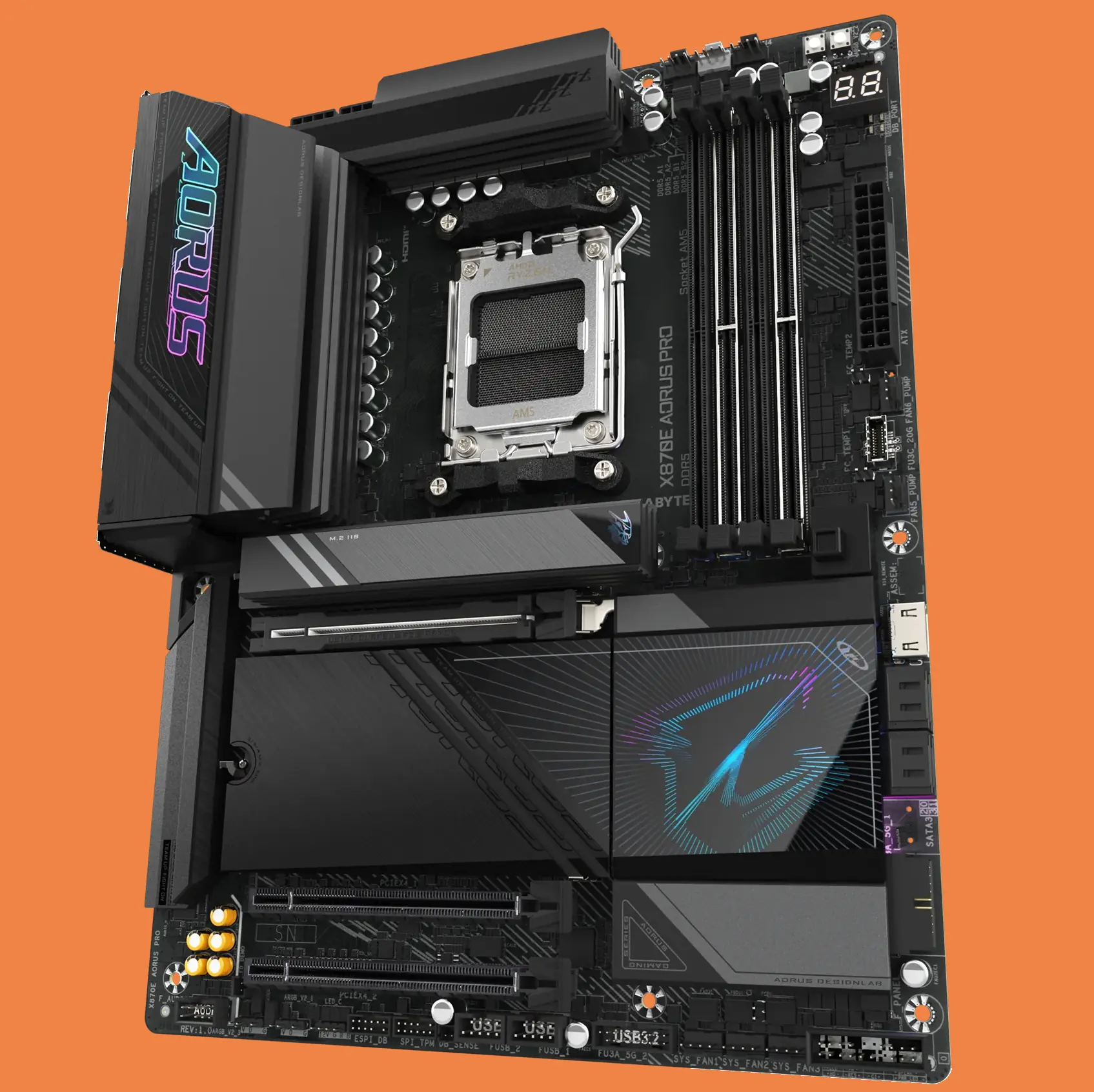

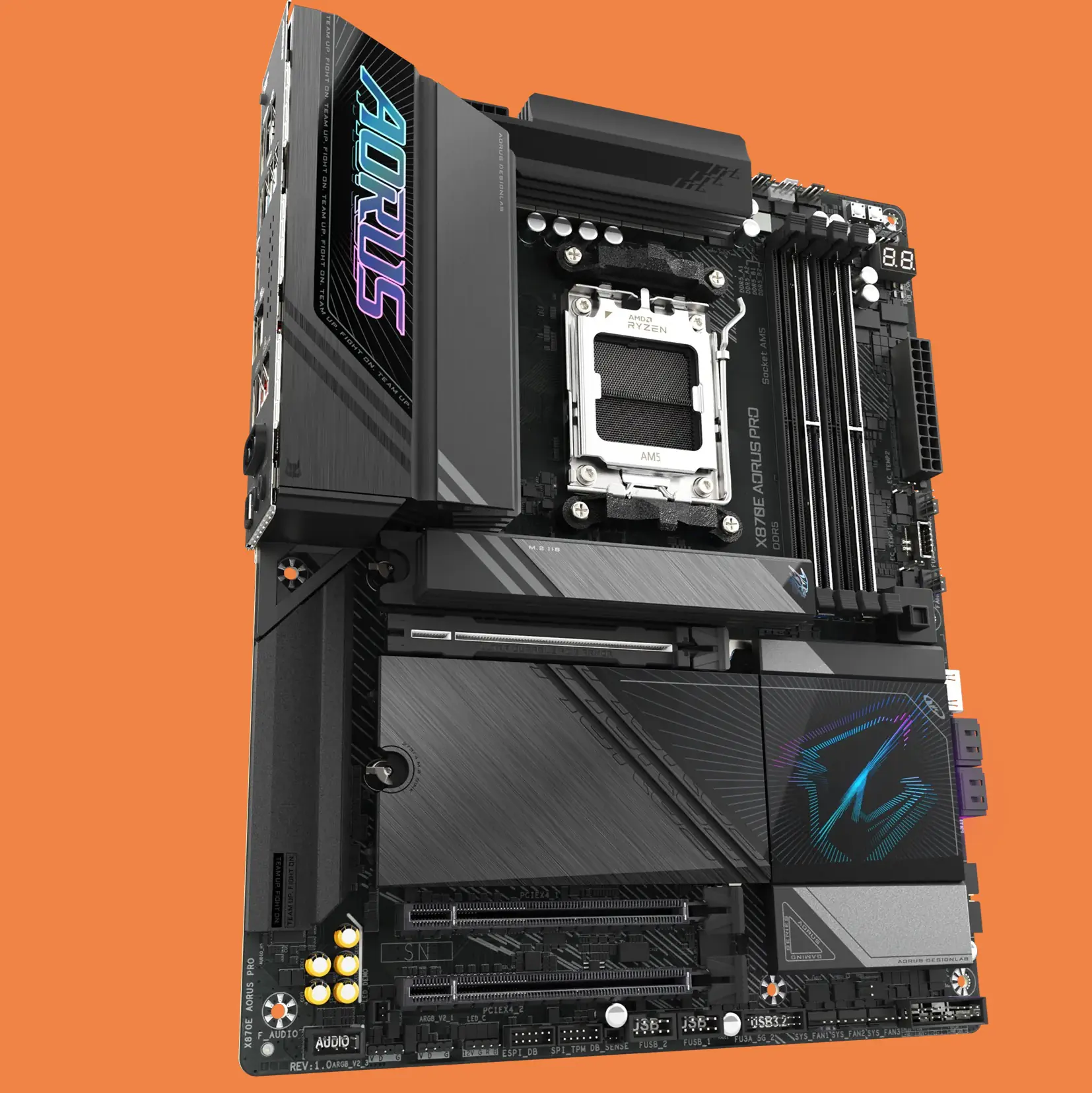

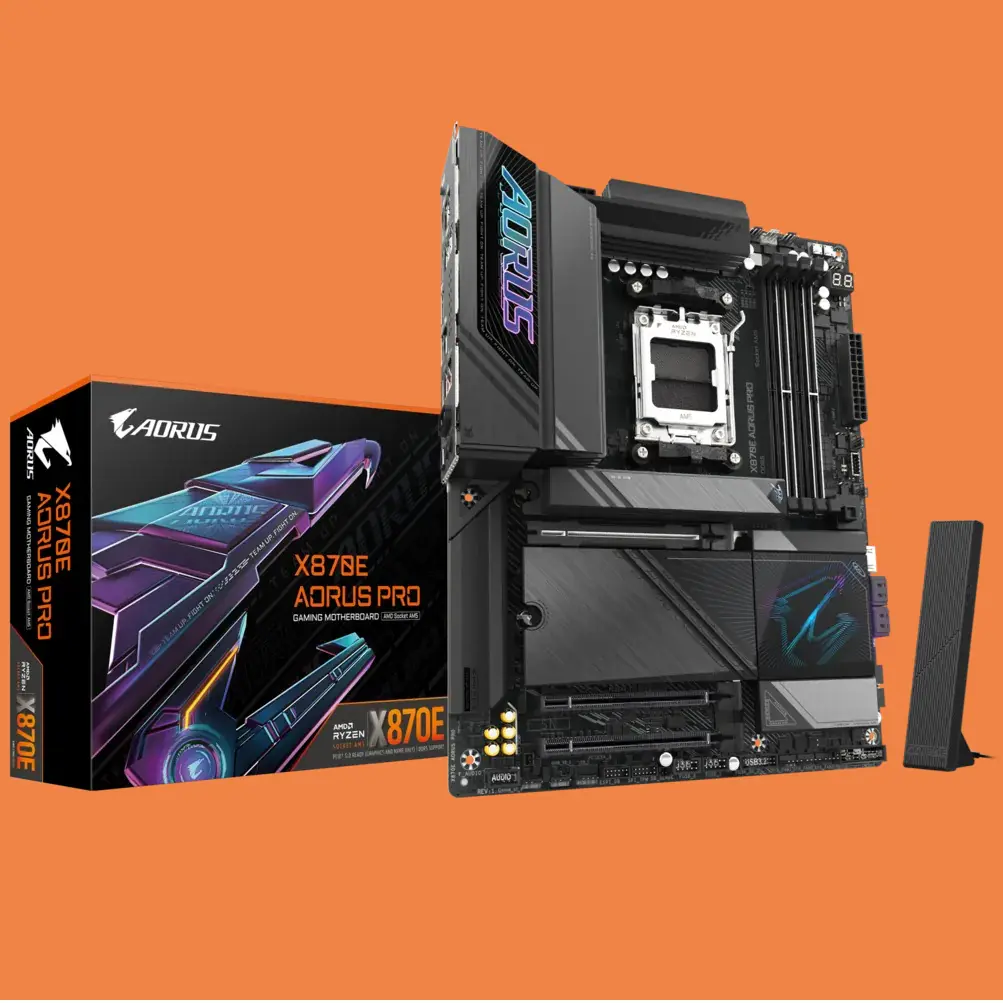

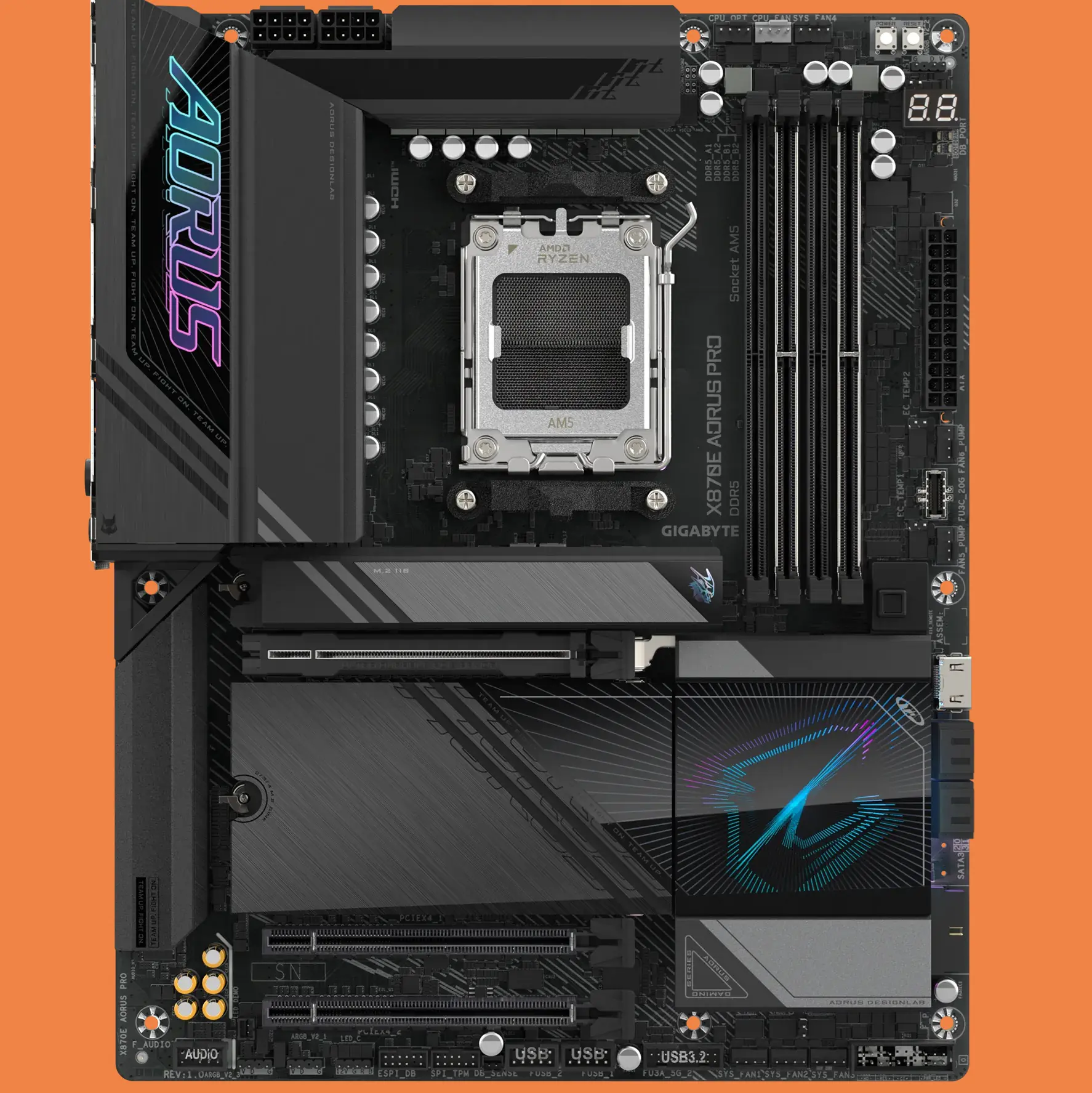

Name: GIGABYTE X870E AORUS PRO AM5 Motherboard DDR5 ATX UD Slot X
SKU: GIG-X870E-AORUS-PRO
Price: 364.00 USD
Availability: OutOfStock

AMD Socket AM5：Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
Digital twin 16+2+2 phases VRM solution
Dual Channel DDR5：4*DIMMs with AMD EXPO™Memory Module Support

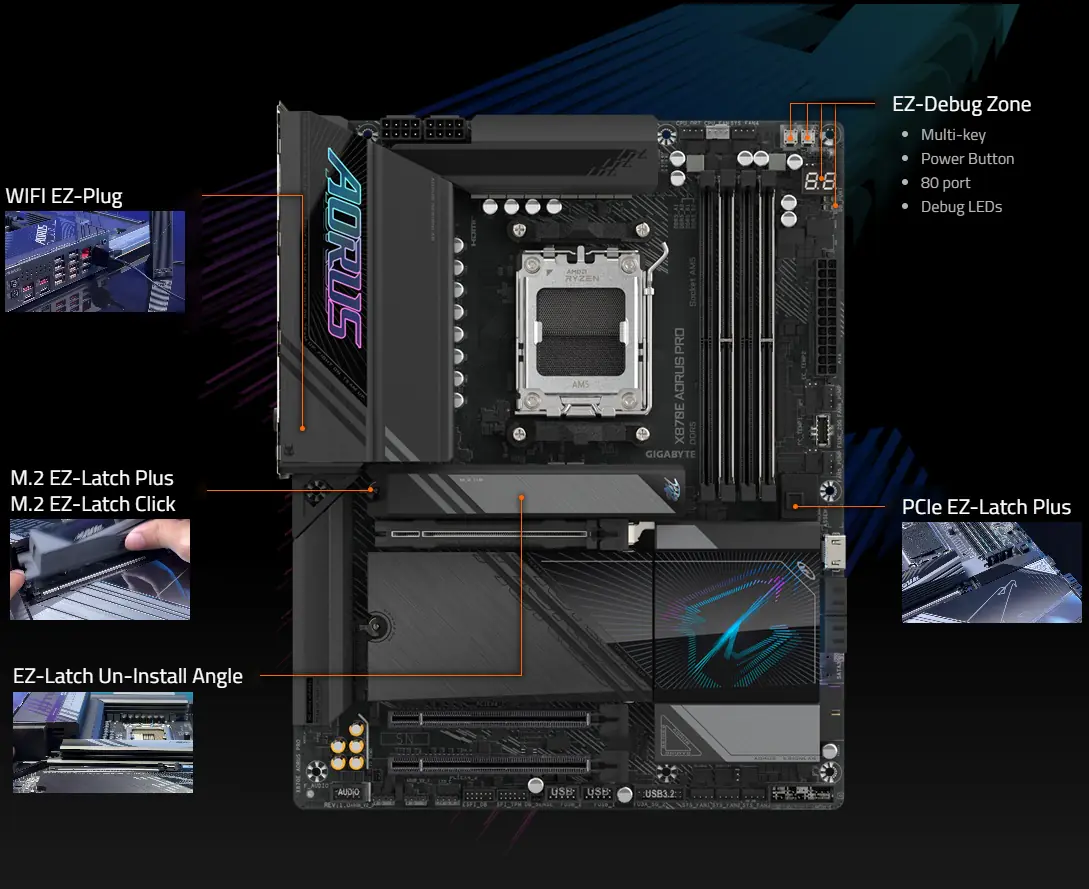

WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
EZ-Latch Plus：PCIe and M.2 slots with Quick Release & Screwless Design
EZ-Latch Click：M.2 heatsinks with screwless design
Sensor Panel Link：Onboard video port for hassle-free in-chassis panel setup
Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
New Power Monitor in HWinfo for real-time monitoring on CPU power phases
Ultra-Fast Storage：4*M.2 slots, including 3* PCIe 5.0 x4

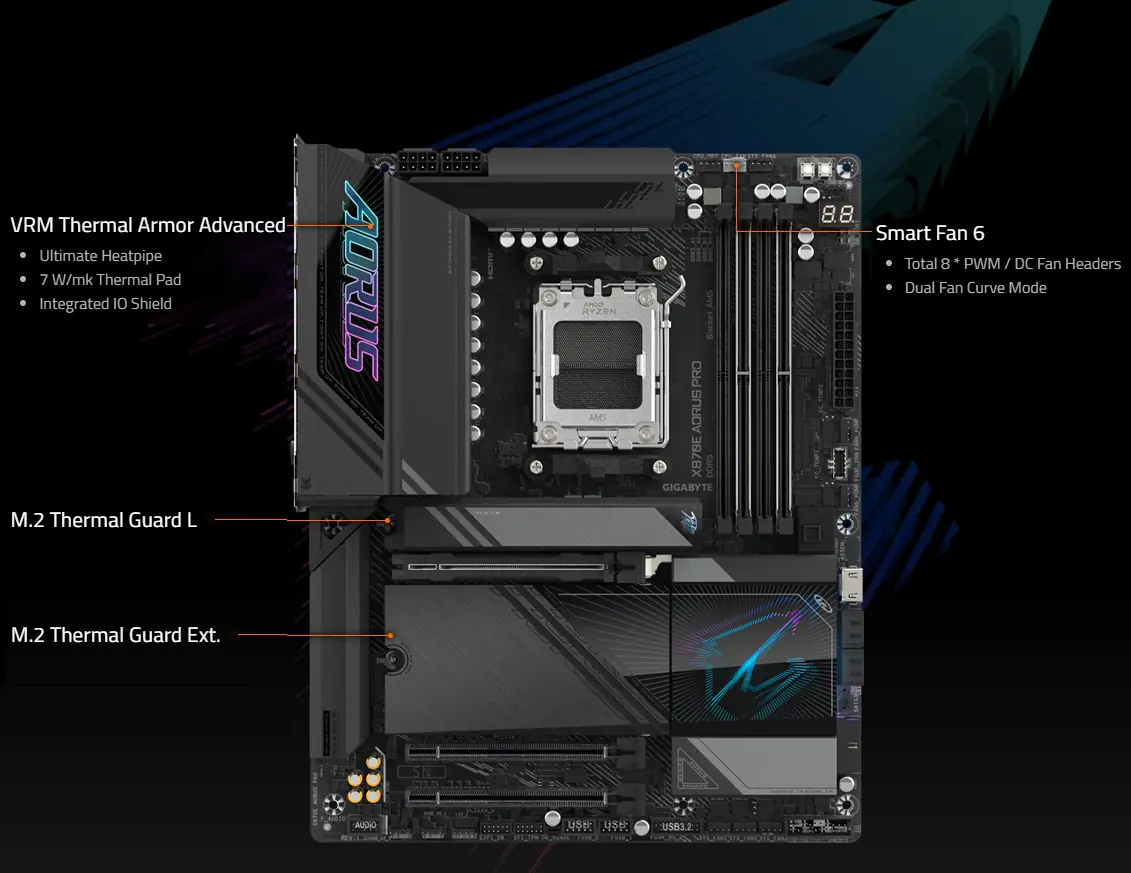

Efficient Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard L
Fast Networking：2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
Extended Connectivity：Dual USB4 Type-C with DP-Alt, HDMI
Reliable Audio：Realtek ALC1220 HD Audio & Audiophile Grade Capacitors
Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability
PCIe UD Slot X： PCIe 5.0 x16 slot with 10X strength for graphics card

Model
Brand	GIGABYTE
Model	X870E AORUS PRO

Supported CPU
CPU Socket Type	AM5
CPU Type	Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series

Chipsets
Chipset	AMD X870E

Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	DDR5 5200
Maximum Memory Supported	256GB
Channel Supported	Dual Channel
ECC Supported	Non-ECC
Buffer Supported	Un-buffered
Memory Feature	Support for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules

Expansion Slots
PCI Express 5.0 x16	1x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode * The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot. When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode. AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode (The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.)
PCI Express x4	Chipset: – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1) – 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)

Storage Devices
SATA 6Gb/s	4 x SATA 6Gb/s
M.2	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs * The M2B_CPU and M2C_CPU connectors will become unavailable when using the AMD Ryzen 8000 Series-Phoenix 1/Phoenix 2 Processors. 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
SATA RAID	0/1/5/10

Onboard Audio
Audio Chipset	Realtek ALC1220
Audio Channels	7.1 Channels

Rear Panel Ports

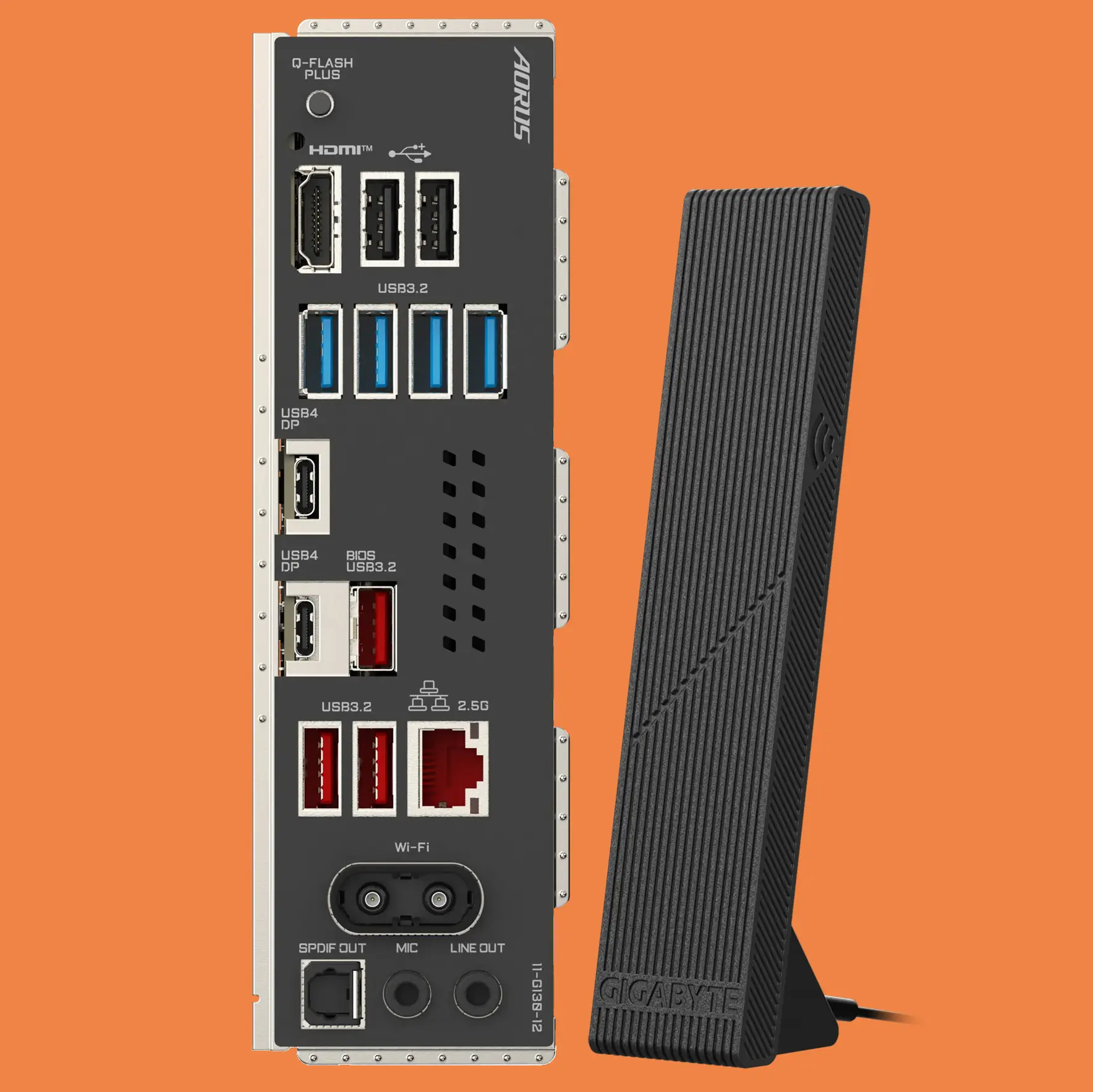

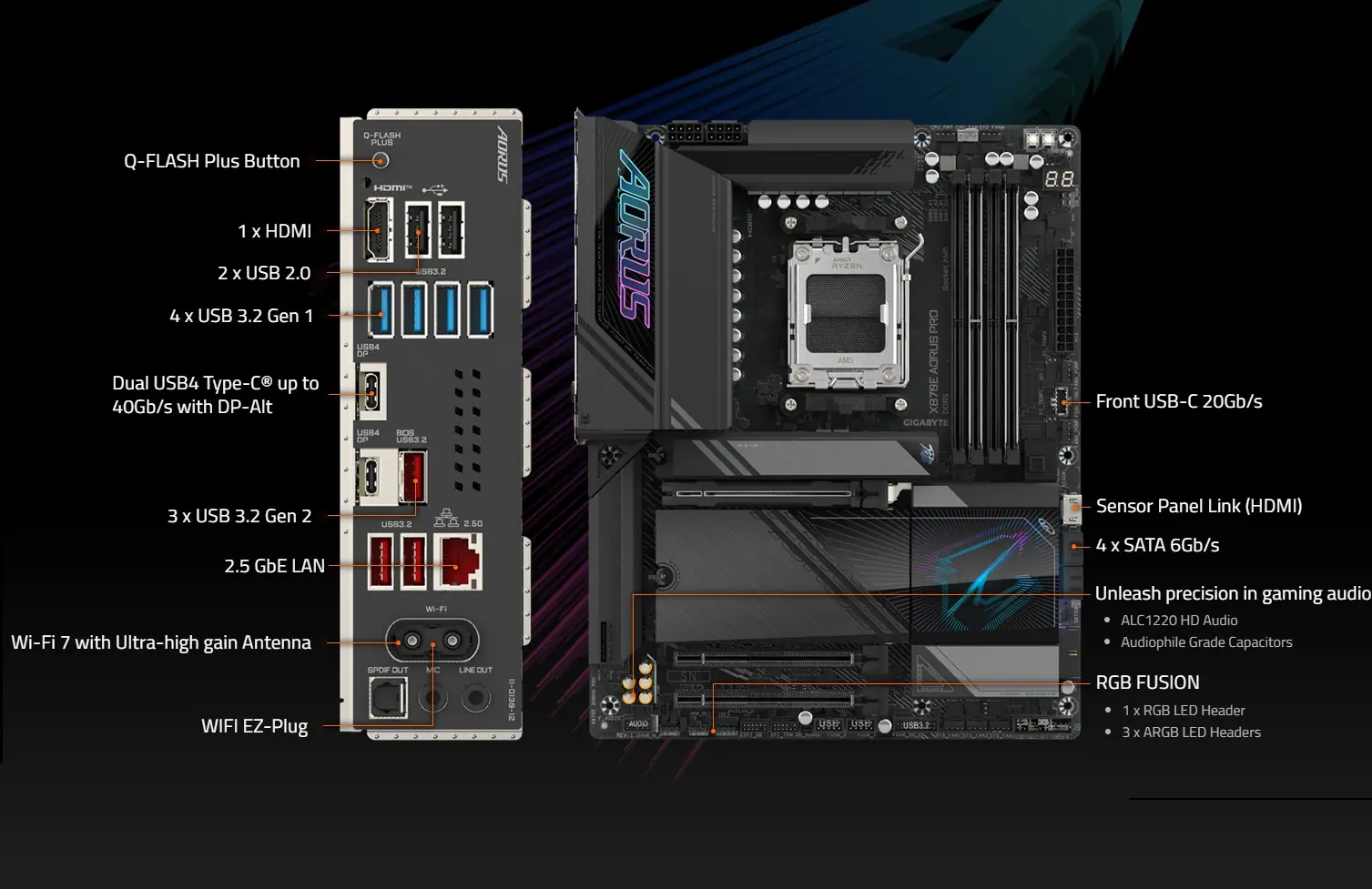

Back I/O Ports	1 x Q-Flash Plus button 2 x USB 2.0/1.1 ports 1 x HDMI port 4 x USB 3.2 Gen 1 ports 2 x USB4 USB Type-C port (DisplayPort 3 x USB 3.2 Gen 2 Type-A ports (red) 1 x RJ-45 port 2 x antenna connectors (2T2R) 1 x optical S/PDIF Out connector 2 x audio jacks

Internal I/O Connectors
Onboard USB	1 x USB Type-C header, with USB 3.2 Gen 2×2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers
Other Connectors	1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 4 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x noise detection header 1 x HDMI port 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI2.0/GC-TPM2.0 SPI V2 module only) 1 x power button 1 x reset button 2 x temperature sensor headers 1 x reset jumper 1 x Clear CMOS jumper

Physical Spec
Form Factor	ATX
Dimensions (W x L)	12.0″ x 9.6″
Power Pin	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors

Software Feature
BIOS Feature	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Software	Norton Internet Security (OEM version) LAN bandwidth management software
Windows 11	Supported
