SKU: 9MX87EG7-00-G11

GIGABYTE X870 EAGLE WIFI7 ATX Motherboard , AMD AM5 DDR5 , 8200 MT/s OC , PCIe 5.0 M.2 , Dual USB4 Type-C , Wi-Fi 7 & 2.5GbE LAN , AORUS AI Snatch , EZ-Latch Plus , RGB Fusion for AMD Ryzen 9000 / 8000 / 7000 Series Processors

Name: GIGABYTE X870 EAGLE WIFI7 ATX Motherboard , AMD AM5 DDR5 , 8200 MT/s OC , PCIe 5.0 M.2 , Dual USB4 Type-C , Wi-Fi 7 & 2.5GbE LAN , AORUS AI Snatch , EZ-Latch Plus , RGB Fusion for AMD Ryzen 9000 / 8000 / 7000 Series Processors | Expert-Zone
SKU: 9MX87EG7-00-G11
Price: 313.00 USD
Availability: InStock

$ 313.00 ---ONLY---

Add to compare

Description

⚙️ Expert Features

Soars on Socket AM5: Supports AMD Ryzen™ 9000 / 8000 / 7000 Series processors for the most advanced desktop platforms.

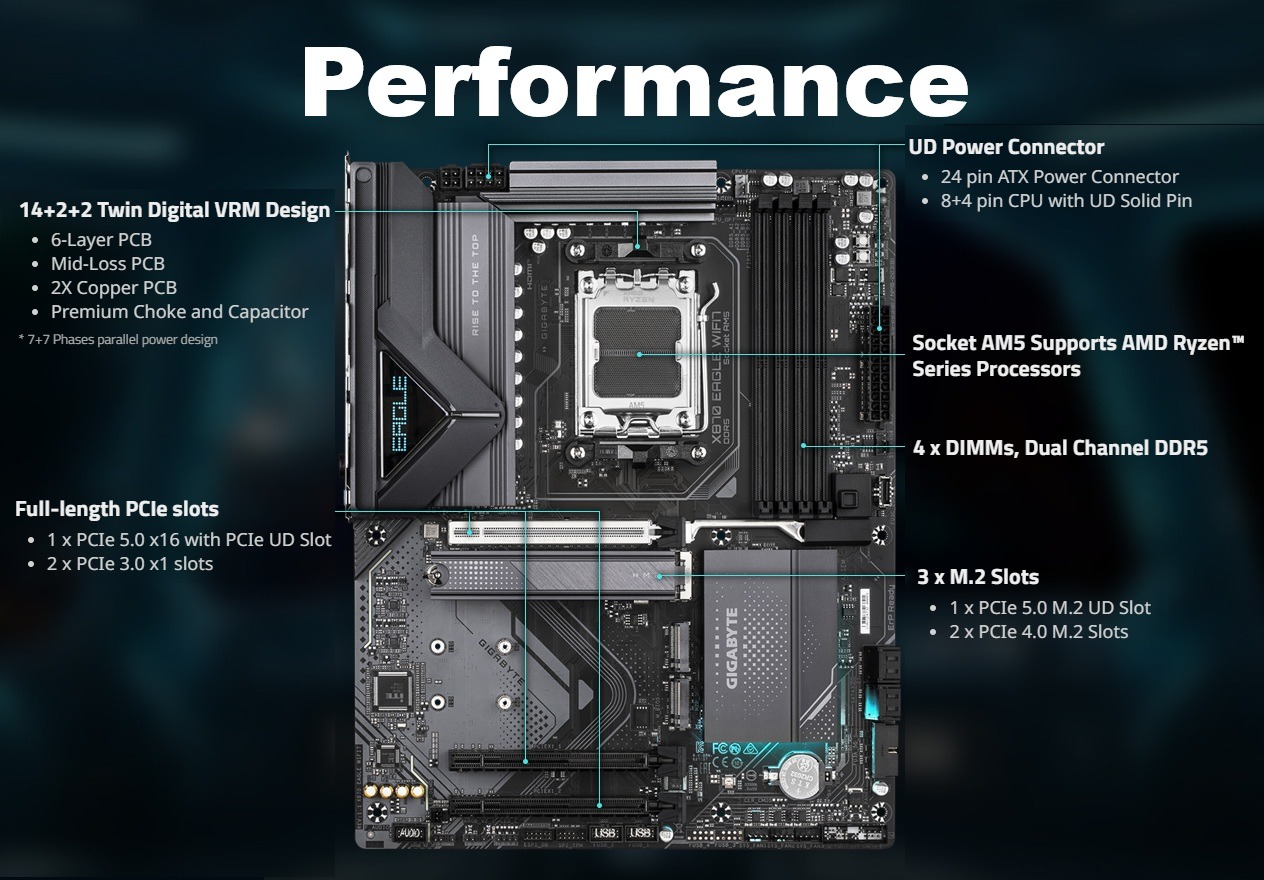

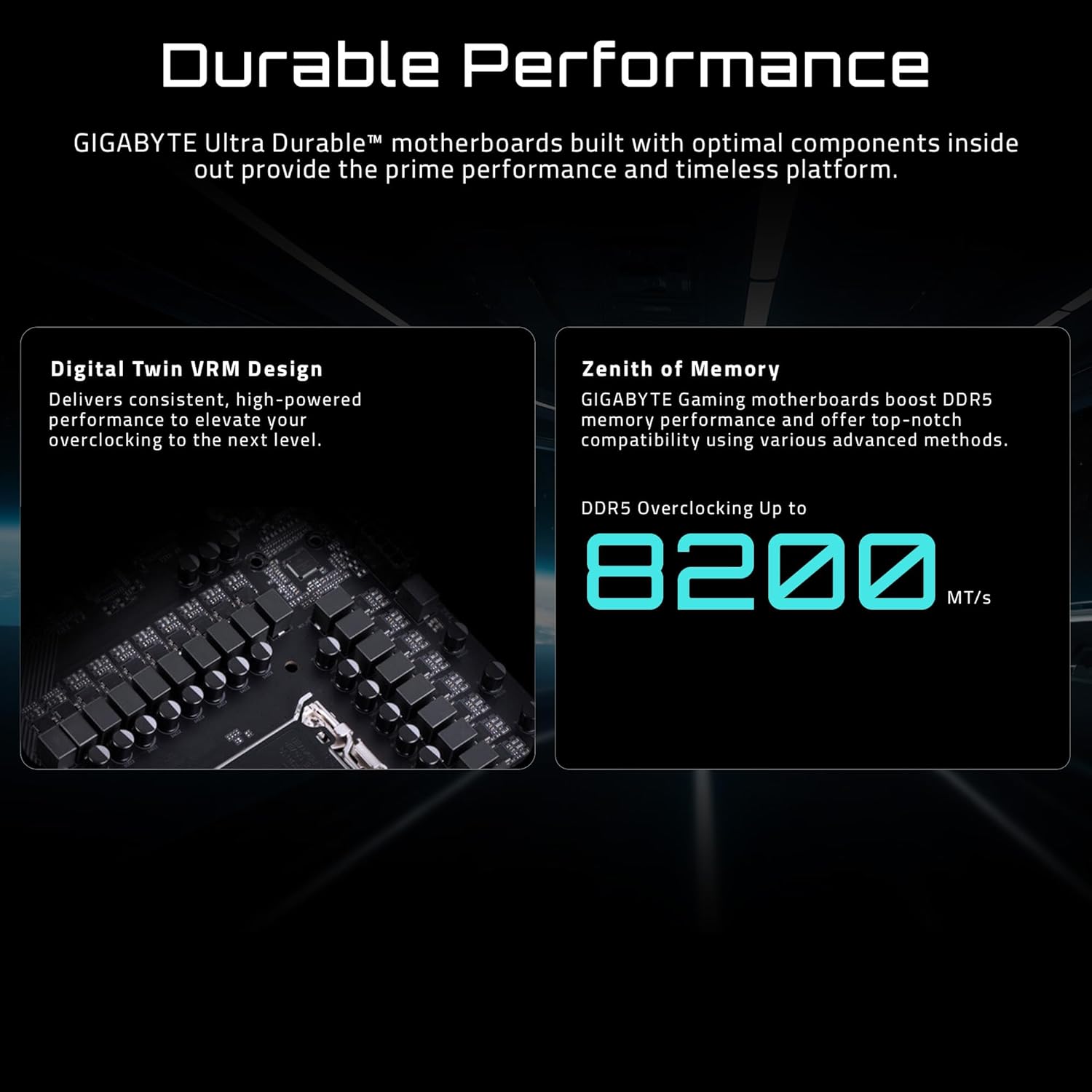

14+2+2 Twin Digital VRM Power Design: Clean, consistent power delivery for heavy-duty multitasking and overclocking stability.
DDR5 Memory Booster: 4× DIMMs supporting up to 256GB DDR5 8200(OC) — built for high-frequency memory freaks.
AORUS AI Snatch: One-click DDR5 auto-boost and real-time performance tuning powered by smart algorithms.
Triple M.2 Slots (Gen5 x4 + Gen4 x4 + Gen4 x2): Experience ultra-fast storage expansion with screwless EZ-Latch design.
Wi-Fi 7 + 2.5GbE LAN: Lightning-fast, low-latency networking for gaming, VR, and cloud-level file transfers.
Dual USB4 Type-C Ports: Next-gen 40Gbps data transfer, video output, and device charging with DP-Alt support.
Thermal Armor Advanced: VRM heatsinks and M.2 Thermal Guards ensure temperatures stay cool even under full load.

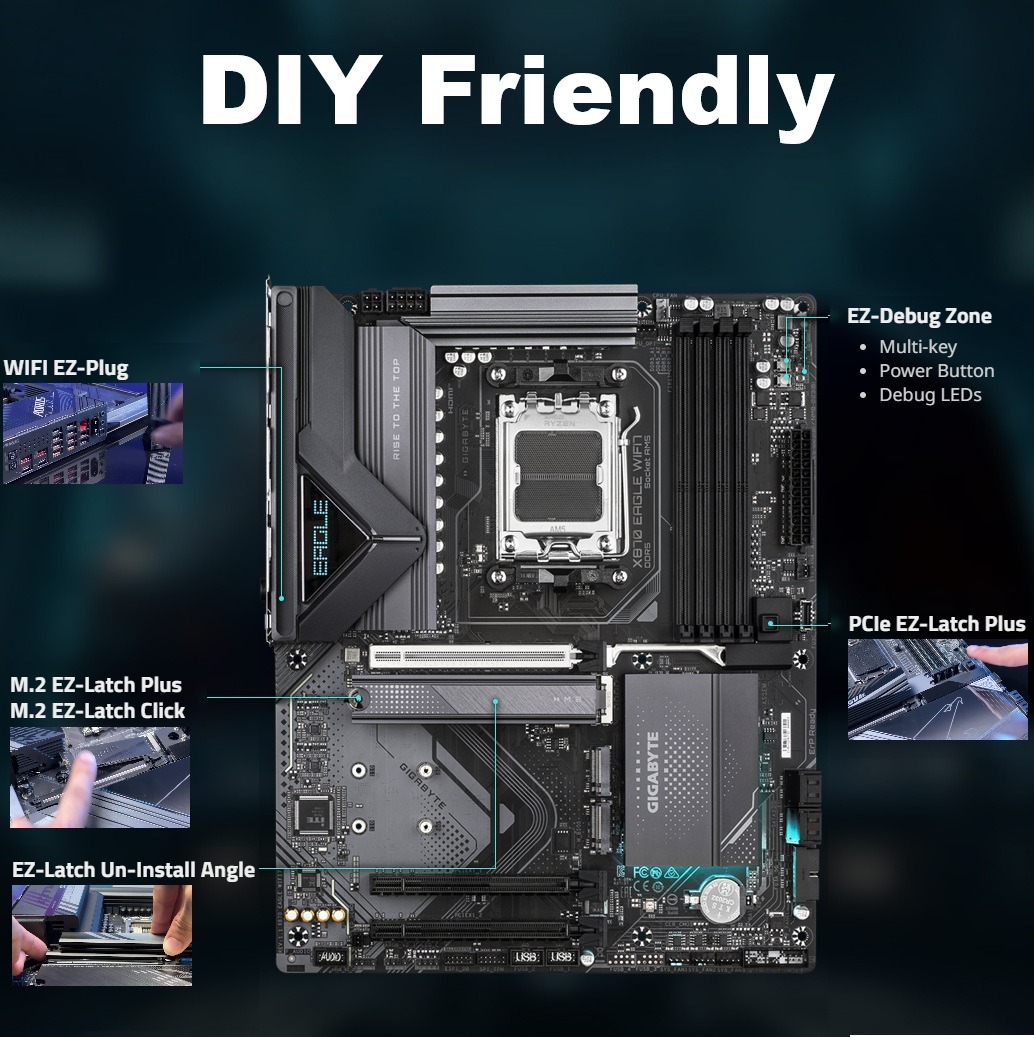

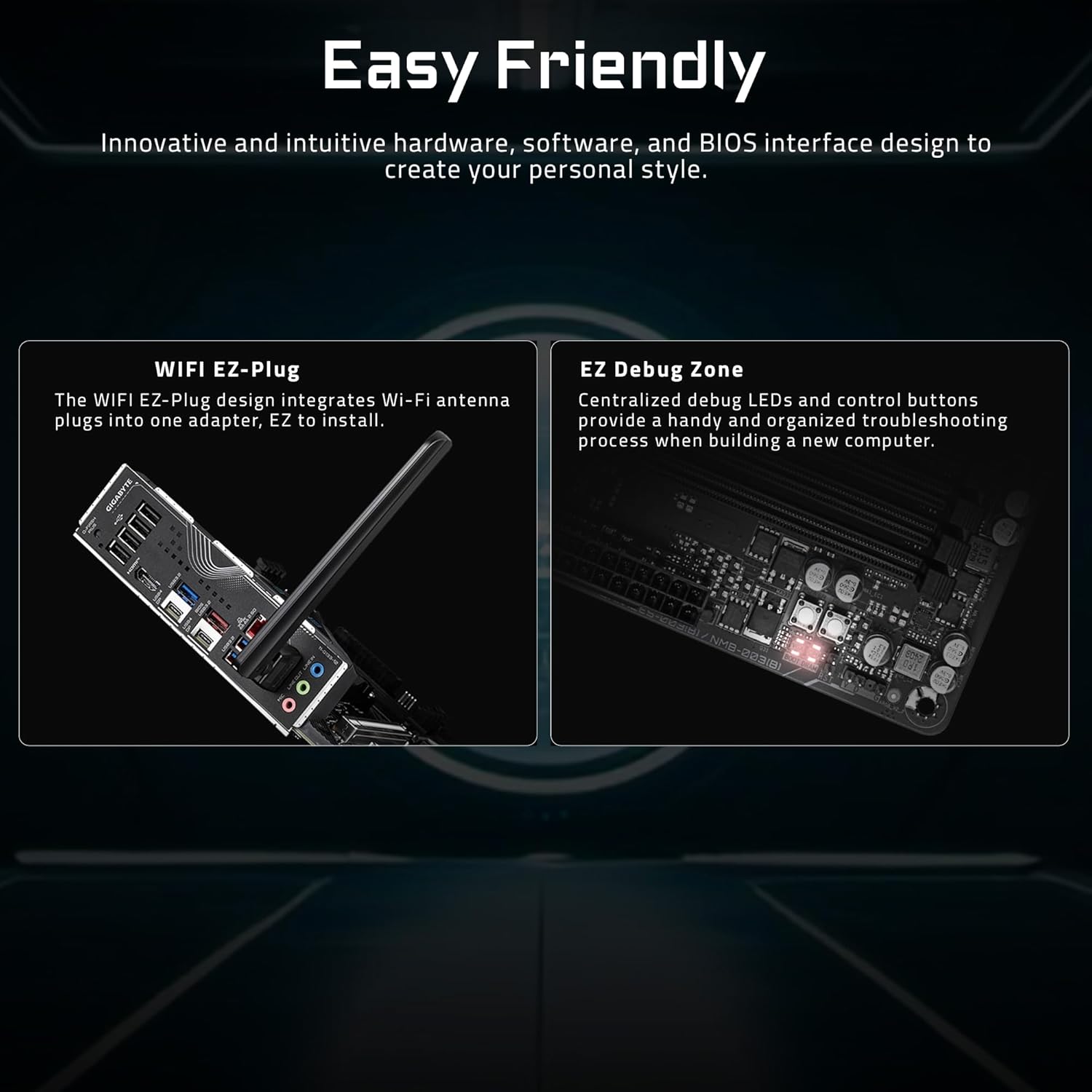

EZ-Latch Plus & Click System: Tool-free installation for GPUs and SSDs—build smarter, not harder.
Ultra Durable DNA: 6-layer 2x copper PCB, premium chokes, capacitors, and mid-loss design for lifespan that laughs at time.
Next-Gen Aesthetics: Sleek EAGLE-themed styling with RGB Fusion lighting, Q-Flash Auto Scan, and intuitive BIOS UI.
Ready for Creators & Gamers: Dual USB4, HDMI, DDR5 8200 OC, PCIe 5.0, and advanced AI tuning — everything a power user dreams of.

🧠 Expert Specs

Category	Specification
Chipset	AMD X870
CPU Support	AMD Ryzen™ 9000 / 8000 / 7000 Series
Socket	AMD AM5
Memory	4× DDR5 DIMMs up to 256GB (Dual Channel, non-ECC, Unbuffered)
Memory Speeds	Up to DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6400(OC) / 6000(OC) / 5600 / 5200 / 4800 MT/s
Memory Features	Supports AMD EXPO™ and Intel® XMP Profiles
Storage Interface	3× M.2 (1× PCIe 5.0 x4, 2× PCIe 4.0 x4/x2), 4× SATA 6Gb/s
RAID Support	NVMe RAID 0/1/5/10 (Ryzen 9000), SATA RAID 0/1/10
Expansion Slots	1× PCIe 5.0 x16, 2× PCIe 3.0 x1

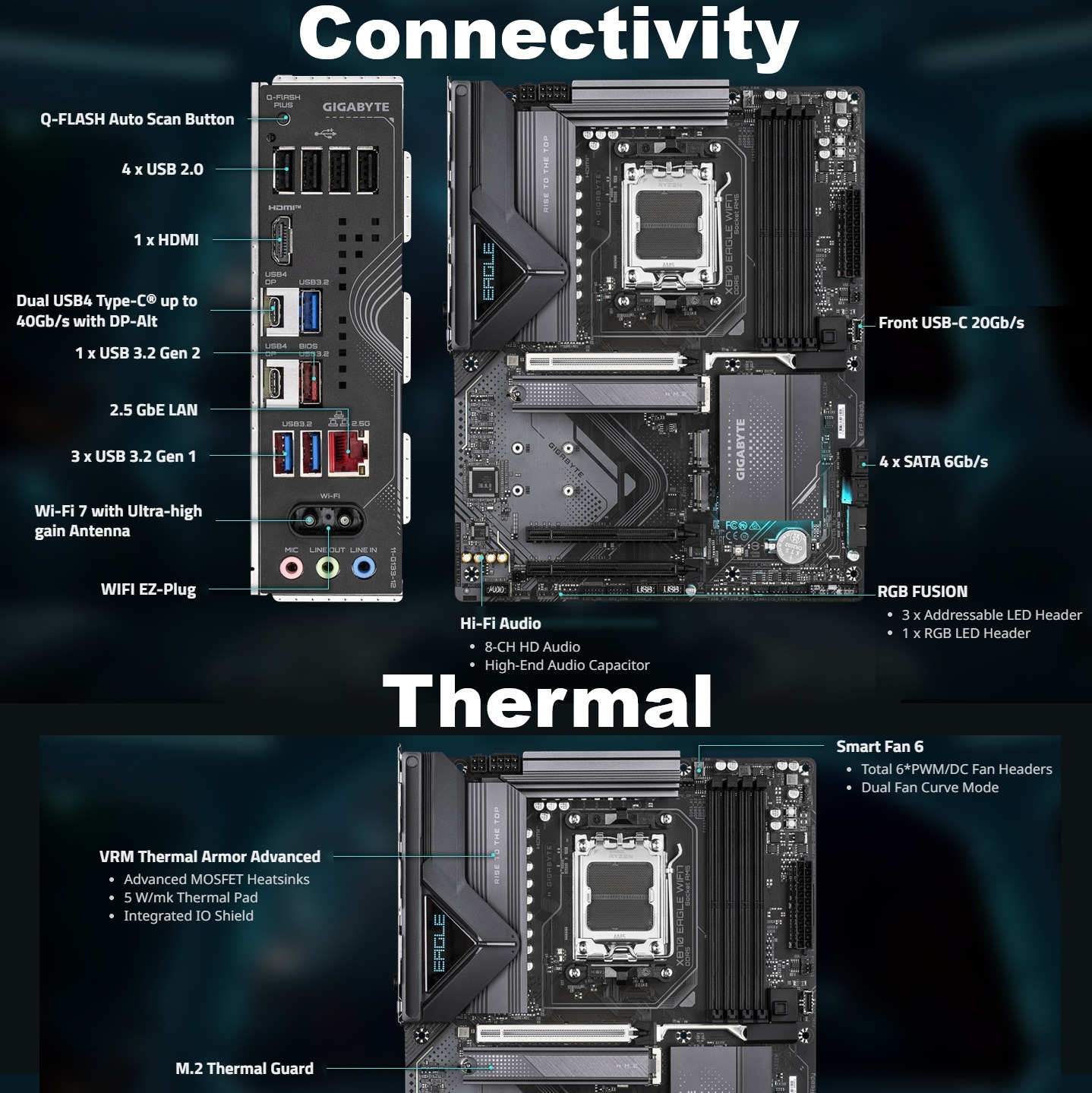

USB Ports (Rear)	2× USB4 Type-C, 1× USB 3.2 Gen2 Type-A (red), 3× USB 3.2 Gen1, 4× USB 2.0
USB (Internal)	1× USB 3.2 Gen2x2 Type-C header, 1× USB 3.2 Gen1 header, 2× USB 2.0 headers
Networking	2.5GbE LAN (Realtek) + Wi-Fi 7 + Bluetooth 5.4
Audio	Realtek HD Audio Codec, up to 7.1-channel support
Video Outputs	2× USB4 Type-C (DP-Alt) + 1× HDMI 2.1
Internal Connectors	24-pin ATX, 8+4 pin CPU, 4× fan headers, RGB & ARGB headers
Cooling	VRM Thermal Armor Advanced & M.2 Thermal Guard
Special Features	AORUS AI Snatch, Q-Flash Plus, EZ-Latch Plus, Smart Backup, RGB Fusion
Form Factor	ATX (30.5cm × 24.4cm)
