Description

💠 Expert Features

X3D Turbo Mode – One-Click Warp Drive: Instantly boosts gaming FPS by optimizing Ryzen™ 9000 and non-X3D processors to near X3D-level performance for smoother, faster gameplay.
D5 Bionic Corsa + Zenith Memory Performance: AI-enhanced DDR5 overclocking up to 8200MT/s for superb stability, cleaner signals, and ridiculously high bandwidth.

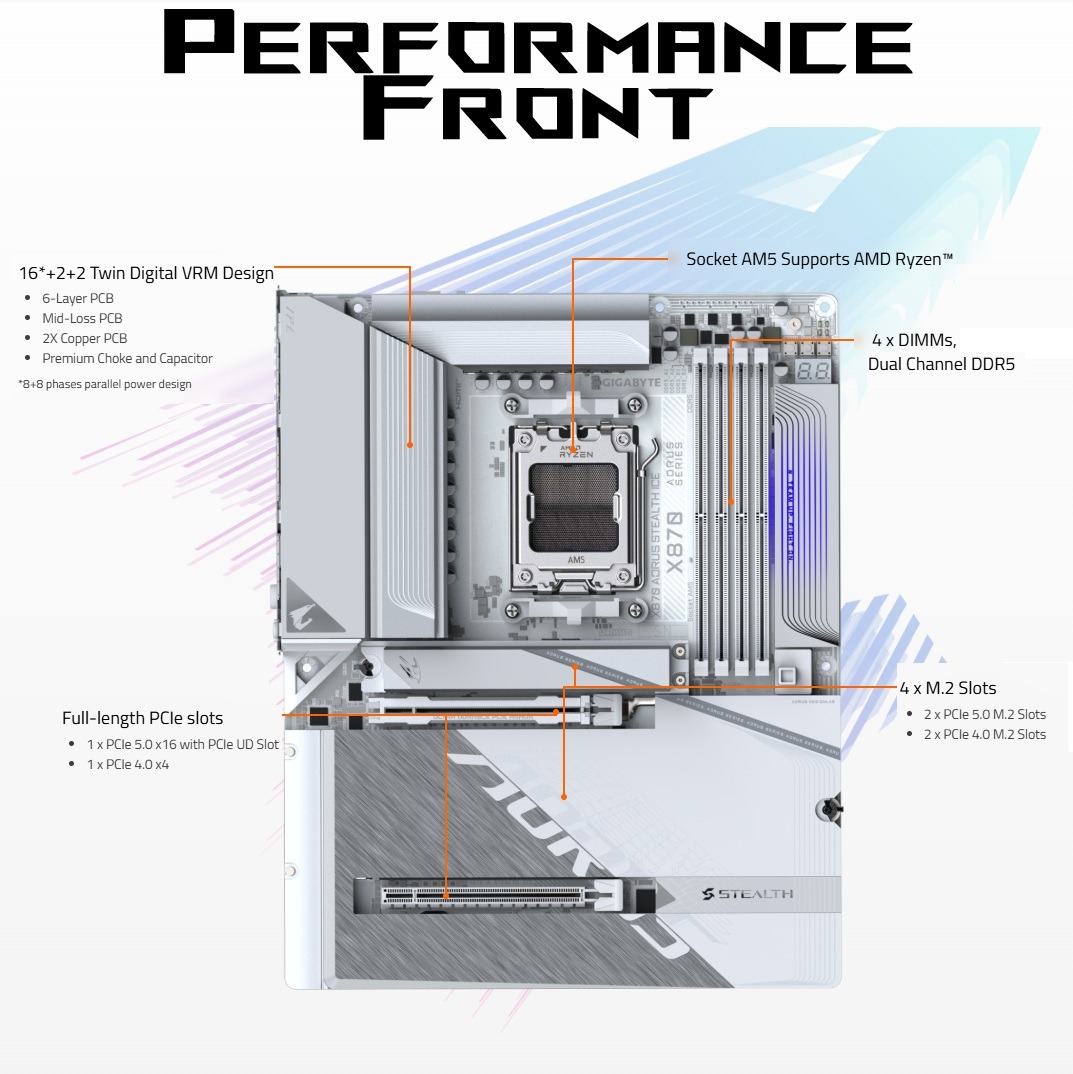

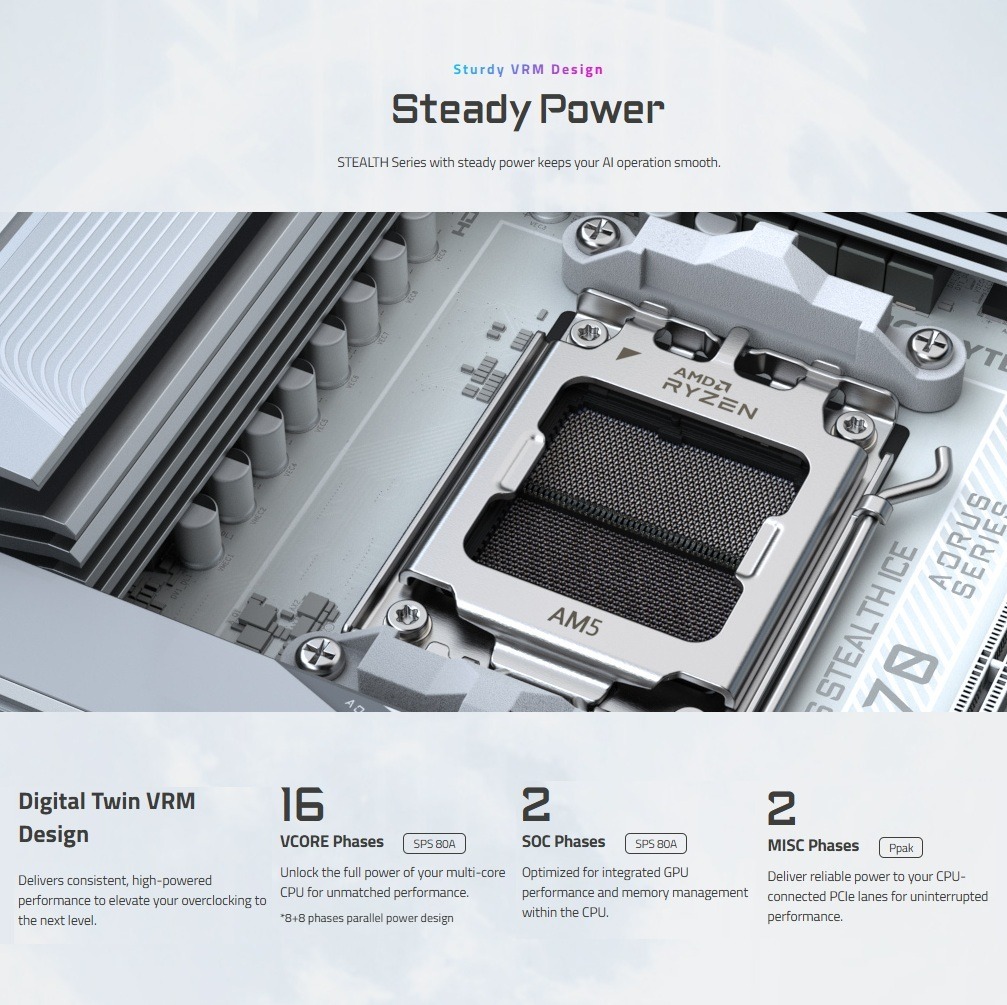

Digital Twin 16+2+2 Power Stages: Heavy-duty SPS 80A phases feed your CPU balanced power for stable boosting, smoother AI workloads, and fearless multitasking.
Full-Metal Thermal Arsenal: M.2 Thermal Guard L + Backplate, Thermal Guard Ext., Epic VRM heatsinks, 7 W/mK pads, and M.2 EZ-Flex cooling delivering up to 12°C SSD reduction.

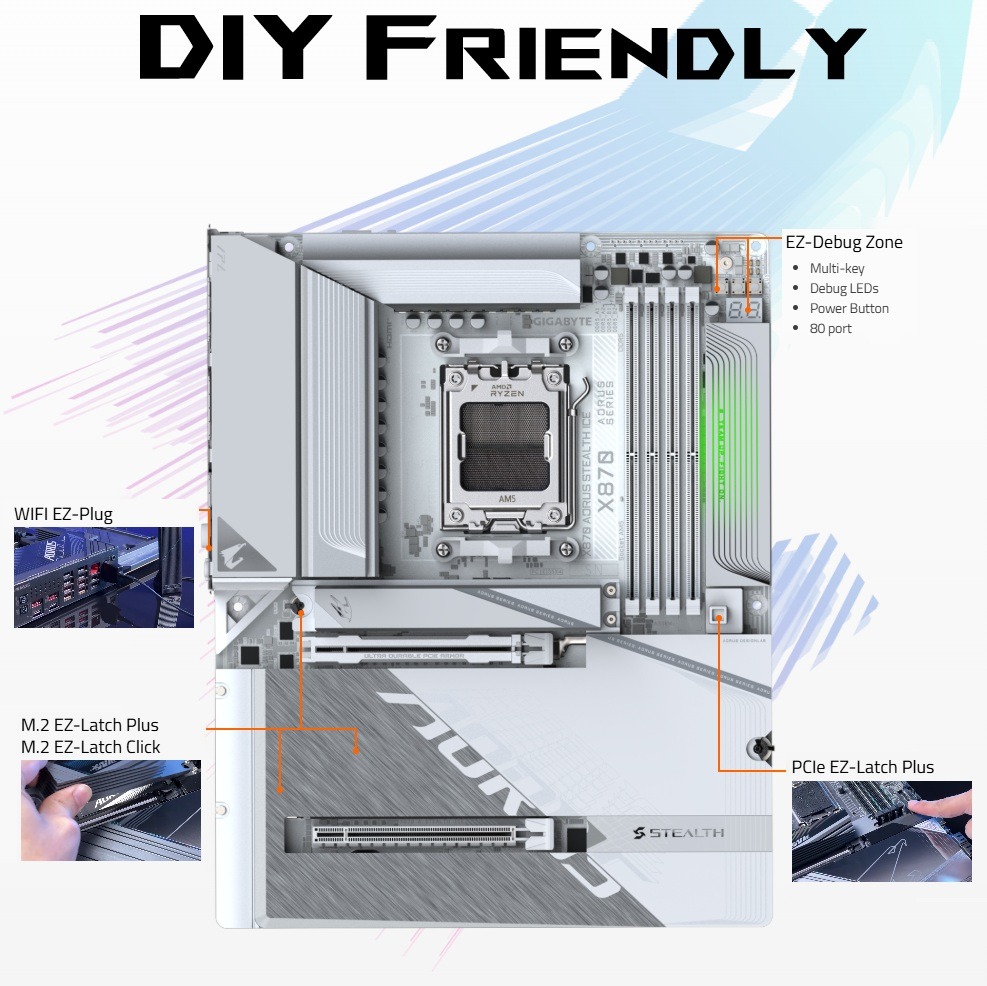

DIY Superpowers: Includes EZ-Latch Plus for PCIe and M.2, EZ-Latch Click for screwless heatsinks, WiFi EZ-Plug, Debug LEDs, Q-Flash buttons, power/reset buttons, Multi-Key and more.
Future-Class Connectivity: Dual USB4 Type-C 40Gbps, 5GbE LAN, Wi-Fi 7 with high-gain antenna, HDMI, USB 3.2 Gen 2×2, plus four PCIe/NVMe M.2 slots—two PCIe 5.0.
Ultra Durable™ Engineering: PCIe UD Slot with 10× strength, metal base plate, superior SMD signal layout, solid pins, and reinforced memory slots for long-term reliability.
Tailored Computing: Upgraded UC BIOS with multi-theme skins, AIO fan control, Q-Flash Auto Scan, RGB Fusion personalization, and HWiNFO partnership OSD telemetry.

🧊 Expert Specs

Specification	Details
CPU Support	AMD Socket AM5; Supports Ryzen™ 9000 / 8000 / 7000 Series Processors
Chipset	AMD X870
Memory Support	DDR5 8200(O.C)/8000(O.C)/7950(O.C)/7900(O.C)/7800(O.C)/7600(O.C.)/7400(O.C.)/7200(O.C.)/7000(O.C.)/6800(O.C.)/6600(O.C.)/6400(O.C.)/6200(O.C.)/6000(O.C.)/5800(O.C.)/5600(O.C.)/5200/4800/4400 MT/s; 4×DIMM up to 256GB; Dual Channel; non-ECC UDIMM; AMD EXPO™ & XMP supported
Onboard Graphics – USB4 Outputs	2× USB4 Type-C with DisplayPort, max 3840×2160@240Hz; DP 1.4 + HDR
Onboard Graphics – HDMI	1× HDMI, max 4096×2160@60Hz; HDMI 2.1, HDCP 2.3, HDR
Audio	Realtek ALC1220 CODEC; 2/4/5.1/7.1-channel; line-out supports DSD; S/PDIF Out
LAN	Realtek 5GbE LAN (5G/2.5G/1G/100M)
Wireless	Qualcomm Wi-Fi 7 QCNCM865: 802.11a/b/g/n/ac/ax/be; 2.4/5/6GHz bands; Bluetooth 5.4; supports 320MHz; requires Windows 11 SV3
Expansion Slots	1× PCIe x16 (CPU): PCIe 5.0 x16 for Ryzen 9000/7000; PCIe 4.0 x8 for 8000 Phoenix1; PCIe 4.0 x4 for Phoenix2. 1× PCIe x16 (Chipset) PCIe 4.0 x4 (disabled if M2D_SB in use).
M.2 Storage	M2A_CPU: PCIe 5.0 x4/x2 (Ryzen 9000/7000) or PCIe 4.0 x4/x2 (8000). M2B_CPU: PCIe 5.0 x4/x2 (9000/7000) or PCIe 4.0 x4/x2 (8000 P1). Disabled on 8000 P2. M2C_SB & M2D_SB: PCIe 4.0 x4/x2.
SATA Storage	2× SATA 6Gb/s; RAID 0/1/5/10 for NVMe (RAID 5 only on Ryzen 9000); RAID 0/1 for SATA
USB (Rear + Internal)	Rear: 2× USB4 Type-C; 1× USB-C (USB 3.2 Gen 2); 2× USB 3.2 Gen 2 Type-A; 4× USB 3.2 Gen 1; 4× USB 2.0. Internal: USB-C (USB 3.2 Gen 2×2), 2× USB 3.2 Gen 1, 4× USB 2.0

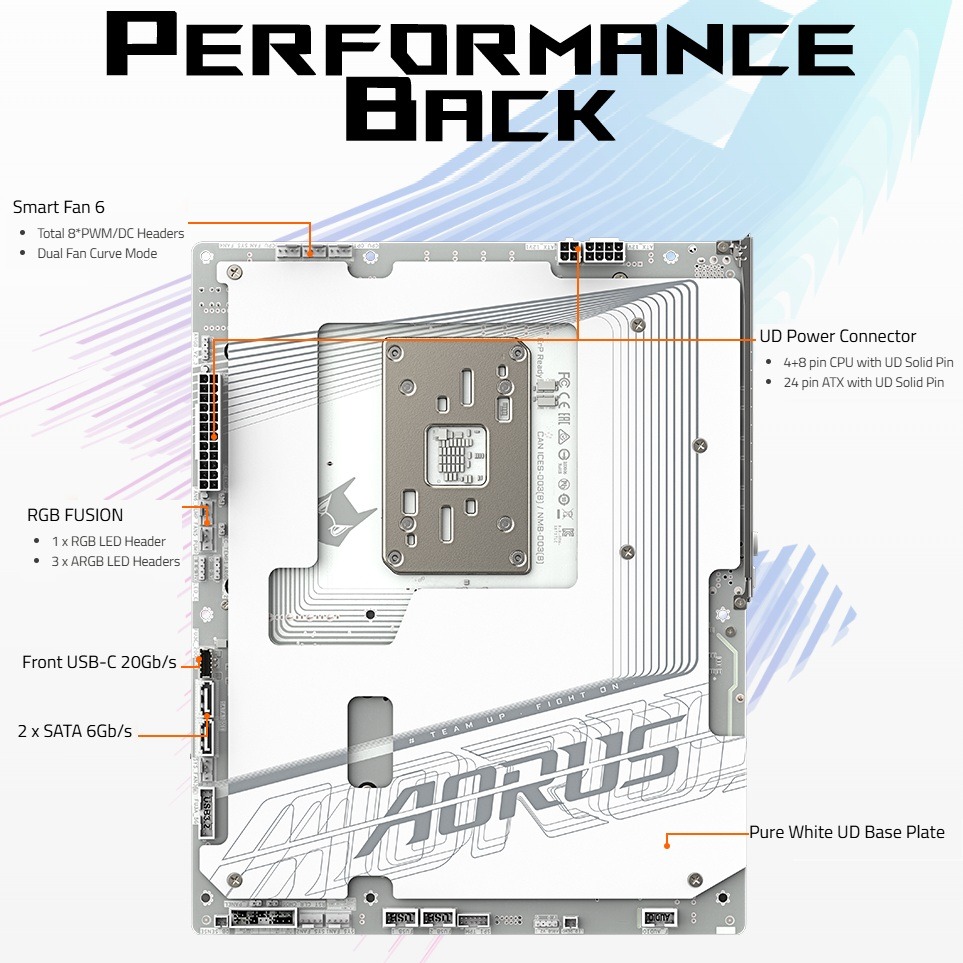

Internal I/O	24-pin ATX; 8-pin + 4-pin CPU power; CPU fan; CPU pump; 4× system fan; 2× system/pump; 3× ARGB Gen2; 1× RGB; 4× M.2; 2× SATA; front panel; front audio; USB-C; USB 3.2 Gen1; 2× USB 2.0; noise sensor; TPM header; Q-Flash Plus button; power/reset buttons; reset jumper; 2× temp sensors; Clear CMOS

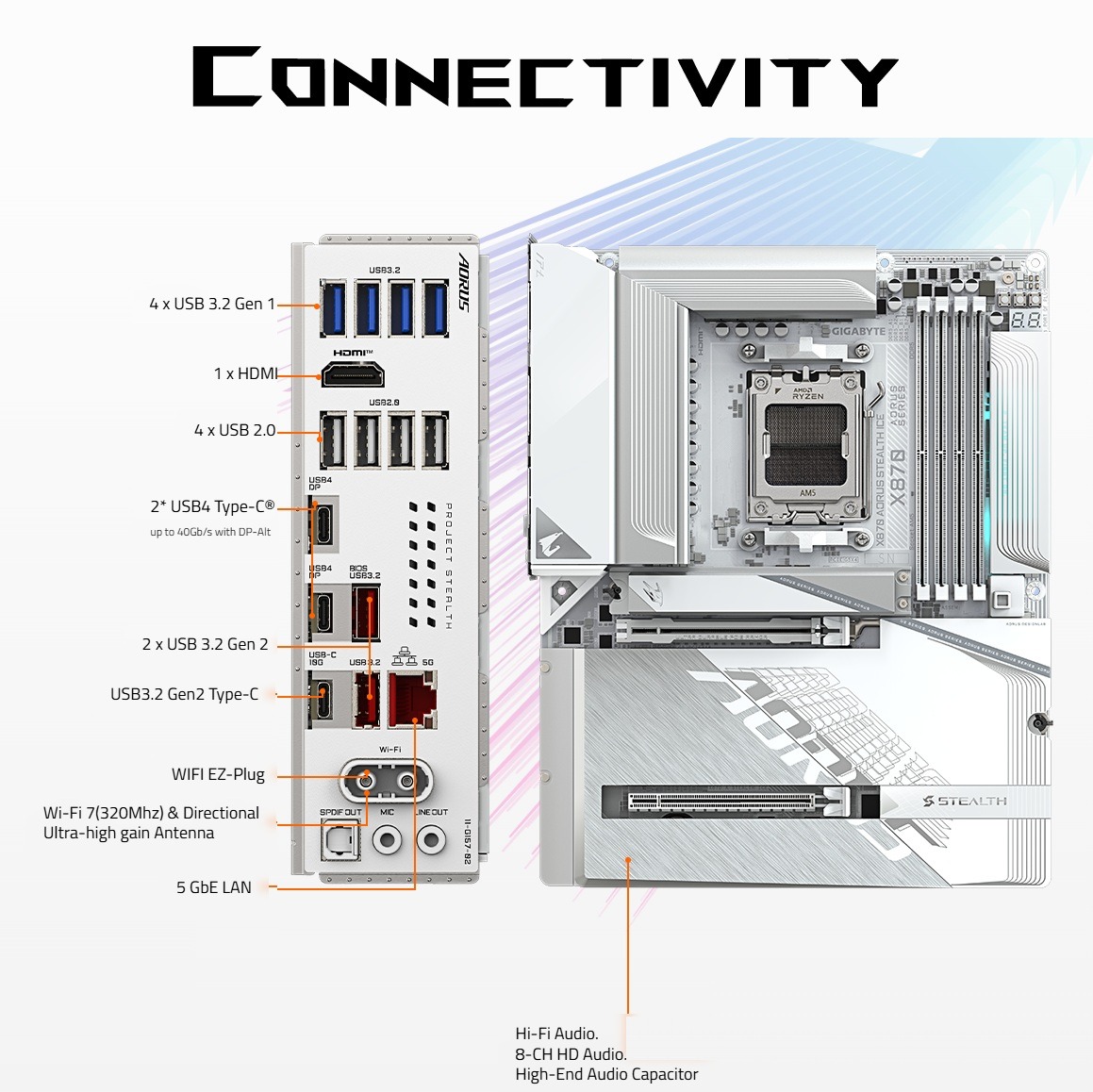

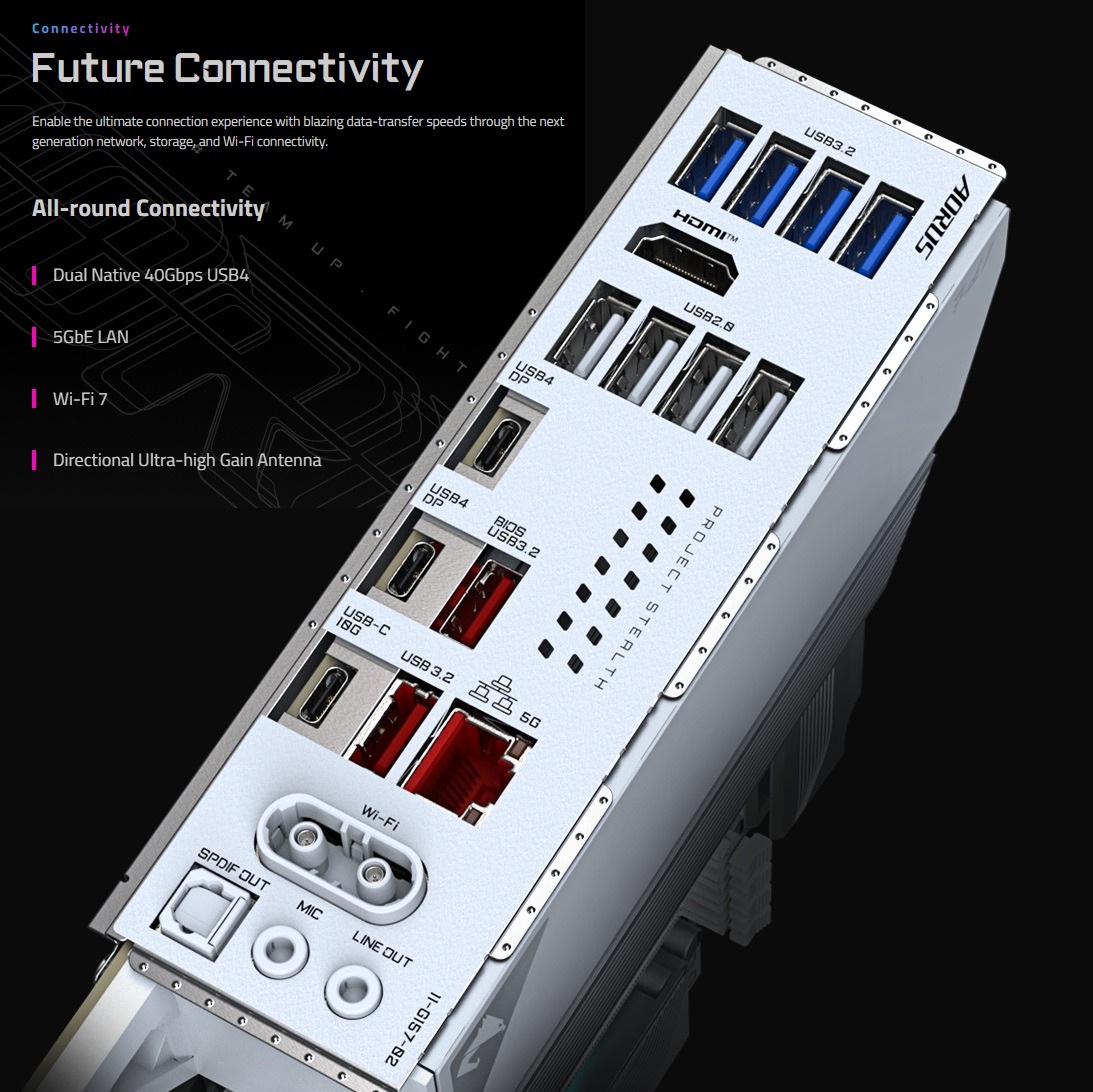

Back Panel	HDMI; 2× antenna connectors; 2× USB4 Type-C; 1× USB-C (3.2 Gen2); 2× USB 3.2 Gen2 Type-A; 4× USB 3.2 Gen1; 4× USB 2.0; RJ-45; optical S/PDIF; 2× audio jacks
I/O Controller	iTE Controller Chip
H/W Monitoring	Voltage, temperature, fan speed, water flow, fan fail warning, fan/pump speed control
BIOS	512Mbit AMI UEFI BIOS; PnP 1.0a; DMI 2.7; WfM 2.0; SMBIOS 2.7; ACPI 5.0
Unique Features	GIGABYTE Control Center; Q-Flash; Q-Flash Plus; Smart Backup
Bundled Software	Norton Internet Security (OEM)
OS Support	Windows 11 64-bit
Form Factor	ATX, 30.5cm × 24.4cm
