SKU: GV-N5060WF2OC-8GD

Gigabyte GeForce RTX 5060 WINDFORCE OC 8G GPU With 2512MHz Boost Clock, 3840 CUDA Cores, 8GB GDDR7 128-Bit Memory, Blackwell with DLSS 4 & Reflex 2, PCIe 5.0, Hawk Fans, Ray Tracing, DisplayPort 2.1 | 1 YEAR WARRANTY

Name: Gigabyte GeForce RTX 5060 WINDFORCE OC 8G GPU With 2512MHz Boost Clock, 3840 CUDA Cores, 8GB GDDR7 128-Bit Memory, Blackwell with DLSS 4 & Reflex 2, PCIe 5.0, Hawk Fans, Ray Tracing, DisplayPort 2.1 | 1 YEAR WARRANTY | Expert-Zone
SKU: GV-N5060WF2OC-8GD
Price: 407.00 USD
Availability: OutOfStock

Original price was: $ 409.00.Current price is: $ 407.00. ---ONLY---

OUT OF STOCK

Add to compare

Description

⚙️ Expert Features

Powered by NVIDIA Blackwell Architecture: Built for next-gen gaming and creative workloads with DLSS 4, Reflex 2, and AI-enhanced rendering.

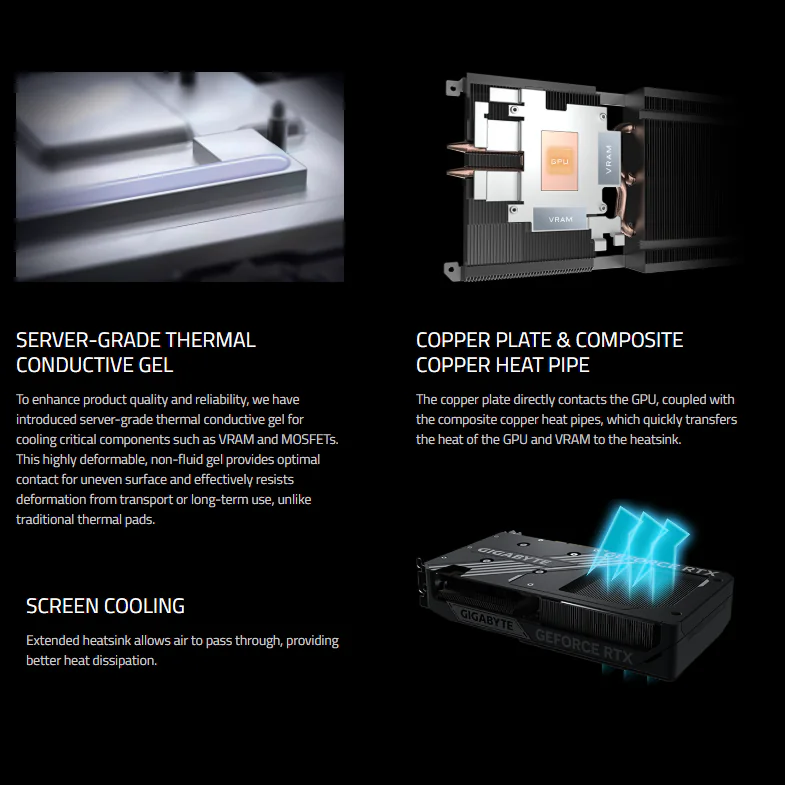

WINDFORCE Cooling System: Advanced thermal solution featuring alternate-spinning Hawk fans, copper plate, composite heat pipes, 3D active fans, and screen cooling.
Hawk Fan Technology: Inspired by eagle wing aerodynamics, these fans boost air pressure by 53.6% and airflow by 12.5%—with less noise.
Graphene Nano Lubricant: Boosts fan lifespan by 2.1x, rivaling double ball bearings while staying whisper-quiet.
3D Active Fan: Semi-passive cooling keeps the fans off under low-load conditions, reducing wear and tear.
Server-Grade Thermal Conductive Gel: Ensures consistent, high-efficiency cooling of VRAM and MOSFETs—ideal for long-term use.
Ray Tracing & Neural Rendering: Fourth-gen cores provide cinematic lighting, reflections, and mega-geometry processing.
DLSS 4 & Reflex 2: AI-powered frame generation and ultra-low latency responsiveness for ultra-smooth gaming.
Studio-Grade Creativity: NVIDIA Studio support for accelerated workflows in rendering, video editing, and streaming.
Reinforced Build: Durable backplate with I/O bracket reinforcement enhances structural integrity.
Ultra Durable Components: Lower RDS(on) MOSFETs, solid capacitors, and metal chokes reduce power loss and extend lifespan.
Friendly PCB Design: Smooth, fully automated PCB production eliminates sharp edges and reduces handling risks.

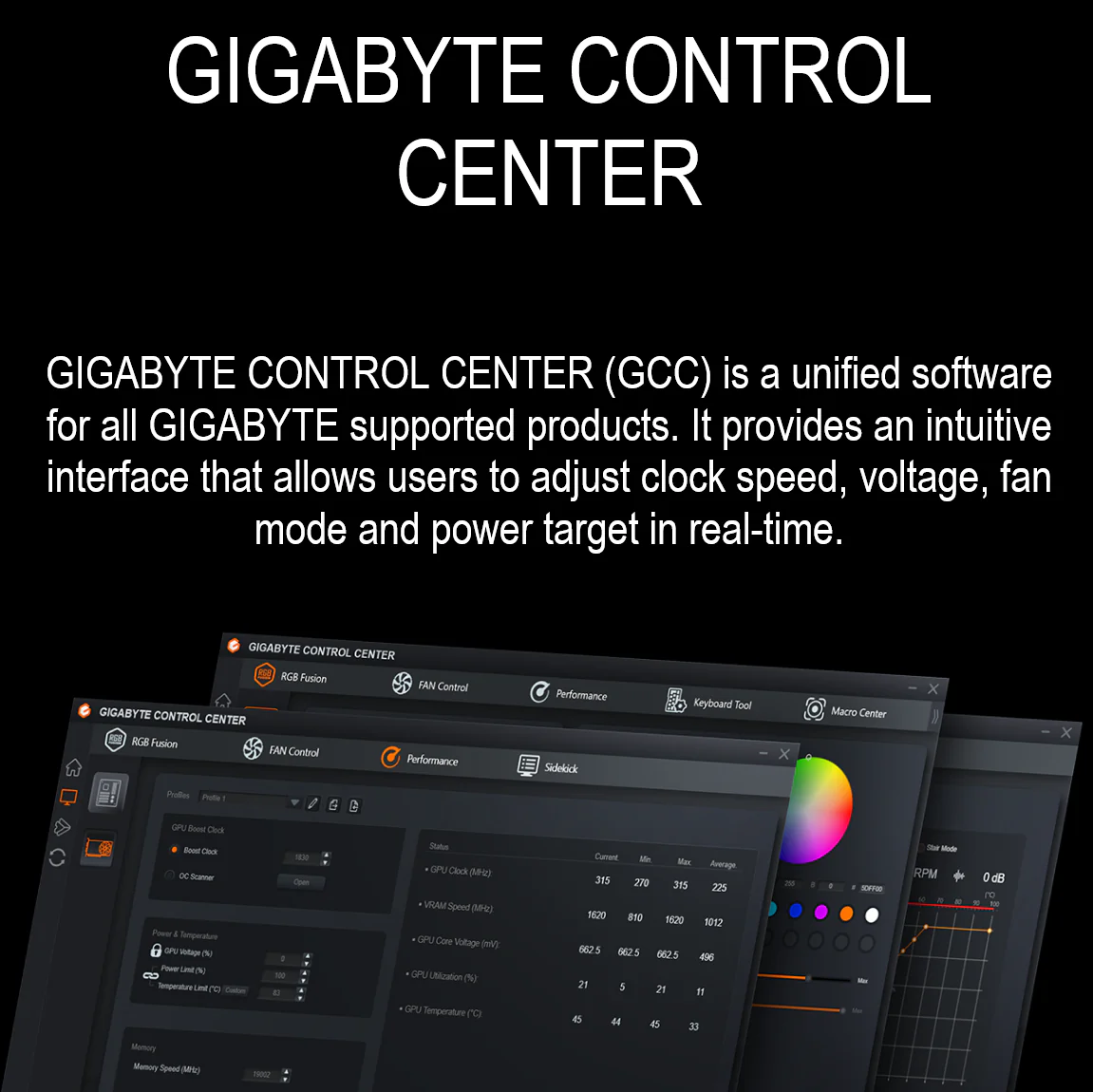

Real-Time Tuning: GIGABYTE Control Center (GCC) lets you tweak clock speeds, voltages, and fan modes on the fly.
Display-Ready: Outputs include 3x DisplayPort 2.1b and 1x HDMI 2.1b, ready for 8K gaming or multitasking up to 4 displays.
Low Power Requirement: Operates with a recommended 450W PSU and a single 8-pin connector.

📊 Expert Specs

Specification	Details
Graphics Processor	NVIDIA GeForce RTX 5060 OC
Architecture	Blackwell with DLSS 4, Reflex 2
CUDA Cores	3840
Core Clock	2512 MHz (Reference: 2497 MHz)
Memory Size	8 GB
Memory Type	GDDR7
Memory Interface	128-bit
Memory Clock	28 Gbps
Max Digital Resolution	7680 x 4320 (8K)
Multi-Display Support	4 Monitors
Card Bus	PCI Express 5.0
Output Ports	3x DisplayPort 2.1b, 1x HDMI 2.1b
Cooling System	WINDFORCE Triple-Fan, Copper Heatpipes
Fan Technology	Hawk Fan, Graphene Nano Lubricant
3D Active Fan	Yes (Semi-Passive Mode)
Thermal Material	Server-Grade Thermal Gel
Reinforced Backplate	Yes
Power Connector	1x 8-Pin
Recommended PSU	450W
PCB Form Factor	ATX
Card Dimensions (mm)	199 (L) x 116 (W) x 40 (H)
DirectX Support	DirectX 12 API
OpenGL Support	OpenGL 4.6
Software Utility	GIGABYTE Control Center (GCC)
Included Accessories	Quick Guide
