Name: Gigabyte B850 Eagle WiFi6E AM5 ATX AMD Motherboard With DDR5 8200 MT/s OC, PCIe 5.0, Triple M.2, 8+2+2 Twin VRM, X3D Turbo Mode, WiFi EZ-Plug, Ultra Durable & USB-C | Expert-Zone
SKU: GIG-B850-EAGLE-WIFI6
Price: 217.00 USD
Availability: OutOfStock

Description

🧠 Expert Features

Socket AM5 Compatibility: Supports AMD Ryzen™ 9000 / 8000 / 7000 Series processors for future-ready gaming and performance.
X3D Turbo Mode: One-click BIOS-level boost designed to optimize Ryzen™ 9000 non-X3D chips to match X3D gaming performance.
AI Overclocking & HyperTune BIOS: Smart performance tuning with AI-powered PCB optimization and intuitive BIOS interface.
DDR5 Overclocking to 8200 MT/s: Push memory speeds to the limit with support for AMD EXPO™ and XMP profiles across 4x DIMMs (up to 256GB).

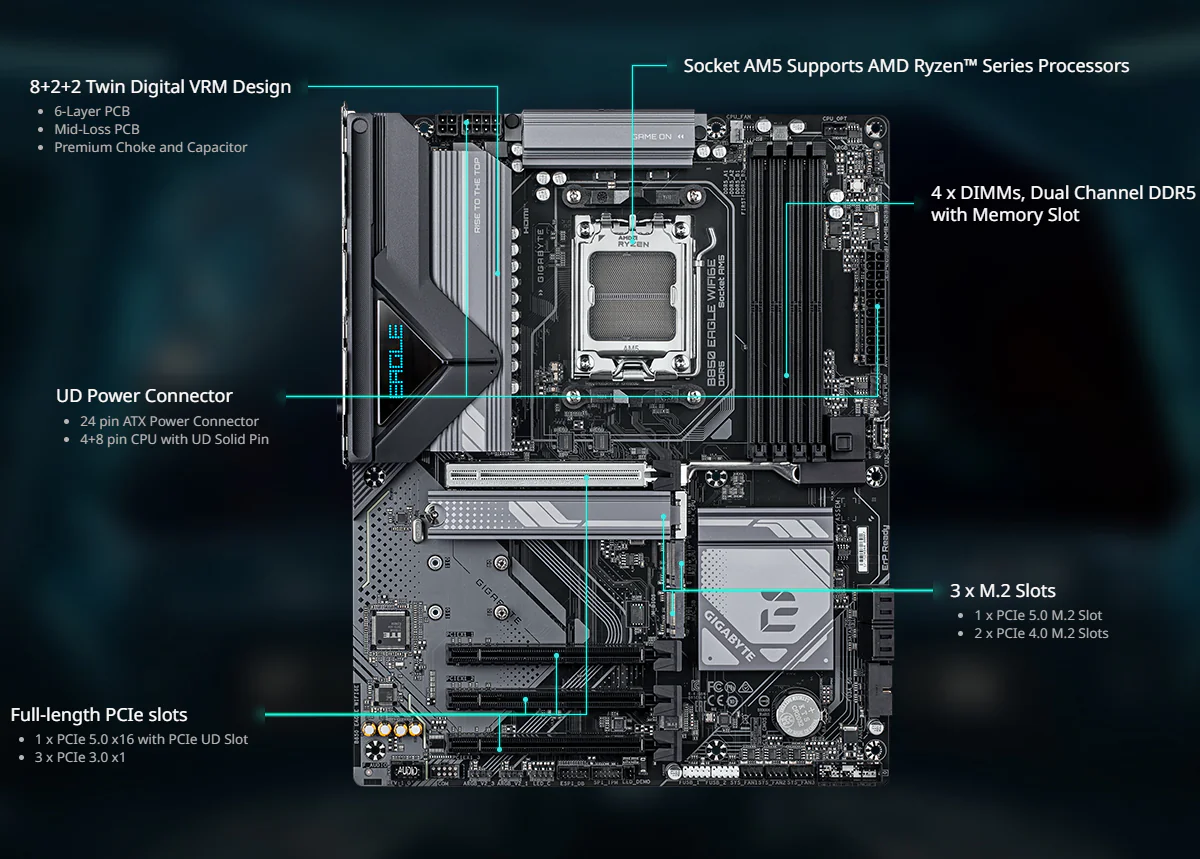

8+2+2 Twin Digital VRM: Robust DrMOS power delivery with 60A stages for VCORE and SOC, ensuring steady overclocked performance.
Triple M.2 Slots (1 PCIe 5.0, 2 PCIe 4.0): Ultra-fast NVMe storage with screwless M.2 EZ-Latch and M.2 Thermal Guards for top cooling efficiency.
PCIe 5.0 x16 UD Slot: Enhanced mechanical strength and better thermal performance with 10x retention force – ideal for bulky GPUs.

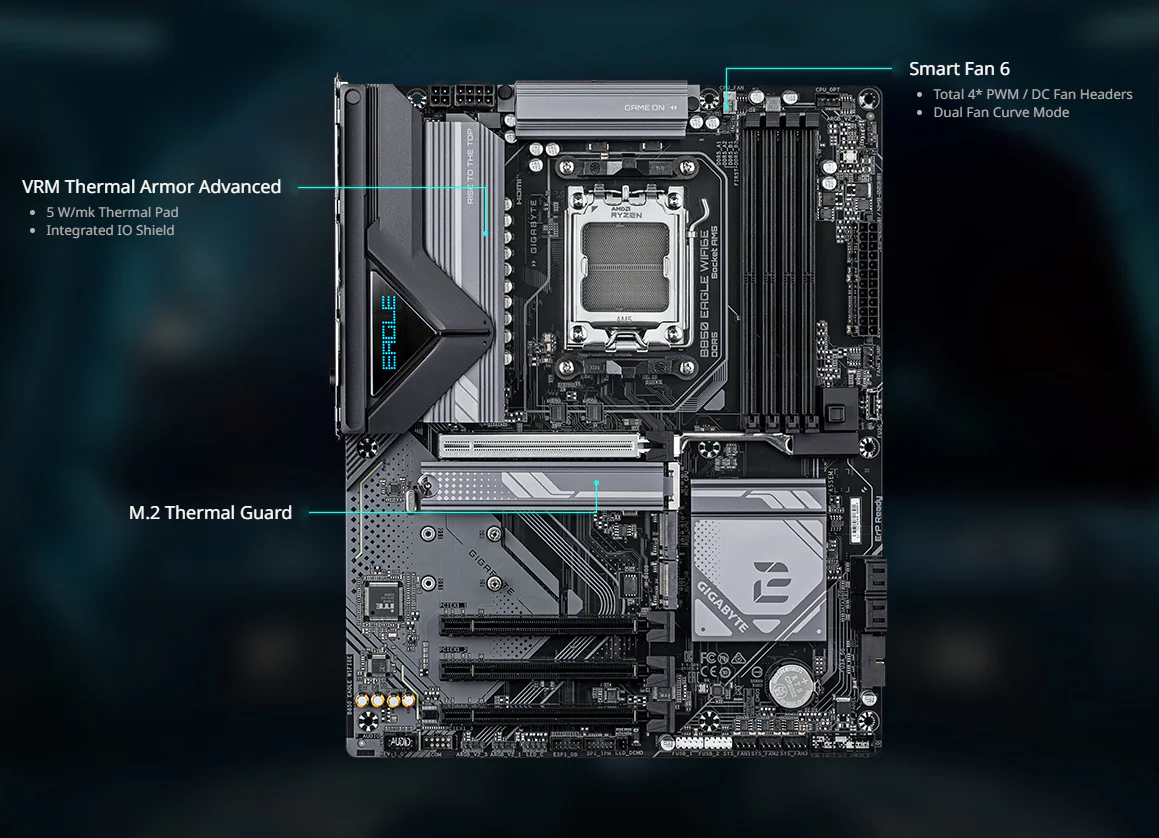

Advanced Cooling Design: Full-metal VRM heatsinks, 5W/mK thermal pads, and Smart Fan 6 software for quiet, efficient thermal regulation.
WiFi 6E & 1GbE LAN: Next-gen wireless with tri-band 2.4/5/6GHz support + Bluetooth 5.3, backed by Realtek/Intel solutions depending on PCB revision.

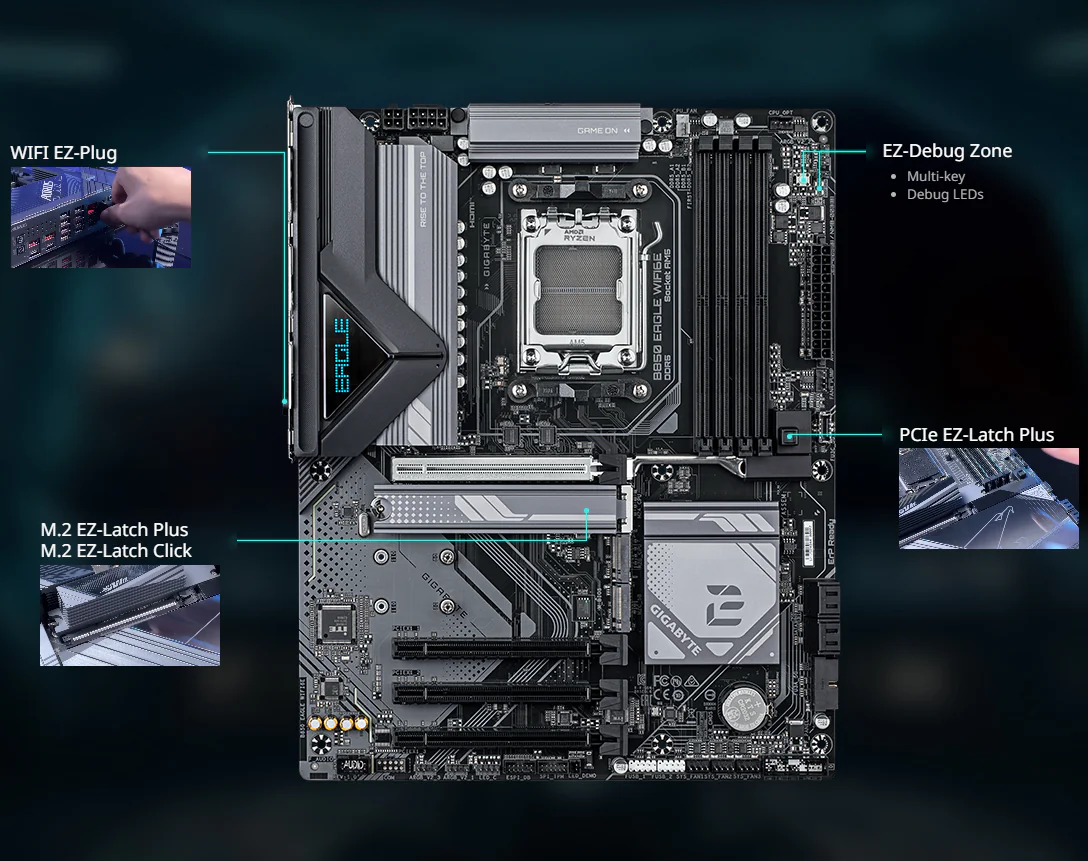

EZ-Latch & DIY-Friendly Layout: M.2 and PCIe quick-release designs, screwless heatsinks, and fast-access BIOS/Q-Flash controls.
High-Definition Audio: Realtek codec with high-end capacitors and noise guard isolation for immersive sound.
Tailored BIOS Features: UC BIOS with grayscale mode, AIO fan control, RGB Fusion lighting, and Q-Flash Auto Scan.
Ultra Durable Technology: Solid pins, reinforced PCIe UD slots, 6-layer PCB with low-loss design – built to last and game hard.

📊 Expert Specs

Category	Specification
CPU Socket	AMD Socket AM5
Chipset	AMD B850
Supported CPUs	AMD Ryzen™ 9000 / 8000 / 7000 Series
Memory Support	4x DDR5 DIMM (up to 256GB), OC up to 8200 MT/s, Dual Channel, AMD EXPO™ & XMP supported
Graphics Outputs	1x HDMI 2.1 (4K@60Hz), 1x DisplayPort 1.4 (4K@144Hz), CPU-dependent
Expansion Slots	1x PCIe 5.0 x16 (CPU), 3x PCIe 3.0 x1 (Chipset)
Storage Options	3x M.2 (1x PCIe 5.0 x4, 2x PCIe 4.0 x4/x2), 4x SATA 6Gb/s, RAID 0/1/5/10 support
LAN	Realtek 1GbE LAN
Wireless	Wi-Fi 6E + Bluetooth 5.3 (Intel AX210 or Realtek RTL8852CE, model-dependent)
Audio	Realtek® Audio CODEC, High-End Audio Capacitors, 7.1-channel support

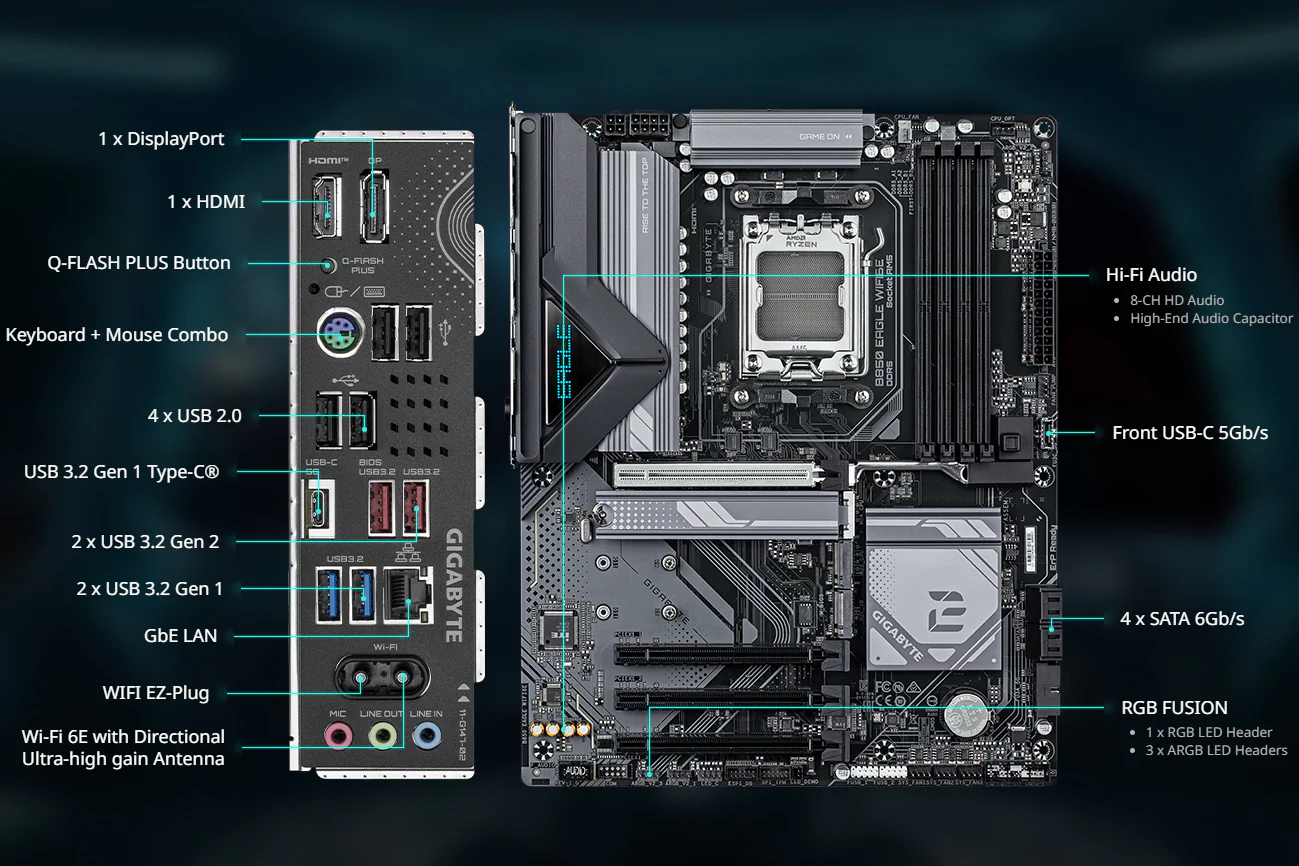

USB Ports (Rear)	1x USB-C (Gen 1), 2x USB 3.2 Gen 2 (Type-A), 2x USB 3.2 Gen 1, 4x USB 2.0
USB Ports (Internal)	1x USB-C header (Gen 1), 1x USB 3.2 Gen 1 header, 2x USB 2.0 headers
Power Connectors	24-pin ATX, 8-pin + 4-pin CPU 12V
Cooling Headers	1x CPU fan, 1x CPU/Water pump, 3x System fan, 1x System/Water pump
RGB Headers	3x ARGB Gen2, 1x RGB LED header
DIY Features	PCIe EZ-Latch Plus, M.2 EZ-Latch Plus & Click, WIFI EZ-Plug, Q-Flash BIOS Button
Form Factor	ATX
BIOS	UC BIOS, Q-Flash Auto Scan, AIO Fan Control, Multi-Theme Support
Software	GIGABYTE Control Center, RGB Fusion, HWiNFO OSD Integration
Audio Jacks	3x Audio jacks (configurable), Realtek HD Audio, Noise Guard
