Name: GIGABYTE B650M DS3H (AM5/ LGA 1718/ AMD/ B650/ Micro ATX/ DDR5/ PCIe 4.0 M.2/ PCIe 4.0/ USB 3.2 Gen2X2 Type-C/ 2.5GbE LAN/Motherboard) | Expert-Zone
SKU: GIG-B650M-DS3H
Price: 228.00 USD
Availability: InStock

Description

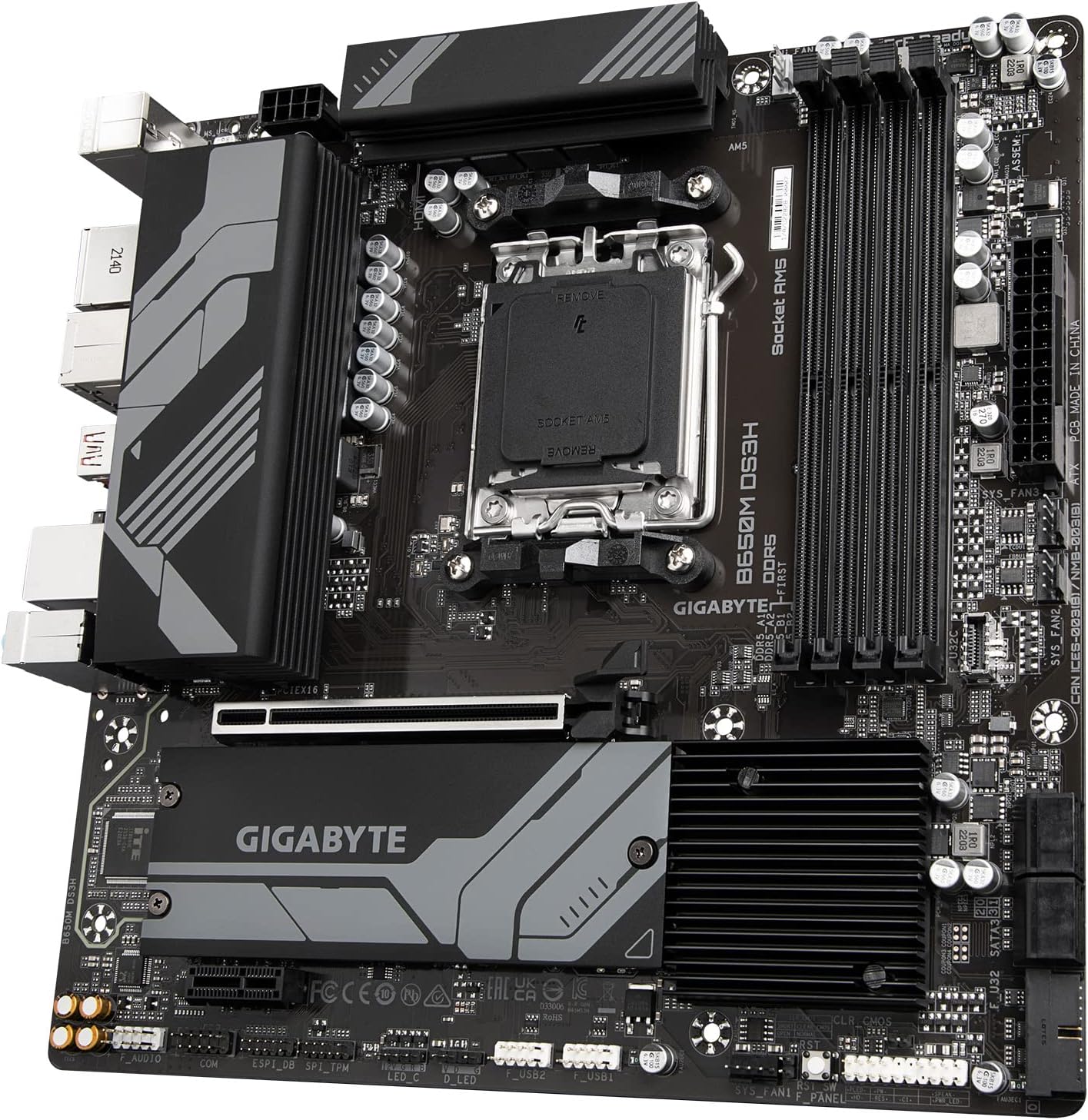

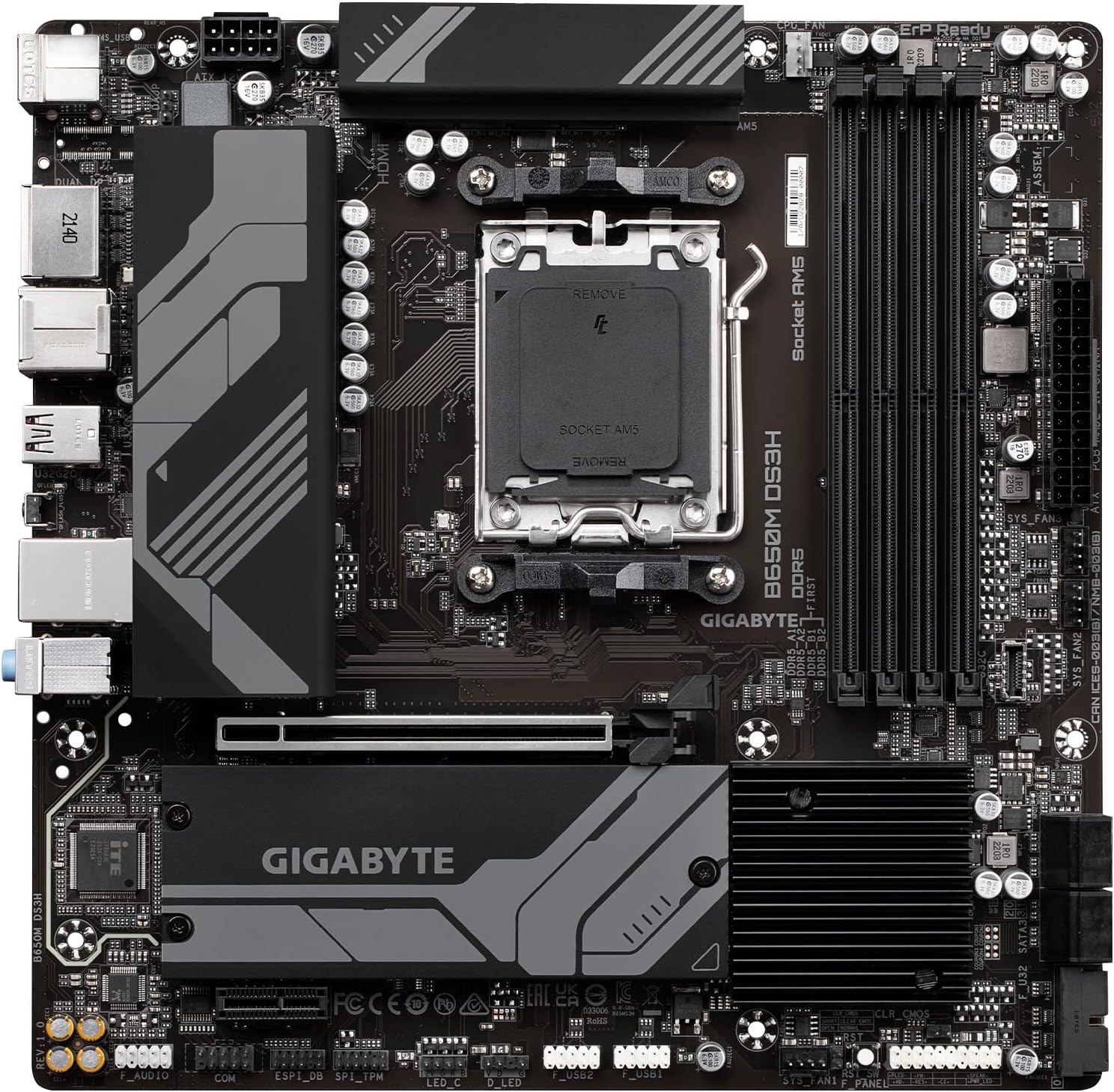

GIGABYTE B650M DS3H DDR5 Motherboard

EXPERT FEATURES

AMD AM5 Socket: Supports AMD Ryzen 7000 Series Processors
DDR5 Compatible: 4*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support
Sturdy Power Design: Direct 6+2+1 Phases Digital VRM Solution
Comprehensive Thermal Design: Advanced Thermal Design, M.2 Thermal Guard
Next Gen Connectivity: PCIe 5.0, NVMe PCIe 4.0 x4 M.2, SuperSpeed USB 3.2 Gen 2×2 Type-C
Fast Networking: 2.5GbE LAN
Fine Tuning Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q-Flash Plus Update BIOS without installing, CPU, Memory, and GPU”

EXPERT SPECS

Model
Brand	GIGABYTE
Model	B650M DS3H (rev. 1.0)
Part Number	B650M DS3H (rev. 1.0)

Supported CPU
CPU Socket Type	AM5
CPU Type	AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors

Chipsets
Chipset	AMD B650

Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / MT/s memory modules
Maximum Memory Supported	4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Channel Supported	Dual channel memory architecture
ECC Supported	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Buffer Supported	Un-buffered
Memory Feature	Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (Please refer “Memory Support List” for more information.

Expansion Slots
PCI Express 4.0 x16	1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
PCI Express x1	1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)

Storage Devices
SATA 6Gb/s	4 x SATA 6Gb/s
M.2	2 x M.2 connectors (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support)
SATA RAID	RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices

Onboard Audio
Audio Chipset	Realtek® Audio CODEC
Audio Channels	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Onboard LAN
Max LAN Speed	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Rear Panel Ports
Back I/O Ports	4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 2 x DisplayPorts 1 x HDMI port 1 x USB 3.2 Gen 2 Type-A port (red) 1 x USB Type-C® port, with USB 3.2 Gen 2 support 1 x Q-Flash Plus button 1 x RJ-45 port 2 x USB 3.2 Gen 1 ports 3 x audio jacks
PS/2	1 x PS/2 keyboard/mouse port

Internal I/O Connectors
Other Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper
