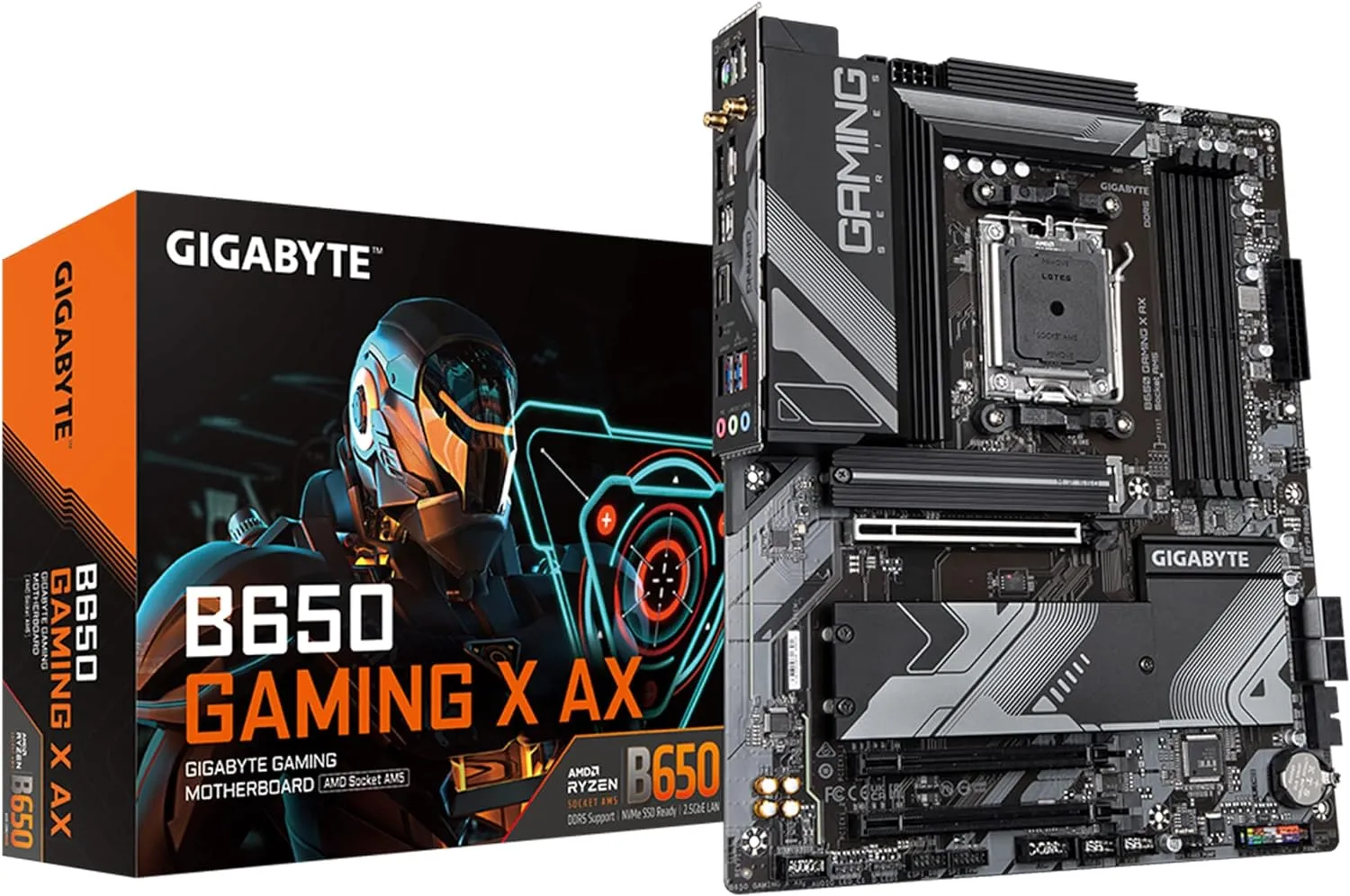

B650 GAMING X AX (rev. 1.0/1.1/1.2) Motherboard
AMD B650 Chipset

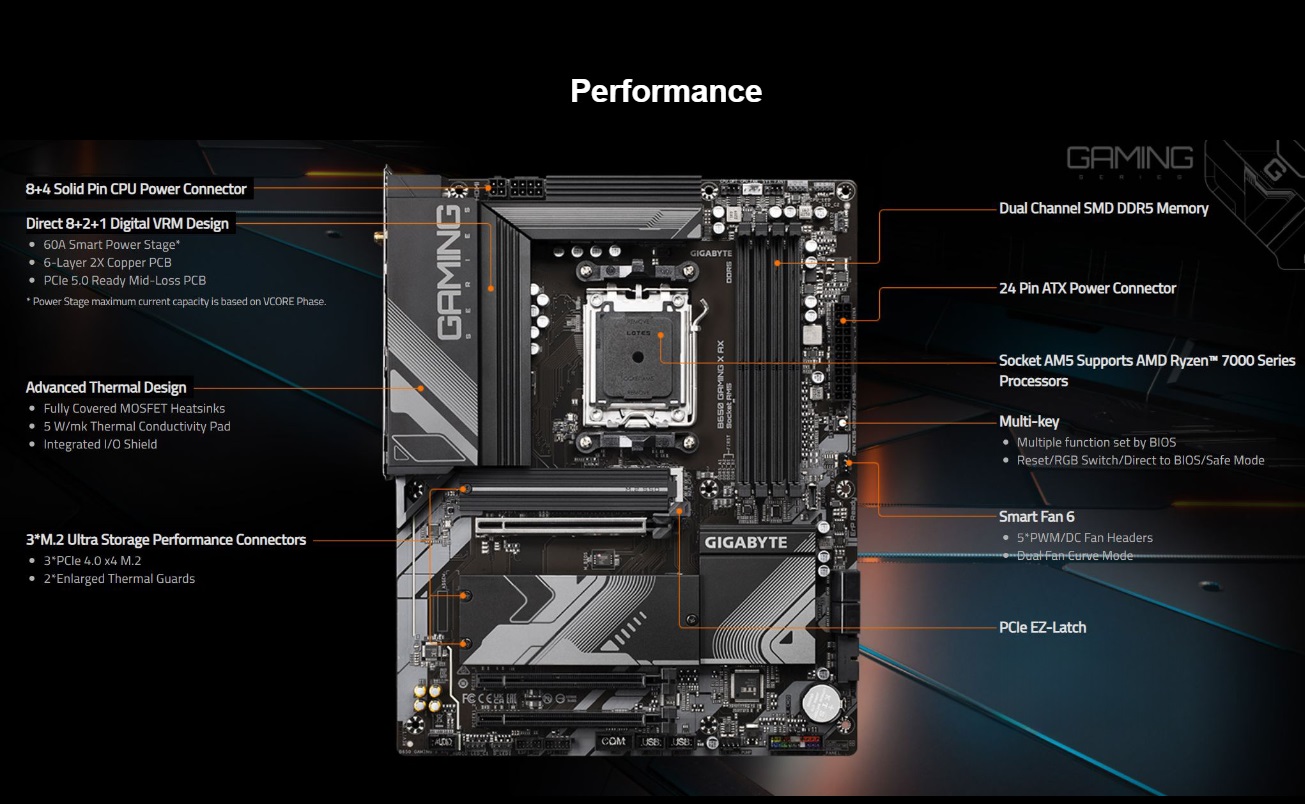

Performance

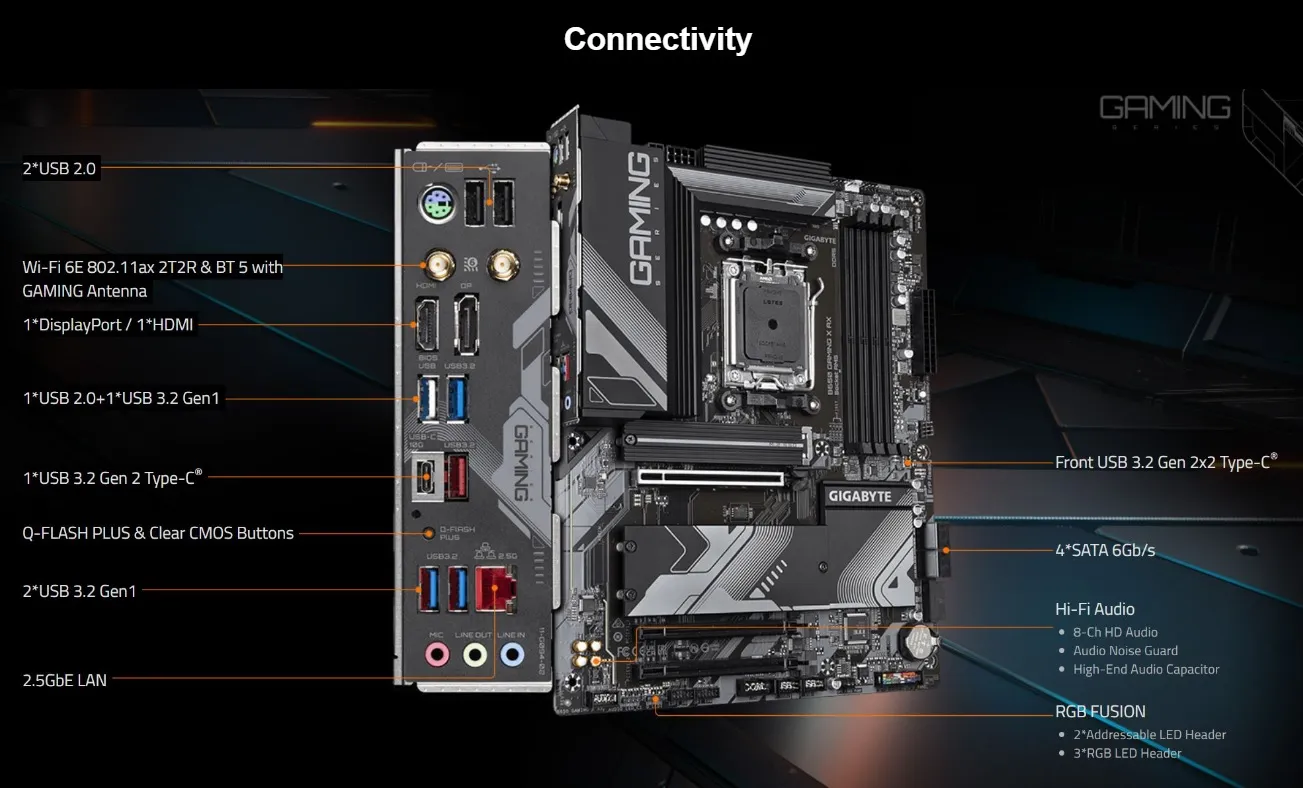

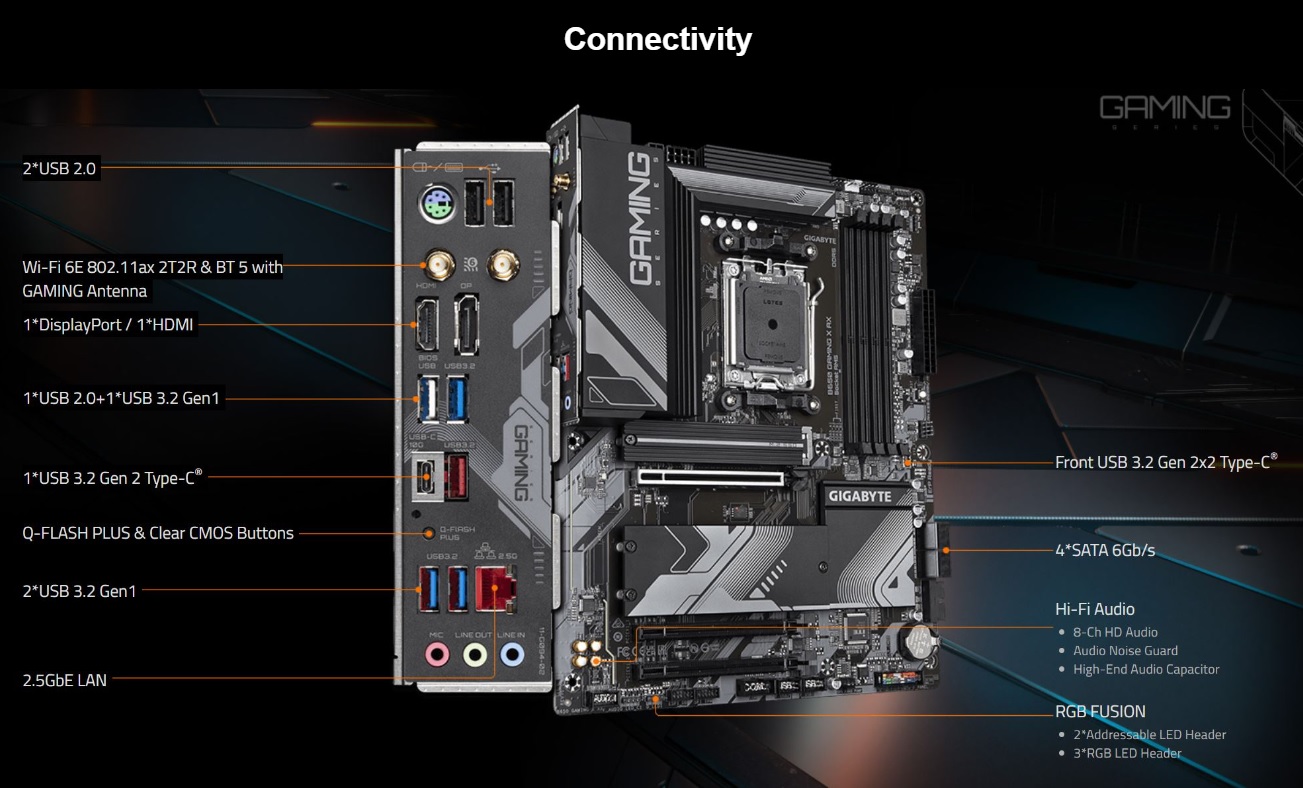

Connectivity
UNPARALLELED PERFORMANCE
- With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies.
- GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.

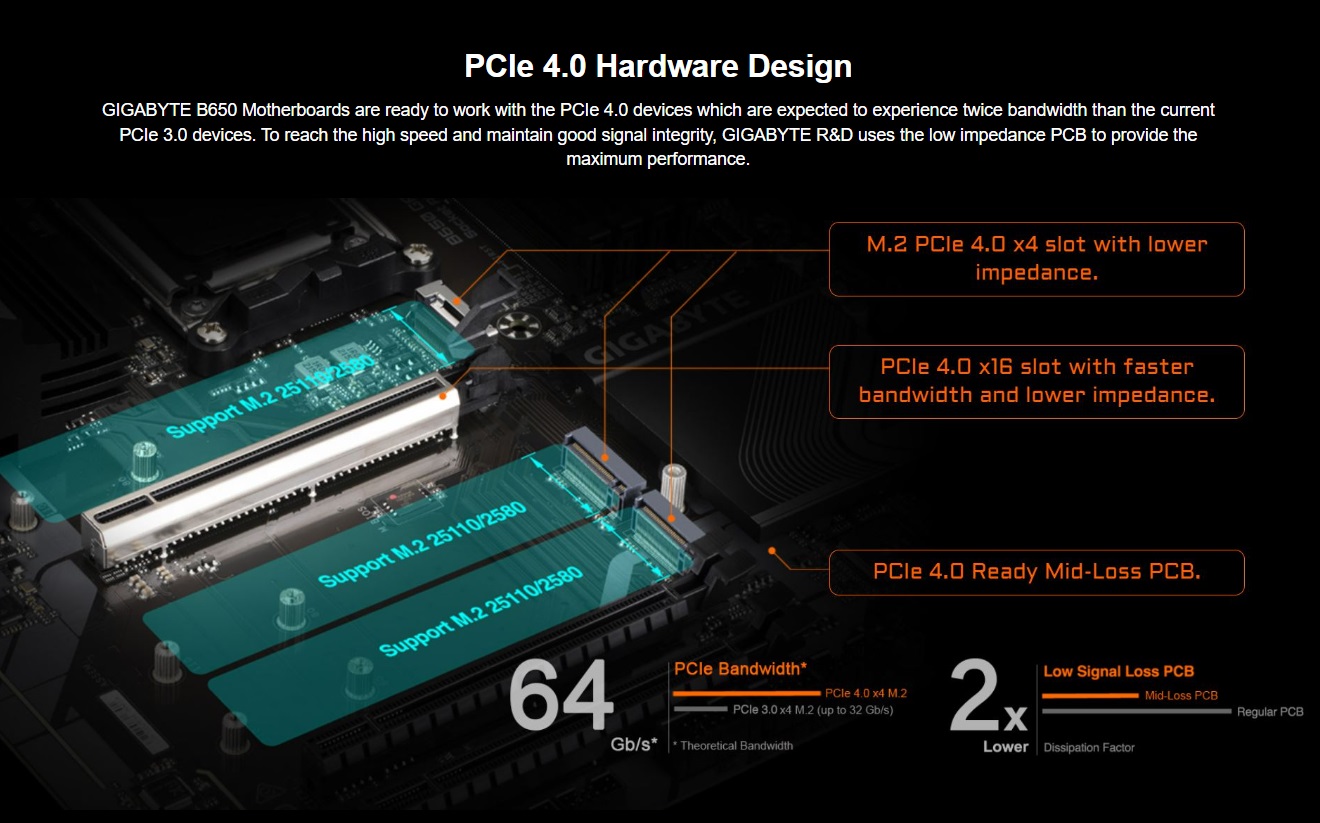

PCIe 4.0 Hardware Design
- GIGABYTE B650 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices. from expert zone
- To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.
EXPO & XMP Support
DDR5 EXPO & XMP OVERCLOCKING UP TO 8000 AND BEYOND*
- AORUS is offering a tested and proven platform that the memory overclocking capability is able up to 8000 and beyond.
- All users need to do for achieving this extreme memory performance boost is to ensure that their DDR5 memory modules are AMD EXPO™/ Intel® XMP capable
- The EXPO/XMP function is activated and enabled on their AORUS motherboard.
- GIGABYTE exclusive circuit design unlocks Native DDR5 voltage control
- Transforms Native DDR5 memory module to Overclocked DDR5 memory
- Increases DDR5 memory overclocking performance and capability from expert zone
- Supports all PMIC vendors for maximum compatibility
* Memory overclocking capabiblity will vary based on users’ hardware configuration
EXPO AND XMP DUAL SUPPORT
- GIGABYTE AM5 MB supports both AMD EXPO™ and Intel® XMP overclocking memory modules for maximal compatibility.
- MB will automatically detect both profiles format in SPD, users can choose to enable one of profiles from BIOS menu and easily reach overclocked memory performance.
DDR5 AUTO BOOSTER
Automatically Boost the Native DDR5 frequency to 5000MHz while the system is under heavy loading by a single click. from expert zone
AMD EXPO™ AND INTEL® XMP 3.0 USER PROFILE
Define and create your own SPD profile into Native, AMD EXPO™ and Intel® XMP 3.0 memory modules.
- One empty SPD profile can be defined by users and carry to next computer from expert zone
- Quick memory performance simulation based on user input clock and timing parameters
- Profile save and load function to share your memory parameters online

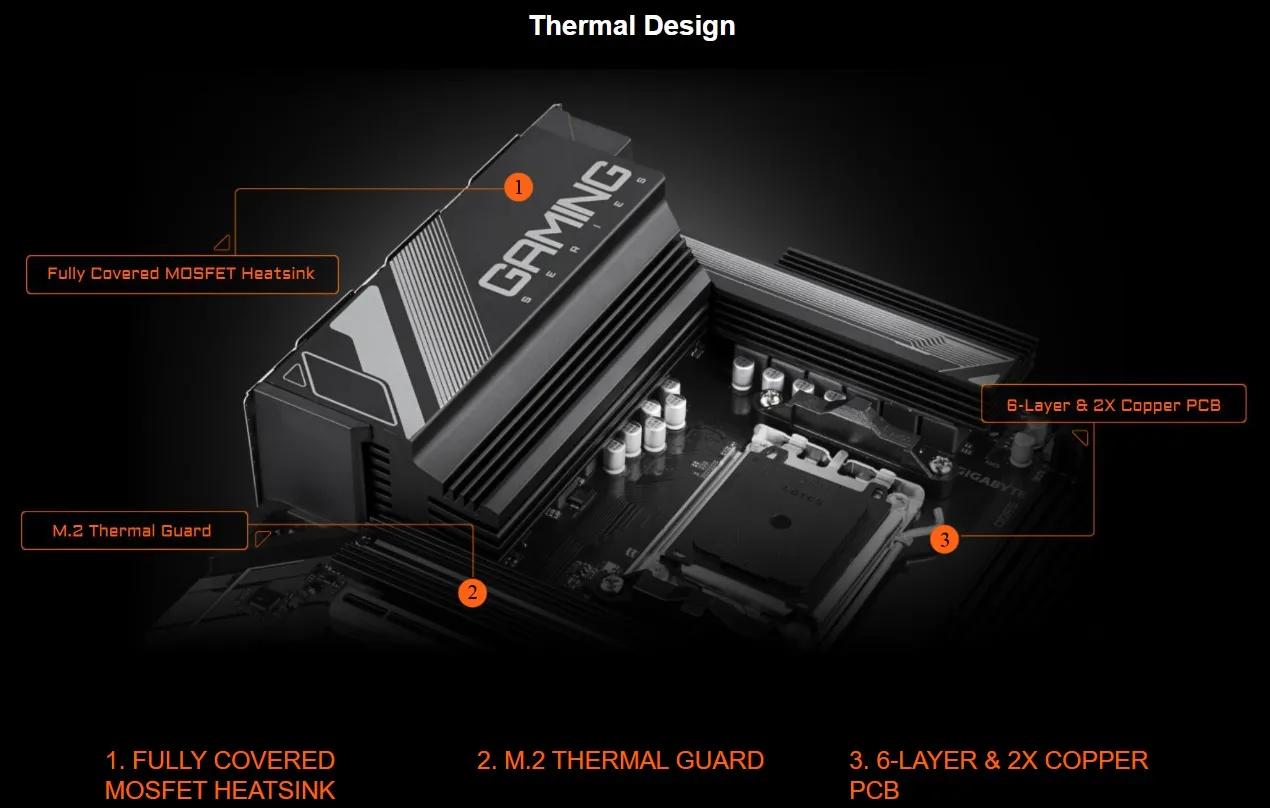

OUTSTANDING THERMAL DESIGN
GIGABYTE MOTHERBOARDS’ UN-THROTTLED PERFORMANCE IS GUARANTEED BY INNOVATIVE AND OPTIMIZED THERMAL DESIGN TO ENSURE THE BEST CPU, CHIPSET, SSD STABILITY AND LOW TEMPERATURES UNDER FULL LOAD APPLICATION AND GAMING PERFORMANCE.
Thermal Design
EXPERT SPECS
| Brand | GIGABYTE from expert zone |
|---|---|
| Model | B650 GAMING X AX |
| CPU Socket Type | AM5 |
|---|---|
| CPU Type | Ryzen 7000 Series |
| Chipset | AMD B650 |
|---|
| Number of Memory Slots | 4x288pin (DDR5) |
|---|---|
| Memory Standard | DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 |
| Maximum Memory Supported | 128GB from expert zone |
| ECC Supported | Non-ECC |
| Buffer Supported | Un-buffered |
| PCI Express 4.0 x16 | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
|---|---|
| PCI Express x1 | 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2) |
| SATA 6Gb/s | 4 x SATA 6Gb/s |
|---|---|
| M.2 |
|
| SATA RAID | RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Additional RAID Controller | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices |
| Audio Channels | 7.1 Channels |
|---|
| Max LAN Speed | 2.5Gbps |
|---|---|
| Wireless LAN | Wi-Fi 802.11 ax |
| Bluetooth | Bluetooth 5.2 |

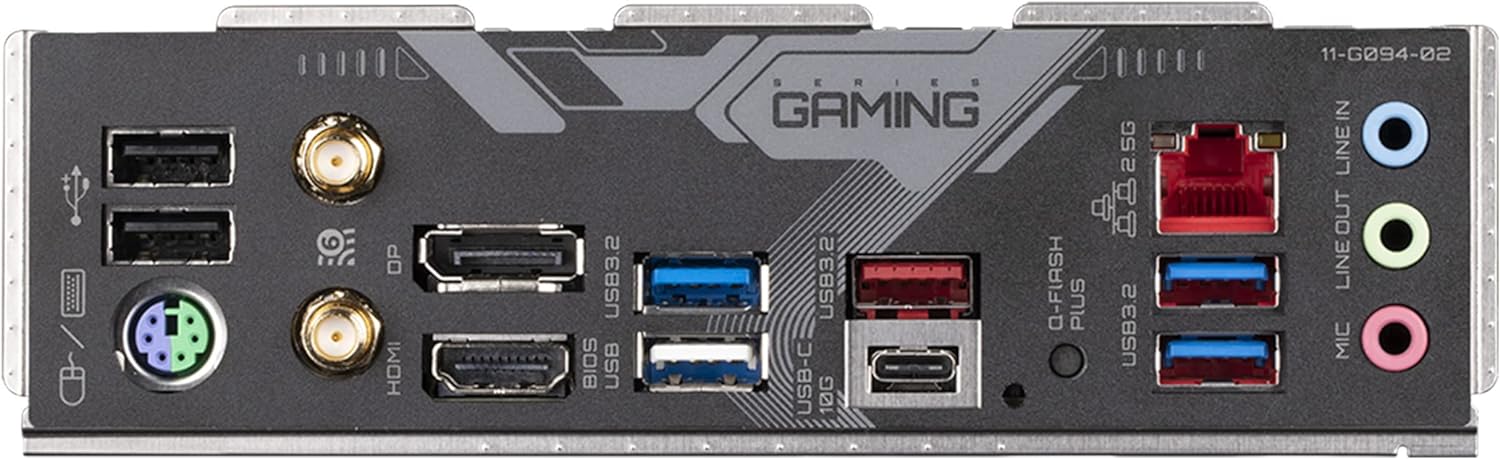

Back I/O Ports |
|
|---|
Onboard USB |
|
|---|---|
Other Connectors |
|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0″ x 9.6″ |
| Power Pin |
|
| Windows 11 | Supported from expert zone |
|---|
