SKU: HELIOS-P2-750G-BK

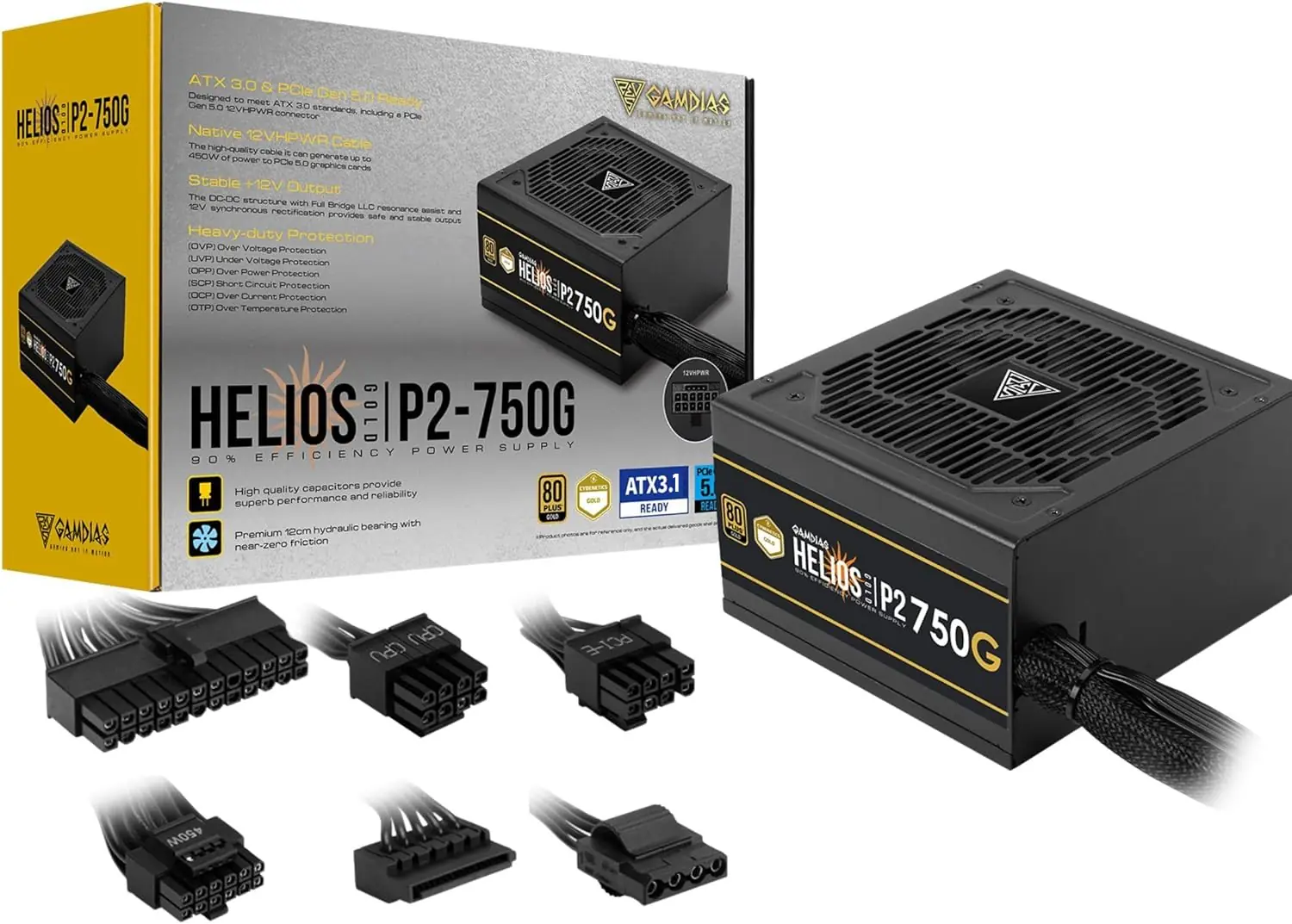

GAMDIAS HELIOS P2-750G 750W 80 Plus Gold PSU, ATX 3.1, PCIe Gen 5.1 Ready, 12VHPWR Cable, 120mm Hydraulic Fan, Heavy-Duty Protections, Non-Modular, DC-DC Design | BLACK

$ 92.00 ---ONLY---

OUT OF STOCK

OUT OF STOCK

Description

⚙️ Expert Features

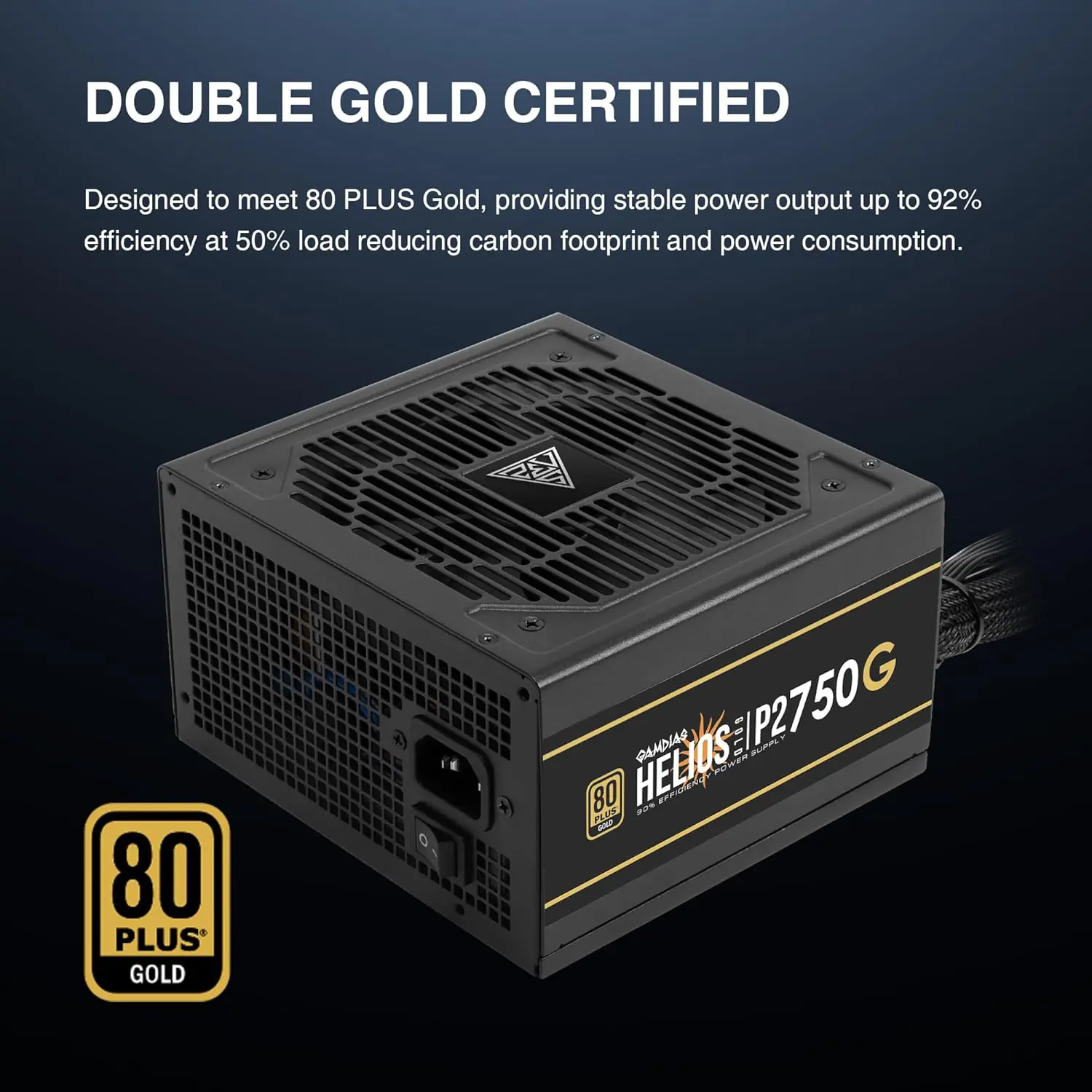

  • 80 Plus Gold Certified Efficiency : Up to 92% efficiency at 50% load means reduced power waste, lower temperatures, and a greener carbon footprint—without sacrificing performance.

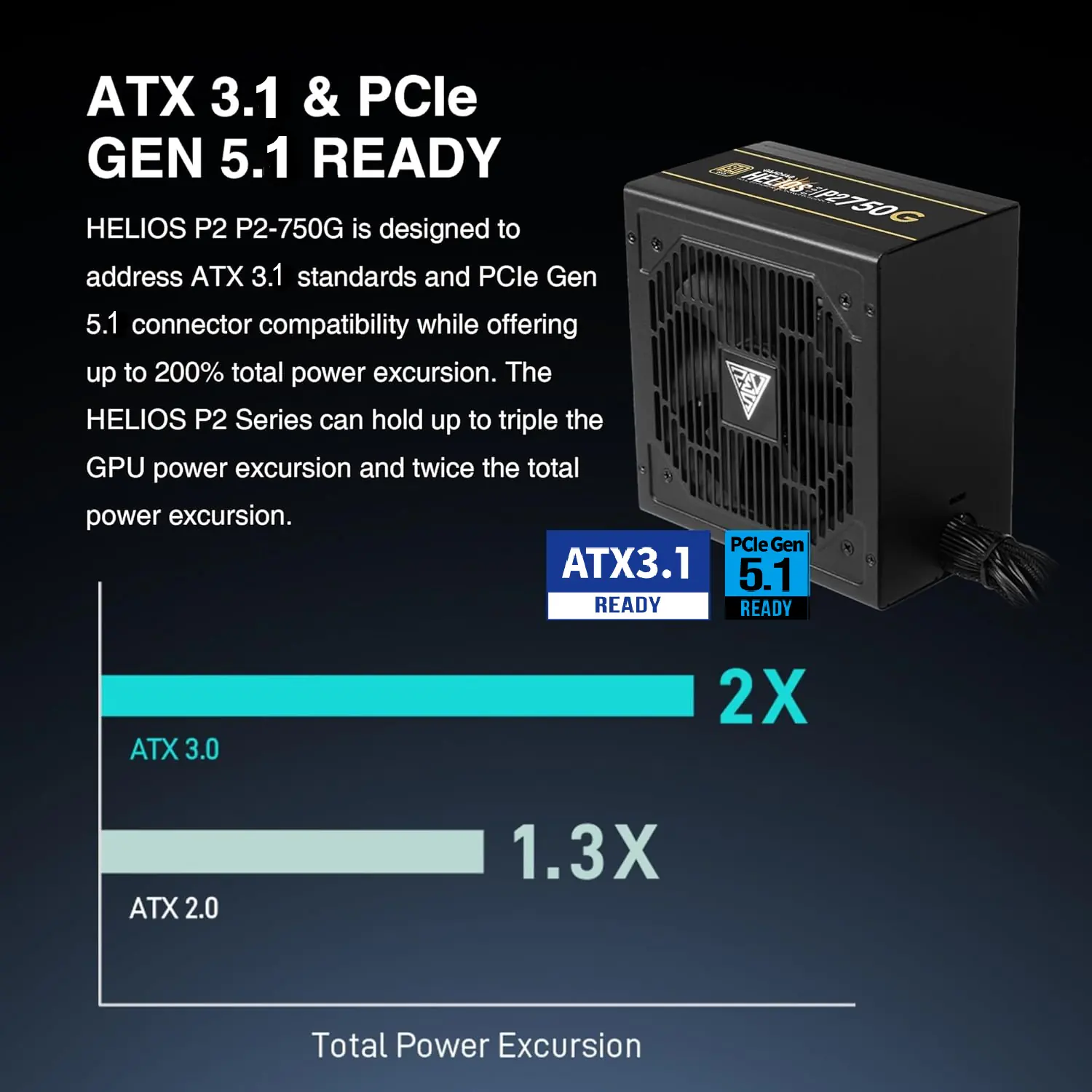

  • ATX 3.1 & PCIe Gen 5.1 Ready : Future-proof your build. This PSU supports up to 200% total power excursion and triple GPU power excursion, meeting Intel’s latest ATX 3.1 and PCIe 5.1 standards.

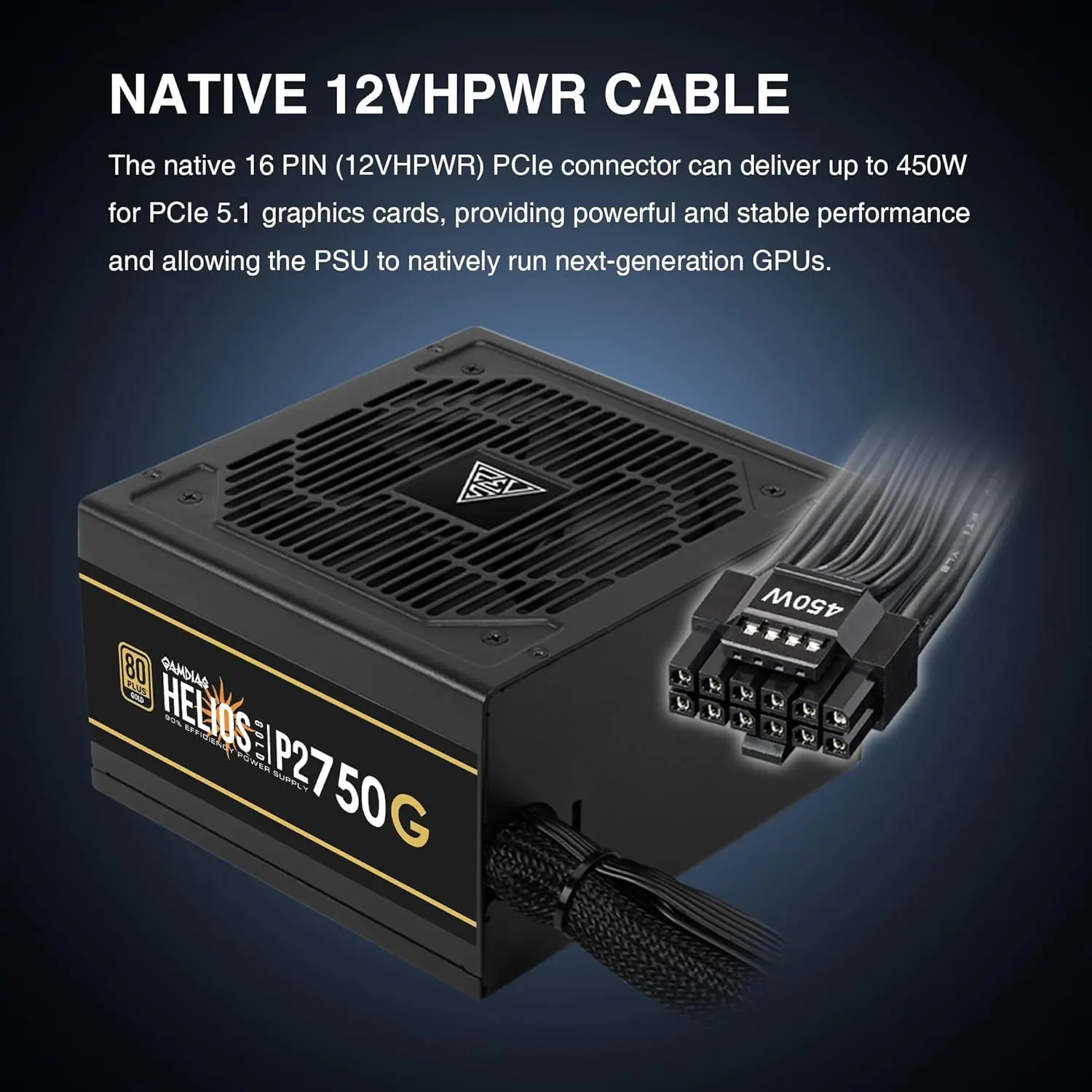

  • Native 12VHPWR (12+4-Pin) Support : Delivers up to 450W of clean, stable power directly to next-gen NVIDIA or AMD GPUs using the native 12VHPWR cable—no adapters needed.

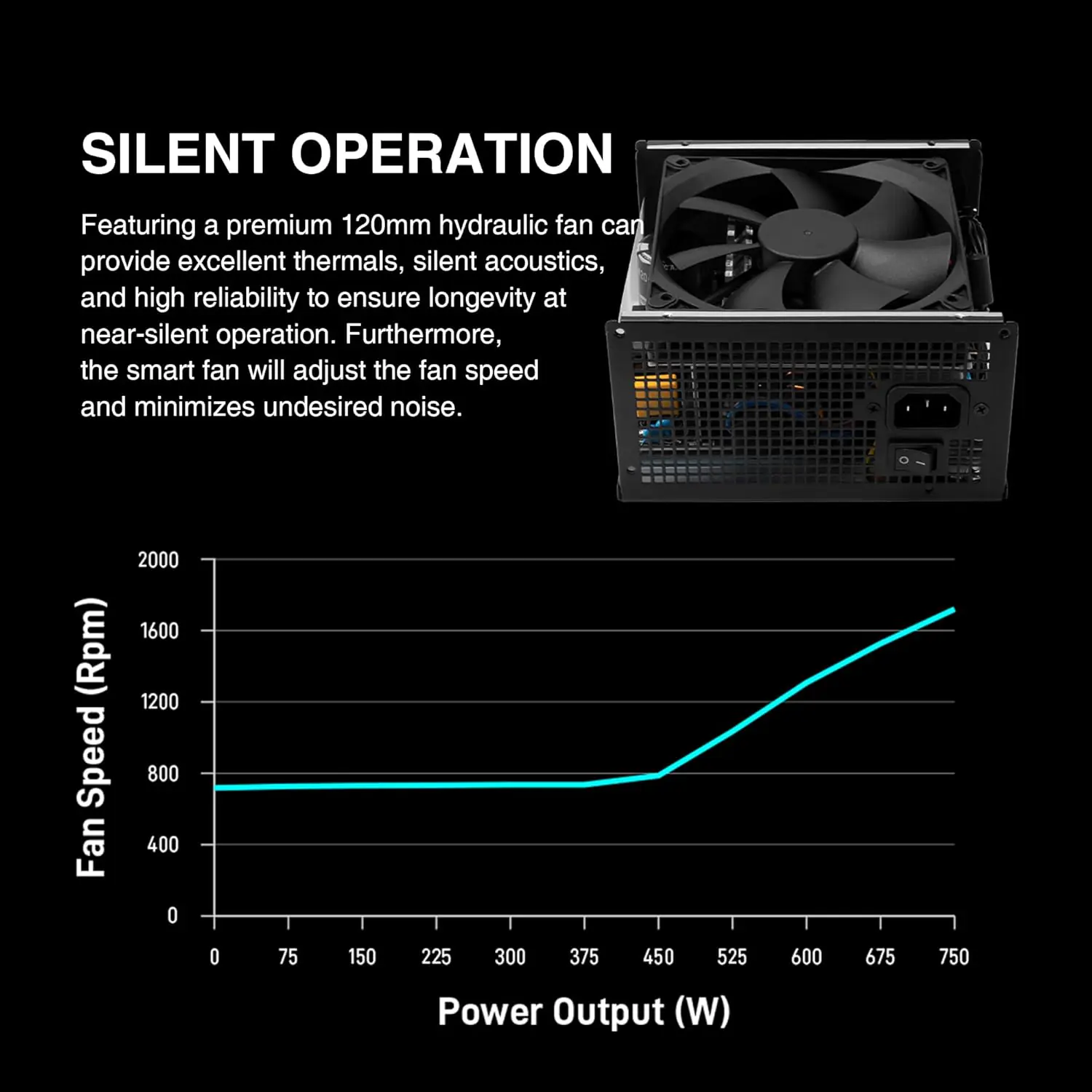

  • Ultra-Quiet Hydraulic Bearing Fan : The 120mm fan intelligently adjusts speed for quiet operation and optimal thermals, ensuring long-lasting reliability under heavy workloads.

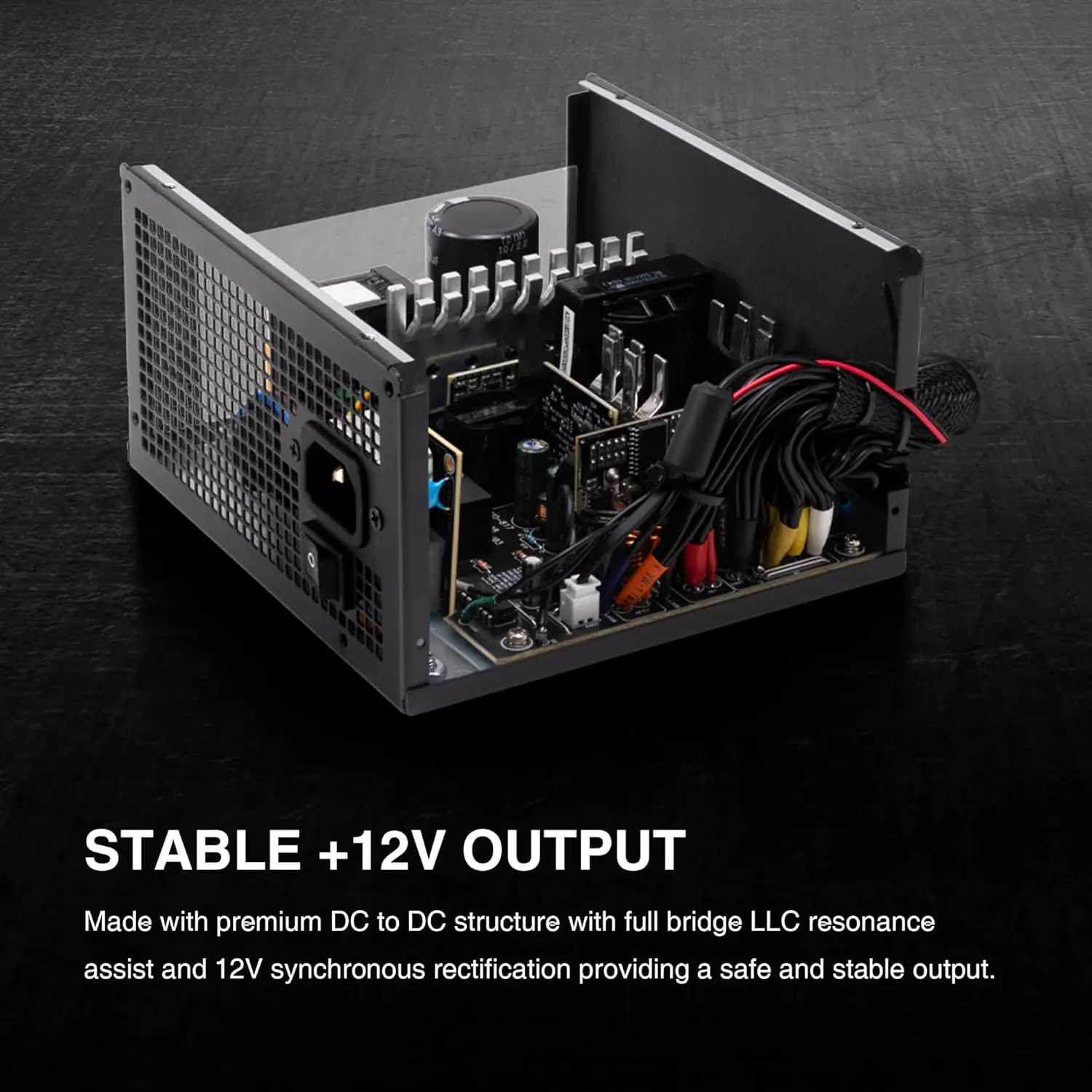

  • Rock-Solid DC-to-DC + LLC Resonant Design : Full bridge LLC topology and synchronous rectification provide rock-solid +12V output, perfect for high-performance CPUs and GPUs.
  • Built-In Heavy-Duty Protections : Includes OVP, UVP, OPP, SCP, OCP, and OTP safeguards to keep your system running safe and sound under all conditions.

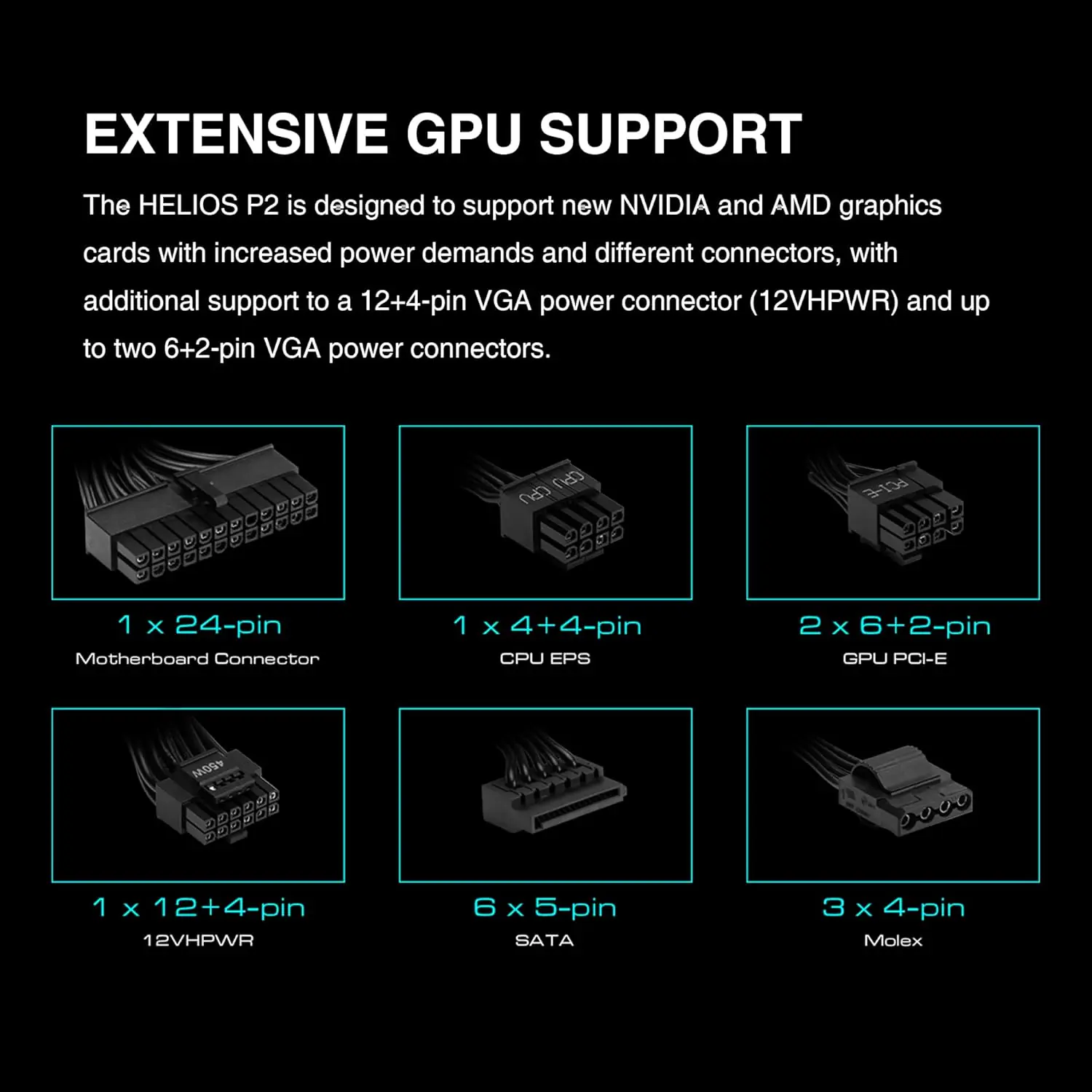

  • Extensive GPU Compatibility :  From legacy 6+2 pin connectors to next-gen 12VHPWR, this PSU has what it takes to power modern graphics cards—no matter the setup.
  • Non-Modular With Flat Cables : Simplified installation with flat, space-saving cables for improved airflow and a clean case interior.



📊 Expert Specs

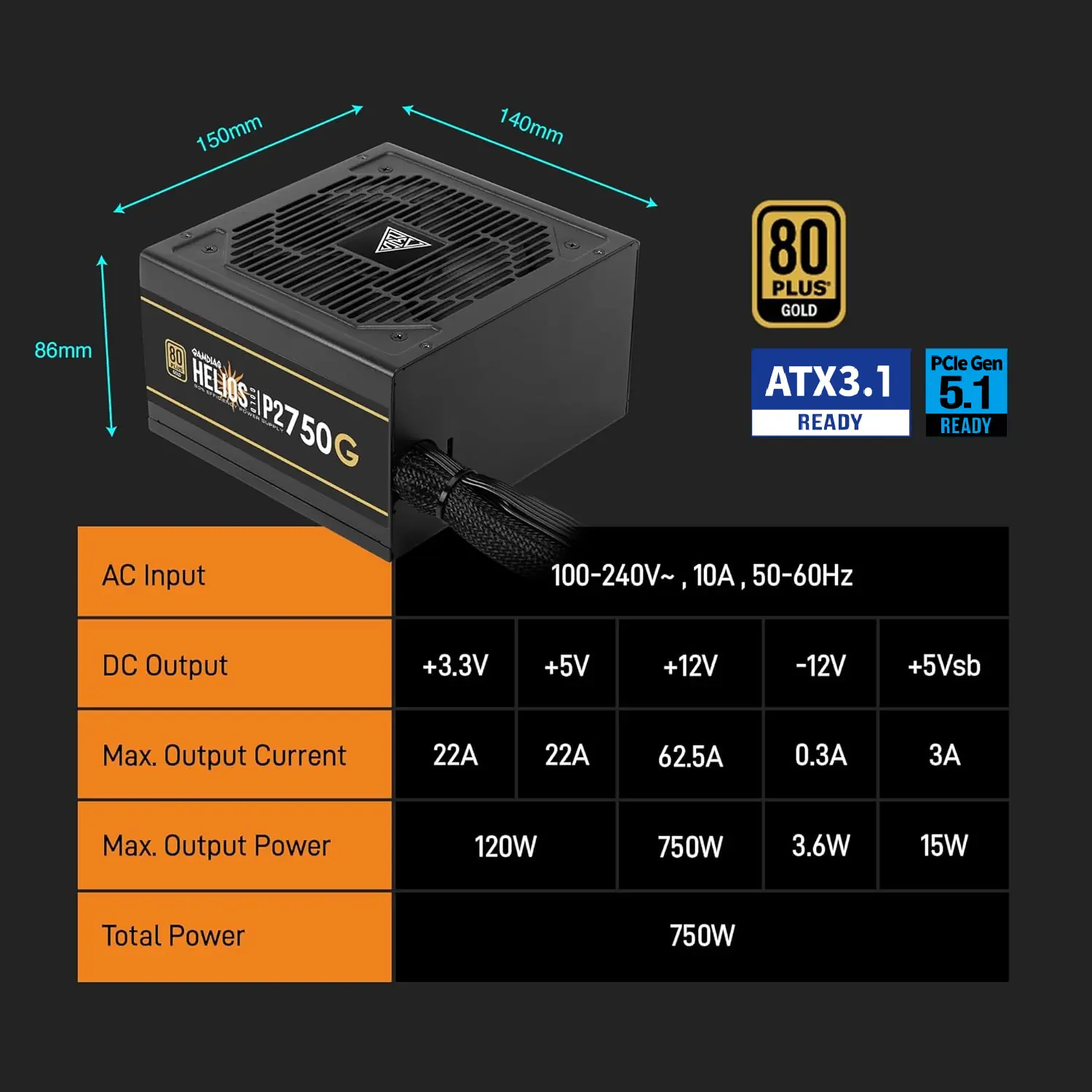

SpecificationDetails
ModelHELIOS P2-750G
Power Output750W (Peak Power 975W)
Form FactorATX12V v3.1
Efficiency80 Plus Gold Certified
Power Factor CorrectionActive PFC (PF > 0.99)
Cooling System120mm Hydraulic Bearing Fan
Voltage Input100–240V ~ 10A / 50–60Hz
Voltage Rails+3.3V / +5V / +12V / -12V / +5Vsb
Max Current22A / 22A / 62.5A / 0.3A / 3A
Protection FeaturesOVP / UVP / OPP / SCP / OCP / OTP
Main Power Connector1 x 24-Pin
CPU Power1 x 4+4 Pin
PCI-E Connectors2 x 6+2 Pin, 1 x 12VHPWR (12+4 Pin)
SATA Connectors6 x SATA (5-Pin)
Molex Connectors3 x 4-Pin
Cable TypeFlat Cables
Modular DesignNon-Modular
DC-to-DC DesignYes
ErP Lot 6 CompliantYes
Dimensions140 x 150 x 86 mm
Silent ModeNo
Sync Lighting SupportNo
