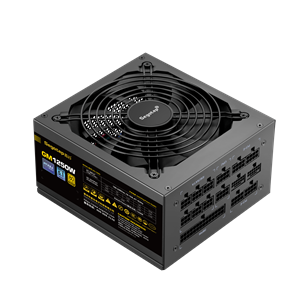

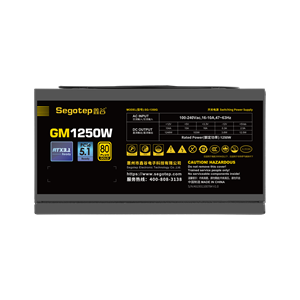

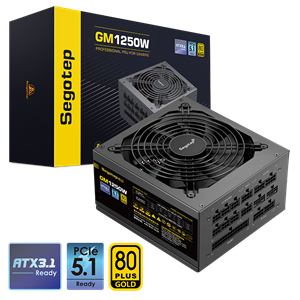

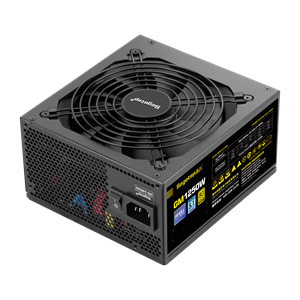

1250W 80 Plus Gold Full Modular PSU

Expert Features

• High Power Output: 1250W with dual 12V rails (12V-2X6).

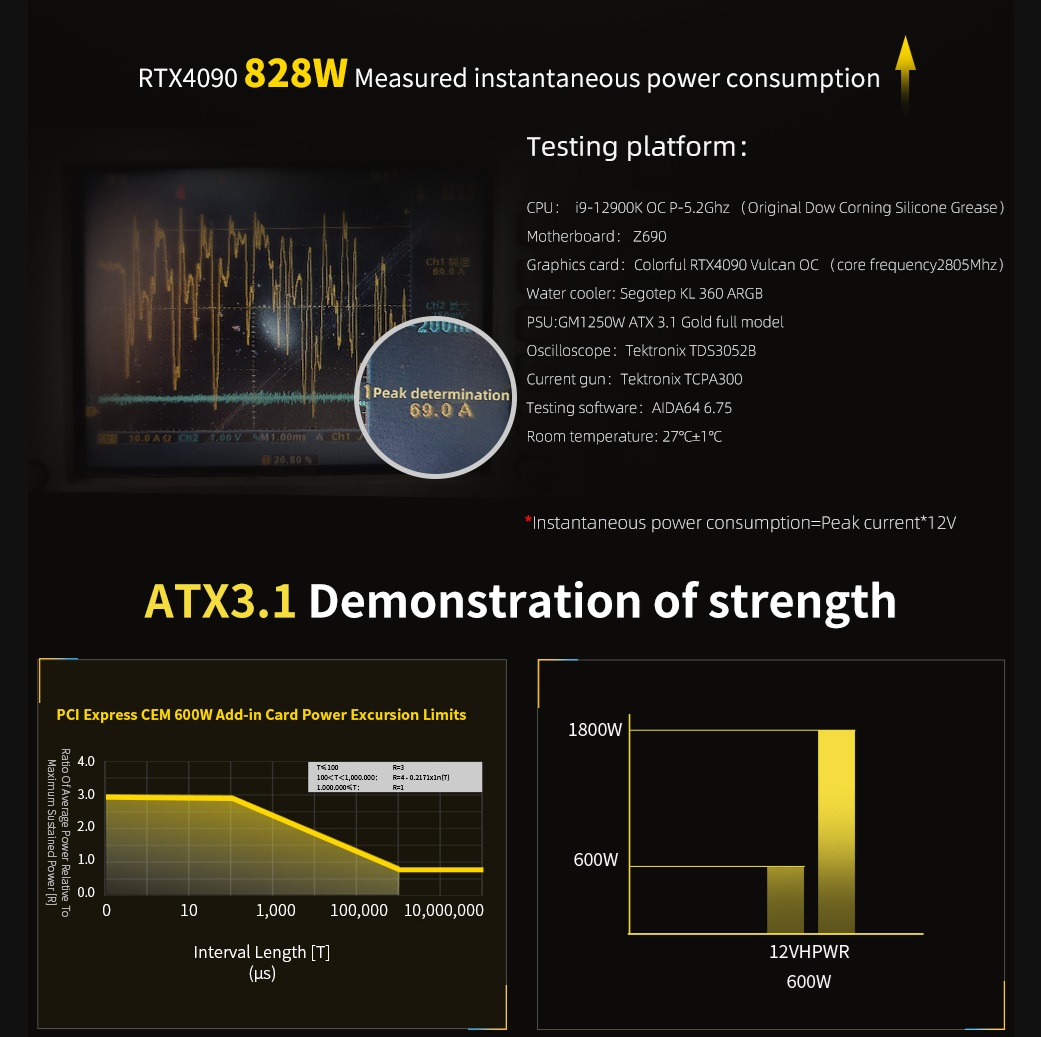

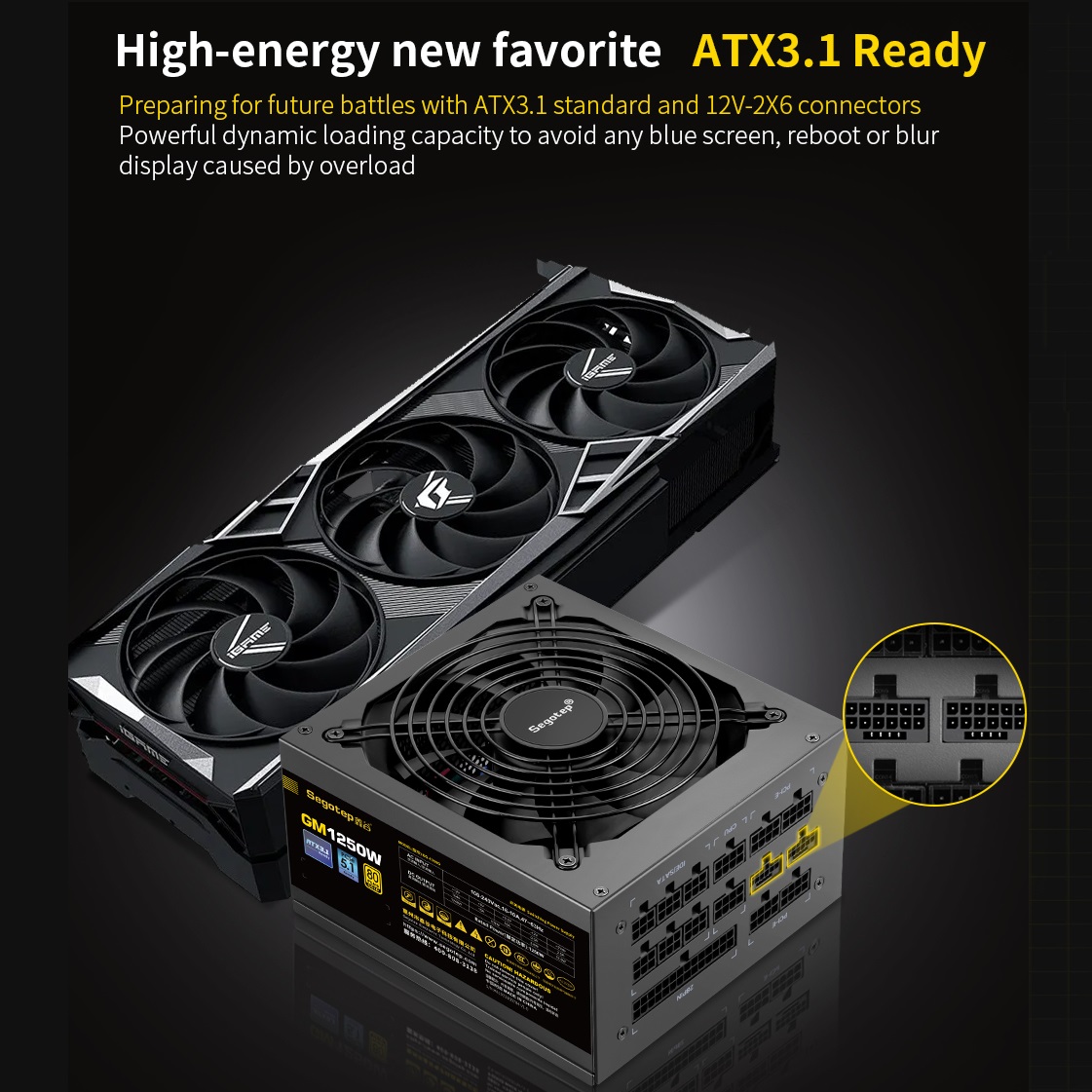

• Future-Ready: ATX 3.1 compliant, equipped with 12V-2X6 connectors for next-gen GPUs.
• Robust Performance: Designed to prevent blue screens, reboots, or display issues due to overload.

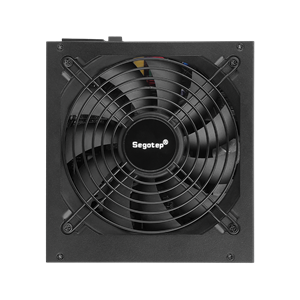

• Efficient Cooling: 135mm double ball bearing fan with smart temperature control, keeping noise levels under 33dB.

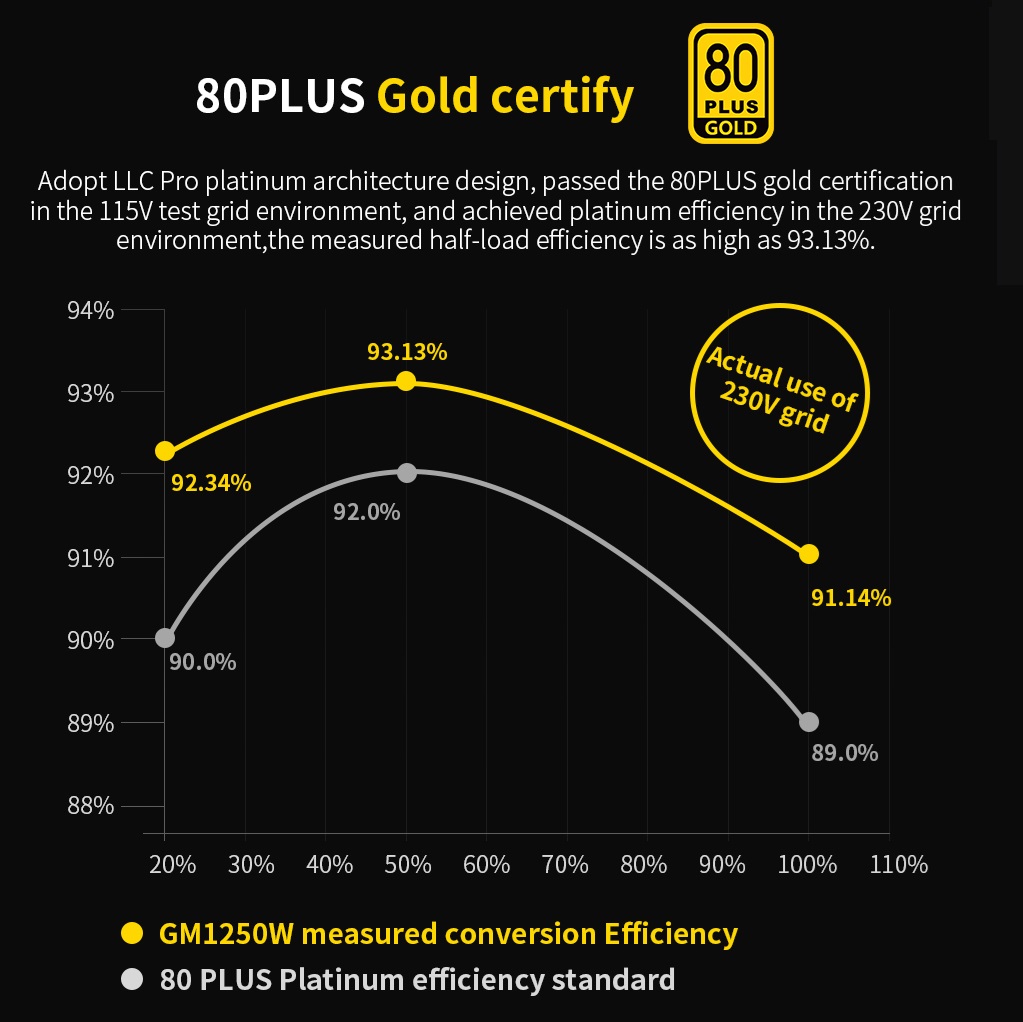

• 80 PLUS Gold Certified: High efficiency with up to 93.13% efficiency at half load (230V).

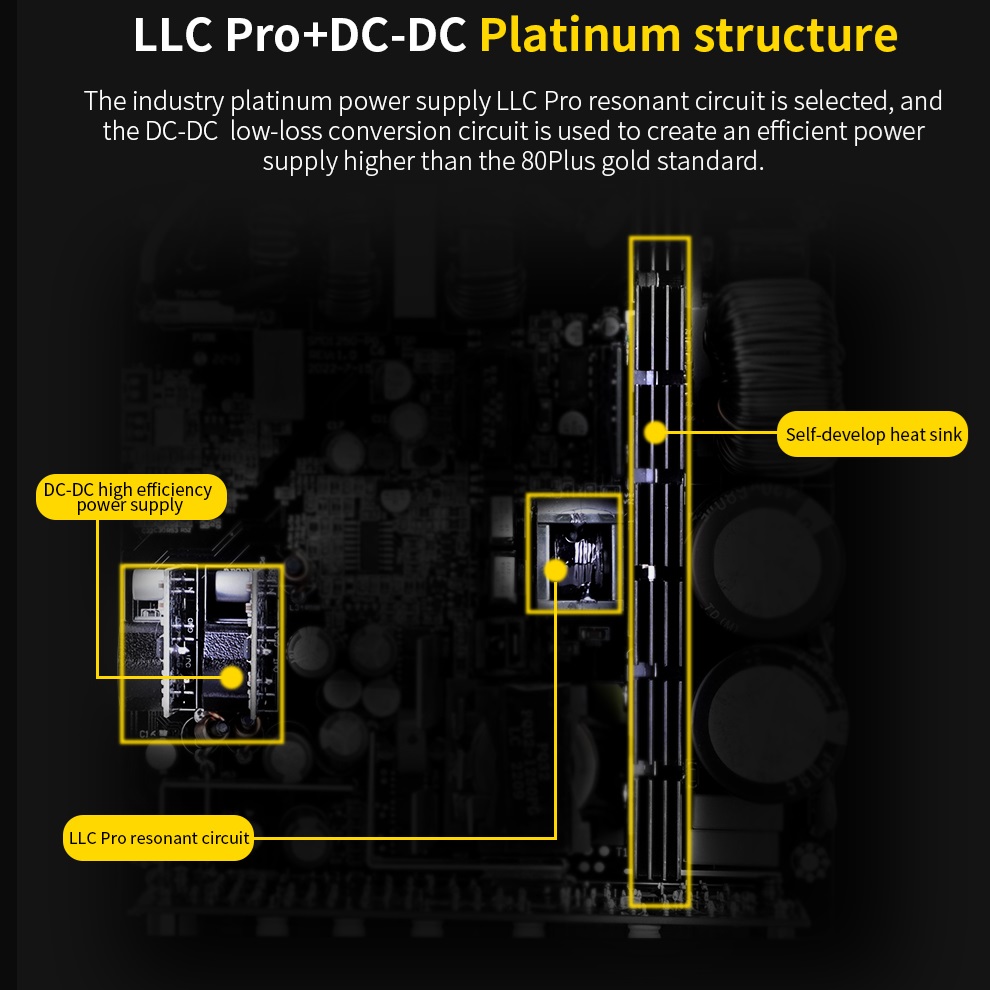

• Self-Developed Heat Sink: Enhances cooling and efficiency for long-lasting performance.

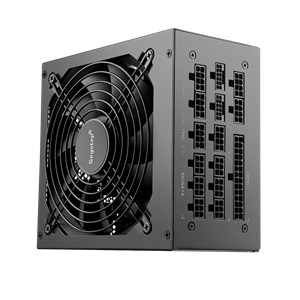

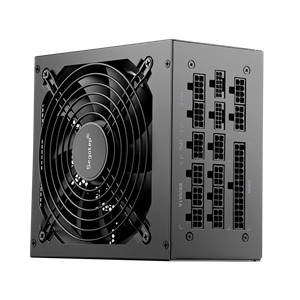

• Flexible Modular Design: Customizable cables for neat installation and optimal airflow.

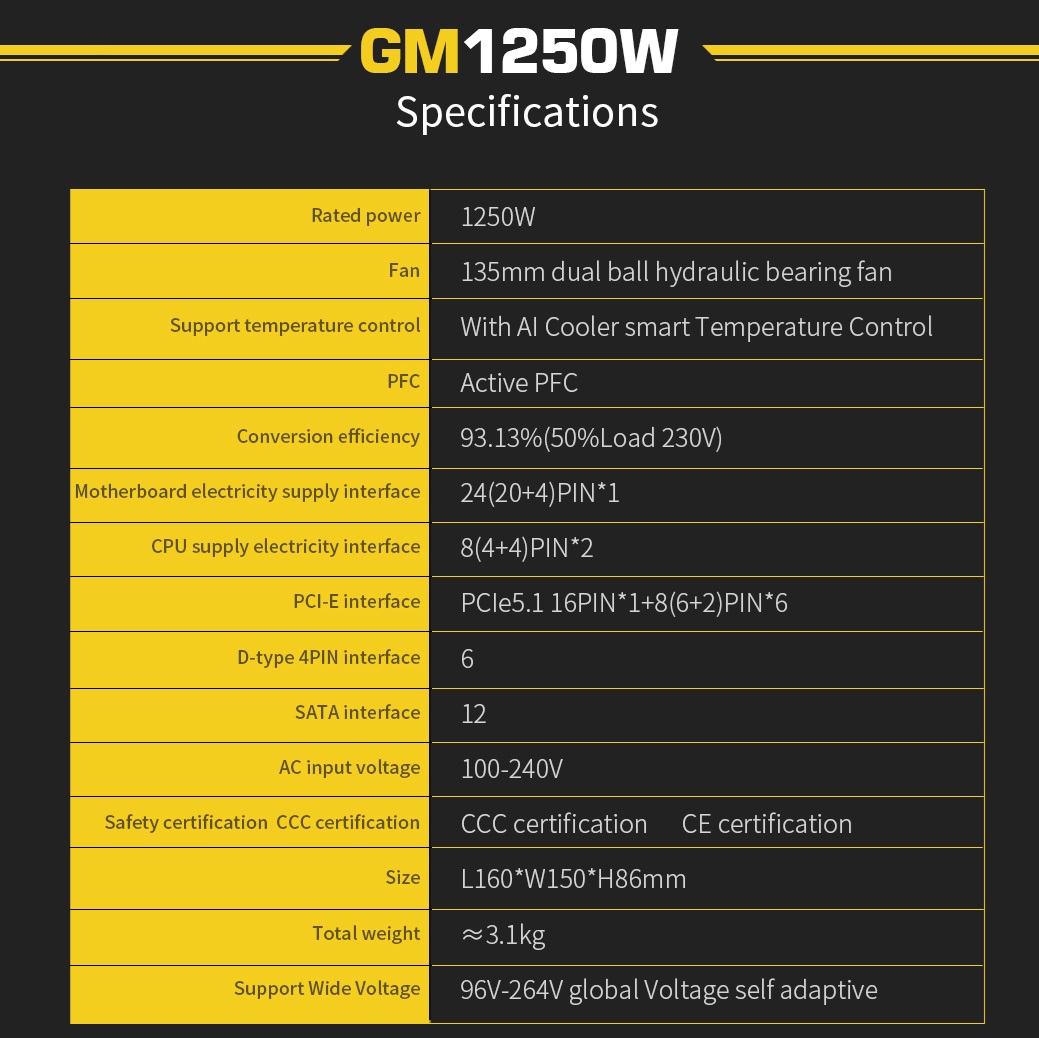

Expert Specs

• Rated Power: 1250W
• Output Current: +12V output of 104A.
• PCIe Support: Original PCIe 5.1 interface, providing direct connection to high-performance GPUs without adapters.
• Safety Protections:
  • OVP (Overvoltage Protection)
  • OCP (Over Current Protection)
  • OPP (Over Power Protection)
  • SCP (Short Circuit Protection)
  • UVP (Under Voltage Protection)
• Dimensions: L160mm x W150mm x H86mm
• Operating Voltage: 96-264V, self-adaptive for global use.
• Fan Lifespan: Rated for 70,000 hours of operation.

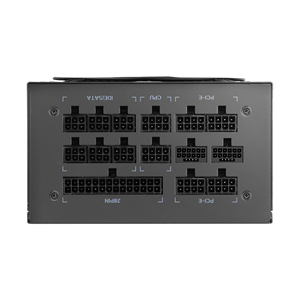

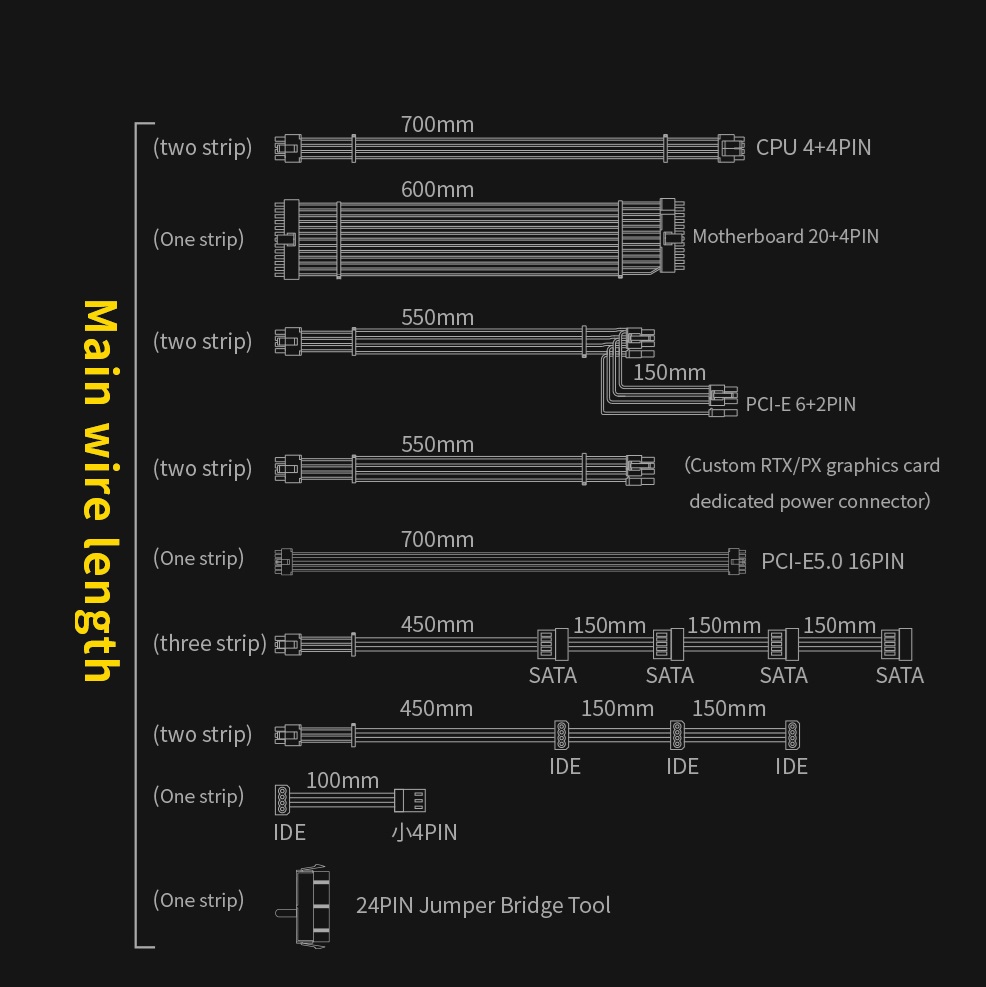

• Cable Interfaces:
  • 24-pin motherboard interface
  • 6 x PCIe (6+2) pin interfaces
  • 2 x CPU (4+4) pin interfaces
  • 12 x SATA interfaces
  • 6 x IDE interfaces
