Name: Double-conversion Online UPS 6000VA / 5400W, 12V / 7AH*16 with Fully Digital LCD Display ,RS232, 230VAC, 50/60Hz - Built-in input power factor corrector, avoids reactive power loss, saving user energy | Expert-Zone
SKU: EZ-PX6K
Price: 498.00 USD
Availability: OutOfStock

Description

Double-conversion Online UPS 6000VA 5400W

Performance, Professional Power UPS, guaranteeing full protection of terminal equipment, operating in reliable On-line technology.

On-line technology provides full separation of terminal equipment from the power supply. The power supply is also a generating unit. From the mains through a rectifier or in case of a power failure from an installed battery, an independent inverter supplies the output voltage in the form of a perfect wave without frequency fluctuations. Online UPS means the highest quality of output current. Line voltage spikes, discharges, surges are not dangerous to the final consumer devices.

Expert Features

Double conversion online UPS
High performance fully digitally controlled DSP, Pure Sinewave output
Frequency inverter mode
Wide input voltage range, works well with different power quality
Compatible with most generator sets
Built-in input power factor corrector, avoids reactive power loss, saving user energy
ECO mode. Provide the best balance between energy saving and power protection
Good load adaptability, good cooperation with laser printer, ultrasonic cleaner
Made of strong fiberglass based on double-sided printed circuit board (FR4), avoiding dry soldering, high vibration/humidity/dust resistance
Low profile, Saves installation space for the user
Ideally matched with customer applications
Attractive performance/price ratio

Features

Cover the most common power problems
Adapts to harsh power conditions
Long backup times
Generator compatible

Applications

IT infrastructure: Small servers and workstations, routers and switches, monitoring equipment
Automation system: ATM, TVM, SCADA, rail and subway signaling system
Office and business equipment: PC, Printer, Scanner, POS, Telephones and Fax

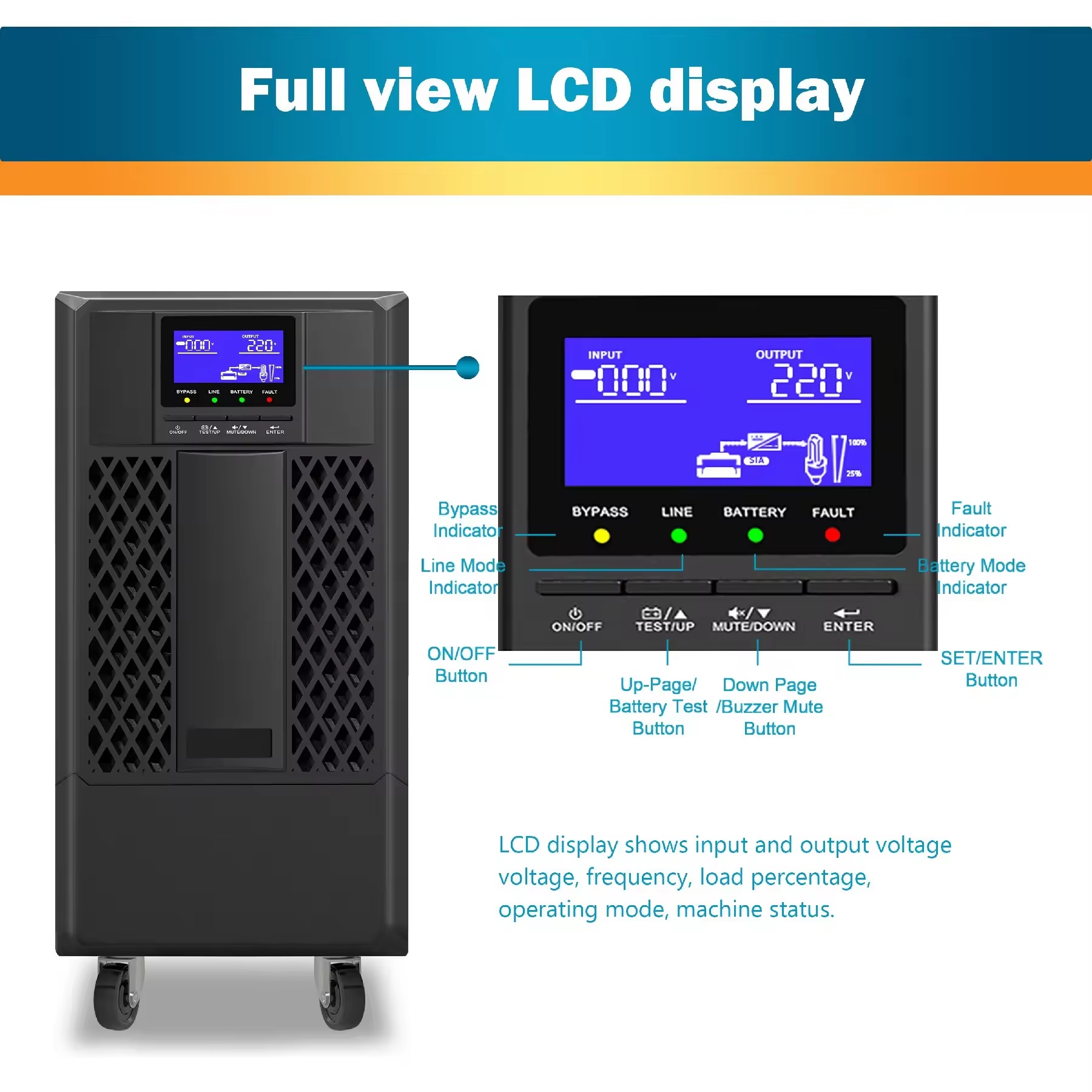

Front Panel

On/Off Switch
Function Button

Rear Panel

1 x Terminal Input (L/N+PE)
1 x Output on screw terminals (L/N+PE)
Service port RS232 and USB type B (cable included)
2 x Fuse (inputs C32 and outputs C63) (CHINT NXB-63 / 230V ~50Hz 6000A)
2 x Fan

Expert Specs

Model	AP-PX6K
Power	6000VA/5400W

INPUT
Voltage	HV: 208/220/230/240VAC LV: 100/110/120/127VAC
Voltage range	HV: 90-300VAC ±5VAC LV: 60-145VAC ±3VAC
Frequency	50/60Hz
Frequency range	40-70Hz ±0.5Hz
Power Factor	> 0.99
Input Bypass voltage range AC	HV: 115-285VAC ±1-3% LV: 80-140VAC ±1-3%

BATTERY
Nominal voltage	144V
Type and capacity	12V / 7Ah x 12
Hold time	50% load ≥ 8 minutes 100% load ≥ 3 minutes
Charging time	5 hours to 90%

OUTPUT
Nominal voltage	HV: 208/220/230/240VAC ±2% LV: 100/110/120/127VAC ±2%
Output waveform	Pure sine wave THD < 3% (linear load) THD < 7% (non linear load)
Frequency	60/50Hz ±1-4Hz
Dynamic output voltage	<9%
Dynamic transient recovery	<100ms
Output overload	105-125% ≥ 60s 126-150% ≥ 30s
Peak power factor	3:1
Switching time	0ms
Information	The operating times shown are approximate and may change depending on operating conditions, environment, operating time and more.

CONNECTIVITY
Service ports	RS232 USB type B (cable included)
OS support	Windows/macOS/Linux

PROTECTION
Type	Input or output voltage above or below range Overload Over temperature Short circuit protection

ENVIRONMENTAL CONDITIONS
Humidity	0-90% / Relative Humidity 0-40°C (non-condensing)
Noise level	Lower than 50dB
Dimensions (mm)	380 x 325 x 190
Net Weight (kg)	20.5
Front Panel	On/Off Switch Function Button
Rear panel	1 x Input to screw terminals (L/N+PE) 1 x Output to screw terminals (L/N+PE) Service port RS232 and USB type B (cable included) 2 x Fuse (inputs C32 and outputs C63) 2 x Fan
