SKU: R-PQA00G-FD0W-CN

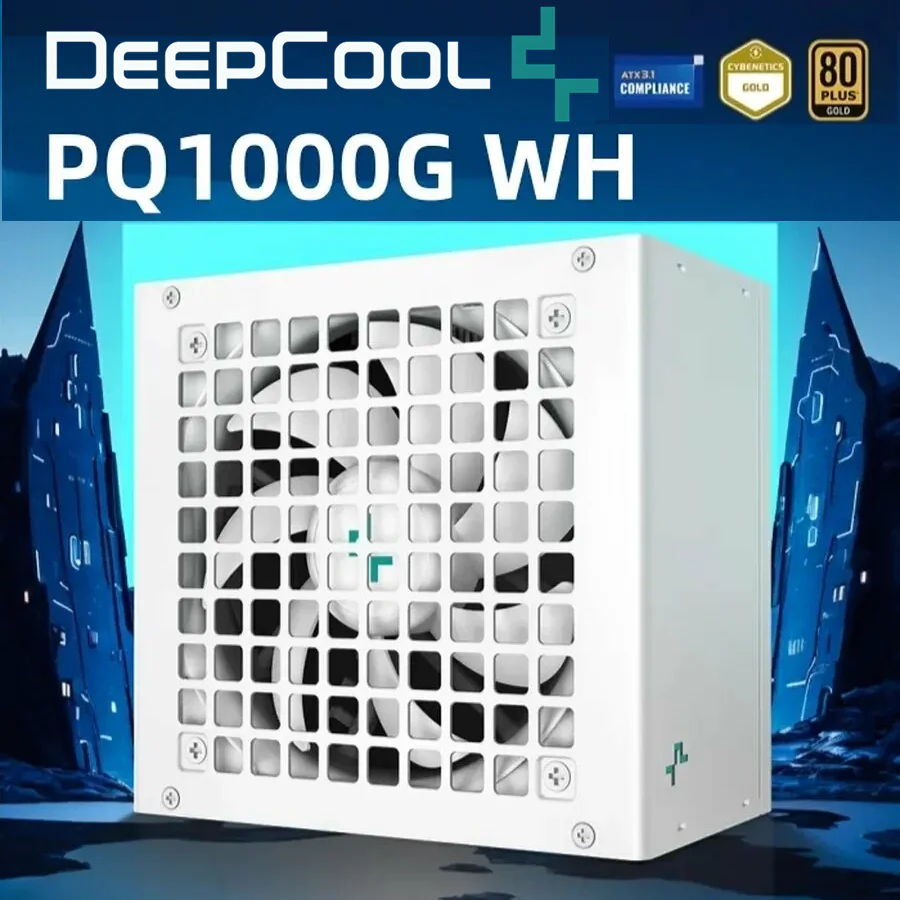

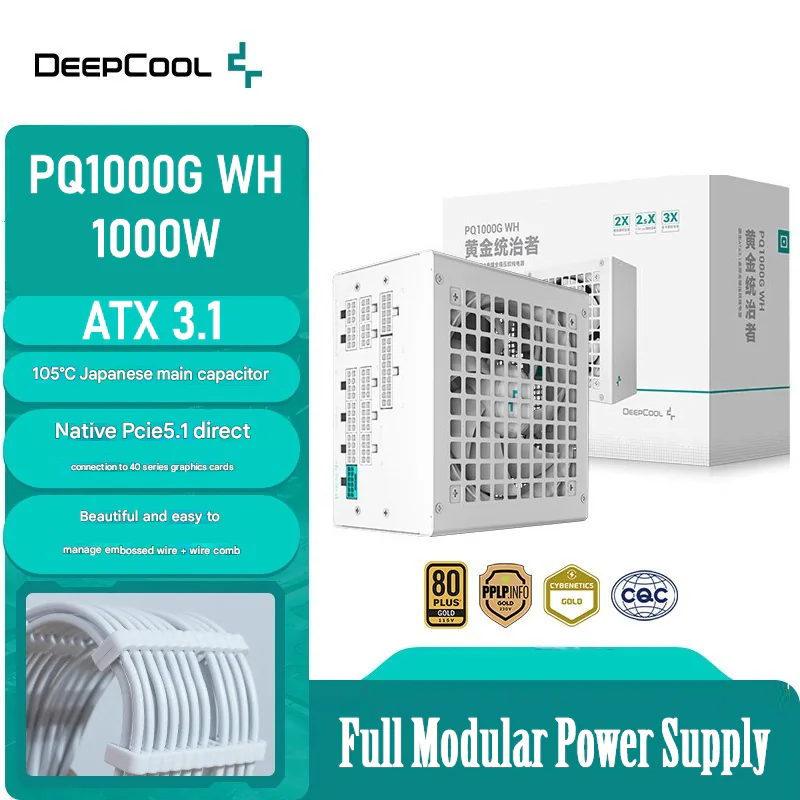

Deepcool PQ1000G 1000W 80 Plus Gold Modular ATX 3.1 Power Supply With PCIe 5.1 12VHPWR, Japanese Capacitors, Smart Silent Fan, And Full Protection For RTX 40 GPUs | ATX PSU for High-Performance PCs | WHITE

$ 142.00 ---ONLY---

OUT OF STOCK

OUT OF STOCK

Description

🔧 Expert Features

  • 80 PLUS Gold Efficiency – Achieves up to 90% power conversion efficiency, reducing heat and power loss while keeping performance rock solid.
  • ATX 3.1 & PCIe 5.1 Support – Built for the latest tech, including the RTX 40 series, thanks to native ATX 3.1 and PCIe 5.1 12VHPWR compatibility.
  • 1000W Stable Output – Delivers a consistent 1000 watts via a single +12V rail, ideal for power-hungry builds with top-tier GPUs and CPUs.
  • Fully Modular Cables – Customize your cable setup like a cable ninja—no more spaghetti monster in your case.
  • Japanese Capacitors – All-Japanese capacitors ensure reliability and long life, even under high-temperature, high-load scenarios.

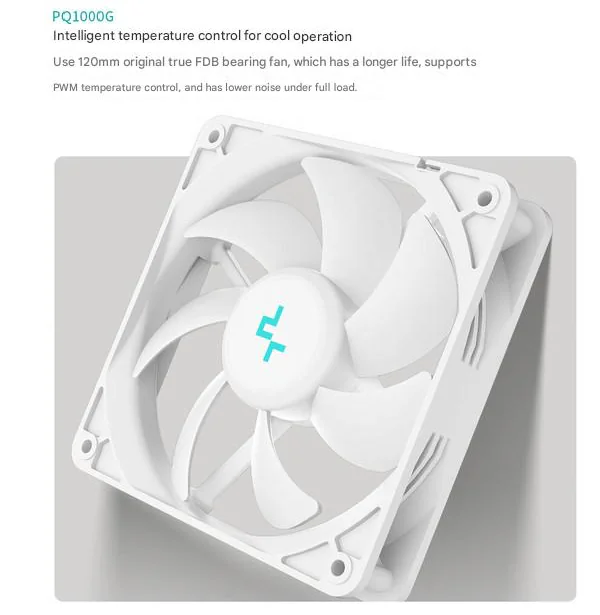

  • Smart Silent Fan – A 120mm FDB fan stays off under low load for silent operation and kicks in when needed to keep things cool.
  • Compact ATX Design – At just 140mm deep, it fits most ATX cases like a glove—big power in a space-efficient body.
  • Comprehensive Protection – OVP, OCP, OPP, OTP, SCP—you name it, it’s protected. Your components are safe from electrical shenanigans.
  • Next-Gen GPU Ready – A powerful 600W-rated 12VHPWR connector is ready to feed the latest RTX monsters.
  • Built to Last – With 100,000 hours MTBF, this PSU is in it for the long haul. Game, work, or render with peace of mind.

📊 Expert Specs

Category Details
Brand Deepcool
Model PQ1000G
Power Output 1000W
Efficiency Certification 80 PLUS Gold (Up to 90%)

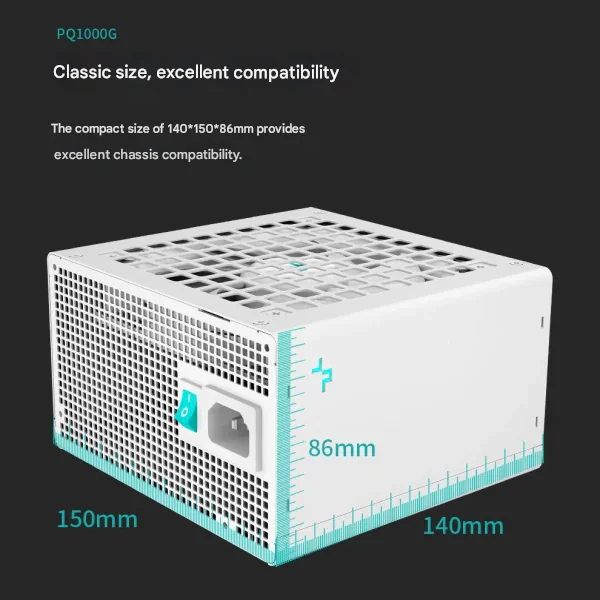

Form Factor ATX (Standard Size: 140 x 150 x 86 mm)
ATX Version ATX 3.1
Architecture Active PFC + Half-Bridge LLC + DC to DC
Fan 120mm FDB with intelligent zero RPM mode
Cable Type Fully Modular
Main Capacitor Japanese Brand
+12V Rail Single rail, 83A
Protections OVP, OCP, OPP, OTP, SCP
MTBF 100,000 hours

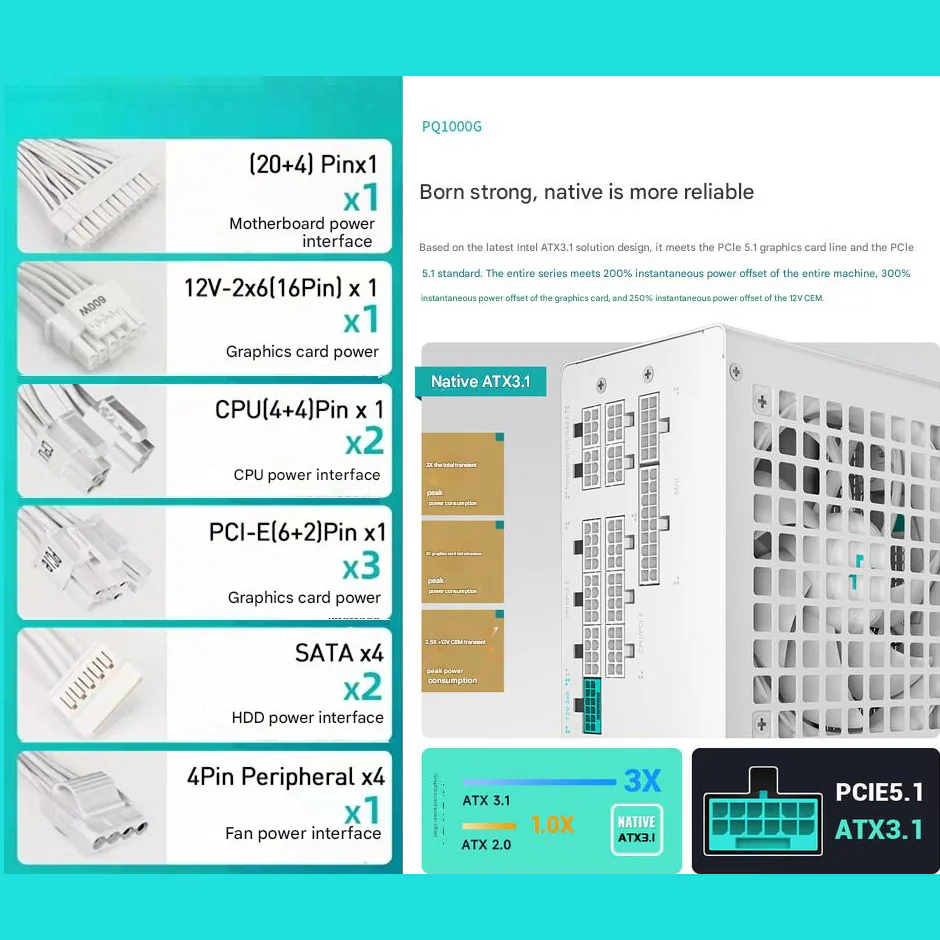

Motherboard Connector 24-pin
CPU Connector 2 × 4+4 pin
PCIe (6+2 Pin) 3 connectors
PCIe (16-pin 12VHPWR) 1 connector (supports up to 600W)
SATA Connectors 8 connectors
Molex Connectors 4 connectors
Input Voltage 100V – 240V
+3.3V / +5V Current 20A each
-12V Current 0.3A
+5VSB Current 3A
Weight 3.2 kg
Warranty 1 Year
