SKU: R-PF600X-HD0B-EU

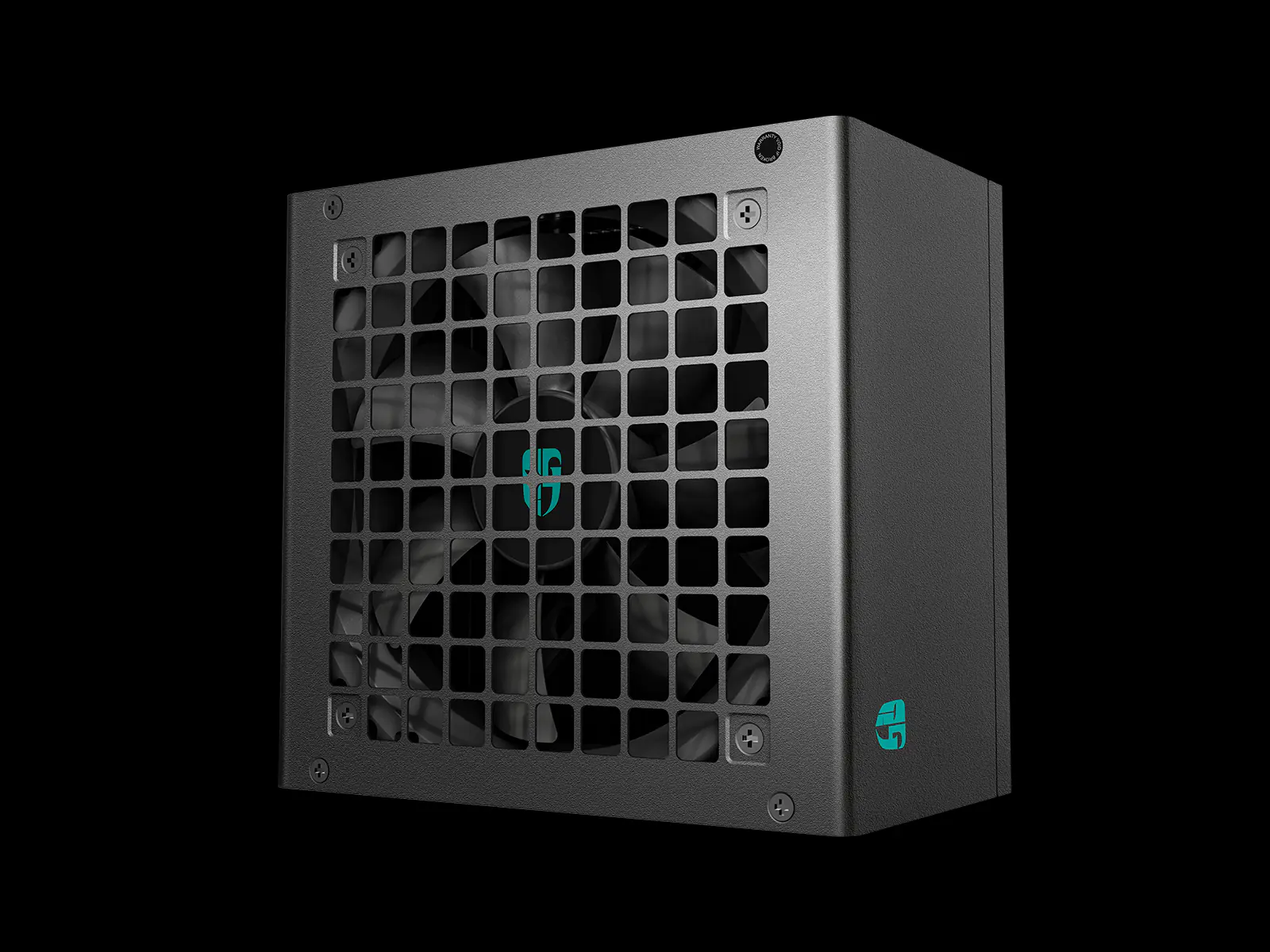

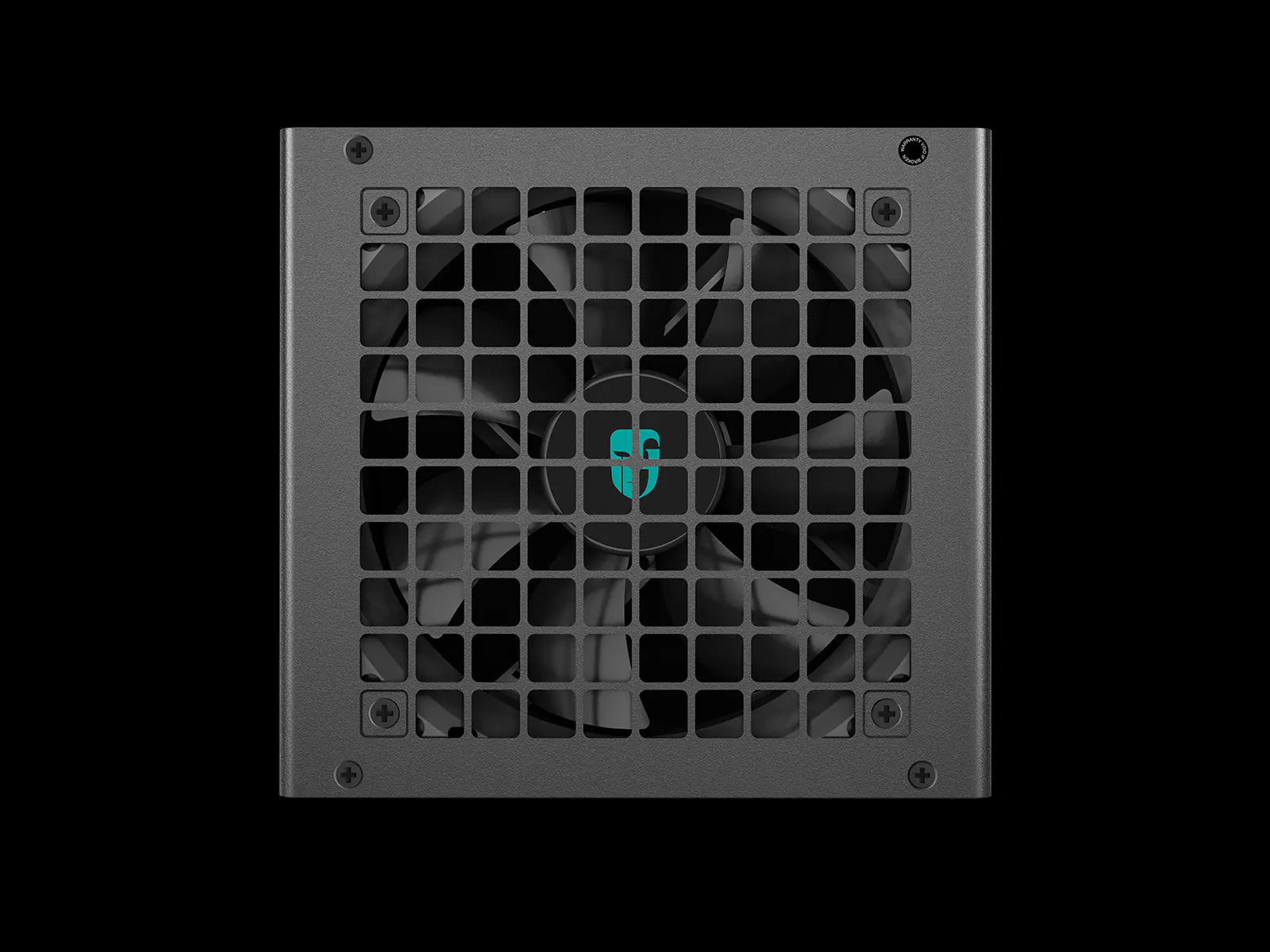

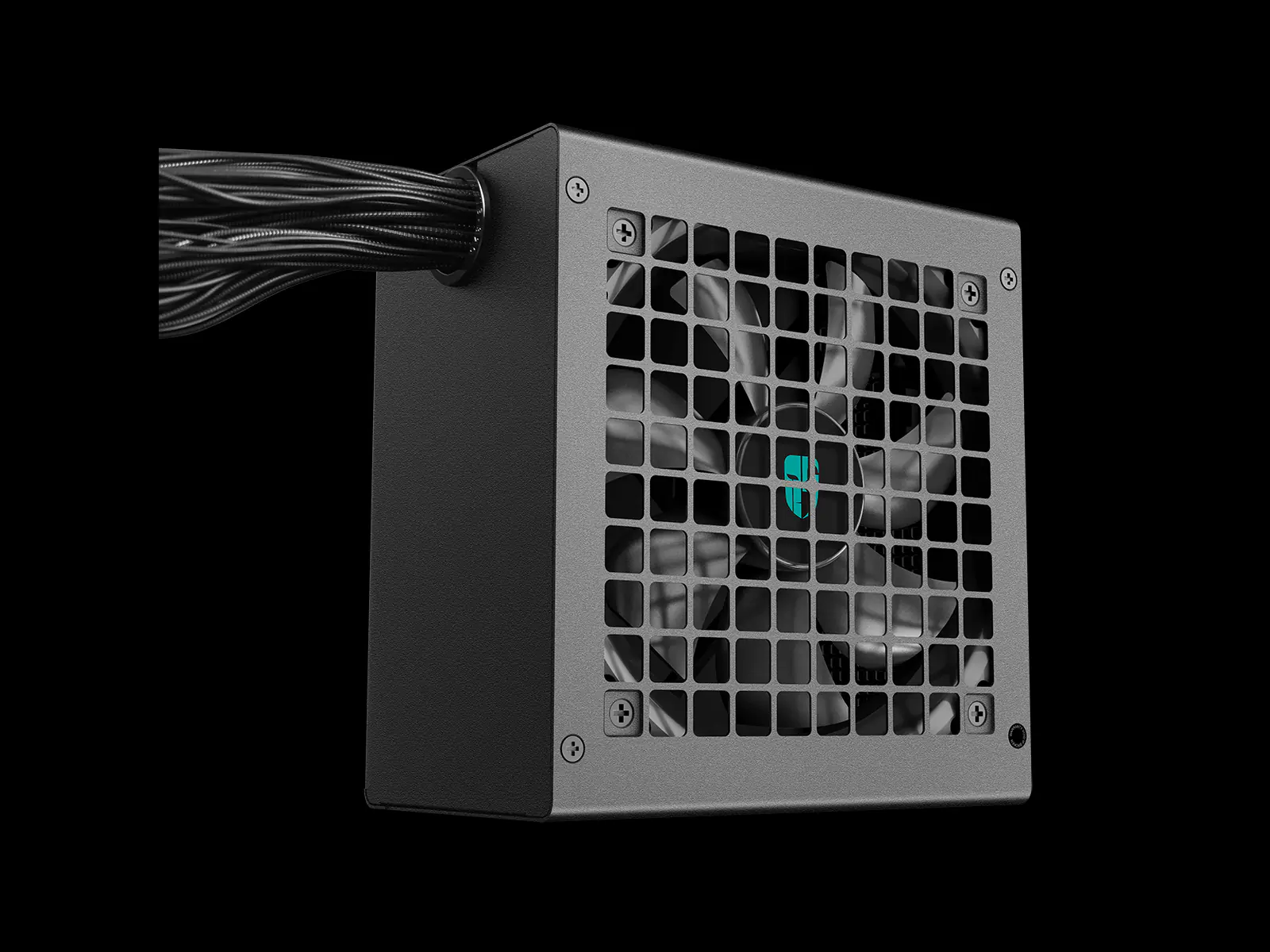

DeepCool Gamer Storm PF600X 600W 80+ Bronze Power Supply With Japanese Capacitors, Wide Voltage Adaptation, Long-Life Fan, And Full Protection Suite

$ 47.00

OUT OF STOCK

OUT OF STOCK

Description

🛠 Expert Features

  • Triple Bronze-Certified Efficiency – Officially blessed by 80 PLUS, Cybenetics, and PPLP with ≥88% efficiency at 50% load. Less wasted energy = more watts for epic battles.
  • Premium Capacitor Army – Reinforced with Taiwanese solid capacitors and Japanese standby capacitors for ultra-reliable hold-up times (≥16ms @ 75% load). When others crash, this PSU holds the line.

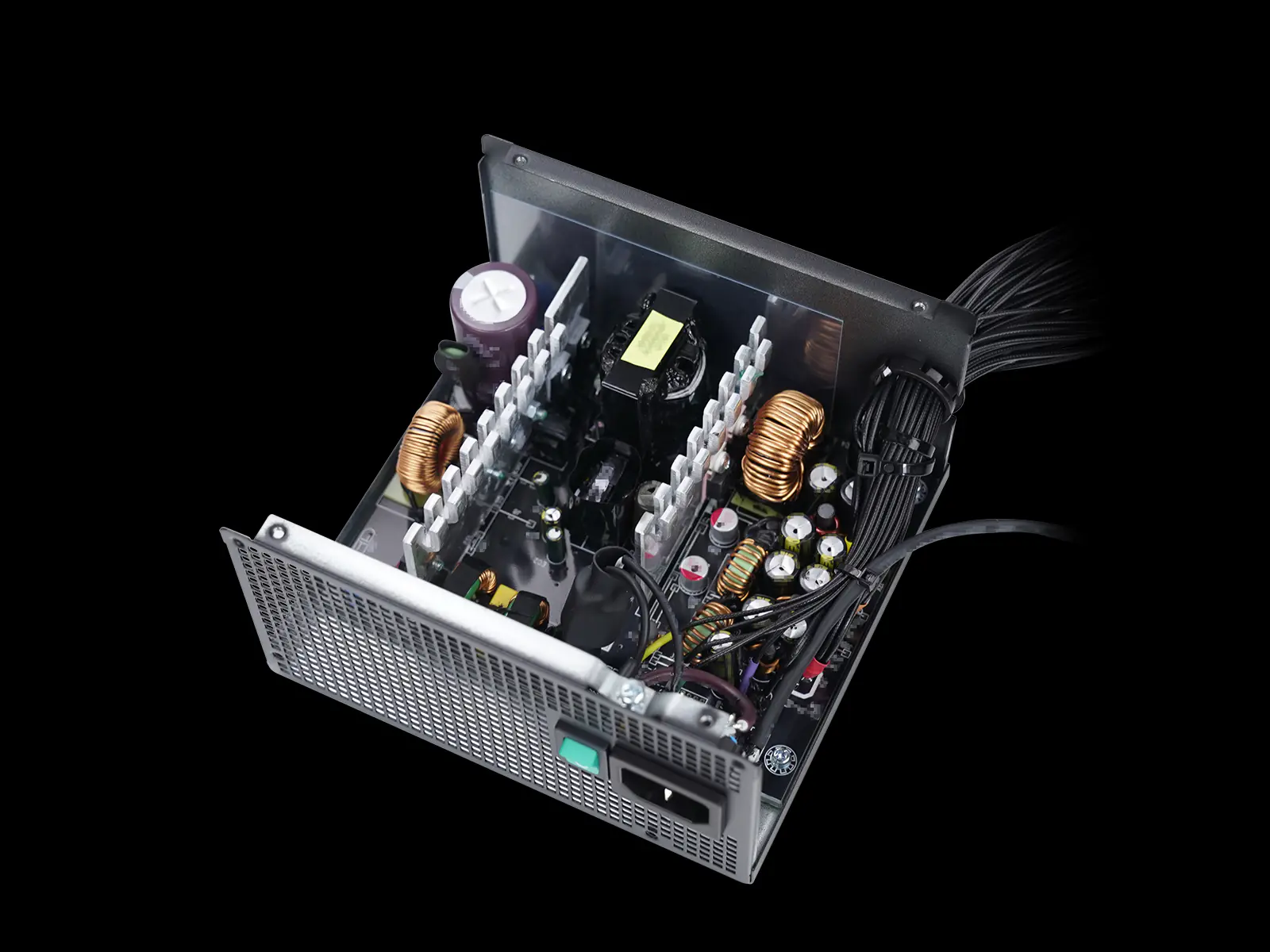

  • Intel ATX 2.52 Compliant – Modern Active PFC + Double Forward + DC-to-DC topology slays ripple noise, reduces voltage deviation, and ensures your GPU and CPU always get clean power.
  • Voltage Warrior – Survives between 180V–264V with full-load stability. Even if your grid drops to 160V, this beast refuses to bow out.
  • Fan That Never Quits – A 120mm Long-Life HYB Bearing Fan with aerodynamic PCB-friendly design ensures 24/7 operation at 40°C. 40,000-hour MTBF = endless uptime.
  • Eight Shields of Protection – OPP, OVP, SCP, OTP, OCP, UVP, SIP, and NLO. In geek speak: it’s basically the Gandalf of power supplies (“You shall not pass!” to power surges).

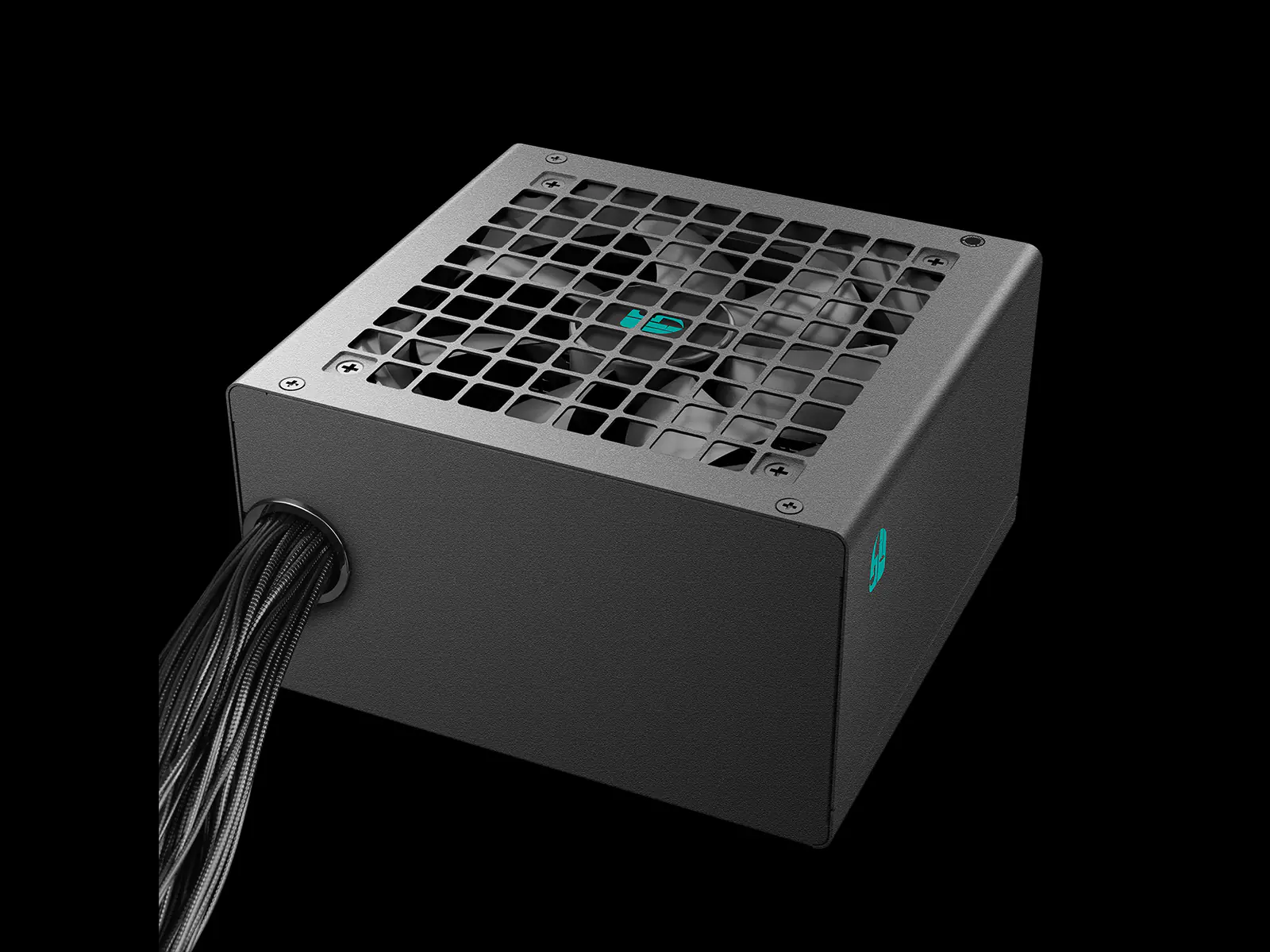

  • Cable Management That Doesn’t Suck – Outfitted with custom-molded sleeved cables for smoother installs and airflow-friendly routing.
  • Battle-Tested Warranty – Backed by a 1-Year Limited Warranty so you can game, stream, or code with zero worries.

🧾 Expert Specs

CategoryDetails
ModelPF600X
Model No.PF600X-HD
Total Output Power600W
Form FactorATX12V v2.52
Dimensions (W x L x H)150 × 140 × 86 mm
Efficiency Certification80PLUS 230V EU Bronze / Cybenetics Bronze / Cybenetics A 230V / PPLP Bronze
Fan Size120mm
Fan BearingLong-Life HYB
TopologyActive PFC + Double Forward + DC-to-DC
CapacitorsTaiwanese Solid + Japanese Electrolytic
Power Good Signal100–150ms
Hold-Up Time≥16ms (75% Load)
Efficiency≥88% Under Typical Load (50%)
ProtectionsOPP / OVP / OCP / SCP / OTP / UVP / SIP / NLO
Operating Temperature0–40°C
RegulatoryCE / TUV-RH / CCC / RCM / KC
ErP RegulationErP 2014
Eco ComplianceWEEE / China RoHS / Triman
MTBF40,000 Hours
AC Input Voltage200–240V
AC Input Current5A
AC Input Frequency50–60Hz
DC Output Rails+3.3V (16A) / +5V (16A) / +12V (50A) / -12V (0.3A) / +5VSB (3A)
DC Output Max100W (+3.3V & +5V), 600W (+12V), 3.6W (-12V), 15W (+5VSB)
Total Output600W
Main Connector24(20+4)-Pin ×1
CPU Connector4+4-Pin ×1
PCI-E Connector6+2-Pin ×2
Peripheral ConnectorsSATA ×3 + 4-Pin Peripheral ×1 (×2 cables)
