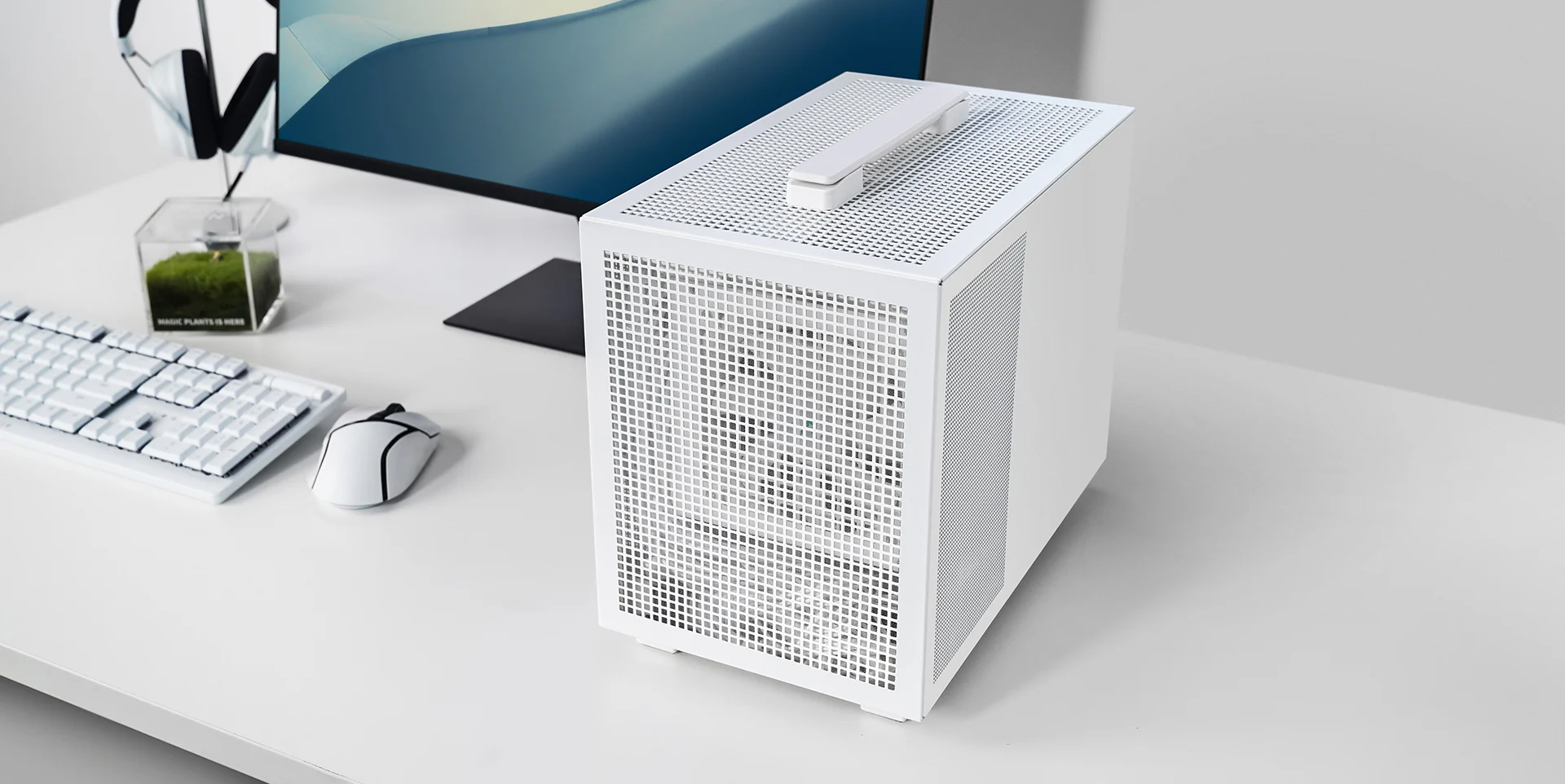

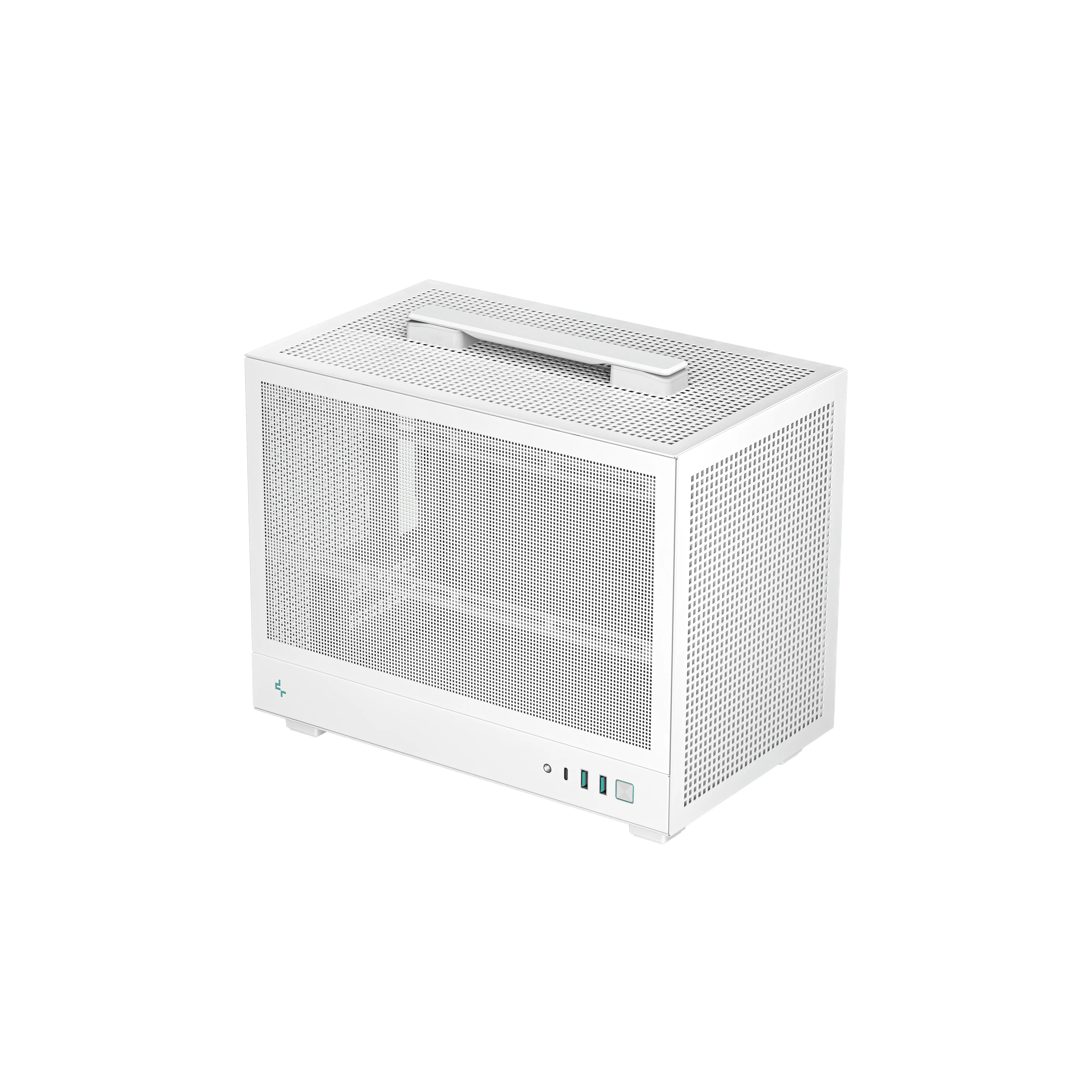

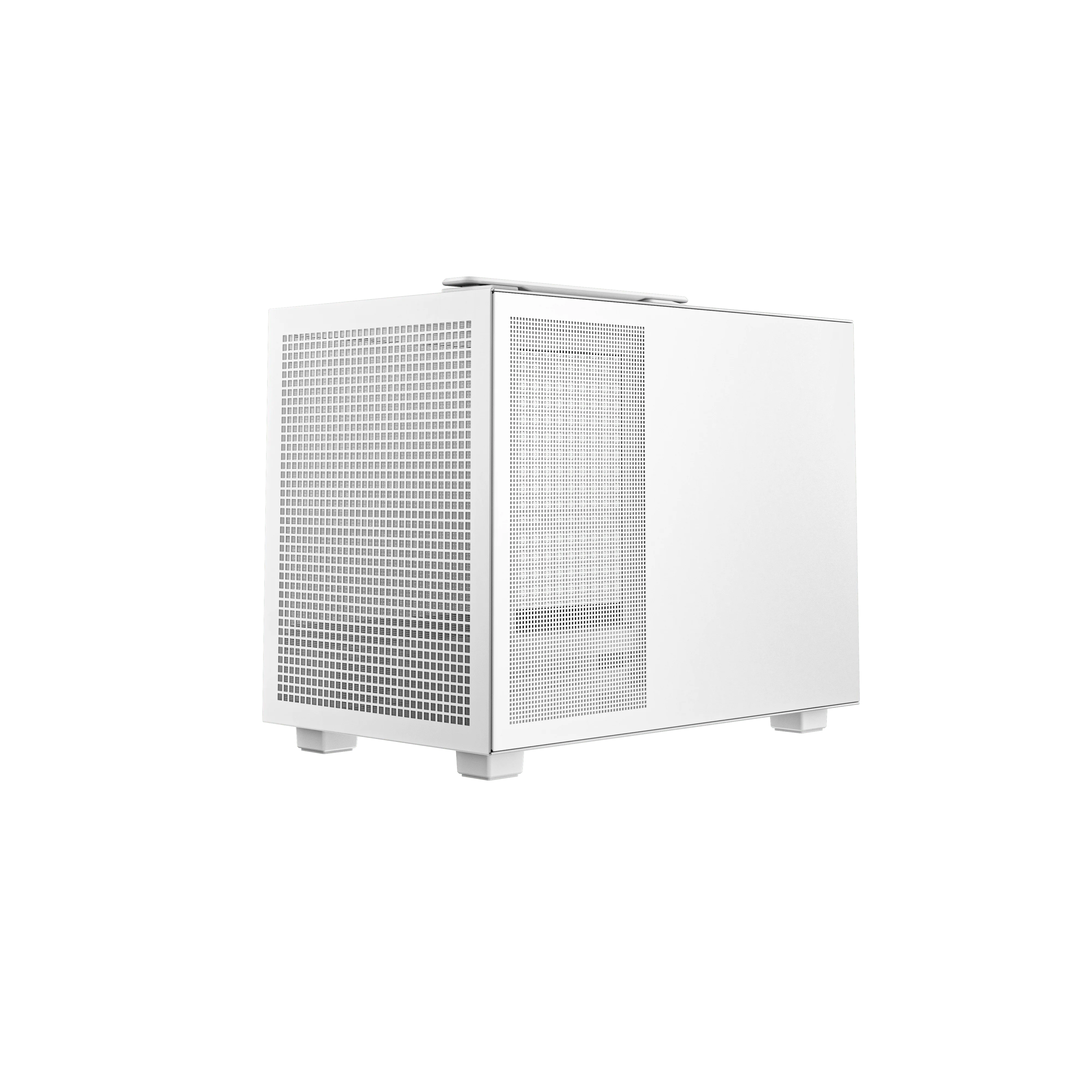

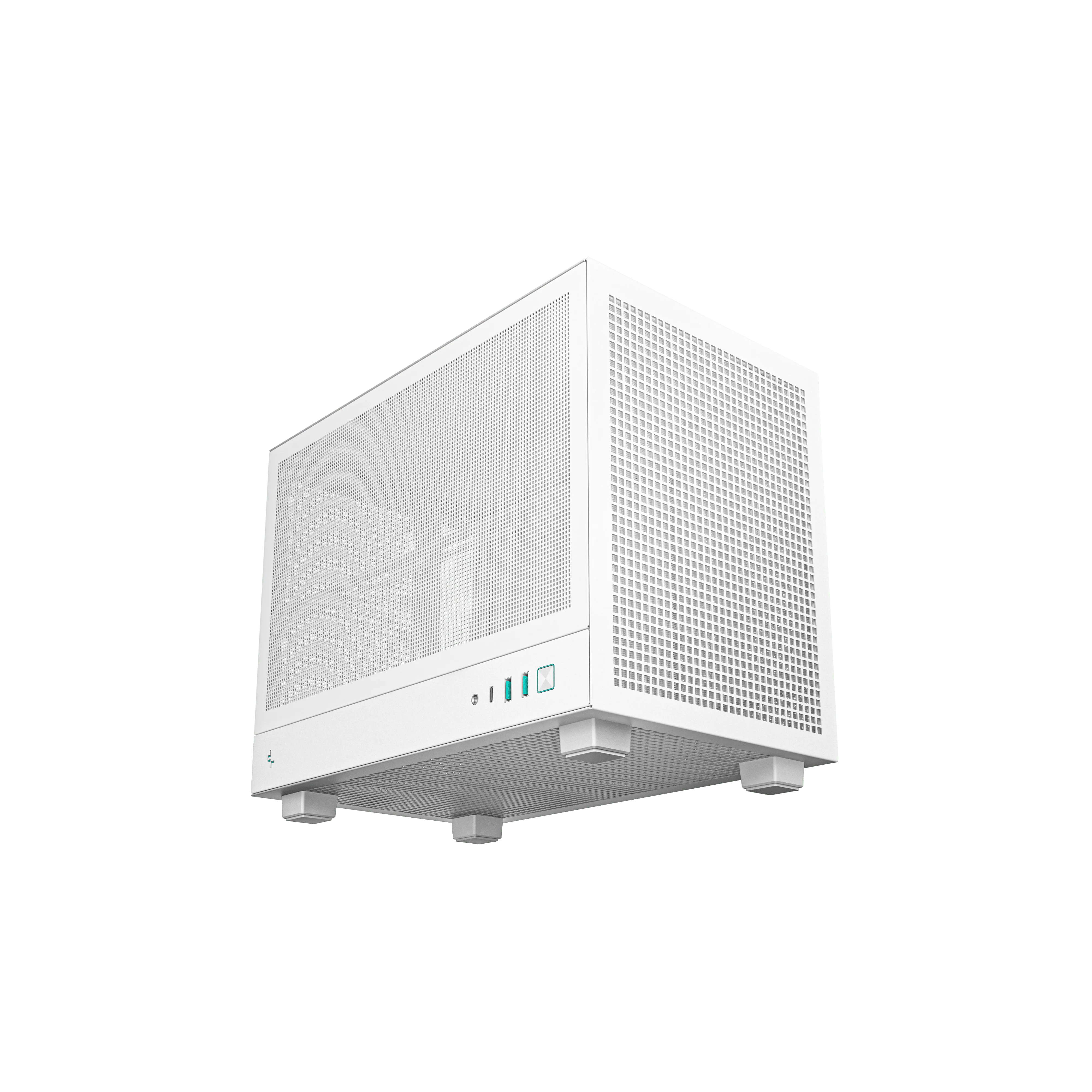

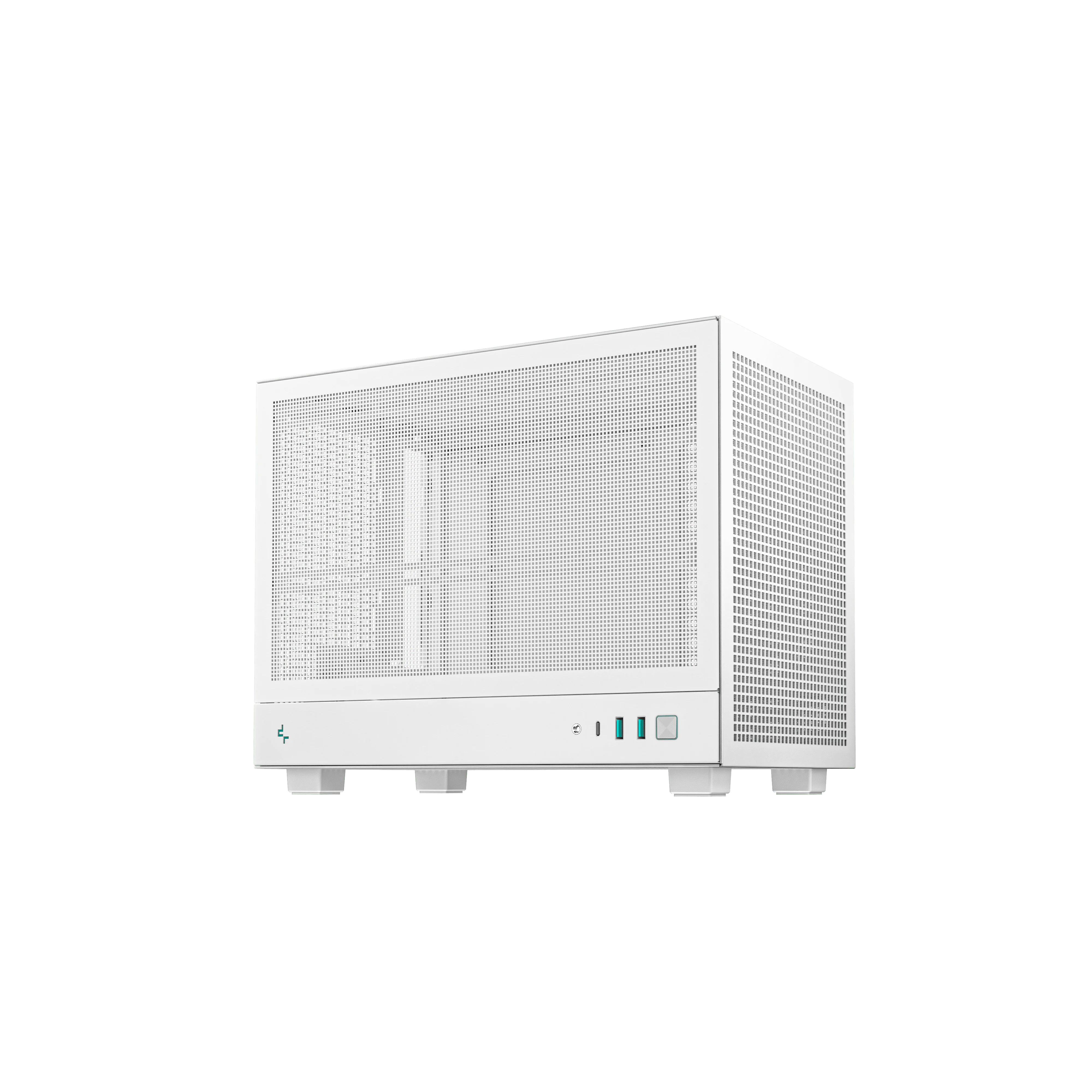

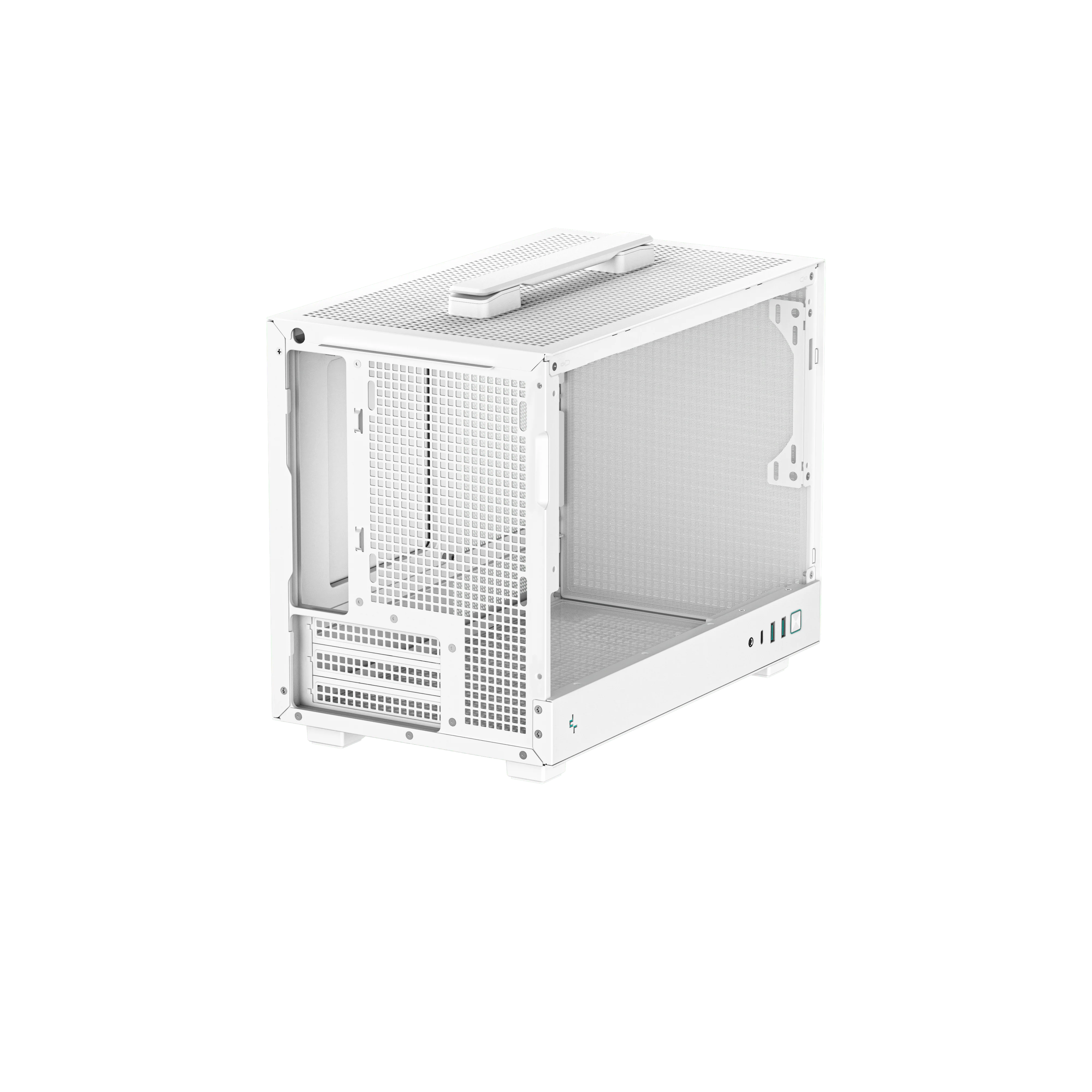

DeepCool CH160 MESH WH Mini-ITX Case with High-Airflow Mesh Panels ; Supports 240mm AIO ,Fits 3-Slot GPUs , ATX/SFX PSU Compatible , Sturdy Handle & Gen2 Type-C | WHITE

Name: DeepCool CH160 MESH WH Mini-ITX Case with High-Airflow Mesh Panels ; Supports 240mm AIO ,Fits 3-Slot GPUs , ATX/SFX PSU Compatible , Sturdy Handle & Gen2 Type-C | WHITE | Expert-Zone
SKU: R-CH160-WHNMI0-G-1
Price: 47.00 USD
Availability: OutOfStock

$ 47.00 ---ONLY---

OUT OF STOCK

Add to compare

Description

Expert Features

Ultra-Portable Mini-ITX Design – Compact yet powerful with excellent airflow for high-performance builds.

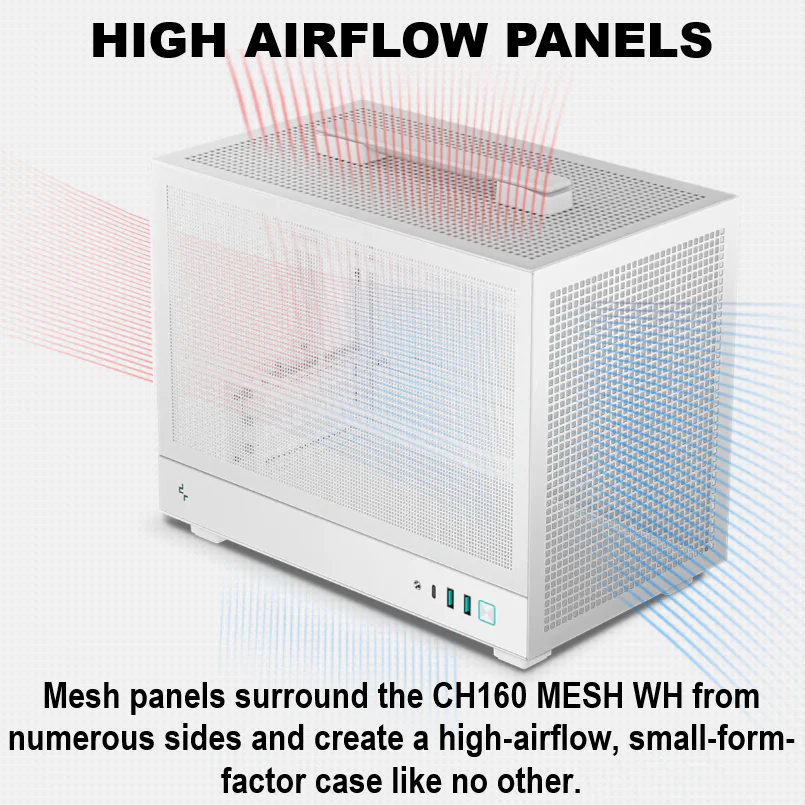

High Airflow Mesh Panels – Full mesh coverage on multiple sides for optimized cooling.

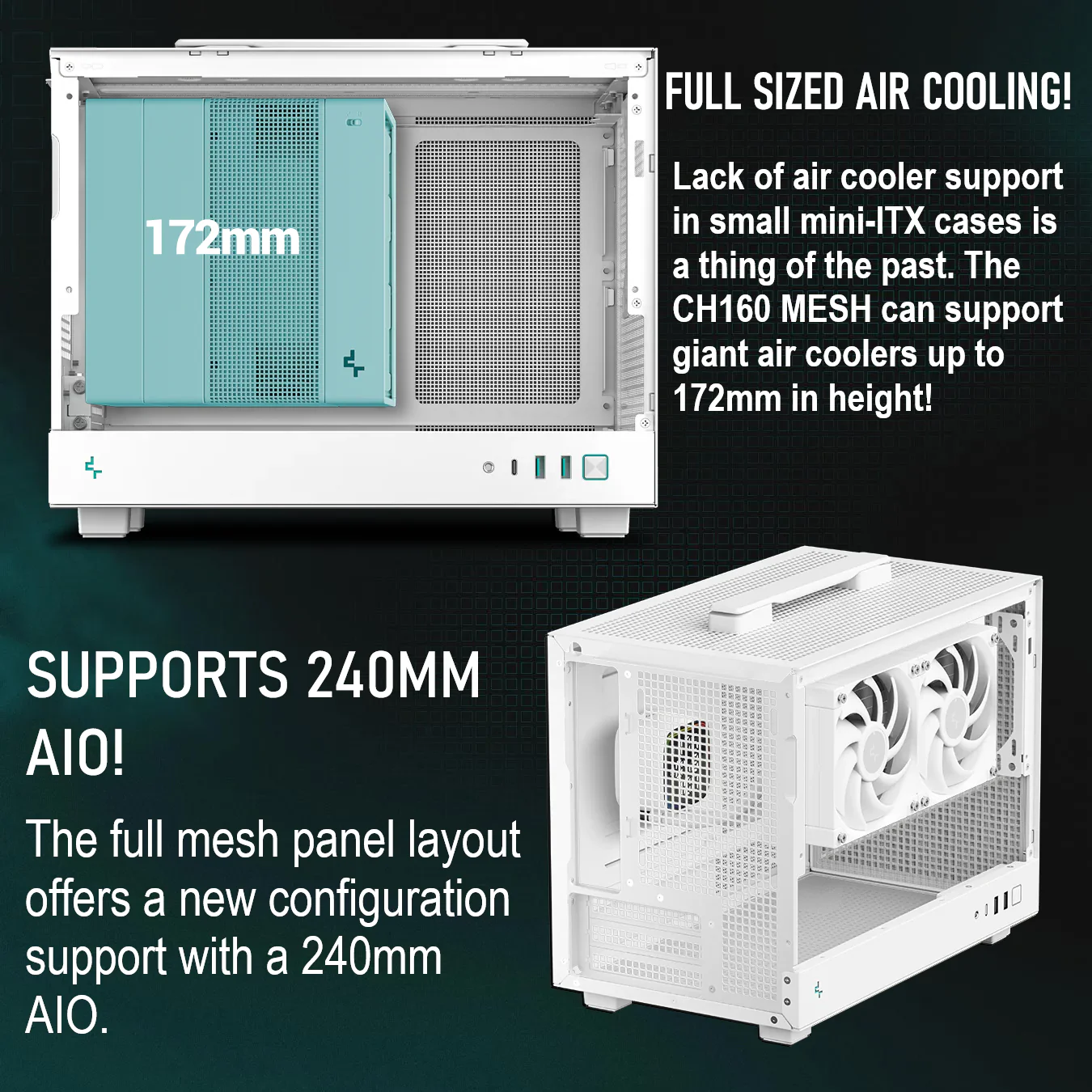

Full-Size Air Cooler Support – Fits CPU air coolers up to 172mm height.
Liquid Cooling Ready – Supports 240mm AIO radiators for advanced cooling setups.

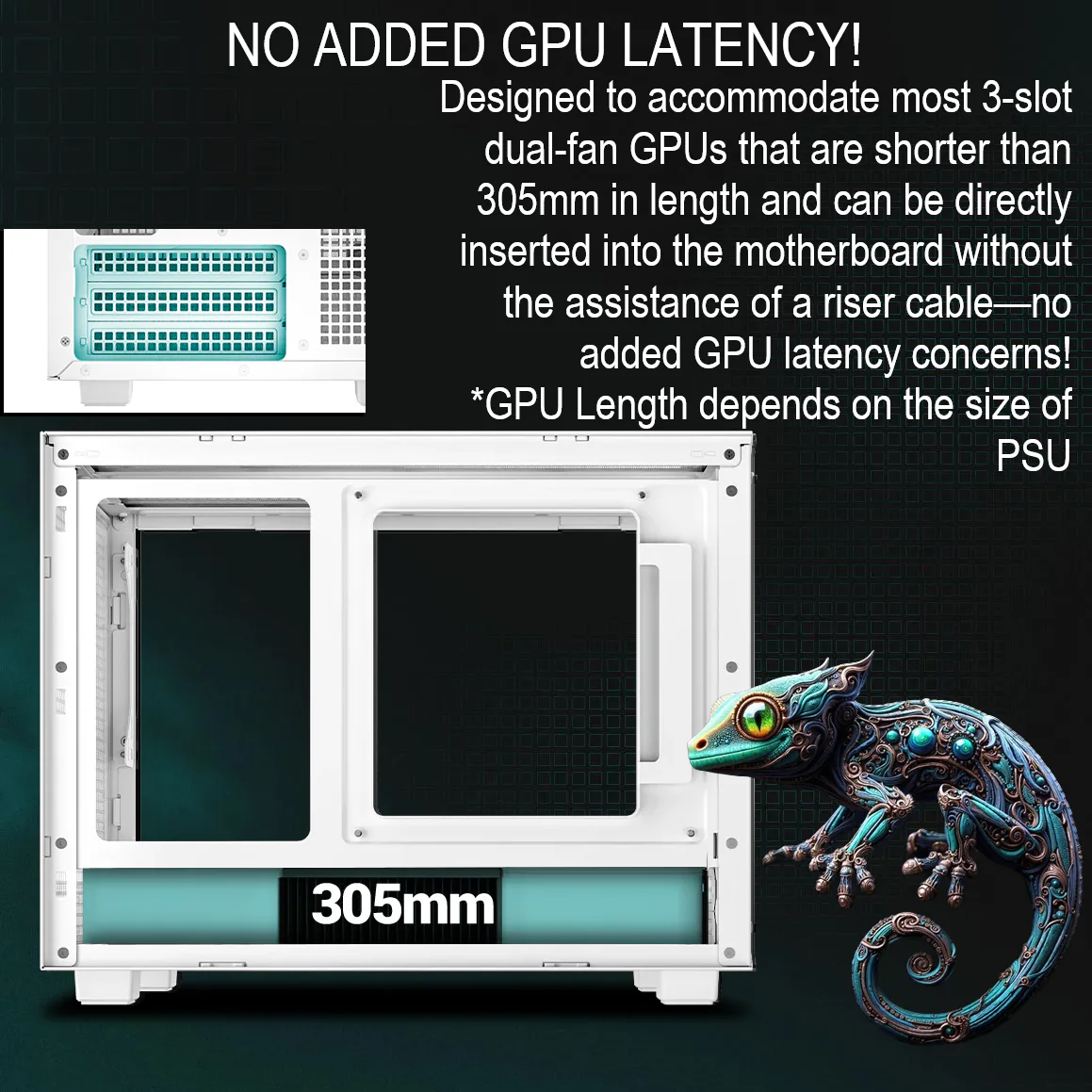

No GPU Latency – Direct GPU insertion without a riser cable; supports 3-slot GPUs up to 305mm (SFX PSU) or 230mm (ATX PSU).

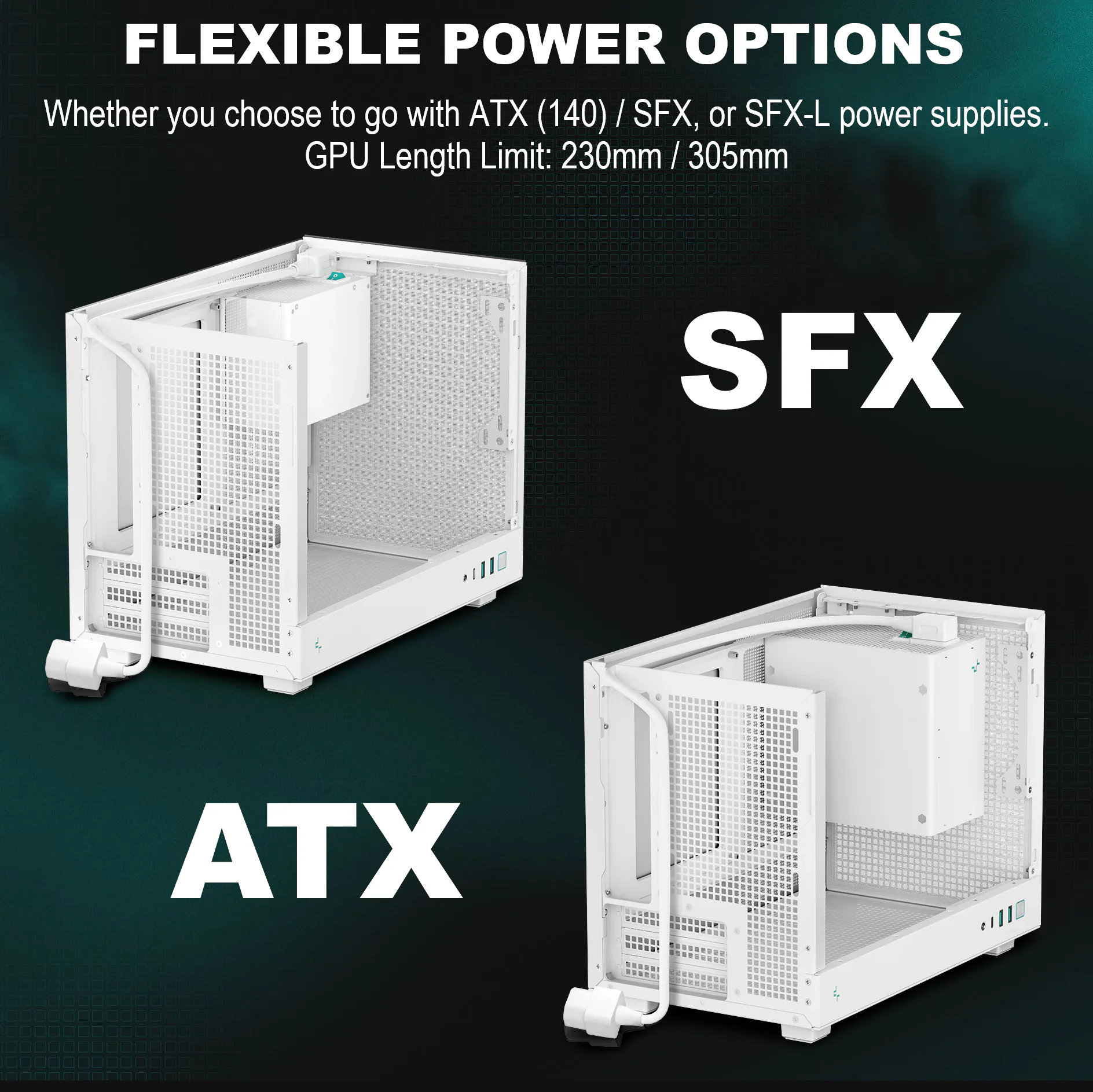

Flexible PSU Options – Compatible with ATX (140mm), SFX, and SFX-L power supplies.

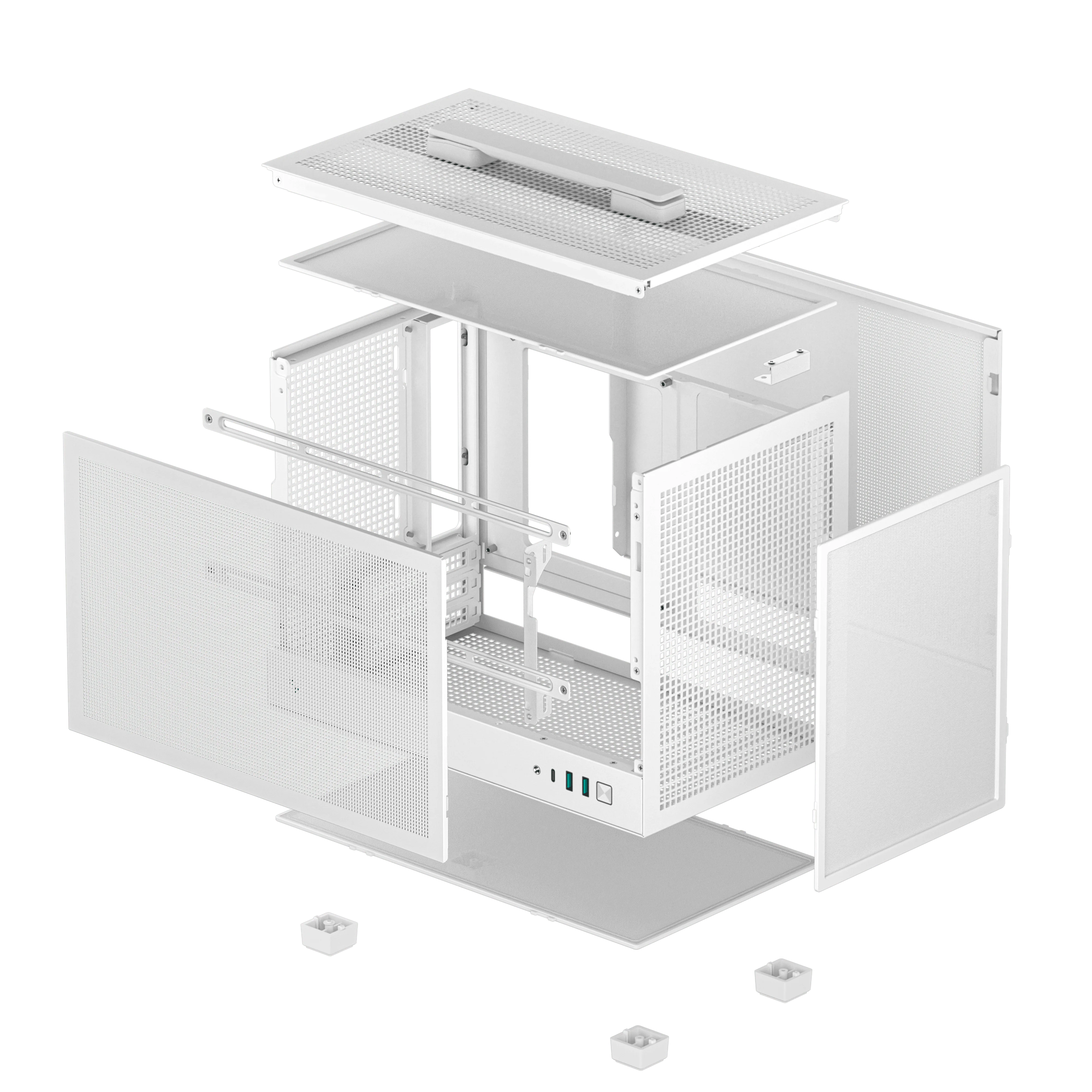

Tool-Free Flexibility – Removable fan brackets for easy installation and drive mounting.
Drive Bay Versatility – Mount SSD/HDD or fan on the front bracket (choose 1 of 3 options).
Convenience & Connectivity – Includes two USB 3.0, Gen2 Type-C, hybrid audio port, and a sturdy carrying handle for portability.
Dust Protection – Three removable dust filters for easy maintenance.

Expert Specs

Specification	Details

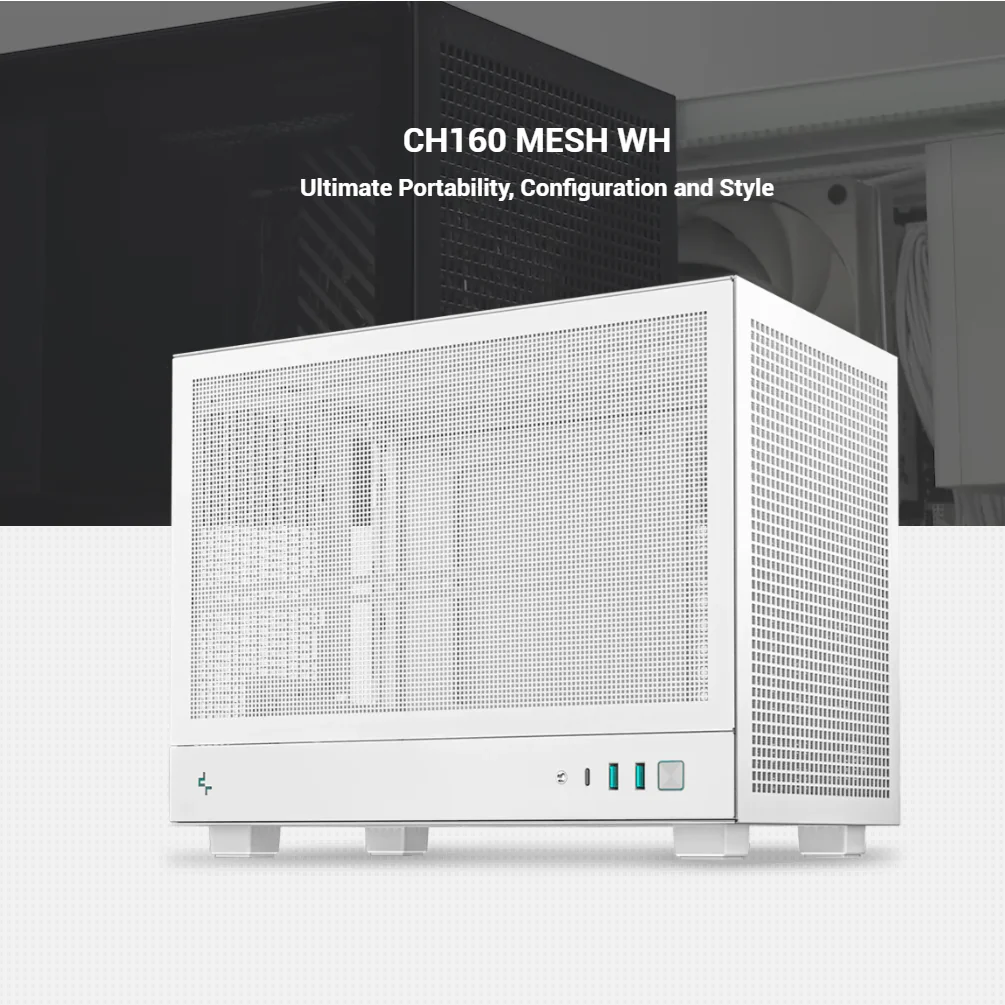

Model	CH160 MESH WH
Color	WHITE
Material	ABS + PVC + SPCC
Dimensions (L×W×H)	336 × 200 × 283.5 mm
Weight	3.1 kg
Motherboard Support	Mini-ITX
Front I/O	2× USB 3.0, 1× Audio, 1× Gen2 Type-C
Drive Bays	1× 3.5″/2.5″ (front), 1× 2.5″
Expansion Slots	3 Slots
Pre-installed Fans	None
Fan Support	Front: 1×120mm / Top: 2×120mm / Side: 2×120mm / Rear: 1×120mm
Radiator Support	Side: 240mm
CPU Cooler Height	Up to 172mm
GPU Size Limit	Length: 305mm (SFX) / 230mm (ATX)
Power Supply Support	ATX (140mm) / SFX / SFX-L
EAN	6933412774013
P/N	R-CH160-WHNMI0-G-1
