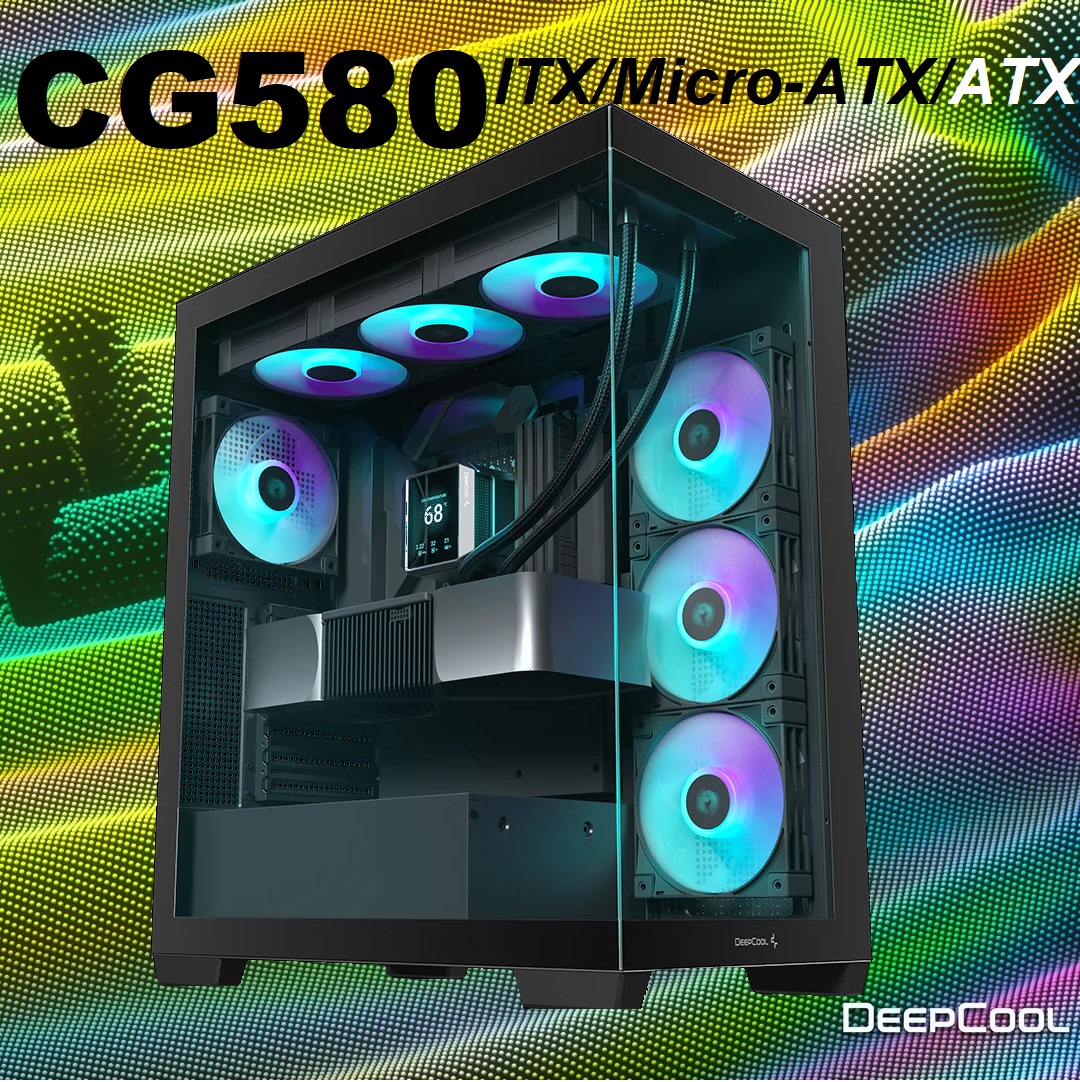

R-CG580-BKNDA0-G-1 CG580 Gaming ATX Black PC Case Panoramic DeepCool CG580 Gaming ATX PC Case Panoramic View Tempered Glass - Supports  ITX , Micro-ATX , ATX Motherboards - Fits 410mm GPUs - 7 Expansion Slots - Front I/O Ports USB3.0×2, Audio×1, Power, Reset | BLACK R-CG580-BKNDA0-G-1

DeepCool CG580 Gaming ATX PC Case Panoramic View Tempered Glass – Supports  ITX , Micro-ATX , ATX Motherboards – Fits 410mm GPUs – 7 Expansion Slots – Front I/O Ports USB3.0×2, Audio×1, Power, Reset | BLACK R-CG580-BKNDA0-G-1

$ 47.00 ---ONLY---
SKU: R-CG580-BKNDA0-G-1 Categories: ,

CG580 Gaming ATX Black PC Case Panoramic

Expert Features

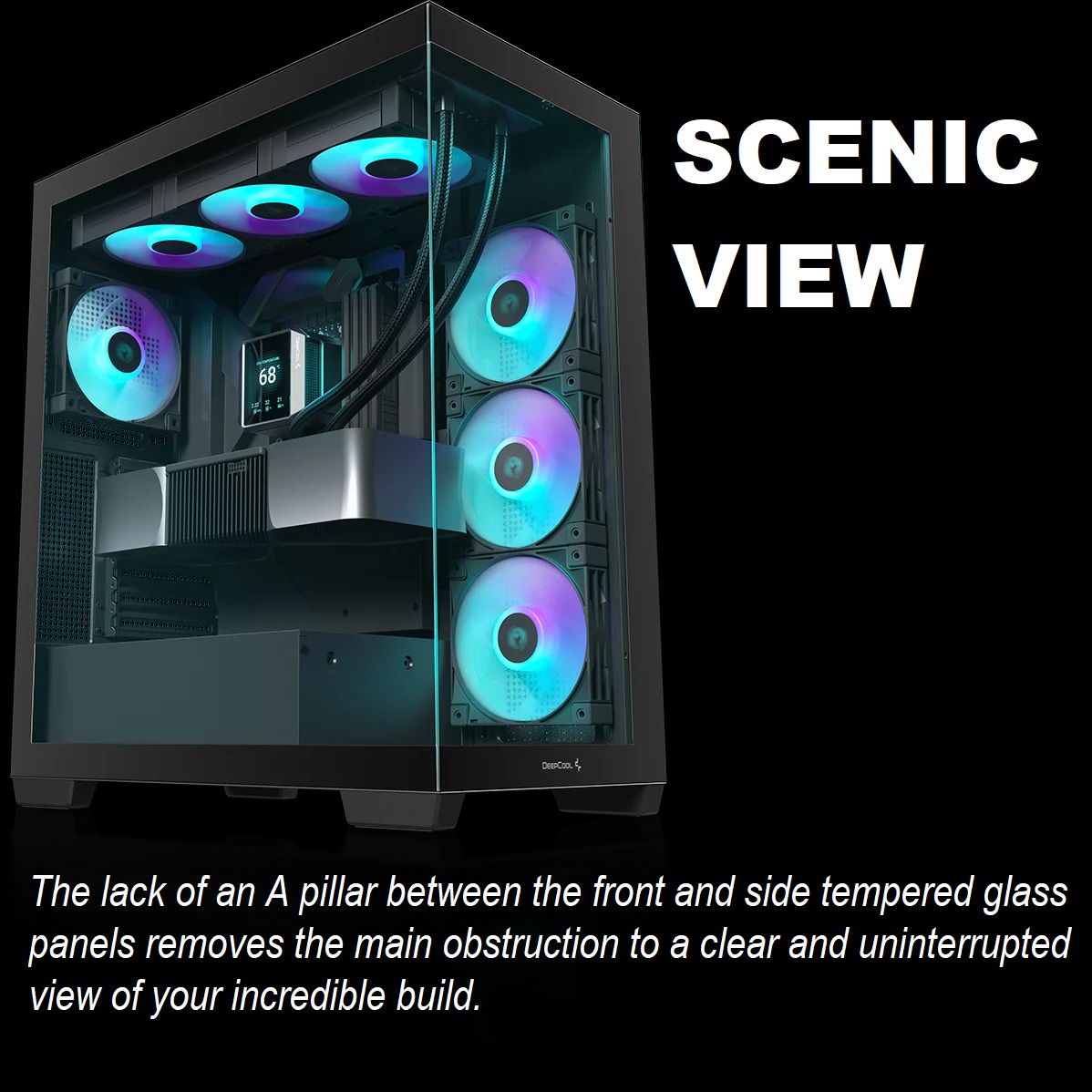

SCENIC VIEW

  • A-Pillar Free: Enjoy an unobstructed view of your sick build thanks to the lack of an A pillar between the front and side tempered glass panels.

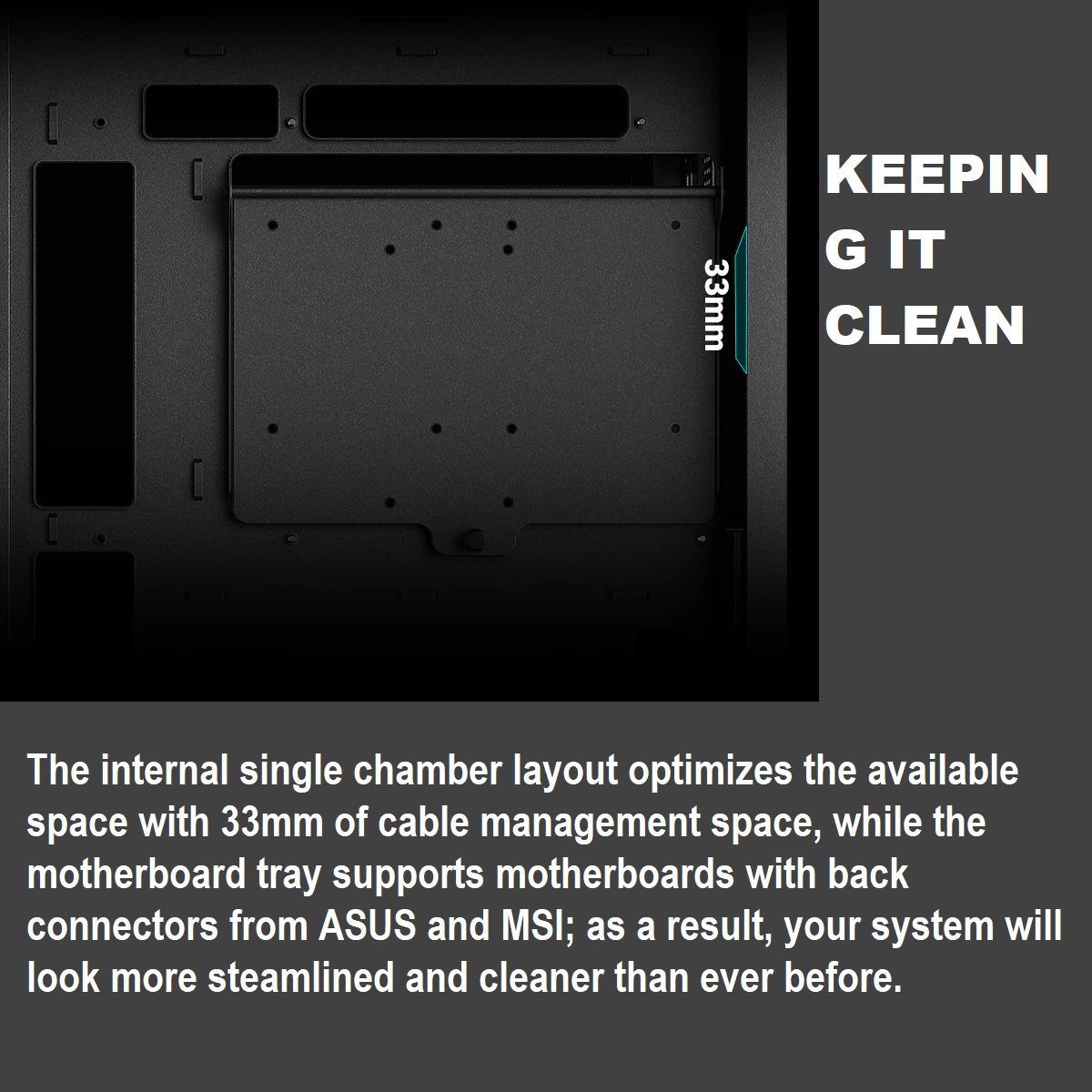

KEEPING IT CLEAN

  • Optimized Layout: Internal single chamber design with 33mm cable management space for a streamlined look.
  • Motherboard Support: Fits motherboards with back connectors from ASUS and MSI, keeping your setup clean and tidy.

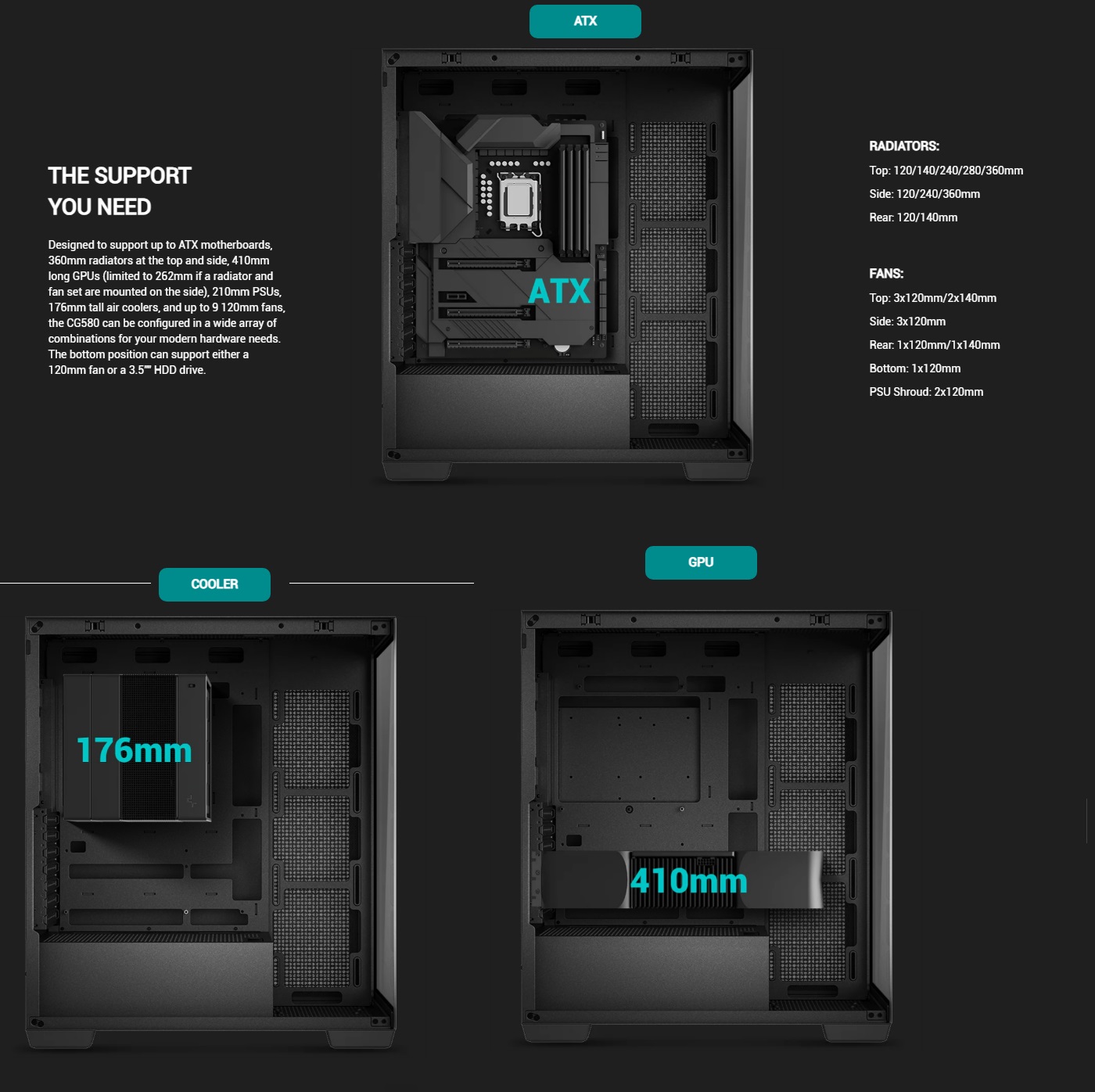

THE SUPPORT YOU NEED

  • Motherboard Compatibility: Supports up to ATX motherboards.

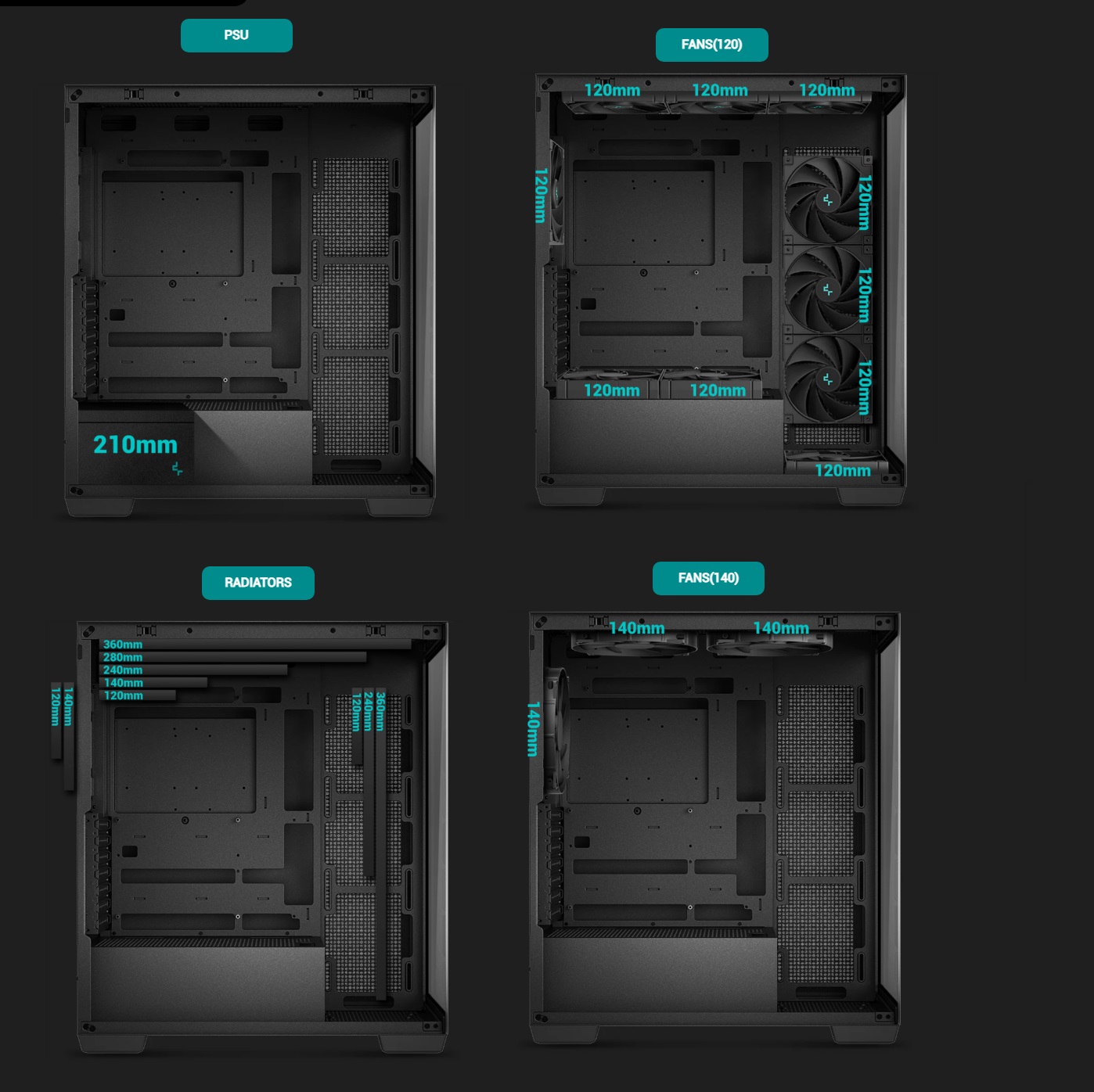

  • Radiator Support: Accommodates 360mm radiators at the top and side.
  • GPU Space: Fits 410mm long GPUs (limited to 262mm if a radiator and fan are mounted on the side).
  • PSU Size: Supports 210mm PSUs.
  • Cooler Height: Fits air coolers up to 176mm tall.
  • Fan Capacity: Up to 9 x 120mm fans for max airflow.
  • Bottom Positioning: Can hold either a 120mm fan or a 3.5″ HDD drive.

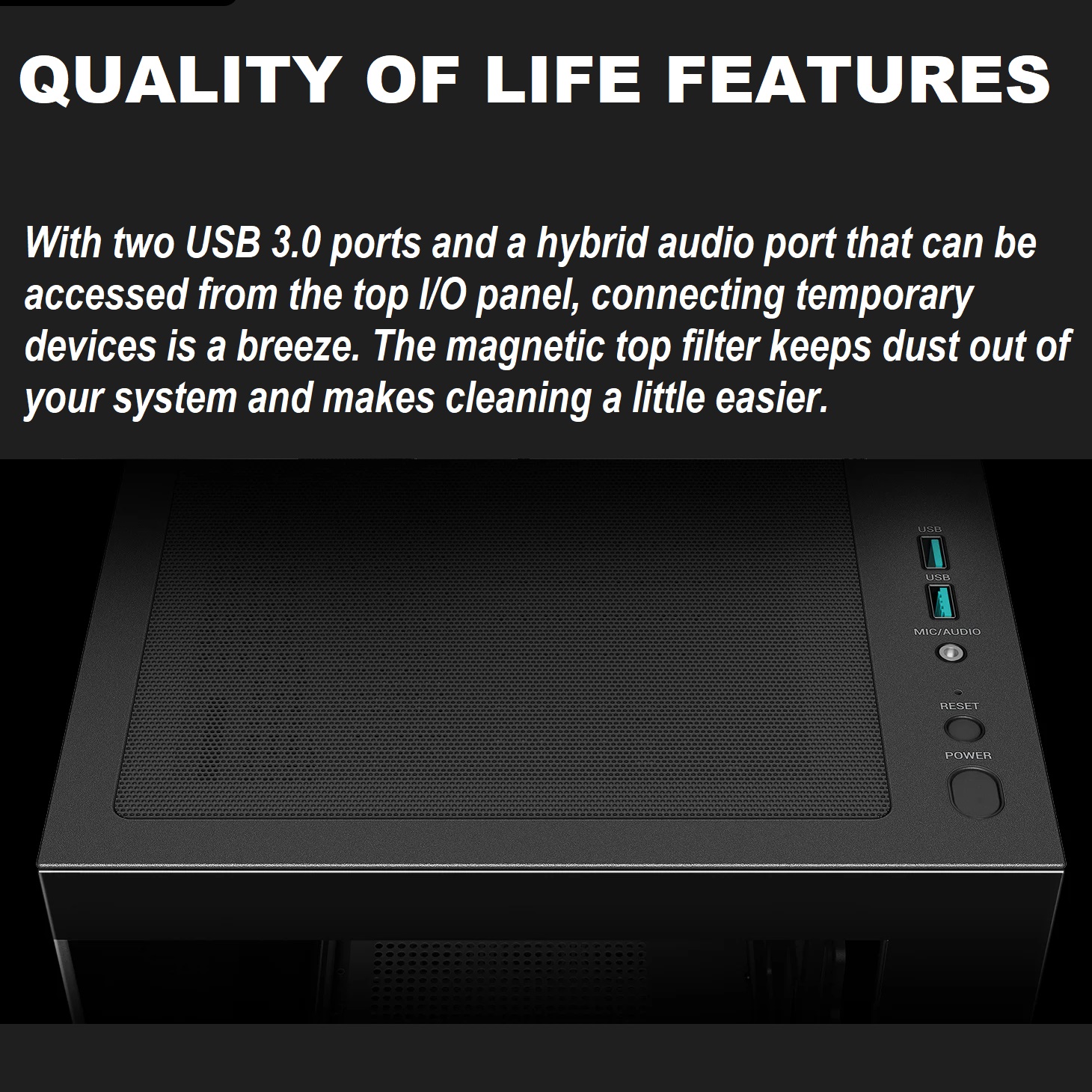

QUALITY OF LIFE FEATURES

  • Easy Connections: Two USB 3.0 ports and a hybrid audio port on the top I/O panel for quick device hookups.
  • Dust Protection: Magnetic top filter keeps dust out and makes cleaning a breeze.

Expert Specs

Product Dimensions 437×235×501mm(L×W×H)
Net Weight 7.9Kg
Materials ABS+SGCC+Tempered Glass
Motherboard Support ITX/Micro-ATX/ATX
ATX(Rear Connector)/Micro-ATX(Rear Connector)
Front I/O Ports USB3.0×2、Audio×1、Power、Reset
3.5″ Drive Bays 2
2.5″ Drive Bays 2+1
Expansion Slots 7Slots
Pre-Installed Fans None
Fan Support Front: NA
Top: 3×120mm/2x140mm
Side: 3x120mm
Rear: 1×120mm/1x140mm
Bottom: 1×120mm（3.5 HDD/120FAN :Choose one of two）
PSU Shrouded: 2×120mm
Radiator Support Front: NA
Top: 120/140/240/280/360mm
Side: 120/240/360mm
Rear: 120/140mm
CPU Cooler Height Limit 176mm
GPU Length Limit 410mm
(limited to 262mm if a 360mm radiator and fan set are mounted on the side)
Power Supply Type ATX PS2（maximum length: 210mm）
EAN 6933412774112
P/N R-CG580-BKNDA0-G-1

Description

R-CG580-BKNDA0-G-1

CG580 Gaming ATX Black PC Case Panoramic

DeepCool CG580 Gaming ATX PC Case Panoramic View Tempered Glass – Supports  ITX , Micro-ATX , ATX Motherboards – Fits 410mm GPUs – 7 Expansion Slots – Front I/O Ports USB3.0×2, Audio×1, Power, Reset | BLACK R-CG580-BKNDA0-G-1

CG580 Gaming ATX Black PC Case Panoramic  CG580 Gaming ATX Black PC Case Panoramic
