SKU: R-CC560-BKGAA4-G-2

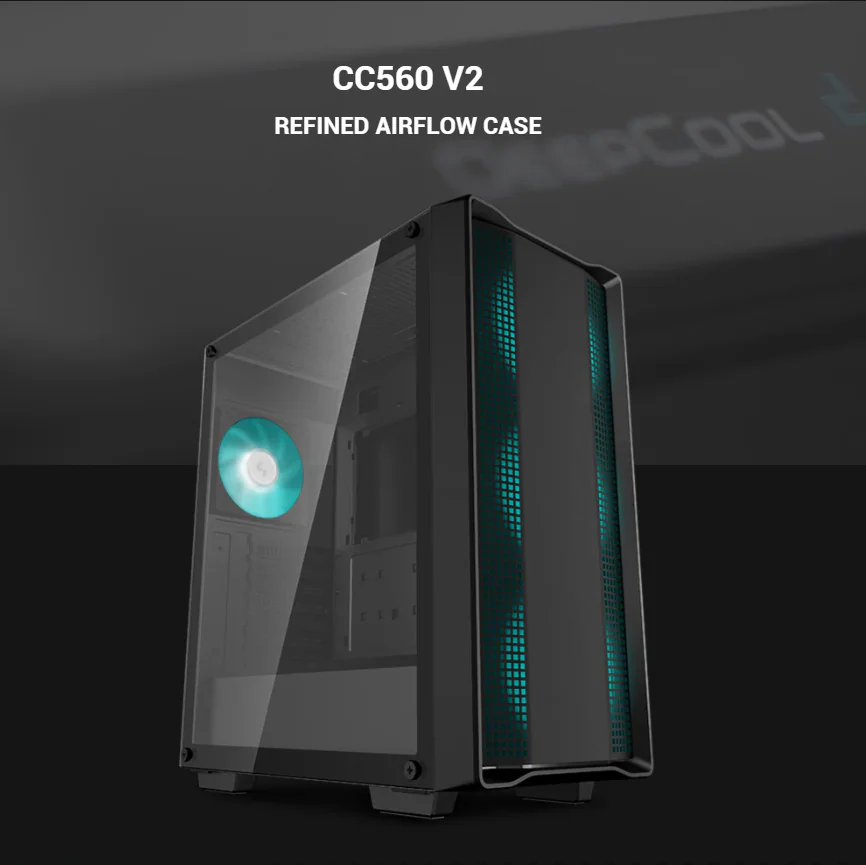

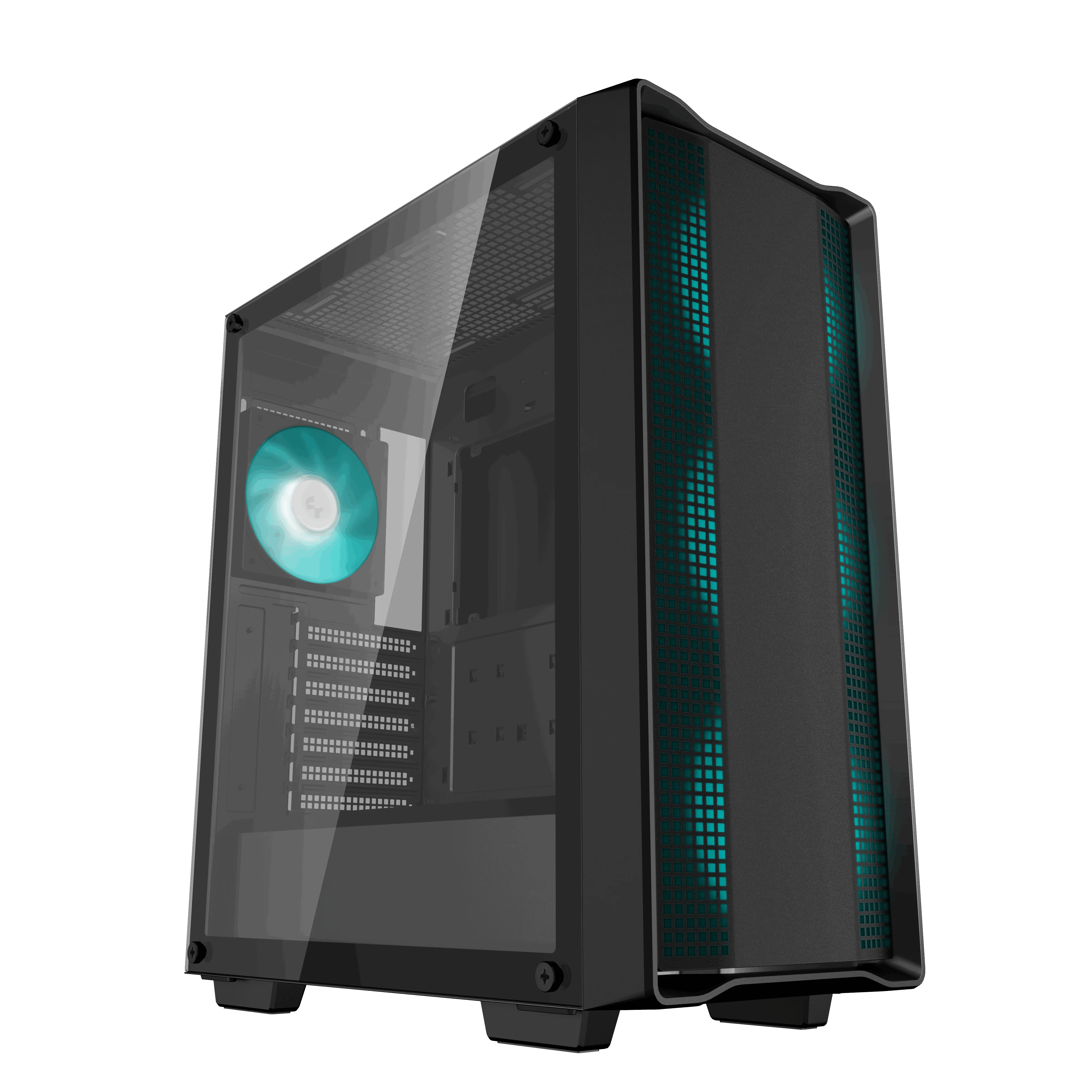

DeepCool CC560 V2 Mid-Tower ATX Case With 4 Pre-Installed LED Fans, Tempered Glass Side Panel, 360mm Radiator Support, PSU Shroud Fans, USB 3.0, Up to E-ATX Motherboards , 370mm GPUs, 165mm CPU Coolers,  170mm PSU | BLACK

$ 57.00 ---ONLY---

OUT OF STOCK

OUT OF STOCK

Description

⚙️ Expert Features

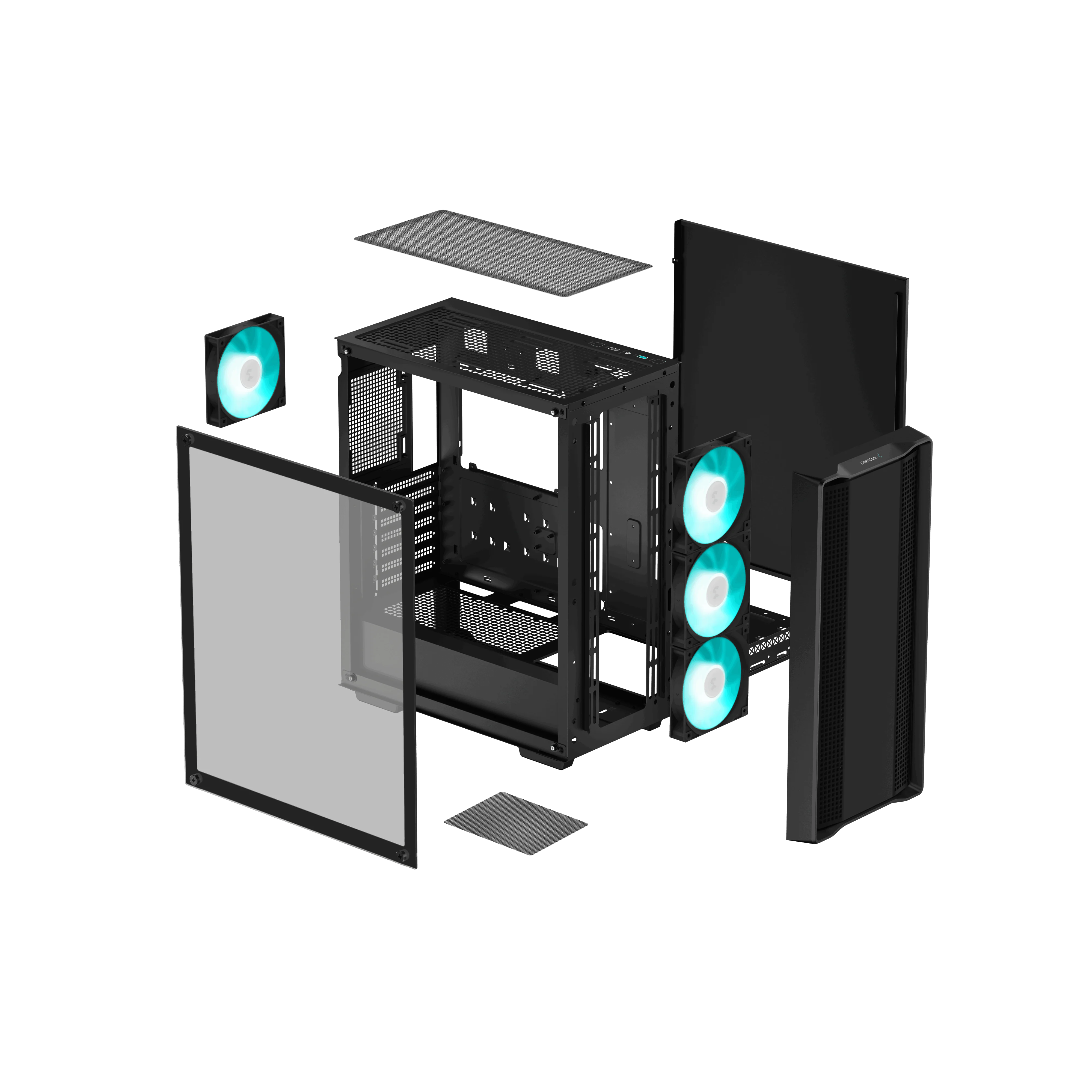

  • Four Pre-Installed LED Fans

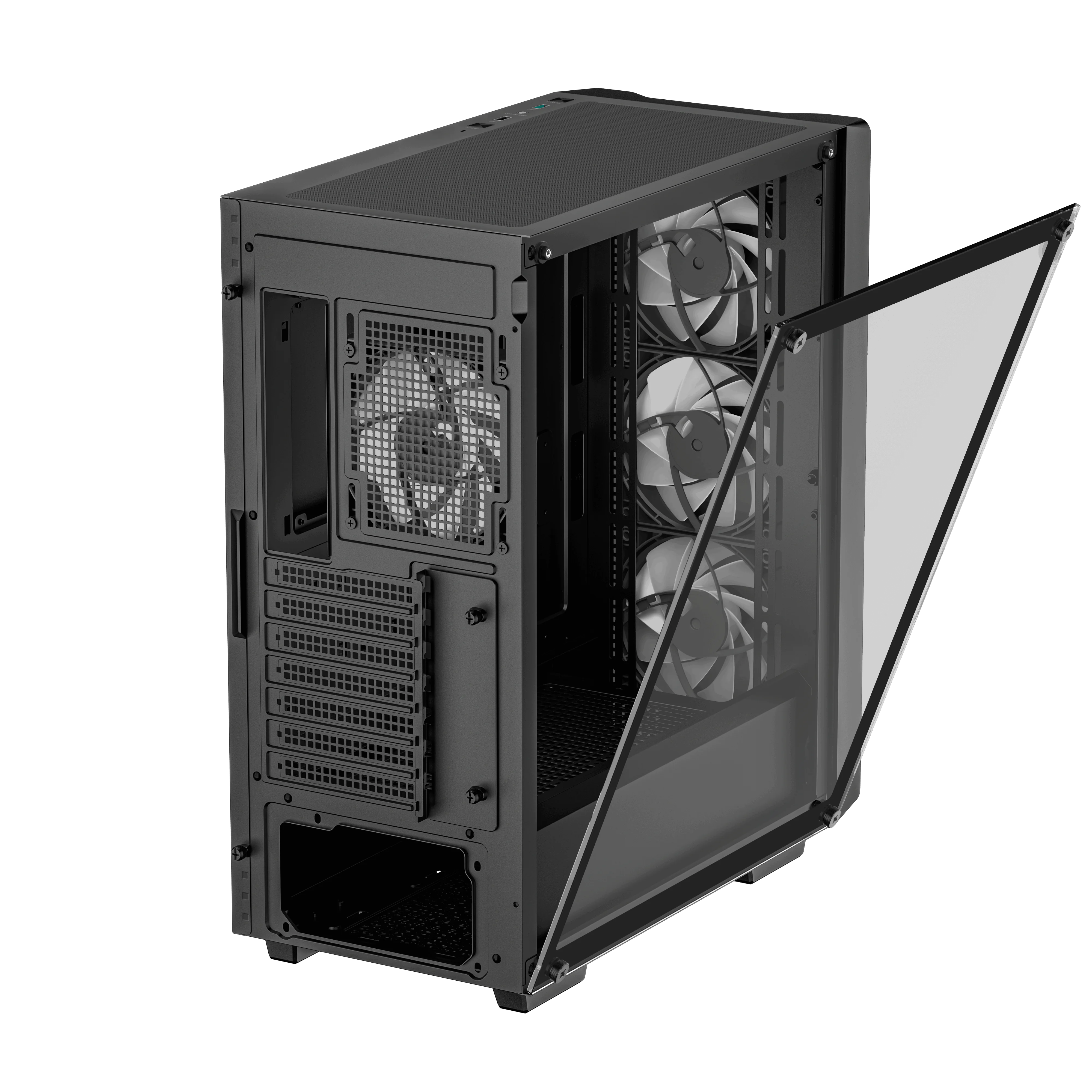

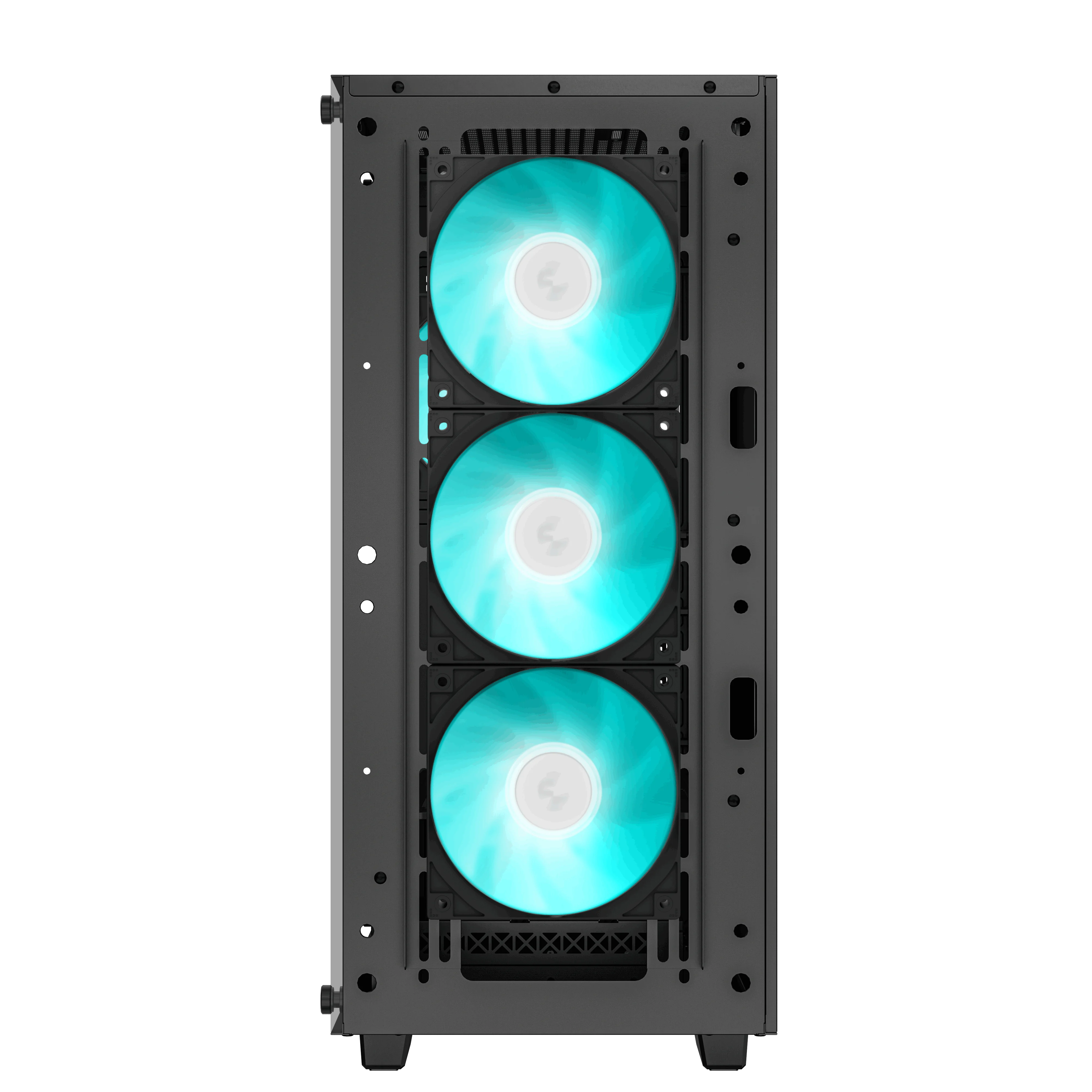

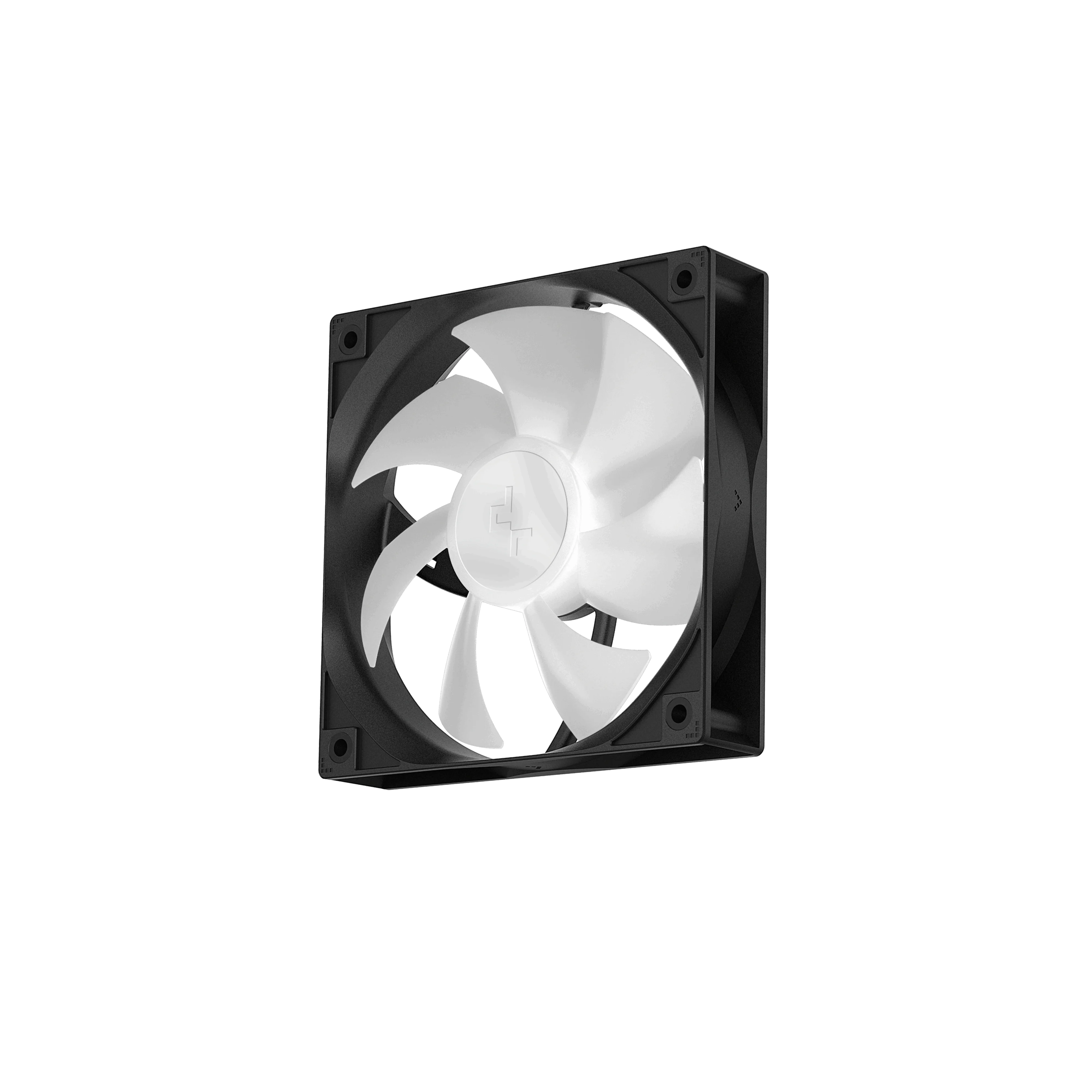

    Get excellent airflow right out of the box with 3 front-mounted and 1 rear-mounted 120mm LED fans.

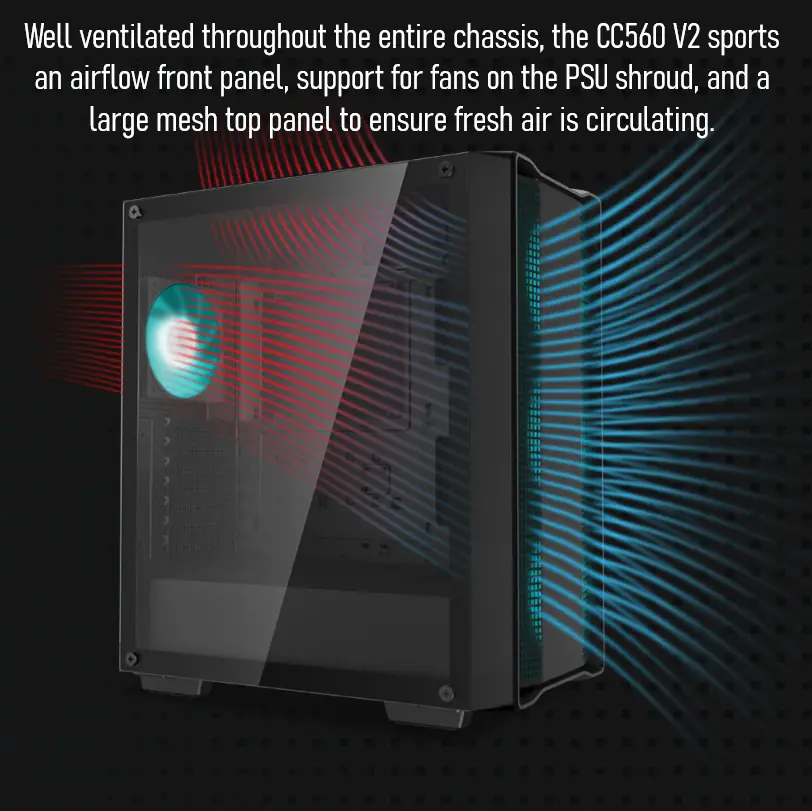

  • Next-Level Airflow Design

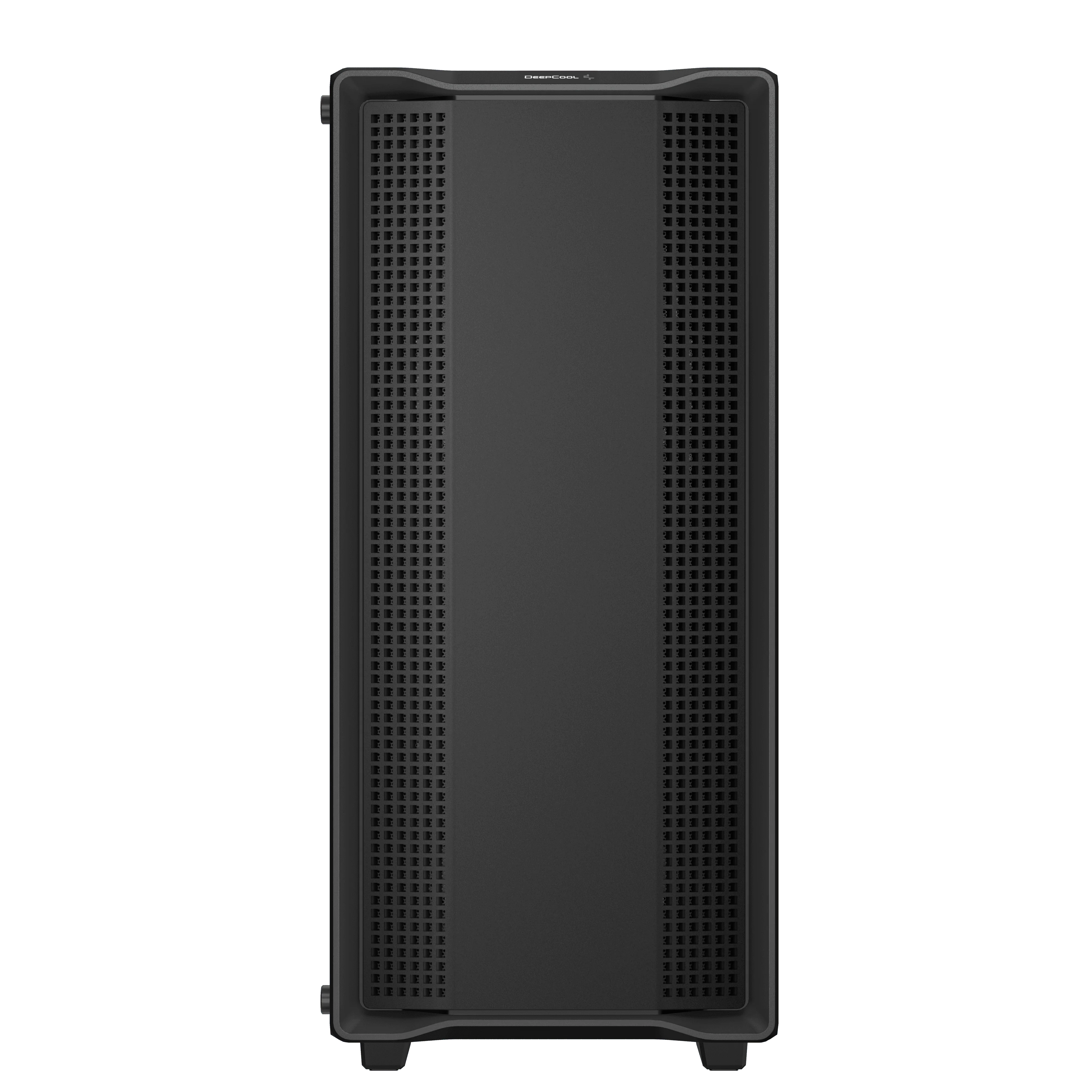

    Mesh front panel, large mesh top, and fan support over PSU shroud maximize air intake and circulation.
  • Liquid Cooler Ready
    Supports up to a 360mm radiator at the front or 240mm at the top—ideal for high-performance liquid cooling.
  • Extensive Fan Support
    Room for up to 8×120mm or 5×140mm fans, including 2 extra mounts over the PSU shroud for GPU cooling boost.

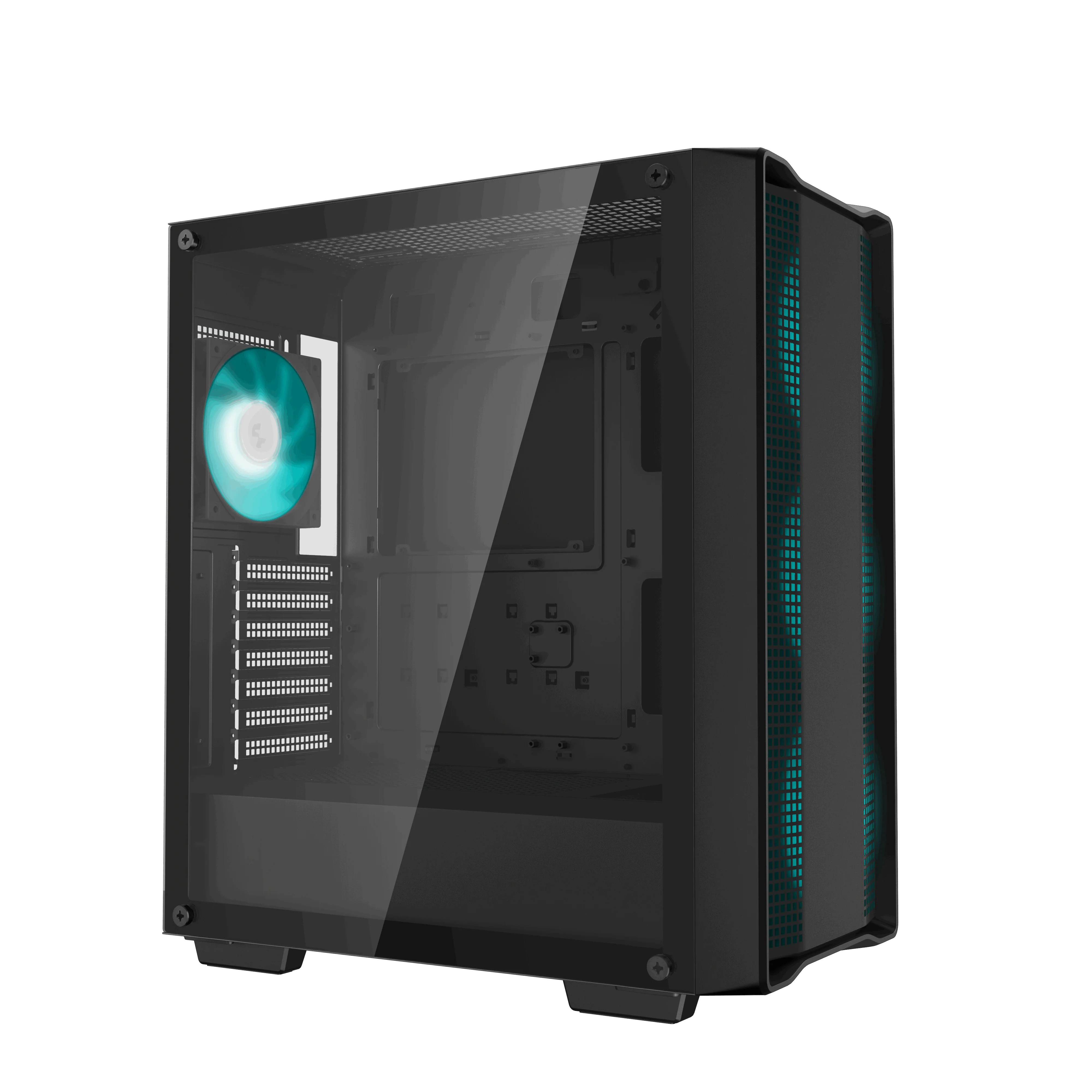

  • Tempered Glass Side Panel
    Showcase your build in style with a full-view reinforced tempered glass side panel.

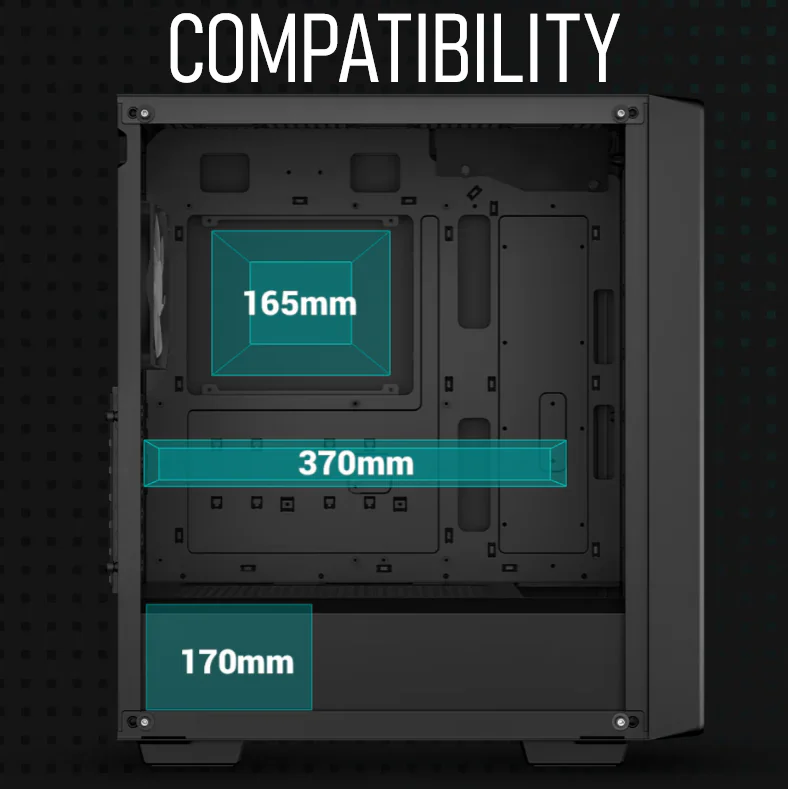

  • High-End Component Compatibility
    Fits E-ATX motherboards, 370mm GPUs, 165mm CPU coolers, and 170mm ATX power supplies.

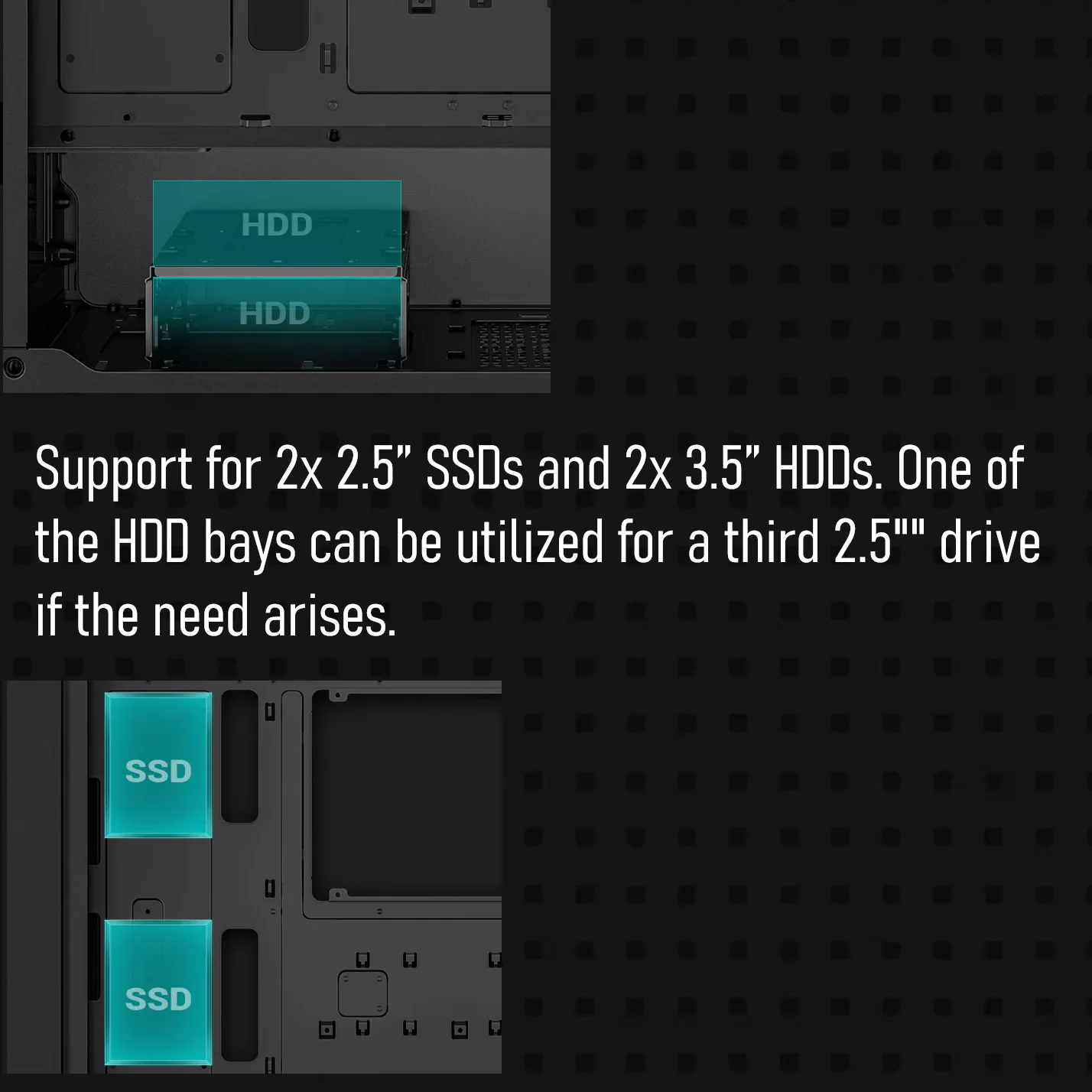

  • Smart Storage Options
    Houses 2×2.5” SSDs, 2×3.5” HDDs, and even converts one HDD bay into an extra SSD mount.

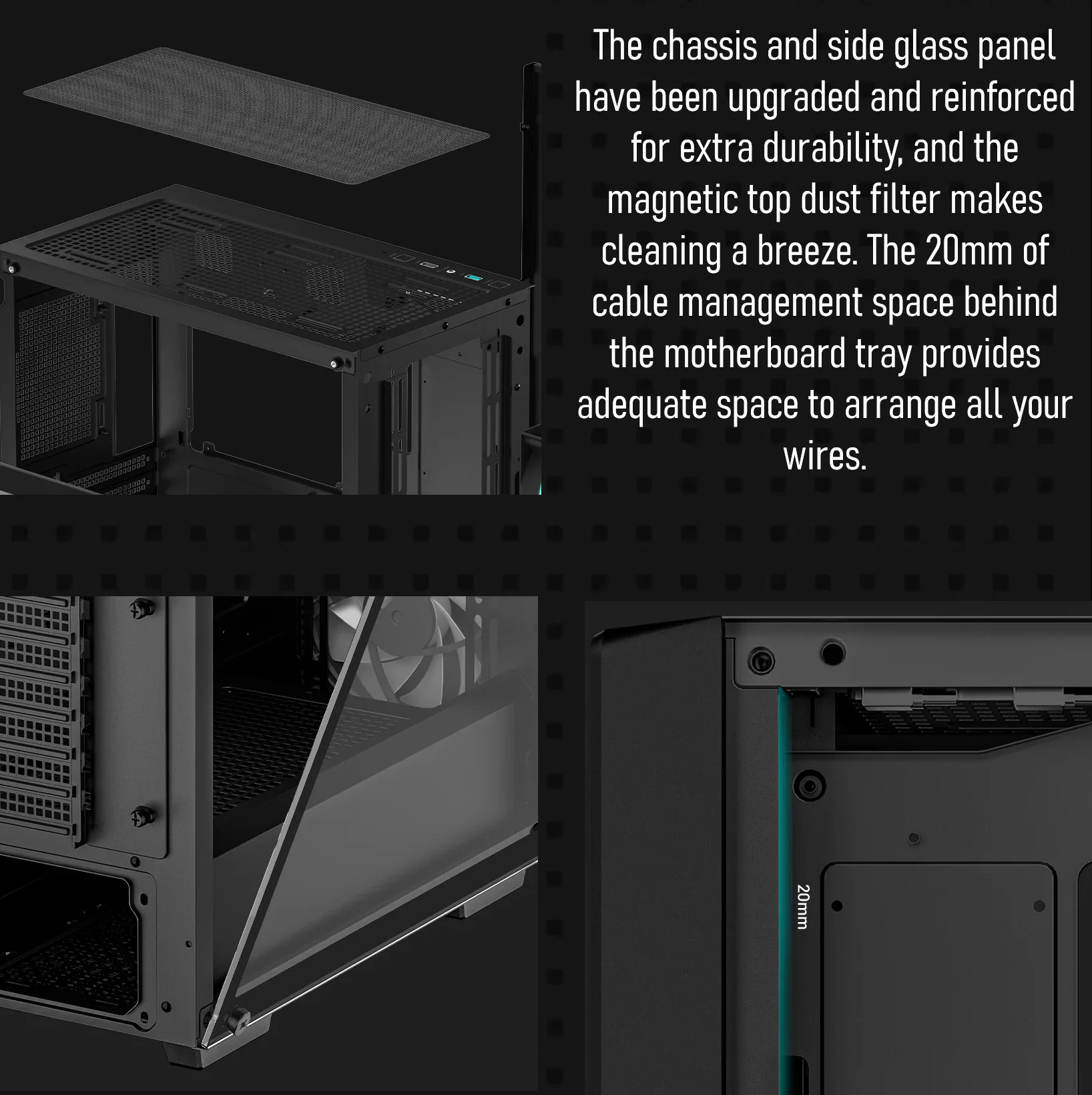

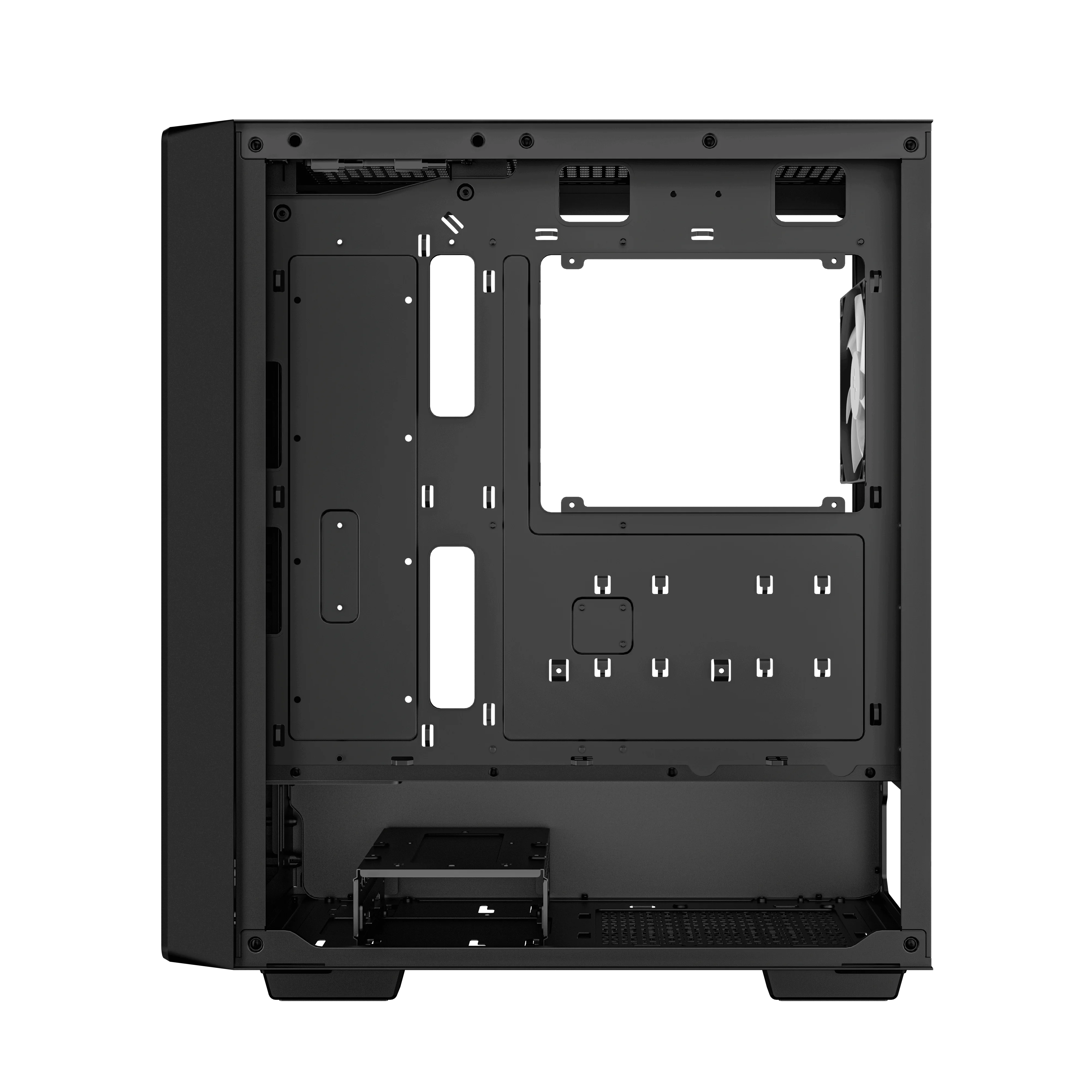

  • Easy Maintenance

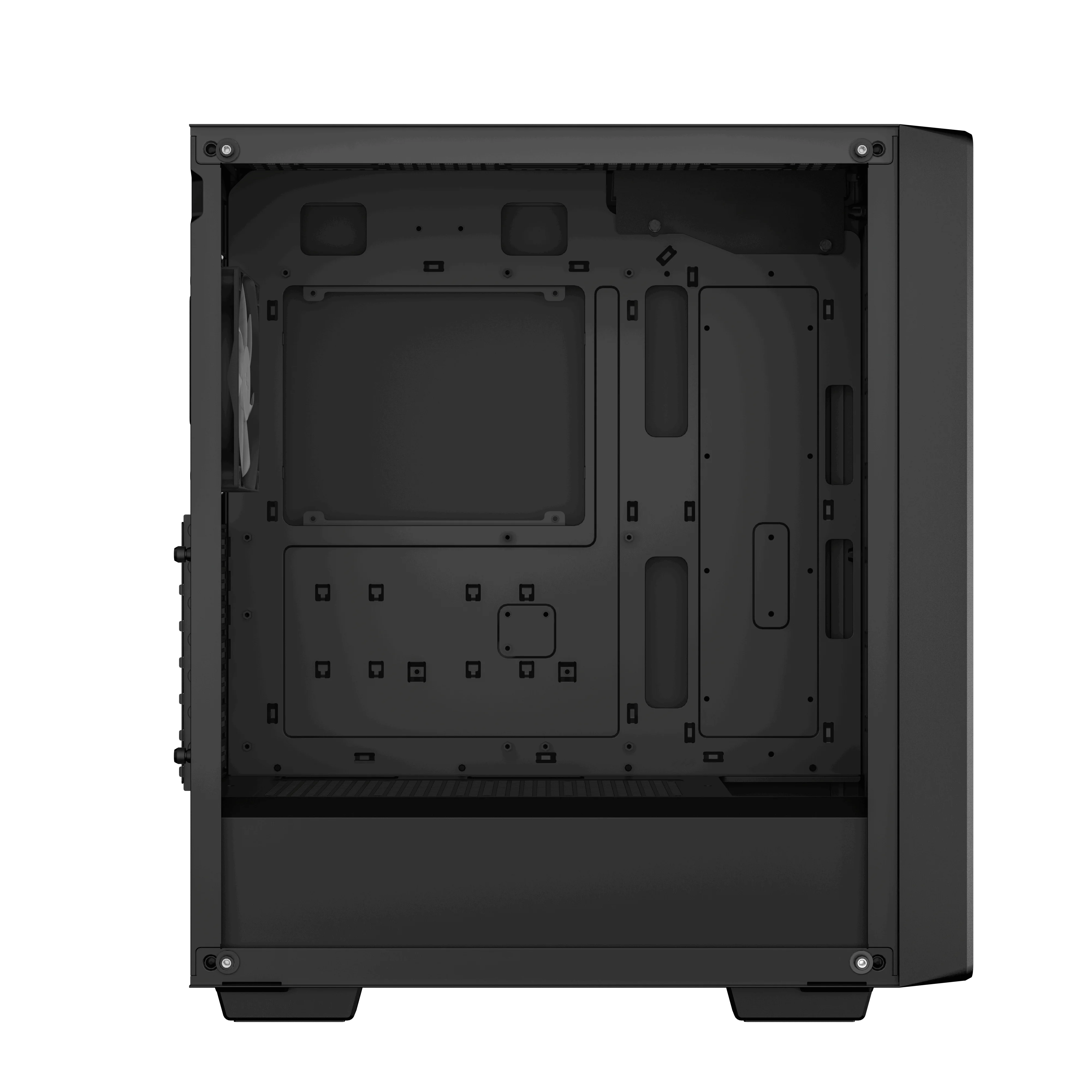

    Magnetic top dust filter and 20mm cable management space behind the motherboard tray.

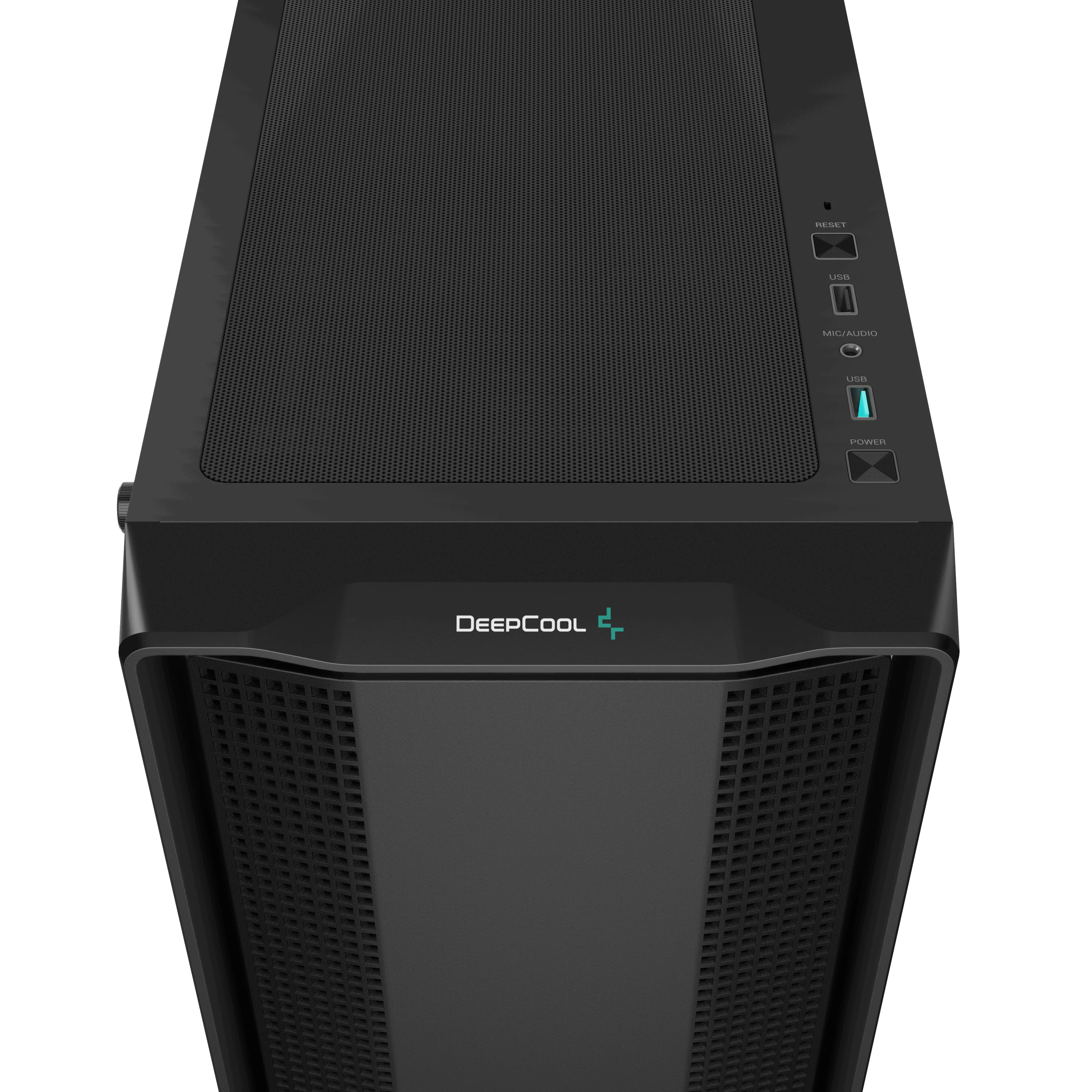

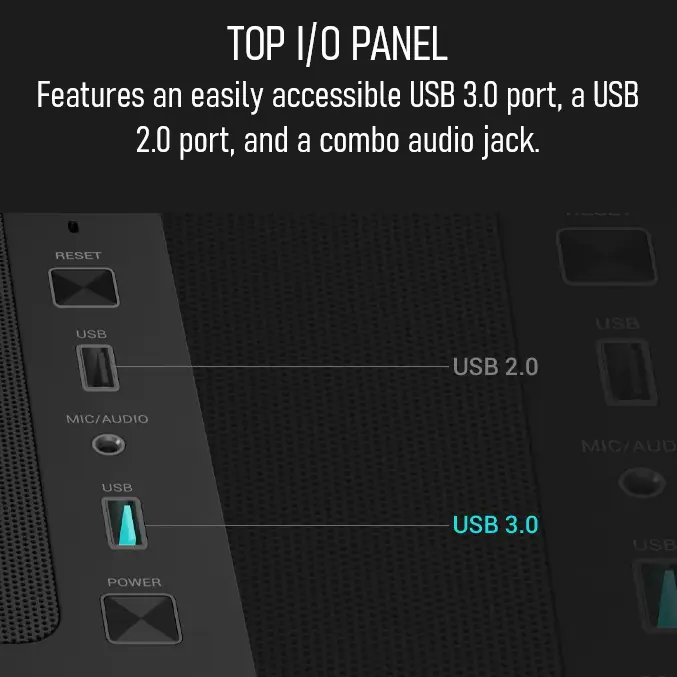

  • Top I/O Access
    Includes USB 3.0, USB 2.0, and combo audio jack for fast front-panel connectivity.

📐 Expert Specs

Category Details
Model DeepCool CC560 V2
Color Black
Materials ABS, SPCC Steel, Tempered Glass
Dimensions (L×W×H) 432 × 215 × 483 mm
Net Weight 7.2 kg
Motherboard Support Mini-ITX / Micro-ATX / ATX / E-ATX
Drive Bays 2×2.5” SSD, 2×3.5” HDD (1 bay convertible to SSD)

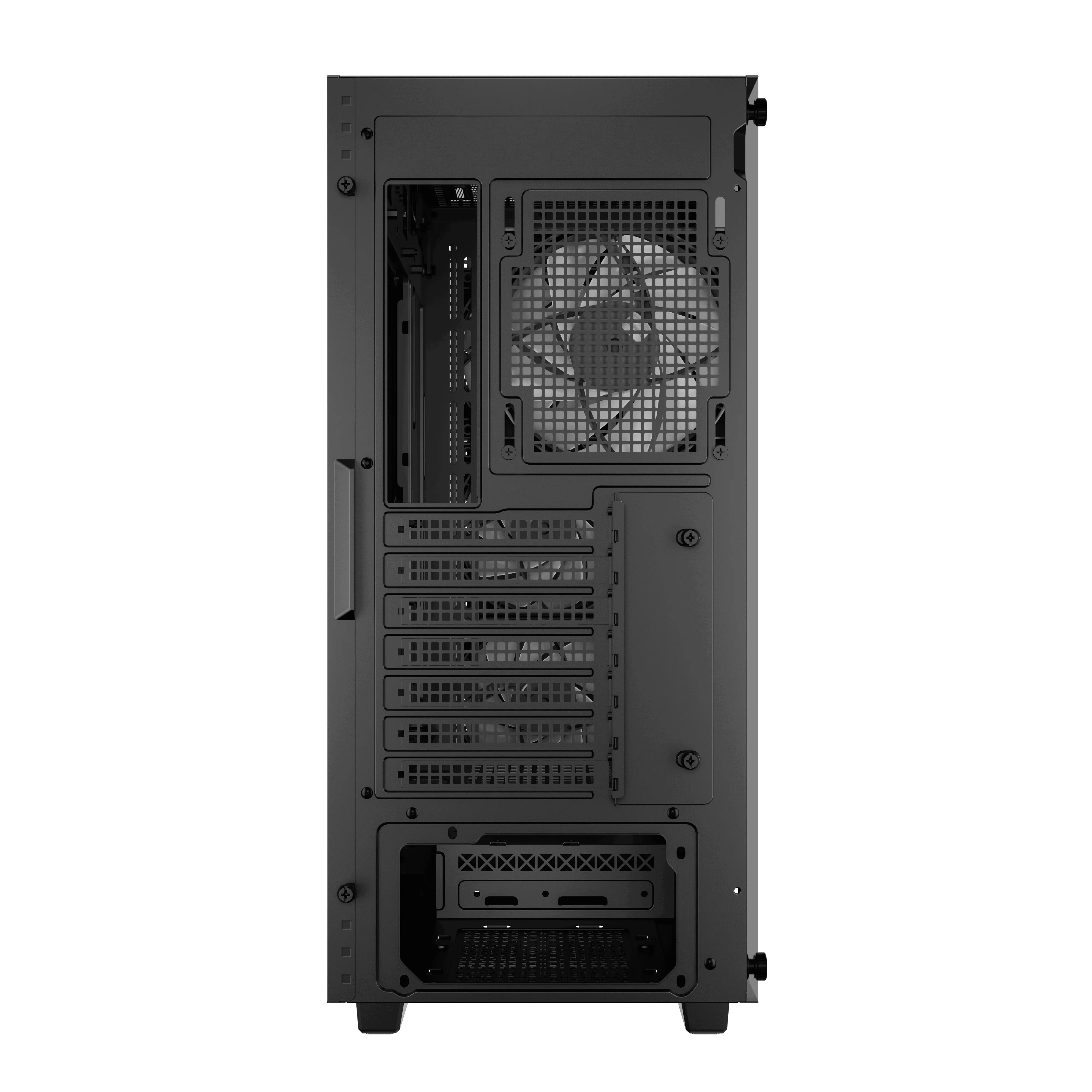

Expansion Slots 7
Pre-Installed Fans 3×120mm LED (Front), 1×120mm LED (Rear)
Fan Support Front: 3×120mm / 3×140mm
Top: 2×120mm / 2×140mm
Rear: 1×120mm
PSU Shroud: 2×120mm
Radiator Support Front: Up to 360mm
Top: Up to 240mm
Rear: 120mm
Max CPU Cooler Height 165 mm
Max GPU Length 370 mm
Max PSU Length 170 mm
Front I/O Ports 1×USB 3.0, 1×USB 2.0, 1×Audio Combo Jack
EAN / Part Number 6933412774617 / R-CC560-BKGAA4-G-2
