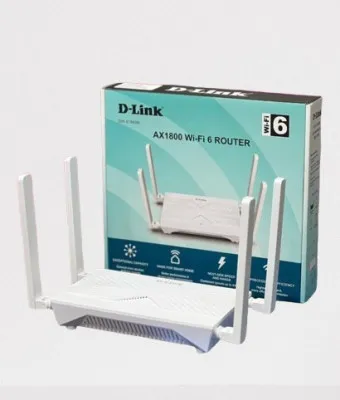

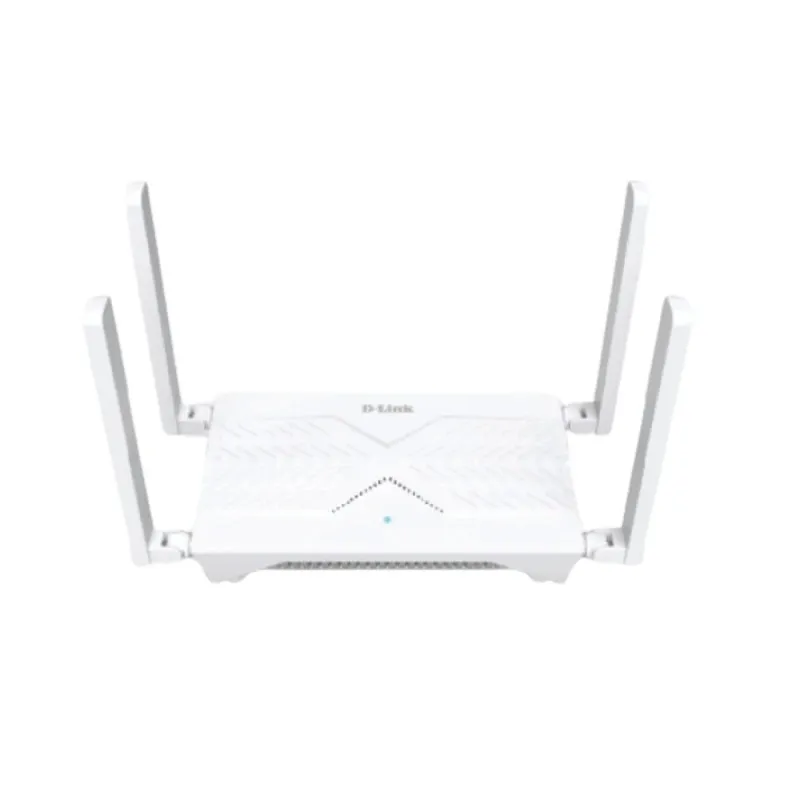

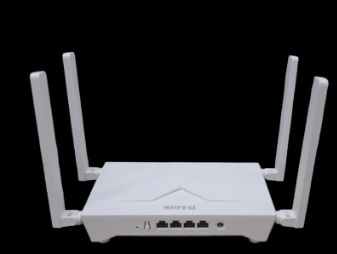

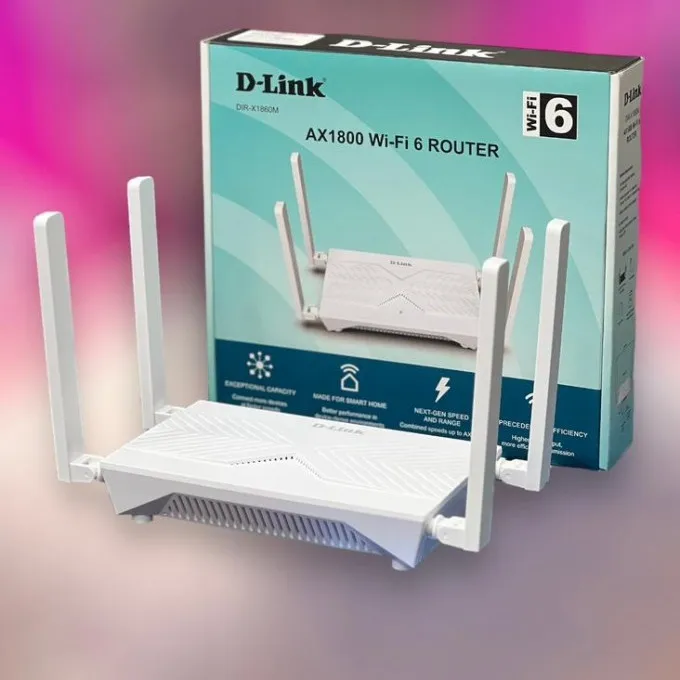

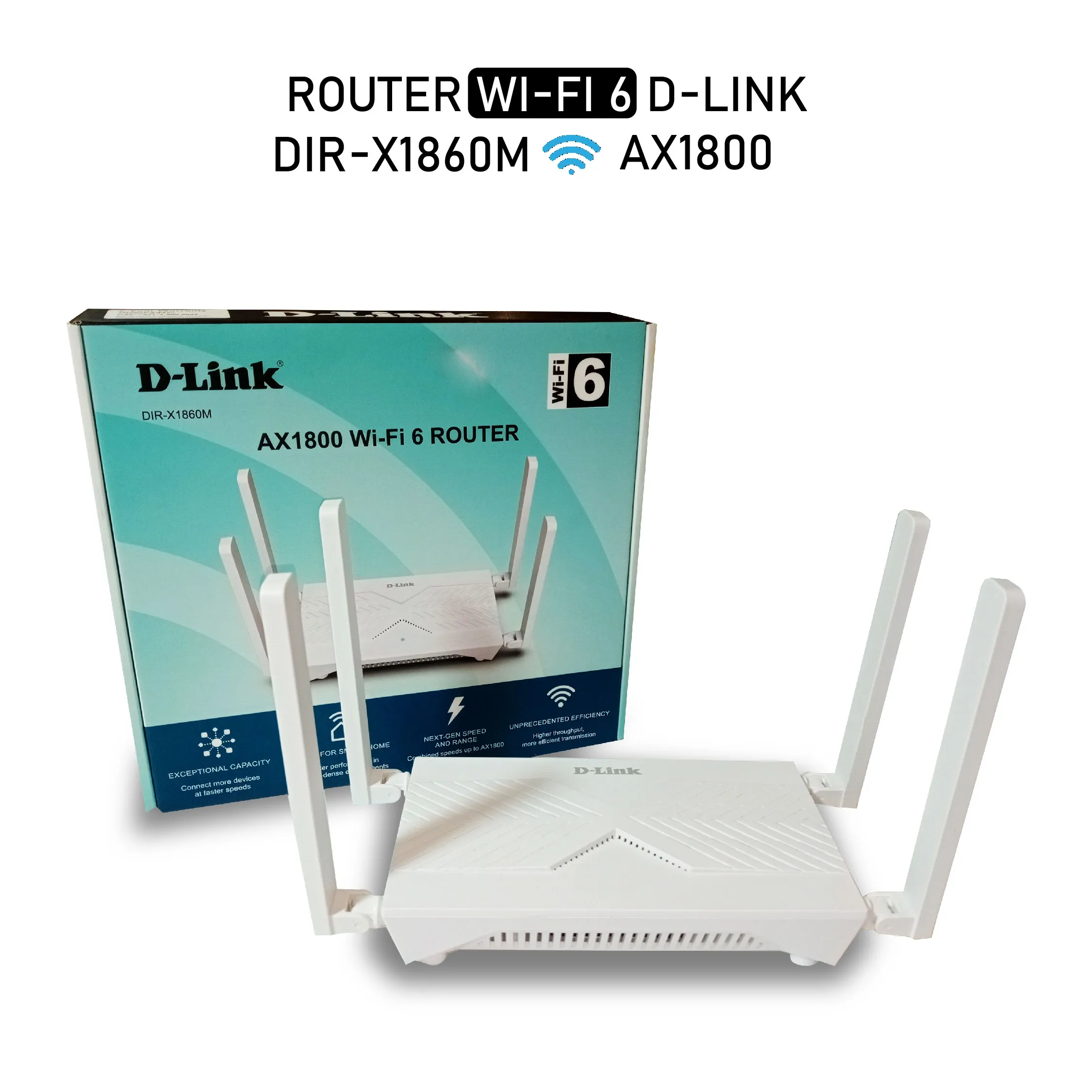

D Link DIR X1860M AX1800 WiFi 6 11ax Router

Expert Features

• Wi-Fi 6 (11ax) Speeds up to AX18001
• Dual-band Wi-Fi with up to 4 simultaneous streams
• 3 x Gigabit LAN Ports and 1 x Gigabit WAN Port
• 4x High-Gain 5 dBi External Antennas
•  Multiple Operation Modes: Router, Access Point, Repeater, Wireless Client,
• The Latest 128-bit Wi-Fi Encryption
• L2TP, PPTP VPN Clients
• Dual Access PPPOE
• Mesh Ready

Expert Specs

Device Interface

• 1x 10/100/1000 WAN Ethernet
• 3x 10/100/1000 LAN Ethernet

LED

• Status LED

Buttons

• WPS button to set up wireless connection
• RESET button to restore factory default settings

Antenna

• 2x 5dBi 2.4GHz External Antennas
• 2x 5dBi 5GHz External Antennas

Power connector

• Power input connector (DC)

WAN connection types

• PPPoE
• PPPoE Dual Stack
• Static IP
• Dynamic IP

• PPPoE + Static IP (PPPoE Dual Access)
• PPPoE + Dynamic IP (PPPoE Dual Access)

Network functions

• DHCP server/client
• Dynamic DNS
• Static routing

Firewall functions

• Network Address Translation (NAT)
• Stateful Packet Inspection (SPI)
• URL filter
• MAC filter
• IP filtering

• Port filtering
• DMZ and Port forwarding(Virtual server)
• NAPT and ALG
• Denial of Service (DoS) protection

VPN

• PPTP/L2TP

Management

• Firmware update via web-based interface
• Saving/restoring configuration to/form file
• Access settings through WEB GUI
• Automatic NTP Date/time from Internet Time Server
• TR-069 remote management
• Logs and statistics
• IPSec/PPTP/L2TP pass-through

Standards

• IEEE 802.11 a/b/g/n/ac/ax

Frequency & Data Rate

• 2.4GHz: up to 600Mbps
• 5GHz: up to 1200Mbps

Wireless connection security

• WPA/WPA2/WPA3 Encryption
• MAC filter
• WPS

Advanced functions

• Wireless Client Mode
• Wireless AP Mode
• Wireless Repeater Mode
• Mesh Ready
• Multiple SSID’s
• Wireless Schedule

Dimensions (L x W x H)

• 228mm x 147.8mm x 34mm

Power

• Input: 12V DC, 1A

Temperature

• Operating: from 0 to 40 °C
• Storage: from -10 to 70 °C

Humidity

• Operating: from 10% to 90% (non-condensing)
