CUDY 16-Port Gigabit Unmanaged Switch with VLAN/Extend and Fanless Cooling ; Default/VLAN/Extend Modes ; 250 Meters Transmission ; VLAN for Clients Isolation ; Desktop, Rack-Mount | BLACK GS1016 3.0

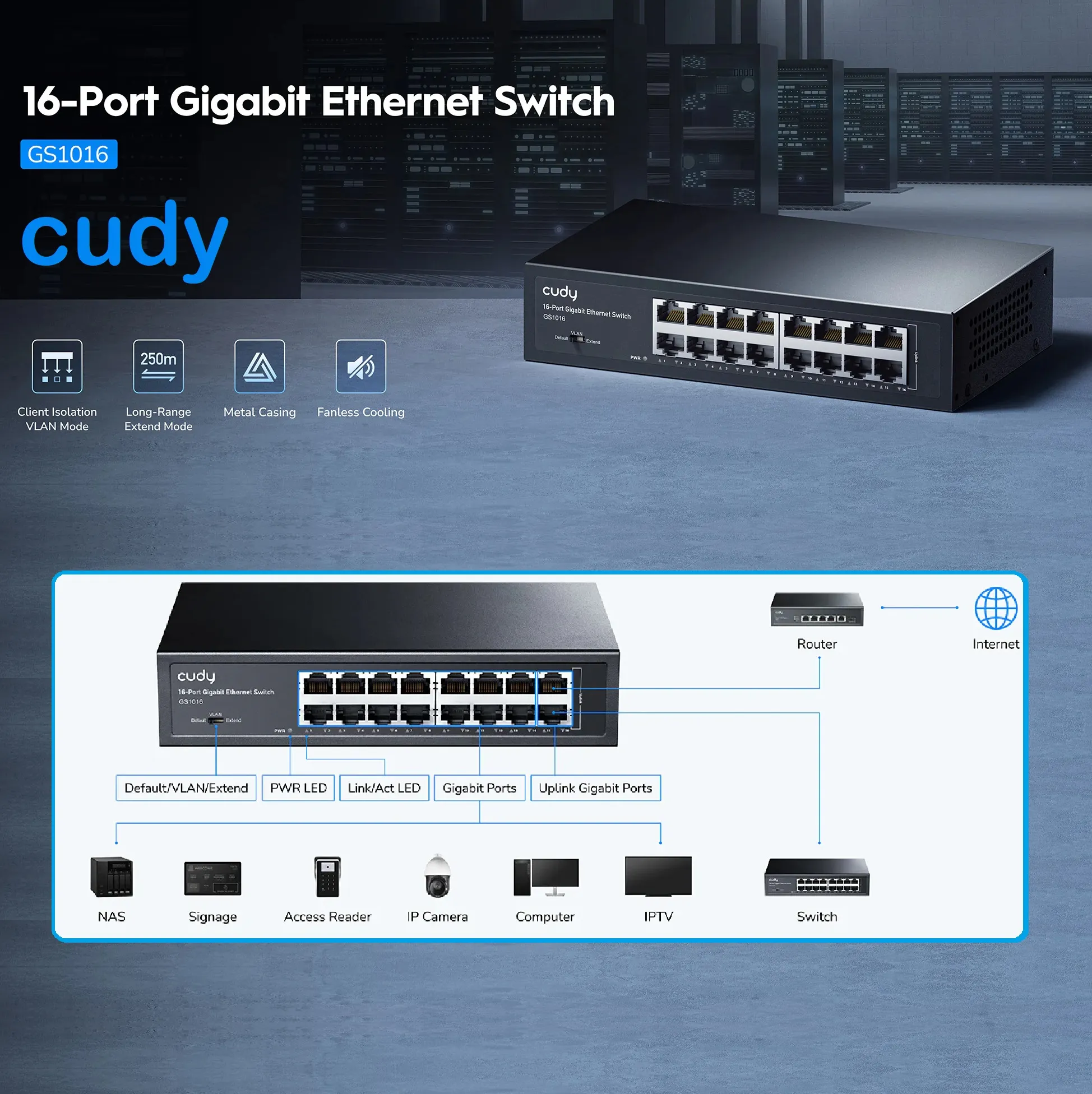

CUDY 16-Port Gigabit Unmanaged Switch
Expert Features

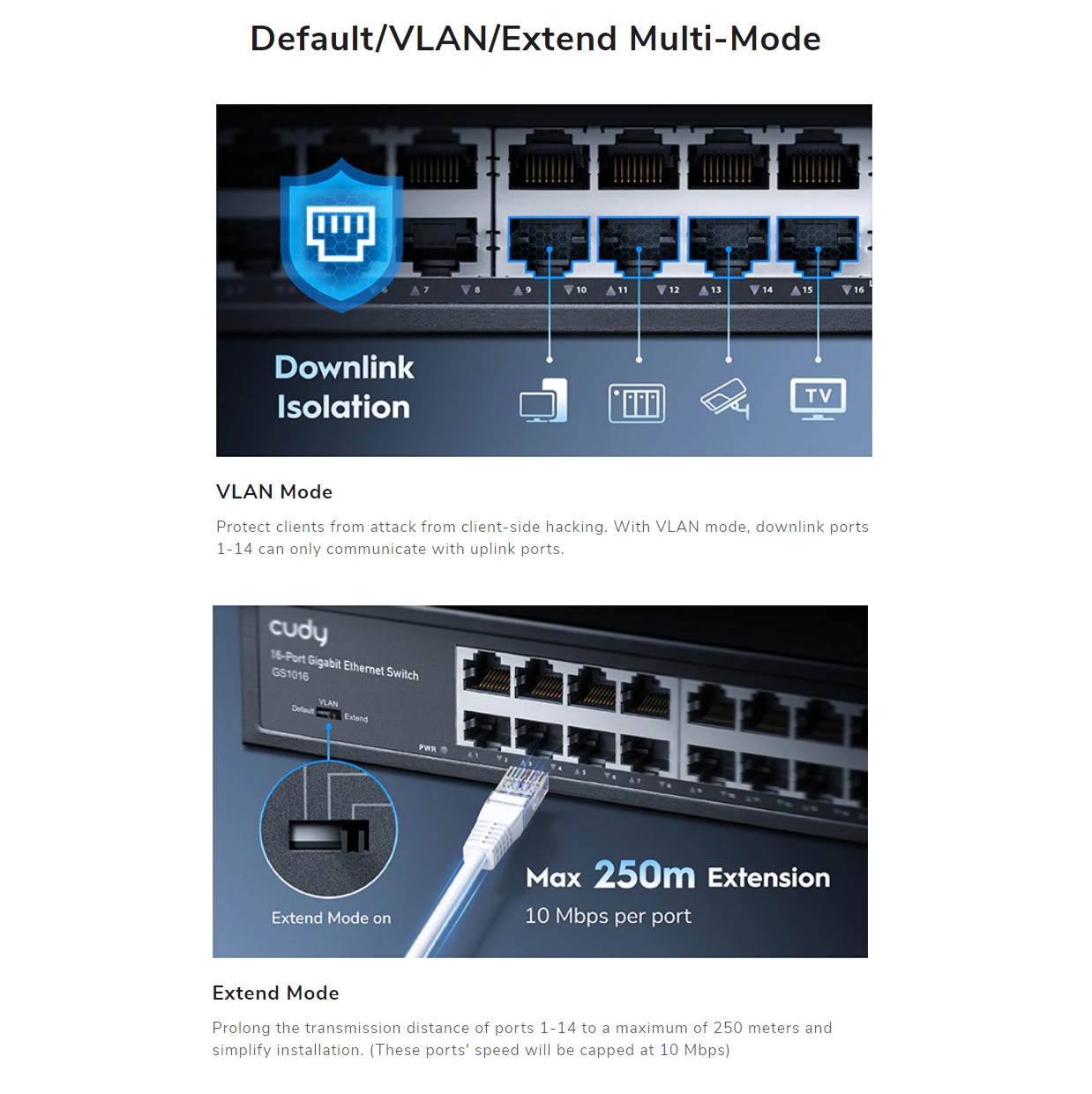

VLAN Mode : Protect clients from attack from client-side hacking. With VLAN mode, downlink ports 1-14 can only communicate with uplink ports.
Extend Mode : Prolong the transmission distance of ports 1-14 to a maximum of 250 meters and simplify installation. (These ports’ speed will be capped at 10 Mbps)

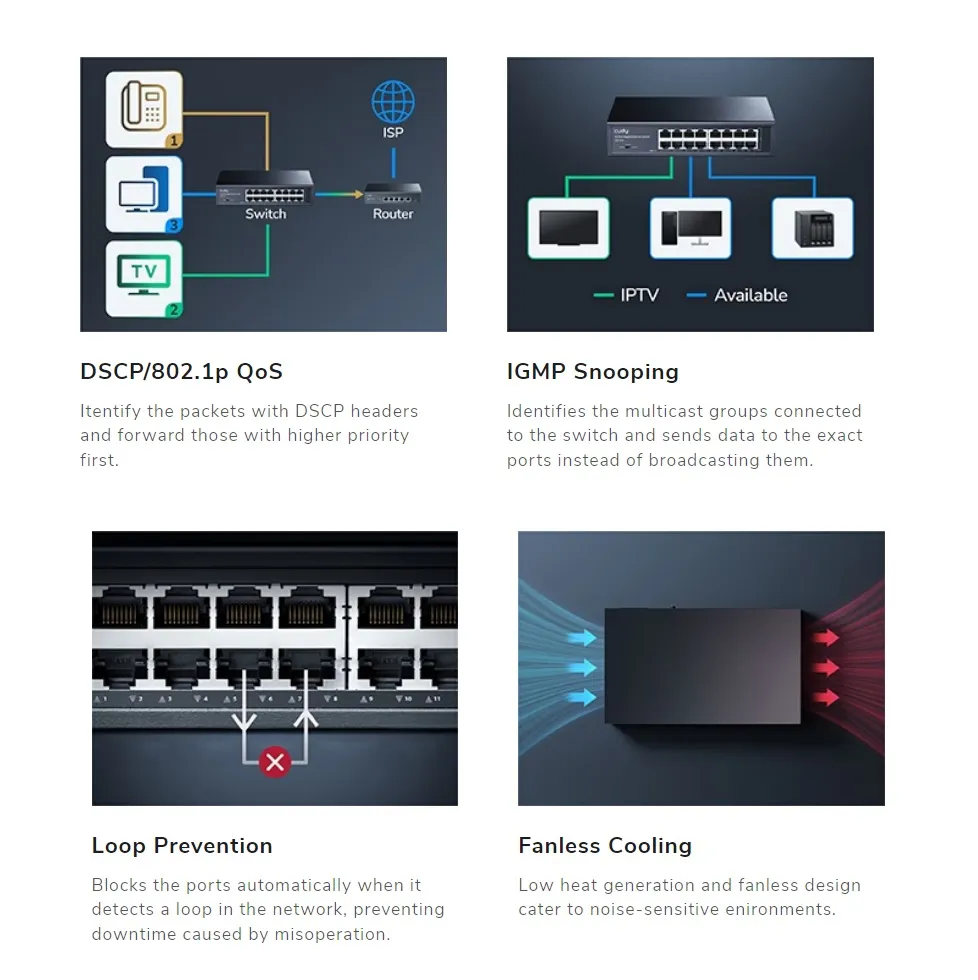

DSCP/802.1p QoS : Identify the packets with DSCP headers and forward those with higher priority first.
IGMP Snooping : Identifies the multicast groups connected to the switch and sends data to the exact ports instead of broadcasting them.
Loop Prevention : Blocks the ports automatically when it detects a loop in the network, preventing downtime caused by maloperation.
Fanless Cooling : Low heat generation and fanless design cater to noise-sensitive environments.
Expert Specs
| Model Version | GS1016 3.0 | |
|---|---|---|
| Interfaces | Physical Buttons | VLAN/Default/Extend DIP Switch |
| Gigabit RJ45 Ports | 16 | |
| Extend Mode Ports | #1~#14 | |
| VLAN Mode Ports | #1~#14 | |
| LED |
|
|
| Power Input | AC Inlet | |
| Performance | Copper Speed and Distance |
|
| Copper Speed and Distance Note | 250-meter transmission is only available on the Extend Mode ports. | |
| MAC Address Table | 8192 | |
| Max Switching Capacity | 32 Gbps | |
| Max Forwarding Rate | 23.808 Mpps | |
| Jumbo Frame | 15 KB | |
| Packet Buffer | 4 Mbit | |
| Power | Basic Power Saving | True |
| Power Methods | AC | |
| AC | 90~260V 50/60Hz | |
| Max Power Consumption | 7.8W | |
| Idle Power Consumption | 4.5W | |
| Switching | 802.3 Protocols |
|
| 802.1 Protocols | 802.1p: LAN Layer 2 QoS/CoS | |
| L2 Features |
|
|
| Reliability | Grounding Methods |
|
| Lightning/Surge Protection | RJ45: 4KV AC: CM 4KV/DM 2KV |
|
| ESD Contact Protection | 6KV | |
| ESD Air Protection | 8KV | |
| Environment | Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing |
|

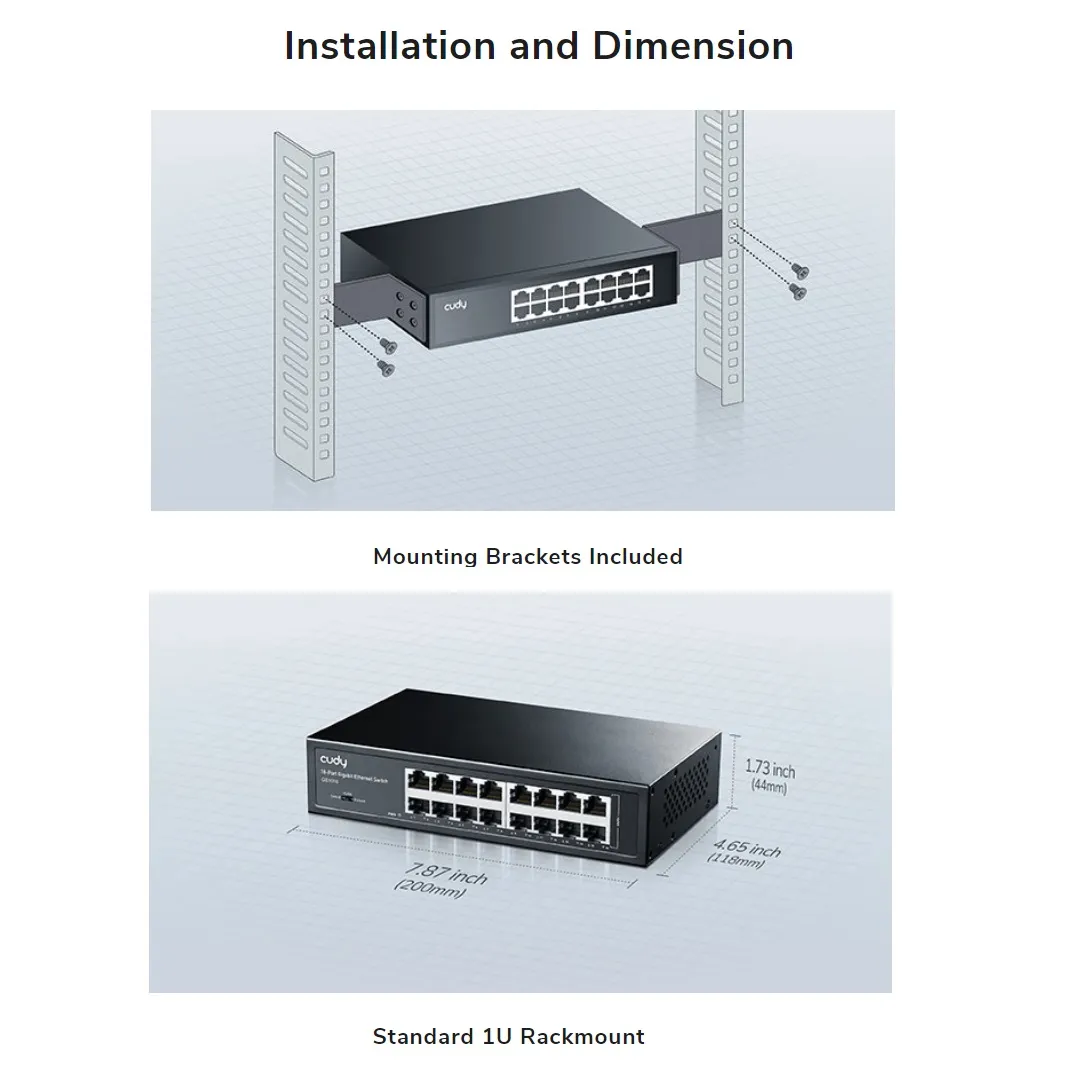

| Mechanical | Dimension | 200×118×44 mm 7.87×4.65×1.73 inches |
| Product Weight | 619 g (21.83 oz.) | |
| Casing Material | Metal | |
| Installation |
|
|

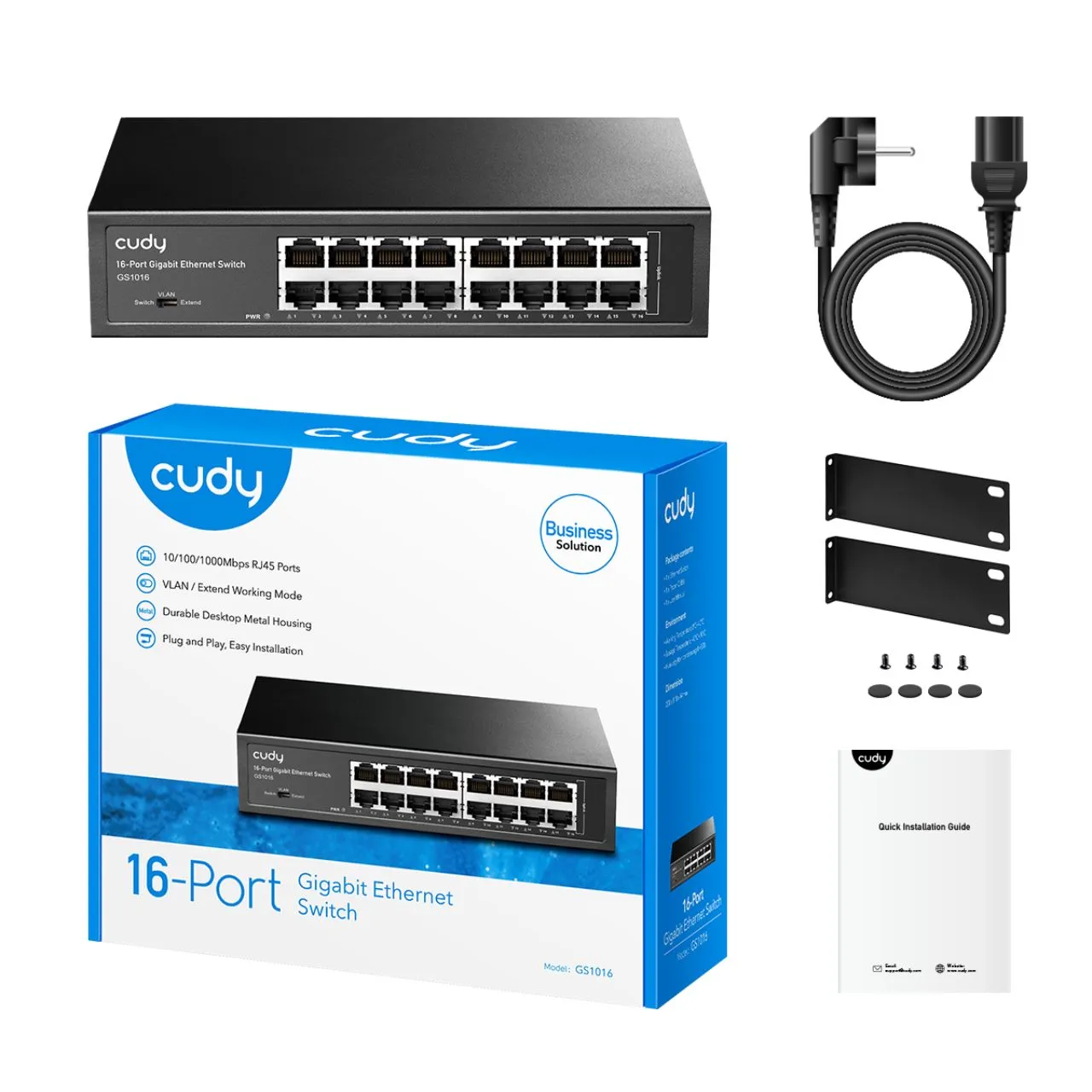

| Package Content |
|
|
Description
GS1016-EU
CUDY 16-Port Gigabit Unmanaged Switch
CUDY 16-Port Gigabit Unmanaged Switch with VLAN/Extend and Fanless Cooling ; Default/VLAN/Extend Modes ; 250 Meters Transmission ; VLAN for Clients Isolation ; Desktop, Rack-Mount | BLACK GS1016 3.0
CUDY 16-Port Gigabit Unmanaged Switch
