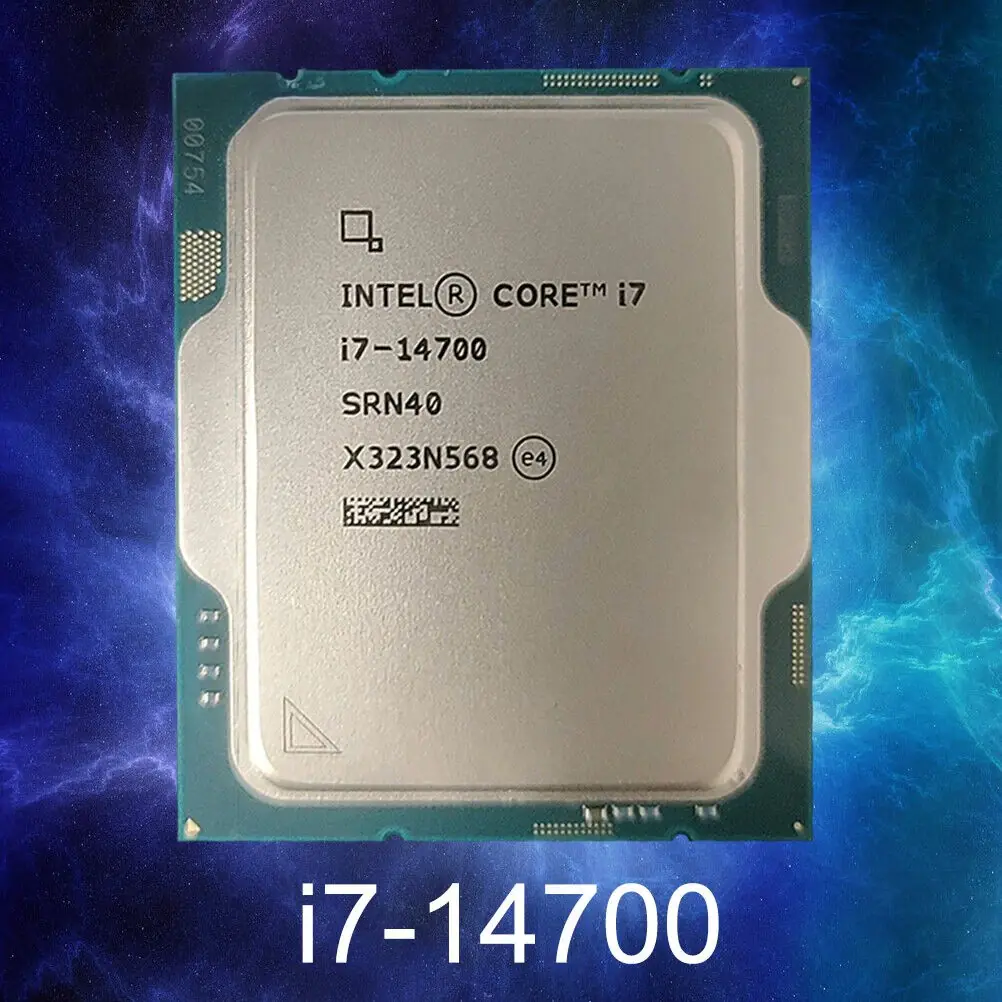

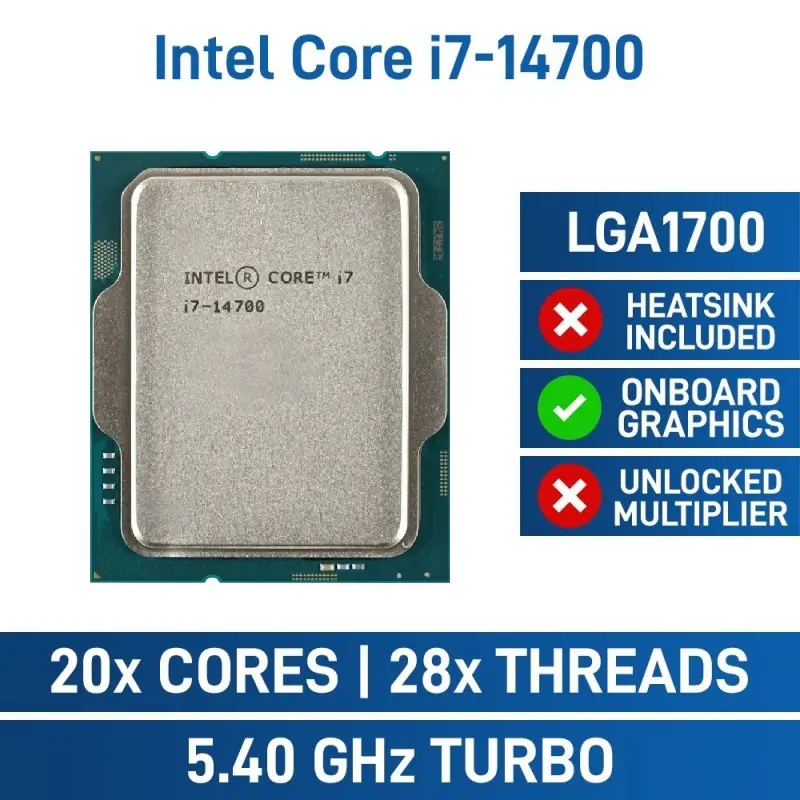

CPU Intel® Core™  i7-14700 – Core i7 14th Gen Raptor Lake 20-Core (8P+12E) 28-Threads ; LGA 1700 65W TDP ; 5.4 GHz Max Turbo Frequency ; Intel UHD Graphics 770 Processor | TRAY

$ 317.00 ---ONLY---
SKU: I7-14700-TRAY Categories: ,

Expert Features

  • 20 cores (8 P-cores + 12 E-cores) and 28 threads. Integrated Intel UHD Graphics 770 included.
  • Performance hybrid architecture integrates two core microarchitectures, prioritizing and distributing workloads to optimize performance
  • Up to 5.4 GHz unlocked. 33MB Cache
  • Compatible with Intel 600-series (with potential BIOS update) and 700-series chipset-based motherboards
  • Turbo Boost Max Technology 3.0 Frequency, and PCIe 5.0 & 4.0 support. DDR4 and DDR5 Memory support. RM1 thermal solution included

Expert Specs

Model
Brand Intel
Processors Type Desktop
Series Core i7 14th Gen
Name Core i7-14700
Model  Original Intel® Tray Processor
Details
CPU Socket Type  LGA 1700
Core Name  Raptor Lake
# of Cores  20-Core (8P+12E)
# of Threads  28-Threads
Operating Frequency  Performance-core Base Frequency: 2.1 GHz
Efficient-core Base Frequency: 1.5 GHz
Max Turbo Frequency  Max Turbo Frequency: 5.4 GHz
Intel Turbo Boost Max Technology 3.0 Frequency: 5.4 GHz
Performance-core Max Turbo Frequency: 5.3 GHz
Efficient-core Max Turbo Frequency: 4.2 GHz
L2 Cache  28MB
L3 Cache  33MB
Manufacturing Tech  Intel 7
Instruction Set  64-Bit
Hyper-Threading Support  Yes
Memory Types DDR4 3200 / DDR5 5600
Memory Channel 2
Max Memory Size 192 GB
ECC Memory Supported
Max Memory Bandwidth 89.6 GB/s
Virtualization Technology Support  Yes
Integrated Graphics Intel UHD Graphics 770
Graphics Max Dynamic Frequency 1.6 GHz
Scalability 1S Only
PCI Express Revision  5.0 / 4.0
PCI Express Configurations  Up to 1×16+4, 2×8+4
Max Number of PCI Express Lanes  20
Thermal Design Power  65W
Max Turbo Power 219W
Cooling Device —–
Compatible Desktop Chipsets Intel H610 / Intel H670 / Intel B660 / Intel Q670 / Intel W680 / Intel Z690 / Intel H770 / Intel B760 / Intel Z790
* BIOS update may be required when used with some old chipset motherboard
Operating System Supported Linux / Windows 10 (22H2, 21H2) / Windows 11 (22H2, 21H2)

Description

I7-14700-TRAY

CPU Intel Core i7-14700 Core i7 14th Gen

CPU Intel® Core™  i7-14700 – Core i7 14th Gen Raptor Lake 20-Core (8P+12E) 28-Threads ; LGA 1700 65W TDP ; 5.4 GHz Max Turbo Frequency ; Intel UHD Graphics 770 Processor | TRAY


CPU Intel Core i7-14700 Core i7 14th Gen CPU Intel Core i7-14700 Core i7 14th Gen CPU Intel Core i7-14700 Core i7 14th Gen CPU Intel Core i7-14700 Core i7 14th Gen
