Name: CPU Intel Core i5-14600KF Boxed Processor Core i5 14th Gen
SKU: I5-14600KF-BOXED
Price: 204.00 USD
Availability: InStock

Description

BRAMD-NEW SEALED ~ ONE YEAR WARRANTY

Expert Features

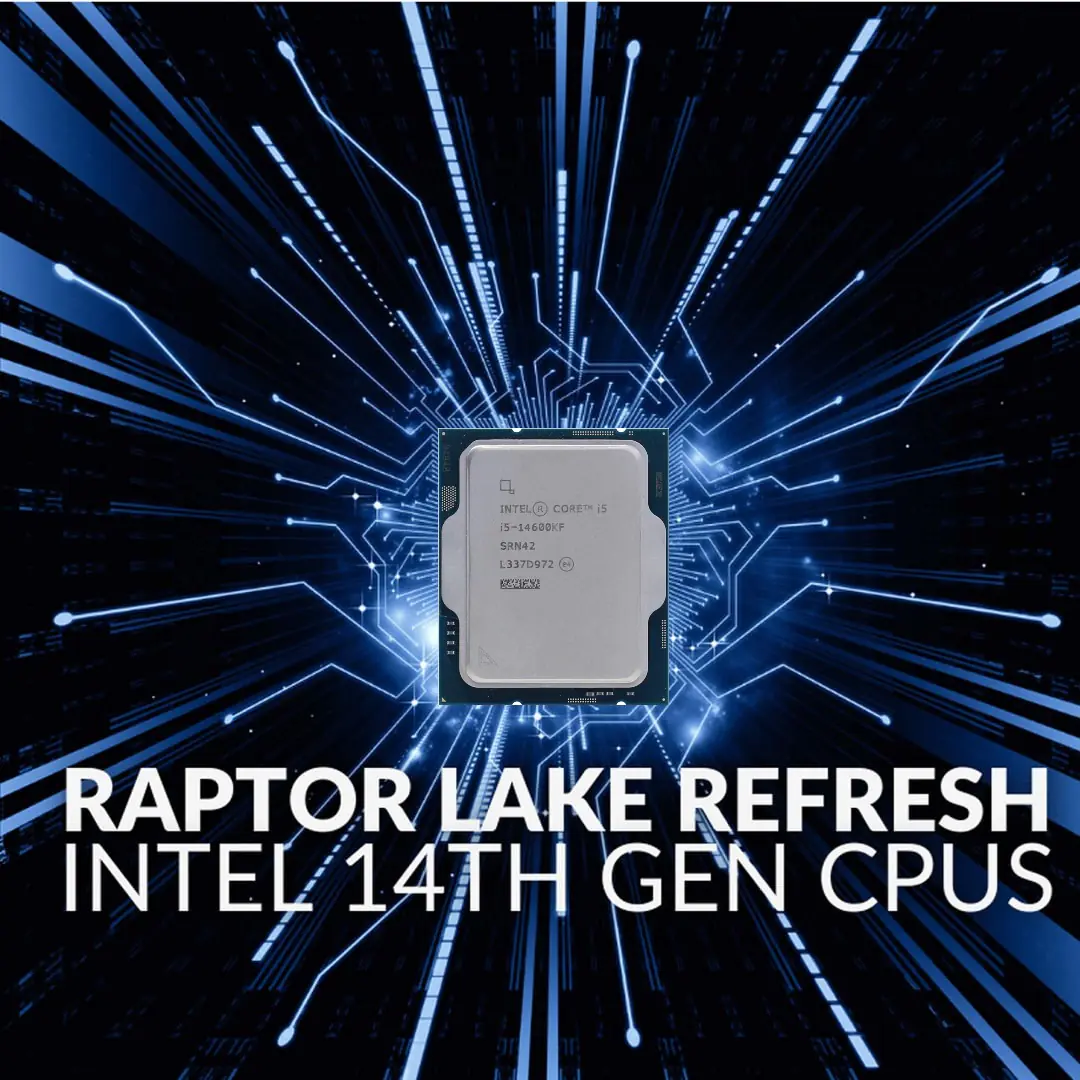

Intel is driving next level performance with Raptor Lake
Increased processor core count – Up to 14 (6P+8E) processor cores with up to 20 threads
Improved P-core performance
Increased Intel Smart Cache (L3) and L2 cache on Intel Core i5 Desktop processors and above
Extended performance hybrid architecture2 to all Intel Core i5 Desktop processors and above
Up to 192GB DDR5-5600 memory, up to 192GB DDR5-5200 memory and up to 192GB DDR4-3600 memory
20 lanes of CPU PCIe* Gen 5.0; Up to 20 lanes of PCH PCIe* Gen 4.0
Integrated Intel Wi-Fi 6E support
Four simultaneous 4K displays, media and graphics features
Core + memory overclocking
Processor compatibility with Intel® 600 and 700 Series chipset-based motherboards
Intel® Deep Learning Boost (VNNI) and Intel Gaussian + Neural Accelerator (GNA) 3.0 support
Security Feature Enhancements targeting Business Computing

Expert Specs

Model
Brand	Intel
Processors Type	Desktop
Series	Core i5 14th Gen
Name	Core i5-14600KF
Model	BX8071514600KF

Details
CPU Socket Type	LGA 1700
Core Name	Raptor Lake
# of Cores	14-Core (6P+8E)
# of Threads	20-Threads
Operating Frequency	Performance-core Base Frequency: 3.5 GHz Efficient-core Base Frequency: 2.6 GHz
Max Turbo Frequency	P-core Max Turbo Frequency: Up to 5.3 GHz E-core Max Turbo Frequency: Up to 4.0 GHz
L2 Cache	20MB
L3 Cache	24MB
Manufacturing Tech	Intel 7
Instruction Set	64-Bit
Hyper-Threading Support	Yes
Memory Types	DDR4 3200 / DDR5 5600
Memory Channel	2
Max Memory Size	192 GB
Max Memory Bandwidth	89.6 GB/s
Virtualization Technology Support	Yes
Integrated Graphics	None Integrated Graphics
Scalability	1S Only
PCI Express Revision	5.0 / 4.0
PCI Express Configurations	Up to 1×16+4, 2×8+4
Max Number of PCI Express Lanes	20
Thermal Design Power	125W
Max Turbo Power	181W
Cooling Device	Cooling device not included – Processor Only
Compatible Desktop Chipsets	Intel H610 / Intel H670 / Intel B660 / Intel Q670 / Intel W680 / Intel Z690 / Intel H770 / Intel B760 / Intel Z790 * BIOS update may be required when used with some old chipset motherboard
Operating System Supported	Linux / Windows 10 (22H2, 21H2) / Windows 11 (22H2, 21H2)
Advanced Technologies	Intel Gaussian & Neural Accelerator: 3.0 Intel Thread Director Intel Deep Learning Boost (Intel DL Boost) on CPU Intel Speed Shift Technology Intel Turbo Boost Technology: 2.0 Intel Hyper-Threading Technology Intel 64 Instruction Set: 64-bit Instruction Set Extensions: Intel SSE4.1, Intel SSE4.2, Intel AVX2 Idle States Enhanced Intel SpeedStep Technology Thermal Monitoring Technologies Intel Volume Management Device (VMD)
Security & Reliability	Intel Standard Manageability (ISM) Intel Control-Flow Enforcement Technology Intel AES New Instructions Secure Key Intel OS Guard Execute Disable Bit Intel Boot Guard Mode-based Execute Control (MBEC) Intel Virtualization Technology (VT-x) Intel Virtualization Technology for Directed I/O (VT-d) Intel VT-x with Extended Page Tables (EPT)
