CPU AMD Ryzen 7 9800X3D – Ryzen 7 9000 Series Granite Ridge Zen 5 8-Core 5.2 GHz – Socket AM5 120W 16-Threads – TSMC 4nm FinFET 64-Bit – AMD Radeon Graphics Desktop Processor – 100-100001084WOF
$ 660.00 ---ONLY---
CPU AMD Ryzen 7 9800X3D 9000 Series Zen 5
Expert Features

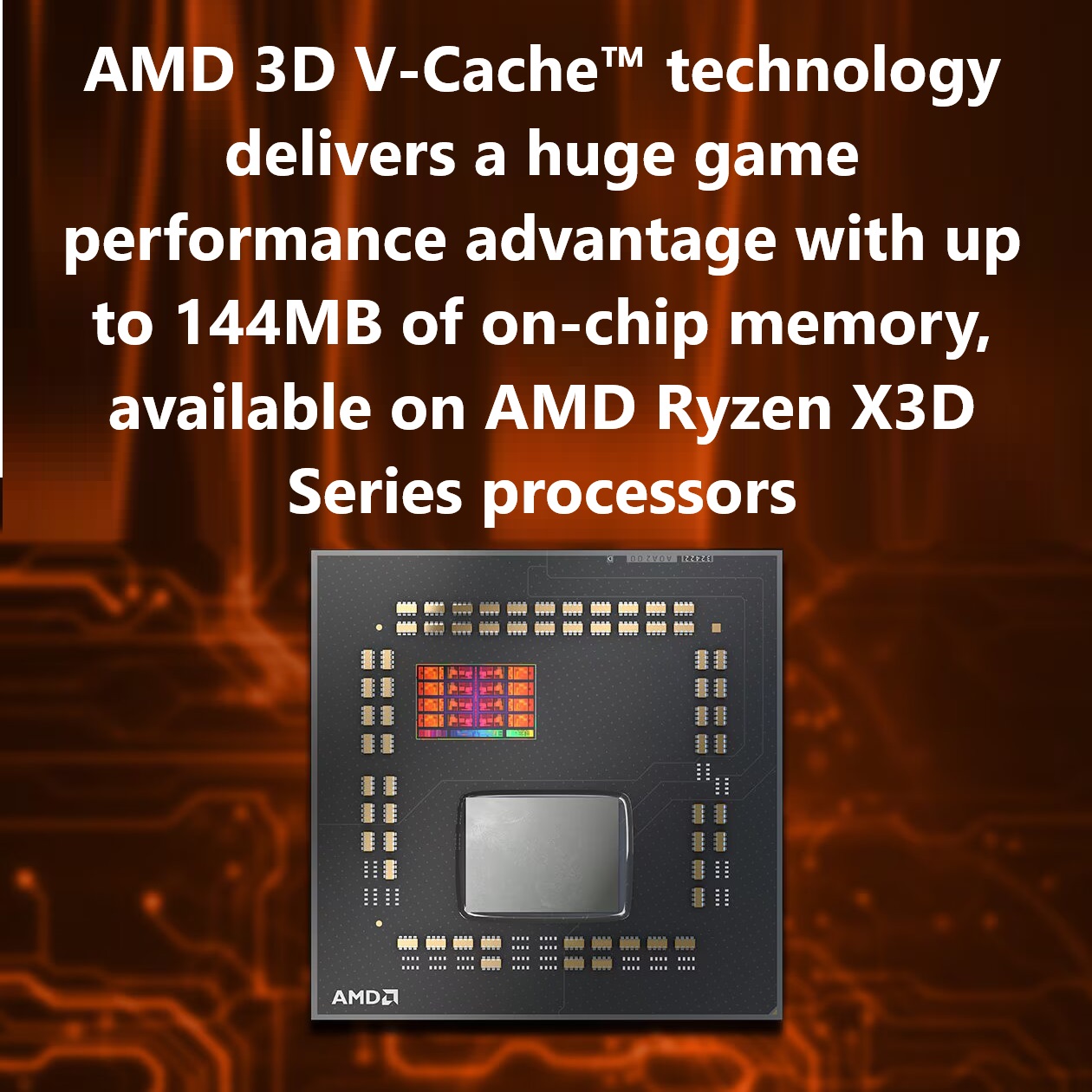

- Harness the ultimate gaming edge with AMD Ryzen 7 9800X3D, Unlock faster gaming with 2nd-gen AMD 3D V-Cache tech for low latency
- 8 Cores and 16 processing threads, based on AMD “Zen 5” architecture
- 5.2 GHz Max Boost, unlocked for overclocking, 96MB L3 Cache, 8MB L2 Cache, DDR5-5600 support
- For the state-of-the-art Socket AM5 platform, can support PCIe 5.0 on select motherboards
- Cooler not included
Expert Specs
Brand | AMD |
---|---|
Processors Type | Desktop |
Series | Ryzen 7 9000 Series |
Name | Ryzen 7 9800X3D |
Model | 100-100001084WOF |
CPU Socket Type | Socket AM5 |
---|---|
Core Name | Granite Ridge Zen 5 |
# of Cores | 8-Core |
# of Threads | 16-Threads |
Operating Frequency | 4.7 GHz |
Max Turbo Frequency | 5.2 GHz |
L1 Cache | 640KB |
L2 Cache | 8MB |
L3 Cache | 96MB |
Manufacturing Tech | TSMC 4nm FinFET |
Instruction Set | 64-Bit |
Memory Types | DDR5 5600 / DDR5 6000 / DDR5 6400 / DDR5 7600 / DDR5 8200 / DDR5 8400 / DDR5 8600 / DDR5 8800 |
Memory Channel | 2 |
Max Memory Size | 192 GB |
Integrated Graphics | AMD Radeon Graphics |
Graphics Base Frequency | 2200 MHz |
PCI Express Revision | 5.0 |
Max Number of PCI Express Lanes | 28, 24 (Total/Usable) |
Thermal Design Power | 120W |
Cooling Device | Cooling device not included – Processor Only |
Compatible Desktop Chipsets | AMD X870E, X870, B840, B850 and existing X670/E, B650/E and A620-based motherboards, with BIOS updates |
Operating System Supported | Windows 11 – 64-Bit Edition , Windows 10 – 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit |
Advanced Technologies | AMD EXPO Technology , AMD Ryzen Technologies |
Description
AMD-RYZEN7-9800X3D
CPU AMD Ryzen 7 9800X3D 9000 Series Zen 5
AMD Ryzen 7 9800X3D – Ryzen 7 9000 Series Granite Ridge Zen 5 8-Core 5.2 GHz – Socket AM5 120W 16-Threads – TSMC 4nm FinFET 64-Bit – AMD Radeon Graphics Desktop Processor – 100-100001084WOF
CPU AMD Ryzen 7 9800X3D 9000 Series Zen 5 CPU AMD Ryzen 7 9800X3D 9000 Series Zen 5
