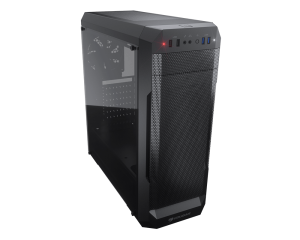

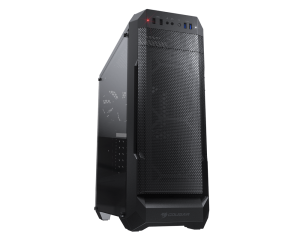

| Model Name |
MX331 Mesh |
| Case Form Factor |
Mid-Tower |
| Dimension (WxHxD) |
204 x 481 x 443 (mm)
8 x 19 x 17 (in) |
| Motherboard Type |
Mini ITX / Micro ATX / ATX |
| 5.25″ Drive Bay |
1 |
| 3.5″ Drive Bay |
2 |
| 2.5″ Drive Bay |
2+2 ( converted from 3.5″ drive bays ) |
| Expansion Slots |
7 |
| I/O Panel |
USB 3.0 x 2, USB 2.0 x 2, Mic x 1 / Audio x 1, Reset Button |
| Maximum Number of Fans |
5 max. |
| Cooling Fan Support |
Front |
120mm x 2 |
| Top |
120mm x 2 |
| Rear |
120mm ( pre-installed ) |
| Water Cooling Support |
Front |
240mm / 120mm |
| Top |
120mm |
| Rear |
120mm |
| Transparent Left Panel |
Yes |
| Max. Graphics Card Length |
350mm / 13.8 (in)
(Horizontal graphics card slots are compatible with RTX 3090/3080/3070.) |
| Max. CPU Cooler Height |
155mm / 6.1 (in) |
| Max. PSU Length |
200 (mm) / 7.9 (in) |
