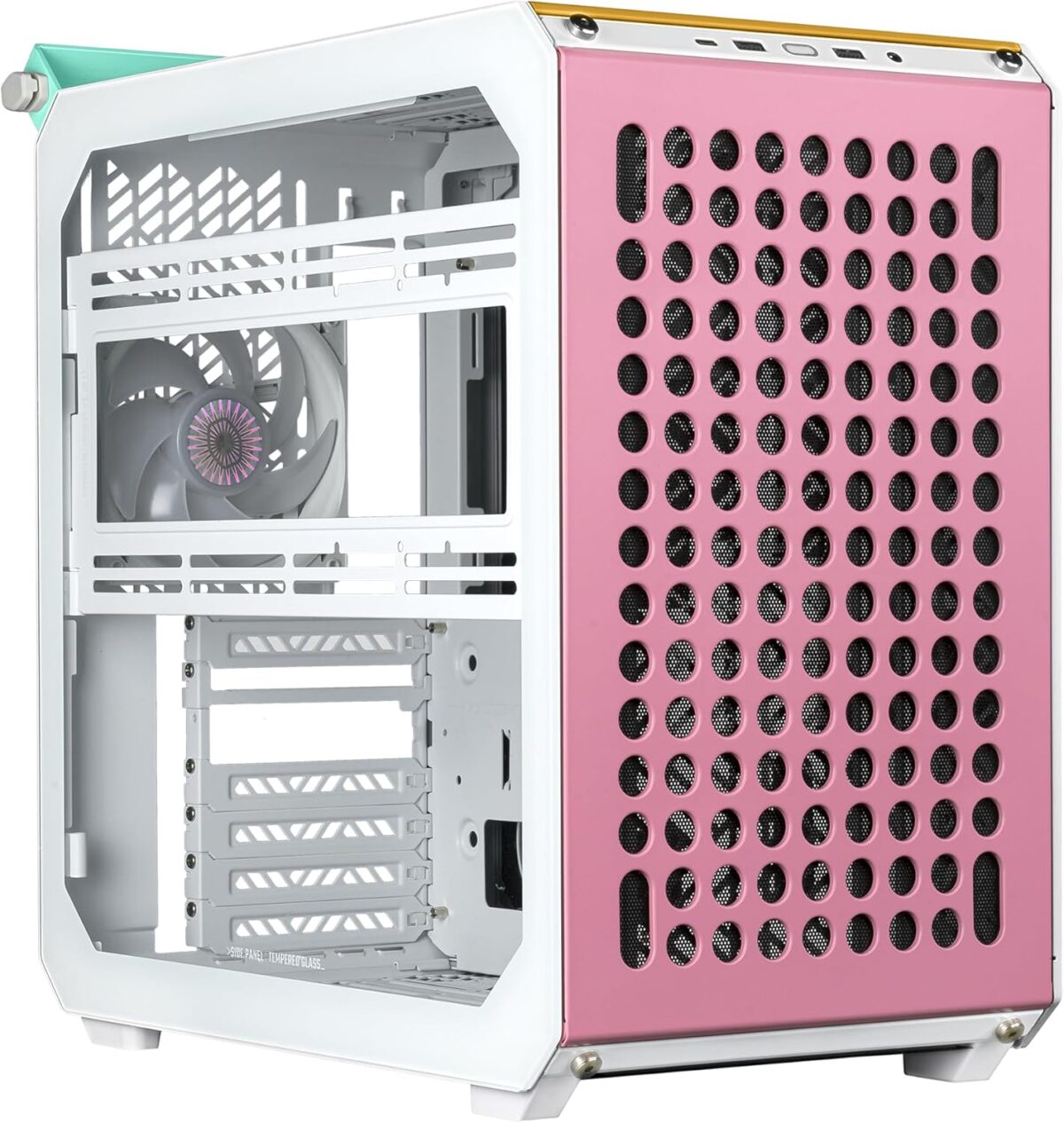

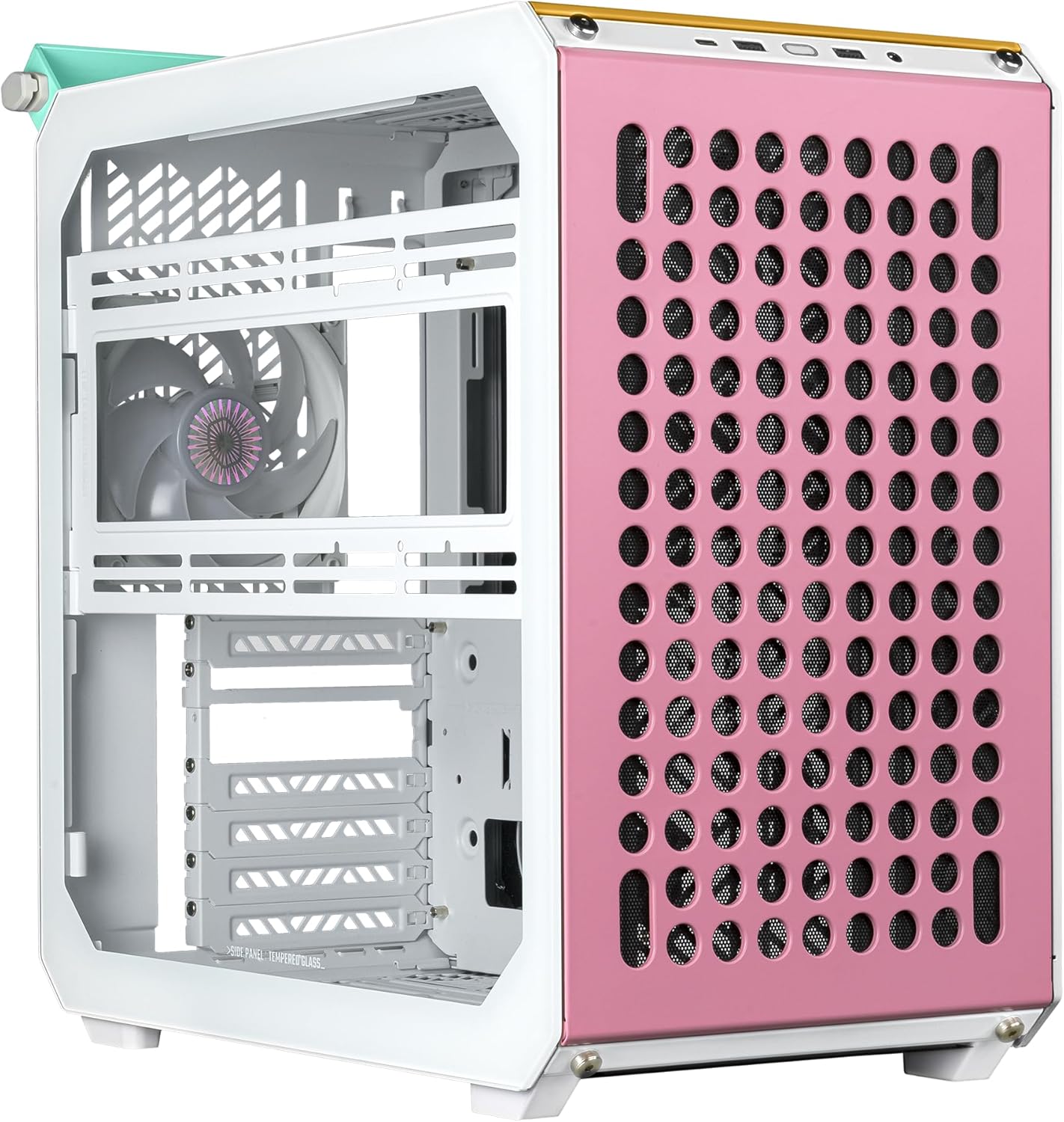

Name: Cooler Master QUBE 500 Flatpack Macaron Edition Mid Tower PC Case With Fully Modular Design, Vertical GPU Mount, E-ATX Support, Dual 280mm Radiators, USB Type-C | Expert-Zone
SKU: Q500-DGNN-S00
Price: 99.00 USD
Availability: InStock

Description

Expert Features

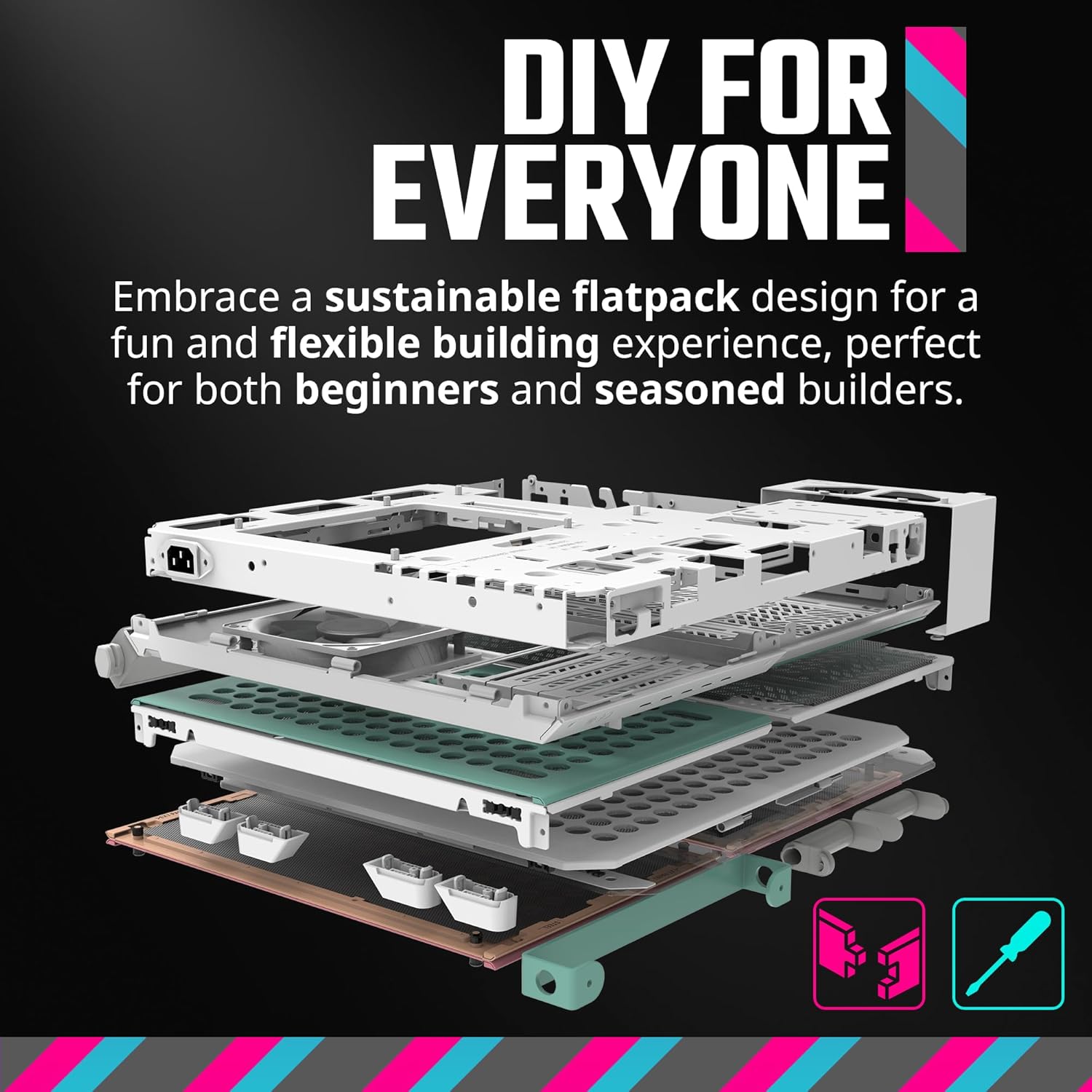

Flatpack Assembly Design : Ships flat-packed to reduce waste while turning the PC build into a guided, step-by-step DIY experience straight from the box

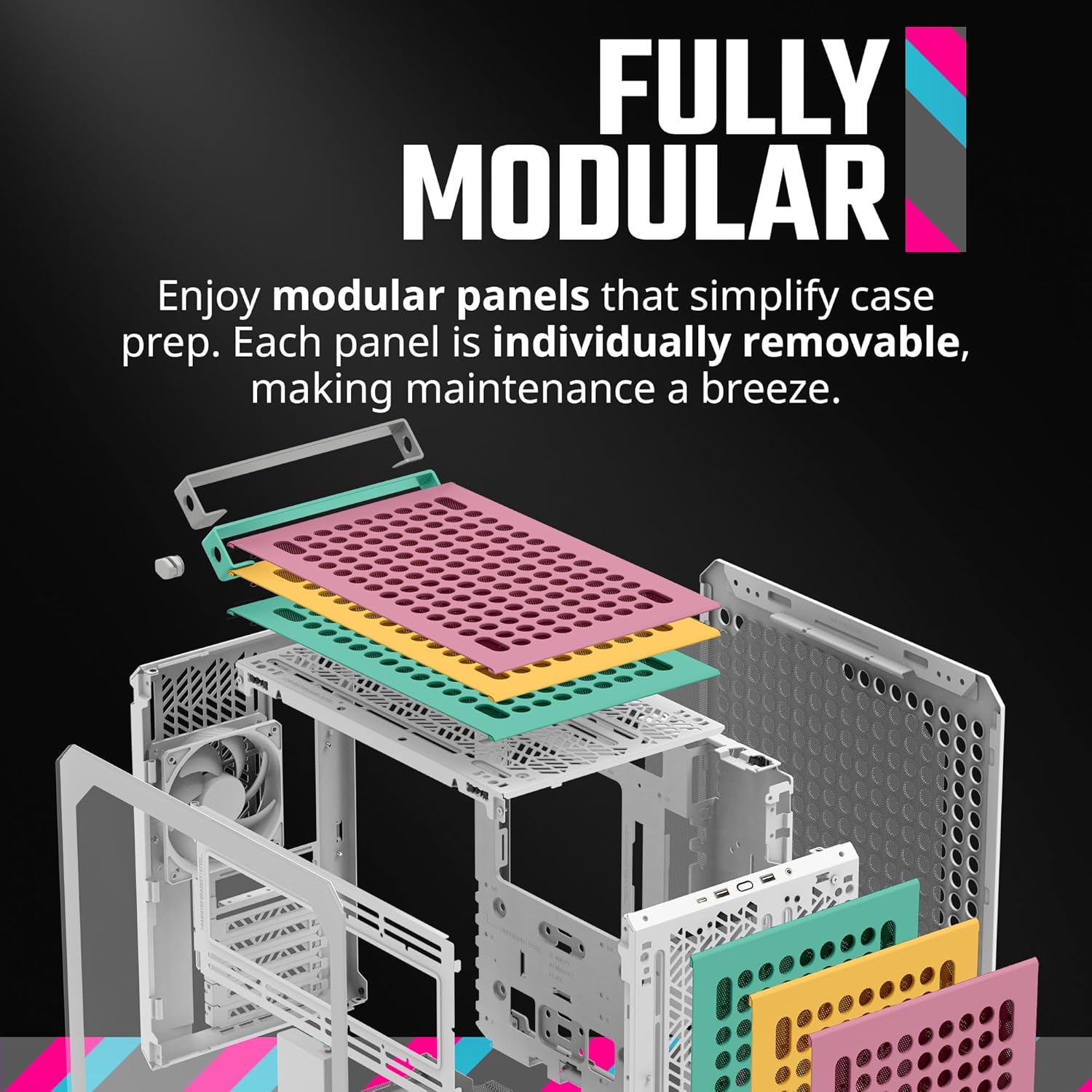

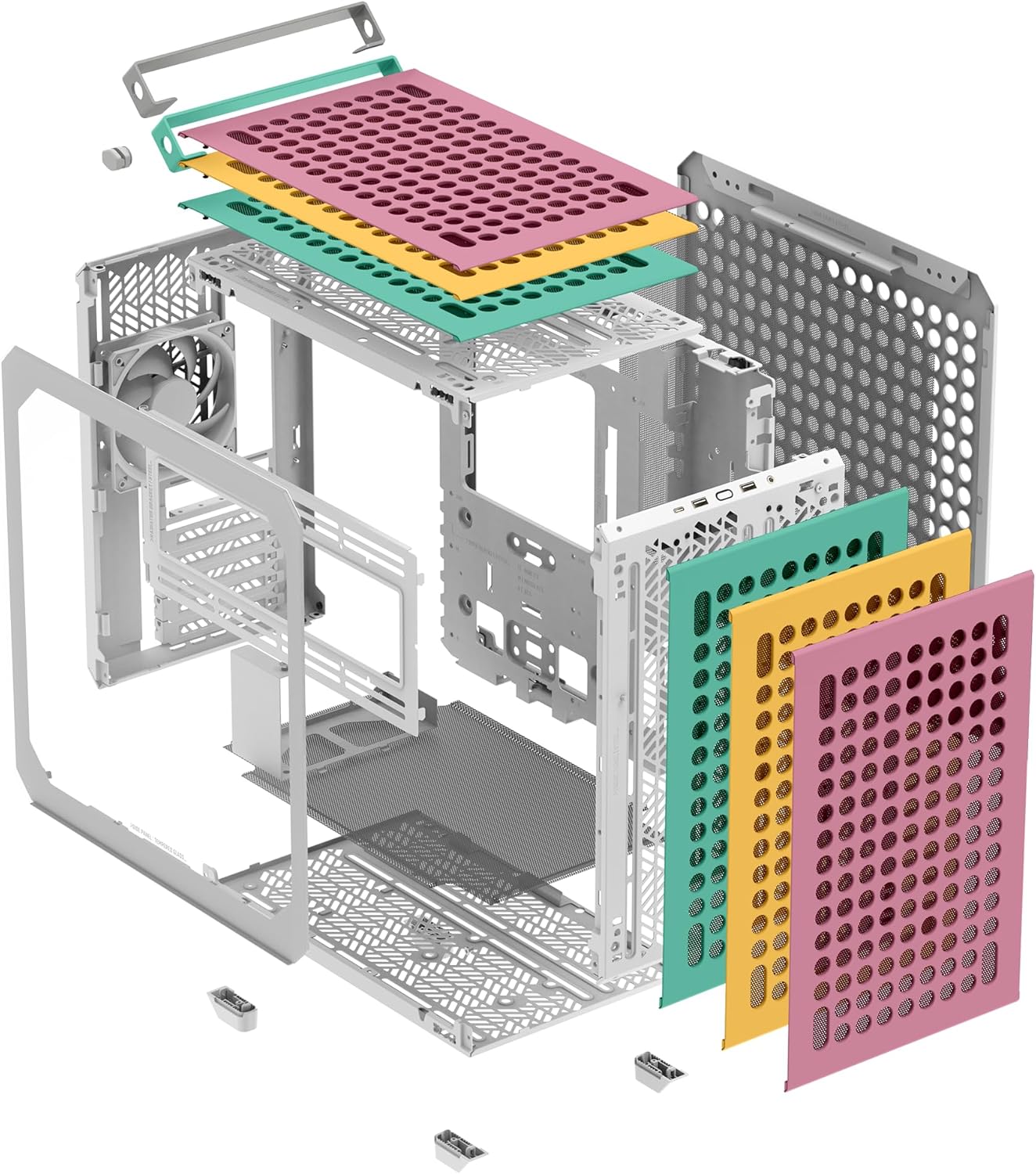

Fully Modular Construction : Every exterior panel is individually removable, simplifying maintenance, upgrades, and complete layout reconfiguration
Built-In Vertical GPU Mount : Includes an adjustable vertical GPU bracket that allows precise spacing from the side panel to balance airflow and aesthetics

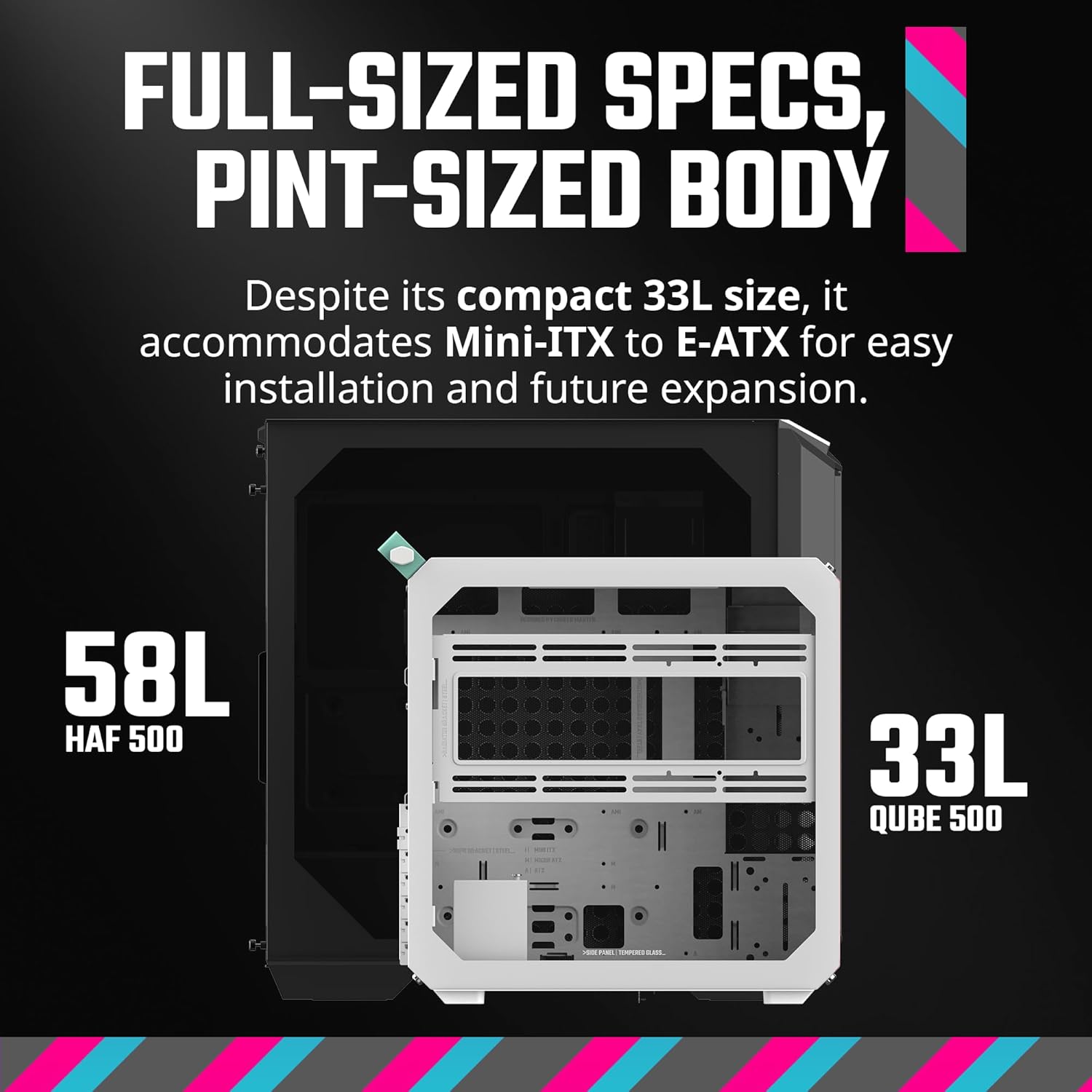

Compact Chassis With Full-Sized Capability : A 33.44L mid tower that supports E-ATX motherboards, large GPUs, and multiple radiator placements

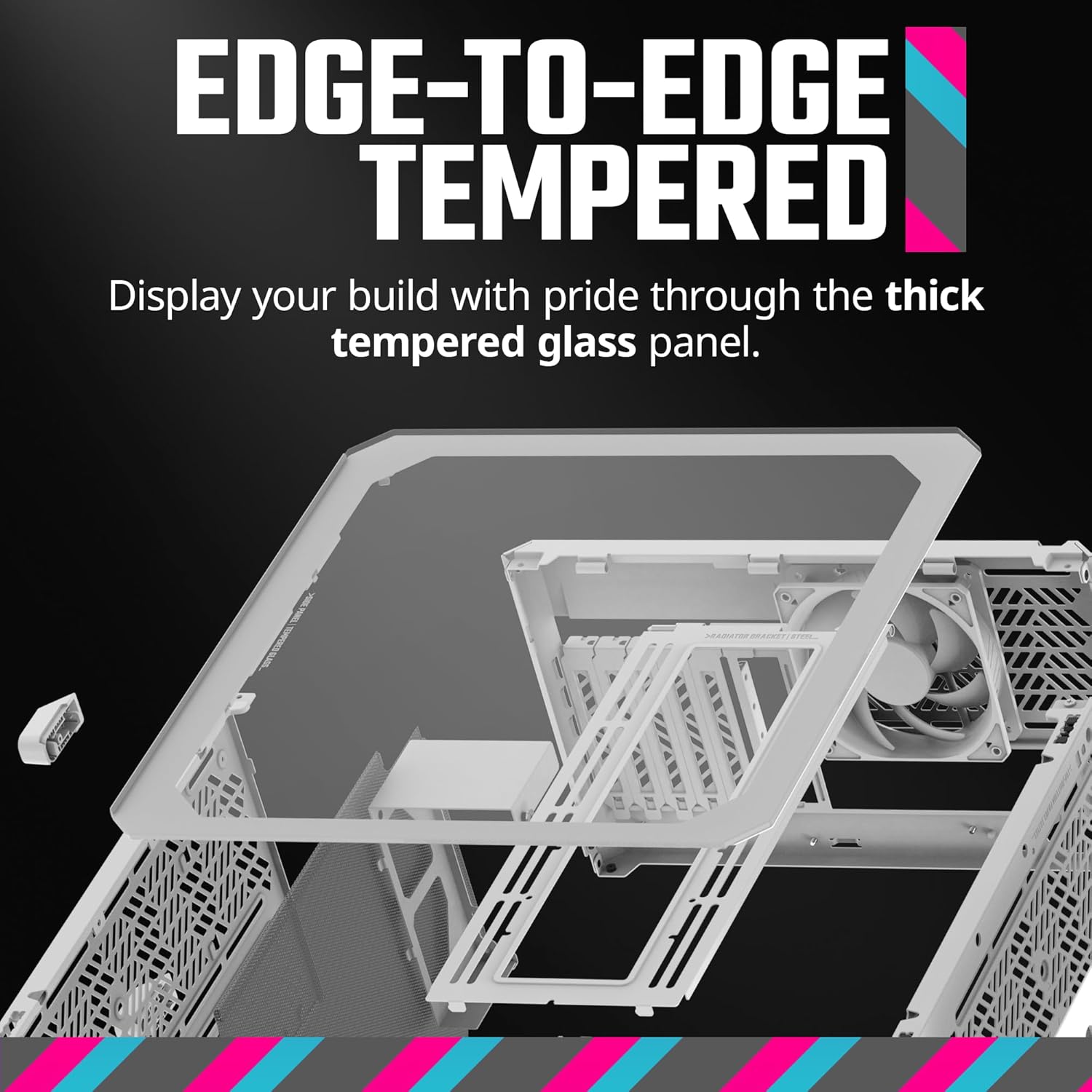

Swappable Side Panels : Symmetrical design allows the steel and tempered glass panels to be swapped for transparent or closed builds
Multi-Color Macaron Panel Sets : Includes three color sets—Mint, Pink, and Cream—allowing full visual customization without aftermarket parts
Enhanced Customization Accessories : Comes with extra handlebars, accessory hooks, and a Gem Mini cable manager for functional personalization
Side Radiator Bracket With Dual Positions : Supports a 280mm radiator or additional GPU airflow depending on system layout
Wide Hardware Compatibility : Supports GPUs up to 365mm, CPU air coolers up to 172mm, ATX or SFX power supplies, and E-ATX motherboards

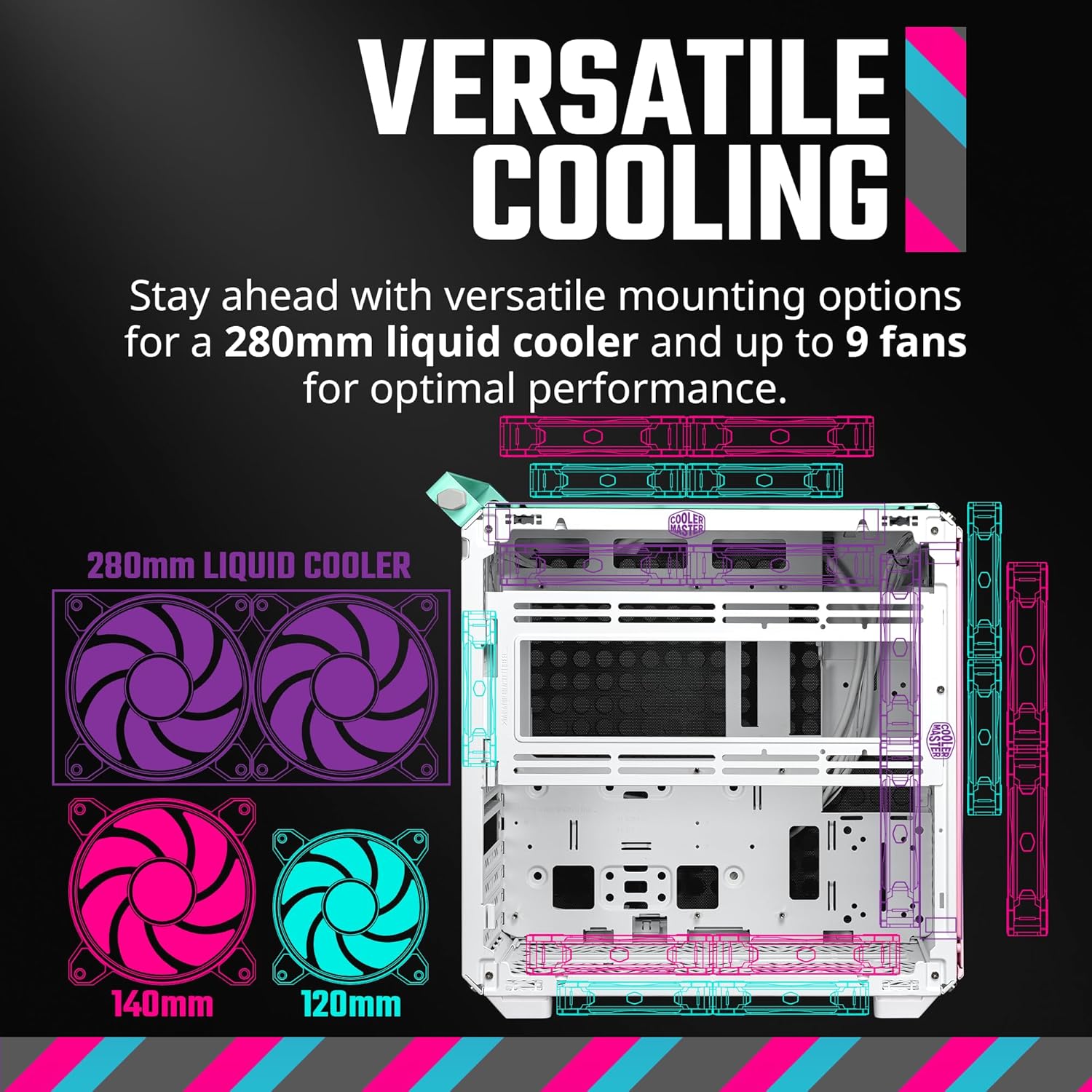

Multi-Zone Cooling Support : Allows radiator mounting on the top, bottom, side, front, and rear for advanced airflow tuning

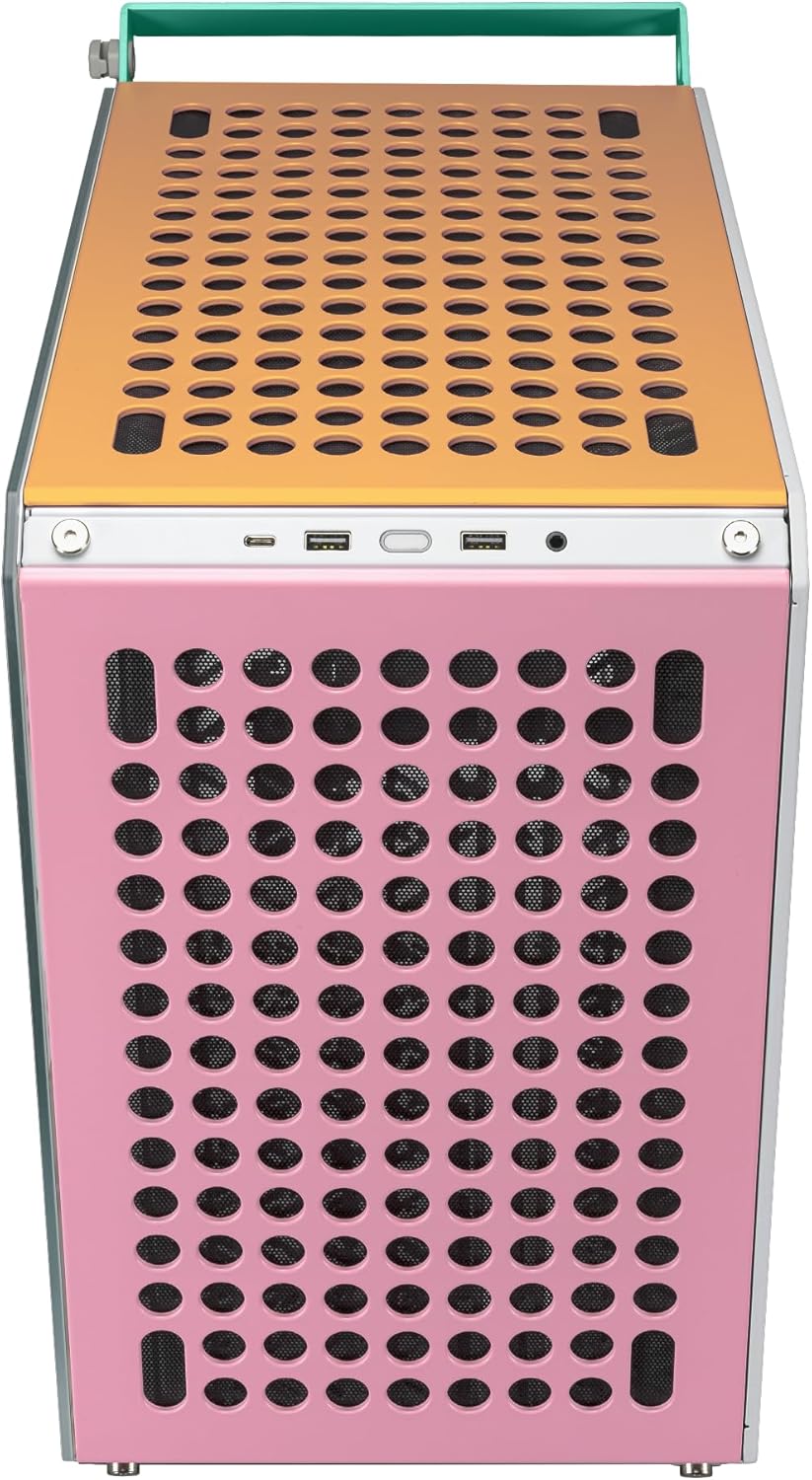

Modern Front I/O Connectivity : Features dual USB Type-A ports and high-speed USB Type-C Gen 2×2 for fast data transfer
Comprehensive Dust Filtration : Dust filters installed on the front, top, bottom, and right side panels for long-term system cleanliness

Expert Specs

Category	Specification
Product Name	QUBE 500 Flatpack Macaron Edition
Model Number	Q500-DGNN-S00
Series	QUBE Series
Case Size	Mid Tower
Exterior Color	Mint, Pink, Cream (3 Sets)
Exterior Materials	Steel, Plastic, Tempered Glass
Left Side Panel	Grey Tempered Glass + Steel
Dimensions (Incl. Protrusions)	406 × 231 × 415 mm
Dimensions (Excl. Protrusions)	380 × 231 × 381 mm
Volume	33.44 L
Motherboard Support	ITX / Micro-ATX / ATX / E-ATX (Up To 296mm Width With SFX PSU, Up To 273mm With ATX PSU)
Expansion Slots	7
3.5″ Drive Bays	Up To 4
2.5″ Drive Bays	Up To 3
Pre-Installed Rear Fan	1 × 120mm SF ARGB White PWM (1800 RPM)
Fan Support – Front	1 × 120/140mm (2× With Bottom PSU Mount)
Fan Support – Top	2 × 120/140mm
Fan Support – Rear	1 × 120mm
Fan Support – Bottom	2 × 120/140mm
Fan Support – Left Side	2 × 120/140mm
Radiator Support – Front	120 / 140mm (240 / 280mm With PSU In Bottom)
Radiator Support – Top	120 / 140 / 240 / 280mm (Up To 53mm Thickness)
Radiator Support – Rear	120mm
Radiator Support – Bottom	120 / 140 / 240 / 280mm
Radiator Support – Left Side	120 / 140 / 240 / 280mm
CPU Cooler Clearance	164–172mm (With Water Cooling Bracket Removed)
GPU Clearance	365mm
PSU Clearance	173mm To First GPU Slot, 216mm Max (Without Cable Space)
PSU Clearance (Bottom Mount)	332mm (Without Cable Space)
Cable Routing Space	29–32mm
Front I/O USB Ports	2 × USB 3.2 Gen 1 Type-A, 1 × USB 3.2 Gen 2×2 Type-C
Front I/O Audio	1 × 3.5mm Combo
Handle Included	Mint ×1, Grey ×1
Gem Mini Included	Grey ×1
Accessory Hooks	2
Dust Filters	Front, Top, Bottom, Right Side
Power Supply Support	SFX / SFX-L / ATX
Back-Connector Motherboard Support	No
Warranty	1 Year
