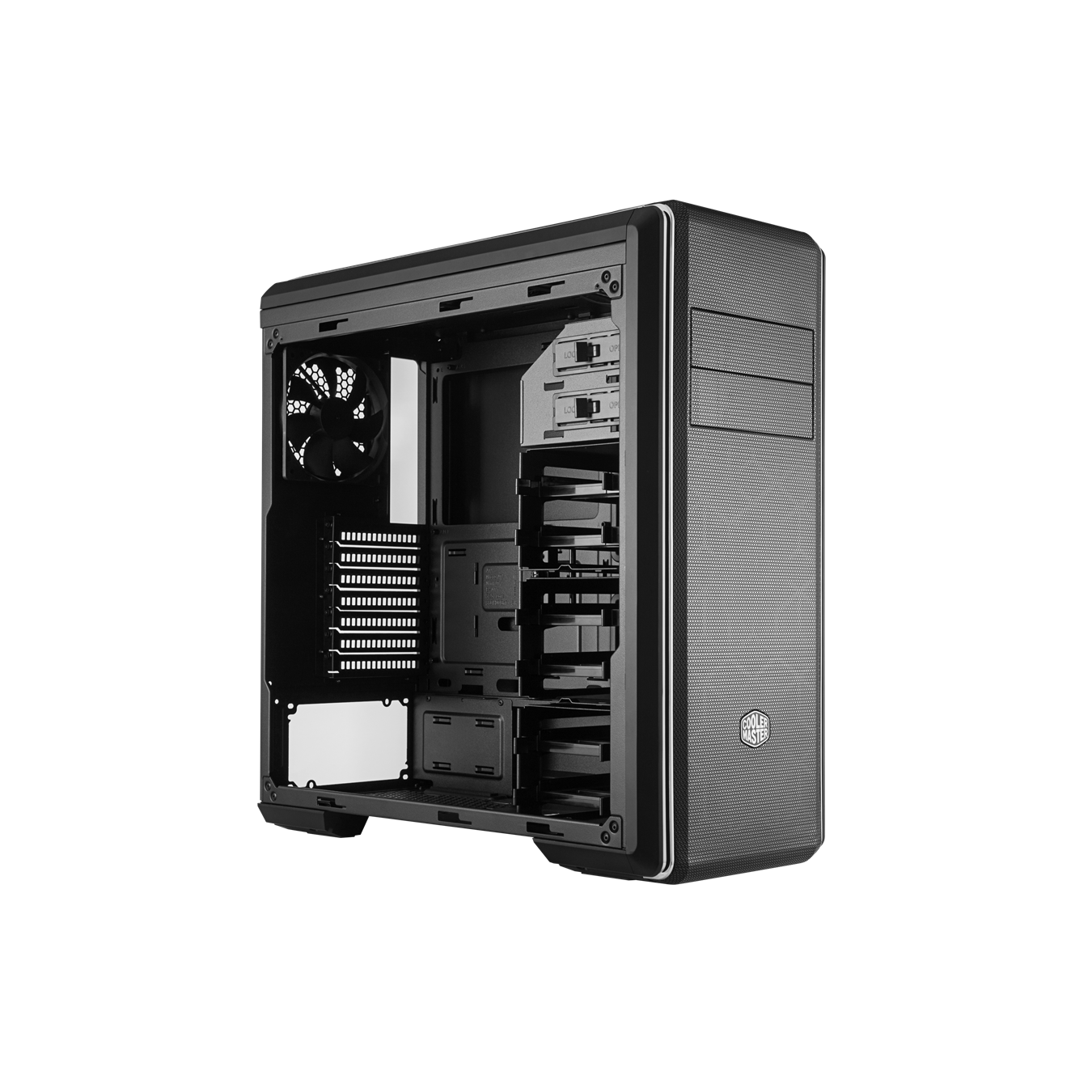

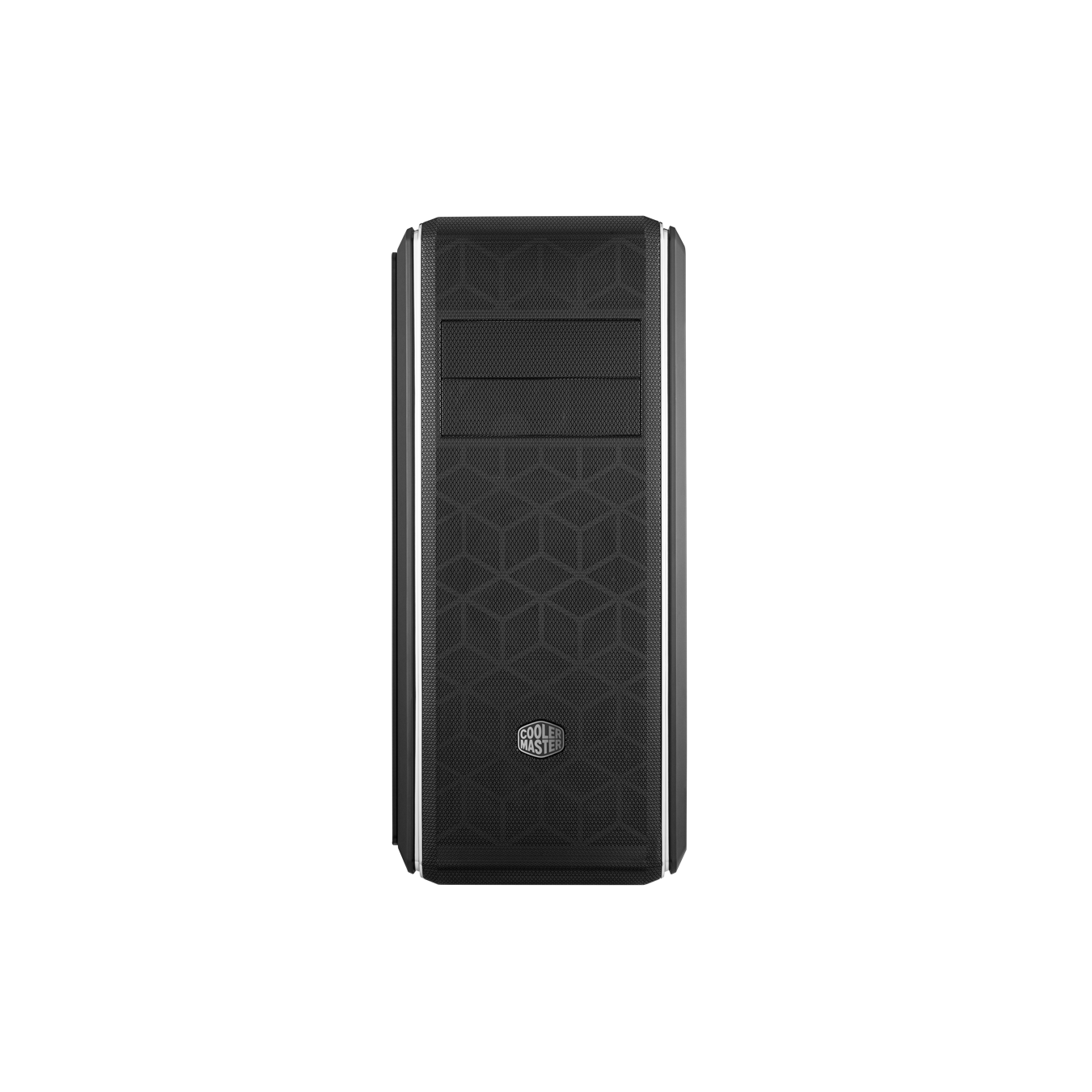

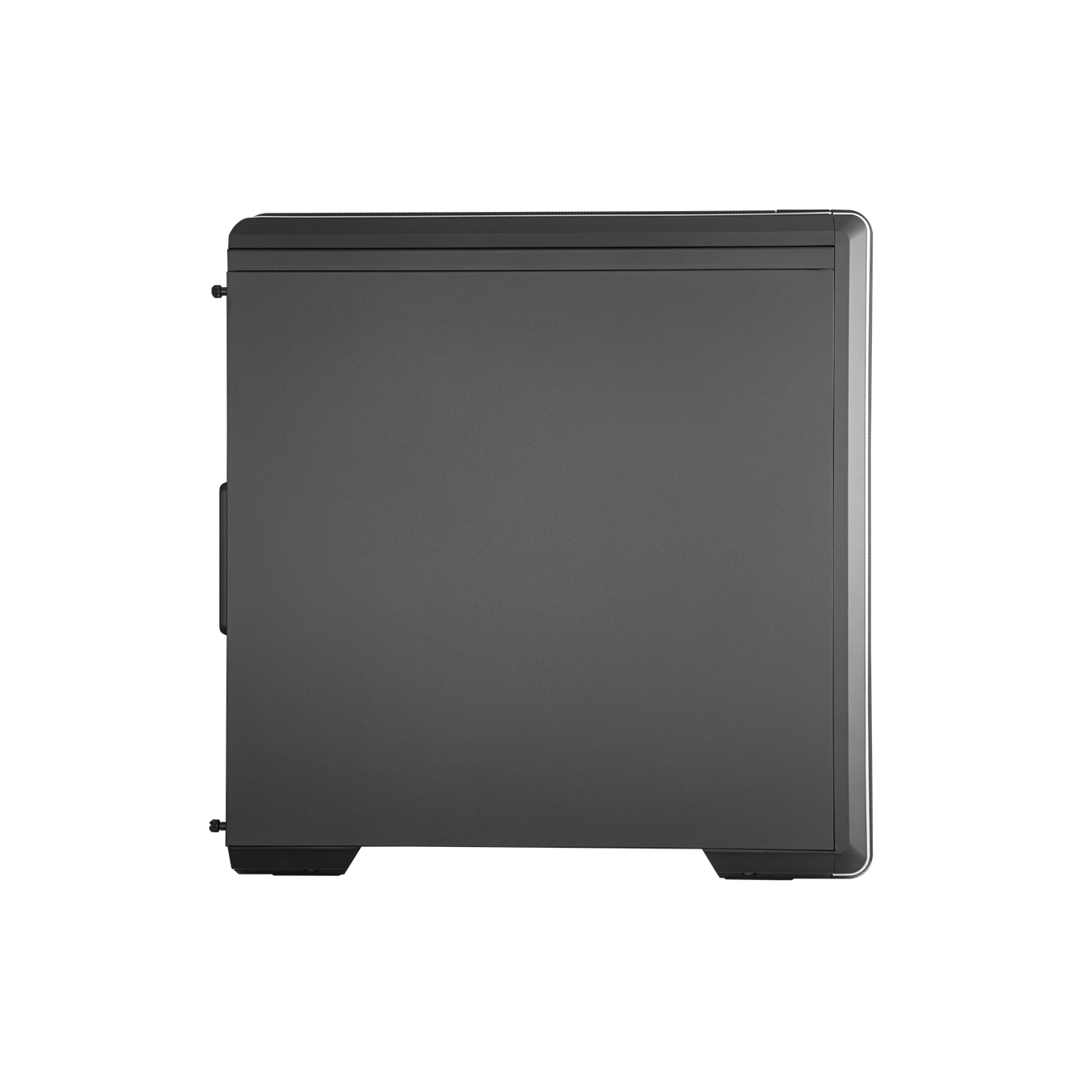

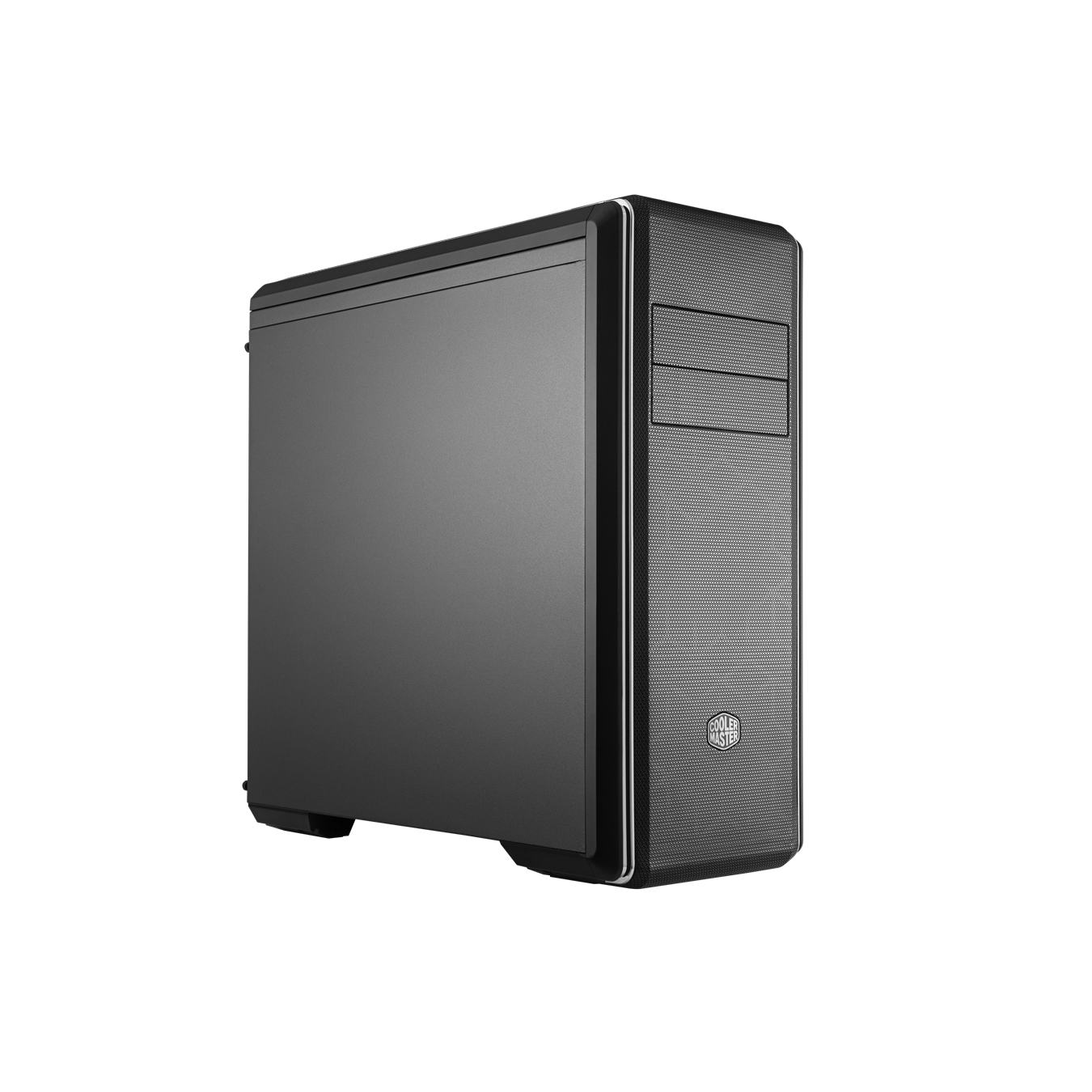

Cooler Master MCB-CM694-KG5N-S00 MasterBox CM694 Tempered Glass Black Steel ATX Mid Tower Desktop Chassis

Cooler Master MCB-CM694-KG5N-S00 MasterBox CM694 Tempered Glass Black Steel ATX Mid Tower Desktop Chassis

$ 128.00 ---ONLY---
SKU: MCB-CM694-KG5N-S00 Categories: ,

Mid Tower Eatx Computer Cabinet Mesh

EXPERT FEATURES

  • Steel & Mesh Chassis

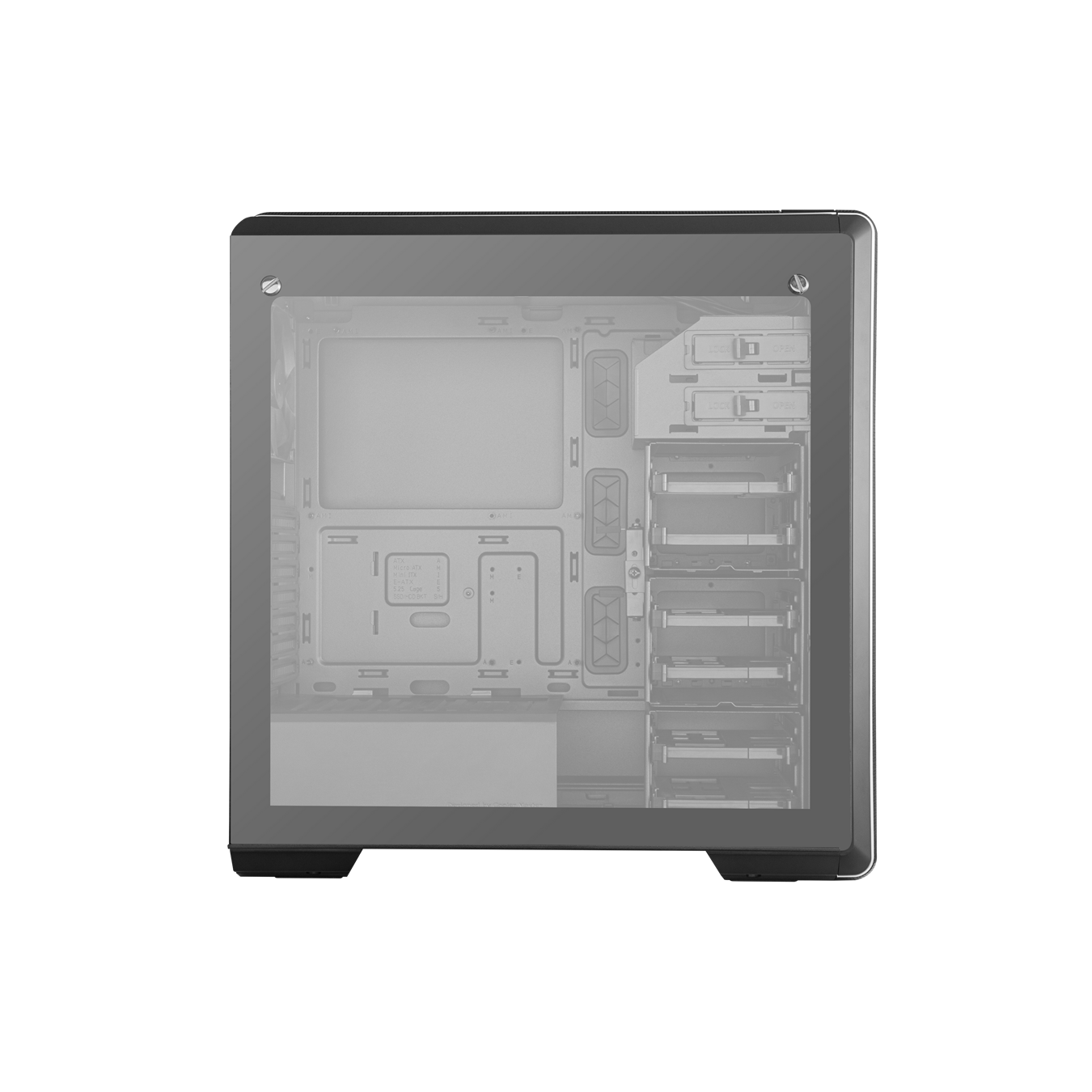

  •  4mm Tempered Glass Side Panel
  • Mid Tower Form Factor
  • Colour: Black
  •  Supports E-ATX, ATX, Micro-ATX, Mini-ITX Motherboards
  • 6x 3.5″, 8x 2.5″ Drive Bays Supported
  •  2x USB 3.0 Type A, 1x USB 3.1 Type-C, 1x 3.5mm Headset Jack (Audio + Mic)
  •  Radiator Maximum Supported Length: Up To 360mm (Front & Top)
  • CPU Cooler Clearance: 171mm
  • Maximum GPU Length: 410mm
  •  3x 120mm Premium Fans Included
  • 1x Graphics Card Stabilizer Included
  •  Single Layer Mesh Filter





EXPERT SPECIFICATIONS

Model Number MCB-CM694-KN5N-S00 (Steel), MCB-CM694-KG5N-S00 (TG)
Series MasterBox Series
Size Mid Tower
Color(s) Black
Materials Steel, Plastic, Tempered Glass, Mesh
Dimensions (L x W x H) Steel: 493mm x 220mm x 506mm (incl. Protrusions), Steel: 482mm x 220mm x 477mm (excl. Protrusions), TG: 493mm x 224mm x 506mm (incl. Protrusions), TG: 482mm x 224mm x 477mm (excl. Protrusions)
Motherboard Support Mini ITX, Micro ATX, ATX, E-ATX
Expansion Slots 7
5.25″ Drive Bays 2
2.5″ / 3.5″ Drive Bays (Combo) 6 (3x drive cages)
2.5″ Drive Bays 8 (2 + 6 combo)
I/O Panel 2x USB 3.0 Type A, 1x USB 3.1 Type-C, 1x 3.5mm Headset Jack (Audio+Mic)
Pre-installed Fans – Front 2x 120mm Fan (1200 RPM ± 200 RPM, 3 pin connector)
Pre-installed Fans – Rear 1x 120mm fan (1200 RPM ± 200 RPM, 3 pin connector)
Fan Support – Front 3x 120mm / 2x 140mm (wo/ODD), 2x 120mm / 2x 140mm (w/ODD)
Fan Support – Top 3x 120mm, 2x 140mm
Fan Support – Rear 1x 120mm
Radiator Support – Front 120mm*, 140mm*, 240mm*, 280mm**, 360mm** (*remove 2 out of 3 drive cages) (**remove 2 out of 3 drive cages & ODD cage)
Radiator Support – Top 120mm, 140mm, 240mm, 280mm, 360mm, (mount radiator below the bracket & fans above the bracket for maximum compatibility)
Radiator Support – Rear 120mm
Clearance – CPU Cooler 171mm
Clearance – GFX 410mm/16.1″, 350mm (with stabilizer), 280mm (with stabilizer + drive cage)
Clearance – PSU 276mm, 160mm (drive cage rear position)
Power Supply Support Bottom Mount, ATX PS2
Dust Filters Top, Front, Bottom
Cable Routing 27-29mm

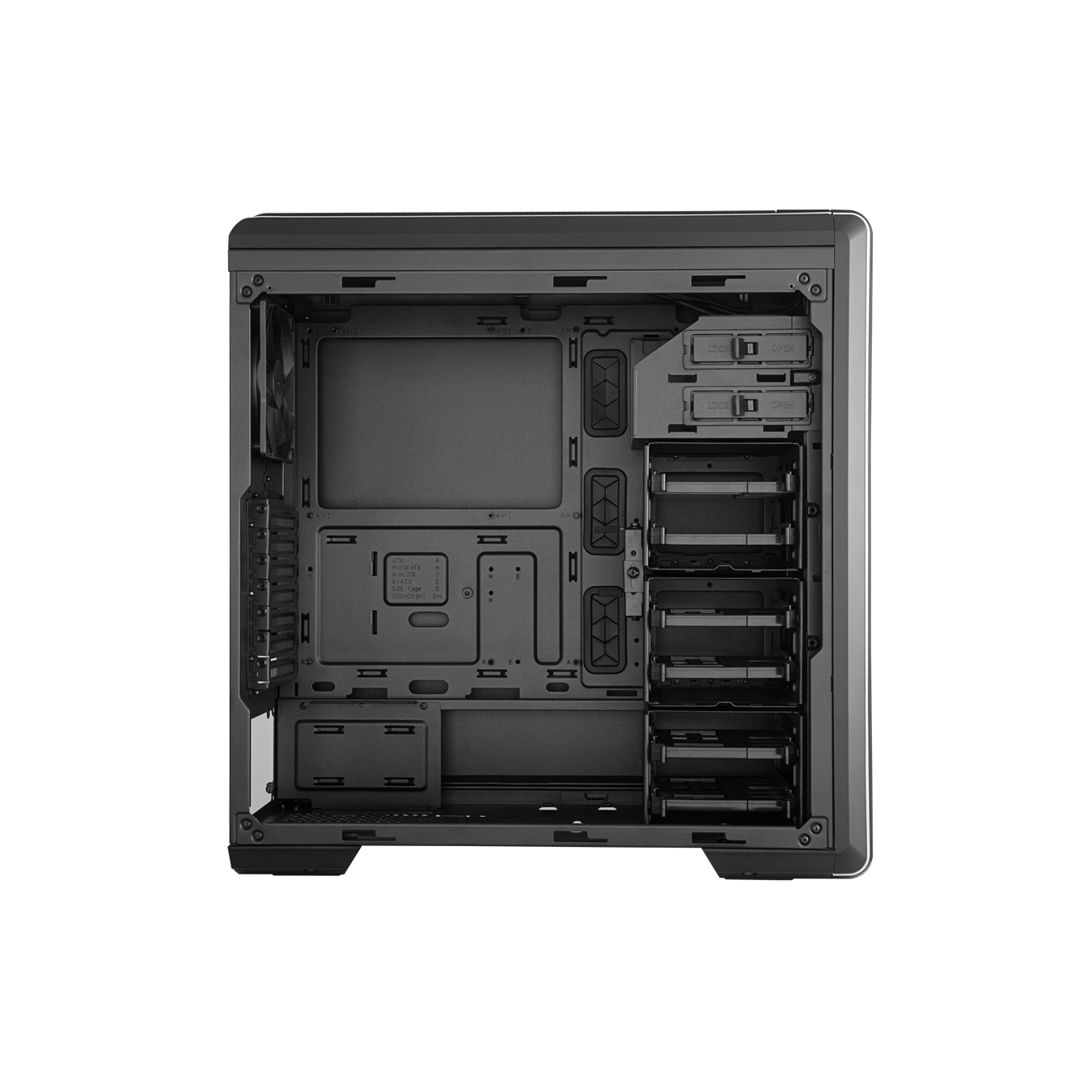

Modular Drive Cages

MODULAR DRIVE CAGES

3 Drive Cages can be individually added, removed, or repositioned to make room for longer graphics cards and/or top & front radiators.

Cooling Support

COOLING SUPPORT

RADIATORS
Top: 120 / 140 / 240 / 280 / 360mm
(mount fans above bracket for maximum compatibility)
Front: 120* / 140* / 240* / 280** / 360mm*
*remove 2 out of 3 drive cage
**remove 2 out of 3 drive cages & ODD
Rear: 120mm
Cooling Support

COOLING SUPPORT

FANS
Top: 120mm x 3 / 140mm x 2
Front: 120mm x 3 / 140mm x 2 (without ODD)
120mm x 2 / 140mm x 2 (with ODD)
Rear: 120mm x 1
Massive Storage Support

MASSIVE STORAGE SUPPORT

Simultaneous support for 6 x 3.5” HDDs
and 8 x 2.5” SSDs ensure substantial
storage capabilities.

Description

Cooler Master MCB-CM694-KG5N-S00 MasterBox CM694 Tempered Glass Black Steel ATX Mid Tower Desktop Chassis
