SKU: TD500V2-KGNN-S00

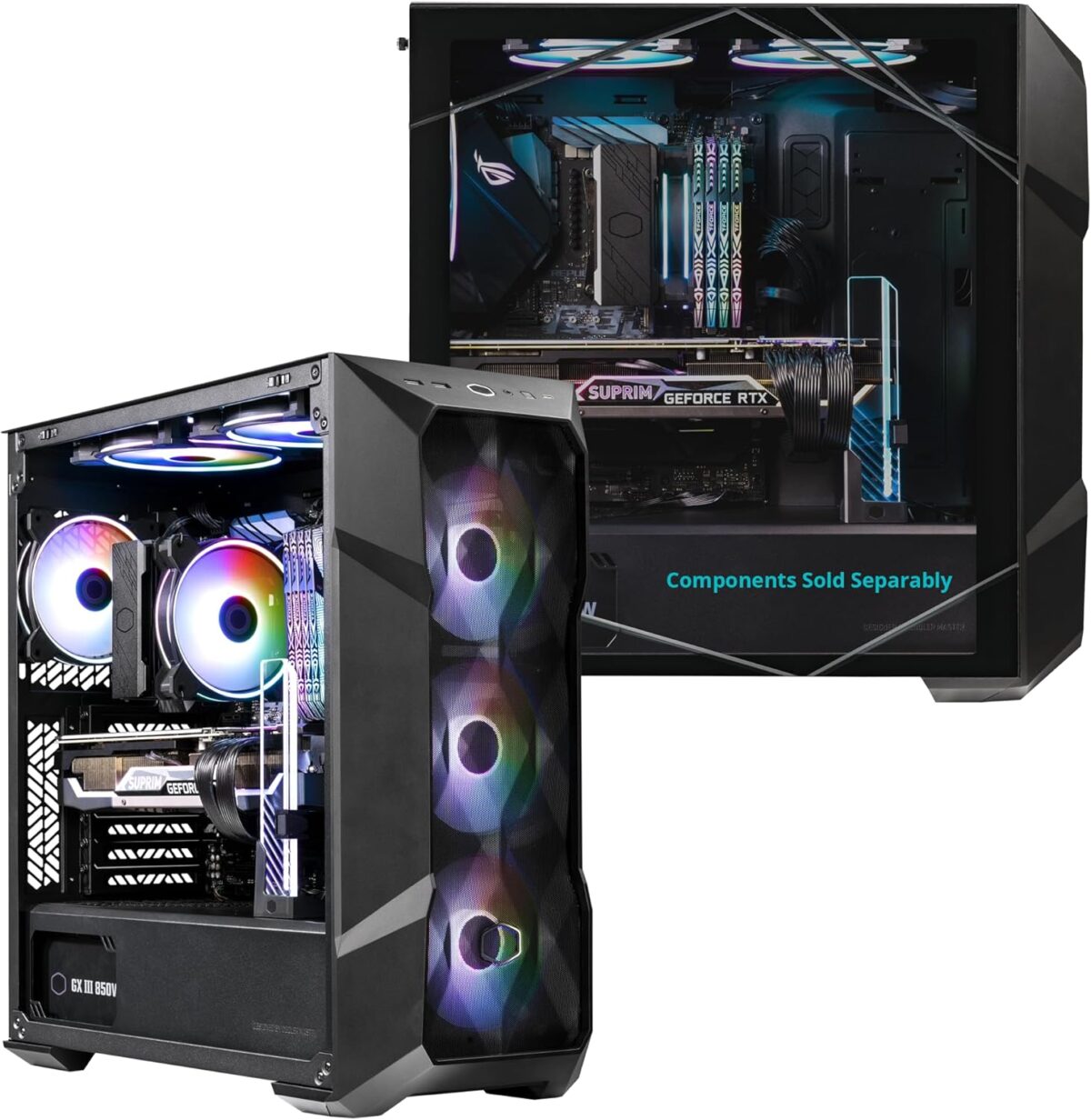

Cooler Master MasterBox TD500 Mesh V2 ATX Mid Tower PC Case With FineMesh Polygonal Front Panel, 3× CF120 ARGB Fans, USB Type-C, Tempered Glass  | BLACK

Description

Expert Features

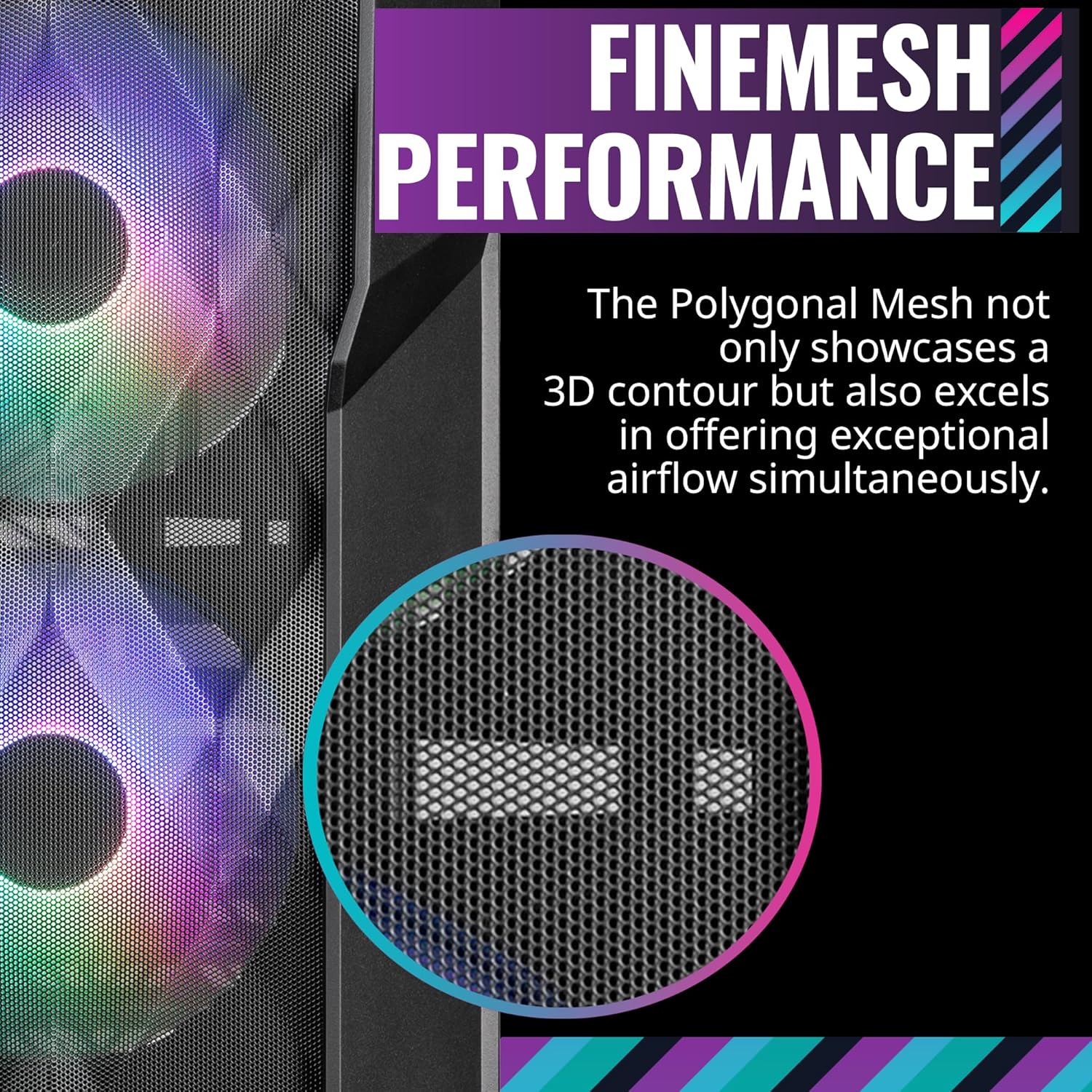

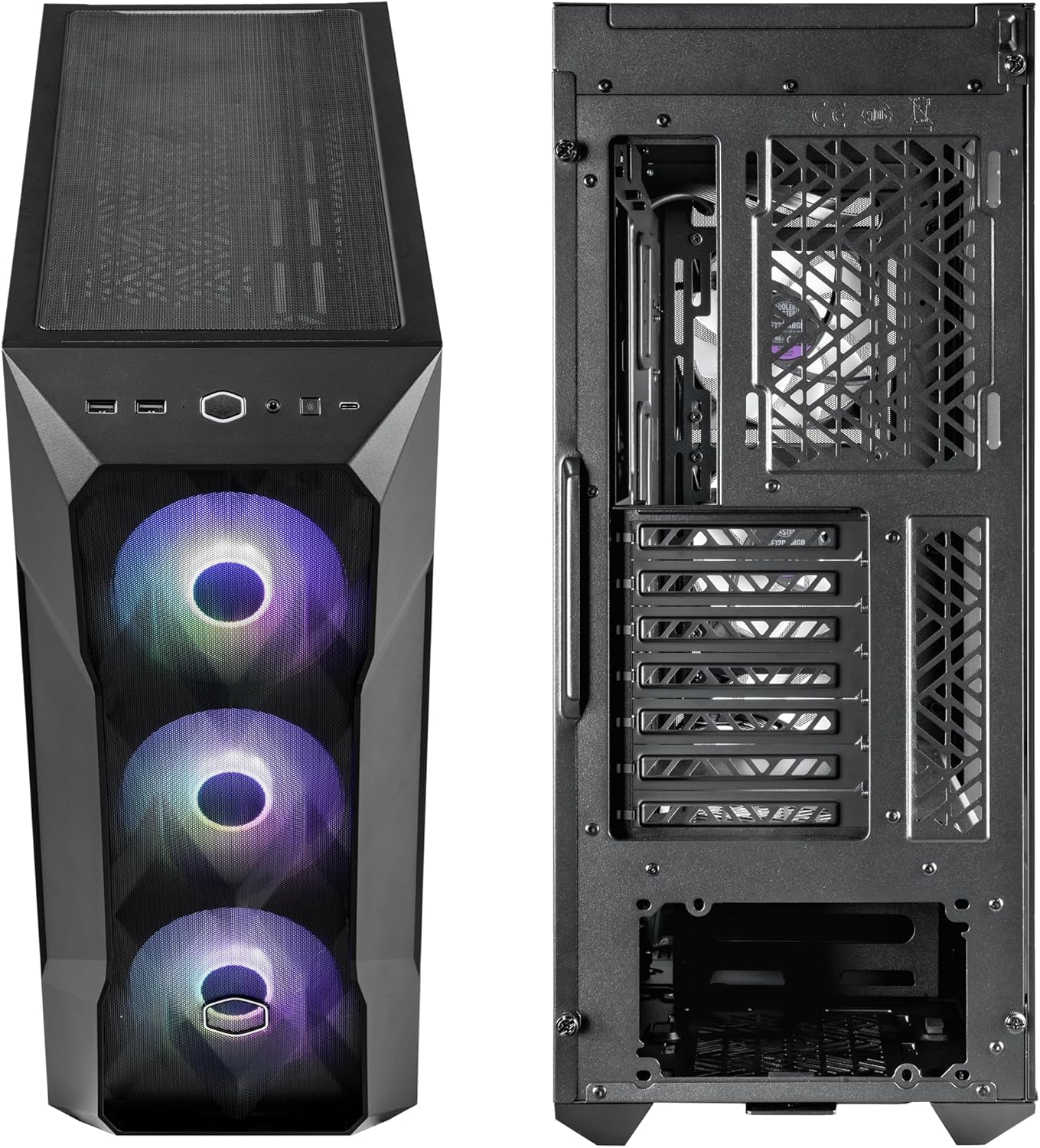

  • Polygonal FineMesh Front Panel : Iconic 3D polygonal FineMesh design delivers high airflow while maintaining effective dust filtration and a visually striking front profile
  • High-Airflow Performance Design : Optimized internal layout ensures consistent cooling and stable thermals during extended gaming or heavy workloads

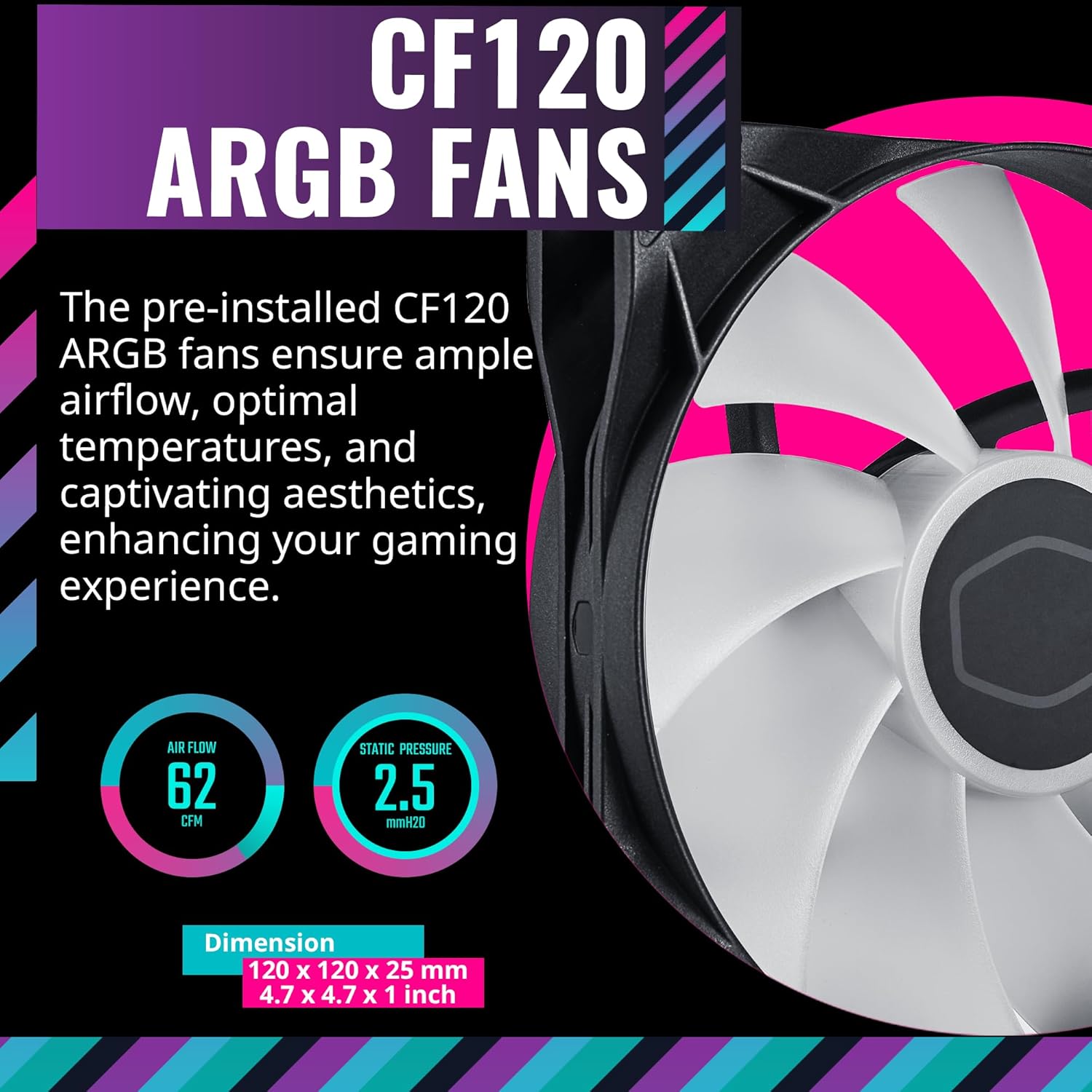

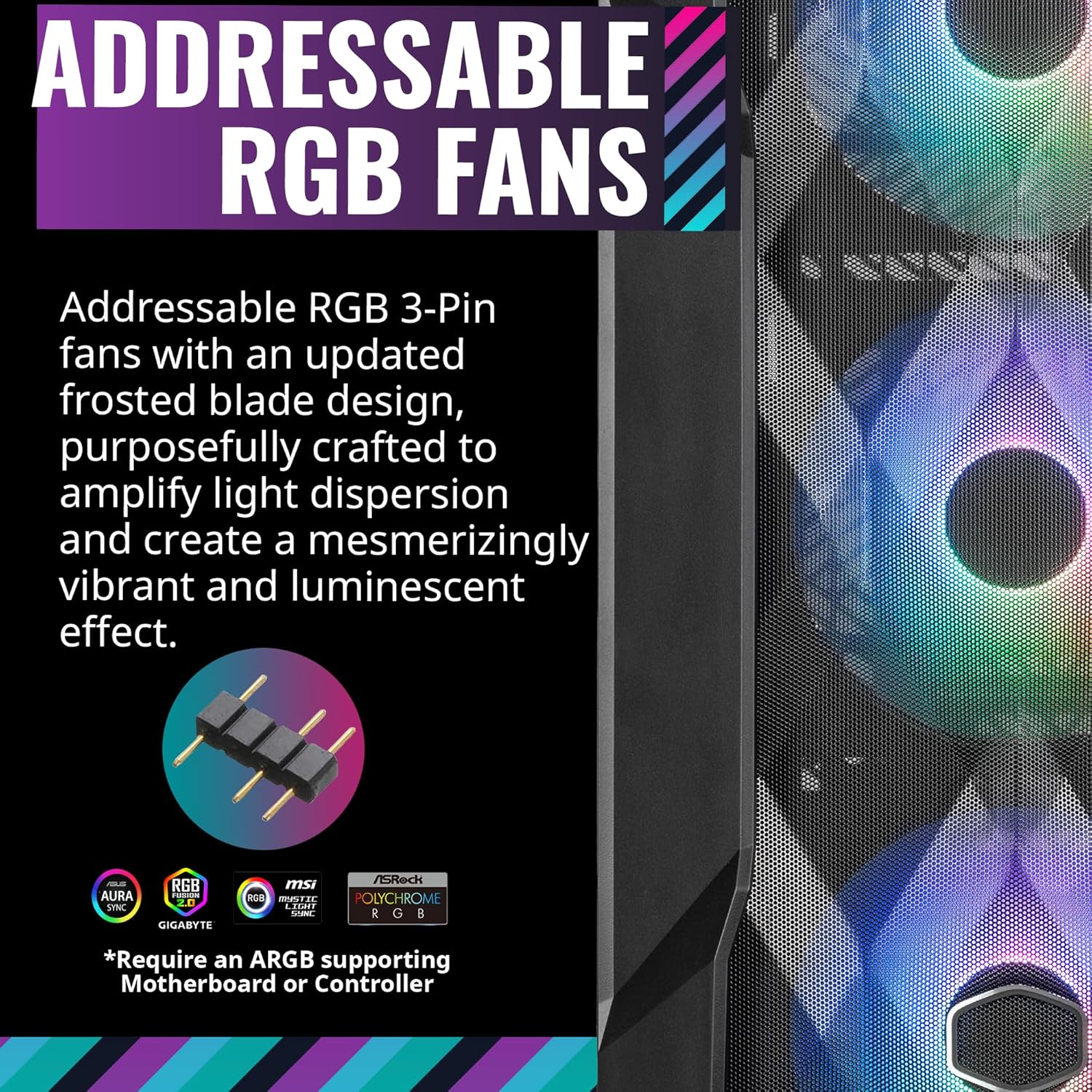

  • Pre-Installed CF120 ARGB Fans : Includes three 120mm CF120 ARGB fans at the front to provide balanced airflow, vivid lighting, and thermal efficiency

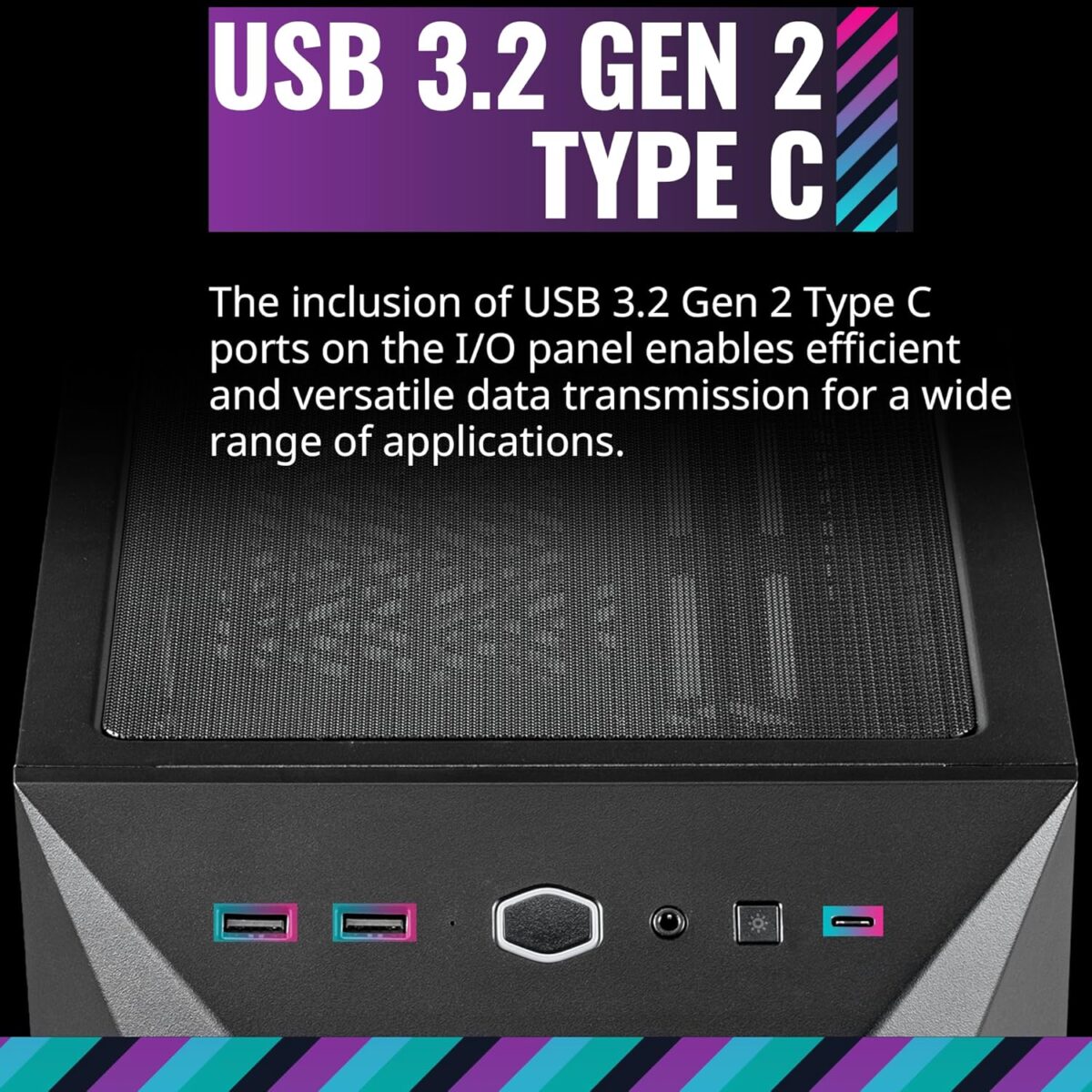

  • USB 3.2 Gen 2 Type-C Front I/O : Integrated USB Type-C port enables high-speed data transfer and modern device compatibility

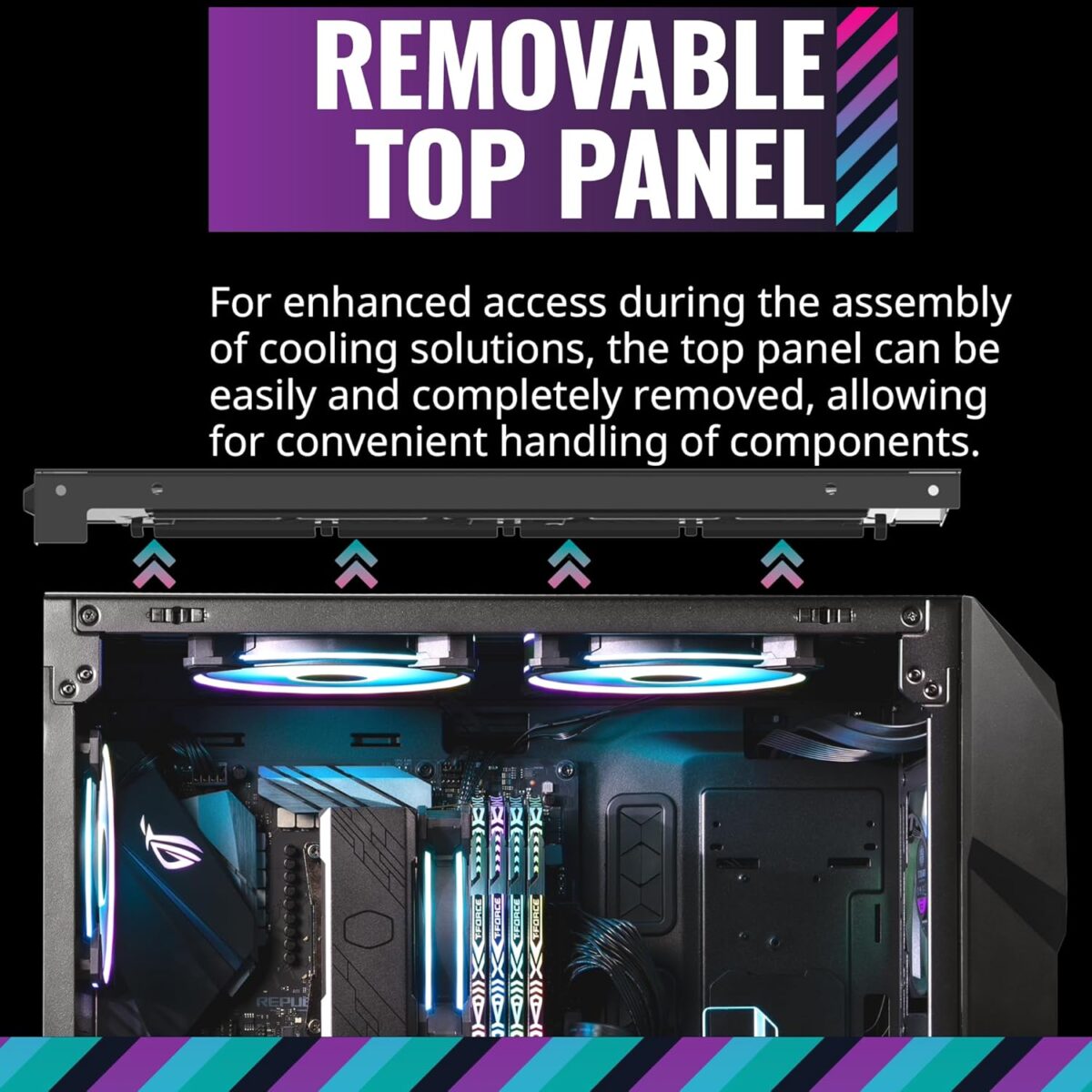

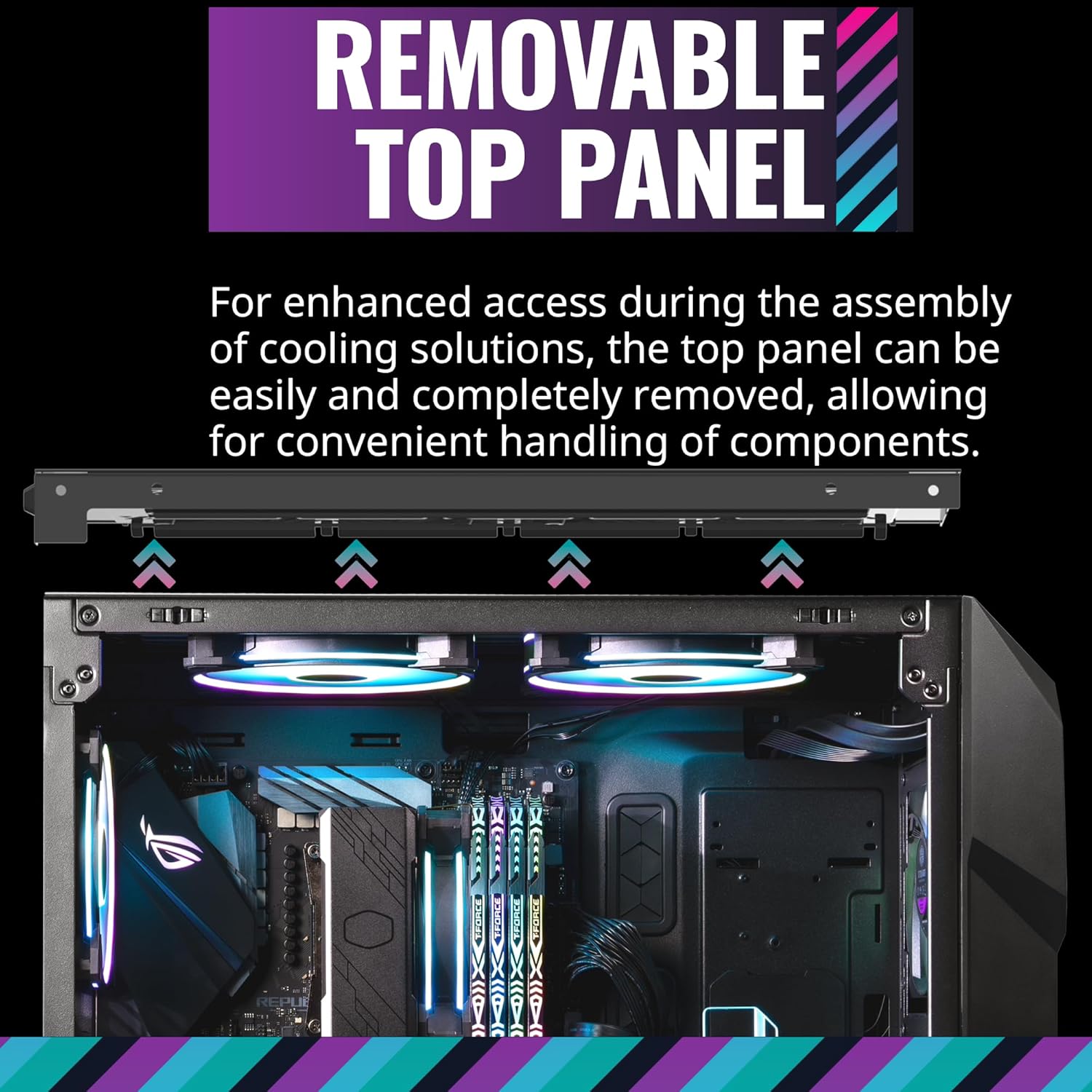

  • Removable Top Panel : Fully detachable top panel allows easier access during system assembly and simplifies radiator and fan installation

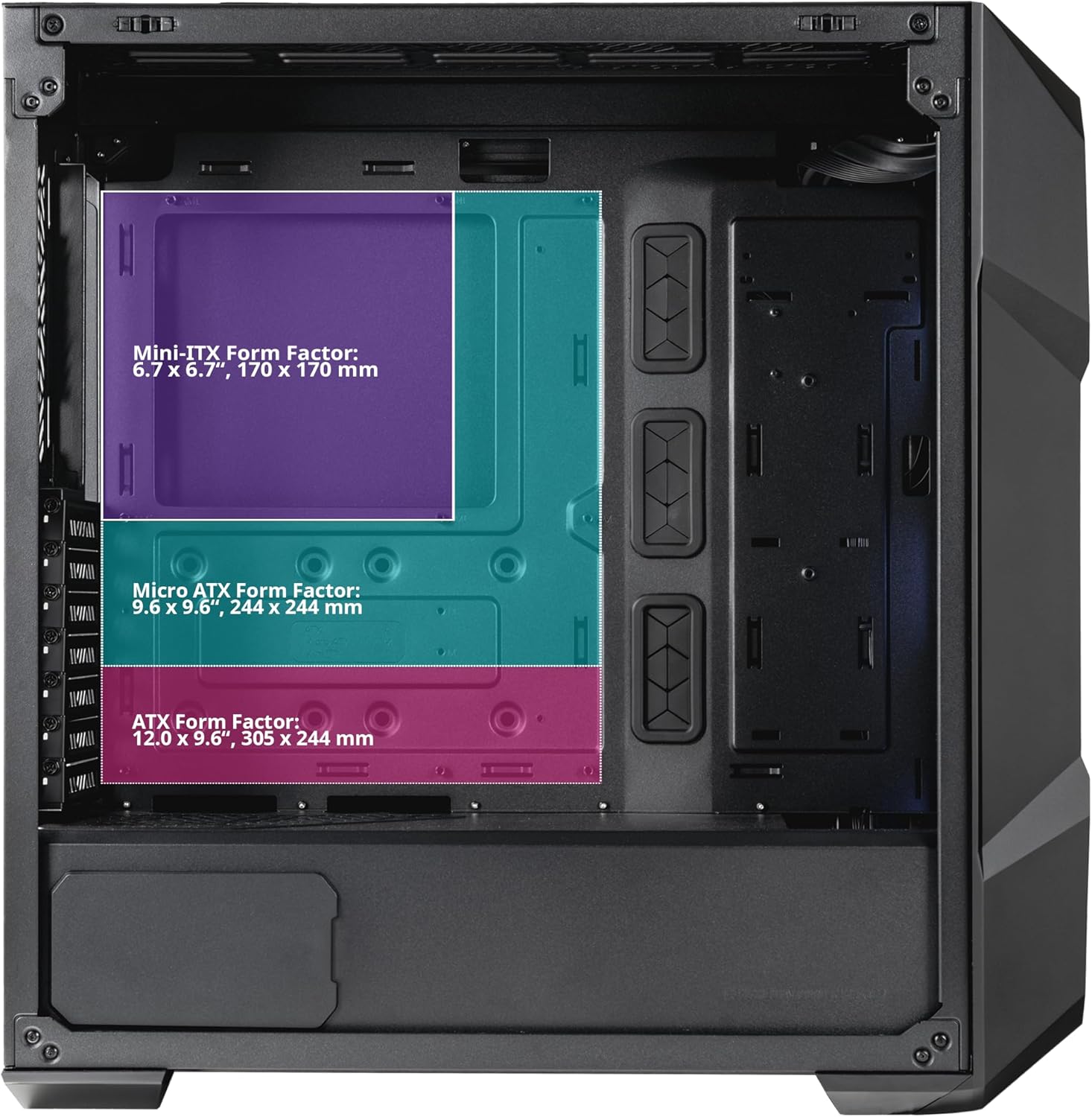

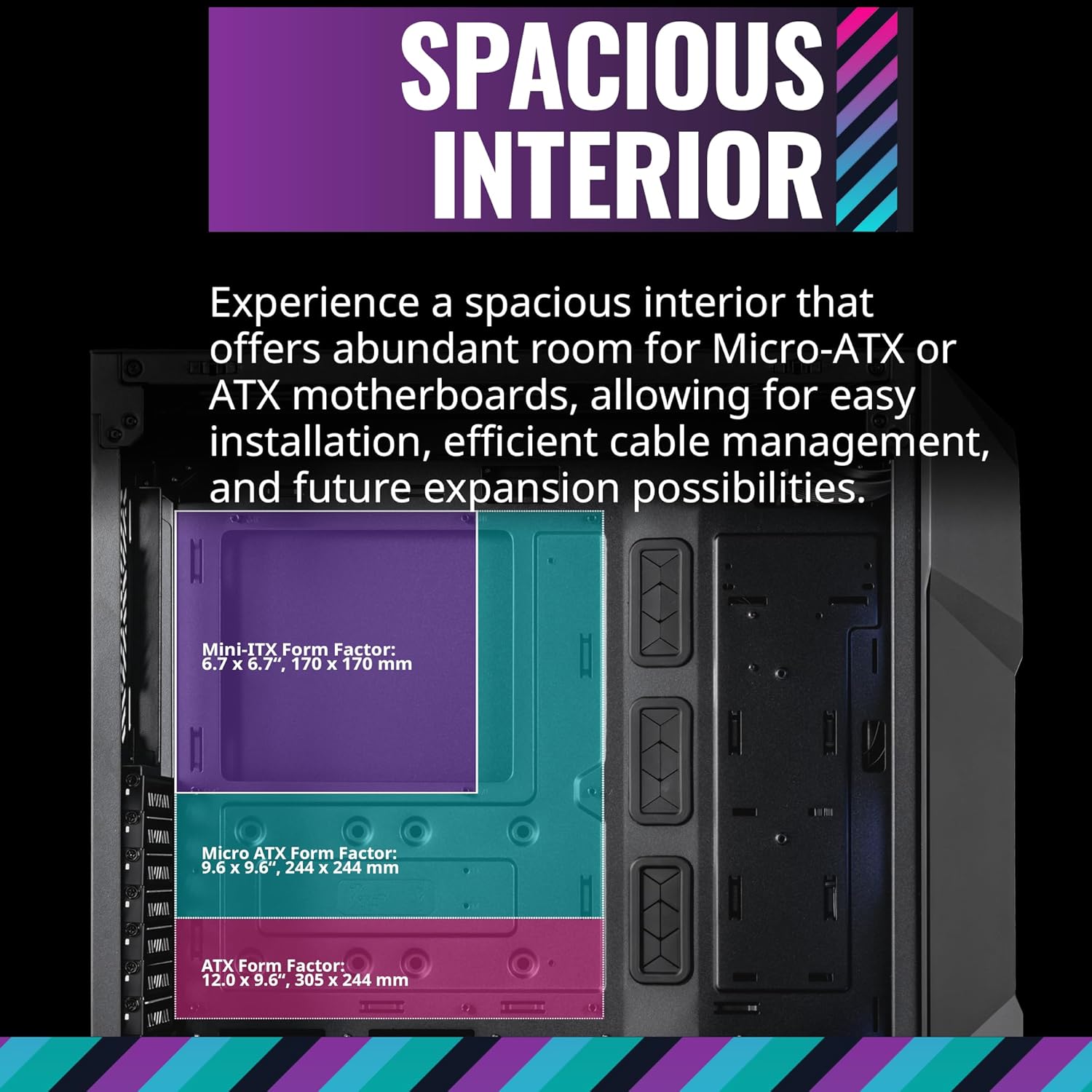

  • Wide Motherboard Compatibility : Natively supports Mini-ITX, Micro-ATX, and ATX motherboards, with E-ATX compatibility up to 12″ × 10.7″

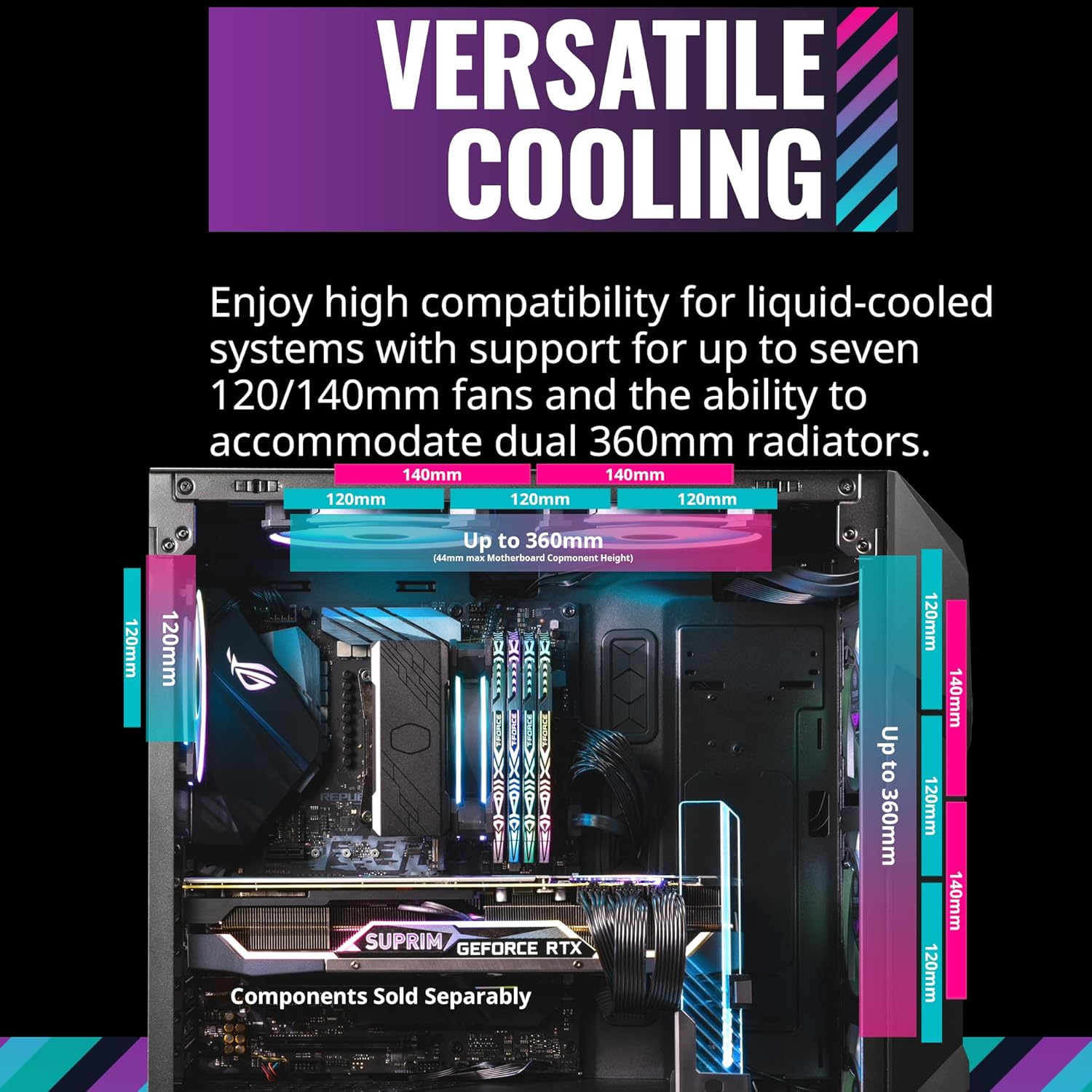

  • Versatile Cooling Support : Supports up to seven 120mm fans and extensive radiator options on the front, top, and rear

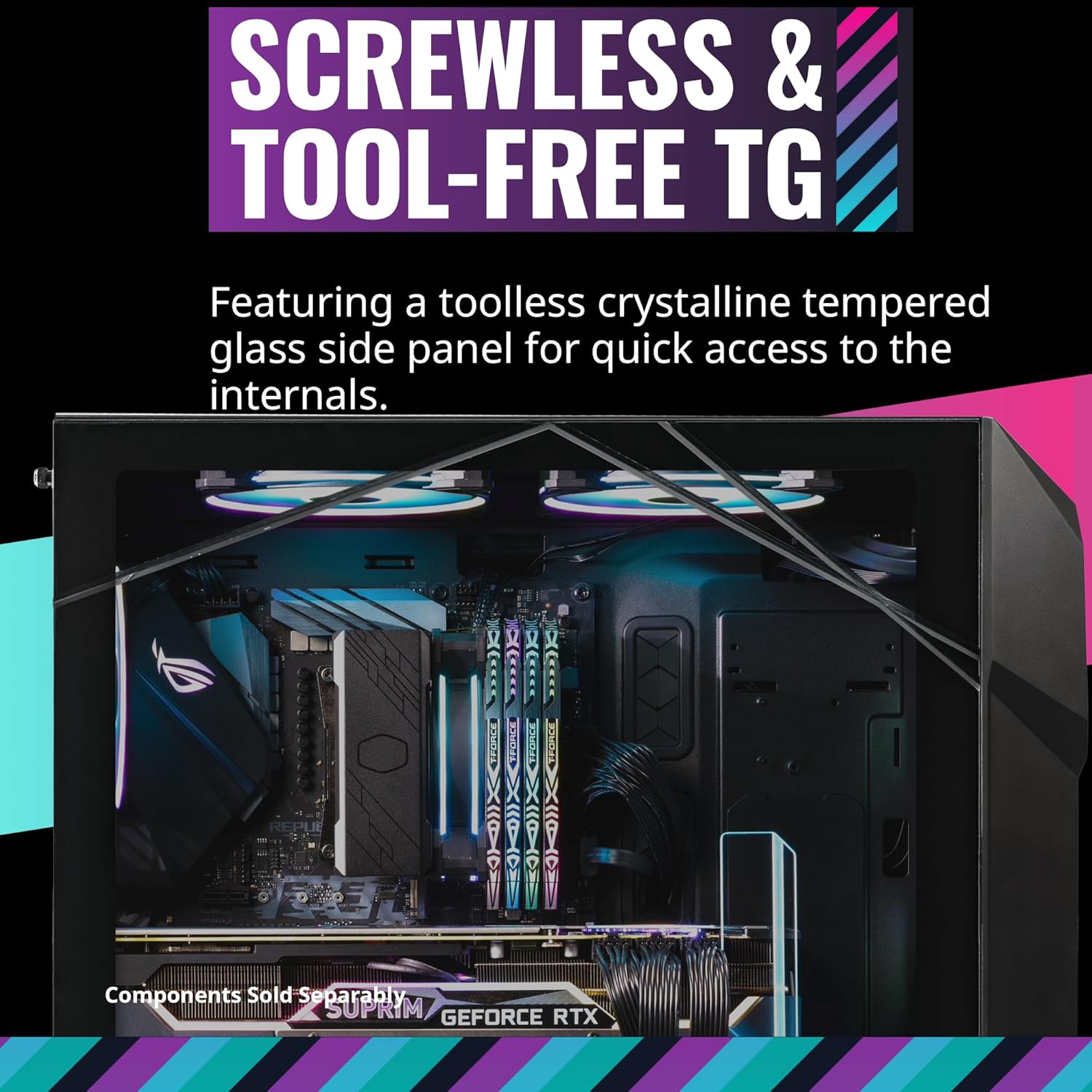

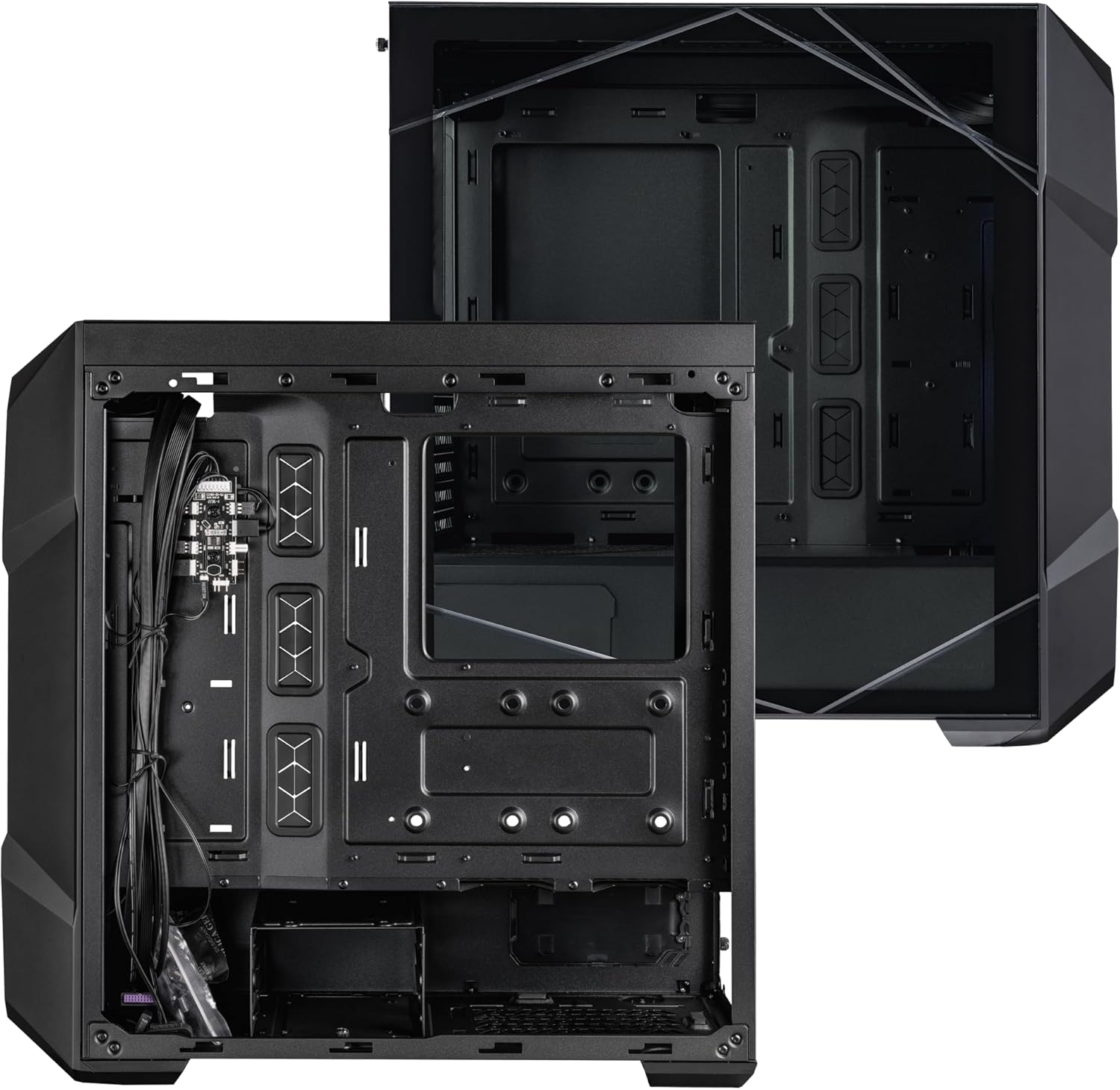

  • Tool-Free Tempered Glass Side Panel : Crystalline tempered glass panel offers quick access to internals without tools while showcasing system components

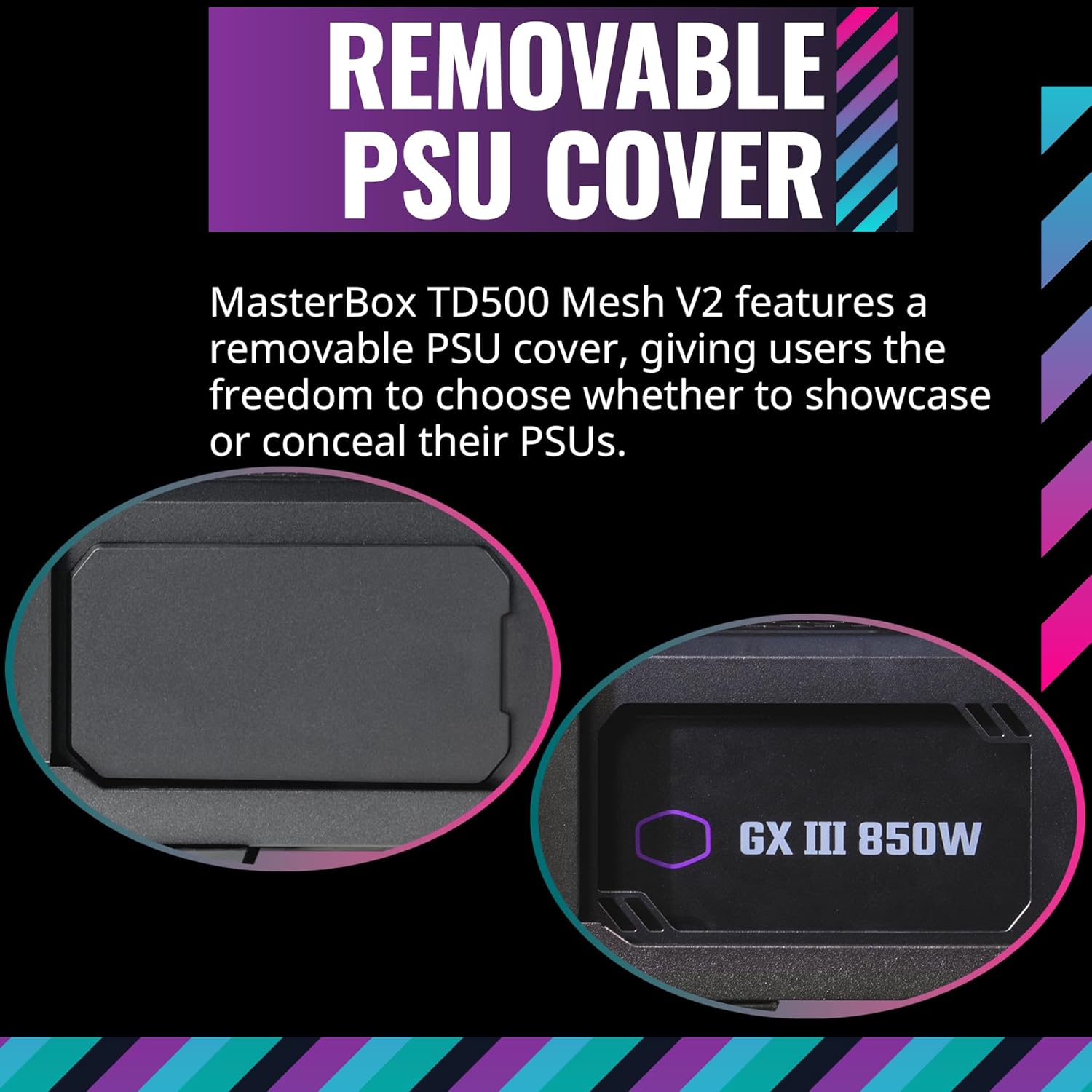

  • PSU Shroud With Removable Cover : Modular PSU shroud lets users choose between a clean hidden build or a fully visible power supply presentation

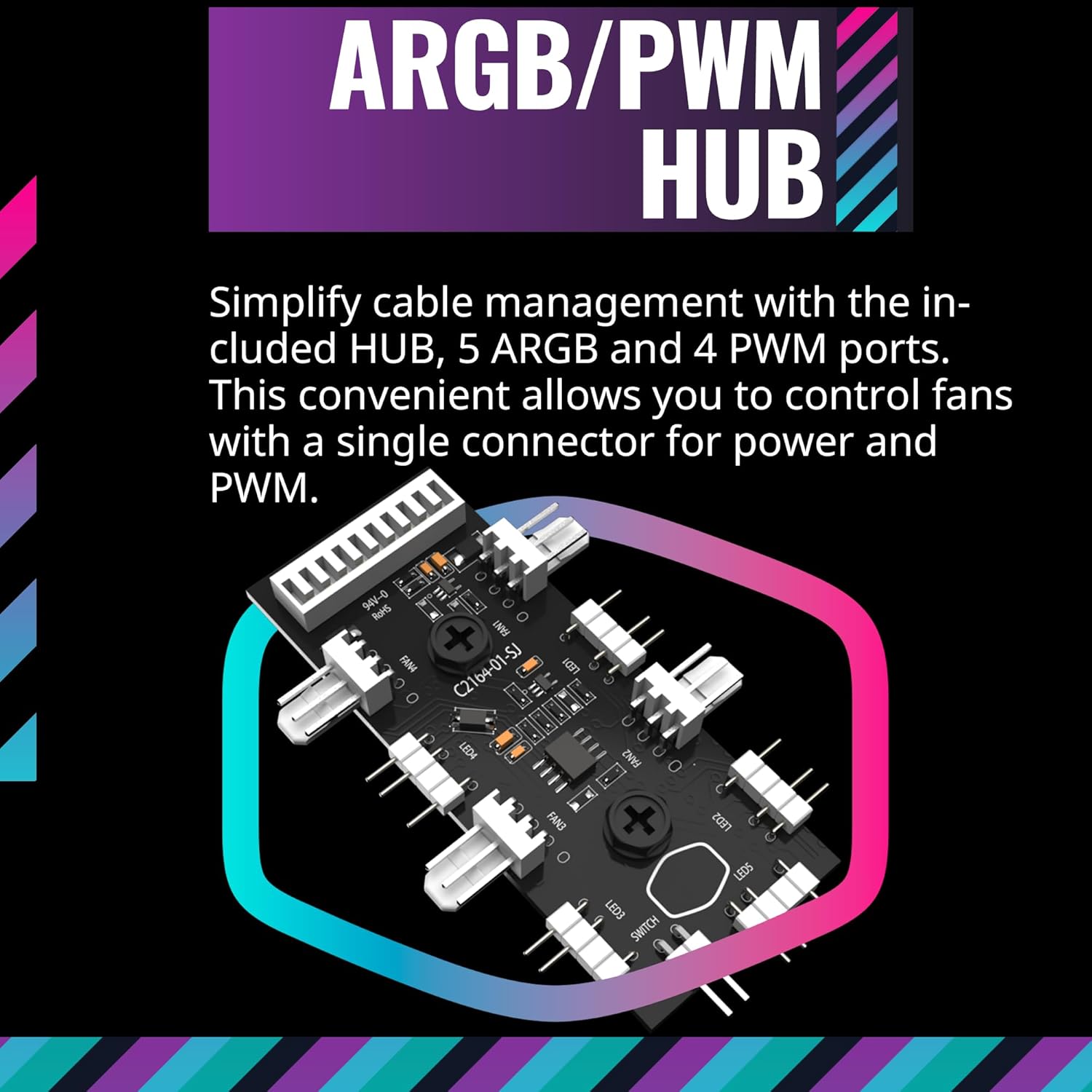

  • Integrated ARGB And Fan Hub : Included controller allows independent lighting management and provides four additional fan headers
  • Extensive GPU Clearance : Supports graphics cards up to 410mm in length, enabling compatibility with high-end GPUs
  • Comprehensive Dust Filtration : Front, top, and bottom dust filters help maintain internal cleanliness and long-term component reliability

Expert Specs

Category Specification
Product Name Cooler Master MasterBox TD500 Mesh V2
Model Numbers TD500V2-KGNN-S00
Series MasterBox Series
Case Type Mid Tower
Exterior Color Black
Exterior Materials Steel, Mesh, Plastic
Left Side Panel Material Tempered Glass
Dimensions (Incl. Protrusions) 499 × 210 × 500 mm
Dimensions (Excl. Protrusions) 430 × 210 × 477 mm
Motherboard Support Mini-ITX / Micro-ATX / ATX / SSI-CEB / E-ATX (Up To 12″ × 10.7″)
Expansion Slots 7
3.5″ Drive Bays 2
2.5″ Drive Bays 3
Pre-Installed Front Fans 3 × 120mm CF120 ARGB
Pre-Installed Top Fans N/A
Pre-Installed Rear Fans N/A
Fan Support – Front 3 × 120mm / 2 × 140mm
Fan Support – Top 3 × 120mm / 2 × 140mm
Fan Support – Rear 1 × 120mm
Radiator Support – Front 120 / 140 / 240 / 280 / 360mm
Radiator Support – Top 120 / 140 / 240 / 280 / 360mm (Max Thickness 55mm Recommended)
Radiator Support – Rear 120mm

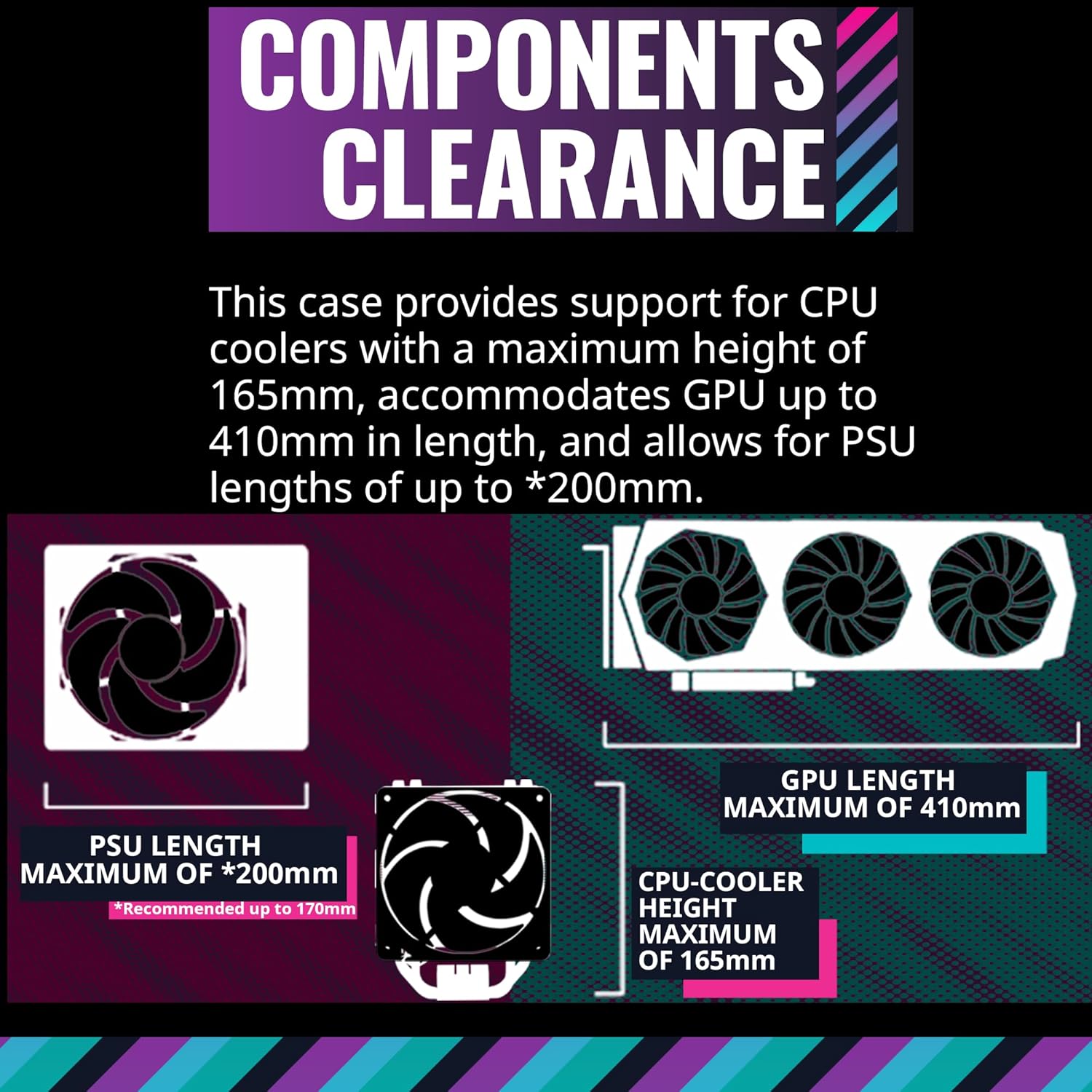

CPU Cooler Clearance 165mm
GPU Clearance 410mm
PSU Clearance 200mm (Recommended Up To 170mm)
Cable Routing Space 19mm / 0.74″
Dust Filters Front, Top, Bottom
Power Supply Support Bottom Mount, ATX
Front I/O USB Ports 2 × USB 3.2 Gen 1, 1 × USB 3.2 Gen 2 Type-C
Front I/O Audio 1 × Audio Jack
Included Controller ARGB / Fan Hub
Back Connector Motherboard Support No
