SKU: E502-KGNN-S00

Cooler Master Elite 502 ATX Mid Tower PC Case With Back-Connected Motherboard Support, Mesh Front Panel, 3× ARGB Fans, USB Type-C, 420mm Radiator Support | BLACK

$ 77.00 ---ONLY---

Description

Expert Features

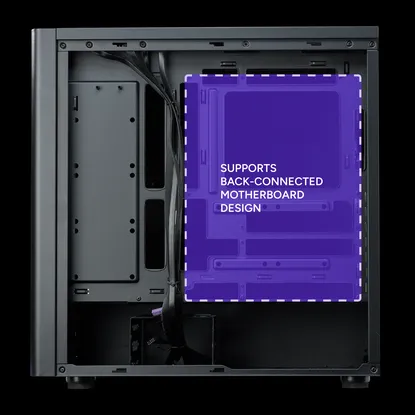

  • Back-Connected Motherboard Support : Supports modern back-connector motherboard designs, freeing up the front layout while offering 33–35mm cable routing space behind the motherboard tray

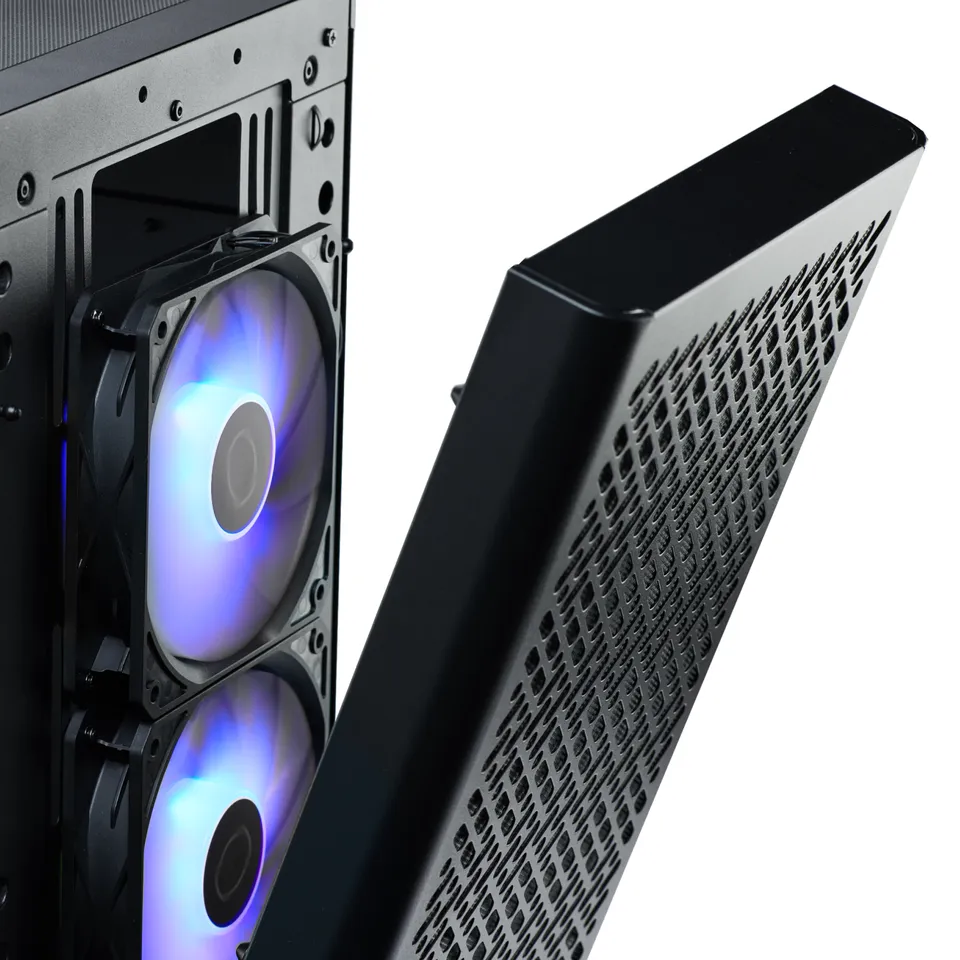

  • Advanced Mesh Front Panel : High-airflow mesh front panel enhances cooling efficiency while maintaining a clean and performance-focused design

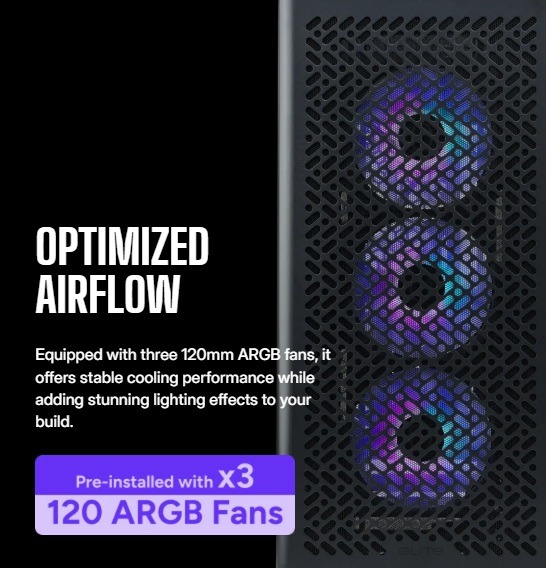

  • Optimized Airflow Architecture : Equipped with three pre-installed 120mm ARGB fans to deliver stable cooling performance with vivid lighting effects

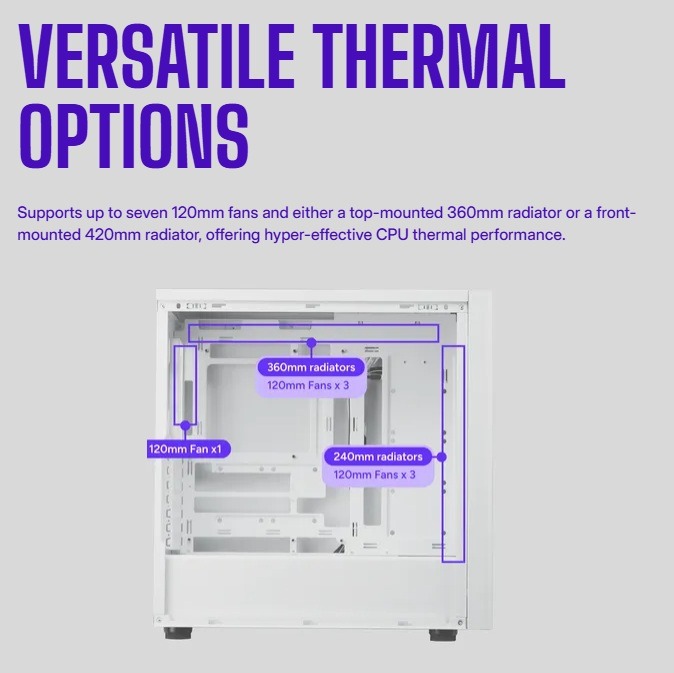

  • Versatile Thermal Configuration : Supports up to seven 120mm fans and accommodates a 360mm top radiator or a massive 420mm front radiator

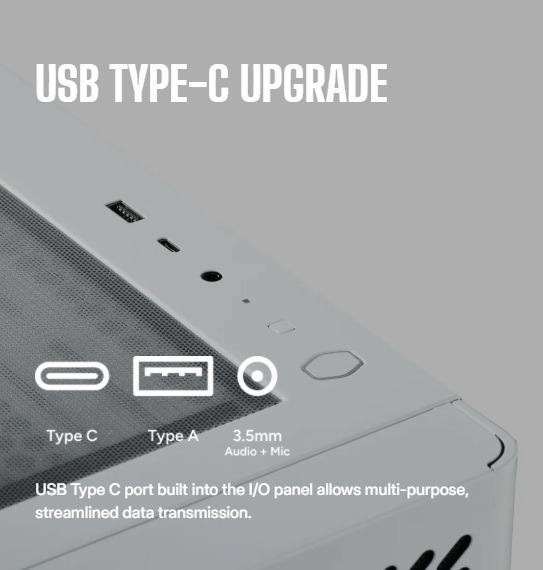

  • USB Type-C Front I/O : Integrated USB 3.2 Gen1 Type-C port enables streamlined, multi-purpose data transmission for modern devices

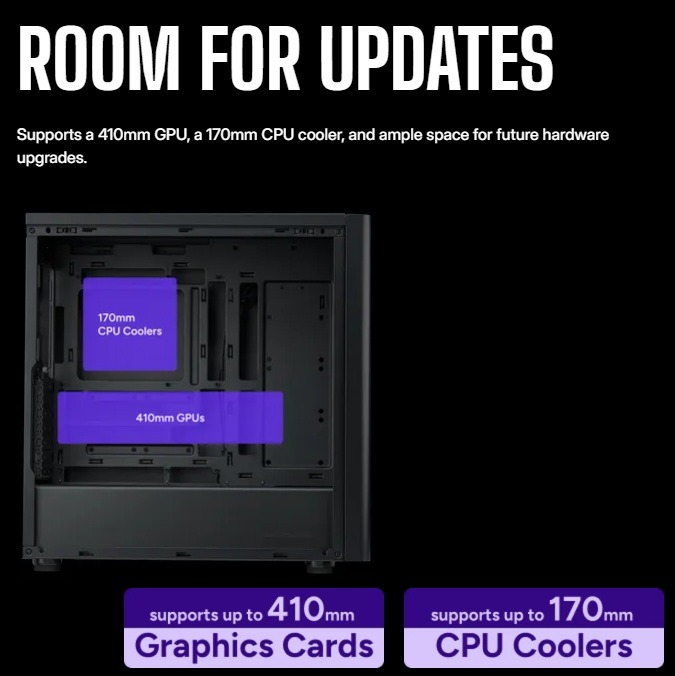

  • Room For Future Upgrades : Supports graphics cards up to 410mm and CPU coolers up to 170mm, ensuring long-term hardware compatibility

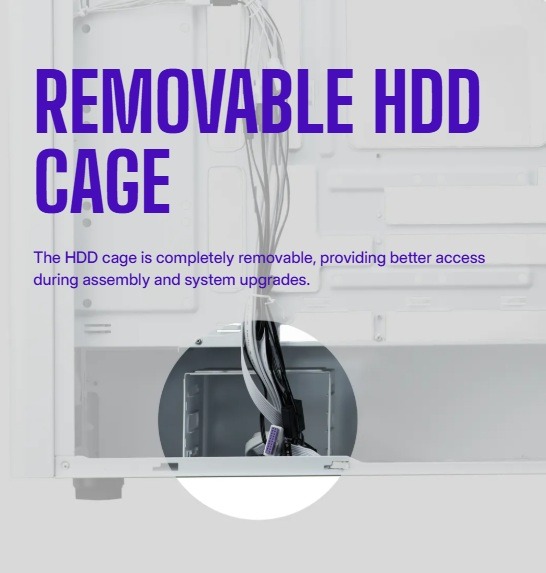

  • Removable HDD Cage : Fully removable HDD cage improves accessibility during system assembly and simplifies future upgrades
  • Wide Motherboard Compatibility : Supports ITX, Micro-ATX, ATX, and E-ATX motherboards up to 12″ × 10.9″
  • Filtered Cooling Intakes : Front, top, and bottom dust filters help maintain internal cleanliness and airflow efficiency
  • Mid Tower Efficiency Design : Balanced internal volume offers high-end hardware support while maintaining a streamlined mid-tower footprint

Expert Specs

Category Specification
Product Name ELITE 502
Alternate Color ELITE 502 White
Model Numbers E502-KGNN-S00
Series Elite Series
Case Size Mid Tower
Exterior Color Black
Exterior Material Steel
Right Side Panel Steel
Left Side Panel Tempered Glass
Dimensions (Incl. Protrusions) 474 × 230 × 481 mm
Dimensions (Excl. Protrusions) 435 × 230 × 465 mm
Volume 49.73 L
Motherboard Support ITX / Micro-ATX / ATX / E-ATX (Up To 12″ × 10.9″)
Expansion Slots 7
5.25″ Drive Bays N/A
3.5″ Drive Bays 2
2.5″ Drive Bays 2 (Max. 6)
Pre-Installed Front Fans 3 × 120mm ARGB
Pre-Installed Top Fans N/A
Pre-Installed Rear Fans N/A
Fan Support – Front 3 × 120mm / 3 × 140mm (Filtered)
Fan Support – Top 3 × 120mm / 2 × 140mm (Filtered)
Fan Support – Rear 1 × 120mm
Radiator Support – Front 120 / 140 / 240 / 280 / 360 / 420mm
Radiator Support – Top 120 / 140 / 240 / 280 / 360mm
Radiator Support – Rear 120mm
CPU Cooler Clearance 170mm
GPU Clearance 360mm / 410mm (Without Front Radiator)
PSU Clearance 170mm / 210mm (Without HDD Cage)
Cable Routing Space 33–35mm
Dust Filters Front, Top, Bottom
Power Supply Support ATX
Front I/O USB Ports 1 × USB 3.2 Gen1 Type-A, 1 × USB 3.2 Gen1 Type-C
Front I/O Audio 1 × 3.5mm Combo
Warranty 1 Year
