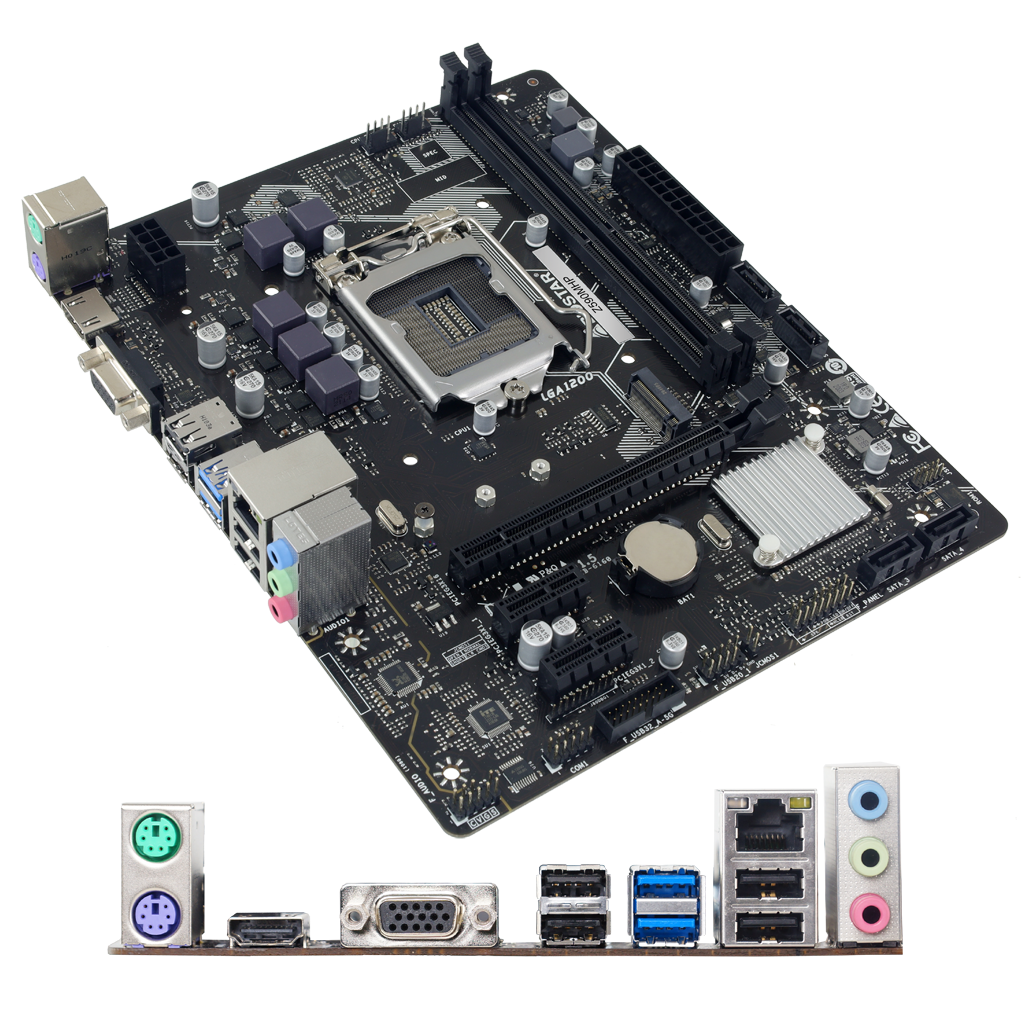

BIOSTAR Z590MHP DDR4 Gen1 PCI-E 4.0 Motherboard, Supports 10th/11th Gen Intel Core Processors, Dual Channel Memory Up to 64GB, PCIe 4.0 & 3.0 M.2, HDMI 4K, Realtek ALC897 7.1 Audio, Intel GbE LAN, USB 3.2 Gen1, SATA III, Micro ATX, Windows 10/11 Support

Expert Features

• Supports 10th/11th Gen Intel Core™ Processors: Compatible with Intel Core™ i9/i7/i5/i3, Pentium®, and Celeron® processors.
• Intel Z590 Chipset: Single-chip architecture designed for high performance and efficiency.
• Memory Support: Dual Channel DDR4 memory up to 64 GB, with overclocking options from 2133 MHz to 4000 MHz.
• PCIe 4.0 Support: Enables faster data transfer and better bandwidth for compatible devices.
• PCIe 3.0 M.2 Slot: Supports high-speed M.2 SSD modules with up to 32Gb/s.
• USB 3.2 Gen1 Ports: Four USB 3.2 (Gen1) ports, delivering faster data transfer speeds up to 5Gbps.
• Audio & Video: High-definition 7.1 channel audio with Realtek ALC897 codec; HDMI 4K2K support with HDCP for smooth, high-quality display.
• Intel GbE LAN: Offers enhanced stability and performance with fewer CPU resources required.
• Advanced Anti-Ghosting: N-key rollover ensures all key presses are registered simultaneously, even during intense gaming sessions.
• 5 Phase Power Phase Design: High-quality power components with a 5-phase VRM for better overclocking capabilities.
• A.I FAN Control: Customizable fan speed modes for efficient cooling, adapting to different gaming and usage needs.
• BullGuard Internet Security (90-day FREE trial): Comprehensive online security suite, including Antivirus, Firewall, Game Mode, and more.
• UEFI BIOS: Modern, easy-to-use graphical interface for BIOS settings with colorful icons for a simplified setup experience.
• BIO-Flasher Tool: Simplified BIOS update tool for easy and hassle-free updates via USB.

Expert Specifications

• CPU Support:
  • Socket 1200 for Intel Core™ 10th/11th Gen, Pentium®, and Celeron® processors
  • Refer to www.biostar.com.tw for the CPU support list.
• Memory:
  • Dual Channel DDR4: Supports DDR4-4000(OC), 3866(OC), 3800(OC), 3733(OC), 3600(OC), 3200, 2933, 2800, 2666, 2400, 2133 MHz
  • 2 x DDR4 DIMM Slots, Max 64 GB supported
  • Each DIMM supports non-ECC 4/8/16/32 GB DDR4 modules
  • Refer to www.biostar.com.tw for Memory support list.
• Integrated Video:
  • By CPU model
  • DX12 Support
  • HDCP Support
• Storage:
  • 4 x SATA III Connectors (6Gb/s)
  • Supports AHCI, RAID 0, 1, 5, 10, and Intel Rapid Storage Technology
  • 1 x M.2 Socket (M Key) supporting M.2 Type 2242/2260/2280 SSDs
  • Supports PCIe 3.0 x4 (32Gb/s) & SATA III (6Gb/s) SSDs
  • SATA_1 is disabled when using SATA SSD on PCIe-M2_1 slot.
• LAN:
  • Intel I219V, 10/100/1000 Mb/s auto negotiation, Half/Full duplex capability
• Audio:
  • Realtek ALC897 codec, 7.1 Channel High Definition Audio
• USB:
  • 4 x USB 3.2 (Gen1) Ports (2 on rear I/O, 2 via internal headers)
  • 6 x USB 2.0 Ports (4 on rear I/O, 2 via internal headers)
• Expansion Slots:
  • 2 x PCIe 3.0 x1 Slots
  • 1 x PCIe 3.0/4.0 x16 Slot (x16 mode, PCIe 4.0 support depends on Rocket Lake CPUs)
• Rear I/O:
  • 1 x PS/2 Keyboard Port
  • 1 x PS/2 Mouse Port
  • 1 x HDMI Port (HDMI 1.4)
  • 1 x VGA Port
  • 2 x USB 3.2 (Gen1) Ports
  • 4 x USB 2.0 Ports
  • 1 x LAN Port
  • 3 x Audio Jacks
• Internal I/O:
  • 4 x SATA III Connectors (6Gb/s)
  • 1 x USB 3.2 (Gen1) Header (supports 2 USB 3.2 (Gen1) ports)
  • 1 x USB 2.0 Header (supports 2 USB 2.0 ports)
  • 1 x 8-Pin Power Connector
  • 1 x 24-Pin Power Connector
  • 1 x CPU Fan Connector
  • 1 x System Fan Connector
  • 1 x Front Panel Header
  • 1 x Front Audio Header
  • 1 x Clear CMOS Header
  • 1 x COM Port Header
• Hardware Monitoring:
  • CPU/System Temperature Monitoring
  • CPU/System Fan Monitoring
  • Smart/Manual CPU Fan Control
  • CPU/DDR Voltage Monitoring
• Dimensions:
  • Micro ATX Form Factor: 18.5cm x 22.6cm (W x L)
• OS Support:
  • Supports Windows 10 (64bit) / 11 (64bit)
  • Biostar reserves the right to add or remove support for any OS with or without notice.
• Bundle Software:
  • BullGuard Internet Security (90-day FREE trial)
• Accessories:
  • 2 x SATA Cables
  • 1 x I/O Shield
  • 1 x DVD Driver
  • 1 x Quick Guide
