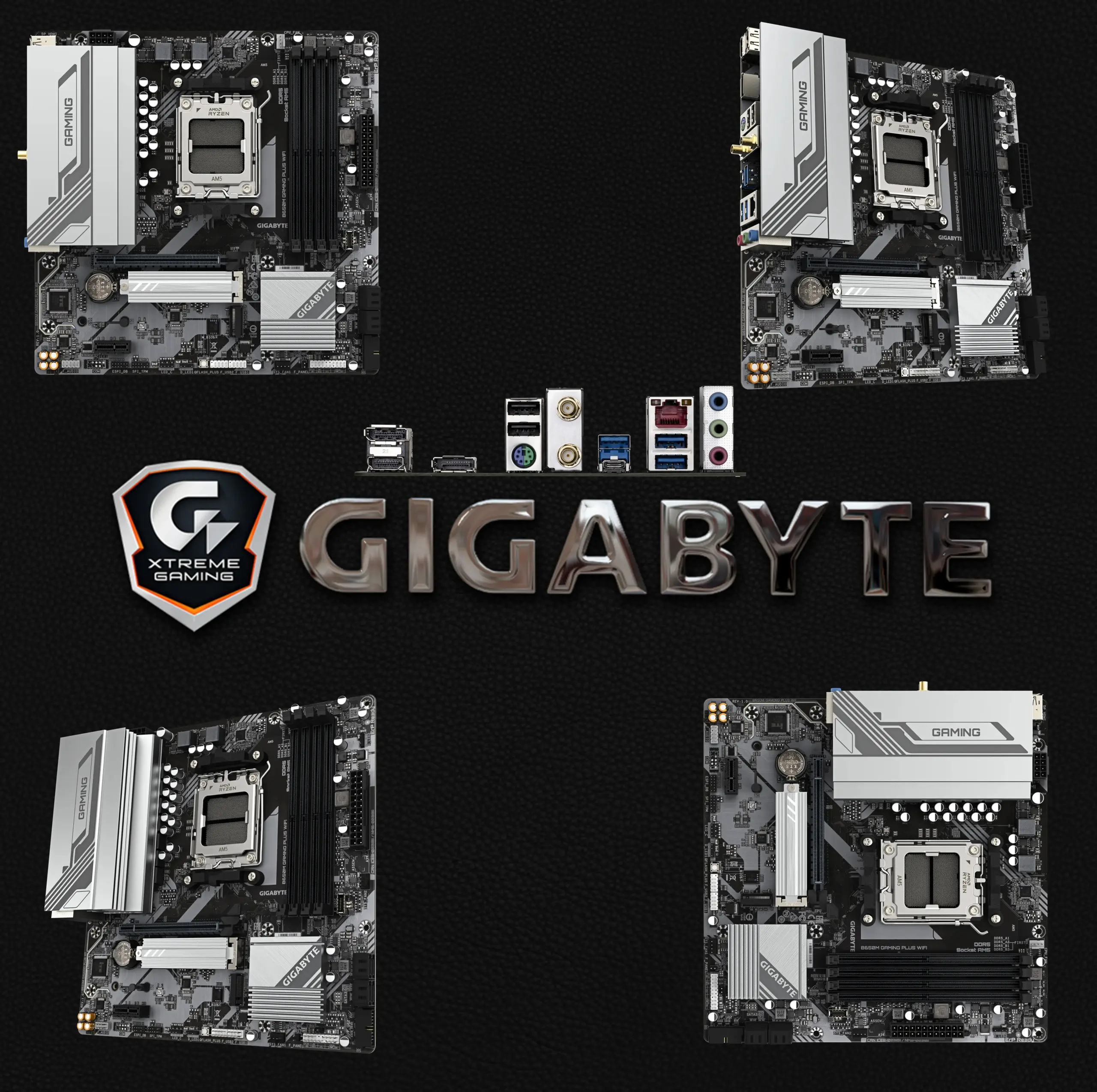

GIG-B650M-GPLUSWIFI B650M Gaming Plus WiFi AM5 Motherboard M-ATX GIGABYTE B650M Gaming Plus WiFi AM5 LGA 1718 AMD B650 Micro ATX , DDR5, PCIe 4.0 M.2, PCIe 4.0, USB 3.2 Gen 1 Type-C, Wi-Fi 6E, 2.5GbE LAN ; 2*DP, HDMI , AMD EXPO™ & Intel® XMP Memory Module Support ;  for Ryzen 7000 Series / Ryzen 8000 Series

GIGABYTE B650M Gaming Plus WiFi AM5 LGA 1718 AMD B650 Micro ATX , DDR5, PCIe 4.0 M.2, PCIe 4.0, USB 3.2 Gen 1 Type-C, Wi-Fi 6E, 2.5GbE LAN ; 2*DP, HDMI ,AMD EXPO™ & Intel® XMP Memory Module Support ;  for Ryzen 7000 Series / Ryzen 8000 Series

$ 194.00 Original price was: $ 194.00.$ 174.00Current price is: $ 174.00. ---ONLY---
-10%
SKU: GIG-B650M-GPLUSWIFI Categories: ,

Expert Features

  • AMD Socket AM5：Supports AMD Ryzen™ 7000 Series/ Ryzen™ 8000/ Ryzen™ 9000 Series Processors
  • Unparalleled Performance：5+2+2 Phases Digital VRM Solution
  • Dual Channel DDR5：4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
  • SuperSpeed Storage：PCIe 4.0 x4 M.2 Connector
  • EZ-Latch：PCIe x16 Slot with Quick Release Design
  • Fast Networks：Wi-Fi 802.11ax & 2.5GbE LAN
  • Extended Connectivity：2*DP, HDMI
  • Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

Expert Specs

Model
Brand GIGABYTE
Model B650M GAMING PLUS WIFI
Supported CPU
CPU Socket Type  AM5
CPU Type Ryzen 7000 Series / Ryzen 8000 Series
Chipsets
Chipset  AMD B650
Memory
Number of Memory Slots 4x288pin (DDR5)
Memory Standard DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400
Maximum Memory Supported 192GB
Channel Supported  Dual Channel
Memory Feature 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme
Memory Profile (XMP) memory modules
Expansion Slots
PCI Express 4.0 x16 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
– AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode
– AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
– AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
PCI Express x1 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
Storage Devices
SATA 6Gb/s  4 x SATA 6Gb/s
M.2 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs:
– AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
– AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
– AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
SATA RAID RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Additional RAID Controller RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
Onboard Audio
Audio Channels  7.1 Channels
Onboard LAN
Max LAN Speed 2.5Gbps
Wireless LAN Wi-Fi 802.11 ax
Bluetooth BLUETOOTH 5.3
Rear Panel Ports
Back I/O Ports 1 x PS/2 keyboard/mouse port
1 x USB Type-C port, with USB 3.2 Gen 1 support
3 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x HDMI port
2 x DisplayPorts
2 x SMA antenna connectors (2T2R)
1 x RJ-45 port
3 x audio jacks
Internal I/O Connectors
Onboard USB 1 x USB Type-C header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
Other Connectors 1 x CPU fan header
2 x system fan headers
2 x addressable LED strip headers
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.6″ x 9.6″
Power Pin 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Software Feature
Windows 11 Support for Windows 11 64-bit
Support for Windows 10 64-bit
Features
Features Support for GIGABYTE Control Center
Support for Q-Flash
Support for Q-Flash Plus

Description

GIG-B650M-GPLUSWIFI

B650M Gaming Plus WiFi AM5 Motherboard M-ATX

GIGABYTE B650M Gaming Plus WiFi AM5 LGA 1718 AMD B650 Micro ATX , DDR5, PCIe 4.0 M.2, PCIe 4.0, USB 3.2 Gen 1 Type-C, Wi-Fi 6E, 2.5GbE LAN ; 2*DP, HDMI , AMD EXPO™ & Intel® XMP Memory Module Support ;  for Ryzen 7000 Series / Ryzen 8000 Series

B650M Gaming Plus WiFi AM5 Motherboard M-ATX  B650M Gaming Plus WiFi AM5 Motherboard M-ATX  B650M Gaming Plus WiFi AM5 Motherboard M-ATX  B650M Gaming Plus WiFi AM5 Motherboard M-ATX  B650M Gaming Plus WiFi AM5 Motherboard M-ATX  B650M Gaming Plus WiFi AM5 Motherboard M-ATX
