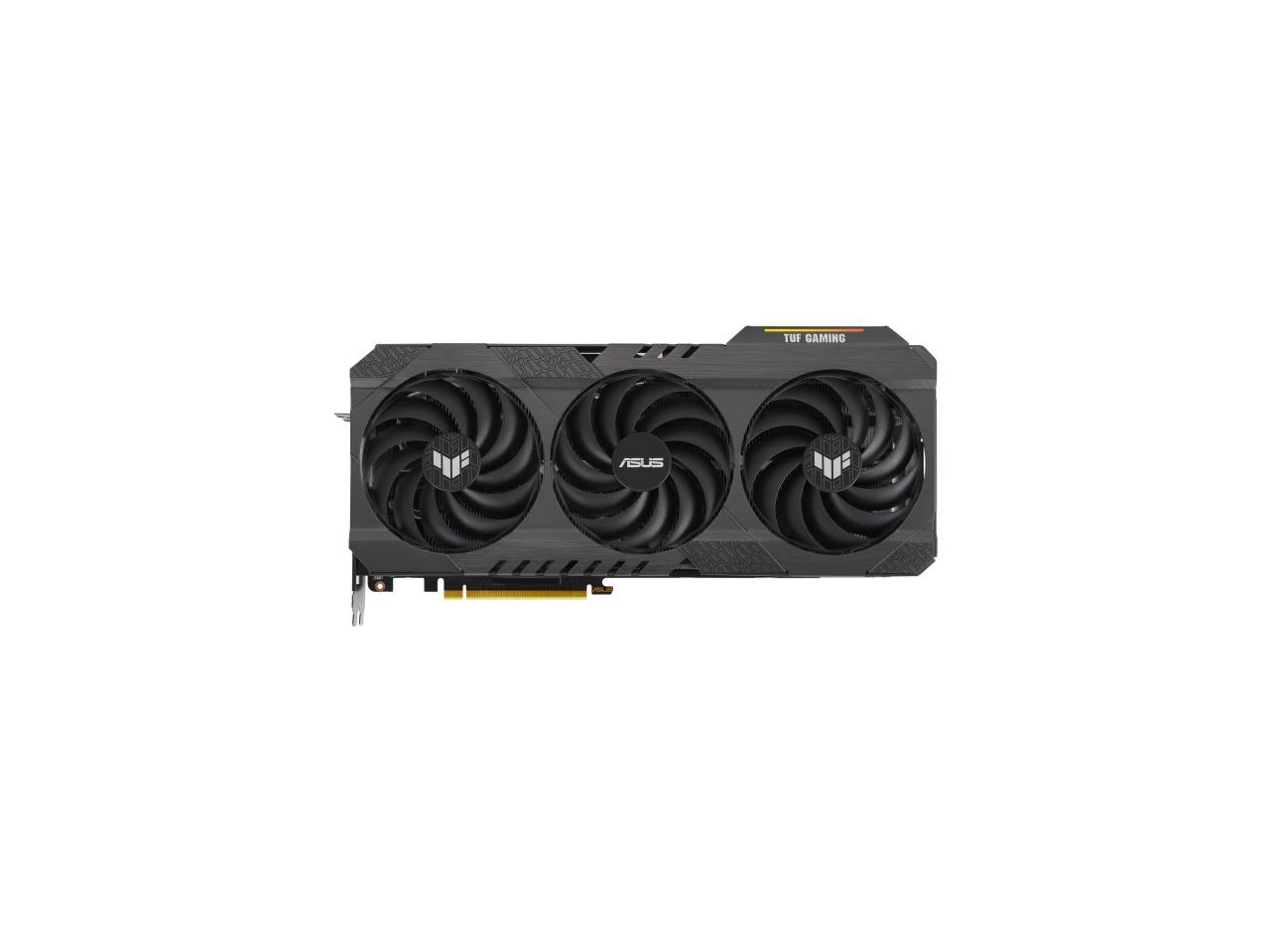

ASUS TUF GeForce RTX® 4090 OC Edition 24GB GDDR6X Gaming Graphics Card (PCIe 4.0, 24GB GDDR6X, HDMI 2.1a, DisplayPort 1.4a) – Ada Lovelace arch, ray tracing – Military-grade capacitors, durable power rail – BLACK – OPEN BOX
Out of stock
ASUS TUF GeForce Gaming RTX 4090 OC 24GB
EXPERT FEATURES
- NVIDIA DLSS3, Ada Lovelace arch, ray tracing
- 4th Gen Tensor Cores: 4x performance
- 3rd Gen RT Cores: 2x performance
- OC edition: 2595 MHz/ 2565 MHz
- Axial-tech fan design, less turbulence
- Dual ball fan bearings, longer lifespan
- Military-grade capacitors, durable power rail
- Auto-Extreme precision manufacturing, higher reliability
- GPU Tweak III software, performance tweaking
EXPERT SPECS
| Brand | ASUS |
|---|---|
| Series | TUF Gaming |
| Model | TUF-RTX4090-O24G-OG-GAMING |
| Part Number | 90YV0IY3-M0AA00 |
| Interface | PCI Express 4.0 x16 |
|---|
| Chipset Manufacturer | NVIDIA |
|---|---|
| GPU Series | NVIDIA GeForce RTX 40 Series |
| GPU | GeForce RTX 4090 |
| Core Clock | 2235 MHz |
| Boost Clock | 2595 MHz |
| CUDA Cores | 16384 Cores |
| Effective Memory Clock | 21000 MHz (21 Gbps) |
|---|---|
| Memory Size | 24GB |
| Memory Interface | 384-Bit |
| Memory Type | GDDR6X |
| DirectX | DirectX 12 Ultimate |
|---|---|
| OpenGL | OpenGL 4.6 |
| Multi-Monitor Support | 4 |
|---|---|
| HDMI | 2 x HDMI 2.1a |
| DisplayPort | 3 x DisplayPort 1.4a |
| Max Resolution | 7680 x 4320 |
|---|---|
| Cooler | Triple Fans |
| Thermal Design Power | 450W |
| Recommended PSU Wattage | 850W |
| Power Connector | 1 x 16-Pin |
| HDCP Ready | Yes |
| Form Factor | ATX |
|---|---|
| Max GPU Length | 326 mm |
| Slot Width | 3.2 Slots |
From the manufacturer
ASUS is one of Fortune magazine’s World’s Most Admired Companies and is one of the top motherboard and gaming brands, as well as a top-three consumer notebook vendor. ASUS is driven by passion and innovation and dedicated to creating quality products for a future smart life, designing and manufacturing products that perfectly meet the needs of today’s digital home, office and person. Our wide portfolio includes MG248Q, Chromebox and a range of devices and components, along with AR and VR.

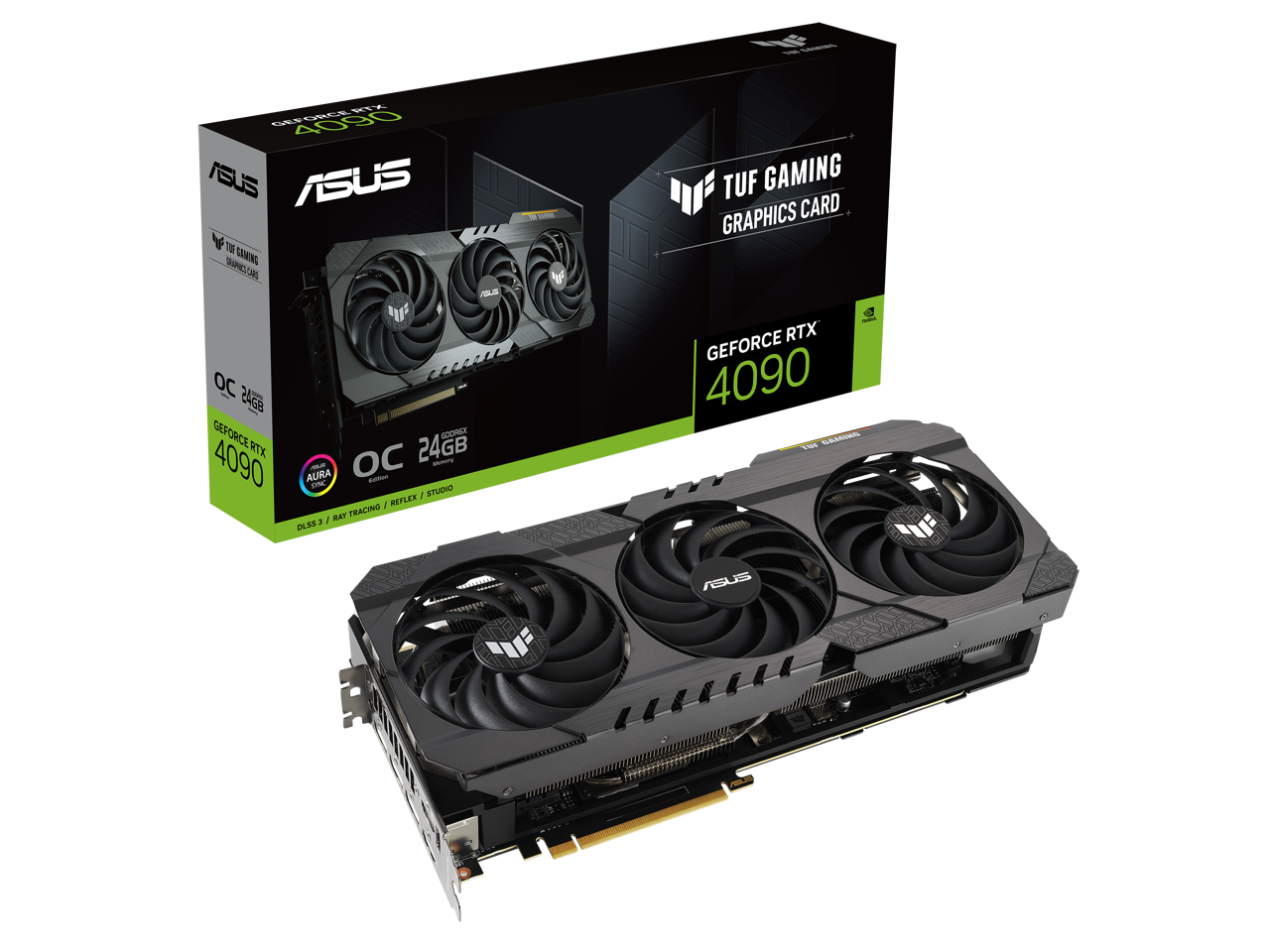

ASUS TUF Gaming Geforce RTX 4090 OC Edition 24GB GDDR6X
ASUS TUF Gaming GeForce RTX 4090 OC Edition 24GB GDDR6X optimized inside and out for lower temps and durability.
- NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2x performance and power efficiency
- 4th Generation Tensor Cores: Up to 2X AI performance
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- Axial-tech fans scaled up for 23% more airflow
- Dual Ball Fan Bearings last up to twice as long as conventional designs
- Military-grade Capacitors rated for 20K hours at 105C make the GPU power rail more durable
- Metal Exoskeleton adds structural rigidity and vents to increase heat dissipation
- Auto-Extreme precision automated manufacturing for higher reliability
|
|
|
|
|---|---|---|
AXIAL-TECH UPGRADESBigger and better. Axial-tech fans spin on dual-ball bearings and have been scaled up to propel 23% more air through the card, setting the stage for lower temperatures, less noise, and higher performance. |
NEW DIRECTIONThe two side fans spin counterclockwise to minimize turbulence and maximize air dispersion through the heatsink. All three fans come to a standstill when GPU temps are below 50 Celsius, letting you play less-demanding games or perform light tasks in relative silence. Fans start up again when temps are over 55 C, referencing a speed curve that balances performance and acoustics for work or play. |
3.65-SLOT DESIGNA vapor chamber and generously sized heatsink combo efficiently soak up heat from the GeForce RTX 4090 GPU so that it can be whisked away by the three Axial-tech fans. |
|
|
|
|
|---|---|---|
MILITARY-GRADE 20K CAPACITORSA lineup of capacitors rated to last 20,000 hours at 105 Celsius brings higher temperature and ripple tolerance to the GPU power rail, arming the card for long-term deployment in challenging conditions. |
AURA SYNCAura-compatible ARGB lighting on the shroud adds a dash of customizable color or functional effects to your build. Pair up with a vast range of compatible system components and coordinate the glow to create a theme that’s uniquely you. |
FRAMES WIN GAMESCompetitive games like Apex Legends demand maximum frame rates and the lowest system latency. Get the competitive edge you need at sub-25 milliseconds (ms) with NVIDIA Reflex and 144+ frames per second (FPS) powered by GeForce RTX. Best responsiveness. Unbeatable performance. Frames Win Games. |
Description
ASUS TUF GeForce RTX® 4090 OC Edition 24GB GDDR6X Gaming Graphics Card (PCIe 4.0, 24GB GDDR6X, HDMI 2.1a, DisplayPort 1.4a) – Ada Lovelace arch, ray tracing – Military-grade capacitors, durable power rail – BLACK – OPEN BOX
ASUS TUF GeForce Gaming RTX 4090 OC 24GB
