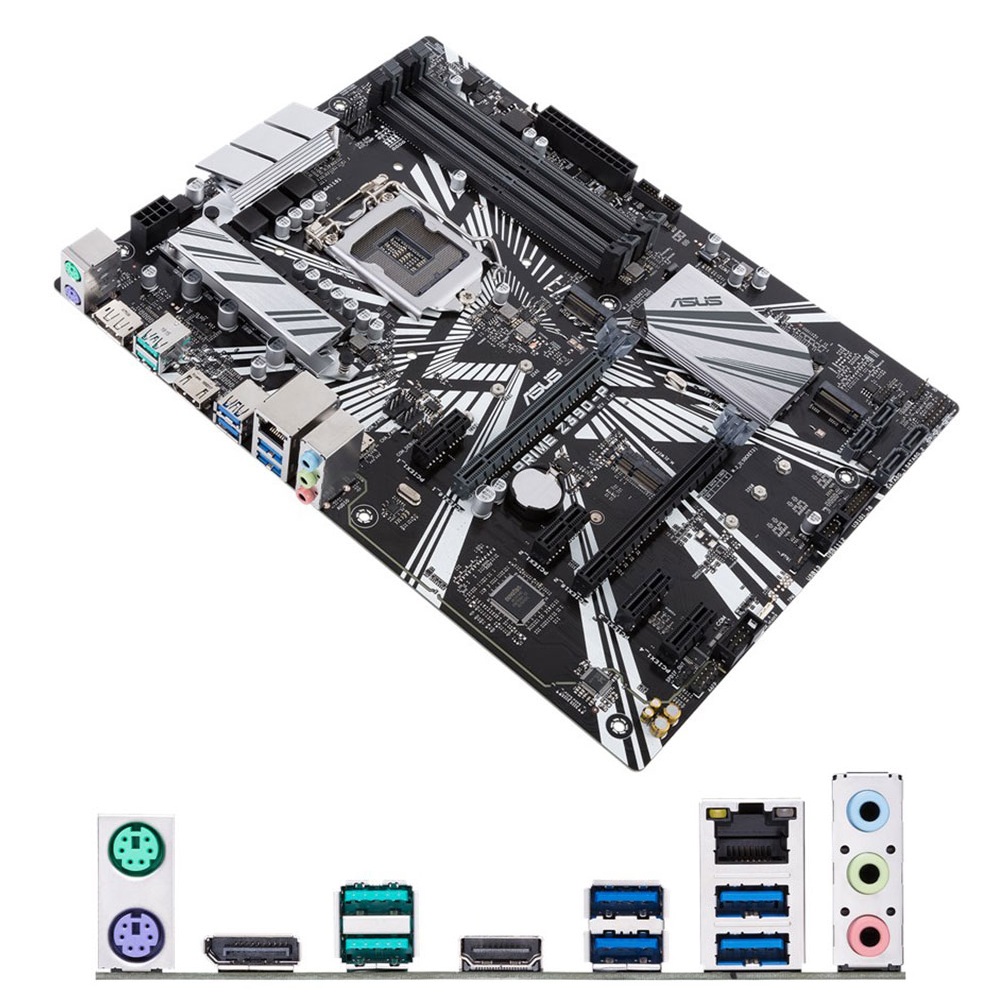

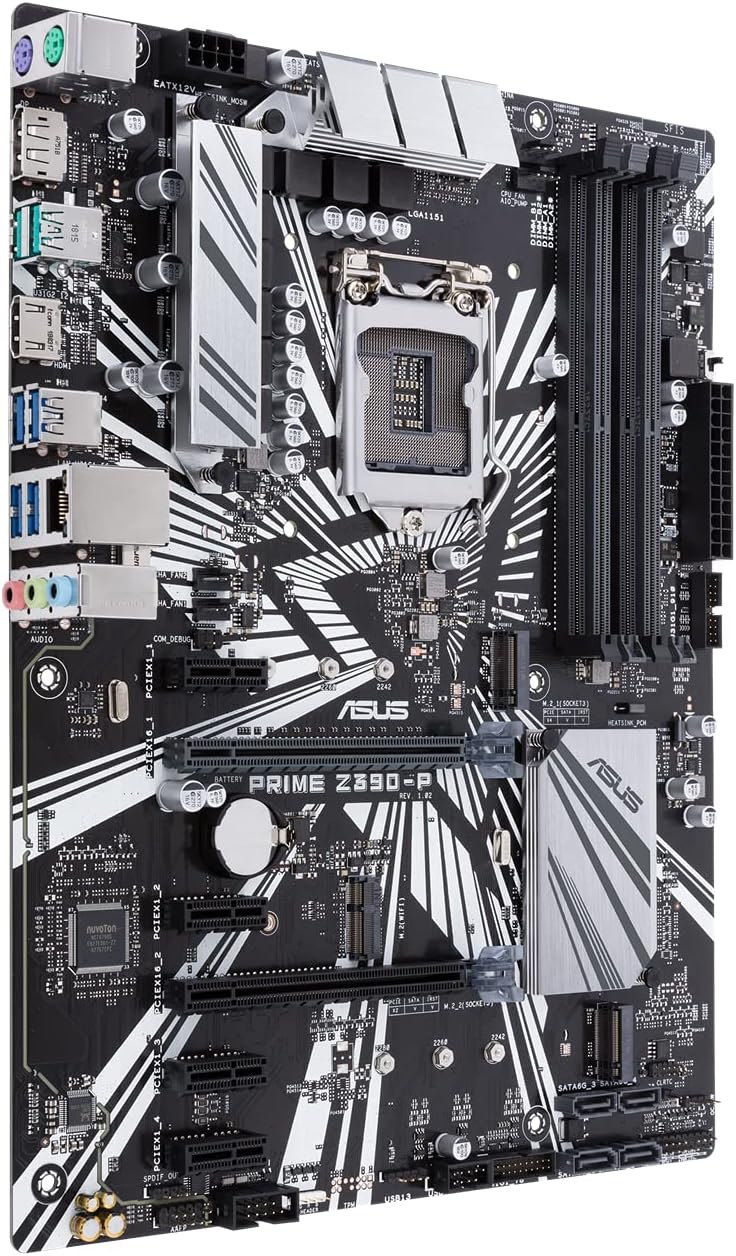

Name: ASUS Prime Z390-P DDR4 ATX Motherboard : Intel LGA 1151 with OptiMem II, DDR4 4266 MHz, Dual M.2, HDMI, Intel Optane memory ready, SATA 6Gb/s, USB 3.1 Gen 2 , for 9th/8th Gen | USED | Expert-Zone
SKU: ASUS-Z390-P-USED
Price: 95.00 USD
Availability: InStock

Description

Expert Features

Designed for 9th and 8th Generation Intel Core processors to maximize connectivity and speed with M.2, USB 3.1 Gen2 and Asus optimum II for better DRAM overclocking stability
5x Protection III Hardware-level safeguards with safe Slot Core, LANGuard and overvoltage protection provide component longevity and reliability
Fanxpert 4 with AIO pump header delivers advanced fan control for dynamic system cooling
Patent-pending Safe Slot Core fortified PCIe Slots prevent damage caused by heavyweight GPUs
8-Channel HD gaming audio featuring Realtek ALC887 high definition Audio CODEC
Enhanced power solution: Premium components provide better power efficiency

Expert Specs

Model
Brand	ASUS
Model	Prime Z390-P

Supported CPU
CPU Socket Type	LGA 1151 (300 Series)
CPU Type	Intel Socket 1151 9th/8th Gen Intel Core, Pentium Gold and Celeron Processors * Not backward compatible with older generation of LGA 1151 CPUs ** Refer to www.asus.com for Intel CPU support list
Supported CPU Technologies	Supports Intel Turbo Boost Technology 2.0 * The Intel Turbo Boost Technology 2.0 support depends on the CPU types.

Chipsets
Chipset	Intel Z390

Onboard Video
Onboard Video Chipset	Integrated Graphics Processor – Intel UHD Graphics support Multi-VGA output support: HDMI/DisplayPort ports – Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz – Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays

Memory
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 * The maximum memory frequency supported varies by processor ** Refer to www.asus.com for the Memory QVL (Qualified Vendors List)
Maximum Memory Supported	64GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 3.0 x16	1 x PCIe 3.0/2.0 x16 (x16 or x8+x4+x4) 1 x PCIe 3.0/2.0 x16 (max at x4 mode) * For 3 SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16_1 slot, enable this card under BIOS settings.
PCI Express x1	4 x PCI Express 3.0/2.0 x1 slots
Other Slots	1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT and Intel CNVi (Integrated Wi-Fi/BT) module* * The Wi-Fi/BT module is purchased separately

Storage Devices
Serial ATA (SATA)	4 x SATA 6.0Gb/s ports (gray)
M.2	1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x4 mode)* 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x2 mode) * When a device in SATA mode is installed on the M.2_1 socket, SATA_2 port cannot be used.
Intel Optane Ready	Yes
SATA RAID	0/1/5/10

Onboard Audio
Audio Chipset	Realtek ALC887
Audio Channels	8 Channels * Choose the chassis with HD audio module in front panel to support 8-channel audio output.

Onboard LAN
LAN Chipset	Realtek RTL8111H
Max LAN Speed	1Gbps

Rear Panel Ports
Back I/O Ports	1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 2 Type-A 4 x USB 3.1 Gen 1 Type-A 3 x 8-channel Audio I/O

Internal I/O Connectors
Onboard USB	2 x USB 3.1 Gen 1 (up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 1 x USB 2.0 1-port connector(s) support(s) additional 1 USB 2.0 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
Other Connectors	1 x Lighting Control RGB Strip Header(s) 1 x COM port(s) connector(s) 1 x CPU Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x S/PDIF out header(s) 1 x Front panel audio connector(s) (AAFP) 1 x MemOK! II switch(es) 1 x Clear CMOS jumper(s) 1 x System panel connector

Software Feature
Windows 11	Supported

Physical Spec
Form Factor	ATX
Dimensions (W x L)	12.0″ x 9.2″
Power Pin	1 x 24-pin EATX Power connector 1 x 8-pin EATX 12V Power connector

Features
Features	Multi-GPU Support: Supports AMD CrossFireX Technology Special Features: Fan Xpert4 – Advanced fan and liquid controls for ultimate cooling and quietness ASUS 5X Protection III: – ASUS SafeSlot Core: Fortified PCIe Slot prevents damage – ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! – ASUS Overvoltage Protection: World-class circuit-protecting power design – ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! – ASUS DIGI+ VRM: Premium components provide better power efficiency ASUS Optimem II: – Optimem (Improved DDR4 stability) ASUS EPU: – EPU ASUS Exclusive Features: – AI Suite 3 – Ai Charger ASUS Quiet Thermal Solution: – Stylish Fanless Design Heat-sink solution & MOS Heatsink – ASUS Fan Xpert 4 ASUS EZ DIY: – ASUS O.C. Tuner – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 ASUS Q-Design: – ASUS Q-Slot – ASUS Q-DIMM Overclocking Protection: – ASUS C.P.R. (CPU Parameter Recall) M.2 Onboard (The latest transfer technologies with up to 32Gb/s data transfer speeds) MemOK! II – Enhance memory compatibility. More smart and convenient. Keep high performance. (Shorten the PC starting time) Q-Installer – Auto download driver and software. Friendly for first PC builder BIOS: 128MB Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information Support Disc: Drivers ASUS Utilities ASUS EZ Update Anti-virus software (OEM version) Operating System: Windows 10 64-bit Management Solution: WOL by PME, PXE
