SKU: 90YV0M10-M0NA00

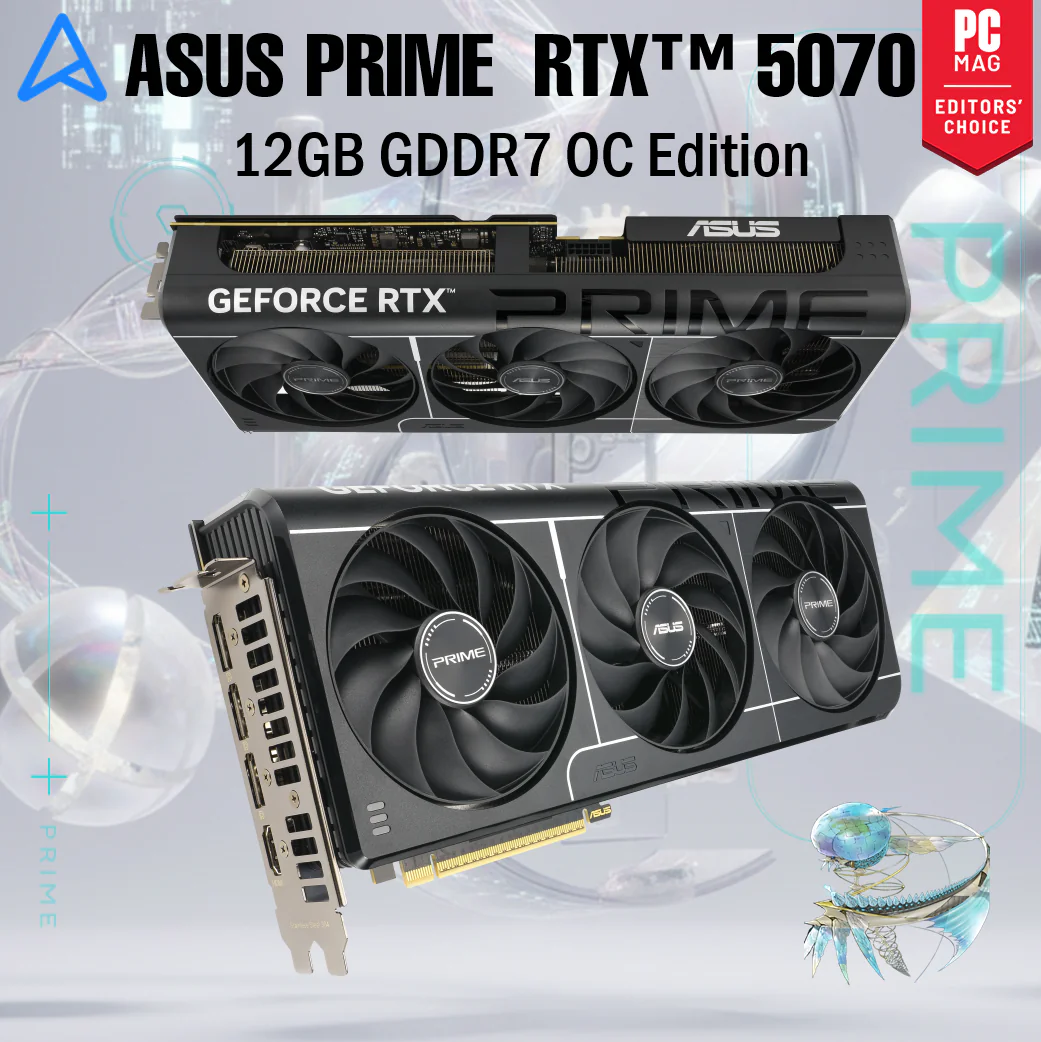

ASUS Prime GeForce RTX 5070 12GB GDDR7 OC Edition With Triple Axial-Tech Fans – AI-Driven Power 988 TOPs , 2587MHz OC Mode , 6144 CUDA Cores, 2.5-Slot SFF Design, Dual BIOS, DLSS 4, Reflex 2, Blackwell Architecture

Name: ASUS Prime GeForce RTX 5070 12GB GDDR7 OC Edition With Triple Axial-Tech Fans – AI-Driven Power 988 TOPs , 2587MHz OC Mode , 6144 CUDA Cores, 2.5-Slot SFF Design, Dual BIOS, DLSS 4, Reflex 2, Blackwell Architecture | Expert-Zone
SKU: 90YV0M10-M0NA00

Add to compare

Description

⚙️ Expert Features

SFF-Ready 2.5-Slot Design — Compact, versatile, and ready to fit snugly into small-form-factor builds without sacrificing cooling or performance.
Triple Axial-Tech Fans — Longer blades, improved pressure, and lower temps — a thermal ballet of brilliance.
Phase-Change GPU Thermal Pad — Melts into perfection for superior heat transfer and GPU longevity.
Dual-Ball Fan Bearings — Built to last up to twice as long as sleeve-bearing designs — a true British bulldog of durability.
Dual BIOS Switch — Toggle between Performance and Quiet modes with the dignity of a butler adjusting your tea temperature.
Auto-Extreme Manufacturing — ASUS’s fully automated soldering process ensures cleaner builds, greener footprints, and greater reliability.
GPU Tweak III & MuseTree AI — Fine-tune your GPU, monitor live stats, and explore AI creativity like a true digital aristocrat.
Protective Backplate & Stainless Steel Bracket — Reinforced for rigidity and corrosion resistance — it’s armour-plated refinement.
Perfect PSU Companion — Pair it with ASUS Prime Gold 850W/750W PSUs for optimal efficiency and harmony.
NVIDIA DLSS 4, Reflex 2 & Full Ray Tracing — Experience AI-driven visuals, responsiveness, and realism that redefine immersion.

🧾 Expert Specs

Specification	Details
Model	PRIME-RTX5070-O12G
Graphics Engine	NVIDIA® GeForce RTX™ 5070
Architecture	NVIDIA Blackwell
AI Performance	988 TOPs
Bus Standard	PCI Express 5.0
OpenGL Support	4.6
Video Memory	12GB GDDR7
Memory Speed	28 Gbps
Memory Interface	192-bit
Engine Clock (Boost)	OC Mode: 2587 MHz / Default: 2557 MHz
CUDA Cores	6144
Resolution	Up to 7680 x 4320 (8K)
Display Outputs	1x HDMI 2.1b, 3x DisplayPort 2.1b
HDCP Support	Yes (2.3)
Max Display Support	4 Monitors
NVLink / Crossfire	No
Recommended PSU	750W
Power Connector	1 x 16-pin
Slot Size	2.5-Slot
Dimensions	304 x 126 x 50 mm (12 x 5 x 2 in)
SFF Compatibility	Yes
Included Accessories	SpeedSetup Manual, Velcro Hook & Loop, Adapter Cable, Thank You Card
Software Bundle	GPU Tweak III, MuseTree, GeForce Game Ready & Studio Drivers
Manufacturing Tech	Auto-Extreme
Cooling System	Triple Axial-Tech Fans + Phase-Change Pad
Construction	Stainless Steel Bracket + Protective Backplate
