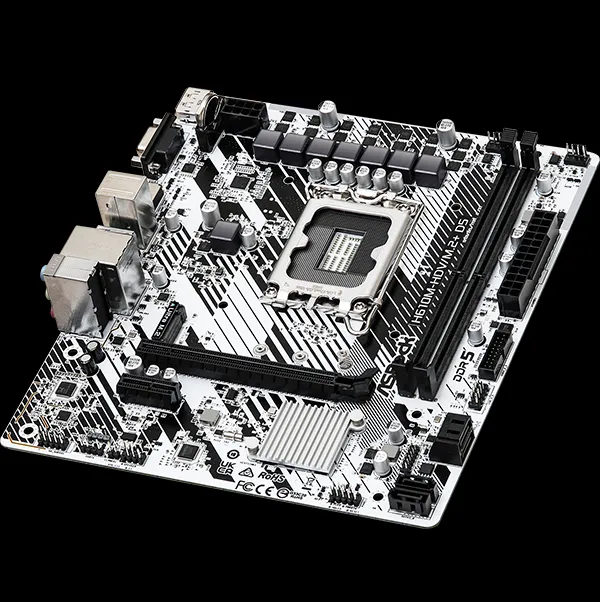

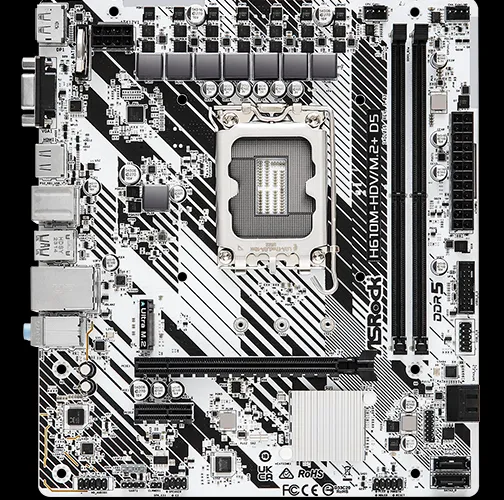

90-MXBM50-A0UAYZ ASRock H610M-HDV DDR5 Micro ATX MotherBoard ASRock  H610M-HDV/M.2+ D5 LGA 1700 DDR5 Micro ATX MotherBoard ; Intel H610 SATA 6Gb/s ; Supports 14th, 13th & 12th Gen ; Integrated Graphics Chipset  ; Intel Extreme Memory Profile (XMP) 3.0 ;  7.1 Audio Channels

ASRock  H610M-HDV/M.2+ D5 LGA 1700 DDR5 Micro ATX MotherBoard ; Intel H610 SATA 6Gb/s ; Supports 14th, 13th & 12th Gen ; Integrated Graphics Chipset  ; Intel Extreme Memory Profile (XMP) 3.0 ;  7.1 Audio Channels

$ 98.00 ---ONLY---
SKU: 90-MXBM50-A0UAYZ Categories: ,

Expert Features

  • Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
  • 6+1+1 Power Phase
  • 2 x DDR5 DIMMs
    Supports Dual Channel, up to 5600*
  • 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
  • Graphics Output Options: HDMI, DisplayPort, D-Sub
  • Realtek ALC897 7.1 CH HD Audio Codec
  • 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4)
  • 1 USB 3.2 Gen1 Type-C (Rear),
    3 USB 3.2 Gen1 Type-A (1 Rear, 2 Front),
    6 USB 2.0 (4 Rear, 2 Front)
  • Realtek Gigabit LAN
  • Supports ASRock Auto Driver Installer

Expert Specs

Model
Brand ASRock
Model H610M-HDV/M.2+ D5
Supported CPU
CPU Socket Type  LGA 1700
CPU Type Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700)
Supported CPU Technologies Supports Intel Hybrid Technology
Supports Intel Turbo Boost Max 3.0 Technology
Chipsets
Chipset  Intel H610
Onboard Video
Onboard Video Chipset  Integrated Graphics
Memory
Number of Memory Slots 2x288pin (DDR5)
Memory Standard 13th Gen Intel Core Processors support DDR5 non-ECC, un-buffered memory up to 5600*
12th Gen Intel Core Processors support DDR5 non-ECC, un-buffered memory up to 4800*

* Actual support may vary by CPU
* Please refer to Memory Support List on ASRock’s website for more information. (http://www.asrock.com/)
Maximum Memory Supported 96GB
Memory Feature Supports Intel Extreme Memory Profile (XMP) 3.0
Expansion Slots
PCI Express 4.0 x16 CPU:
– 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*

* Supports NVMe SSD as boot disks
PCI Express x1 Chipset:
– 1 x PCIe 3.0 x1 Slot (PCIE2)*

* Supports NVMe SSD as boot disks
Storage Devices
SATA 6Gb/s  4 x SATA 6Gb/s
M.2 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode*
* Supports NVMe SSD as boot disks
Onboard Audio
Audio Chipset  7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Audio Channels  7.1 Channels
Onboard LAN
LAN Chipset Realtek 8111H
Max LAN Speed 1Gbps

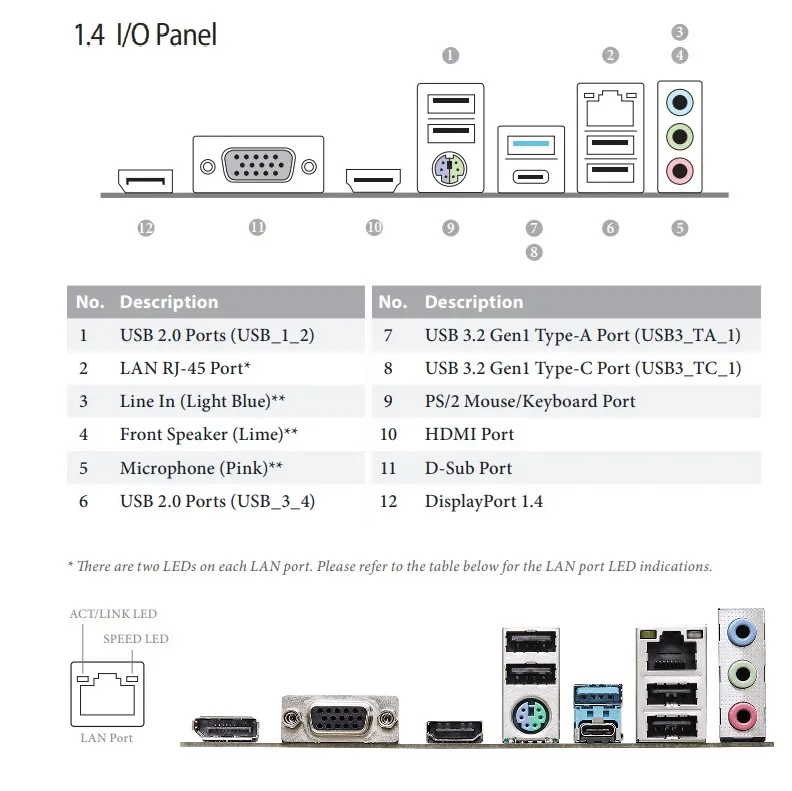

Rear Panel Ports
Back I/O Ports 1 x PS/2 Mouse/Keyboard Port
1 x D-Sub Port
1 x HDMI Port
1 x DisplayPort 1.4
1 x USB 3.2 Gen1 Type-C Port
1 x USB 3.2 Gen1 Type-A Port
4 x USB 2.0 Ports
1 x RJ-45 LAN Port
HD Audio Jacks: Line in / Front Speaker / Microphone
Internal I/O Connectors
Onboard USB – 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
– 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
Other Connectors – 1 x SPI TPM Header
– 1 x Chassis Intrusion and Speaker Header
– 1 x Addressable LED Header*
– 1 x CPU Fan Connector (4-pin)**
– 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
– 1 x Front Panel Audio Connector

* Support in total up to 5V/3A, 15W LED Strip
** CPU_FAN1 supports the fan power up to 1A (12W).
*** CHA_FAN1/WP supports the fan power up to 2A (24W).
*** CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.
Software Feature
Windows 11 Supported
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 8.6″ x 7.6″
Power Pin – 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
Features
Features Superb Productivity
– Dual Channel DDR5
Rock-Solid Durability
– 6+1 Power Phase
EZ Update
– ASRock Auto Driver Installer
Software
– ASRock Motherboard Utility (A-Tuning)
– ASRock XFast LAN
– ASRock Polychrome SYNC
* These utilities can be downloaded from ASRock Live Update & APP Shop.
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Auto Driver Installer
– ASRock Instant Flash
Packaging
Package Contents – 1 x User Manual
– 1 x I/O Shield
– 2 x SATA Data Cables
– 1 x Screw for M.2 Socket

Description

90-MXBM50-A0UAYZ

ASRock H610M-HDV DDR5 Micro ATX MotherBoard

ASRock  H610M-HDV/M.2+ D5 LGA 1700 DDR5 Micro ATX MotherBoard ; Intel H610 SATA 6Gb/s ; Supports 14th, 13th & 12th Gen ; Integrated Graphics Chipset  ; Intel Extreme Memory Profile (XMP) 3.0 ;  7.1 Audio Channels

ASRock H610M-HDV DDR5 Micro ATX MotherBoard 13th 12th Gen | 14th, 13th & 12th Gen Intel® Core™ Processors

ASRock H610M-HDV DDR5 Micro ATX MotherBoard ASRock H610M-HDV DDR5 Micro ATX MotherBoard  ASRock H610M-HDV DDR5 Micro ATX MotherBoard  ASRock H610M-HDV DDR5 Micro ATX MotherBoard  ASRock H610M-HDV DDR5 Micro ATX MotherBoard  ASRock H610M-HDV DDR5 Micro ATX MotherBoard
