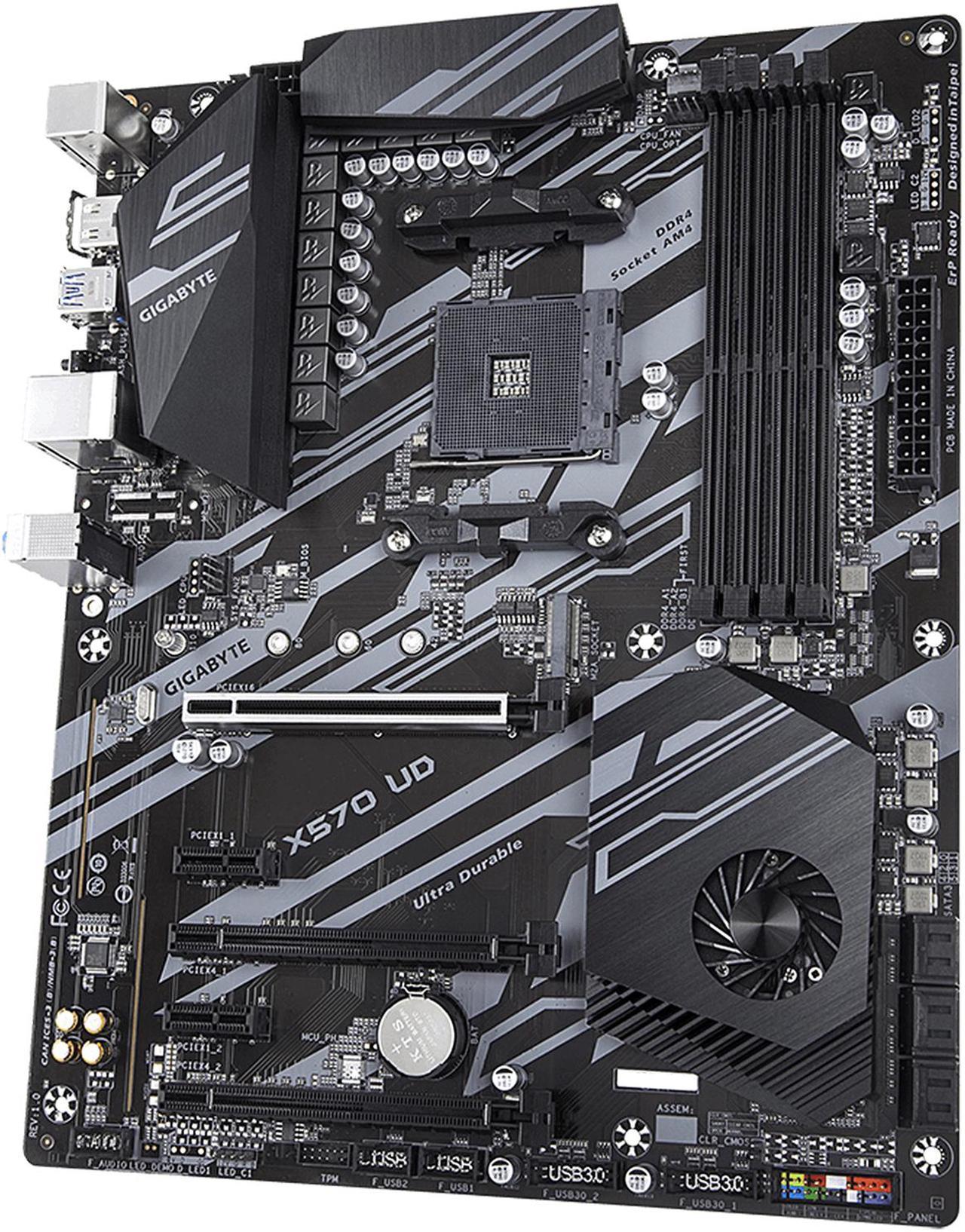

AMD X570 UD Motherboard for AMD Ryzen™ 5000 Series with 10+2 Phases Digital VRM, PCIe 4.0 x4 M.2 Connector, PCIe 4.0 x16 Slot Armor with Ultra Durable™ Design, GIGABYTE Gaming GbE LAN with Bandwidth Management, HDMI 2.0
AMD X570 UD Motherboard for Ryzen 5000 Series
Expert Features
- Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ with Radeon™ Vega Graphics Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- 10+2 Phases Digital VRM Solution
- Advanced Thermal Design with Enlarge Heatsink
- Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 Connector
- High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
- GIGABYTE Gaming GbE LAN with Bandwidth Management
- Supports RGB Light Strip in Full Colors
- Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
- Featured HDMI 2.0 support
- Q-Flash Plus update BIOS without installing CPU, Memory and Graphics card

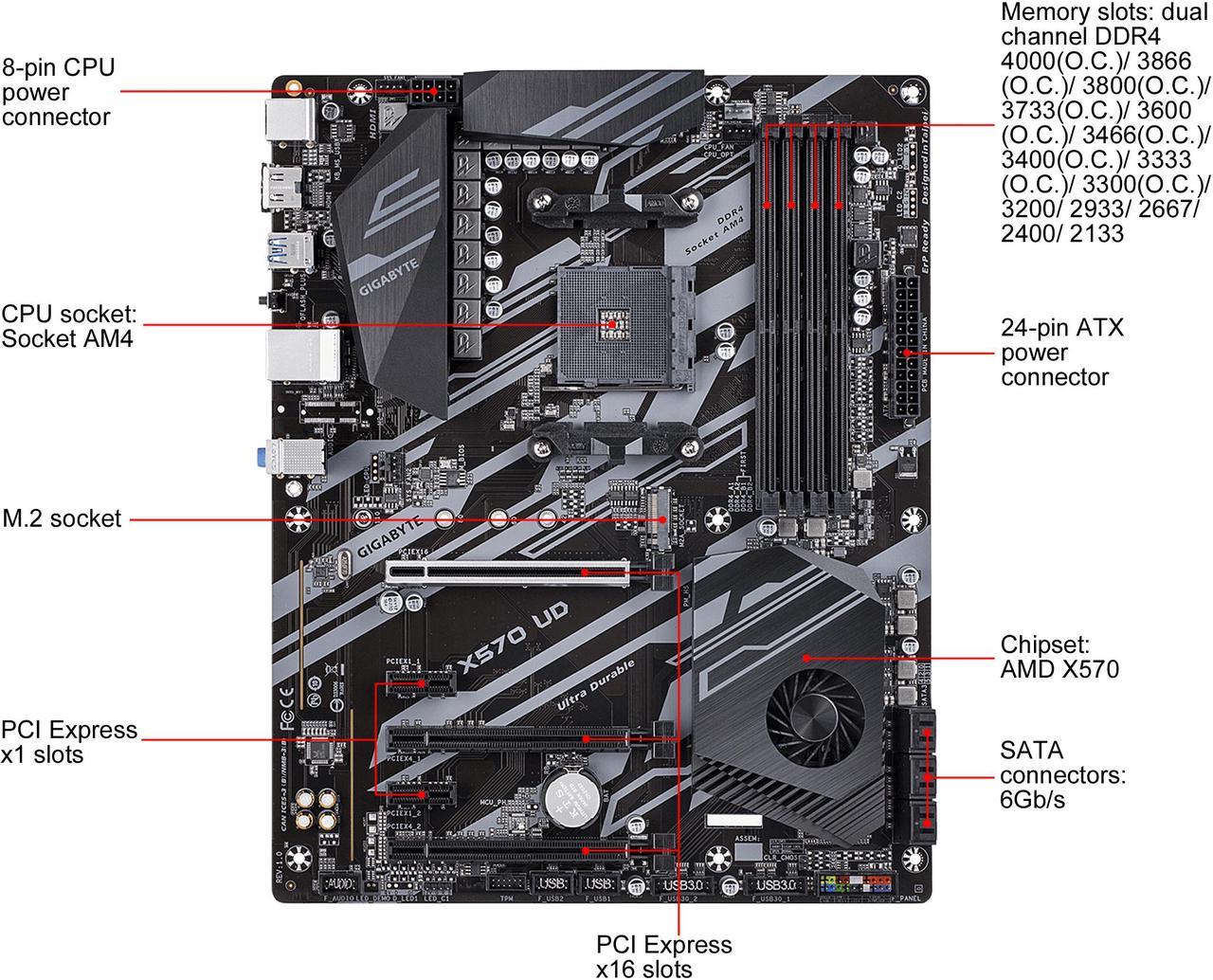

Expert Specs
Brand | GIGABYTE |
---|---|
Model | X570 UD |
CPU Socket Type | AM4 |
---|---|
CPU Type | AMD Socket AM4, support for: AMD Ryzen 5000 Series / 3rd Gen Ryzen/2nd Gen Ryzen / 3nd Gen Ryzen with Radeon Vega Graphics/2nd Gen Ryzen with Radeon Vega Graphics/Ryzen with Radeon Vega Graphics Processors * Support for Ryzen 5000 Series with BIOS UPDATE. Refer to GIGABYTE website for CPU support list. |
Chipset | AMD X570 |
---|
Number of Memory Slots | 4x288pin (DDR4) |
---|---|
Memory Standard | 3rd Generation AMD Ryzen processors: Support for DDR4 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules 2nd Generation AMD Ryzen processors / 2nd Generation AMD Ryzen with Radeon Vega Graphics processors / AMD Ryzen with Radeon Vega Graphics processors: Support for DDR4 3200(O.C.)/ 2933/ 2667/ 2400/ 2133 MHz memory modules |
Maximum Memory Supported | 128GB |
Channel Supported | Dual Channel |
PCI Express 4.0 x16 | Integrated in the CPU (PCIEX16): – 3rd Generation AMD Ryzen processors: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 – 2nd Generation AMD Ryzen processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. – 2nd Generation AMD Ryzen with Radeon Vega Graphics processors / AMD Ryzen with Radeon Vega Graphics processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 Integrated in the Chipset (PCIEX4/PCIEX1) |
---|---|
PCI Express x1 | 2 x PCI Express x1 slots, supporting PCIe 4.0*/3.0 * For 3rd Generation AMD Ryzen processors only. |
SATA 6Gb/s | 6 x SATA 6Gb/s |
---|---|
M.2 | Integrated in the CPU: – 3rd Generation AMD Ryzen processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) – 2nd Generation AMD Ryzen processors / 2nd Generation AMD Ryzen with Radeon Vega Graphics processors / AMD Ryzen with Radeon Vega Graphics processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) |
SATA RAID | 0/1/10 |
Onboard Video Chipset | Integrated Graphics Processor:
1 x HDMI port, supporting a maximum resolution of 4096×2160@60Hz Maximum shared memory of 16GB Note: For 2nd Generation AMD Ryzen with Radeon Vega Graphics processors / AMD Ryzen with Radeon Vega Graphics processors only. |
---|
Audio Chipset | Realtek ALC887 |
---|---|
Audio Channels | 2/4/5.1-channel |
LAN Chipset | Realtek GbE LAN chip |
---|---|
Max LAN Speed | 1Gbps |

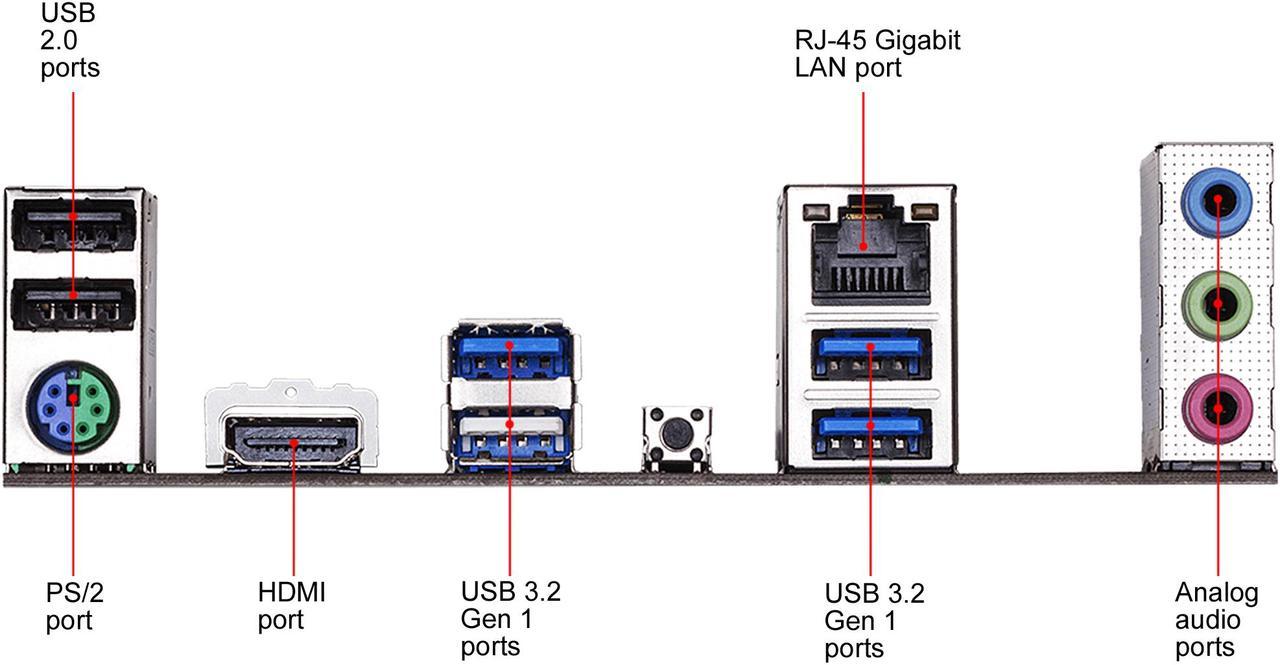

Back I/O Ports |
|
---|
Onboard USB | 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers |
---|---|
Other Connectors |
|
Form Factor | ATX |
---|---|
LED Lighting | RGB |
Dimensions (W x L) | 12.0″ x 9.6″ |
Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
Windows 11 | Supported |
---|
Features | Multi-Graphics Technology: Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies Note: For 3rd Generation AMD Ryzen processors / 2nd Generation AMD Ryzen processors only. I/O Controller: H/W Monitoring: BIOS: Unique Features: Bundled Software: Operating System: |
---|
Description
GIG-X570-UD
AMD X570 UD Motherboard for Ryzen 5000 Series
AMD X570 UD Motherboard for AMD Ryzen™ 5000 Series with 10+2 Phases Digital VRM, PCIe 4.0 x4 M.2 Connector, PCIe 4.0 x16 Slot Armor with Ultra Durable™ Design, GIGABYTE Gaming GbE LAN with Bandwidth Management, HDMI 2.0
