SKU: RYZEN5-8500G-TRAY

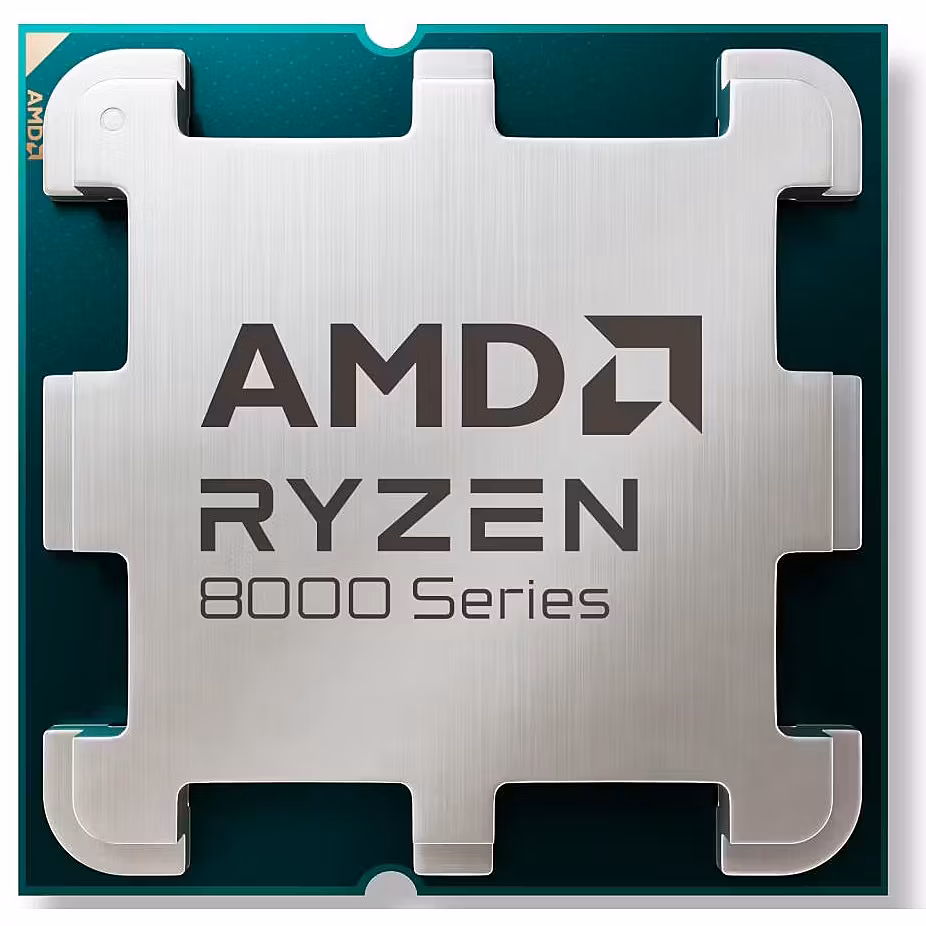

AMD Ryzen 5 8500G Desktop Processor – Ryzen 5 8000-G Series Phoenix (Zen 4) With 6 Cores 12 Threads Up To 5GHz Boost Radeon 740M Graphics AM5 DDR5 PCIe 4.0 65W | TRAY VERSION

$ 175.00 ---ONLY---

Description

BRAND-NEW ~ 1 YEAR WARRANTY

Expert Features

  • Zen 4 + Zen 4c Hybrid Architecture : Combines 2 Zen 4 cores and 4 Zen 4c cores to balance high performance and efficiency in everyday workloads and multitasking.
  • 6 Cores / 12 Threads : Enables smooth multitasking, faster content creation, and responsive performance across modern applications.
  • Up To 5.0GHz Max Boost Clock : Delivers aggressive single-core speed when workloads demand instant responsiveness.
  • Integrated AMD Radeon™ 740M Graphics : Built-in graphics with 4 compute cores running up to 2800MHz for display output, media acceleration, and light graphics workloads without a discrete GPU.
  • Advanced DDR5 Memory Support : Dual-channel DDR5 memory support up to 256GB with official speeds up to DDR5-5200.
  • AM5 Platform Compatibility : Designed for the modern AM5 socket, supporting current and next-generation AMD chipsets.
  • PCIe® 4.0 Connectivity : Enables high-speed expansion for modern GPUs, NVMe SSDs, and add-in cards.
  • Precision Boost 2 Technology : Automatically adjusts clock speeds in real time based on workload, power, and thermal headroom.
  • Overclocking-Ready Ecosystem : Supports AMD EXPO™, Precision Boost Overdrive, Curve Optimizer, and Ryzen™ Master.
  • 65W Default TDP With cTDP Support : Efficient power profile configurable between 45W and 65W depending on system design.
  • Multi-Display Capability : Supports up to four displays via HDMI 2.1 and DisplayPort 2.1 with Adaptive-Sync.
  • Modern Instruction Set Support : Includes AVX, AVX2, AVX512, AES, AMD-V, and extensive SSE support for advanced software compatibility.

Expert Specs

CategorySpecification
Processor NameAMD Ryzen™ 5 8500G
SeriesRyzen 8000 Series
CodenamePhoenix
Architecture2x Zen 4 + 4x Zen 4c
Cores / Threads6 Cores / 12 Threads
Base Clock3.5 GHz
Max Boost ClockUp To 5.0 GHz
Zen 4 Base Clock4.1 GHz
Zen 4c Base Clock3.3 GHz
Max Zen 4c ClockUp To 3.7 GHz
L2 Cache6 MB
L3 Cache16 MB
Default TDP65W
Configurable TDP45W – 65W
Manufacturing ProcessTSMC 4nm FinFET
SocketAM5
Supported ChipsetsA620, B650, B650E, X670, X670E, X870, X870E, B840, B850
Memory TypeDDR5 UDIMM
Memory ChannelsDual Channel
Max Memory Capacity256 GB
Max Memory SpeedDDR5-5200 (2DIMM), DDR5-3600 (4DIMM)
ECC SupportYes (Platform Dependent)
PCIe VersionPCIe® 4.0
PCIe Lanes14 Total / 10 Usable
Integrated GraphicsAMD Radeon™ 740M
GPU Cores4
GPU Frequency2800 MHz
HDMI VersionHDMI® 2.1
DisplayPort VersionDisplayPort™ 2.1
Max Displays4
USB 42 Ports
USB 3.2 Gen 22 Ports
USB 2.01 Port
Operating SystemsWindows 10/11 64-bit, RHEL, Ubuntu
Max Operating Temperature95°C
