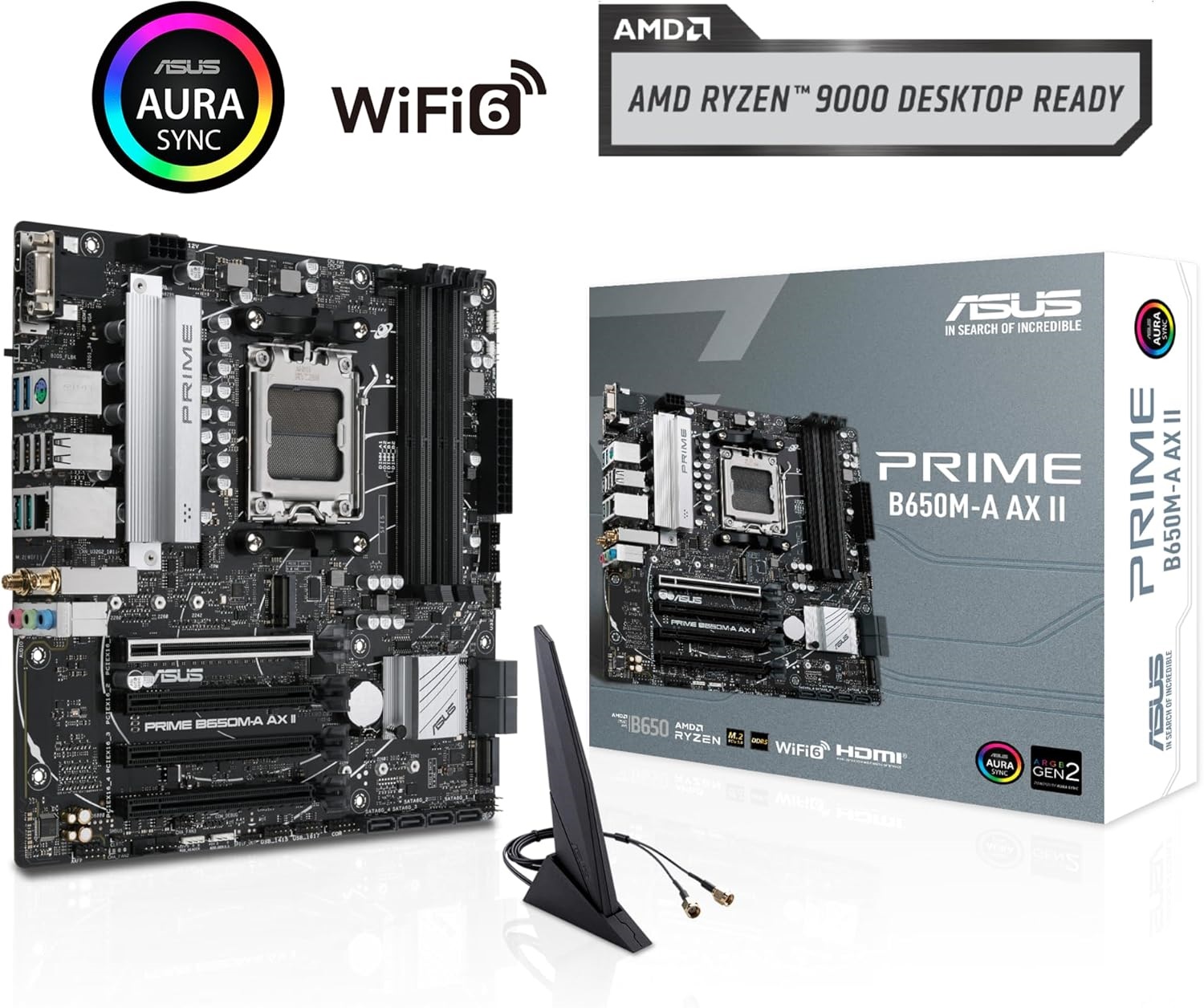

90MB1ED0-MVAAY0 AMD B650 Ryzen 7000 Micro-ATX motherboard DDR5 ASUS Prime B650M-A AX II AMD B650(Ryzen 7000) Micro-ATX motherboard(DDR5 6400+(OC) , PCIe 5.0 M.2 support, 2.5Gb Ethernet, Wi-Fi 6, DisplayPort, HDMI,USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C, BIOS FlashBack, CEC Tier II ready)

ASUS Prime B650M-A AX II AMD B650(Ryzen 7000) Micro-ATX motherboard(DDR5 6400+(OC) , PCIe 5.0 M.2 support, 2.5Gb Ethernet, Wi-Fi 6, DisplayPort, HDMI,USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C, BIOS FlashBack, CEC Tier II ready)

$ 174.00 Original price was: $ 174.00.$ 162.00Current price is: $ 162.00. ---ONLY---
Out stock

Out of stock

SKU: 90MB1ED0-MVAAY0 Categories: ,

AMD B650 Ryzen 7000 Micro-ATX motherboard DDR5

EXPERT FEATURES

  • AMD AM5 Socket: Ready for AMD Ryzen 7000 Series Desktop Processors.
  • Ultrafast Connectivity: DDR5 6400+(OC) Wi-Fi 6, M.2 PCIe 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C.
  • ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking.
  • Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+.

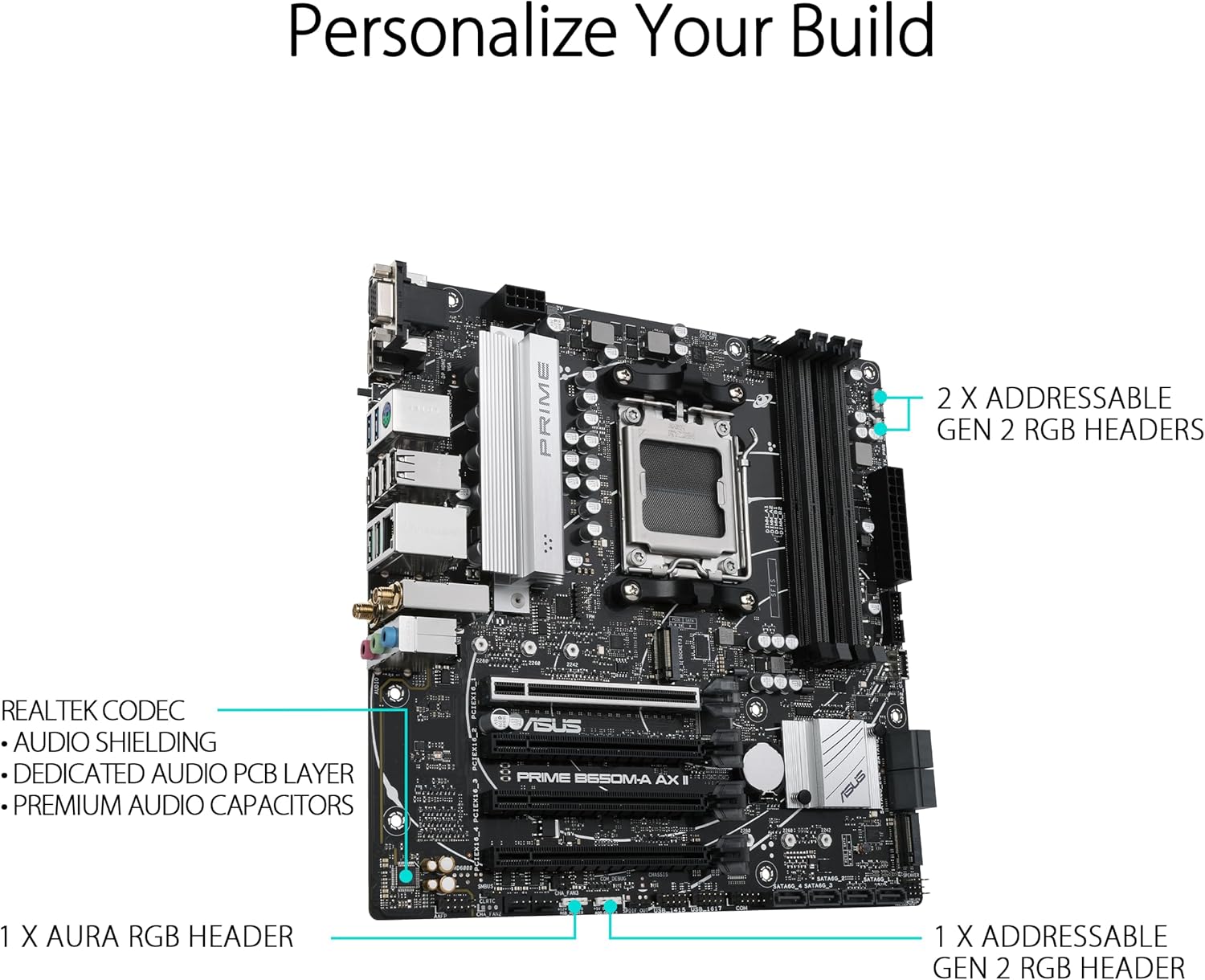

  • Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware.
  • CEC Tier II ready.
  • Memory: DDR5 – 6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory*

EXPERT SPECS

Model
Brand ASUS
Model PRIME B650M-A AX II
Part Number 90MB1ED0-M0AAY0
Supported CPU
CPU Socket Type  AM5
CPU Type Supports AMD Ryzen 7000 Series Desktop Processors*

* Refer to www.asus.com for CPU support list.
Chipsets
Chipset  AMD B650
Memory

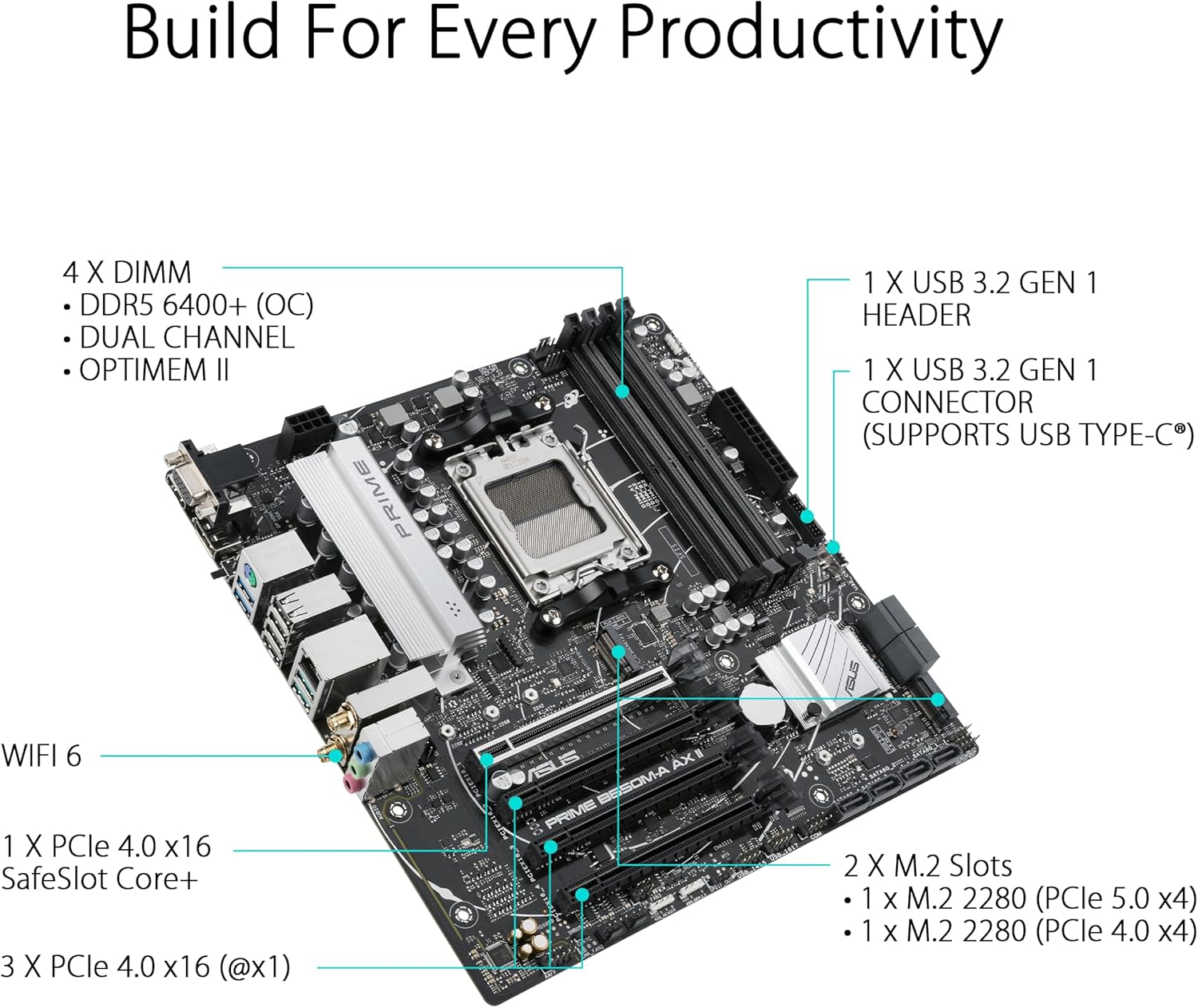

Number of Memory Slots 4x288pin (DDR5)
Memory Standard , DDR5 6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory*
Maximum Memory Supported 256GB
Channel Supported  Dual Channel
ECC Supported Yes
Buffer Supported Un-buffered
Memory Feature Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
OptiMem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/.

* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Expansion Slots
PCI Express 4.0 x16 AMD Ryzen 7000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x16 mode)
1 x PCIe 4.0 x16 slot (supports x1 mode)
AMD B650 Chipset
2 x PCIe 4.0 x16 slots (support x1 mode)
Storage Devices
SATA 6Gb/s  8 x SATA 6Gb/s
M.2 AMD Ryzen 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
AMD B650 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
SATA RAID * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
** The SATA6G_E12/E34 ports cannot support RAID.
Onboard Audio
Audio Chipset  Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Audio Channels  7.1 Channels
Onboard LAN
Max LAN Speed 1 x Realtek 2.5Gb Ethernet
Wireless LAN Wi-Fi 6
2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth Bluetooth v5.2

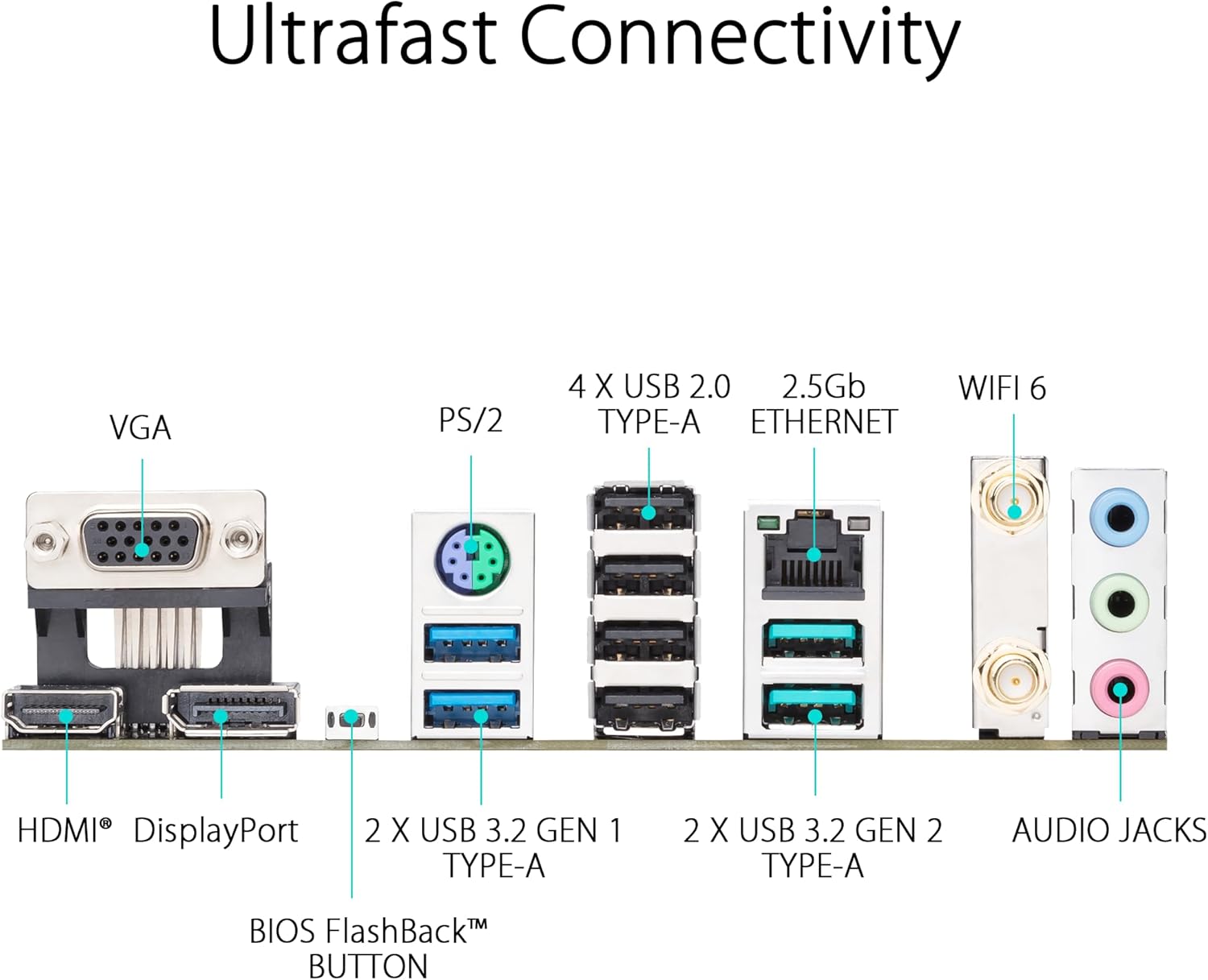

Rear Panel Ports
Back I/O Ports 2 x USB 3.2 Gen 2 ports (2 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x VGA port
1 x HDMI® port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack™ button
1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors
Onboard USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C )
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

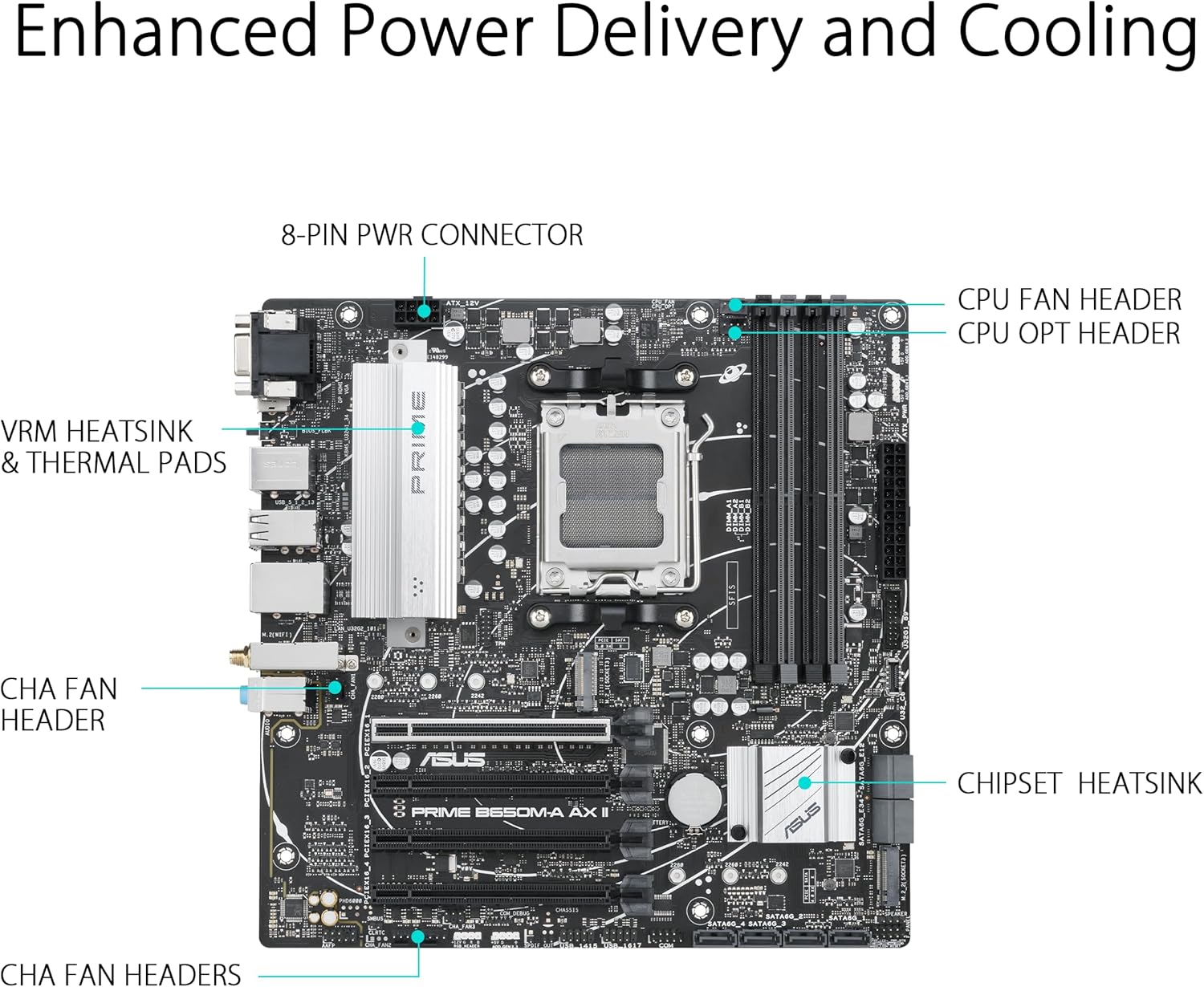

Other Connectors Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
3 x 4-pin Chassis Fan headers

Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector

Storage related
2 x M.2 slots (Key M)
8 x SATA 6Gb/s ports

Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.6″ x 9.6″
Power Pin 1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Windows 11 Compatibility
Windows 11 Supported
Features
Features ASUS 5X PROTECTION III
– DIGI+ VRM
– LANGuard
– Overvoltage Protection
– SafeSlot Core+
– Stainless-Steel Back I/O
ASUS Q-Design
– Q-DIMM
– Q-LED core
– Q-Slot
ASUS Thermal Solution
– VRM heatsink design
ASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
Aura Sync
– Aura RGB header
– Addressable Gen 2 headers

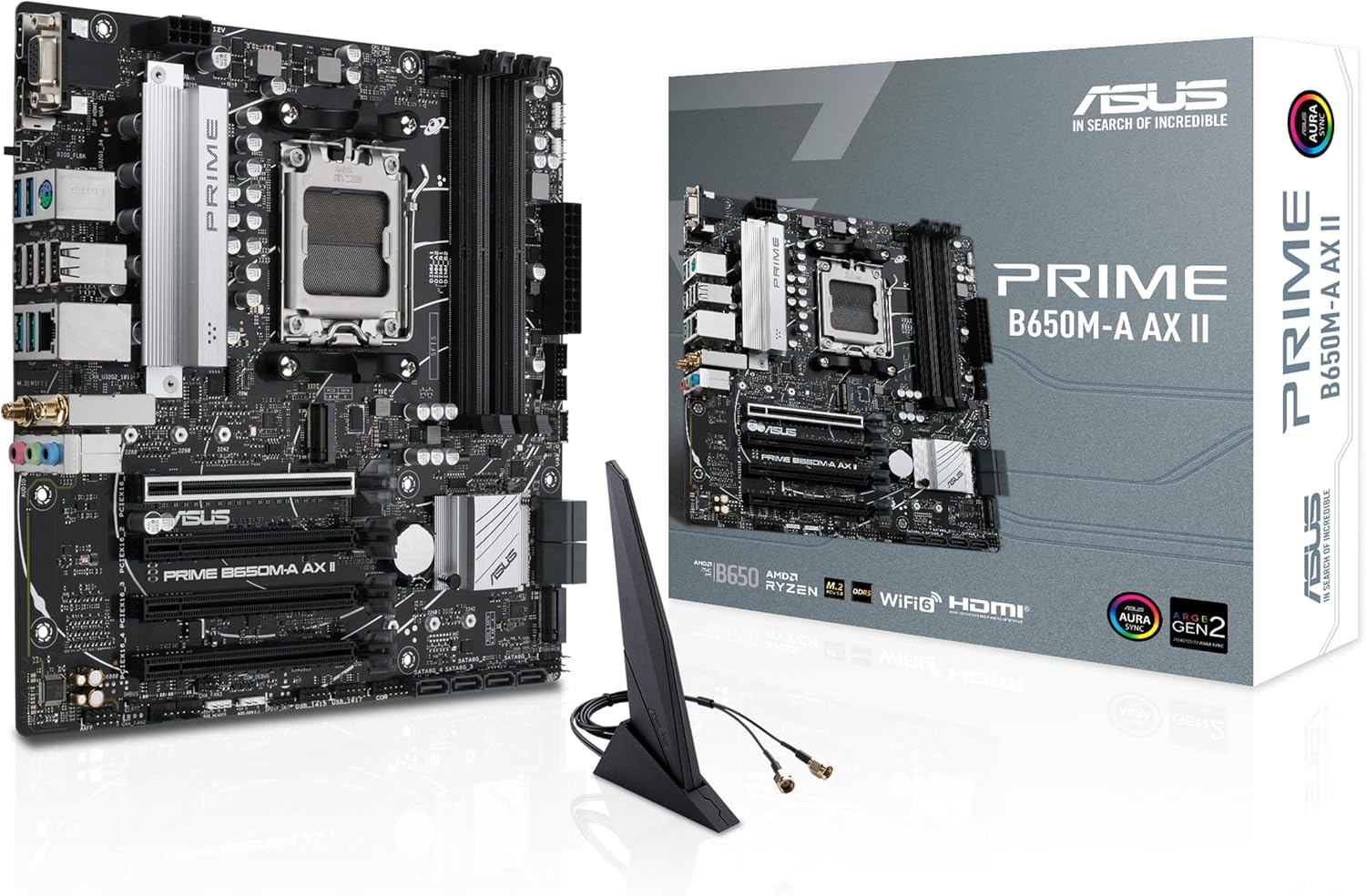

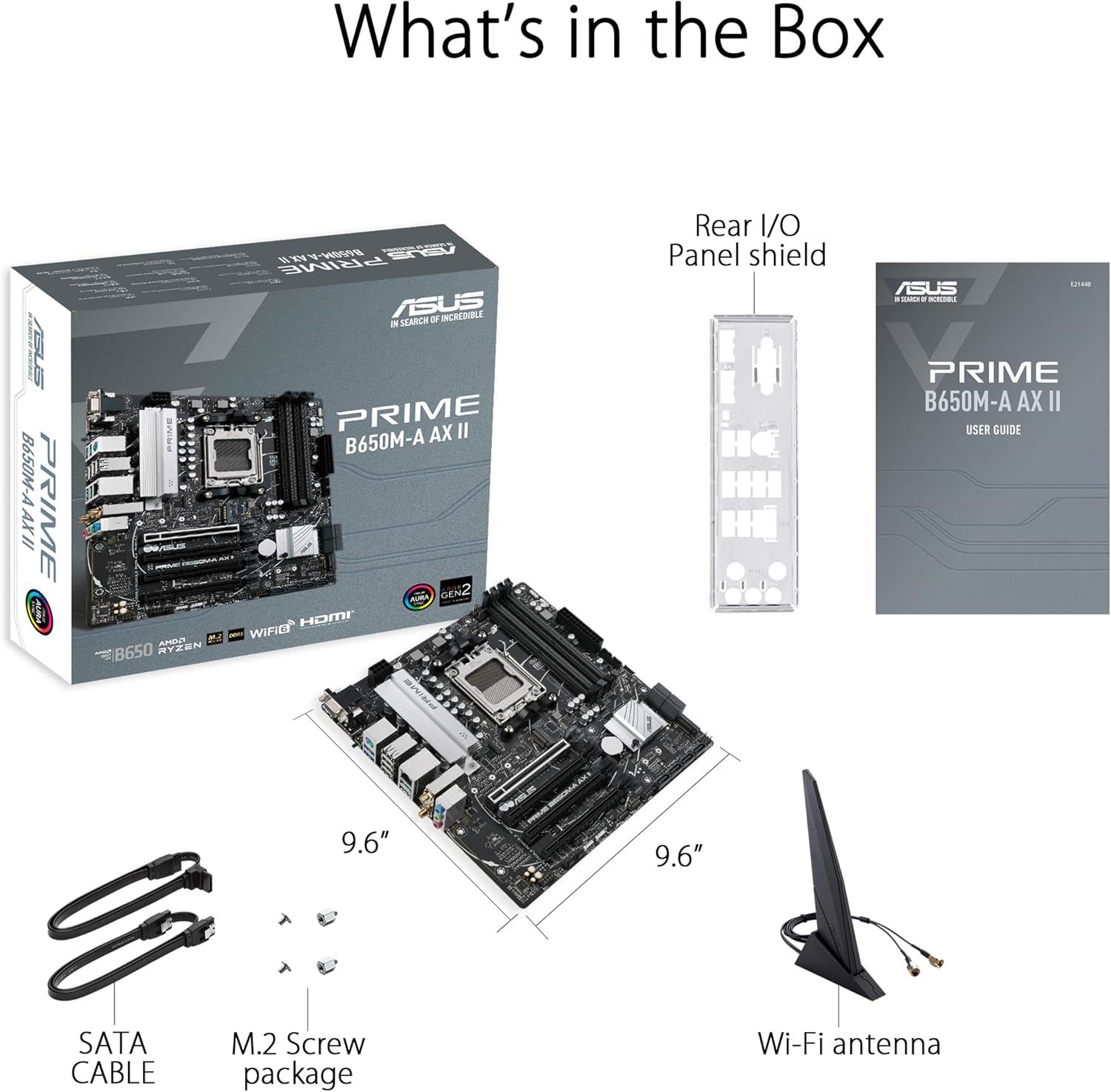

Packaging
Package Contents Cables
2 x SATA 6Gb/s cables

Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x I/O Shield
1 x Screw package for M.2 SSD

Documentation
1 x User guide

Description

90MB1ED0-MVAAY0

AMD B650 Ryzen 7000 Micro-ATX motherboard DDR5

ASUS Prime B650M-A AX II AMD B650(Ryzen 7000) Micro-ATX motherboard(DDR5 6400+(OC) , PCIe 5.0 M.2 support, 2.5Gb Ethernet, Wi-Fi 6, DisplayPort, HDMI,USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C, BIOS FlashBack, CEC Tier II ready)

AMD B650 Ryzen 7000 Micro-ATX motherboard DDR5 6400+OC PCIe5  AMD B650 Ryzen 7000 Micro-ATX motherboard DDR5  AMD B650 Ryzen 7000 Micro-ATX motherboard DDR5  AMD B650 Ryzen 7000 Micro-ATX motherboard DDR5  AMD B650 Ryzen 7000 Micro-ATX motherboard DDR5  AMD B650 Ryzen 7000 Micro-ATX motherboard DDR5  AMD B650 Ryzen 7000 Micro-ATX motherboard DDR5  AMD B650 Ryzen 7000 Micro-ATX motherboard DDR5
