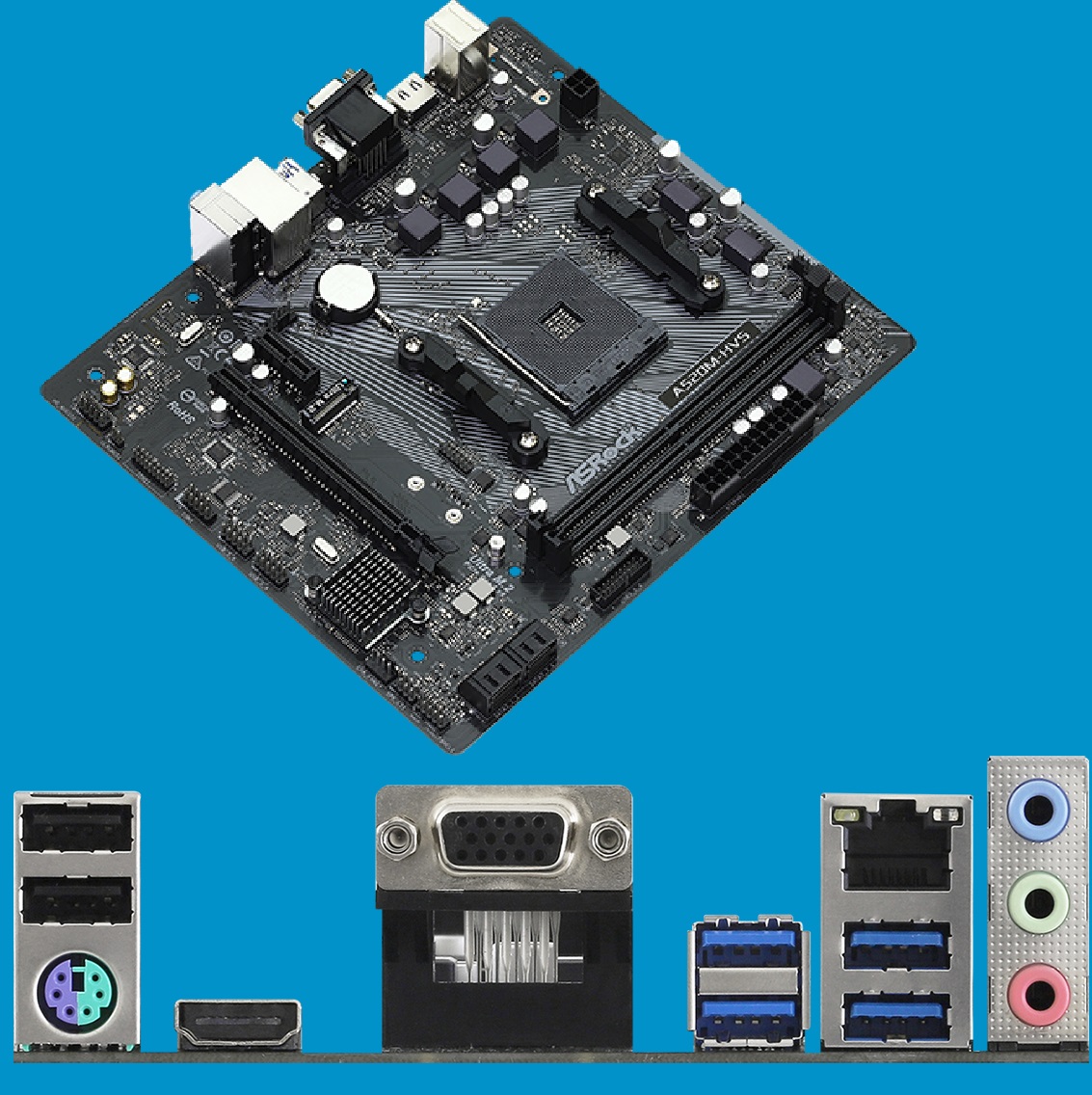

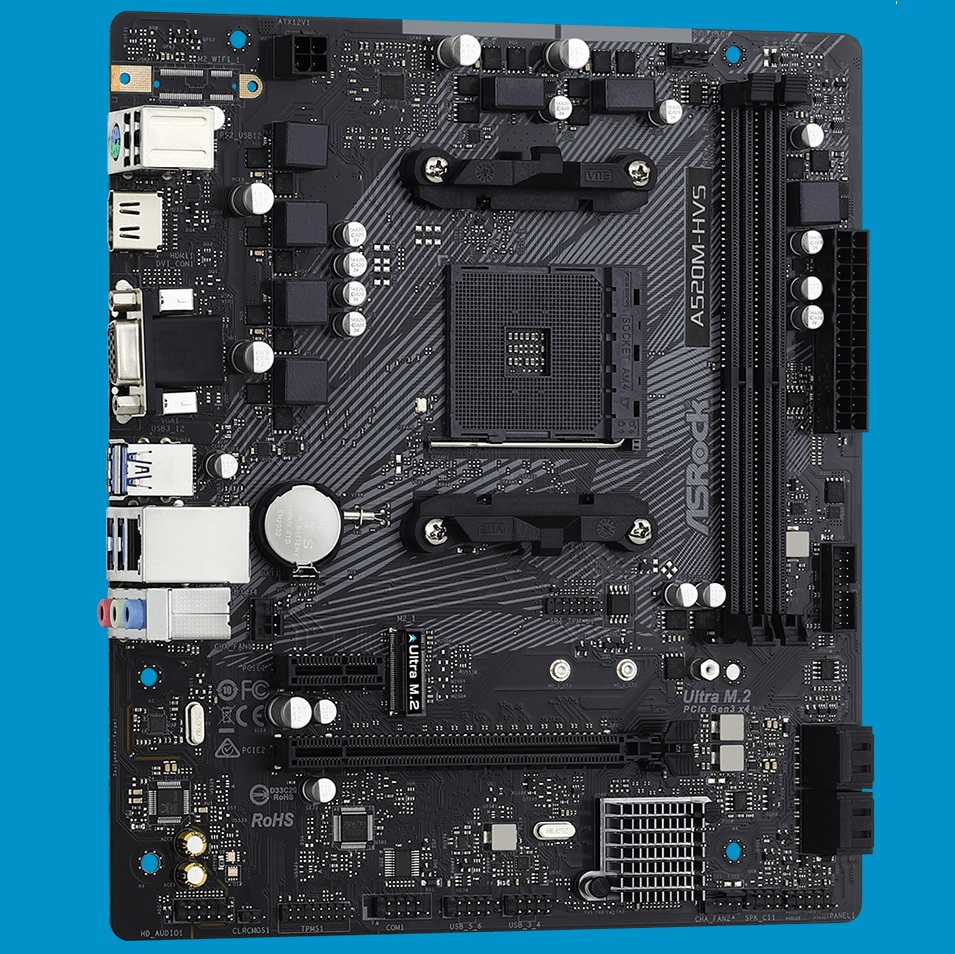

ASROCK-A520M-HVS A520M-HVS AM4 AMD A520 Micro ATX Motherboard ASRock A520M-HVS AM4 AMD A520 SATA 6Gb/s Micro ATX AMD Motherboard ; Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series ; Supports DDR4 4733+ (OC)

ASRock A520M-HVS AM4 AMD A520 SATA 6Gb/s Micro ATX AMD Motherboard ; Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series ; Supports DDR4 4733+ (OC)

$ 53.00 ---ONLY---
Out stock

Out of stock

SKU: ASROCK-A520M-HVS Categories: ,

Expert Features

  • Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
  • 6 Phase Power Design
  • Supports DDR4 4733+ (OC)
  • 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
  • Graphics Output Options: D-Sub, HDMI
  • 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
  • 4 x SATA3, 1 x Ultra M.2(Gen3 x4 & SATA3)
  • 6 x USB 3.2 Gen1(4 x Rear, 2 x Front)
    6 x USB 2.0(2 x Rear, 4 x Front)
  • Realtek Gigabit LAN

Expert Specs

Model
Brand ASRock
Series A520M-HVS
Supported CPU
CPU Socket Type  AM4
CPU Type Supports 3rd Gen AMD AM4 Ryzen / future AMD Ryzen Processors (3000 and 4000 Series Processors)*
* Not compatible with AMD Ryzen 5 3400G and Ryzen 3 3200G.
Chipsets
Chipset  AMD A520
Memory
Number of Memory Slots 2x288pin (DDR4)
Memory Standard AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC)/ 4533(OC)/ 4466(OC)/ 4400(OC)/ 4333(OC)/ 4333(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory*
AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC)/ 4666(OC)/ 4600(OC)/ 4533(OC)/ 4466(OC)/ 4400(OC)/ 4333(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory*
* Please refer to Memory Support List on ASRock’s website for more information. (http://www.asrock.com/)
Maximum Memory Supported 64GB
Channel Supported  Dual Channel
Expansion Slots
PCI Express 3.0 x16  1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
* Supports NVMe SSD as boot disks
PCI Express x1 1 x PCI Express 3.0 x1 Slot
Storage Devices
SATA 6Gb/s  4 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug
M.2 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)*
* Supports NVMe SSD as boot disks
* Supports ASRock U.2 Kit
SATA RAID 0/1/10
Onboard Video
Onboard Video Chipset  Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*
* Actual support may vary by CPU
DirectX 12, Pixel Shader 5.0
Shared memory default 2GB. Max Shared memory supports up to 16GB.
* The Max shared memory 16GB requires 32GB system memory installed.
Dual graphics output: support D-Sub and HDMI ports by independent display controllers
Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz
Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
Supports HDR (High Dynamic Range) with HDMI 2.1
Supports HDCP 2.3 with HDMI 2.1 Port
Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port
Supports Microsoft PlayReady
Onboard Audio
Audio Chipset  Realtek ALC887
Audio Channels  7.1 Channels
Onboard LAN
LAN Chipset Realtek RTL8111H
Max LAN Speed 1Gbps

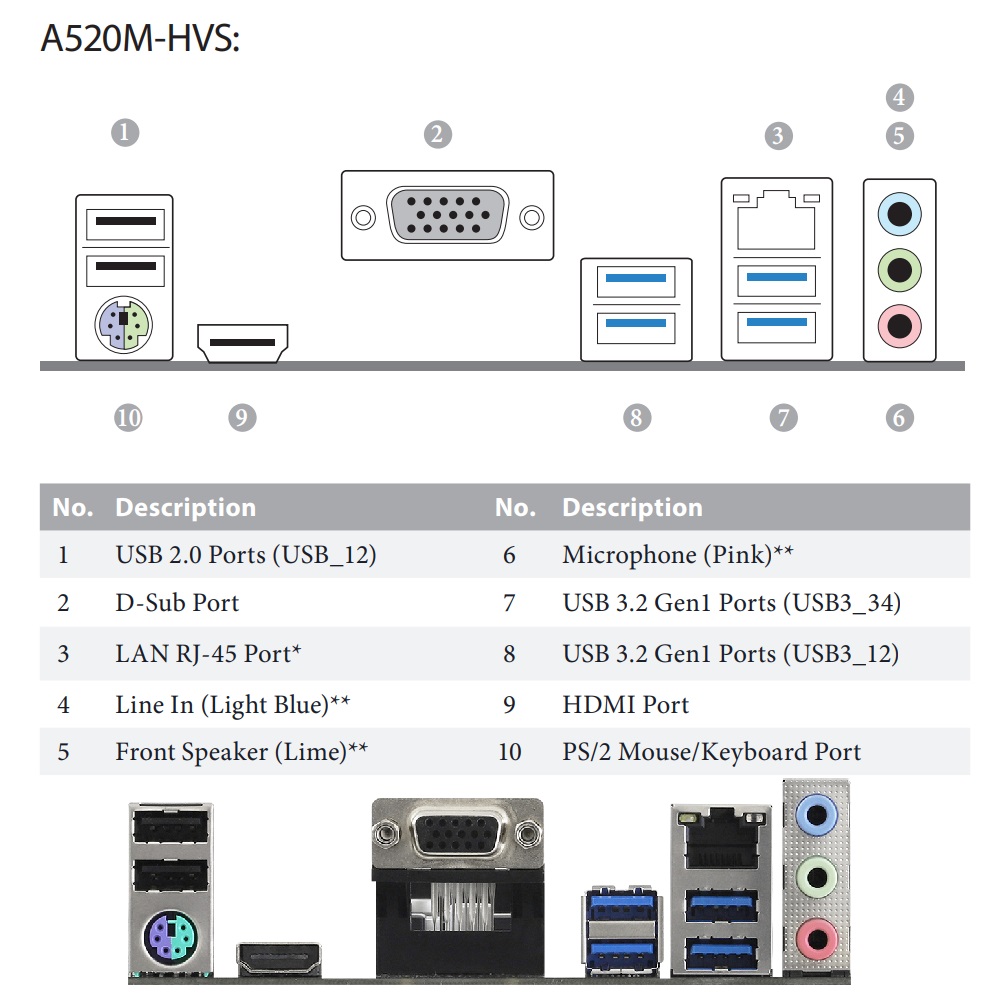

Rear Panel Ports
Back I/O Ports 1 x PS/2 Mouse/Keyboard Port
1 x D-Sub Port
1 x HDMI Port
2 x USB 2.0 Ports (Supports ESD Protection)
4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone
Internal I/O Connectors
Onboard USB 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
Other Connectors 1 x SPI TPM Header
1 x COM Port Header
1 x Chassis Intrusion and Speaker Header
1 x CPU Fan Connector (4-pin)
* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
* The Chassis Fan supports the water cooler fan of maximum 1A (12W) fan power.
* CHA_FAN2 can auto detect if 3-pin or 4-pin fan is in use.
1 x Front Panel Audio Connector
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.0″ x 7.9″
Power Pin 1 x 24-pin ATX Power Connector
1 x 4-pin 12V Power Connector
Features
Features Unique Feature:
ASRock Super Alloy
– Premium 50A Power Choke
– Sapphire Black PCB
– High Density Glass Fabric PCB
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop

BIOS Feature:
– 128MB AMI UEFI Legal BIOS with GUI support
– Supports “Plug and Play”
– ACPI 5.1 compliance wake up events
– Supports jumperfree
– SMBIOS 2.3 support
– CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment

Support CD:
– Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

Software and UEFI:
Software
– ASRock Motherboard Utility (A-Tuning)
– ASRock XFast LAN
* These utilities can be downloaded from ASRock Live Update & APP Shop.
UEFI
– ASRock Full HD UEFI
– ASRock Instant Flash

Hardware Monitor:
– Temperature Sensing: CPU, Chassis Fans
– Fan Tachometer: CPU, Chassis Fans
– Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis Fans
– Fan Multi-Speed Control: CPU, Chassis Fans
– CASE OPEN detection
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

OS:
– Microsoft Windows 10 64-bit

Certifications:
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
Packaging
Package Contents Accessories:
– Quick Installation Guide, Support CD, I/O Shield
– 2 x SATA Data Cables
– 1 x Screw for M.2 Socket

Description

ASROCK-A520M-HVS

A520M-HVS AM4 AMD A520 Micro ATX Motherboard

ASRock A520M-HVS AM4 AMD A520 SATA 6Gb/s Micro ATX AMD Motherboard ; Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series ; Supports DDR4 4733+ (OC)

A520M-HVS AM4 AMD A520 Micro ATX Motherboard A520M-HVS AM4 AMD A520 Micro ATX Motherboard A520M-HVS AM4 AMD A520 Micro ATX Motherboard A520M-HVS AM4 AMD A520 Micro ATX Motherboard A520M-HVS AM4 AMD A520 Micro ATX Motherboard A520M-HVS AM4 AMD A520 Micro ATX Motherboard A520M-HVS AM4 AMD A520 Micro ATX Motherboard A520M-HVS AM4 AMD A520 Micro ATX Motherboard A520M-HVS AM4 AMD A520 Micro ATX Motherboard A520M-HVS AM4 AMD A520 Micro ATX Motherboard
