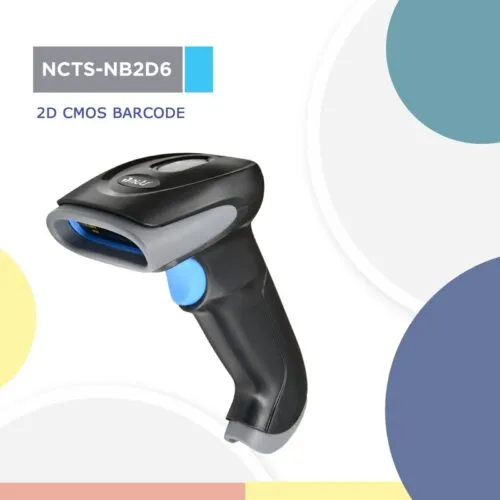

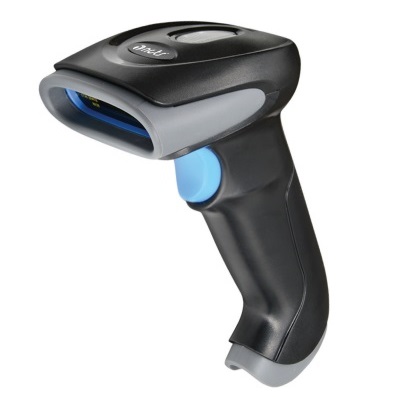

Wired Handheld Barcode Scanner CMOS Sensor

Expert Features

• Compatibility: Supports Windows, Android, Mac OS, iOS, Linux, and more.
• Multi-Language Support: Supports various keyboard languages, including USA, German, French, Italian, Spanish, Turkish, Belgian, Brazilian, Czech, and others.
• Custom Functions: Ability to add prefixes/suffixes, delete the last 4 characters, and interlaced upload data.
• Self-Upgrade Support: No limitations for Keyboard Cash self-upgrades.
• Flexible Work Modes: Adjustable working modes, including continuous or single reading, ability to scan the same barcode multiple times, and data upload delay options.
• Wide Application: Suitable for use in airports, train stations, hospitals, warehouses, supermarkets, retail stores, libraries, catering, logistics, express delivery, and more.
• Multi-Barcode Support: Supports various barcode formats, including EAN13, EAN8, UPC A, UPC E, Codabar, Code 39, Code 93, Interleaved 2 of 5, Matrix 2 of 5, Code 128, EAN/UCC 128, Code 11, Chinese Post, and more.
• 1D/2D Scanning: Can read both 1D and 2D barcodes, with compatibility for Android phones.

Expert Specifications

Electrical Characteristics

• Interface Supported: USB HID Keyboard, USB VCP
• Input Voltage: DC 5V ± 5%
• Current: 120mA

Optical Characteristics

• Photo Sensor: CMOS Array Sensor
• Sensor Resolution: 640 x 480 Pixels
• Light Source: White LED
• Aim Light Source: Red LED
• Decoding Speed: 60 FPS

Performance Characteristics

• Scanning Angle: Pitch angle: ±65°, Skew angle: ±65°, Tilt angle: ±360°
• Field of View: 48° (Horizontal) x 36° (Vertical)
• Minimum Resolution: 3mil
• Minimum PCS Value: 侒20% UPC/EAN 13 (13mil)
• Language: Supports multiple languages
• Data Edition: Supports custom data output
• Decode Capability:
  • 1D: Codabar, Code 39, Pharmaceutical (PARAF), Interleaved 2 of 5, NEC 2 of 5, Code 93, Straight 2 of 5, Industrial, IATA, Matrix 2 of 5, Code 11, Code 128, GS1-128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, MSI, GS1 DataBar Omnidirectional, GS1 DataBar Limited, GS1 DataBar Expanded, China Post (Hong Kong 2 of 5), Korea Post
  • 2D: PDF417, QR Code, MicroPDF417, MaxiCode, Codablock, Aztec, DataMatrix, etc.

Physical Characteristics

• Dimensions: 95mm x 67mm x 170mm (L x W x H)
• Weight: 130g
• Indicator: Beeper, LED

Environmental Characteristics

• Temperature: -20°C to 60°C (operation), -30°C to 70°C (storage)
• Humidity: 5% to 95% (non-condensing)
• Shock Drop Test: 1.5m drop onto a concrete surface
