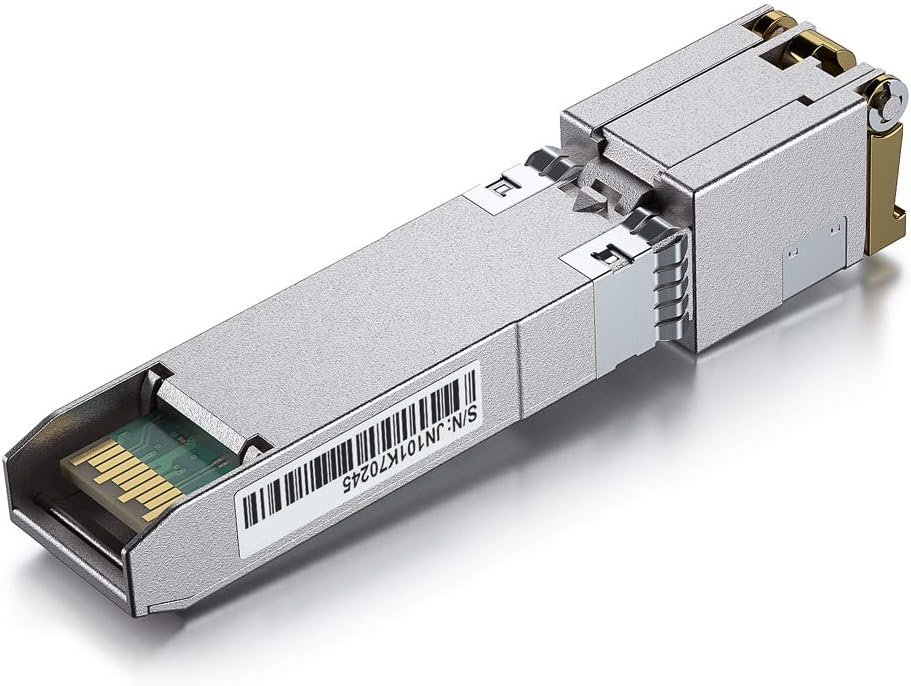

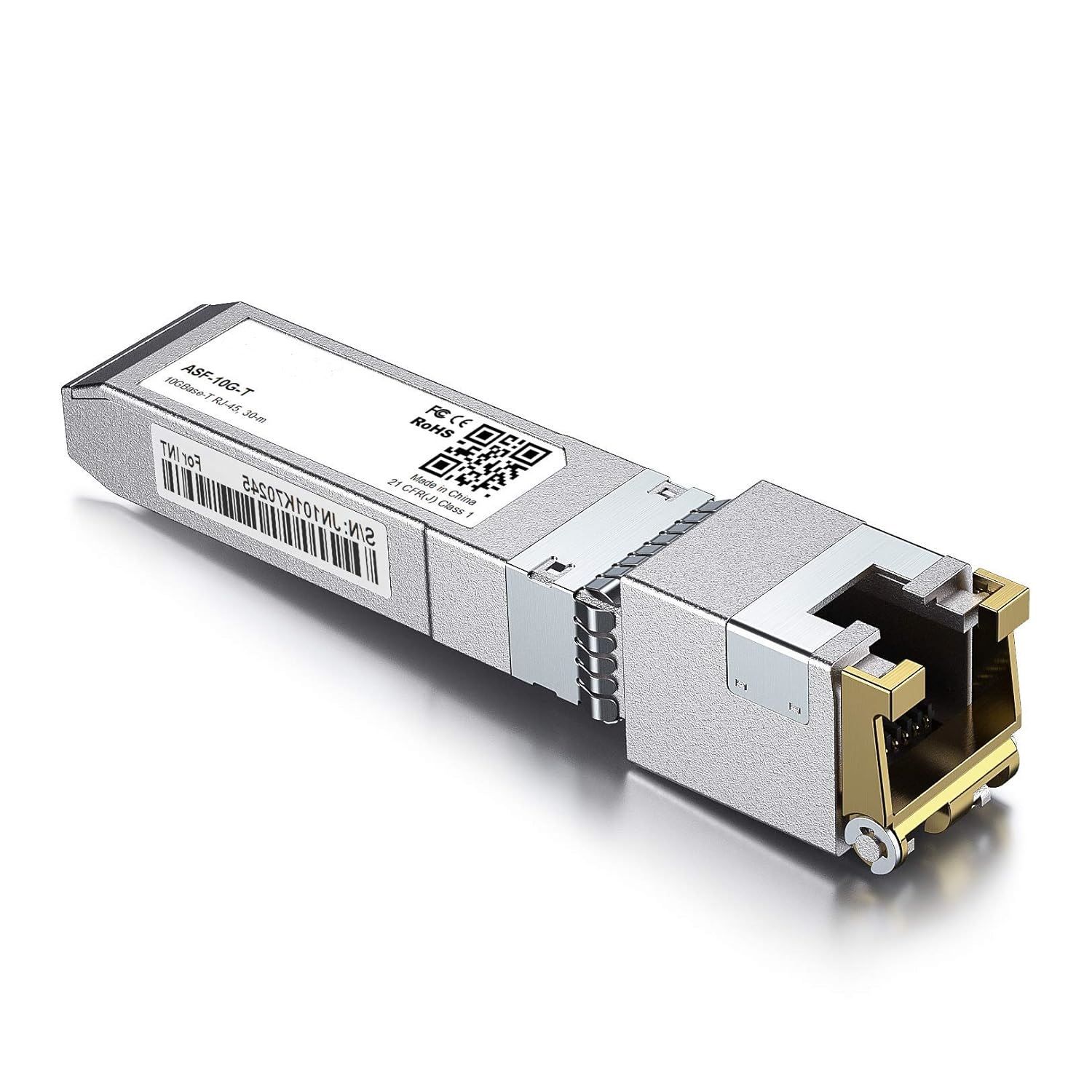

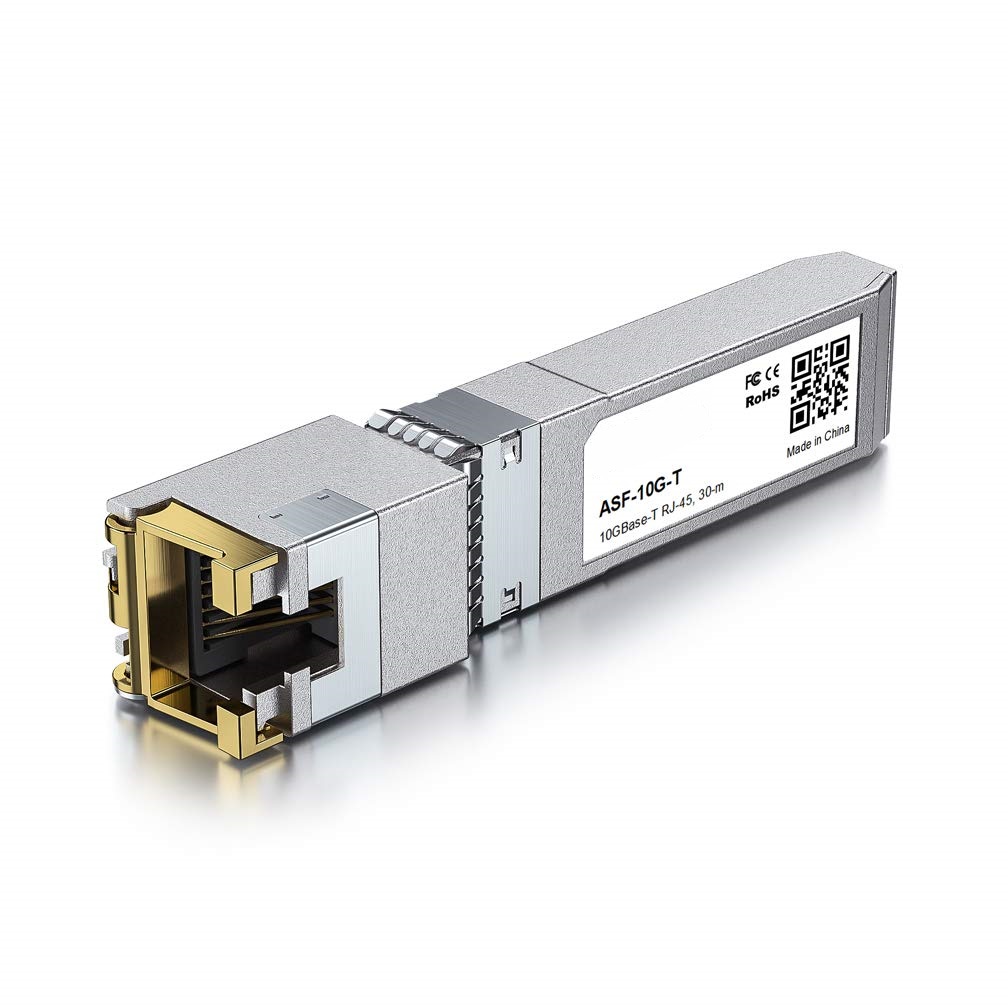

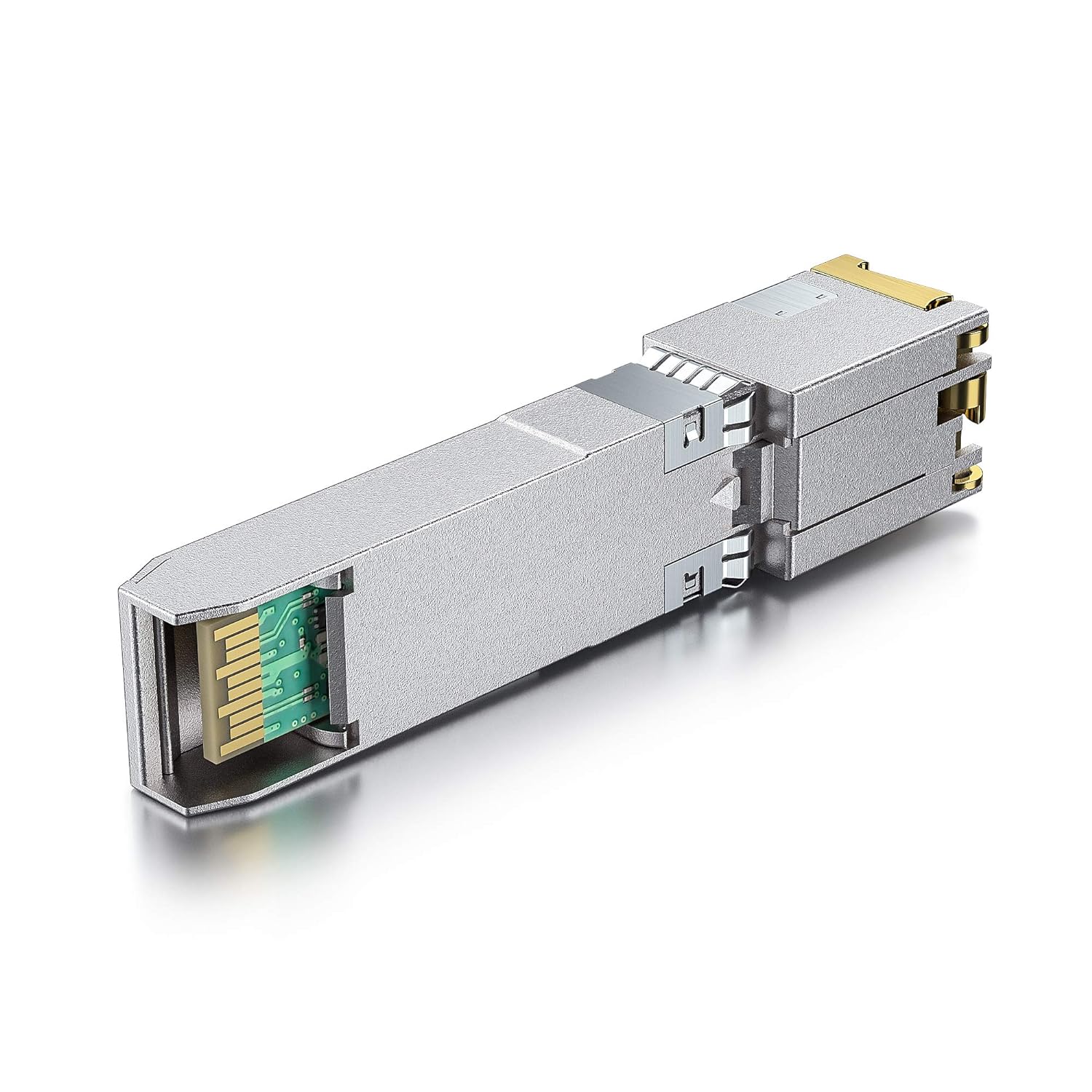

RJ45 30 meter 10G Base T SFP

Expert Features

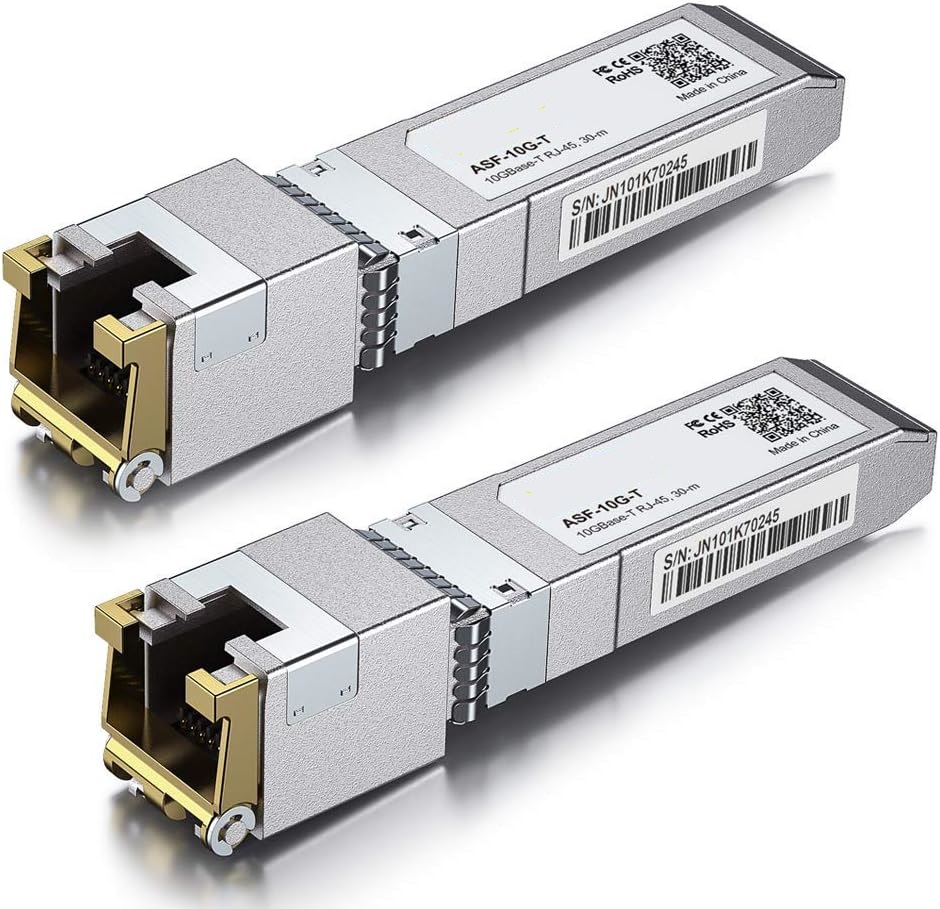

• ✅Multi Rate: 1.25Gb/2.5Gb/5Gb/10base-T Transceiver Support 10Gbase-R on host port，support 10Gbase-T / 5Gbase-T /2.5Gbase-T /1000Gbase-T on line port. SFF-8431 and SFF-8432 MSA Compliant,IEEE 802.3az Compliant. 2 Pack.

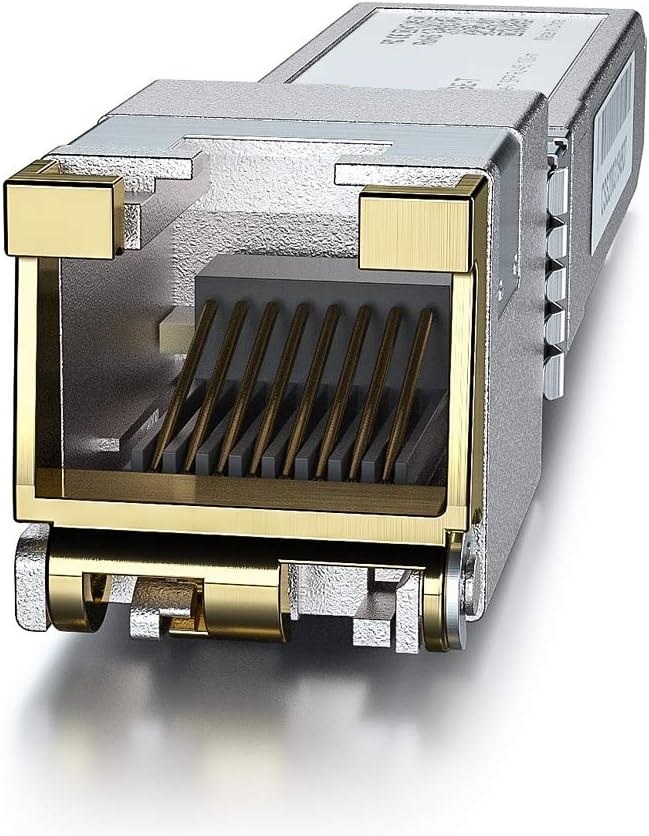

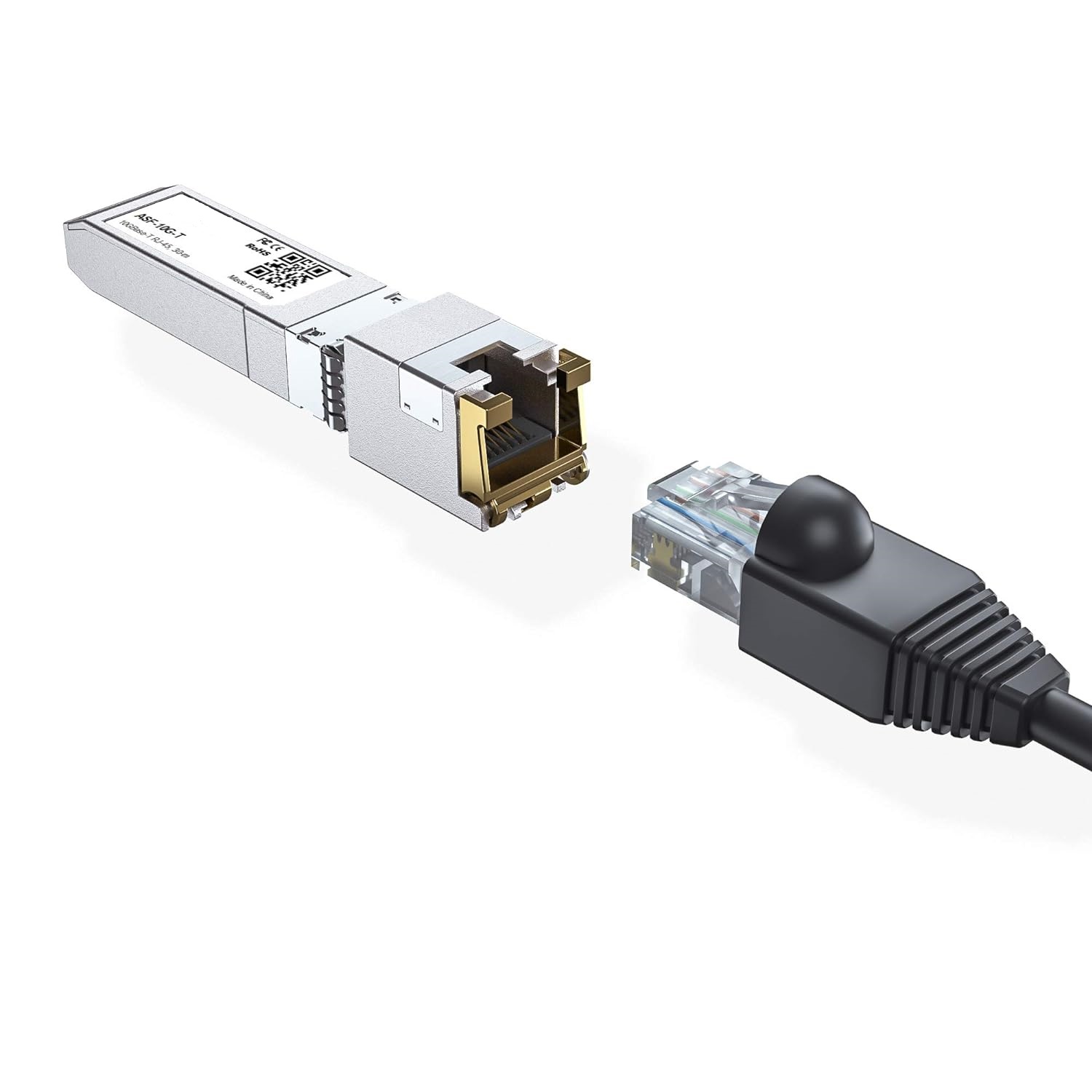

• ✅RJ-45 Connector: 10Gb SFP+ to RJ45 Ethernet Copper Module supports 10 Gigabit over Cat 6a/7/8 cable, up to 30 meters (98ft). Supprots 5Gb/2.5Gb rate over Cat 5e cable or better,up to 50 meters (164ft). Supprots 1000M rate over Cat 5e cable or better,up to 100 meters (328ft).
• ✅Wide Compatible: For Cisco SFP-10G-T-S, Ubiquiti UF-RJ45-10G, Unifi, Fortinet, Meraki, MikroTik, TP-Link TL-SM5310-T, Netgear AXM765, D-Link, Broadcom, QNAP, Linksys, Supermicro, Edge-core, EMC, F5, Norkia, QTC, Supermicro and Other Open Switches with 10G SFP+ Port.
• ✅PLUG and PLAY: Hot-pluggable, instantly use without any configuration, operating temperature range: 0℃ to 70℃, Single +3.3V power supply, RoHS compliant and lead-free. Widely used in Switches, Server, Routers, NIC, Media Converter,and other fiber optic equipments.

The 10G-SFP-T copper transceiver module is a high performance integrated duplex data link for bi-directional communication over copper cable. It is specifically designed for high speed communication links that require 10 Gigabit Ethernet over Cat 6a/7 cable. This is the first SFP+ transceiver that offers 10 Gb/s communication over this type of media.

Key Specs

•  Supports Links up to 30m using Cat 6a/7 Cable
•  SFF-8431 and SFF-8432 MSA Compliant
• IEEE 802.3az Compliant
•  Low Power Consumption (2.5W MAX @ 30m)
•  Fast Retrain EMI Cancellation Algorithm
•  Low EMI Emissions
• I2C 2-Wire Interface for Serial ID and PHY Register Access
•  Auto-negotiates with other 10GBase-T PHYs
• MDI/MDIX Crossover
• Multiple Loopback Modes for Testing and Troubleshooting
• Built-in Cable Monitoring and Link: Cable Length Measurements; Opens/Shorts
• Robust Die Cast Housing

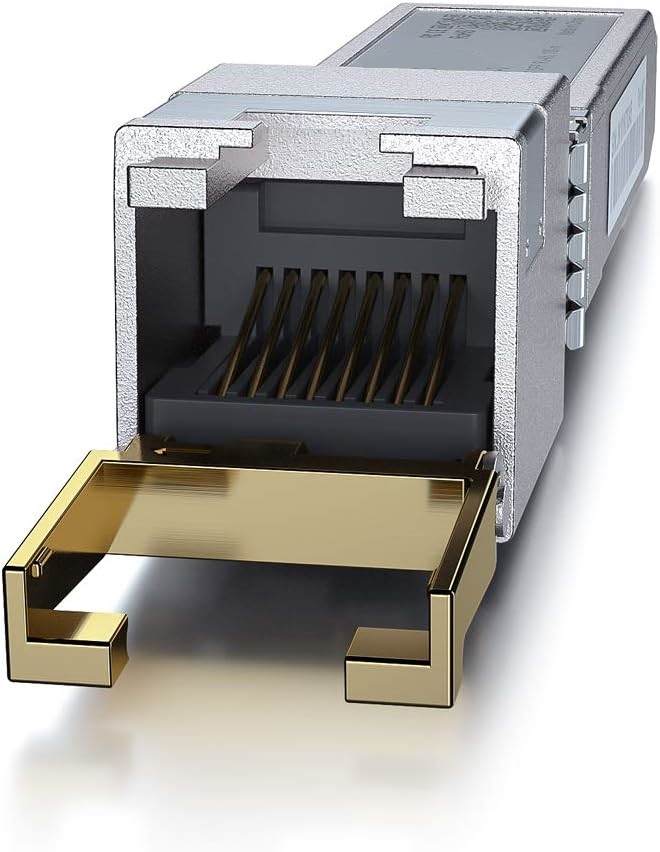

• Bail Latch Style ejector mechanism
•  Unshielded and Shielded cable support
