10G SFP+ LR Module 3010nm 10Km SM LC DDM Optic

EXPERT FEATURES

• Compatible for Mikrotik, and other Open Switch. Widely used in fiber switches, routers, NIC, server or other fiber optic equipments with 10Gb SFP+ ports.
• 10GBASE-LR SFP+ Module: 10Gb/s data rate, Single-Mode, duplex LC connector, 1310nm wavelength, the transmission distance up to 10km, working temperature: 0℃ ~ 70℃, Tx Power(dBm): -6.5 ~ -0.5, Rx Sens.(dBm): ＜ -14.4.
• Support DDM: DDM (Digital Diagnostics Monitoring) allows you to monitor the critical information concerning the status of the transmitted and received signals of the transceivers in real-time to find out some potential problems.
• Easy to use: Easy installation, plug and play, Supports hot-pluggable. Rotate the ring latch down at 90 degree angle to unlock, then pulling transceiver out from switch. High-quality metal material of housing, ensuring long life of repeated repeatedly plug and durable.

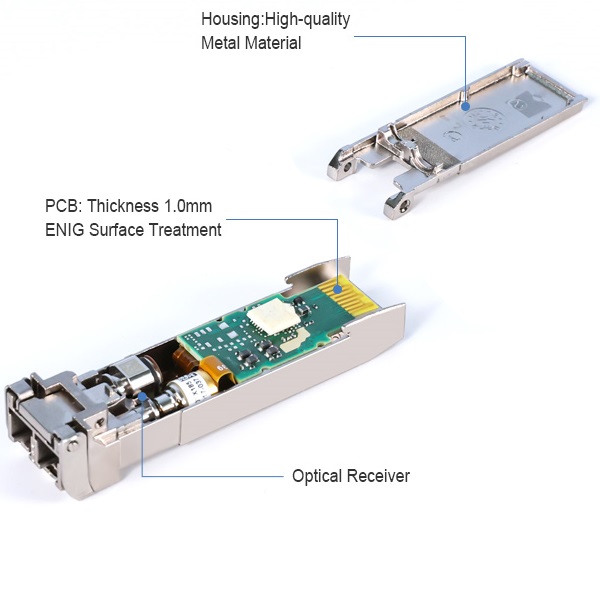

10 Gigabit Ethernet Single-mode SFP+ Module Structure

1. Housing: SFP modules are usually protected by metal casings to provide physical protection & electromagnetic shielding
2. PCB: Use winding technology as a circuit technology. By winding small-diameter wires around the pillars of the connection points, the durability & replaceability of the circuit are improved
3. Optical Receiver: An electro-optical conversion device commonly used in optical communication system that can convert optical signals transmitted through optical fibers into electrical signals
