COMPUTER PARTS

Showing 1–24 of 709 item(s)

Show

Quick View
(0)
COMPUTER PARTS
PNY GeForce RTX™ 4060 8GB Verto™ Dual Fan Graphics Card NVIDIA DLSS 3 (128-bit, PCIe 4.0, GDDR6, HDMI/DisplayPort, Supports 4k, 2 Slot) NVIDIA Ada Lovelace Architecture
$ 328.00 ---ONLY---
PNY RTX 4060 8GB Verto Dual Fan Graphics Card
EXPERT FEATURES
Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
Dedicated Ray Tracing Cores
Dedicated Tensor Cores
NVIDIA DLSS 3
Game Ready and NVIDIA Studio Drivers
NVIDIA® GeForce Experience™
NVIDIA Broadcast
NVIDIA G-SYNC®
NVIDIA GPU Boost™
PCI Express® Gen 4
Microsoft DirectX® 12 Ultimate
Vulkan RT APIs, Vulkan 1.3, OpenGL 4.6
HDCP 2.3
DisplayPort 1.4a, up to 4K at 240Hz or 8K at 60Hz with DSC, HDR
As specified in HDMI 2.1a: up to 4K 240Hz or 8K 60Hz with DSC, Gaming VRR, HDR
MINIMUM SYSTEM REQUIREMENTS
PCI Express-compliant motherboard with one dual width x16 graphics slot (x8 active)
One 8-pin supplementary power connectors
550 W or greater system power supply2
Microsoft Windows® 11 64-bit, Windows 10 (November 2018 or later) 64-bit, Linux 64-bit
Internet connection1
Expert Specs
Model
Brand
PNY
Series
VERTO
Model
VCG40608DFXPB1
Interface
Interface
PCI Express 4.0 x16
Chipset
Chipset Manufacturer
NVIDIA
GPU Series
NVIDIA GeForce RTX 40 Series
GPU
GeForce RTX 4060
Core Clock
1830 MHz
Boost Clock
2460 MHz
CUDA Cores
3072 Cores
Memory
Effective Memory Clock
17000 MHz
Memory Size
8GB
Memory Interface
128-Bit
Memory Type
GDDR6
3D API
DirectX
DirectX 12 Ultimate
OpenGL
OpenGL 4.6
Ports
Multi-Monitor Support
4
HDMI
1 x HDMI 2.1a
DisplayPort
3 x DisplayPort 1.4a
Details
Max Resolution
7680 x 4320
Cooler
Double Fans
Thermal Design Power
115W
Recommended PSU Wattage
550W
Power Connector
8-Pin
HDCP Ready
Yes
Form Factor & Dimensions
Form Factor
ATX
Max GPU Length
210 mm
Slot Width
2 Slots
Add to cart
Quick View
(0)
COMPUTER PARTS
GIGABYTE Z590 D Ultra Durable ATX Motherboard DDR4 with Direct 12+1 Phases Digital VRM, Full PCIe 4.0* Design, Extended Thermal Design, PCIe 4.0 M.2, GbE Gaming LAN, 8-ch HD Audio with Audio Caps
$ 130.00 ---ONLY---
GIGABYTE Z590 D ATX Motherboard DDR4 LGA 1200
Expert Features
Supports 11th and 10th Gen Intel® Core™ Series Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
Direct 12+1 Phases Digital VRM Solution with Low RDS(on) MOSFETs
Shielded Memory Routing for Better Memory Overclocking
Enlarged VRM Heatsink with Multi-Cut to increased surface contact
Dual Ultra-Fast NVMe PCIe 4.0*/3.0 x4 M.2
GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Expert Specs
CPU
LGA1200 package:
11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors*
* Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.
L3 cache varies with CPU
(Please refer to “CPU Support List” for more information.)
Chipset
Intel® Z590 Express Chipset
Memory
11th Generation Intel® Core™ i9/i7/i5 processors:
Support for DDR4 5333(O.C.) / DDR4 5133(O.C.) / DDR4 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
10th Generation Intel® Core™ i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules
10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:
Support for DDR4 2666/2400/2133 MHz memory modules
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Go to GIGABYTE’s website for the latest supported memory speeds and memory modules.)
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
(Graphics specifications may vary depending on CPU support.)
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software.
Support for S/PDIF Out

LAN
Realtek® GbE LAN chip (1 Gbit/100 Mbit)

Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 4.0 standard.) (Note)
2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
2 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2)
(The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)

Multi-Graphics Technology
Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Storage Interface
CPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)*
* Supported by 11th Generation processors only.
Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
Intel® Optane™ Memory Ready
USB
Chipset:
8 x USB 3.2 Gen 1 ports (6 ports on the back panel, 2 ports available through the internal USB header)
4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button
＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
Back Panel Connectors
1 x PS/2 mouse port
1 x PS/2 Keyboard port
1 x DisplayPort
6 x USB 3.2 Gen 1 ports
1 x RJ-45 port
3 x audio jacks

I/O Controller
iTE® I/O Controller Chip

H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Bundled Software
Norton® Internet Security (OEM version)
Realtek® 8118 Gaming LAN Bandwidth Control Utility
Operating System
Support for Windows 10 64-bit
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
Note
Supported by 11th Generation processors only.
Remark
Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors’ website or 3rd party website.
Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

Add to cart
-2%
Quick View
(0)
COMPUTER PARTS
ASUS PRIME Z790-V AX Motherboard DDR5 LGA1700 Intel Core 14th 13th 12th Gen Processors , 4 x DIMM slots , PCIe 5.0 Connectivity , Two-way AI Noise Cancellation , Addressable Gen 2 Headers- 90MB1HF0-MVAAY0
Original price was: $ 243.00.Current price is: $ 238.00. ---ONLY---
ASUS PRIME Z790 V AX Motherboard DDR5
Special Features
ASUS 5X PROTECTION III
– DIGI+ VRM (- Digital power design with DrMOS)
– LANGuard
– Overvoltage Protection
– SafeSlot Core+
– Stainless-Steel Back I/O
ASUS Q-Design
– Q-DIMM
– Q-Slot
– Q-LED Core
ASUS Thermal Solution
– VRM heatsink design
ASUS EZ DIY
– ProCool
Aura Sync
– Aura RGB header
– Addressable Gen 2 headers
Software Features
ASUS Exclusive Software
Armoury Crate
– Aura Sync
– Fan Xpert 4 (with AI Cooling II)
– Power Saving
-Two-Way AI Noise Cancelation
AI Suite 3
-TurboV EVO
-PC Cleaner
-DIGI+ VRM
ASUS CPU-Z
MyASUS
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
Expert Specs
Model : PRIME Z790-V AX
CPU
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel® Z790 Chipset
Memory
4 x DIMM slots, Max. 192GB, DDR5 7200 (OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory
configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics
1 x HDMITM port**
*Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots
Intel® Core™ Processors (14th & 13th & 12th Gen)*
1 x PCIe 5.0 x16 slot
Intel® Z790 Chipset
3 x PCIe 4.0 x16 slots (support x4 mode)
1 x PCIe 3.0 x1 slot
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*

Intel® Core™ Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
Intel® Z790 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Ethernet
1 x Realtek 1Gb Ethernet
Wireless & Bluetooth
Wi-Fi 6
Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth® v5.3*
*The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.
USB
Rear USB (Total 8 ports)
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 9 ports)
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
* USB_E5 port, USB_E6 port, USB_E7 port and USB_E8 port share the bandwidth.
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x HDMITM port
1 x Wi-Fi Module
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
2 x USB 3.2 Gen 1 headers support4 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-5pin System Panel header
1 x Thunderbolt™ (USB4®) Header
BIOS
192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x I/O Shield
2 x Screw packages for M.2 SSD
Documentation
1 x User guide
Operating System
Windows® 11, Windows® 10 64-bit
Form Factor
ATX Form Factor
12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
Add to cart
Quick View
(0)
COMPUTER PARTS

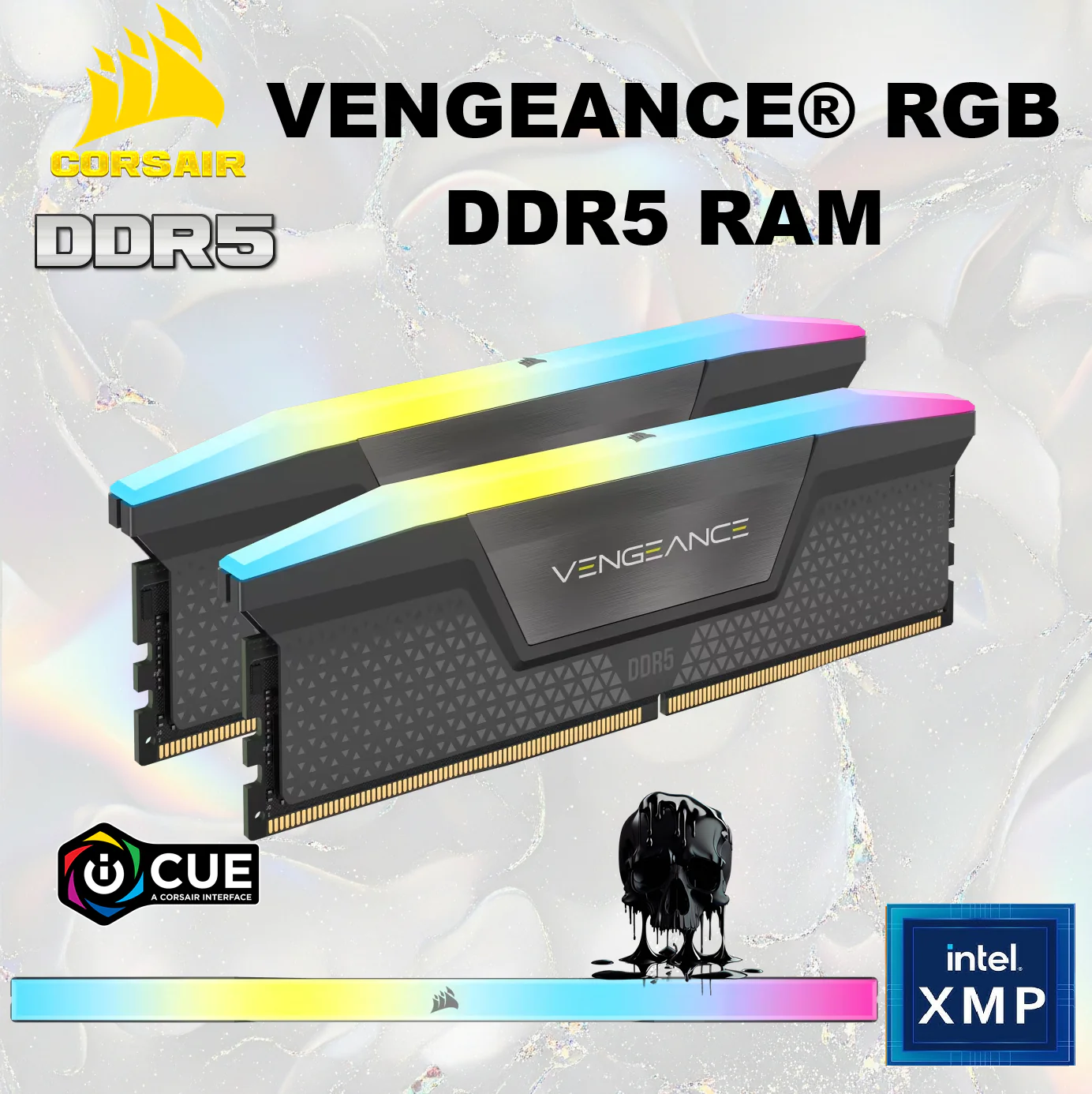

CORSAIR VENGEANCE RGB DDR5 RAM 64GB (2x32GB) 6000MHz CL30 1.35V (PC5 48000) Intel XMP iCUE Compatible Computer Memory – Black (CMH64GX5M2B6000C30)
$ 216.00 ---ONLY---
CORSAIR VENGEANCE RGB DDR5 RAM 64GB 6000MHz
Expert Features
Dynamic Ten-Zone RGB Lighting: Illuminate your system with ten individually addressable, ultra-bright RGB LEDs per module, encased in a panoramic light bar for vivid RGB lighting from any viewing angle.
Onboard Voltage Regulation: Enables easier, more finely-tuned, and more stable overclocking through CORSAIR iCUE software than previous generation motherboard control.
Custom Intel XMP 3.0 Profiles: Customize and save your own XMP profiles via iCUE to tailor performance by app or task for greater efficiency.
Create and Customize: Choose from dozens of preset lighting profiles, or create your own in iCUE.
Maximum Bandwidth and Tight Response Times: Optimized for peak performance on the latest Intel DDR5 motherboards.
Expert Specs
Model
Brand
CORSAIR
Series
Vengeance RGB
Model
CMH64GX5M2N6000C30
Details
Capacity
64GB (2 x 32GB)
Type
288-Pin PC RAM
Speed
DDR5 6000 (PC5 48000)
CAS Latency
30
Timing
30-36-36-96
Voltage
1.35V
Multi-channel Kit
Dual Channel Kit
BIOS/Performance Profile
Intel XMP 3.0
Color
Black
Heat Spreader
Yes
Features
CORSAIR VENGEANCE RGB DDR5 memory delivers DDR5 performance, higher frequencies, and greater capacities optimized for Intel® motherboards while lighting up your PC with dynamic, individually addressable ten-zone RGB lighting.
Tightly screened high-frequency memory chips enable faster processing, rendering, and buffering than ever, with onboard voltage regulation for easy, finely controlled overclocking.
Take control with CORSAIR iCUE software and enable RGB lighting customization, real-time frequency monitoring, onboard voltage regulation, and Intel XMP 3.0 profile customization.
A custom PCB provides superb signal quality for high performance and stability on the latest Intel DDR5 motherboards. For cutting-edge DDR5 performance with mesmerizing RGB lighting, VENGEANCE RGB DDR5 lights the way.
Recommend Use
AMD & Intel Compatible / AMD 500 Series / AMD 600 Series / AMD B550 / AMD B650 / High Performance or Gaming Memory / Intel 600 Series / Intel 700 Series / Intel B660 / Intel B670 / Intel B760 / Intel Compatible / Intel Z690 / Intel Z790
LED Color
RGB
Add to cart
Quick View
(0)
COMPUTER PARTS
CPU AMD Ryzen 7 7700 – AMD 7000 Series Ryzen 7 7700 Desktop Processor 8 cores 16 Threads 40 MB Cache 3.8 GHz Upto 5.3 GHz AM5 Socket Bundled with AMD Wraith Prism RGB LED CPU Heatsink Cooler (100-100000592BOX)
$ 307.00 ---ONLY---
CPU AMD Ryzen 7 7700 + AMD Wraith Prism
Expert Features
5nm 65W
32MB L3 Cache
8MB L2 Cache
AMD Radeon Graphics
Base Clock: 3.8 GHz, Max Boost Clock: up to 5.3 GHz
Memory Support: DDR5 5200MHz, Memory Channels: 2, TDP: 65W, PCI Express Generation : PCIe Gen 4
Compatible with Motherboards based on 600 Series Chipset, Socket AM5
On Chip Graphic Card , Included Heatsink Fan: Wraith Prism(W/LED)
Graphics Capabilities
Graphics Mode : AMD Radeon™ Graphics
Graphics Core Count : 2
Graphics Frequency : 2200 MHz
USB Type-C® DisplayPort™ Alternate Mode : Yes
Connectivity
Native USB 3.2 Gen 2 (10Gbps) Ports ; 4
Native USB 3.2 Gen 1 (5Gbps) Ports : 0
Native USB 2.0 (480Mbps) Ports : 1
Native SATA Ports : 0
PCI Express® Version : PCIe® 5.0
Native PCIe® Lanes (Total/Usable) : 28 , 24
NVMe Support : Boot , RAID0 , RAID1 , RAID10
System Memory Type : DDR5
Memory Channels ; 2
Max. Memory :128 GB
System Memory Subtype : UDIMM
Expert Specs
Model
Brand
AMD
Processors Type
Desktop
Series
Ryzen 7 7000 Series
Name
Ryzen 7 7700
Model
100-100000592BOX
Details
CPU Socket Type
Socket AM5
# of Cores
8-Core
# of Threads
16-Threads
Operating Frequency
3.8 GHz
Max Turbo Frequency
5.3GHz
L1 Cache
512KB
L2 Cache
8MB
L3 Cache
32MB
Manufacturing Tech
5nm
64-Bit Support
Yes
Memory Types
DDR5 5200
Integrated Graphics
AMD Radeon Graphics
Thermal Design Power
65W
Cooling Device
Wraith Prism Cooler
Add to cart
Quick View
(0)
COMPUTER PARTS
AMD Ryzen 9 5900X – Ryzen 9 5000 Series Vermeer (Zen 3) 12-Core 3.7 GHz Socket AM4 105W None Integrated 24-Thread Unlocked Graphics Desktop Processor – 100-100000061WOF
$ 282.00 ---ONLY---
CPU AMD Ryzen 9 5900X 12 Core 24 Thread
Expert Features
The world’s best gaming desktop processor, with 12 cores and 24 processing threads
Can deliver elite 100-plus FPS performance in the world’s most popular games
Cooler not included, high-performance cooler recommended. Max Temperature- 90°C
4.8 GHz Max Boost, unlocked for overclocking, 70 MB of cache, DDR-3200 support
For the advanced Socket AM4 platform, can support PCIe 4.0 on X570 and B550 motherboards
Expert Specs
Model
Brand
AMD
Processors Type
Desktop
Series
Ryzen 9 5000 Series
Name
Ryzen 9 5900X
Model
100-100000061WOF
Details
CPU Socket Type
Socket AM4
Core Name
Vermeer (Zen 3)
# of Cores
12-Core
# of Threads
24-Threads
Operating Frequency
3.7 GHz
Max Turbo Frequency
4.8 GHz
L2 Cache
6MB
L3 Cache
64MB
Manufacturing Tech
7nm
64-Bit Support
Yes
Memory Types
DDR4 3200
Virtualization Technology Support
Yes
Integrated Graphics
None Integrated Graphics
PCI Express Revision
4.0 / 3.0
Thermal Design Power
105W
Cooling Device
Cooling device not included – Processor Only
Operating System Supported
Windows 11
Add to cart
Quick View
(0)
COMPUTER PARTS
CORSAIR VENGEANCE DDR5 RAM 64GB (2x32GB) 5600MHz CL40 (PC5 44800) 288-Pin Intel XMP iCUE Compatible Computer Memory – Black (CMK64GX5M2B5600C40)
$ 184.00 ---ONLY---
DDR5 RAM 64G 5600MHz CL40
Expert Features
Welcome to the Cutting-Edge of Performance: Push the limits of your system like never before with DDR5 memory, unlocking even faster frequencies, greater capacities, and better performance than previous generations.
Do it All, and Do it Faster: As modern CPUs feature more and more cores, the unprecedented speed of DDR5 ensures your high-end CPU gets data quickly, enabling faster processing, rendering, and buffering than ever before.
Onboard Voltage Regulation: Makes for easier, more finely-tuned, and more stable overclocking through CORSAIR iCUE software than previous generation motherboard control.
Custom Intel XMP 3.0 Profiles: Customize and save your own XMP profiles via iCUE to tailor performance by app or task for greater efficiency.
Powerful CORSAIR iCUE Software: Enables real-time frequency readings, onboard voltage regulation, and custom XMP profiles.
Compact Form-Factor: Low clearance ensures wide compatibility with nearly any DDR5 build.
Expert Specs
Model
Brand
CORSAIR
Series
Vengeance
Model
CMK64GX5M2B5600C40
Details
Capacity
64GB (2 x 32GB)
Type
288-Pin PC RAM
Speed
DDR5 5600 (PC5 44800)
CAS Latency
40
Timing
40-40-40-77
Voltage
1.25V
BIOS/Performance Profile
Intel XMP 3.0
Color
Black
Heat Spreader
Aluminum
Recommend Use
Intel 600 Series
LED Color
None

Add to cart
Quick View
(0)
COMPUTER PARTS
CPU Intel Core i7-14700KF – Raptor Lake Core i7 14th Gen 20-Core (8P+12E) LGA 1700 125W , Up to 5.6 GHz Unlocked, 33MB Cache , None Integrated Graphics Desktop Processor – Tray
$ 382.00 ---ONLY---
CPU Intel Core i7 14700KF Raptor Lake
Expert Features
20 cores (8 P-cores + 12 E-cores) and 28 threads
Performance hybrid architecture integrates two core microarchitectures, prioritizing and distributing workloads to optimize performance
Up to 5.6 GHz unlocked. 33MB Cache
Compatible with Intel 600-series (with potential BIOS update) and 700-series chipset-based motherboards
Turbo Boost Max Technology 3.0 Frequency, and PCIe 5.0 & 4.0 support. DDR4 and DDR5 Memory support. No thermal solution included. Discrete graphics required

Expert Specs
Model
Brand
Intel
Processors Type
Desktop
Series
Core i7 14th Gen
Name
Core i7-14700KF
Model
CM8071504820722
Details
CPU Socket Type
LGA 1700
Core Name
Raptor Lake
# of Cores
20-Core (8P+12E)
# of Threads
28-Threads
Operating Frequency
Performance-core Base Frequency: 3.4 GHz
Efficient-core Base Frequency: 2.5 GHz
Max Turbo Frequency
Intel Turbo Boost Max Technology 3.0 Frequency: Up to 5.6 GHz
P-core Max Turbo Frequency: Up to 5.5 GHz
E-core Max Turbo Frequency: Up to 4.3 GHz
L2 Cache
28MB
L3 Cache
33MB
Manufacturing Tech
Intel 7
64-Bit Support
Yes
Hyper-Threading Support
Yes
Memory Types
DDR4 3200 / DDR5 5600
Memory Channel
2
Max Memory Size
192 GB
Max Memory Bandwidth
89.6 GB/s
Virtualization Technology Support
Yes
Integrated Graphics
None Integrated Graphics
Scalability
1S Only
PCI Express Revision
5.0 / 4.0
PCI Express Configurations
Up to 1×16+4, 2×8+4
Max Number of PCI Express Lanes
20
Thermal Design Power
125W
Max Turbo Power
253W
Cooling Device
Cooling device not included – Processor Only
Compatible Desktop Chipsets
Intel H610 / Intel H670 / Intel B660 / Intel Q670 / Intel W680 / Intel Z690 / Intel H770 / Intel B760 / Intel Z790
* BIOS update may be required when used with some old chipset motherboard
Operating System Supported
Linux / Windows 10 (22H2, 21H2) / Windows 11 (22H2, 21H2)
Advanced Technologies
Intel Gaussian & Neural Accelerator: 3.0
Intel Thread Director
Intel Deep Learning Boost (Intel DL Boost) on CPU
Intel Speed Shift Technology
Intel Turbo Boost Max Technology 3.0
Intel Turbo Boost Technology: 2.0
Intel Hyper-Threading Technology
Intel 64
Instruction Set: 64-bit
Instruction Set Extensions: Intel SSE4.1, Intel SSE4.2, Intel AVX2
Idle States
Enhanced Intel SpeedStep Technology
Thermal Monitoring Technologies
Intel Volume Management Device (VMD)
Security & Reliability
Intel Standard Manageability (ISM)
Intel Control-Flow Enforcement Technology
Intel AES New Instructions
Secure Key
Intel OS Guard
Execute Disable Bit
Intel Boot Guard
Mode-based Execute Control (MBEC)
Intel Virtualization Technology (VT-x)
Intel Virtualization Technology for Directed I/O (VT-d)
Intel VT-x with Extended Page Tables (EPT)

Add to cart
Quick View
(0)
COMPUTER PARTS
CPU Intel Core i7-14700KF – Raptor Lake Core i7 14th Gen 20-Core (8P+12E) LGA 1700 125W , Up to 5.6 GHz Unlocked, 33MB Cache , None Integrated Graphics Desktop Processor – Tray – PULLOUT
$ 369.00 ---ONLY---
CPU Intel Core i7 14700KF Raptor Lake
Expert Features
20 cores (8 P-cores + 12 E-cores) and 28 threads
Performance hybrid architecture integrates two core microarchitectures, prioritizing and distributing workloads to optimize performance
Up to 5.6 GHz unlocked. 33MB Cache
Compatible with Intel 600-series (with potential BIOS update) and 700-series chipset-based motherboards
Turbo Boost Max Technology 3.0 Frequency, and PCIe 5.0 & 4.0 support. DDR4 and DDR5 Memory support. No thermal solution included. Discrete graphics required

Expert Specs
Model
Brand
Intel
Processors Type
Desktop
Series
Core i7 14th Gen
Name
Core i7-14700KF
Model
CM8071504820722
Details
CPU Socket Type
LGA 1700
Core Name
Raptor Lake
# of Cores
20-Core (8P+12E)
# of Threads
28-Threads
Operating Frequency
Performance-core Base Frequency: 3.4 GHz
Efficient-core Base Frequency: 2.5 GHz
Max Turbo Frequency
Intel Turbo Boost Max Technology 3.0 Frequency: Up to 5.6 GHz
P-core Max Turbo Frequency: Up to 5.5 GHz
E-core Max Turbo Frequency: Up to 4.3 GHz
L2 Cache
28MB
L3 Cache
33MB
Manufacturing Tech
Intel 7
64-Bit Support
Yes
Hyper-Threading Support
Yes
Memory Types
DDR4 3200 / DDR5 5600
Memory Channel
2
Max Memory Size
192 GB
Max Memory Bandwidth
89.6 GB/s
Virtualization Technology Support
Yes
Integrated Graphics
None Integrated Graphics
Scalability
1S Only
PCI Express Revision
5.0 / 4.0
PCI Express Configurations
Up to 1×16+4, 2×8+4
Max Number of PCI Express Lanes
20
Thermal Design Power
125W
Max Turbo Power
253W
Cooling Device
Cooling device not included – Processor Only
Compatible Desktop Chipsets
Intel H610 / Intel H670 / Intel B660 / Intel Q670 / Intel W680 / Intel Z690 / Intel H770 / Intel B760 / Intel Z790
* BIOS update may be required when used with some old chipset motherboard
Operating System Supported
Linux / Windows 10 (22H2, 21H2) / Windows 11 (22H2, 21H2)
Advanced Technologies
Intel Gaussian & Neural Accelerator: 3.0
Intel Thread Director
Intel Deep Learning Boost (Intel DL Boost) on CPU
Intel Speed Shift Technology
Intel Turbo Boost Max Technology 3.0
Intel Turbo Boost Technology: 2.0
Intel Hyper-Threading Technology
Intel 64
Instruction Set: 64-bit
Instruction Set Extensions: Intel SSE4.1, Intel SSE4.2, Intel AVX2
Idle States
Enhanced Intel SpeedStep Technology
Thermal Monitoring Technologies
Intel Volume Management Device (VMD)
Security & Reliability
Intel Standard Manageability (ISM)
Intel Control-Flow Enforcement Technology
Intel AES New Instructions
Secure Key
Intel OS Guard
Execute Disable Bit
Intel Boot Guard
Mode-based Execute Control (MBEC)
Intel Virtualization Technology (VT-x)
Intel Virtualization Technology for Directed I/O (VT-d)
Intel VT-x with Extended Page Tables (EPT)

Add to cart
Quick View
(0)
COMPUTER PARTS
CPU Intel Core i7-14700F – Core i7 14th Gen Raptor Lake 20-Core (8P+12E) 28 threads , Up to 5.4 GHz Unlocked , 33MB Cache, LGA 1700 65W None Integrated Graphics Processor | PULL-OUT
$ 357.00 ---ONLY---
CPU Intel Core i7-14700F 14th Gen
Expert Features
20 cores (8 P-cores + 12 E-cores) and 28 threads
Performance hybrid architecture integrates two core microarchitectures, prioritizing and distributing workloads to optimize performance
Up to 5.4 GHz unlocked. 33MB Cache
Compatible with Intel 600-series (with potential BIOS update) and 700-series chipset-based motherboards
PCIe 5.0 & 4.0 support. DDR4 and DDR5 Memory support. RM1 thermal solution included. Discrete graphics required.
Expert Specs
Model
Brand
Intel
Processors Type
Desktop
Series
Core i7 14th Gen
Name
Core i7-14700F
Model
BX8071514700F
Details
CPU Socket Type
LGA 1700
Core Name
Raptor Lake
# of Cores
20-Core (8P+12E)
# of Threads
28-Threads
Operating Frequency
Performance-core Base Frequency: 2.1 GHz
Efficient-core Base Frequency: 1.5 GHz
Max Turbo Frequency
Max Turbo Frequency: 5.4 GHz
Intel® Turbo Boost Max Technology 3.0 Frequency: 5.4 GHz
Performance-core Max Turbo Frequency: 5.3 GHz
Efficient-core Max Turbo Frequency: 4.2 GHz
L2 Cache
28MB
L3 Cache
33MB
Manufacturing Tech
Intel 7
64-Bit Support
Yes
Hyper-Threading Support
Yes
Memory Types
DDR4 3200 / DDR5 5600
Memory Channel
2
Max Memory Size
192 GB
Max Memory Bandwidth
89.6 GB/s
Virtualization Technology Support
Yes
Integrated Graphics
None Integrated Graphics
Scalability
1S Only
PCI Express Revision
5.0 / 4.0
PCI Express Configurations
Up to 1×16+4, 2×8+4
Max Number of PCI Express Lanes
20
Thermal Design Power
65W
Max Turbo Power
219W
Cooling Device
Intel Laminar RM1 included
Compatible Desktop Chipsets
Intel H610 / Intel H670 / Intel B660 / Intel Q670 / Intel W680 / Intel Z690 / Intel H770 / Intel B760 / Intel Z790
* BIOS update may be required when used with some old chipset motherboard
Operating System Supported
Linux / Windows 10 (22H2, 21H2) / Windows 11 (22H2, 21H2)
Add to cart
Quick View
(0)
COMPUTER PARTS
MSI GeForce RTX 4070 Ti SUPER VENTUS 3X OC Graphics Card, 16GB GDDR6X 256-bit Memory, 2640 MHz Boost Clock, 21Gbps Mmeory Speed, 8448 CUDA, PCI E Gen 4, DPx 3 / HDMI x 1 | 912-V513-627
$ 943.00 ---ONLY---
MSI RTX 4070 Ti SUPER 3X OC Graphics Card
WITH DLSS 3
Get equipped for supercharged gaming and creating with NVIDIA® GeForce RTX™ 4070 Ti SUPER. It’s built with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience super fast ray tracing, AI-accelerated performance with DLSS 3, new ways to create, and much more.
Boost Clock / Memory Speed
2640 MHz / 21 Gbps
16GB GDDR6X
DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)
Triple Fan Thermal Design
TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
Airflow Control: Don’t sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.
Core Pipe: Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
Zero Frozr:The fans completely stop when temperatures are relatively low, eliminating all noise.
Reinforcing Backplate
The reinforcing backplate features a flow-through design that provides additional ventilation.
MSI Center
The exclusive MSI Center software lets you monitor, tweak, and optimize MSI products in real-time.
Expert Specifications
Model Name
GeForce RTX™ 4070 Ti SUPER 16G VENTUS 3X OC
Graphics Processing Unit
NVIDIA® GeForce RTX™ 4070 Ti SUPER
Interface
PCI Express® Gen 4
Core Clocks
Extreme Performance: 2655 MHz (MSI Center)
Boost: 2640 MHz
CUDA® Cores
8448 Units
Memory Speed
21 Gbps
Memory
16GB GDDR6X
Memory Bus
256-bit
Output
DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)
HDCP Support
Yes
Power Consumption
285 W
Power Connectors
16-pin x 1
Recommended PSU
700 W
Card Dimension (MM)
308 x 120 x 50 mm
Weight (Card / Package)
1107g / 1661g
DirectX Version Support
12 Ultimate
OpenGL Version Support
4.6
Maximum Displays
4
G-SYNC® Technology
Yes
Digital Maximum Resolution
7680 x 4320

912-V513-627
MSI RTX 4070 Ti SUPER 3X OC Graphics Card
MSI GeForce RTX 4070 Ti SUPER VENTUS 3X OC Graphics Card, 16GB GDDR6X 256-bit Memory, 2640 MHz Boost Clock, 21Gbps Mmeory Speed, 8448 CUDA, PCI E Gen 4, DPx 3 / HDMI x 1 | 912-V513-627
Add to cart
Quick View
(0)
CABLES
Thermaltake TTMod Sleeve Extension Power Supply Cable Kit ATX/EPS/8-pin PCI-E/6-pin PCI-E with Combs, Green/Black AC-034-CN1NAN-A1
$ 33.00 ---ONLY---
Sleeve Extension Power Supply Cable Kit
EXPERT FEATURES
Customize your system build with the Thermaltake sleeved modular cable set. With three-layered design:
Outer ultra-density weaving, the middle insulating layer with acid and alkali-resistance, fuel resistance, damp proof, and mildew proof features, and inner certified 16 AWG wire, the TtMod Sleeve Cable combo pack offers users more flexibility for easy installation as well as a clean and professional look.
The new individually sleeved cables are heat-shrink free to ensure high-quality cable assembly and support for high currents in order to achieve superior performance and stability.
Tidy and Clean Cable Management
Cable combs with rounded edges provide a professional look and easy installation.
Each comb can be placed individually along the cable for proper fitment and routing.
Improve overall airflow and case clutter with premium routing of each cable for an ideal presentation.
Three-Layered Weaving Design
By using the most stringent manufacturing procedures and standards, the insulating layer delivers perfect uniform insulation thickness to ensure easy stripping and cutting.
Furthermore, all cables are built with high-quality 16 AWG wires and ultra-density cable sleeving to deliver superior electrical connection.
Three-layer weaving design delivers appropriate bending stiffness for easy installation.
(1) The outer layer: Ultra-density sleeve design
(2) The middle layer: Insulating layer
(3) The inner layer: 16 AWG wire
Heatshrinkless Cabling
Made with premium materials, the TtMod Sleeve Cable features heatshrinkless sleeving methods and gives aesthetic appeal and excellent durability.
Universal Compatibility
With universal standard power cable extension connectors, the TtMod Sleeve Cables are fully compatible with all Thermaltake Power Supply brands and models.
Each cable is designed to fit into the “System Side” of the power supply cable to allow extension and easier routing.
EXPERT SPECS
P/N
AC-034-CN1NAN-A1
WİRE AWG
Universal
LENGTH
300 mm
WIRE AWG
16
SLEEVE COLOR
Black / Green
COMB COLOR
Black
CABLE COMBO PACK CONTENTS
– 24 Pin ATX Extension Cable x 1
– 4 + 4 Pin EPS Cable x 1
– 8 Pin PCI-e Cable x 2
– 6 Pin PCI-e Cable x 2
– 24 Pin Cable Comb x 4
– 8 Pin Cable Comb x 12
– 6 Pin Cable Comb x 8

Add to cart
Quick View
(0)
COMPUTER PARTS
ASUS TUF Gaming NVIDIA GeForce RTX 3080 OC Edition Graphics Card- PCIe 4.0, 10GB GDDR6X, HDMI 2.1, DisplayPort 1.4a, Dual Ball Fan Bearings – USED
$ 360.00 ---ONLY---
ASUS TUF Gaming NVIDIA GeForce RTX 3080 OC
Expert Features
NVIDIA Ampere Streaming Multiprocessors: The building blocks for the world’s fastest, most efficient GPU, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.
2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.
3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. Now with support for up to 8K resolution, these cores deliver a massive boost in game performance and all-new
AI capabilities.
Axial-tech Fan Design has been newly tuned with a reversed central fan direction for less turbulence.
Dual Ball Fan Bearings can last up to twice as long as sleeve bearing designs.
Military-grade Capacitors and other TUF components enhance durability and performance.
GPU Tweak II provides intuitive performance tweaking, thermal controls, and system monitoring.
Expert Specs
Model
Brand
ASUS
Series
TUF Gaming
Model
TUF-RTX3080-O10G-GAMING
Interface
Interface
PCI Express 4.0
Chipset
Chipset Manufacturer
NVIDIA
GPU Series
NVIDIA GeForce RTX 30 Series
GPU
GeForce RTX 3080
Core Clock
1440 MHz
Boost Clock
OC Mode: 1815 MHz
Gaming Mode (Default): 1785 MHz
CUDA Cores
8704 Cores
Memory
Effective Memory Clock
19 Gbps
Memory Size
10GB
Memory Interface
320-Bit
Memory Type
GDDR6X
3D API
DirectX
DirectX 12
OpenGL
OpenGL 4.6
Ports
Multi-Monitor Support
4
HDMI
2 x HDMI 2.1
DisplayPort
3 x DisplayPort 1.4a
Details
Max Resolution
7680 x 4320
SLI Support
No
Virtual Reality Ready
Yes
Cooler
Triple Fans
Thermal Design Power
750W
System Requirements
Recommended PSU: 850W
Recommended PSU Wattage
850W
Power Connector
2 x 8-Pin
HDCP Ready
2.3
Form Factor & Dimensions
Max GPU Length
300 mm
Card Dimensions (L x H)
11.81″ x 5.00″
Slot Width
2.7 slot
Add to cart
-4%
Quick View
(0)
COMPUTER PARTS
GAMDIAS HELIOS P1A-750G 750W 80 Plus Gold PSU , 120mm Hydraulic Bearing Fan , ATX12V v2.52 , C6/C7 Power State , Automatic Fan Speed Optimizing , Full DC-DC, LLC Resonant , Heavy-duty Protection: OVP/UVP/OPP/SCP/OCP/OTP – BLACK
Original price was: $ 85.00.Current price is: $ 82.00. ---ONLY---
P1A-750G 750W 80 Plus Gold PSU
EXPERT FEATURES
POWERFUL. EFFICIENT. STABLE.
Certified with 80 PLUS GOLD, the HELIOS P1A-750G can deliver a stable output of up to 90% efficiency and reduce power consumption.
It features black flat cables for easy installation and cable management and is equipped with high-quality capacitors and a hydraulic bearing fan to perform reliably at top conditions.
80 PLUS GOLD CERTIFIED
With an 80 PLUS GOLD certification, the unit guarantees stable power output at up to 92% efficiency at 50% load while reducing considerable power consumption.
SMART HYDRAULIC FAN
Equipped with a 120mm hydraulic bearing fan, the PSU ensures silent and stable operations for long durations.
The fan also features automatic fan speed optimization, enabling the fan speed to be adjusted based on the detection of temperature and load.
LLC RESONANT CIRCUIT LAYOUT
Made with DC to DC structure with full bridge LLC resonance assist and 12V synchronous rectification providing a safe and stable output.
FLAT BLACK CABLES
The sleek and flexible black cables are designed for easy cable installation, reducing clutter, and increase the airflow within the case.
HEAVY-DUTY PROTECTION
This PSU offers complete protection, meeting full demands to help the system operate safely and stably.
EXPERT SPECIFICATIONS
Model : HELIOS P1A-750G
POWER : TypeATX12V v2.52
Efficiency : Meet 80 PLUS Gold efficiency
Power Factor Correction : APFC with PF value of 0.99
Support MB Sync : No
Dimension (L x W x H) : 140 x 150 x 86 mm
Support C6/C7 power state : Yes
AC Input : 100-240V~ / 10A / 50-60Hz
DC Output : +3.3V / +5V / +12V / -12V / +5Vsb
Max. Output Current : 22A / 22A / 62.5A / 0.3A / 3A
Max. Output Power : 120W / 750W / 3.6W / 15W
Total Power : 750W
Peak Power : 975W
Protection : OVP / UVP / OPP / SCP / OCP / OTP
Main Power : 1 (24 Pin)
CPU : 1 (4+4 Pin)
PCI-E : 2 (6+2 Pin)
SATA : 4 (5 Pin)
Molex : 3 (4 Pin)
Modular : Non Modular
Flat Cable : Yes
Cooling System : 120mm hydraulic bearing fan
Silent Mode : No
DC to DC : Yes
Environmental Compliance : Erp Lot 6
Add to cart
Quick View
(0)
COMPUTER PARTS
GAMDIAS HELIOS M1-850B PSU 850W 80 PLUS Bronze Efficiency , APFC with PF value of 0.99 , C6/C7 Power States , Automatic Fan Speed Optimization , Black Flat Cables , Stealth Black
$ 84.00 ---ONLY---
HELIOS M1-850B PSU 850W 80 PLUS Bronze
EXPERT FEATURES
SMART AND RELIABLE
The HELIOS M1-850B is a high quality stealth fan that can deliver up to 85% efficiency while automatically adjusting its fan speed according to temperature. It also has a high build quality with its flat black cables and 80 PLUS bronze certification.
80 PLUS BRONZE CERTIFIED
Efficiency rating reflects how much power is retained on transfer, not build quality. HELIOS M1-850B, with an 80 PLUS Bronze efficiency rating, is a safe and lasting first-rate power supply unit.
SMART VENTILATION
The power supply unit supports automatic fan speed optimization which adjusts its fan speed according to the temperature and load.
FLAT BLACK CABLES
The stealthy and flexible black cables are designed for easy cable installation, reducing clutter, and increase the airflow within the case.
EXPERT SPECIFICATIONS
Model : HELIOS M1-850B
POWER : TypeATX12V v2.4
Efficiency : Meet 80 PLUS Bronze efficiency
Power Factor Correction : APFC with PF value of 0.99
Support MB Sync : No
Dimension (L x W x H) : 140 x 150 x 86 mm
Support C6/C7 power state : Yes
AC Input : 100-240V / 5.5-11A / 47-63Hz
DC Output : +3.3V / +5V / +12V / -12V / +5VsbMax. Output Current : 20A / 20A / 70A / 0.3A / 2.5A
Max. Output Power : 130W / 840W / 3.6W / 12.5W
Total Power : 850W
Protection : OVP / UVP / OPP / OCP / SCP / SP / ICP
Main Power : 1 (20+4 Pin)
CPU : 2 (4+4 Pin)
PCI-E : 4 (6+2 Pin)
SATA : 6 (5 Pin)
Molex : 4 (4 Pin)
Modular : Non Modular
Flat Cable : Yes
Silent Mode : No
DC to DC : Yes

Add to cart
Quick View
(0)
COMPUTER PARTS
GAMDIAS HELIOS E1-600 NON-MODULAR 600W PSU ATX12V v2.4 80% efficiency C6/C7 power state , 620mm EPS Cable , Automatic Fan Speed Optimization , Stealth Black
$ 44.00 ---ONLY---
E1-600 NON-MODULAR 600W PSU
EXPERT FEATURES
Support C6/C7 Power States & Meets 80% Efficiency : The HELIOS E1-600W can deliver up to 80%+ efficiency reliably while automatically adjusting its fan speed according to temperature.
EXTRAORDINARY EFFICIENCY WITH 620mm EPS Cable : HELIOS E1-600W can perfectly draw power at 80% efficiency while releasing minimal heat. With less heat generated, less noise arises.
Stealth Black : The stealthy PSU provides durability and luxury while being exceptionally economically competent.
SMART VENTILATION : The power supply unit supports automatic fan speed optimization which adjusts its fan speed according to the temperature and load
EXPERT SPECIFICATION
Model : HELIOS E1-600
POWER Type : ATX12V v2.4
Efficiency : Meeting up to 80% efficiency
Support MB Sync : No
Dimension (L x W x H) : 140 x 150 x 86 mm
Support C6/C7 power state : Yes
AC Input : 220-240V / 6A / 47-63Hz
DC Output : +3.3V / +5V / +12V / -12V / +5Vsb
Max. Output Current : 16A / 16A / 40.5A / 0.3A / 2.5A
Max. Output Power : 100W / 486W / 3.6W / 12.5W
Total Power : 600W
Protection : OVP / UVP / OPP / SCP
Main Power : 1 (20+4 Pin)
CPU : 1 (4+4 Pin)
PCI-E : 2 (6+2 Pin)
SATA : 5 (5 Pin)
Molex : 2 (4 Pin)
Floppy : 1 (4 Pin)
Modular : Non Modular
Silent Mode : No
DC to DC : No
Add to cart
Quick View
(0)
COMPUTER PARTS
GAMDIAS AEOLUS P2-1203 120mm ARGB PC Case Fans, Cable-less Daisy Chain Connection, Dual Infinity Mirror Lighting, Swappable Fan Blade for Reverse Airflow, Performance 30mm Thick
$ 48.00 ---ONLY---
P2-1203 GAMDIAS 120mm ARGB PC Case Fans
Brand : GAMDIAS
Included components : Fan x 3, Reverse Fan Blade x 3, Extension Cable x 2
Compatible devices : Desktop
Model name : AEOLUS P2-1203
EXPERT FEATURES
Cable-less Daisy Chain Design:
Each AEOLUS P2 fan can link up without multiple cables due to a solid interlocking structural design, creating a convenient assembly experience.
Daisy-chain multiple fans and connect them to the USB AEOLUS BOX II to fully customize your experience through our ZEUS CAST software, adjusting lighting effects, fan speeds, and more.
Swappable Fan Blades Included :
AEOLUS P2-1203 includes three pre-installed standard orientation fan blades and three reversed orientation fan blades, offering a flexible option for switching the airflow from intake to exhaust without changing the fan case orientation.
With a premium hydraulic bearing and PWM function, the fans can generate maximum airflow at minimal noise while maintaining a long lifespan.
Airflow Configuration:
The AEOLUS P2 fans allow you to configure airflow orientation without sacrificing aesthetics simply by replacing the inner fan blades from intake to exhaust and vice versa.
30mm Frame Thickness:
The increased overall thickness of the frame to 30mm expands the contact surface for the fan blades and air tunnel and offers superior air pressure of up to 3.1mmH2O and airflow of up to 74.97 CFM with fan speeds ranging between 1000 and 2400 RPM.
Gamdias Ecosystem:
The AEOLUS P2-1203 is compatible with USB AEOLUS BOX II ” NOT INCLUDED” and ZEUS CAST software.
Users can customize the lighting effects including the interior and exterior strips, brightness, and lighting speed via ZEUS CAST software when the fans are connected to the USB AEOLUS BOX II.
ZEUS CAST software allows adjustment to the fan speed based on the temperature and provides real-time status to monitor cooling performance.
EXPERT SPECS
Model
Brand
GAMDIAS
Series
AEOLUS
Details
Fan Counts
3 Fans
Type
Case Fan
Compatibility
5v 3pin
Fan Thickness
30mm
Bearing Type
Hydraulic
RPM
2400
Air Flow
74.97 CFM
Air Pressure
3.1 mmH2O
Power Connector
4 Pin PWM
Color
Black
LED
ARGB
GAM-P2-1203
GAMDIAS 120mm ARGB PC Case Fans
GAMDIAS AEOLUS P2-1203U 120mm ARGB PC Case Fans, Cable-less Daisy Chain Connection, Dual Infinity Mirror Lighting, Swappable Fan Blade for Reverse Airflow, Performance 30mm Thick
Add to cart
Quick View
(0)
COMPUTER PARTS
GAMDIAS AEOLUS P2-1203U 120mm ARGB PC Case Fans, Cable-less Daisy Chain Connection, Dual Infinity Mirror Lighting, Swappable Fan Blade for Reverse Airflow, Performance 30mm Thick, With Controller
$ 70.00 ---ONLY---
GAMDIAS 120mm ARGB PC Case Fans
Brand : GAMDIAS
Included components : Fan x 3, Reverse Fan Blade x 3, Extension Cable x 2, Lighting Controller x 1 “USB AEOLUS BOX II “
Compatible devices : Desktop
Model name : AEOLUS P2-1203U
EXPERT FEATURES
Cable-less Daisy Chain Design:
Each AEOLUS P2 fan can link up without multiple cables due to a solid interlocking structural design, creating a convenient assembly experience.
Daisy-chain multiple fans and connect them to the USB AEOLUS BOX II to fully customize your experience through our ZEUS CAST software, adjusting lighting effects, fan speeds, and more.
Swappable Fan Blades Included :
AEOLUS P2-1203 includes three pre-installed standard orientation fan blades and three reversed orientation fan blades, offering a flexible option for switching the airflow from intake to exhaust without changing the fan case orientation.
With a premium hydraulic bearing and PWM function, the fans can generate maximum airflow at minimal noise while maintaining a long lifespan.
Airflow Configuration:
The AEOLUS P2 fans allow you to configure airflow orientation without sacrificing aesthetics simply by replacing the inner fan blades from intake to exhaust and vice versa.
30mm Frame Thickness:
The increased overall thickness of the frame to 30mm expands the contact surface for the fan blades and air tunnel and offers superior air pressure of up to 3.1mmH2O and airflow of up to 74.97 CFM with fan speeds ranging between 1000 and 2400 RPM.
Gamdias Ecosystem:
The AEOLUS P2-1203 is compatible with USB AEOLUS BOX II and ZEUS CAST software.
Users can customize the lighting effects including the interior and exterior strips, brightness, and lighting speed via ZEUS CAST software when the fans are connected to the USB AEOLUS BOX II.
ZEUS CAST software allows adjustment to the fan speed based on the temperature and provides real-time status to monitor cooling performance.
EXPERT SPECS
Model
Brand
GAMDIAS
Series
AEOLUS
Details
Fan Counts
3 Fans
Type
Case Fan
Compatibility
5v 3pin
Fan Thickness
30mm
Bearing Type
Hydraulic
RPM
2400
Air Flow
74.97 CFM
Air Pressure
3.1 mmH2O
Power Connector
4 Pin PWM
Color
Black
LED
ARGB
GAM-P2-1203U
GAMDIAS 120mm ARGB PC Case Fans
GAMDIAS AEOLUS P2-1203U 120mm ARGB PC Case Fans, Cable-less Daisy Chain Connection, Dual Infinity Mirror Lighting, Swappable Fan Blade for Reverse Airflow, Performance 30mm Thick, With Controller
Add to cart
Quick View
(0)
COMPUTER PARTS
GAMDIAS AEOLUS P2-1201 120mm ARGB PC Case Fan, Cable-less Daisy Chain Connection, Dual Infinity Mirror Lighting, Swappable Fan Blade for Reverse Airflow, Performance 30mm Thick – ONE FAN
$ 17.00 ---ONLY---
GAMDIAS AEOLUS P2-1201 120mm ARGB PC Case Fan
Brand : GAMDIAS
Included components : One Fan Reverse Fan Blade
Compatible devices : Desktop
Model name : AEOLUS P2-1201
EXPERT FEATURES
Cable-less Daisy Chain Design:
Each AEOLUS P2 fan can link up without multiple cables due to a solid interlocking structural design, creating a convenient assembly experience.
Daisy-chain multiple fans and connect them to the USB AEOLUS BOX II to fully customize your experience through our ZEUS CAST software, adjusting lighting effects, fan speeds, and more.
Swappable Fan Blades Included :
AEOLUS P2-1201 includes a pre-installed standard orientation fan blade and a reversed orientation fan blade, offering a flexible option for switching the airflow from intake to exhaust without changing the fan case orientation.
With a premium hydraulic bearing and PWM function, the fan can generate maximum airflow at minimal noise while maintaining a long lifespan.
Airflow Configuration:
The AEOLUS P2 fans allow you to configure airflow orientation without sacrificing aesthetics simply by replacing the inner fan blades from intake to exhaust and vice versa.
30mm Frame Thickness:
The increased overall thickness of the frame to 30mm expands the contact surface for the fan blades and air tunnel and offers superior air pressure of up to 3.1mm H2O and airflow of up to 74.97 CFM with fan speeds ranging between 1000 and 2400 RPM.
Gamdias Ecosystem:
The AEOLUS P2-1201 is compatible with USB AEOLUS BOX II ” NOT INCLUDED” and ZEUS CAST software.
Users can customize the lighting effects including the interior and exterior strips, brightness, and lighting speed via ZEUS CAST software when the fans are connected to the USB AEOLUS BOX II.
ZEUS CAST software allows adjustment to the fan speed based on the temperature and provides real-time status to monitor cooling performance.
EXPERT SPECS
Model
Brand
GAMDIAS
Series
AEOLUS
Details
Fan Counts
1 Fans
Type
Case Fan
Compatibility
5v 3pin
Fan Thickness
30mm
Bearing Type
Hydraulic
RPM
2400
Air Flow
74.97 CFM
Air Pressure
3.1 mmH2O
Power Connector
4 Pin PWM
Color
Black
LED
ARGB

GAM-P2-1201
GAMDIAS 120mm ARGB PC Case Fans
GAMDIAS AEOLUS P2-1201 120mm ARGB PC Case Fans, Cable-less Daisy Chain Connection, Dual Infinity Mirror Lighting, Swappable Fan Blade for Reverse Airflow, Performance 30mm Thick – ONE FAN
Add to cart
Quick View
(0)
Computer Cases
GAMDIAS TALOS E3 MESH ELITE PC CASE , ATX Gaming Computer Cases, Mid Tower, Pre-installed 3 ARGB PWM Fans , Tempered Glass Panel, Airflow Mesh, Support Dual 360 – BLACK
$ 60.00 ---ONLY---
GAMDIAS TALOS E3 MESH ELITE BLACK PC CASE
Expert Description
Perforated Front Panel: The TALOS E3 MESH ELITE comes with a highly perforated front panel with 5.0mm air vents optimized to provide superior air intake and improved temperatures.
3 Built-in ARGB PWM Fans: Featuring two built-in 140mm PWM ARGB fans at the front and a 120mm one at the back, the case can provide exceptional lighting and fine-tuned airflow.
Cooling Compatibility: The case supports three 120mm or two 140mm fans up front. Multiple mounting points for 360/280mm radiators up front, and at the top. The massive capacity also allows CPU cooler height up to 180mm.
Interior Accommodation: Designed with a compact form factor, the case offers the option to house up to E-ATX motherboards and VGA cards up to 390mm.
Gen 2 Type-C Interface: The I/O features one USB 3.2 Gen 2 Type-C port for high transfer speeds up to 10 Gbps, USB 3.0 port, fan LED controls, and additional audio connectivity.
Expert Specifications
Model
TALOS E3 MESH ELITE BK
Case Type
MID Tower
MB Support
E-ATX、ATX、Micro-ATX、Mini-ITX
Synchronization
5V 3-Pin Addressable Header
Case Color
Black
Expansion Slots
7 + 3
Material
SPCC & ABS & Tempered glass
Radiator Support
Top: 360mm、280mm / Front: 360mm、280mm / Rear: 120mm、140mm
Fan Support
Top: 3 x 120mm、2 x 140mm / Front: 3 x 120mm 、2 x 140mm / Rear: 1 x 120mm、1 x140mm
Pre-installed Fans
Front: 2 x 140mm ARGB PWM Fans / Rear: 1 x 120mm ARGB PWM Fan
Drive Bays
2 x 3.5″ or 1 x 2.5″+1 x 3.5″(HDD Cage) 4 x 2.5″ (SSD Bracket)
I/O Port
USB 3.0 x1、Type C x1、HD Audio x1、LED control x1
Clearance
CPU cooler height limitation: 180mm / VGA length limitation: 390mm / PSU length limitation: 200mm
Dimension (L x W x H)
440 x 230 x 480mm
TAL-E3MESH-EL-BK
GAMDIAS TALOS E3 MESH ELITE BLACK PC CASE
GAMDIAS TALOS E3 MESH ELITE PC CASE , ATX Gaming Computer Cases, Mid Tower, Pre-installed 3 ARGB PWM Fans , Tempered Glass Panel, Airflow Mesh, Support Dual 360 – BLACK
Add to cart
Quick View
(0)
Computer Cases
GAMDIAS TALOS E3 MESH ELITE WHITE PC CASE , ATX Gaming Computer Cases, Mid Tower, Pre-installed 3 ARGB PWM Fans , Tempered Glass Panel, Airflow Mesh, Support Dual 360, White
$ 60.00 ---ONLY---
GAMDIAS TALOS E3 MESH ELITE WHITE PC CASE
Expert Description
GAMDIAS TALOS E3 MESH ELITE WH Gaming Case
Airflow Perfected. Unleash Performance.
The TALOS E3 MESH ELITE Series, in matte black and snow white, is a mid-tower case that focuses on maximizing compatibility and airflow performance. It is equipped with two 140mm PWM ARGB fans at the front and a 120mm one at the rear, a perforated mesh front panel while providing an elegant look with a protruding PSU shroud and a tempered glass side panel.
Perforated Mesh Front Panel Provides Optimal Ventilation
Supports Dual 360mm Radiator
3 Built-in PWM ARGB Fans
Sync with 5V ARGB Motherboard
Supports Motherboards up to E-ATX
Compatible with 390mm GPU
Gen 2 Type-C Port Ready
Airflow Perfected. Unleash Performance.
The TALOS E3 MESH ELITE Series, in matte black and snow white, is a mid-tower case that focuses on maximizing compatibility and airflow performance. It is equipped with two 140mm PWM ARGB fans at the front and a 120mm one at the rear, a perforated mesh front panel while providing an elegant look with a protruding PSU shroud and a tempered glass side panel.
PERFORATED FRONT PANEL
The TALOS E3 MESH ELITE WH comes with a highly perforated front panel with 5.0mm air vents optimized to provide superior air intake and improved temperatures.
3 BUILT-IN ARGB PWM FANS
Featuring two built-in 140mm PWM ARGB fans at the front and a 120mm one at the back, the case can provide exceptional lighting and fine-tuned airflow.
SHOW OFF YOUR BUILD
TALOS E3 MESH ELITE WH supports system-wide ARGB to be compatible motherboards with lighting synchronization fully displayed by the perforated front panel and the tempered glass side panel.
GEN 2 TYPE-C INTERFACE
The I/O features one USB 3.2 Gen 2 Type-C port for high transfer speeds up to 10 Gbps, USB 3.0 port, fan LED controls, and additional audio connectivity.
COOLING COMPATIBILITY
The case supports three 120mm or two 140mm fans up front. Multiple mounting points for 360/280mm radiators up front, and at the top. The massive capacity also allows CPU cooler height up to 180mm.
*Swap out the rear 120mm fan temporarily to install the top 360mm radiator, then reattach the fan once the top radiator is set up.
INTERIOR ACCOMMODATION
Designed with a compact form factor, the case offers the option to house up to E-ATX motherboards and VGA cards up to 390mm.
FLEXIBLE STORAGE SOLUTION
The interior configuration has ample room for cable management optimization and supports PSU lengths up to 200mm.
MAGNETIC DUST FILTER
In order to make cleaning out dust easier than ever, the case is equipped with dust filters on the top, front, and bottom of the case.
Expert Specifications
Model
TALOS E3 MESH ELITE WH
Case Type
MID Tower
MB Support
E-ATX、ATX、Micro-ATX、Mini-ITX
Synchronization
5V 3-Pin Addressable Header
Case Color
White
Expansion Slots
7 + 3
Material
SPCC & ABS & Tempered glass
Radiator Support
Top: 360mm、280mm / Front: 360mm、280mm / Rear: 120mm、140mm
Fan Support
Top: 3 x 120mm、2 x 140mm / Front: 3 x 120mm 、2 x 140mm / Rear: 1 x 120mm、1 x140mm
Pre-installed Fans
Front: 2 x 140mm ARGB PWM Fans / Rear: 1 x 120mm ARGB PWM Fan
Drive Bays
2 x 3.5″ or 1 x 2.5″+1 x 3.5″(HDD Cage) 4 x 2.5″ (SSD Bracket)
I/O Port
USB 3.0 x1、Type C x1、HD Audio x1、LED control x1
Clearance
CPU cooler height limitation: 180mm / VGA length limitation: 390mm / PSU length limitation: 200mm
Dimension (L x W x H)
440 x 230 x 480mm
TAL-E3MESH-EL-WH
GAMDIAS TALOS E3 MESH ELITE WHITE PC CASE
GAMDIAS TALOS E3 MESH ELITE WHITE PC CASE , ATX Gaming Computer Cases, Mid Tower, Pre-installed 3 ARGB PWM Fans , Tempered Glass Panel, Airflow Mesh, Support Dual 360, White
Add to cart
Quick View
(0)
COMPUTER PARTS
GAMDIAS BOREAS E1-210 LITE CPU Air Cooler , High Airflow 92mm Fan , 2 Copper Direct Contact Heat Pipes ,LED Illumination , Hydraulic Bearing , Mounting Kits (LGA 1700 / AM5)
$ 12.00 ---ONLY---
GAMDIAS BOREAS E1-210 LITE CPU Air
EXPERT FEATURES
BASIC CPU FAN : The BOREAS E1-210 LITE is GAMDIAS’s entry-level 92mm 2 heat pipes CPU air cooler with fixed rainbow lighting. It features all of GAMDIAS cooling technologies while keeping the product highly competitive.
HYDRAULIC AIRFLOW FAN : The BOREAS E1-210 LITE features a 92mm hydraulic bearing fan with up to 2200 RPM to achieve great airflow while retaining excellent durability for long-lasting performance.
EXCELLENT THERMAL CONDUCTIVITY : The BOREAS E1-210 LITE is designed with 2 copper heat pipes with a baseplate that features GAMDIAS Heatpipe DTC for unobstructed heat transfer and dissipation offering extraordinary cooling performance.
UNIVERSAL COMPATIBILITY : The BOREAS E1-210 Series comes with the GAMDIAS Universal Mounting Kit for easy installs on both the lastest Intel and AMD platforms. (LGA 1700 / AM5)
EXPERT SPECIFICATIONS
Model : BOREAS E1-210 LITE
Package Contents
AirCooler92 mm Fan：1
Tower Heatsink with 2 Heatpipes：1
Thermal Grease：1
Universal Socket Mounting Kits
AIR COOLER – FAN
Fan Dimensions : 92 x 92 x 25 mm
Fin Material : Aluminum
Fan Speed : 2200 RPM ±10%
Air Flow : 34.6 CFM
Air Pressure : 1.91 mmH2O
Noise Level : 31 dBA
Bearing : Hydraulic
AIR COOLER
Heatpipe Material : Copper
Product Dimensions : 92 x 44 x 127 mm
Connector : 3 Pin PWM
Rated Voltage : 12 V (Fan)
Compatibility : LGA 1700 / 1151 / 1150 / 1155 / 1156 / 1200
AMD5 / AMD4 / AMD3
Add to cart
Quick View
(0)
COMPUTER PARTS
CPU Intel Core i9-14900 – Core i9 14th Gen Raptor Lake 24-Core (8P+16E) up to 5.8 GHz LGA 1700 65W Intel UHD Graphics 770 Processor Boxed ; includes Heatsink – CM8071504820609
$ 472.00 ---ONLY---
CPU Intel Core i9-14900 Core i9 14th Gen
Expert Features
24 cores (8 P-cores + 16 E-cores) and 32 threads. Integrated Intel UHD Graphics 770 included.
Performance hybrid architecture integrates two core microarchitectures, prioritizing and distributing workloads to optimize performance
Up to 5.8 GHz unlocked. 36MB Cache
Compatible with Intel 600-series (with potential BIOS update) and 700-series chipset-based motherboards
Turbo Boost Max Technology 3.0 Frequency, and PCIe 5.0 & 4.0 support. DDR4 and DDR5 Memory support. RH1 thermal solution included.
Includes lntel Laminar RH1 Cooler
Expert Specs
Model
Brand
Intel
Processors Type
Desktop
Series
Core i9 14th Gen
Name
Core i9-14900
Model
CM8071504820609
Details
CPU Socket Type
LGA 1700
Core Name
Raptor Lake
# of Cores
24-Core (8P+16E)
# of Threads
32-Threads
Max Turbo Frequency
Intel Thermal Velocity Boost Frequency: Up to 5.8 GHz
Intel Turbo Boost Max Technology 3.0 Frequency: Up to 5.6 GHz
P-core Max Turbo Frequency: Up to 5.4 GHz
E-core Max Turbo Frequency: Up to 4.3 GHz
L2 Cache
32MB
L3 Cache
36MB
Manufacturing Tech
Intel 7
64-Bit Support
Yes
Hyper-Threading Support
Yes
Memory Types
DDR4 3200 / DDR5 5600
Memory Channel
2
Max Memory Size
192 GB
ECC Memory
Supported
Virtualization Technology Support
Yes
Integrated Graphics
Intel UHD Graphics 770
Scalability
1S Only
PCI Express Revision
5.0 / 4.0
Max Number of PCI Express Lanes
20
Thermal Design Power
65W
Max Turbo Power
219W
Cooling Device
Cooling device not included – Processor Only
Compatible Desktop Chipsets
Intel H610 / Intel H670 / Intel B660 / Intel Q670 / Intel W680 / Intel Z690 / Intel H770 / Intel B760 / Intel Z790
* BIOS update may be required when used with some old chipset motherboard
Operating System Supported
Linux / Windows 10 (22H2, 21H2) / Windows 11 (22H2, 21H2)
Add to cart
Quick View
(0)
COMPUTER PARTS
MSI MAG X670E TOMAHAWK WIFI motherboard AMD X670 Socket AM5 ATX , 6600 MHz Memory Clock Speed , PCI-Express x16 Graphics Card Interface ,Extended Heatsink Extended VRM Heatsink
$ 306.00 ---ONLY---
MSI MAG X670E TOMAHAWK WIFI motherboard AMD
Expert Features
Supports AMD Ryzen™ 8000 / 7000 Series Desktop Processors
Supports DDR5 Memory, up to 7800+(OC) MHz
Enhanced Power Design: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen5 M.2, USB 3.2 Gen 2×2
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
High Quality PCB: 8-layer PCB made by 2oz thickened copper and server grade level material

Expert Specs
Model
Brand
MSI
Model
MAG X670E TOMAHAWK WIFI
Supported CPU
CPU Socket Type
AM5
CPU Type
Ryzen 7000 Series
Chipsets
Chipset
AMD X670E
Memory
Number of Memory Slots
4x288pin (DDR5)
Memory Standard
Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
– 1DPC 1R Max speed up to 7800+ MHz
– 1DPC 2R Max speed up to 6400+ MHz
– 2DPC 1R Max speed up to 6400+ MHz
– 2DPC 2R Max speed up to 5400+ MHz
Maximum Memory Supported
192GB
Channel Supported
Dual Channel
ECC Supported
Non-ECC
Buffer Supported
Un-buffered
Memory Feature
Supports AMD EXPO
Expansion Slots
PCI Express 5.0 x16
3 x PCI-E x16 slot Supports x16/x4/x2
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From CPU)
PCI_E4 Gen PCIe 4.0 supports up to x2 (From Chipset)
*PCI_E4 & M2_4 share the bandwidth. M2_4 will run at x2 speed when installing device in the PCI_E4 slot.
PCI Express x1
1 x PCI-E x1 slot
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage Devices
SATA 6Gb/s
4 x SATA 6Gb/s
M.2
4 x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 22110/2280 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices*PCI_E4 & M2_4 share the bandwidth. M2_4 will run at x2 speed when installing device in the PCI_E4 slot.
SATA RAID
Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Additional RAID Controller
Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices
Onboard Audio
Audio Chipset
Realtek ALC1200
Audio Channels
7.1 Channels
Onboard LAN
LAN Chipset
Realtek RTL8125BG
Max LAN Speed
2.5Gbps
Wireless LAN
AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
Bluetooth
Bluetooth 5.3**
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Rear Panel Ports
Back I/O Ports
1 x DisplayPort
1 x USB 3.2 Gen 2 10Gbps (Type-A)
1 x USB 3.2 Gen 2 5Gbps (Type-A)
1 x 2.5G LAN
1 x Wi-Fi / Bluetooth
5 x Audio Connectors
1 x Flash BIOS Button
1 x HDMI
1 x USB 3.2 Gen 2 10Gbps (Type-C Display port)
1 x USB 3.2 Gen 2×2 20Gbps (Type-C)1 x S/PDIF-Out
Internal I/O Connectors
Onboard USB
4 x USB 2.0 ports
4 x USB 3.2 Gen1 Type A ports
1 x USB 3.2 Gen2 Type C ports
Other Connectors
1 x CPU Fan
1 x Pump Fan
6 x System Fan
2 x Front Panel (JFP)
1 x Chassis Intrusion (JCI)
1 x Front Audio (JAUD)
1 x Tuning Controller connector(JDASH)
2 x Addressable V2 RGB LED connector (JARGB_V2)
2 x RGB LED connector(JRGB)
1 x TPM pin header(Support TPM 2.0)
Physical Spec
Form Factor
ATX
LED Lighting
4 x EZ Debug LED
Dimensions (W x L)
12.0″ x 9.6″
Power Pin
1 x Power Connector(ATX_PWR)
2 x Power Connector(CPU_PWR)
Windows 11 Compatibility
Windows 11
Supported
911-7E12-003
MSI MAG X670E TOMAHAWK WIFI motherboard AMD
MSI MAG X670E TOMAHAWK WIFI motherboard AMD X670 Socket AM5 ATX , 6600 MHz Memory Clock Speed , PCI-Express x16 Graphics Card Interface ,Extended Heatsink Extended VRM Heatsink
Add to cart

what are you looking for?

close
